Rohde & Schwarz ZVA8 User manual

R&S® ZVA
Vector Network Analyzers
Quick Start Guide
Quick Start Guide
(;]:èÌ)
1145.1090.62 ─ 10
Test & Measurement

This quick start guide describes the following vector network analyzer types:
●R&S® ZVA8, order no. 1145.1110.08/10 (2 or 4 test ports)
●R&S® ZVA24, order no. 1145.1110.24/26 (2 or 4 test ports)
●R&S® ZVA40, order no. 1145.1110.40/42/43/45 (2.92 mm, 2 or 4 test ports and 2.4 mm, 2 or 4 test ports)
●R&S® ZVA50, order no. 1145.1110.50/52 (2 or 4 test ports)
●R&S® ZVA67, order no. 1305.7002.02/04 (2 or 4 test ports)
●R&S® ZVA80, order no. 1312.6750.02/03/04. An additional quick start guide 1312.6808.62 is available
for these instruments.
●R&S® ZVA110, order no. 1312.7004.03/04. An additional quick start guide 1314.4502.62 is available for
these instruments.
© 2010 Rohde & Schwarz GmbH & Co. KG
Muehldorfstr. 15, 81671 Munich, Germany
Phone: [phone] - 0
Fax: [phone]
E-mail: [email protected]
Internet: http://www.rohde-schwarz.com
Printed in Germany – Subject to change – Data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
The following abbreviations are used throughout this guide: R&S® ZVAxx is abbreviated as R&S ZVAxx, R&S® ZVA-xxx as R&S ZVA-
xxx

Contents
R&S® ZVA
3Quick Start Guide 1145.1090.62 ─ 10
Contents
1Preparing the Analyzer for Use.............................................................7
1.1 Front Panel Tour...........................................................................................................7
1.1.1 Display............................................................................................................................8
1.1.2 Setup Keys......................................................................................................................9
1.1.3 Navigation Keys............................................................................................................10
1.1.4 Data Entry Keys............................................................................................................11
1.1.5 Rotary Knob..................................................................................................................12
1.1.6 Standby Key..................................................................................................................12
1.1.7 Front Panel Connectors................................................................................................12
1.1.8 Additional Hardware Options........................................................................................14
1.2 Rear Panel Tour...........................................................................................................15
1.3 Putting the Analyzer into Operation..........................................................................16
1.3.1 Unpacking and Checking the Analyzer.........................................................................17
1.3.2 Setting up the Analyzer.................................................................................................18
1.3.3 Bench Top Operation....................................................................................................18
1.3.4 Operation in a 19" Rack................................................................................................19
1.3.5 EMI Suppression...........................................................................................................19
1.3.6 Connecting the Analyzer to the AC Supply...................................................................20
1.3.7 Power on and off...........................................................................................................20
1.3.8 Standby and Ready State.............................................................................................21
1.3.9 Replacing Fuses...........................................................................................................21
1.4 Starting the Analyzer and Shutting Down.................................................................21
1.5 Connecting External Accessories.............................................................................22
1.5.1 Connecting a Mouse.....................................................................................................23
1.5.2 Connecting a Keyboard.................................................................................................23
1.5.3 Connecting a Printer.....................................................................................................23
1.5.4 Connecting a Monitor....................................................................................................24
1.5.5 Connecting a LAN Cable...............................................................................................24
1.5.6 Test Setups with two LAN Connections........................................................................25
1.6 Remote Operation in a LAN.......................................................................................26
1.6.1 Assigning an IP Address...............................................................................................26

Contents
R&S® ZVA
4Quick Start Guide 1145.1090.62 ─ 10
1.6.2 Remote Desktop Connection........................................................................................28
1.7 Windows XP.................................................................................................................28
1.8 Firmware Update.........................................................................................................29
2Getting Started.....................................................................................30
2.1 Performing a Reflection Measurement.....................................................................30
2.1.1 Instrument Setup for Reflection Measurements............................................................31
2.1.2 Parameter and Sweep Range Selection.......................................................................32
2.1.3 Instrument Calibration ..................................................................................................33
2.1.4 Evaluation of Data ........................................................................................................35
2.1.5 Saving and Printing Data .............................................................................................36
2.2 Performing a Transmission Measurement...............................................................37
2.3 Basic Tasks.................................................................................................................37
2.3.1 Control via Front Panel Keys........................................................................................37
2.3.2 Data Entry.....................................................................................................................39
2.3.3 Scaling Diagrams..........................................................................................................41
3System Overview.................................................................................45
3.1 Basic Concepts...........................................................................................................45
3.1.1 Global Resources..........................................................................................................45
3.1.2 Setups...........................................................................................................................46
3.1.3 Traces, Channels and Diagram Areas..........................................................................46
3.1.4 Data Flow......................................................................................................................48
3.2 Screen Elements.........................................................................................................50
3.2.1 Navigation Tools of the Screen.....................................................................................50
3.2.2 Display Elements in the Diagram Area.........................................................................54
3.2.3 Dialogs..........................................................................................................................62
3.2.4 Display Formats and Diagram Types............................................................................65
3.3 Measured Quantities...................................................................................................74
3.3.1 S-Parameters................................................................................................................74
3.3.2 Impedance Parameters.................................................................................................76
3.4 Calibration...................................................................................................................85
3.4.1 Calibration Standards and Calibration Kits...................................................................86
3.4.2 Calibration Types..........................................................................................................87
3.4.3 Automatic Calibration....................................................................................................88

Contents
R&S® ZVA
5Quick Start Guide 1145.1090.62 ─ 10
3.4.4 Power Calibration..........................................................................................................90
3.4.5 Offset Parameters.........................................................................................................90
3.5 Optional R&S ZVA Extensions...................................................................................90
3.5.1 Time Domain (R&S ZVAB-K2)......................................................................................91
3.5.2 Arbitrary Generator and Receiver Frequencies (R&S ZVA-K4)....................................92
3.5.3 Scalar Mixer and Harmonics (R&S ZVA-K4).................................................................92
3.5.4 Mixer Phase Measurement (R&S ZVA-K5)...................................................................92
3.5.5 True Differential Mode (R&S ZVA-K6)..........................................................................93
3.5.6 Measurements on Pulsed Signals (R&S ZVA-K7)........................................................93
3.5.7 Converter Control (R&S ZVA-K8).................................................................................93
3.5.8 Mixer Delay w/o LO Access (R&S ZVA-K9)..................................................................94
3.5.9 Long Distance Mixer Delay (R&S ZVA-K10).................................................................94
3.5.10 Internal Pulse Generators (R&S ZVA-K27)...................................................................94
3.5.11 Noise Figure Measurement (R&S ZVAB-K30)..............................................................94
Glossary................................................................................................96
Index....................................................................................................102

Preparing the Analyzer for Use
R&S® ZVA
7Quick Start Guide 1145.1090.62 ─ 10
1 Preparing the Analyzer for Use
This chapter gives an overview of the front panel controls and connectors of the network
analyzer and gives all information that is necessary to put the instrument into operation
and connect external devices. Notes on reinstallation of the analyzer software appear at
the end of the chapter.
Safety considerations
Please make sure to observe the instructions of the following sections so that you cannot
endanger people or cause damage to the instrument. This is of particular importance
when you use the instrument for the first time. Also observe the general safety instructions
at the beginning of this manual.
Chapter 2 of this manual provides an introduction to the operation of the analyzer by
means of typical configuration and measurement examples; for a description of the oper-
ating concept and an overview of the instrument’s capabilities refer to chapter 3, "System
Overview", on page 45. For all reference information concerning manual and remote
control of the instrument refer to your analyzer's help system or its printed/printable ver-
sion. A more detailed description of the hardware connectors and interfaces is also part
of the help system.
1.1 Front Panel Tour
The front panel of the network analyzer consists of the VGA display with the softkey area
(left side), the hardkey area (right side) and the test port area below. Brief explanations
on the controls and connectors, the hardkey area and the rear panel can be found on the
next pages.
Front Panel Tour

Preparing the Analyzer for Use
R&S® ZVA
8Quick Start Guide 1145.1090.62 ─ 10

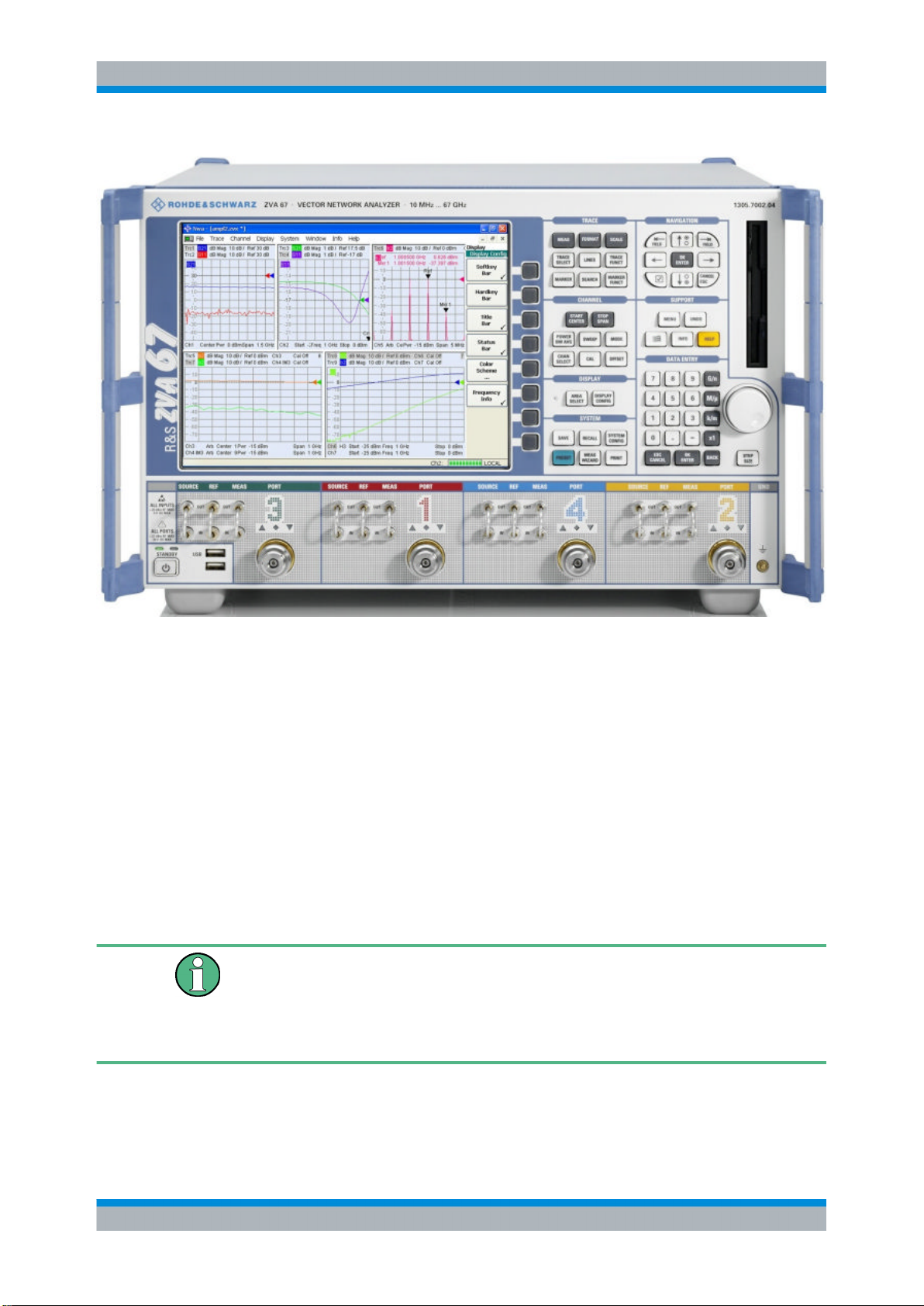

Fig. 1-1: R&S ZVA front view
1.1.1 Display
The analyzer is equipped with a color display providing all control elements for the meas-
urements and the diagram areas for the results.
●Refer to chapter 3.2.1, "Navigation Tools of the Screen", on page 50 to learn how
to use menus, keys and softkeys.
●Refer to chapter 3.2.2, "Display Elements in the Diagram Area", on page 54 to
obtain information about the results in the diagram area.
●Refer to section "Display Menu" in the help system and learn how to customize the
screen.
●Refer to the data sheet for the technical specifications of the display.
Screen saver
The screen saver function of the operating system switches off the display if the analyzer
receives no command for more than 8 minutes. It is switched on again if any front panel
key is pressed. To change the screen saver properties press the Windows key in the
SUPPORT keypad and click "Control Panel – Display – Screen Saver".
Front Panel Tour

Preparing the Analyzer for Use
R&S® ZVA
9Quick Start Guide 1145.1090.62 ─ 10
Short screen flicker
On instruments equipped with an FMR7 front module controller, you may observe a short
screen flicker when accessing the Windows desktop. The flicker does not occur while the
network analyzer is running; it does not impair the functionality of the instrument.
1.1.2 Setup Keys

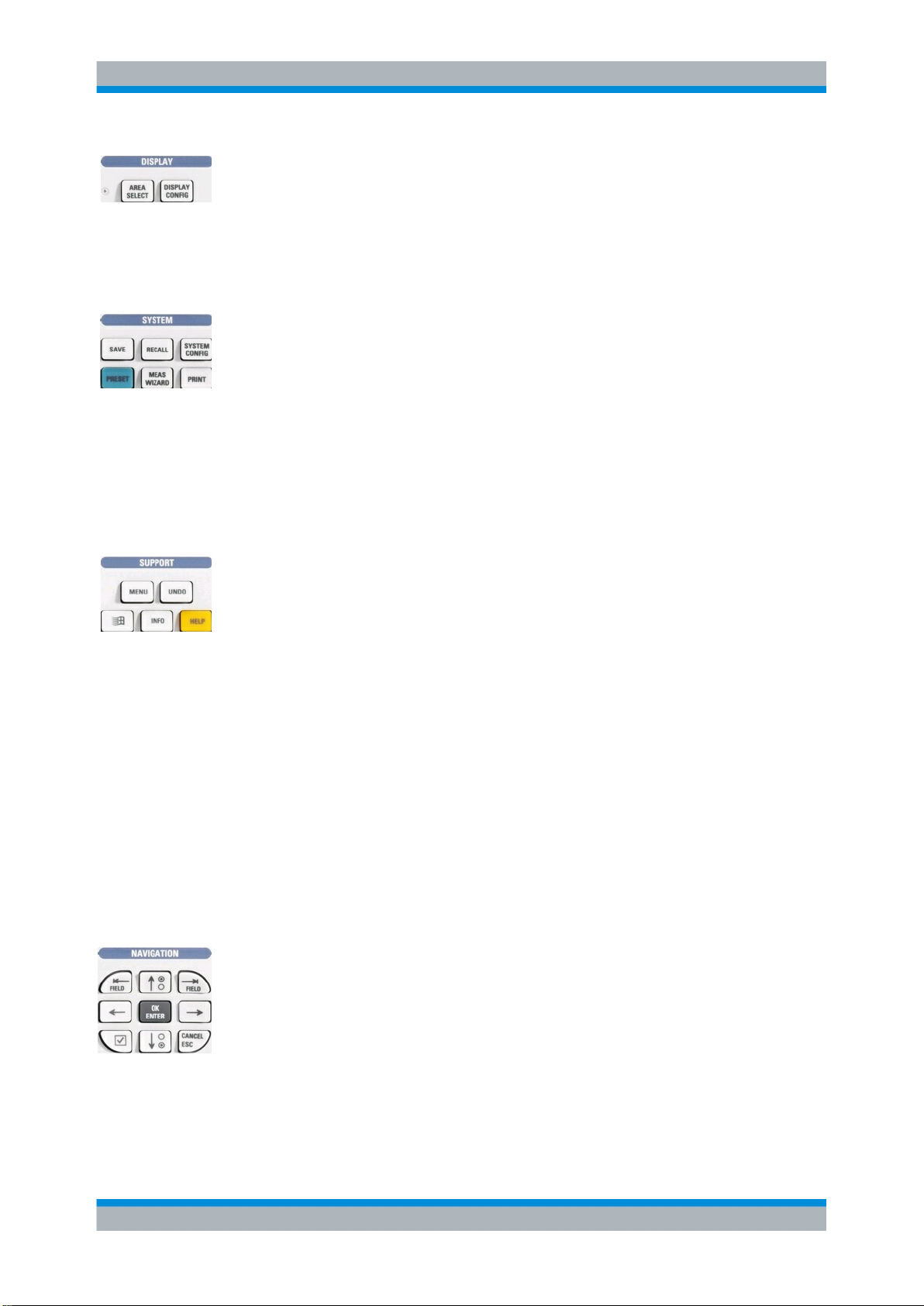

The keys in the TRACE, CHANNEL, DISPLAY, SYSTEM and SUPPORT keypads call
up groups of related measurement settings. Each key corresponds to a drop-down menu
or menu command of the graphical user interface.
The TRACE keys give access to all trace settings and the functions to select, modify and
store different traces. In addition the menu provides the marker, search and limit check
functions.
●MEAS selects the quantity to be measured and displayed.
●FORMAT defines how the measured data is presented in the graphical display.
●SCALE defines how the current trace is presented in the diagram selected in the
Format submenu.
●TRACE SELECT provides functions to handle traces and diagram areas, and assign
traces to channels.
●LINES defines limits for measured values and activates the limit check.
●TRACE FUNCT(ions) store traces to the memory and perform mathematical opera-
tions on traces.
●MARKER positions markers on a trace, configures their properties and selects the
format of the numerical readout.
●SEARCH uses markers to locate specific points on the trace.
●MARKER FUNCT(ions) define the sweep range, scale the diagram and introduce an
electrical length offset using the active marker.
The CHANNEL keys give access to all channel settings and the functions to activate,
modify and store different channels.
●START CENTER or STOP SPAN define the sweep range, depending on the sweep
type.
●POWER BW AVG defines the power of the internal signal source, sets the step
attenuators and the IF bandwidths, and configures the sweep average.
●SWEEP defines the scope of measurement, including the sweep type, the trigger
conditions and the periodicity of the measurement.
●MODE opens the Port Configuration dialog to define the properties of the physical
and logical (balanced) test ports.
●CHAN SELECT provides functions to handle and activate channels.
●CAL provides all functions that are necessary to perform a system error correction
(calibration).
●OFFSET provides a selection of length offset parameters to shift the measurement
plane.
Front Panel Tour

Preparing the Analyzer for Use
R&S® ZVA
10Quick Start Guide 1145.1090.62 ─ 10
The DISPLAY keys give access to all display settings and to the functions to activate,
modify and arrange different diagram areas.
●AREA SELECT provides functions to create and delete diagram areas and select an
area as the active area.
●DISPLAY CONFIG provides functions to arrange traces to diagram areas, arrange
the diagram areas in the active window and configure the screen and the diagram
areas.
The SYSTEM keys give access to the functions to return to a defined instrument state
and select general system settings.
●PRESET performs a general factory preset or user preset.
●SYSTEM CONFIG selects general system settings which do not only apply to a par-
ticular setup.
A second group of keys (uncolored) provides standard Windows™ functions to save,
recall or print setups and call up the measurement wizard.
●SAVE saves an opened setup to a specific file.
●RECALL recalls an existing setup from a file.
●PRINT prints a setup.
The SUPPORT keys give access to the functions to reverse operations, retrieve infor-
mation on the instrument and obtain assistance.
●UNDO reverses the previous operation.
●INFO calls up a table providing information about the current setup.
●HELP calls up the on-line help system.
A second group of keys (uncolored) is used to navigate within the graphical user interface:
●MENU sets the cursor to the first item (File) in the menu bar of the active application
(network analyzer or help system) if no dialog is open. In the network analyzer (NWA)
application, menus are equivalent to softkeys and provide fast access to all instru-
ment functions. The menus in the help system are required for accessing all help
functions by means of the front panel keys. In NWA dialogs, the MENU key opens
the control menu to move or close the dialog.
●The Windows key opens the startup menu of Windows XP Embedded from where it
is possible to perform system configurations and call up additional software utilities.
1.1.3 Navigation Keys
The keys in the NAVIGATION keypad are used to navigate within the NWA screen and
the help system, to access and control active elements.
The "Left Field" (= Tab) or "Right Field" (= Shift Tab) keys switch between several active
elements in dialogs and panes, e.g. in order to access:
●All control elements (e.g. buttons, numerical or text input fields, radio buttons, check-
marks, combo boxes etc.) in a dialog
●All links in a Help topic
Front Panel Tour

Preparing the Analyzer for Use
R&S® ZVA
11Quick Start Guide 1145.1090.62 ─ 10
The "Cursor Up" and "Cursor Down" keys are used to:
●Scroll up and down in lists, e.g. among menu items, in a list of keywords, in the Help
table of contents, or in the Help topic text
●Increase and decrease numeric input values
"Cursor Up" (Down) become inactive as soon as the beginning of the list is reached.
"Cursor Up" (Down) is equivalent to a rotation of the rotary knob to the right (left).
The "Cursor Left" and "Cursor Right" keys are used to:
●Move the cursor to the left or right within input fields
●Compress or expand menus or the Help table of contents
●Move the highlighted item in the menu bar of the active application
OK ENTER is used to:
●Activate the selected active control element, e.g. a button in a dialog or a link in the
Help
●Confirm selections and entries made and close dialogs
OK ENTER is equivalent to pressing the rotary knob or the OK ENTER key in the DATA
ENTRY keypad.
The "Checkmark" (= Space) key switches a checkmark control in a dialog on or off.
The CANCEL ESC key is used to:
●Close dialogs without activating the entries made (equivalent to the "Close" button)
●Close the Help
CANCEL ESC is equivalent to the CANCEL ESC key in the DATA ENTRY keypad.

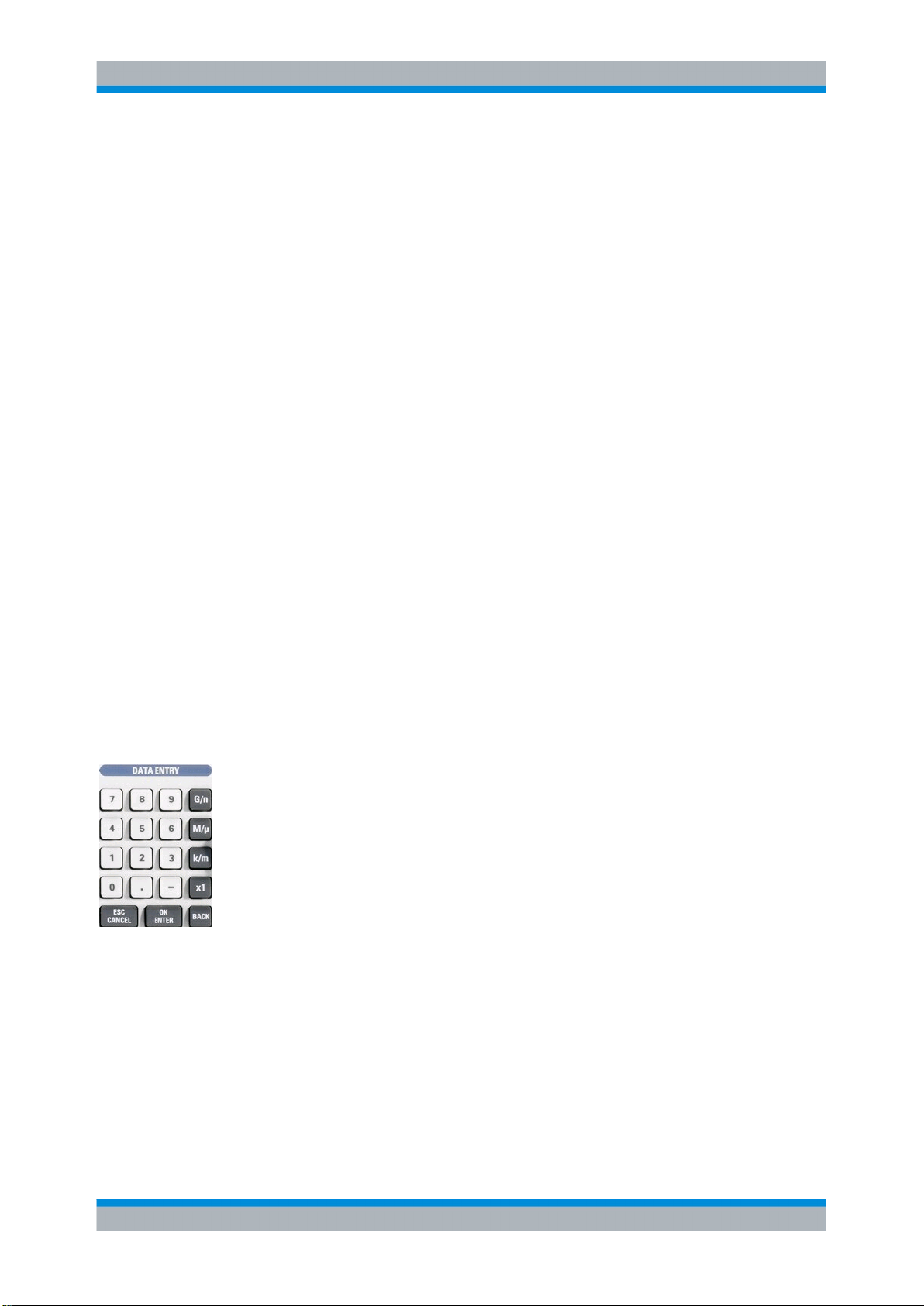

1.1.4 Data Entry Keys
The keys in the DATA ENTRY keypad are used to enter numbers, units, and characters.
The data entry keys are only enabled while the cursor is placed on a data input field in a
dialog or in the Help navigation pane.
The keys 0 to 9 enter the corresponding numbers.
The function of the "." and "–" keys depends on the data type of the active input field:
●In numeric input fields, the keys enter the decimal point and change the sign of the
entered numeric value. Multiple decimal points are not allowed; pressing "–" for a
second time cancels the effect of the first entry.
●In character input fields, the keys enter a dot and a hyphen, respectively. Both entries
can be repeated as often as desired.
The function of the four unit keys depends on the data type of the active input field; see
chapter 2.3.2, "Data Entry", on page 39.
●In numeric input fields (e.g. in the numeric entry bar), the G/n, M/μ, k/m or x1 keys
multiply the entered value with factors of 10(-)9, 10(-)6, 10(-)3 or 1 and add the appro-
priate physical unit. x1 is equivalent to OK ENTER. It confirms the previous entry and
deactivates the input field (closes the numeric entry bar).
Front Panel Tour

Preparing the Analyzer for Use
R&S® ZVA
12Quick Start Guide 1145.1090.62 ─ 10
●In character input fields, the G/n, M/μ, k/m keys enter the letters G, M, K, respectively.
x1 is equivalent to OK ENTER. It confirms the previous entry and deactivates the
input field (closes the numeric entry bar).
The ESC CANCEL and OK ENTER keys are equivalent to the corresponding keys in the
NAVIGATION keypad.
BACK deletes the last character before the cursor position or the selected character
sequence. If an entire numeric value is selected, BACK moves the cursor in front of the
first digit.

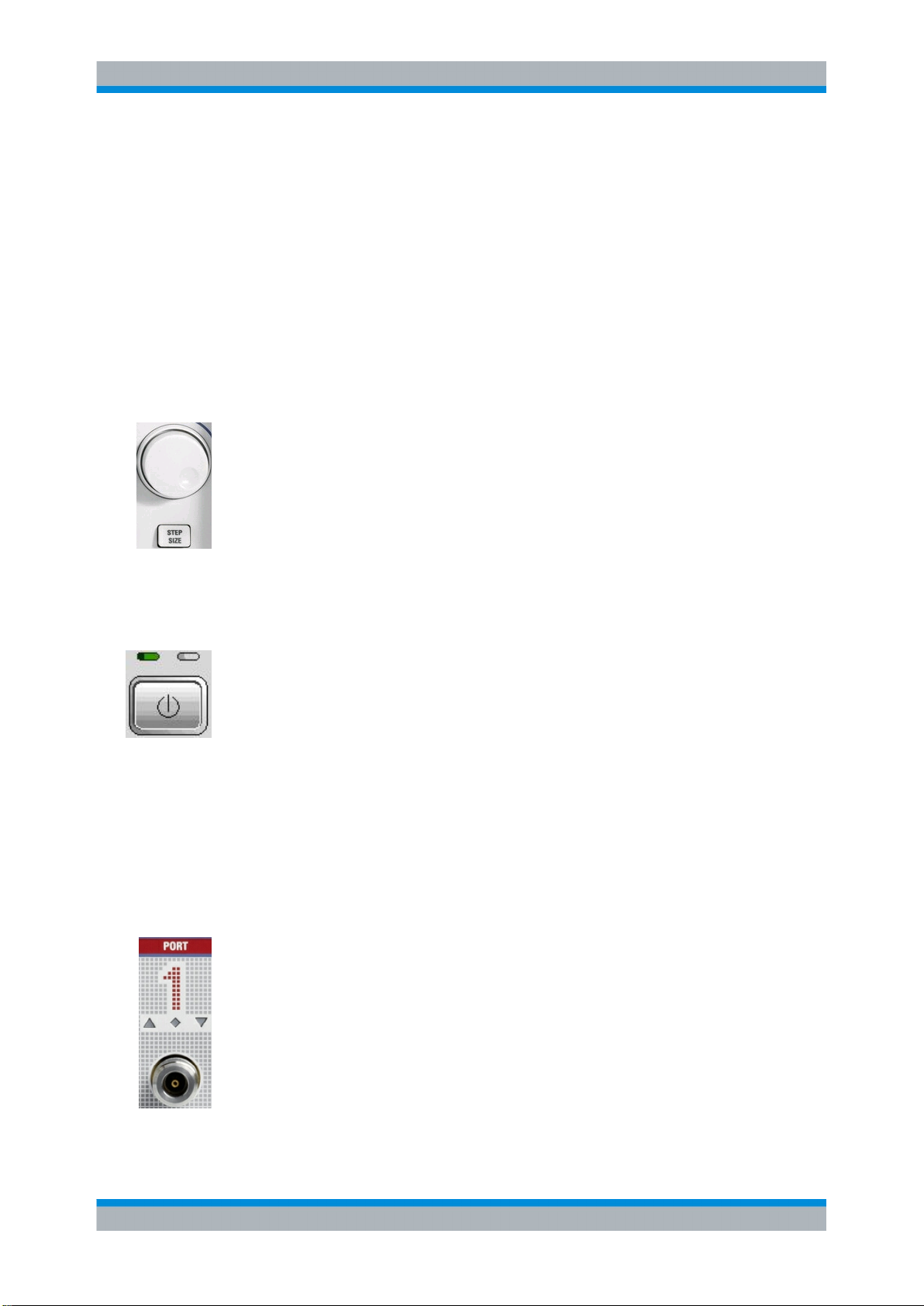

1.1.5 Rotary Knob
The rotary knob increases and decreases numerical values, scrolls within lists, activates
controls and confirms entries. Turning or pressing the rotary knob is equivalent to the
action of the "Cursor Up" and "Cursor Down" keys or the ENTER key in the NAVIGATION
keypad.
STEP SIZE opens an input box to select the steps (in units of the current physical param-
eter) between two consecutive values if the rotary knob is turned to increase or decrease
numeric values. See chapter 3.2.3.3, "Step Size", on page 64.
1.1.6 Standby Key
The standby toggle switch is located in the bottom left corner of the front panel.
The key serves two main purposes:
●Toggle between standby and ready state.
●Shut down the instrument.
1.1.7 Front Panel Connectors
The test ports and various additional connectors are located on the front panel of the
analyzer.
1.1.7.1 Test Ports
N-connectors (or smaller ruggedized connectors for microwave analyzer types), num-
bered 1, 2 ... The test ports serve as outputs for the RF stimulus signal and as inputs for
the measured RF signals from the DUT (response signals).
●With a single test port, it is possible to generate a stimulus signal and measure the
response signal in reflection.
●With 2, 3 or 4 test ports, it is possible to perform full two-port, 3-port or 4-port meas-
urements; see chapter 3.3.1, "S-Parameters", on page 74. Note that pairs of test
ports (1and 2, 3 and 4) are supplied by a common generator (exception: R&S ZVA67).
Front Panel Tour

Preparing the Analyzer for Use
R&S® ZVA
13Quick Start Guide 1145.1090.62 ─ 10
●Each test port may be complemented by three pairs of additional connectors used to
test high power devices and extend the dynamic range, see chapter 1.1.7.4, "Direct
Generator and Receiver Access", on page 14.
Maximum input levels
The maximum input levels at all test ports according to the front panel labeling or the data
sheet must not be exceeded.
In addition, the maximum input voltages of the other input connectors at the front and
rear panel must not be exceeded.
The three LEDs above each test port indicate the connector state:
●The amber LED is on while the connector is used as a source port.
●The green LED is on while the connector is used as a bidirectional (source and
receive) port.
●The blue LED is on while the connector is used as a receive port.
It is recommended to use a torque wrench when screwing RF cables on the test port
connectors. Standard IEEE 287 specifies a torque of (1.5 ± 0.2) Nm for N connectors,
(0.9 ± 0.1) Nm for the microwave connector types.

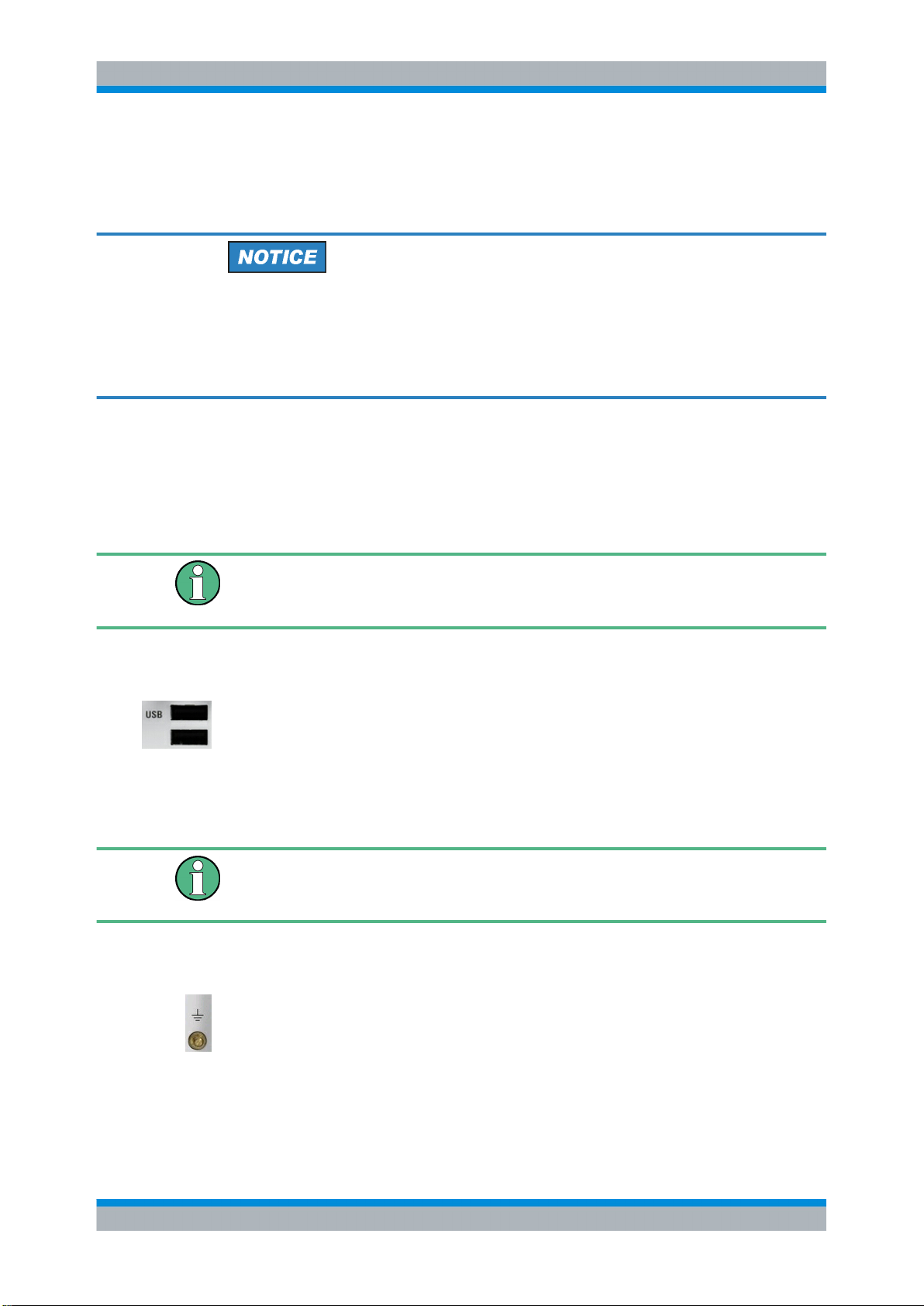

1.1.7.2 USB Connector
Double Universal Serial Bus connector of type A (master USB), used to connect e.g a
keyboard, mouse or other pointing devices, the Calibration Unit (accessory R&S ZV-Z5x),
a printer or an external storage device (USB stick, CD-ROM drive etc.).
To control external devices (e.g. power meters, generators) via USB connector, a VISA
installation on the network analyzer is required. Use the USB-to-IEC/IEEE Adapter
(option R&S ZVAB-B44) to control devices equipped with a GPIB interface.
The length of passive connecting USB cables should not exceed 1 m. The maximum
current per USB port is 500 mA. See also chapter 1.3.5, "EMI Suppression",
on page 19.
1.1.7.3 Ground Connector
Connector providing the ground of the analyzer's supply voltage.
Front Panel Tour

Preparing the Analyzer for Use
R&S® ZVA
14Quick Start Guide 1145.1090.62 ─ 10
Electrostatic discharge
Electrostatic discharge (ESD) may cause damage to the electronic components of the
DUT and the analyzer. Use the wrist strap and cord supplied with the instrument to con-
nect yourself to the GND connector.

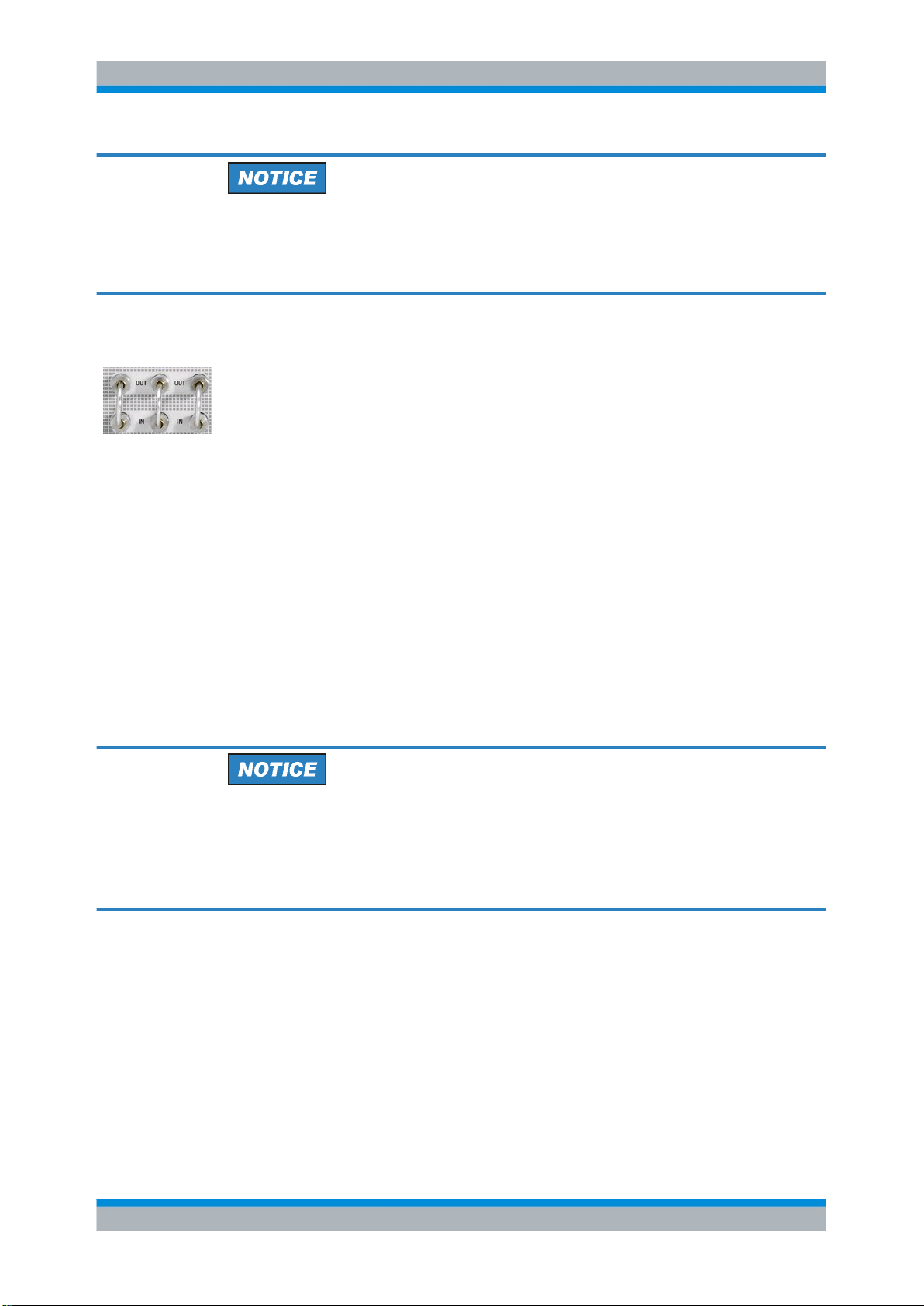

1.1.7.4 Direct Generator and Receiver Access
Option R&S ZVA<n>-B16, Direct Generator/Receiver Access, provides 3 pairs of SMA
connectors (or smaller connectors, for microwave analyzers) for each test port. <n> cor-
responds to the network analyzer type. For detailed ordering information refer to the
product brochure. See also section "Converter Control" in the help system of your network
analyzer.
The connectors give direct access to various RF input and output signals. They can be
used to insert external components (e.g. external signal separating devices, power ampli-
fiers, a ZVAX extension unit etc.) into the signal path in order to develop custom meas-
urements, e.g. to test high power devices and extend the dynamic range. If no external
components are connected, each OUT/IN loop should be closed using a jumper.
●The SOURCE OUT signal comes from the internal RF signal source. The SOURCE
IN signal goes to the test port. A power amplifier can be inserted between SOURCE
OUT and SOURCE IN in order to boost the test port power.
●The REF OUT signal comes from the coupler and provides the reference signal. The
REF IN signal goes to the receiver input for the reference signal.
●The MEAS OUT signal comes from the coupler and provides the received (measured)
signal. The MEAS IN signal goes to the receiver input for the measured signal.
Input signals
The maximum RF input levels at all SMA inputs according to the front panel labeling or
the data sheet must not be exceeded.
In addition, it is important that the signal fed in at the SMA inputs contains no DC offset,
as this may impair the measurements and even cause damage to the instrument.
1.1.8 Additional Hardware Options
The following hardware options can be mounted on the right of the NAVIGATION and
SUPPORT keypads:
●Option R&S ZVA-B18, Removable Hard Disk, replaces the internal hard disk by a
removable compact flash card. The compact flash card can be inserted at the front
panel of the instrument. To ensure failure-free operation, avoid placing external
cables close to the compact flash card.
Front Panel Tour

Preparing the Analyzer for Use
R&S® ZVA
15Quick Start Guide 1145.1090.62 ─ 10
●Option R&S ZVA-B8, Converter Control, provides output connectors to control the
output power of a frequency converter with external attenuators, R&S ZVA-ZxxxE.
This option is available for R&S ZVA network analyzers with an upper frequency limit
of 20 GHz or higher (R&S ZVA 24, R&S ZVA40 ...). For information on measurements
with external attenuators, refer to the network analyzer's help system and to the Quick
Start Guide R&S ZVA-ZxxxE, stock no. 1307.7197.62.
Contact your R&S service representative, if you wish to obtain and install one of the
additional hardware options.
1.2 Rear Panel Tour
This section gives an overview of the rear panel controls and connectors of the network
analyzer.
Fig. 1-2: R&S ZVA rear view
The rear connectors are described in detail in the annex "Hardware Interfaces" in the help
system.
●The PORT BIAS panel contains inputs for an external DC voltage (bias) to be applied
to the test ports. A separate input is provided for each test port. Each PORT BIAS
input is protected by an exchangeable fuse.
●IEC Bus is the GPIB bus connector (according to standard IEEE 488 / IEC 625).
Rear Panel Tour

Preparing the Analyzer for Use
R&S® ZVA
16Quick Start Guide 1145.1090.62 ─ 10
●AUX is an auxiliary connector, to be wired as needed. AUX is not fitted on standard
instruments.
●LAN 1 and LAN 2 are two equivalent connectors to connect the analyzer to a Local
Area Network.
●USB is a double Universal Serial Bus connector of type A (master USB), used to
connect a keyboard, mouse or other pointing device.
●DC MEAS comprises two inputs for DC measurements, specified for different voltage
ranges.
●10 MHz REF serves as an input or output for the 10 MHz reference clock signal.
●MONITOR is a sub-Min-D connector used to connect an external VGA monitor.
●CASCADE is a 8-pin RJ-45 connector used as output and input connectors for pulse
generator signals. The CASCADE connector is located between the MONITOR and
the USER CONTROL connectors.
●USER CONTROL is a D-sub connector used as an input and output for low-voltage
(3.3 V) TTL control signals.
●EXT. TRIGGER is an input for a low-voltage (3.3 V) TTL external trigger signal.
Input levels, EMC
The maximum input levels and voltages of the input connectors at the front and rear panel
must not be exceeded.
The EXT TRIGGER input connector and pin 2 of the USER CONTROL connector must
never be used simultaneously as inputs for external trigger signals.
Use double shielded cables at the BNC rear panel connectors (10 MHz REF, PORT BIAS,
EXT. TRIGGER) and match signals with 50 Ω in order to comply with EMC directives!
1.3 Putting the Analyzer into Operation
This section describes the basic steps to be taken when setting up the analyzer for the
first time.
Shock hazard
Do not open the instrument casing. As a rule, normal operation of the instrument does
not require opening the casing. Observe the general safety instructions and regulations
at the beginning of the manual.
Putting the Analyzer into Operation

Preparing the Analyzer for Use
R&S® ZVA
17Quick Start Guide 1145.1090.62 ─ 10
Risk of instrument damage
Before switching on the instrument, make sure that the following conditions are met:
●Instrument casing is closed and all fasteners are tightened.
●All fan openings are unobstructed and the airflow perforations are unimpeded. The
minimum distance from the wall is 10 cm.
●The instrument is dry and shows no sign of condensation.
●The instrument is operated in the horizontal position on an even surface.
●The ambient temperature does not exceed the range specified in the data sheet.
●Signal levels at the input connectors are all within the specified ranges.
●Signal outputs are correctly connected and are not overloaded.
Failure to meet these conditions may cause damage to the instrument or other devices
in the test setup.
1.3.1 Unpacking and Checking the Analyzer
To remove the instrument from its packaging and check the equipment for completeness
proceed as follows:
1. Pull off the polyethylene protection pads from the instrument's rear feet and then
carefully remove the pads from the instrument handles at the front.
2. Pull off the corrugated cardboard cover that protects the rear of the instrument.
3. Carefully unthread the corrugated cardboard cover at the front that protects the
instrument handles and remove it.
4. Check the equipment for completeness using the delivery note and the accessory
lists for the various items.
5. Check the instrument for any damage. If there is damage, immediately contact the
carrier who delivered the instrument.
Retain the original packing material. If the instrument needs to be transported or shipped
at a later date, you can use the material to prevent control elements and connectors from
being damaged.
Putting the Analyzer into Operation

Preparing the Analyzer for Use
R&S® ZVA
18Quick Start Guide 1145.1090.62 ─ 10
1.3.2 Setting up the Analyzer
The network analyzer is designed for use under laboratory conditions, either on a bench
top or in a rack. The general ambient conditions required at the operating site are as
follows:
●The ambient temperature must be in the ranges specified for operation and for com-
pliance with specifications (see data sheet).
●All fan openings including the rear panel perforations must be unobstructed. The
distance to the wall should be at least 10 cm.
Electrostatic discharge
To avoid damage of electronic components of the DUT and the analyzer, the operating
site must be protected against electrostatic discharge (ESD). ESD is most likely to occur
when you connect or disconnect a DUT or test fixture to the analyzer's test ports.
To prevent ESD damage use the wrist strap and grounding cord supplied with the instru-
ment and connect yourself to the GND connector at the front panel.
1.3.3 Bench Top Operation
If the analyzer is operated on a bench top, the surface should be flat. The instrument can
be used in horizontal position, standing on its feet, or with the support feet on the bottom
extended.
Danger of injury
The feet may fold in if they are not folded out completely or if the instrument is shifted.
The feet may break if they are overloaded. Fold the feet completely in or completely out
to ensure stability of the instrument and personal safety. To avoid injuries, never shift the
instrument when its feet are folded out.
The overall load (the instrument's own weight plus that of the instruments stacked on top
of it) on the folded-out feet must not exceed 500 N.
Place the instrument on a stable surface. Secure the instruments stacked on top of it
against slipping (e.g. by locking their feet on the top front frame). When the instrument is
standing on its folded-out feet, do not work under the instrument and do not put anything
under it, otherwise injuries or material damage could occur.
Putting the Analyzer into Operation

Preparing the Analyzer for Use
R&S® ZVA
19Quick Start Guide 1145.1090.62 ─ 10
The instrument can be used in each of the positions shown here.
1.3.4 Operation in a 19" Rack
Using the adapter R&S ZZA-611 (order number 1096.3302.00) the instrument can be
mounted in 19" racks according to the mounting instructions supplied with the rack
adapter.
Avoid overheating
●Allow for sufficient air supply in the rack.
●Make sure that there is sufficient space between the ventilation holes and the rack
casing.
1.3.5 EMI Suppression
To suppress generated Electromagnetic Interference (EMI), operate the instrument only
while it is closed, with all shielding covers fitted. Note the EMC classification in the data
sheet.
Use appropriate shielded cables to ensure successful control of electromagnetic radiation
during operation, especially for the following connector types:
●BNC rear panel connectors (10 MHz REF, EXT. TRIGGER): Use double shielded
cables and terminate open cable ends with 50 Ω.
●USER CONTROL: Use only well shielded cables or disconnect the input pins of the
USER CONTROL connector in order to avoid spurious input signals which may cause
Putting the Analyzer into Operation

Preparing the Analyzer for Use
R&S® ZVA
20Quick Start Guide 1145.1090.62 ─ 10
undesirable events. This is of particular importance for the external trigger input (pin
no. 2) if the EXT TRIGGER input is used.
●USB: Use double-shielded USB cables and ensure that external USB devices comply
with EMC regulations.
●GPIB (IEEE/IEC 625): Use a shielded GPIB cable.
●LAN: Use CAT6 or CAT7 cables.
●Test ports: For instruments with 3.5 mm and smaller connector types (2.92 mm, 2.4
mm ...), use double-shielded measurement cables.
The use of external accessories for the network analyzers may introduce additional con-
nector, cable, and cable length requirements. Refer to the relevant documentation.
1.3.6 Connecting the Analyzer to the AC Supply
The network analyzer is automatically adapted to the AC supply voltage supplied. The
supply voltage must be in the range 100 V to 240 V; 50 Hz to 60 Hz. The mains connector
is located at the bottom left corner of the rear panel.
► Connect the network analyzer to the AC power source using the AC power cable
delivered with the instrument.
The maximum power consumption of the analyzer is 450 W. The typical power con-
sumption is listed in the "Specifications".
The network analyzer is protected by two fuses as specified on the label on the power
supply. The fuses are located on an AC Fuse Board (order no. 1145.3906.02) which must
be replaced to change the fuses. Replacing the AC Fuse Board requires opening the
instrument and is described in the service manual.
1.3.7 Power on and off
The mains connector is located at the bottom left corner of the rear panel.
► To turn the power on or off, press the AC power switch to position I (On) or 0 (Off).
After power-on, the analyzer is in standby or ready state, (see chapter 1.3.8, "Standby
and Ready State", on page 21) depending on the state of the STANDBY toggle switch
at the front panel when the instrument was switched off for the last time.
The AC power switch can be permanently on. Switching off is required only if the instru-
ment must be completely removed from the AC power supply.
Putting the Analyzer into Operation
