Rohde & Schwarz ZNLE Series User manual

R&S®ZNLE
Vector Network Analyzer
Getting Started
Getting Started
Version 08
1323287302
(=GL×2)

This manual applies to the following R&S®ZNLE models with firmware version
1.35 and higher:
●R&S®ZNLE3, 1 MHz to 3 GHz, 2 ports, N(f) connectors,
order no. 1323.0012.53
●R&S®ZNLE4, 1 MHz to 4.5 GHz, 2 ports, N(f) connectors,
order no. 1323.0012.54
●R&S®ZNLE6, 1 MHz to 6 GHz, 2 ports, N(f) connectors,
order no. 1323.0012.56
© 2020 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – Data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1323.2873.02 | Version 08 | R&S®ZNLE
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol, e.g.
R&S®ZNLE is indicated as R&S ZNLE.

Contents
R&S®ZNLE
3Getting Started 1323.2873.02 ─ 08
Contents
1 Safety and Regulatory Information...................................... 5
1.1 Safety Instructions................................................................................5
1.2 Labels on R&S ZNLE............................................................................ 8
1.3 Korea Certification Class A..................................................................8
2 Documentation Overview......................................................9
2.1 Getting Started Manual.........................................................................9
2.2 User Manuals and Help........................................................................ 9
2.3 Service Manual......................................................................................9
2.4 Instrument Security Procedures....................................................... 10
2.5 Basic Safety Instructions................................................................... 10
2.6 Data Sheets and Brochures............................................................... 10
2.7 Release Notes and Open Source Acknowledgment (OSA).............10
2.8 Application Notes, Application Cards, White Papers, etc...............11
2.9 Calibration Certificate.........................................................................11
3 Preparing for Use.................................................................12
3.1 Lifting and Carrying............................................................................12
3.2 Unpacking and Checking................................................................... 12
3.3 Choosing the Operating Site............................................................. 13
3.4 Setting Up the R&S ZNLE...................................................................13
3.5 Connecting to Power.......................................................................... 15
3.6 Switching On or Off............................................................................ 16
3.7 Connecting to LAN............................................................................. 17
3.8 Connecting a Keyboard......................................................................18
3.9 Connecting an External Monitor........................................................19
3.10 Windows Operating System...............................................................21

Contents
R&S®ZNLE
4Getting Started 1323.2873.02 ─ 08
3.11 Logging On..........................................................................................23
3.12 Considerations for Test Setup...........................................................25
4 Instrument Tour................................................................... 27
4.1 Front Panel View................................................................................. 27
4.2 Rear Panel View.................................................................................. 34
5 Trying Out the Instrument...................................................39
5.1 Performing Measurements.................................................................39
5.2 Zooming into the Display................................................................... 49
5.3 Saving Settings................................................................................... 50
5.4 Printing and Saving Results.............................................................. 52
6 Operating the Instrument....................................................54
6.1 Understanding the Display Information............................................54
6.2 Accessing the Functionality.............................................................. 56
6.3 Entering Data.......................................................................................61
6.4 Touchscreen Gestures....................................................................... 63
6.5 Getting Help.........................................................................................66
7 Customer Support............................................................... 68
7.1 Collecting Information for Support................................................... 68
7.2 Contacting Customer Support...........................................................70
Index..................................................................................... 72

Safety and Regulatory Information
R&S®ZNLE
5Getting Started 1323.2873.02 ─ 08
1 Safety and Regulatory Information
The product documentation helps you use the product safely and efficiently. Fol-
low the instructions provided here and in the Chapter 1.1, "Safety Instructions",
on page 5.
Intended use
The product is intended for the development, production and verification of elec-
tronic components and devices in industrial, administrative, and laboratory envi-
ronments. Use the product only for its designated purpose. Observe the operating
conditions and performance limits stated in the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you of potential
dangers and gives instructions on how to prevent personal injury or damage
caused by dangerous situations. Safety information is provided as follows:
●In Chapter 1.1, "Safety Instructions", on page 5. The same information is
provided in many languages as printed "Safety Instructions". The printed
"Safety Instructions" are delivered with the product.
●Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.
1.1 Safety Instructions
Products from the Rohde & Schwarz group of companies are manufactured
according to the highest technical standards. To use the products safely, follow
the instructions provided here and in the product documentation. Keep the prod-
uct documentation nearby and offer it to other users.
Use the product only for its intended use and within its performance limits. Inten-
ded use and limits are described in the product documentation such as the data
sheet, manuals and the printed safety instructions. If you are unsure about the
appropriate use, contact Rohde & Schwarz customer service.
Using the product requires specialists or specially trained personnel. These users
also need sound knowledge of at least one of the languages in which the user
interfaces and the product documentation are available.
Safety Instructions

Safety and Regulatory Information
R&S®ZNLE
6Getting Started 1323.2873.02 ─ 08
If any part of the product is damaged or broken, stop using the product. Never
open the casing of the product. Only service personnel authorized by
Rohde & Schwarz are allowed to repair the product. Contact Rohde & Schwarz
customer service at http://www.customersupport.rohde-schwarz.com.
Lifting and carrying the product
The maximum weight of the product is provided in the data sheet. To move the
product safely, you can use lifting or transporting equipment such as lift trucks
and forklifts. Follow the instructions provided by the equipment manufacturer.
Choosing the operating site
Only use the product indoors. The product casing is not waterproof. Water that
enters can electrically connect the casing with live parts, which can lead to elec-
tric shock, serious personal injury or death if you touch the casing. If
Rohde & Schwarz provides a carrying bag designed for your product, you can
use the product outdoors.
Unless otherwise specified, you can operate the product up to an altitude of
2000 m above sea level. The product is suitable for pollution degree 2 environ-
ments where nonconductive contamination can occur. For more information on
environmental conditions such as ambient temperature and humidity, see the
data sheet.
Setting up the product
Always place the product on a stable, flat and level surface with the bottom of the
product facing down. If the product is designed for different positions, secure the
product so that it cannot fall over.
If the product has foldable feet, always fold the feet completely in or out to ensure
stability. The feet can collapse if they are not folded out completely or if the prod-
uct is moved without lifting it. The foldable feet are designed to carry the weight of
the product, but not an extra load.

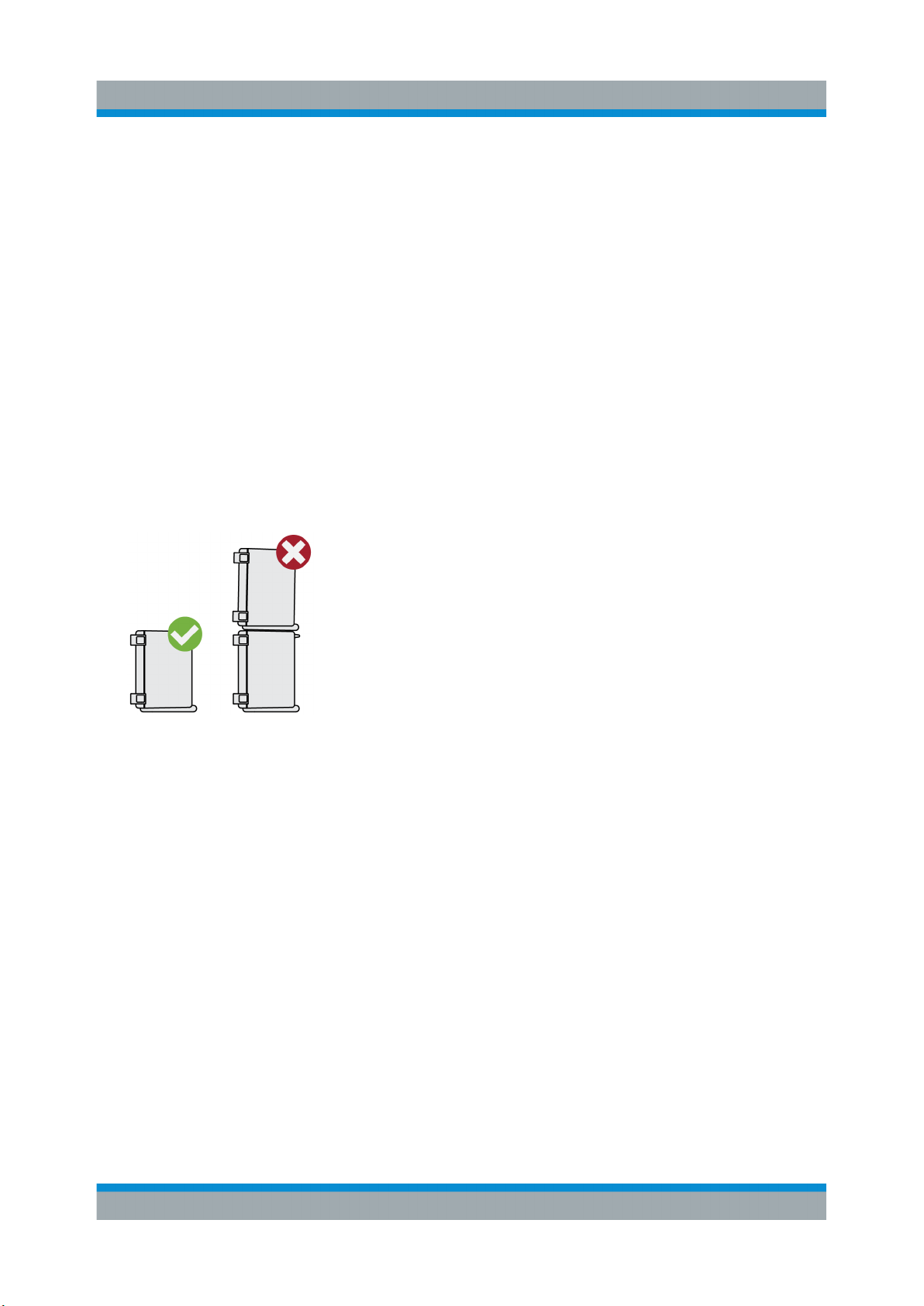

If stacking is possible, keep in mind that a stack of products can fall over and
cause injury.
If you mount products in a rack, ensure that the rack has sufficient load capacity
and stability. Observe the specifications of the rack manufacturer. Always install
the products from the bottom shelf to the top shelf so that the rack stands
securely. Secure the product so that it cannot fall off the rack.
Safety Instructions

Safety and Regulatory Information
R&S®ZNLE
7Getting Started 1323.2873.02 ─ 08
Connecting to power
The product is an overvoltage category II product and has to be connected to a
fixed installation used to supply energy-consuming equipment such as household
appliances and similar loads. Be aware that electrically powered products have
risks, such as electric shock, fire, personal injury or even death.
Take the following measures for your safety:
●Before switching on the product, ensure that the voltage and frequency indica-
ted on the product match the available power source. If the power adapter
does not adjust automatically, set the correct value and check the rating of the
fuse.
●If a product has an exchangeable fuse, its type and characteristics are indica-
ted next to the fuse holder. Before changing the fuse, switch off the instrument
and disconnect it from the power source. How to change the fuse is described
in the product documentation.
●Only use the power cable delivered with the product. It complies with country-
specific safety requirements. Only insert the plug into an outlet with protective
conductor terminal.
●Only use intact cables and route them carefully so that they cannot be dam-
aged. Check the power cables regularly to ensure that they are undamaged.
Also ensure that nobody can trip over loose cables.
●If the product needs an external power supply, use the power supply that is
delivered with the product or that is recommended in the product documenta-
tion or a power supply that conforms to the country-specific regulations.
●Only connect the product to a power source with a fuse protection of maxi-
mum 20 A.
●Ensure that you can disconnect the product from the power source at any
time. Pull the power plug to disconnect the product. The power plug must be
easily accessible. If the product is integrated into a system that does not meet
these requirements, provide an easily accessible circuit breaker at the system
level.
Cleaning the product
Use a dry, lint-free cloth to clean the product. When cleaning, keep in mind that
the casing is not waterproof. Do not use liquid cleaning agents.
Meaning of safety labels
Safety labels on the product warn against potential hazards.
Safety Instructions

Safety and Regulatory Information
R&S®ZNLE
8Getting Started 1323.2873.02 ─ 08
Potential hazard
Read the product documentation to avoid personal injury or product damage.
Electrical hazard
Indicates live parts. Risk of electric shock, fire, personal injury or even death.
Hot surface
Do not touch. Risk of skin burns. Risk of fire.
Protective conductor terminal
Connect this terminal to a grounded external conductor or to protective ground. This
protects you against electric shock should an electric problem occur.
1.2 Labels on R&S ZNLE
Labels on the casing inform about:
●Personal safety, see "Meaning of safety labels" on page 7
●Product and environment safety, see Table 1-1
●Identification of the product, see Chapter 4.2.9, "Device ID", on page 37
Table 1-1: Labels regarding R&S ZNLE and environment safety
Labeling in line with EN 50419 for disposal of electrical and electronic equipment after
the product has come to the end of its service life. For more information, see the prod-
uct user manual, chapter "Disposal".
1.3 Korea Certification Class A
이 기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하
시기 바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.
Korea Certification Class A

Documentation Overview
R&S®ZNLE
9Getting Started 1323.2873.02 ─ 08
2 Documentation Overview
This section provides an overview of the R&S ZNLE user documentation. Unless
specified otherwise, you find the documents on the R&S ZNLE product page at:
www.rohde-schwarz.com/manual/ZNLE
2.1 Getting Started Manual
Introduces the R&S ZNLE and describes how to set up and start working with the
product. Includes basic operations, typical measurement examples, and general
information, e.g. safety instructions, etc.
A printed version is delivered with the instrument. A PDF version is available for
download on the Internet.
2.2 User Manuals and Help
The user manual contains the description of all instrument modes and functions.
It also provides an introduction to remote control, a complete description of the
remote control commands with programming examples, and information on main-
tenance, instrument interfaces and error messages. Includes the contents of the
getting started manual.
The contents of the user manual are available as help in the R&S ZNLE. The help
offers quick, context-sensitive access to the complete information for the instru-
ment and its firmware.
The user manual is also available for download or for immediate display on the
Internet.
2.3 Service Manual
Describes the performance test for checking the rated specifications, module
replacement and repair, firmware update, troubleshooting and fault elimination,
and contains mechanical drawings and spare part lists.
Service Manual

Documentation Overview
R&S®ZNLE
10Getting Started 1323.2873.02 ─ 08
The service manual is available for registered users on the global
Rohde & Schwarz information system (GLORIS):
https://gloris.rohde-schwarz.com/irj/portal/SearchDetailView?downloadContai-
nerID=454954
2.4 Instrument Security Procedures
Deals with security issues when working with the R&S ZNLE in secure areas. It is
available for download on the Internet.
2.5 Basic Safety Instructions
Contains safety instructions, operating conditions and further important informa-
tion. The printed document is delivered with the instrument.
2.6 Data Sheets and Brochures
The data sheet contains the technical specifications of the R&S ZNLE. It also lists
the firmware applications and their order numbers, and optional accessories.
The brochure provides an overview of the instrument and deals with the specific
characteristics.
See www.rohde-schwarz.com/brochure-datasheet/ZNLE
2.7 Release Notes and Open Source Acknowledg-
ment (OSA)
The release notes list new features, improvements and known issues of the cur-
rent firmware version, and describe the firmware installation.
The open-source acknowledgment document provides verbatim license texts of
the used open source software.
Release Notes and Open Source Acknowledgment (OSA)

Documentation Overview
R&S®ZNLE
11Getting Started 1323.2873.02 ─ 08
See www.rohde-schwarz.com/firmware/ZNLE
2.8 Application Notes, Application Cards, White
Papers, etc.
These documents deal with special applications or background information on
particular topics.
See www.rohde-schwarz.com/application/ZNLE
2.9 Calibration Certificate
The document is available on https://gloris.rohde-schwarz.com/calcert. You need
the device ID of your instrument, which you can find on a label on the rear panel.
Calibration Certificate

Preparing for Use
R&S®ZNLE
12Getting Started 1323.2873.02 ─ 08
3 Preparing for Use
This chapter describes the basic steps to be taken when setting up the product
for the first time.
●Lifting and Carrying......................................................................................... 12
●Unpacking and Checking................................................................................ 12
●Choosing the Operating Site........................................................................... 13
●Setting Up the R&S ZNLE...............................................................................13
●Connecting to Power.......................................................................................15
●Switching On or Off......................................................................................... 16
●Connecting to LAN.......................................................................................... 17
●Connecting a Keyboard...................................................................................18
●Connecting an External Monitor......................................................................19
●Windows Operating System............................................................................21
●Logging On......................................................................................................23
●Considerations for Test Setup......................................................................... 25
3.1 Lifting and Carrying
The carrying handles are designed to lift or carry the instrument. Do not apply
excessive external force to the handles.
See "Lifting and carrying the product" on page 6.
3.2 Unpacking and Checking
1. Unpack the R&S ZNLE carefully.
2. Retain the original packing material. Use it when transporting or shipping the
R&S ZNLE later.
3. Using the delivery notes, check the equipment for completeness.
Unpacking and Checking

Preparing for Use
R&S®ZNLE
13Getting Started 1323.2873.02 ─ 08
4. Check the equipment for damage.
If the delivery is incomplete or equipment is damaged, contact
Rohde & Schwarz.
3.3 Choosing the Operating Site
Specific operating conditions ensure accurate measurements and avoid damage
to the product and connected devices. For information on environmental condi-
tions such as ambient temperature and humidity, see the data sheet.
See also "Choosing the operating site" on page 6.
Electromagnetic compatibility classes
The electromagnetic compatibility (EMC) class indicates where you can operate
the product. The EMC class of the product is given in the data sheet under "Gen-
eral data".
●Class B equipment is suitable for use in:
– Residential environments
– Environments that are directly connected to a low-voltage supply network
that supplies residential buildings
●Class A equipment is intended for use in industrial environments. It can cause
radio disturbances in residential environments due to possible conducted and
radiated disturbances. It is therefore not suitable for class B environments.
If class A equipment causes radio disturbances, take appropriate measures to
eliminate them.
3.4 Setting Up the R&S ZNLE
The R&S ZNLE is designed for use on a bench top or in a rack.
See also:
●"Setting up the product" on page 6
●"Intended use" on page 5
Setting Up the R&S ZNLE

Preparing for Use
R&S®ZNLE
14Getting Started 1323.2873.02 ─ 08
3.4.1 Placing the R&S ZNLE on a Bench Top
To place the product on a bench top
1. Place the product on a stable, flat and level surface. Ensure that the surface
can support the weight of the product. For information on the weight, see the
data sheet.
2. CAUTION! Foldable feet can collapse. See "Setting up the product"
on page 6.
Always fold the feet completely in or out. If they are folded out, do not place
anything on top or underneath.
3. CAUTION! The product can fall over and cause injury. The top surface is too
small for stacking. Never stack another product on top of the product.
As an alternative, you can mount several products in a rack.
4. NOTICE! Overheating can damage the product.
Prevent overheating as follows:
● Keep a minimum distance of 10 cm between the fan openings of the prod-
uct and any object in the vicinity.
● Do not place the product next to heat-generating equipment such as radia-
tors or other products.
3.4.2 Mounting the R&S ZNLE in a Rack
To prepare the rack
1. Observe the requirements and instructions in "Setting up the product"
on page 6.
Setting Up the R&S ZNLE

Preparing for Use
R&S®ZNLE
15Getting Started 1323.2873.02 ─ 08
2. NOTICE! Insufficient airflow can cause overheating and damage the product.
Design and implement an efficient ventilation concept for the rack.
To mount the R&S ZNLE in a rack
1. Use an adapter kit to prepare the R&S ZNLE for rack mounting.
a) Order the rack adapter kit designed for the R&S ZNLE. For the order num-
ber, see the data sheet.
b) Mount the adapter kit. Follow the assembly instructions provided with the
adapter kit.
2. Lift the R&S ZNLE to shelf height.
3. Grab the handles and push the R&S ZNLE onto the shelf until the rack brack-
ets fit closely to the rack.
4. Tighten all screws in the rack brackets with a tightening torque of 1.2 Nm to
secure the R&S ZNLE in the rack.
To unmount the R&S ZNLE from a rack
1. Loosen the screws at the rack brackets.
2. Remove the R&S ZNLE from the rack.
3. If placing the R&S ZNLE on a bench top again, unmount the adapter kit from
the R&S ZNLE. Follow the instructions provided with the adapter kit.
3.5 Connecting to Power
The R&S ZNLE is equipped with an AC power supply connector.
3.5.1 Connecting the AC Power
The R&S ZNLE can be used with different AC power voltages and adapts itself
automatically to it. Refer to the datasheet for the requirements of voltage and fre-
quency.
For safety information, see "Connecting to power" on page 7.
Connecting to Power

Preparing for Use
R&S®ZNLE
16Getting Started 1323.2873.02 ─ 08
To connect the AC power
1. Plug the AC power cable into the AC power connector on the rear panel of the
instrument. Only use the AC power cable delivered with the R&S ZNLE.
2. Plug the AC power cable into a power outlet with ground contact.
The required ratings are listed next to the AC power connector and in the data
sheet.
For details on the connector, refer to Chapter 4.2.1, "AC Power Supply Connec-
tion and Main Power Switch", on page 35.
3.6 Switching On or Off
Table 3-1: Overview of power states
Status LED on Power key Position of main power switch
Off gray [0]
Standby orange [I]
Ready green [I]
To switch on the R&S ZNLE
The R&S ZNLE is off but connected to power.
1. Set the switch on the power supply to position [I].
See Chapter 4.2.1, "AC Power Supply Connection and Main Power Switch",
on page 35.
The LED of the Power key is orange.
See Chapter 4.1.2, "Power Key", on page 29.
2. Press the Power key.
The LED changes to green.
Switching On or Off

Preparing for Use
R&S®ZNLE
17Getting Started 1323.2873.02 ─ 08
The R&S ZNLE boots.
After booting, the instrument is ready for operation.
To shut down the product
The product is in the ready state.
► Press the Power key.
The operating system shuts down. The LED changes to orange.
To disconnect from power
The R&S ZNLE is in the standby state.
1. NOTICE! Risk of data loss. If you disconnect the product from power when it
is in the ready state, you can lose settings and data. Shut it down first.
Set the switch on the power supply to position [0].
See Chapter 4.2.1, "AC Power Supply Connection and Main Power Switch",
on page 35.
The LED of the standby key is switched off.
2. Disconnect the R&S ZNLE from the power source.
3.7 Connecting to LAN
You can connect the instrument to a LAN for remote operation via a PC. For
details on the connector, see Chapter 4.2.6, "LAN", on page 36.
Provided the network administrator has assigned you the appropriate rights and
adapted the Windows firewall configuration, you can use the interface, for exam-
ple:
●To transfer data between a controlling device and the test device, e.g. to run a
remote control program
●To access or control the measurement from a remote computer using the
"Remote Desktop" application (or a similar tool)
●To connect external network devices (e.g. printers)
●To transfer data from a remote computer and back, e.g. using network folders
►NOTICE! Risk of network failure.
Connecting to LAN

Preparing for Use
R&S®ZNLE
18Getting Started 1323.2873.02 ─ 08
Consult your network administrator before performing the following tasks:
● Connecting the instrument to the network
● Configuring the network
● Changing IP addresses
● Exchanging hardware
Errors can affect the entire network.
Connect the R&S ZNLE to the LAN via the LAN interface on the rear panel of
the instrument.
Windows automatically detects the network connection and activates the
required drivers.
By default, the R&S ZNLE is configured to use DHCP and no static IP address
is configured.
The default instrument name is <Type><variant>-<serial_number>, for
example, ZNLE3-123456. For information on determining the serial number,
see Chapter 4.2.9, "Device ID", on page 37.
For more information on LAN configuration, see the R&S ZNLE user manual.
3.8 Connecting a Keyboard
The keyboard is detected automatically when it is connected. The default input
language is English – US.
However, you can also connect foreign language keyboards; currently the follow-
ing languages are supported for the R&S ZNLE:
●German
●Swiss
●French
●Russian
To configure the keyboard language
1. To access the Windows operating system, press the Windows key on the
external keyboard.
Connecting a Keyboard

Preparing for Use
R&S®ZNLE
19Getting Started 1323.2873.02 ─ 08
2. Select "Start > Settings > Time & language > Region & language > Add a lan-
guage" .
3.9 Connecting an External Monitor
You can connect an external monitor (or projector) to the "DVI" connector on the
rear panel of the R&S ZNLE (see also Chapter 4.2.5, "DVI", on page 36).
Screen resolution and format
The touchscreen of the R&S ZNLE is calibrated for a 16:10 format. If you
connect a monitor or projector using a different format (e.g. 4:3), the calibra-
tion is not correct and the screen does not react to your touch actions prop-
erly.
The touchscreen has a screen resolution of 1280x800 pixels. Most external
monitors have a higher screen resolution. If the screen resolution of the
monitor is set higher than the instrument's resolution, the application win-
dow uses an area of 1280x800 pixels on the monitor display. For full screen
display, adjust the monitor's screen resolution.
The R&S ZNLE supports a minimum resolution of 1280x768 pixels.
1. Connect the external monitor to the R&S ZNLE.
2. Press the [Setup] key.
3. Press the "Display" softkey.
4. Select the "Configure Monitor" tab in the "Display" dialog box.
The standard Windows "Screen Resolution" dialog box is displayed.
Connecting an External Monitor

Preparing for Use
R&S®ZNLE
20Getting Started 1323.2873.02 ─ 08
5. If necessary, change the screen resolution. Consider the information in the
note above.
6. Select the instrument for display:
● "Display 1": internal monitor only
● "Display 2": external monitor only
● "Duplicate": both internal and external monitor
7. Tap "Apply" to try out the settings before they are accepted permanently, then
you can easily return to the previous settings, if necessary.
8. Select "OK" if the settings are suitable.
Fixing a wrong touchscreen mapping
For instruments that are equipped with a system image version < 0.8, the touch-
screen function is erroneously mapped to the external monitor by default. This
mismatch is particularly inconvenient in extended display mode, where touch ges-
tures on the instrument screen actually operate on the external screen. In dupli-
cate monitor mode, touch screen operation also malfunctions if the resolutions of
the internal and external display do not match.
Connecting an External Monitor
