Rohnson R-9700 User manual

USER MANUAL
AIR PURIFIER
R-9700

Product Name
Air Purifier R-9700
Rated Voltage~Frequency
220V~50Hz
Power
80W
Noise (Low)
≤29.4dB
Ionizer
20million/cm3
CADR(PM2.5)
320 m3/h
CCM(PM2.5)
P4
CADR (Formaldehyde)
80 m3/h
CCM (Formaldehyde)
F4
Filter Replace Time
Filter #1 2-3 years, #2 & #3 6-12
months (in depending the air polluted
condition)
Net Weight
8.0KG
Gross Weight
11.0KG
Product Size
370x195x650mm
Packing Size
433x256x720mm
Purification
Pre-filter, Cold-catalyst, Formaldehyde
removal filter,
Antibacterial filter,UV Sterilization,
HEPA filter,
Anion release.
Radio equipment
The frequency bands on which the radio is operating are 2.4 GHz and the maximum
radiotelephone power is 20 dBm Max.
Packing List
Machine
1 Piece
Remote Control
1 Piece
Filters
3 PCS
User Manual
1 Piece

Purifier Features

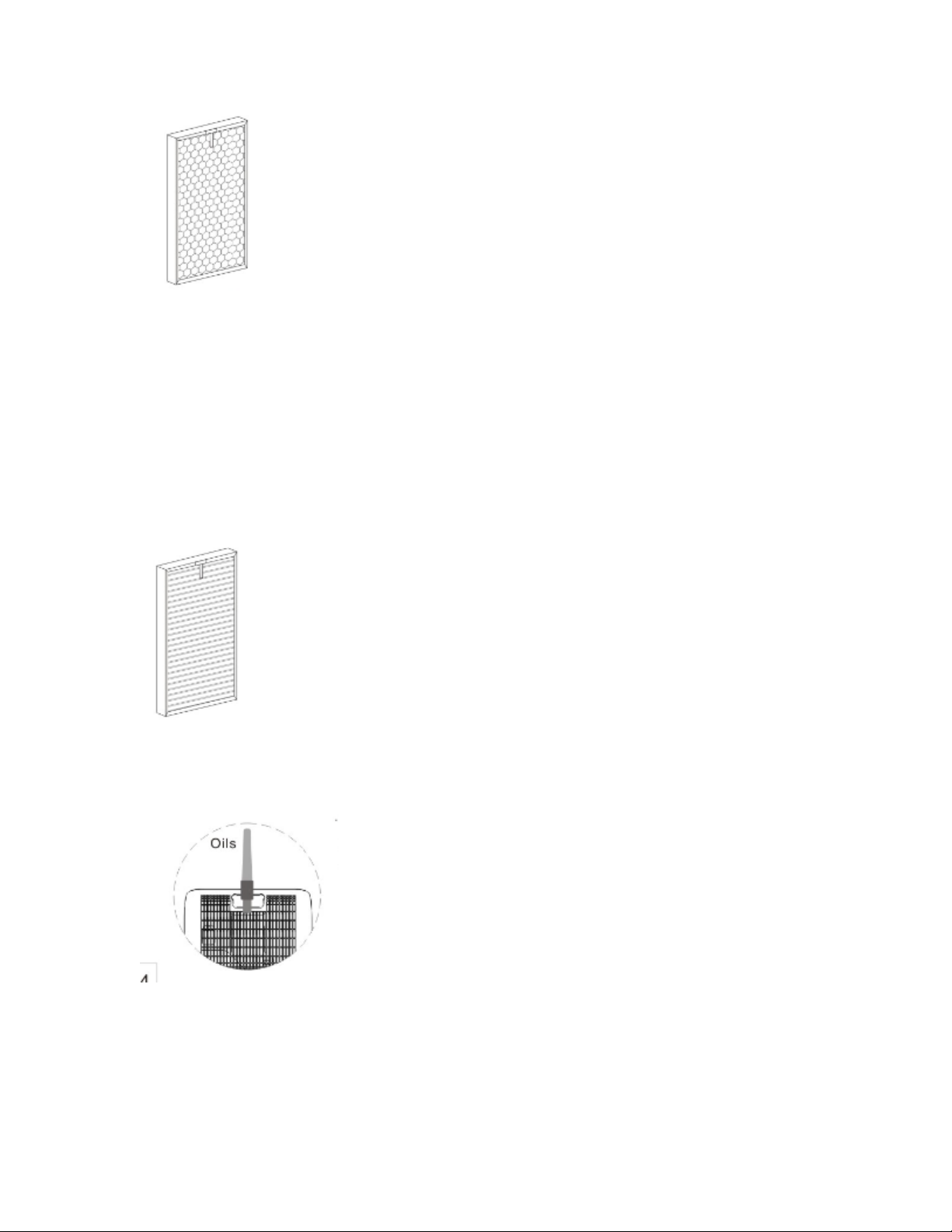

Aluminum Pre Filter
Aluminum Pre Filter, Remove Large Granule Dust, Dander, Pollen, Floating
Compound And Other Pollutants. Washable And Reusable.
Cold Catalyst Filter
The Cold catalyst will play a catalyst effect in normal living environment without
any external assistance like UV light, sunlight, high temperature or pressure.
The Cold catalyst can be used to deal with formaldehyde, ammonia, benzene,
TVOC,Hydrogen sulfide and other harmful gases released by plywood, furniture,
wallpapers,carpets, curtains and bedspreads.
Formaldehyde removal filter
This is a removal filter that is designed to quickly adsorb and decompose for-
maldehyde. It is made of top-quality material for enhanced durability. This re-
moval filter is an ideal choice for household and office use.Filled the honeycomb
with unique formaldehyde removal catalyst and material.Tested by the Shanghai
Academy of Public Measurement(APM), the product can quickly adsorb and
decompose formaldehyde.
Antibacterial Filter
The 5 microns filter with antimicrobial agents can efficiently kill bacteria in the Air.
High Efficiency HEPA Filter
The Precision Of The HEPA Filter Is 0.01 Micron, And It is Able To Eliminate
Particles Which Are Larger Than 0.01 Micron With The Filtration Rate Of 99% Or
More. Dust, Bacteria, Fungi, Viruses, Allergens And Other Small And Tiny Parti-
cles Are Not Able To Get Through The HEPA Filter.
UV Sterilize Light
A Variety Of Bacteria Can be Killed by the 365nm UV Light. The UV Germicidal
Lamp is used to purify the air and it is able to eliminate odor caused by smoke
and mold.
Anion Release
The ionizer release large amount of anions and make the oxygen negative-
ly-charged, thus gathering the positively-charged particles like floating dust,
bacteria, viruses and smoke. The particles become denser and sink to the
ground. The smaller the particle Size, the higher the capture rate.

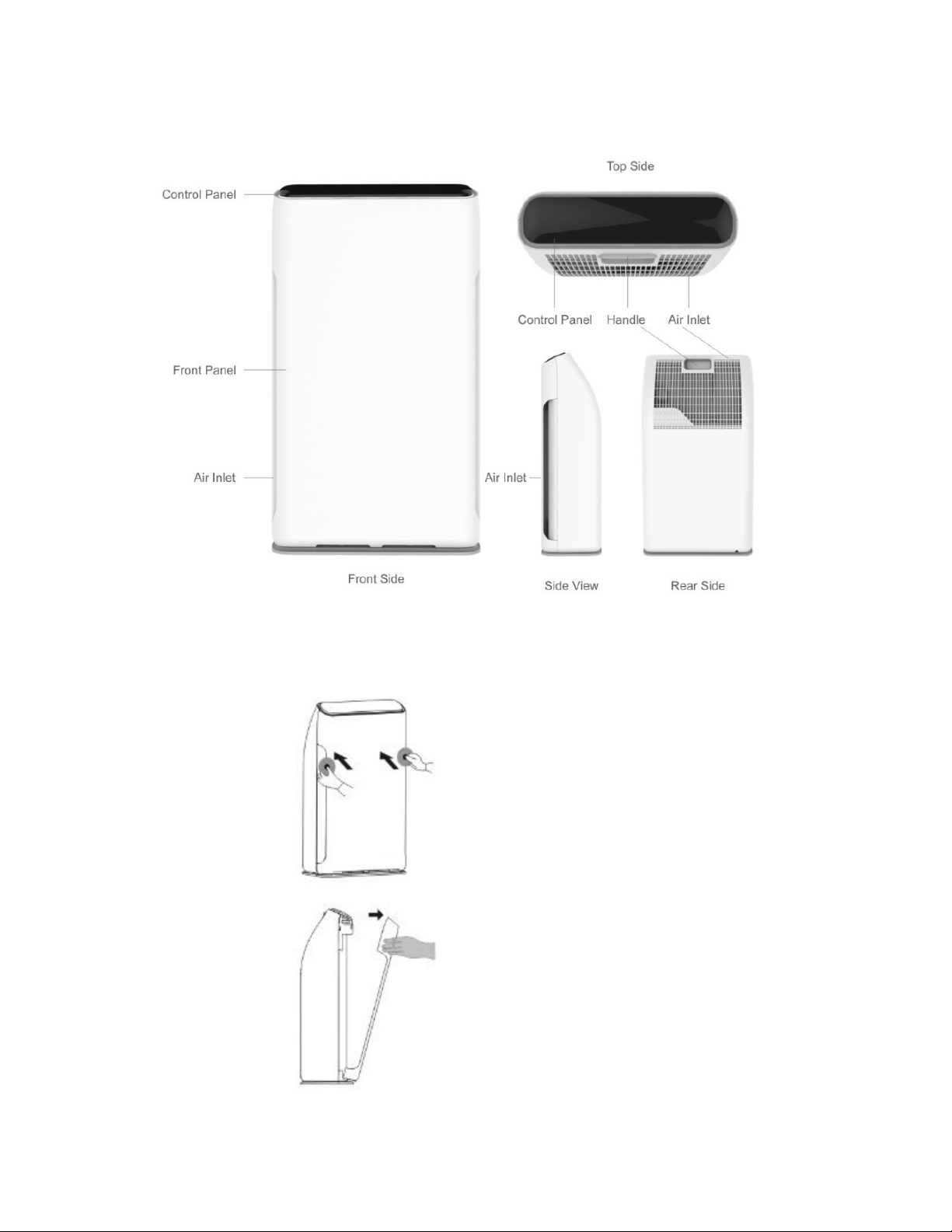

Product overview
Install filter

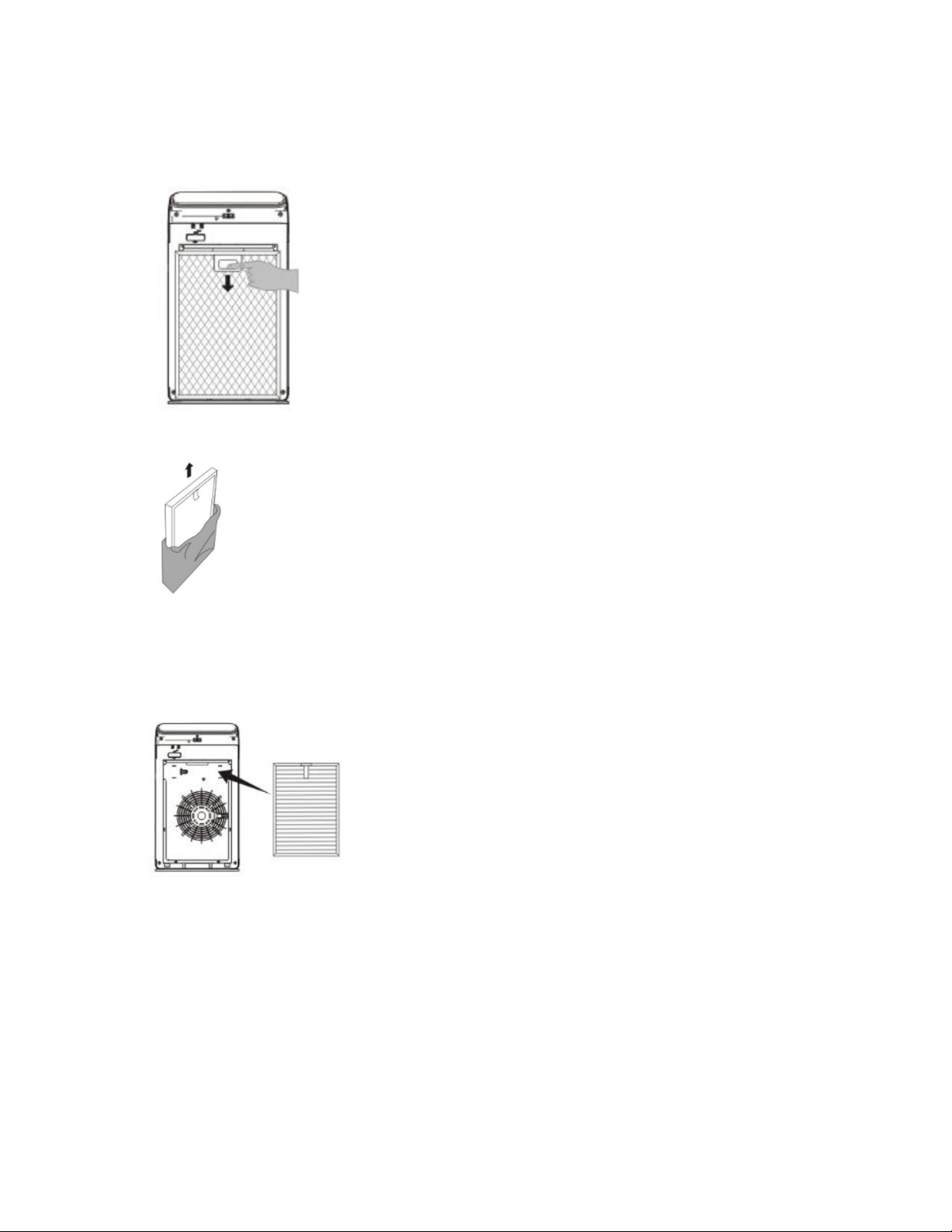

1. Take Out filter from Machine
Open the cover

Take out the filters
Remove all packaging material
2. Install filter and Front panel

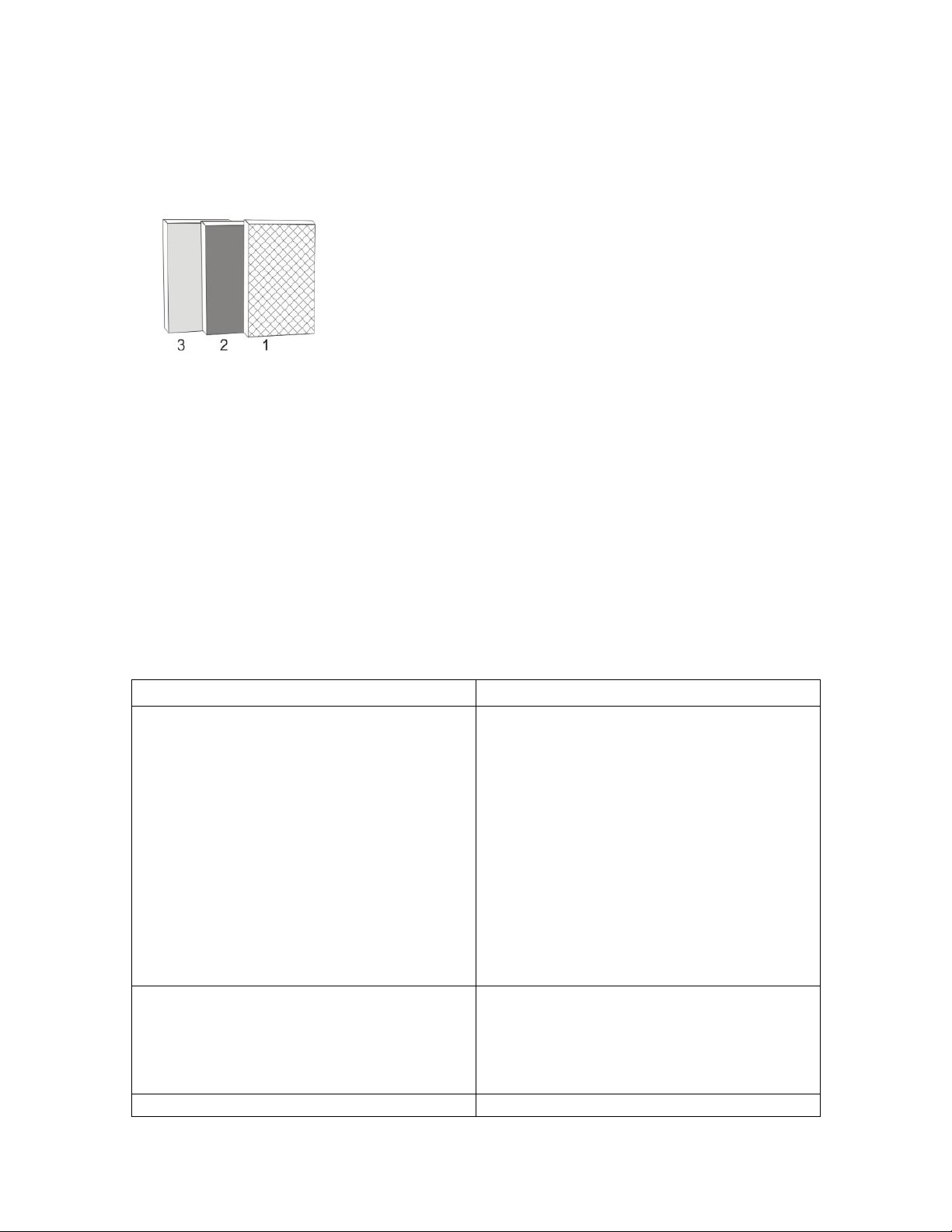

Install filter 3 (Antibacterial HEPA compound filters)
Note: Please ensure the tab side is facing you.
Install filter 2 (Activated carbon + Formaldehyde
removal compound filters)
note: Please ensure the tab side is facing you.

Install filter 1 (Pre-filter)
Note: Please ensure the handle side is facing you.
Install front plate
05
Control
over-
view

1. Switch on
Touch the power button at standby mode. Machine will on last time running
mode.
(Not including timer and sleep mode.)
Machine will go into standby mode after press the power button when it on
running mode. It will record the current operation mode at the same time.
Remark: The machine include panel switch and anti fall switch. Machine won’t
turn on when remove panel and machine fall down.

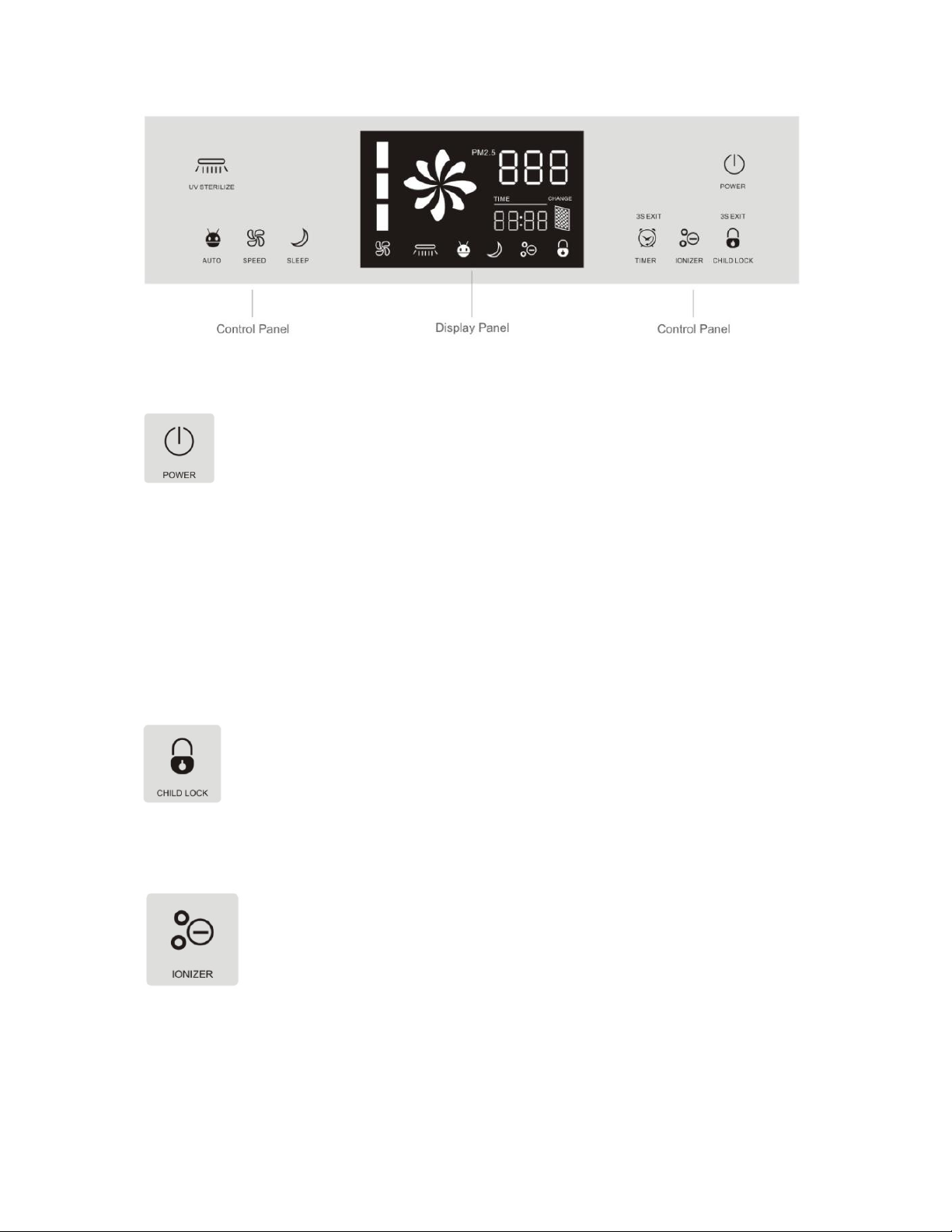

2. Select the operating mode
All button will disable when press child lock. Icon will light up and keep running.
Press this button for 3 seconds to exit this mode.
Ionizer will on/off when press this button. The icon will light up and down accord-
ingly.Motor will turn on and stay low speed mode if you press this button at
standby mode.

Press this button to set the working time. Every time increase 30 minutes. It will
recycle after 12 hours. You can press 3 seconds to exit this mode. The machine
will go into standby mode and exit timer mode if you press this button but ma-
chine not at purifying mode.(Display panel will show 00:30 1:00 1:30 2:00
2:30......)
UV sterilize on/off after press this button when machine running. Icon will light up
or down at the same time. Motor will turn on and stay low speed mode if you
press this button at standby mode.
Press auto button on the control panel, machine into auto mode, “Auto”indicator
on the panel.Under this mode, according to the degree of air pollution, automatic
to start work, air volume automatically adjust. PM2.5<60 (Low speed), 60≤
PM2.5<150 (Medium speed), PM2.5≥150 (High speed)
The display panel and light will turn off when sleep mode start. Motor only work
at low speed. Timer is available at this mode. Machine will at standby mode after
the time setting finish.Press any button to exit sleep mode. When machine
running, it will turn into standby mode when press this button.

Press this button can adjust the motor speed at Low(500RPM), Medi-
um(700RPM), High (900 RPM) and let the machine exit auto mode. The motor
speed won’t control by sensor if it’s modify without permission. Accumulated
working time of the filter
Press child lock for 5 seconds when at normal working mode(child lock mode not
start), it will show accumulated working time of the filter. It will disappear after 3
seconds.
Power off
When machine running, it will turn into standby mode when press the this button.

Function Descriptions
1.Remote Control
The product is equipped with remote control,use the button cell(If don’t use the
remote control for a long time, please take out the battery)
Note: The buttons on the remote control, the corresponding buttons on the
operation panel, function and operation method are exactly the same,otherwise
no introduction.
2. Product use
Intelligent operation, the machine under the status of the power supply is
connected, press the power button,and the press the smart key, the machine can
run under the sensor intelligent induction. The operation of the motor gear will
follow sensors adjusted value. This operation can use the vast majority of
applications.
Enforce running, the machine under the status of the power supply is connected,
press the power button, key selection according to wind speed motor gear, to
select on or off negative ions and UV germicidal lamp. Complete the purification
function, suitable for the operating manual intervention force purification
applications. In this mode cannot be automatically shift machine.
The above two kinds of operating modes when it runs at night, as long as the
sleep button is automatically in the purification of a machine, to ensure that no
noise, will not effect your rest.Regular operation, the above three kinds of
operation mode, simply press time, the setting of the machine running time, it will
run the countdown, will stop running automatically after the time out.(If need to

cancel the timing, long press time 3 seconds to cancel this function.)Child lock
mode, as long as you press the Child lock button, the control panel and buttons
on the remote control can not work.(Long press 3 seconds locked to lift,or press
the unlock button on the remote control).
3. Time setting
Setting method, long press the smart key for 5 seconds, time display: Hour”
digits flashing, press the speed key to add 1,press the sleep button to subtract
1,set”our”and then click the smart key again,”Minutes”digits in flashing,
press the speed button to add 1.press sleep mode to subtract 1.(Press smart key
back and forth for hours and wind speed. Press the wind speed and the sleep
button to add or subtract set.)
Note:
The clock function of this machine is completely independent, time display
function accuracy or not does not affect the purification.The battery powered by
the circuit board of the machine, it will consumption in the case of the machine is
not plugged in. The battery is designed for the latest 10 days standby, it runs out
of battery for more than 10days,the clock function automatically reset. We need
to set the clock again.(Refer to the back of the clock setting process).

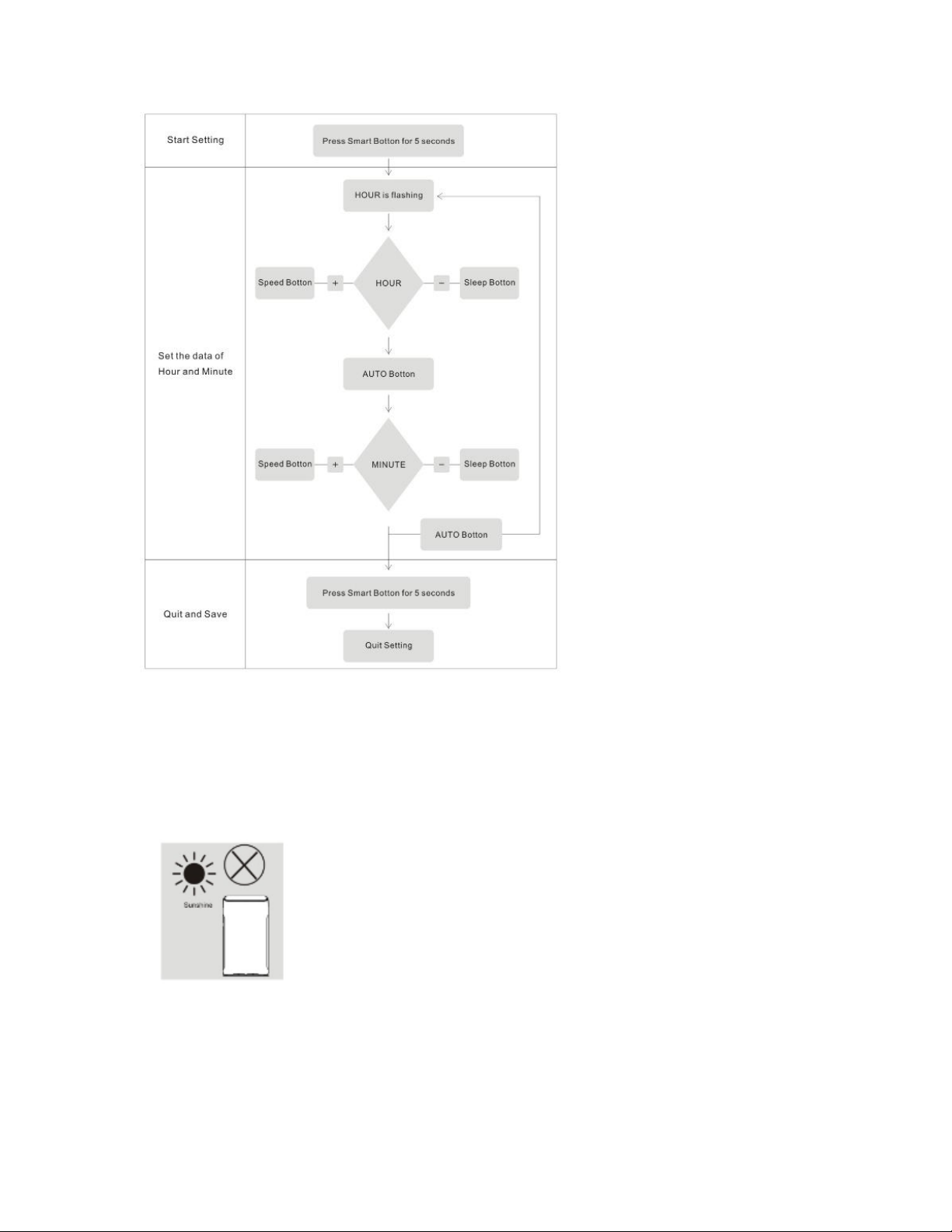

Clock Setting Flowchart

When Setting is done,SECOND setting is 00,and the clock move from current
hour.
Installation Notice

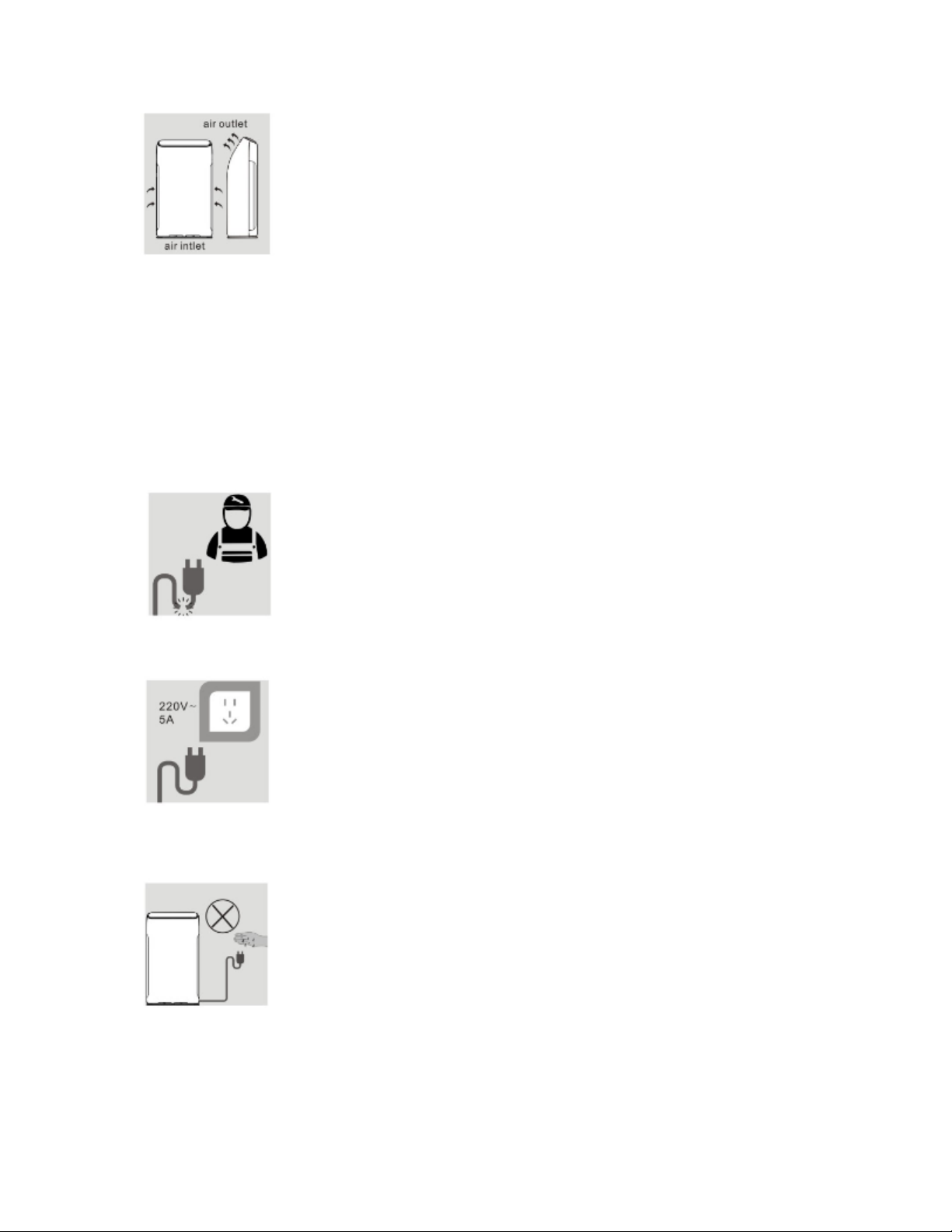

1. Do not place on the following places
Direct sunlight or facing outlet of air condition, Heated place. (May cause defor-
mation, deterioration, discoloration and malfunction.)
Televisions and adios and the equipment nearby. (Images may cause disorder
and noise, remote control machine,disruption television and adios, please put
more than 1metre away.)

2. In view of the pollen and other indoor dust, this product should be placed on
the ground.Pollen, dust and other easily fall near the floor, it is recommended
that the product be placed on a flat ground in the room.
3. In order to make effective air circulation in the room.f3There should be a gap
of at least 20cm at both sides and back of the product, while 30cm from the top
surface.
4. Do not place anything on the product .(Otherwise may cause malfunction)
special Notice: Do not place magnets and metal object.
5.Do not block the air inlet and outlet. For example, do not place anything on the
outlet or front air inlet.

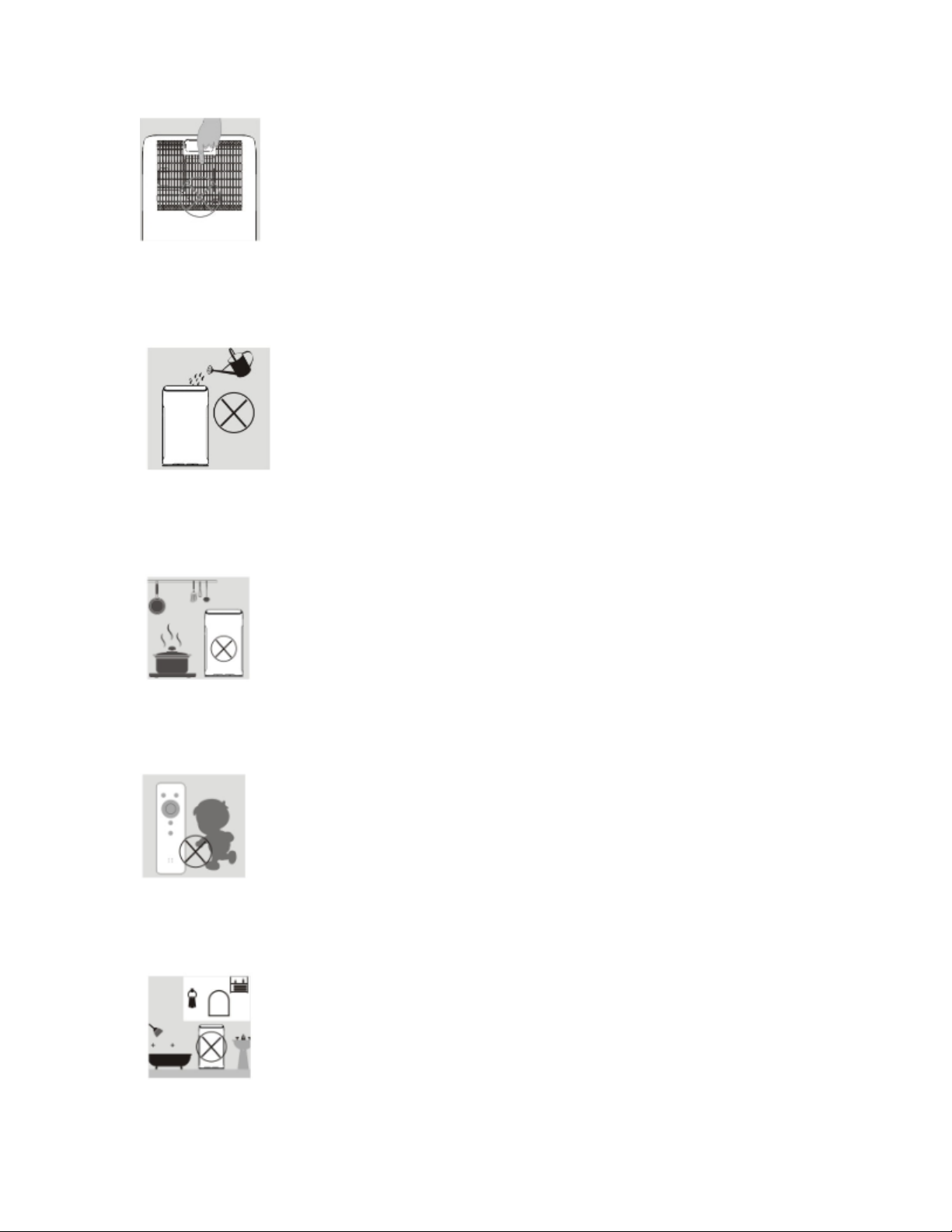

1. Do not lift or move the machine when it working
Never pull the cord when moving or storing, may cause a short circuit or the
power cord damage, fire or get an electric shock accident.

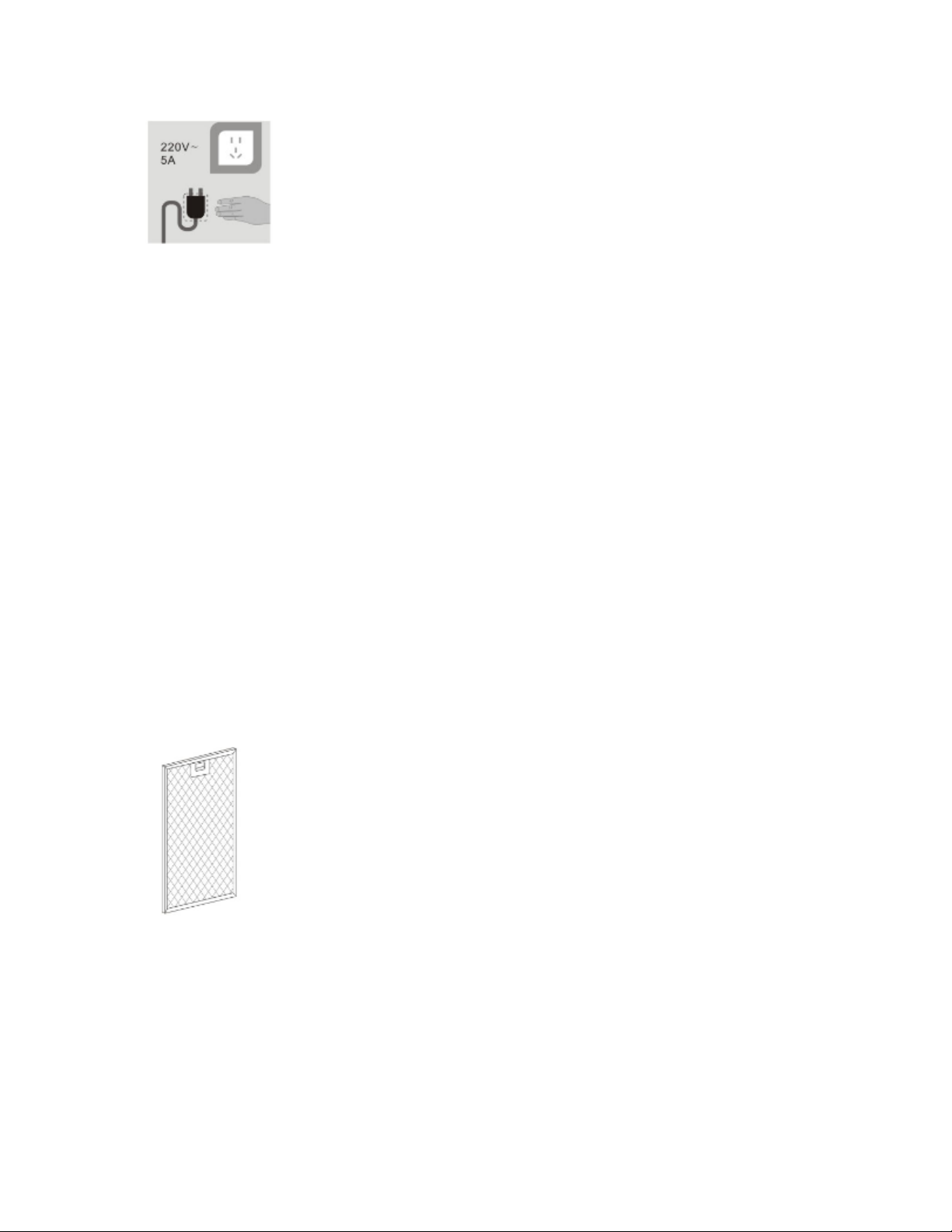

2. Do not damage the power cord or plug, do not cutting, excessive twisting,
pulling, reverse power line. If the power cord is damaged, to avoid the danger,
must be replaced by the manufacturer, the maintenance department or profes-
sional staff.
3. Do not use beyond the rated power, universal socket or connected
devices, May cause the cord to overheat and cause fire accidents.
4. Do not touch the power plug with wet hands, may cause electric shock.
5. Prohibit the use of fingers or metal objects into the air outlet gap,May cause
electric shock or injury.

6. Do not let water, flammable detergent or other liquid into the product ,may
cause electric shock or fire.
7. This product is not supposed to be used as daily ventilator , dust cleaner or
cooker hood.
8. Do not use this product near as gas appliances, heating devices no near
stove.
9. Do not use this product in a humid or high-temperature environment
(e.g.bathroom, toilet or kitchen)

10. Do not allow children to have access to the remote control.
11. Do not place in such a place Unstable places(Products may drop, overturned,
resulting in injury, cause leakage1, electric shock or fire accident)
High temperature, high humidity or place of wet machine, e.g. the bathroom.
Kitchen and other places of soot emission
12. Do not use air purifier in Aromatherapy scent insecticide environment
Chemical residues may accumulate in the machine, then released from the outlet
and harm to health.
After using insecticide, should thoroughly ventilate the room before using air
purifier.
Mandatory items
1. When the following occurs, please immediately turn off the power of the
machine. (May cause electric shock, sparks, or smoke)
Abnormal sound or vibration during operation
Product odor, burnt smell
2. Please regularly clean the power plug
Pullout the power plug, wipe with a dry cloth
If do not use electrical appliances for a long time,please pull out the power plug
3. Before maintenance, make sure to disconnect the power
Products may suddenly start ,causing electric shock and injury
4. Please safely insert the plug into the socket
Do not use damaged plug or loose power socket
5. Please hold the plug insulation parts to pull out power plug
Use the power cord to pull off the plug from the power cord,may cause power
cord damaged, electric shock, short circuit, fire disaster

6. When any of the following occurs, please immediately turn off the machine and
find the maintenance department
A switch does not work
The power cord or plug abnormal heat
Abnormal sound or vibration
Any anomalies or malfunctions
7. Unprofessional people is not allowed to install or uninstall the machine.
Cleaning and Maintenance
1.Pre-Filter(Every 15 days)
Please use the vacuum cleaner to clean the dust on the surface of the
screen,or wash with water,dry thoroughly.
2. Cold-catalyst filter / High efficient formaldehyde removing filter (Every 2
months)

Use the vacuum cleaner to clear the dust on the surface of the screen.
Place the filter into the ventilated place. Don’t expose under the strong sunshine.
Do not force of hold on the filter.
Do not use water to clean the filter.
3. Antibacterial / HEPA filter(Every 2 months)
Place the filter into the ventilated place. Do not expose under the strong sun-
shine.
Do not use water to clean the filter.
4. Negative Ion Generator
When you hear the machine with a creak sound, use the brush
pen as cleaning tool, regularly clean the dust around the negative ion.

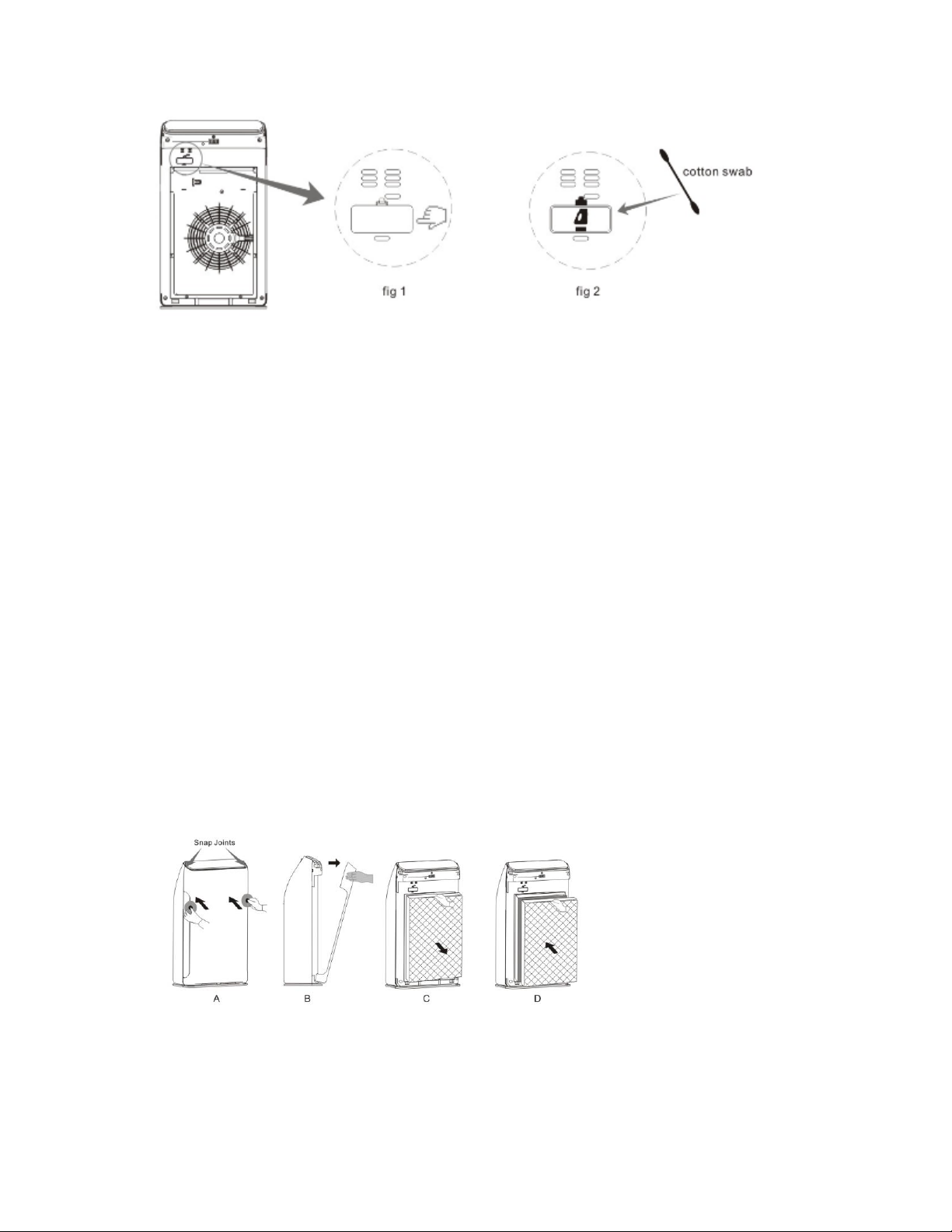

5. Particle Sensor (Every 2 months)

With a dry cotton swab and regular cleaning the lens to remove the moisture and
smoke, remove the outer cover of particle sensor(fig 1), use the dry cotton swab
to clean the lens (fig 2).
Please ensure to disconnect the power before cleaning.
Irradiated with light when it can’t see clearly.
Tips
Ensure to disconnect the power before cleaning and maintenance
Do not open the machine when it remove the filter
Please unplug power if the machine is not in use in long time
According to the use of places and methods (e.g. The family with many of
smokers or the place with serious pollution), the filter life will be shortened.
Please replace the filter in time.
Replacing the filters
A. Press the middle of front panel,to make the upper button out of it’s position.
B. Pull out the front panel
C. Take out the filters one by one
D. Fill in new filters one by one in a correct consequence

1. Pre-Filter
2. Highly efficient formaldehyde removing filter /Cold Catalyst Filter
3. Antibacterial / HEPA Filter
Suggest to maintain No.1 filter in every 15 days
Suggest to maintain No.2 and No.3 filters in every 60 days
Suggest to replace No.1 filter in every 2 years
Suggest to replace No.2 & No.3 filter in every 6 moths
Filter change reminding reset
The machine has filter change reminding function. It’s set at 1500 hours. Please
replace No.2 and No. 3 filter when “change” icon light up. Also please press the
sleep button for 5 seconds to reset this function.
Troubleshooting
Usually problem and way of control and protect
Problem
Solution
Can not turn on or key has no
response
1.The power cord is plugged in?
--Plug in the power.
2.The machine front plate is covered?
--Cover the front plate
3.The machine is in the Child-lock
mode?
--When the display showed
“child-lock” lights up, press the
“child-lock/ reset” 5 seconds until
the light out.
4.The machine is put on the flat place?
--Put it on a flat place.
The air is dirty, but the indicator
still show green color, even
continuous operation, the indicator
is always displayed in red.
1.If the machine is put in the place of
not easy to adsorbed the
dirty air? --Change the place.
2.Particle?sensor?is dirty?
--Clean the sensor.
Sound during operation
The negative ion generator is too much
