Rohr AirForce 11 User manual

Tyre Inater
AirForce 11 / AirForce 12
OPERATION MANUAL
Read this manual carefully before use and keep it for future reference. Failure to do so may result in
injury, property damage and may void the warranty.
Products covered by this manual may vary in appearance, assembly, inclusions, specications,
description or packaging.
V 3.1
English Français Deutsch Italiano Español

© ROHR
2© ROHR
English
AirForce 11 / AirForce 12
2 Contents
3 Quick Start Guide
4 AirForce 11
5 AirForce 12
6 Specications
7 Health and Safety
8 CE Declaration of Conformity
Tyre ination
01. Connect the screw-on valve connector to the tyre air valve by twisting it clockwise until it is
securely attached.
02. Insert the 12v socket supply into your vehicle’s outlet.
03. Turn on the vehicle’s engine.
04. Switch on the tyre inflater. Monitor the PSI gauge and switch off the unit when the desired
pressure is reached.
05. Remove the valve connector by twisting counter-clockwise.
06. Remove the power socket from the outlet and switch off the vehicle’s engine.
Quick Start Guide
09 - Français
17 - Deutsch
25 - Italiano
33 - Español
Contents Languages

© ROHR 3 © ROHR
English
AirForce 11 / AirForce 12
Tyre ination
01. Connect the screw-on valve connector to the tyre air valve by twisting it clockwise until it is
securely attached.
02. Insert the 12v socket supply into your vehicle’s outlet.
03. Turn on the vehicle’s engine.
04. Switch on the tyre inflater. Monitor the PSI gauge and switch off the unit when the desired
pressure is reached.
05. Remove the valve connector by twisting counter-clockwise.
06. Remove the power socket from the outlet and switch off the vehicle’s engine.
Quick Start Guide
The following steps describe the quickest method to operate your tyre inater However, it
is essential you fully read this manual to ensure you are familiar with the general safety
features, precautions and functions necessary to operate the product. Failure to do so may
result in injury and damage to equipment and/or your personal items.
Contents Languages

© ROHR
4© ROHR
English
AirForce 11 / AirForce 12

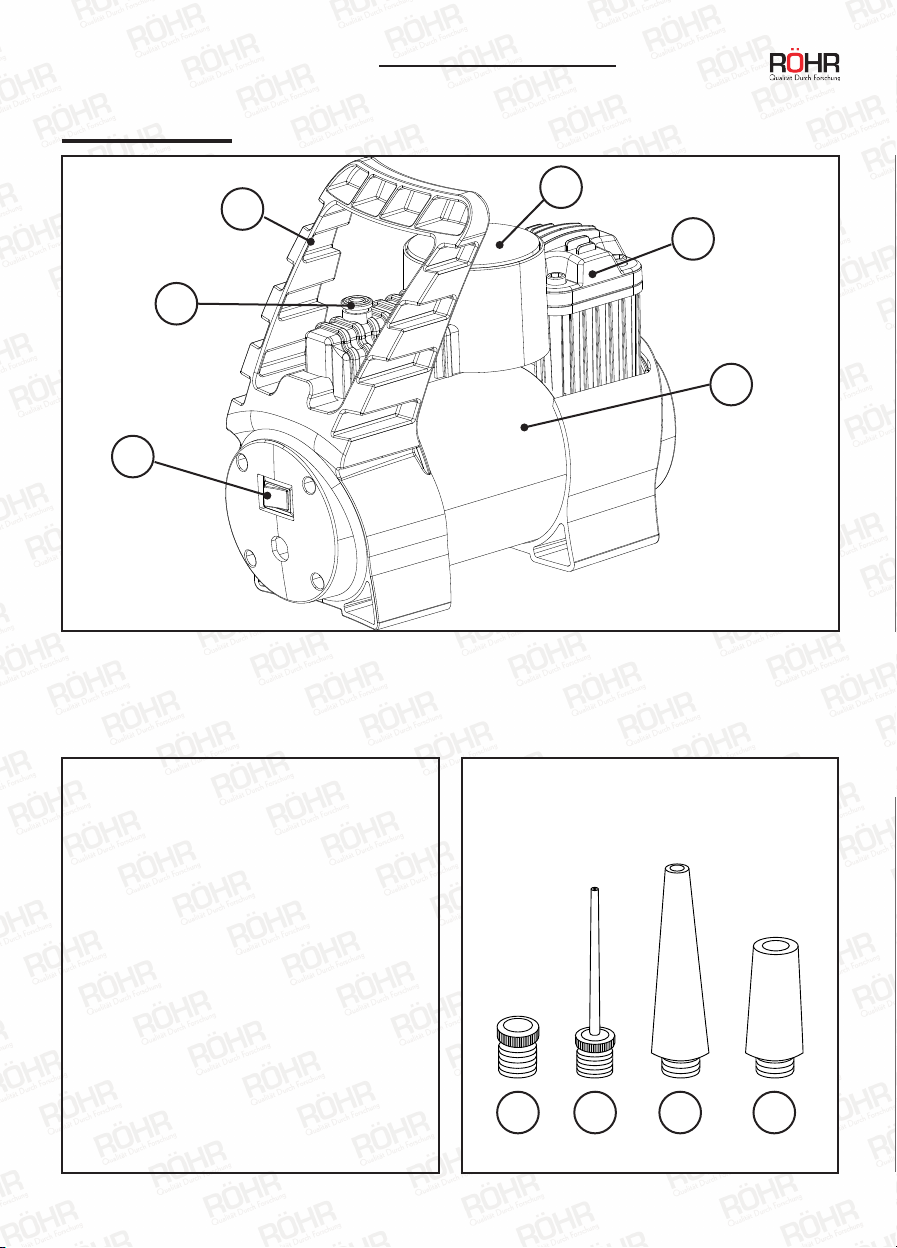

AirForce 11
01. Compression tank
02. Motor
03. Pressure gauge
04. Handle
05. Deflation button
06. On/Off switch
Use the deate button to reverse airow. Take
care to monitor the object you are deating to
avoid damage to the tyre inater or personal
items.
07.Bicycle adapter
Use on any Schrader valve. Screw onto valve
clockwise.
08.Sport ball nozzle
For any ‘non-return’ valve. We recommend
wetting the end slightly especially if the valve
is old.
09.Air mattress / dinghy nozzle
The longer nozzle has a narrower tip for greater
compatibility, the shorter has a wider tip for
increase airow.
03
01
02
04
05
06
07 08 09 09

© ROHR 5 © ROHR
English
AirForce 11 / AirForce 12
AirForce 12
01. Power cable
02. Air line
03. Compression tank
04. Motor
05. Handle
06. Pressure gauge
07. On/Off switch
08. Work light On/Off (I for constant, II for
flashing)
09. Work light
10.Bicycle adapter
Use on any Schrader valve. Screw onto valve
clockwise.
11.Sport ball nozzle
For any ‘non-return’ valve, we recommend
wetting the end slightly.
12.Air mattress / dinghy nozzle
The longer nozzle has a narrower tip for greater
compatibility, the shorter has a wider tip for
increase airow.
03
04
06
05
07
08
09
01
02
10 11 12 12

© ROHR
6© ROHR
English
AirForce 11 / AirForce 12
Health and Safety
Please read and understand this manual and the manual for the product / battery
you are intending to charge before operating this device. Keep this manual for
future reference.
• Only use this device in a dry environment and for its intended use.
• No warranty is offered for damages resulting from improper use or incorrect operation of this
device.
• This device is not intended to be used by persons (including children) with limited physical,
sensory or mental aptitude or lack of experience and/or knowledge.
• In the event of a fault or failure, any repairs to this tyre inflater must be done by a qualified
person authorised by the manufacturer.
• Keep the power cable away from sources of heat and check the condition of it regularly. If it’s
damaged, have the cable replaced by a qualified person.
• Do not use the charger if damaged or defective.
• Protect the tyre inflater against the elements, especially rainfall. Use the device in well ventilated
areas only.
• Do not leave the tyre inflater connected to a power supply when not in use.
• Make sure the connections are secure before use. Failure to do so may result in injury or
damage to personal possessions.
• Always make sure the vehicle manufacturers permit the use of a tyre inflaters prior to using
this function.
• Warning, danger to life - when cleaning, never immerse the device in water or other liquids and
never open the product housing.
Specications
AirForce 11 AirForce 12
Max PSI 150 150
Cylinder size 30mm 30mm
Power 180W 180W
Working current 15A 15A
Flow rate 35L/min 35L/min
Special attribute Deating feature Work light built in
Dimensions 191.2 x 204.8 x 91.2 186.5 x 202 x 104.1
Weight 1.89Kg 1.93Kg

© ROHR 7 © ROHR
English
AirForce 11 / AirForce 12
Health and Safety
Please read and understand this manual and the manual for the product / battery
you are intending to charge before operating this device. Keep this manual for
future reference.
• Only use this device in a dry environment and for its intended use.
• No warranty is offered for damages resulting from improper use or incorrect operation of this
device.
• This device is not intended to be used by persons (including children) with limited physical,
sensory or mental aptitude or lack of experience and/or knowledge.
• In the event of a fault or failure, any repairs to this tyre inflater must be done by a qualified
person authorised by the manufacturer.
• Keep the power cable away from sources of heat and check the condition of it regularly. If it’s
damaged, have the cable replaced by a qualified person.
• Do not use the charger if damaged or defective.
• Protect the tyre inflater against the elements, especially rainfall. Use the device in well ventilated
areas only.
• Do not leave the tyre inflater connected to a power supply when not in use.
• Make sure the connections are secure before use. Failure to do so may result in injury or
damage to personal possessions.
• Always make sure the vehicle manufacturers permit the use of a tyre inflaters prior to using
this function.
• Warning, danger to life - when cleaning, never immerse the device in water or other liquids and
never open the product housing.
Specications
AirForce 11 AirForce 12
Max PSI 150 150
Cylinder size 30mm 30mm
Power 180W 180W
Working current 15A 15A
Flow rate 35L/min 35L/min
Special attribute Deating feature Work light built in
Dimensions 191.2 x 204.8 x 91.2 186.5 x 202 x 104.1
Weight 1.89Kg 1.93Kg

© ROHR
8© ROHR
English
AirForce 11 / AirForce 12
CE Declaration of Conformity
We hereby declare that the machine described below complies with the relevant basic safety and health
requirements of the EU Directives, both in its basic design and construction as well as in the version put
into circulation by us. This declaration shall cease to be valid if the machine is modied without our prior
approval.
The undersigned: Michael S McQuaide
As authorised by: Union Mart Ltd
Declares that
Description: Air Compressor
Identication code: AirForce11 / AirForce12
Conforms to the following directives and standards:
• EMC Directive 2004/30/EU
--
• EN 55014-1:2017
• EN 55014-1:2015
Notied body: Union Mart Ltd
The technical documentation is kept by: Union Mart Ltd
Date: 18/03/2020
Signed:
Michael S McQuaide
Chief Executive Ofcer
Name and address of the manufacturer:
Union Mart Ltd, Company No. 8384155.
Registered address: Unit 4, Nursling Industrial Estate, Mauretania Road, Nursling, Southampton, SO16
0YS, United Kingdom.
Goneur de Pneus
AirForce 11 / AirForce 12
MANUEL D’UTILISATION
Lisez attentivement ce manuel avant de l’utiliser et conservez-le pour vous y référer ultérieurement. Le
non-respect de cette consigne peut entraîner des blessures, des dommages matériels et peut annuler
la garantie. Les produits couverts par ce manuel peuvent varier en termes d’apparence, d’assemblage,
d’inclusions, de spécications, de description ou d’emballage.
Français

© ROHR © ROHR
CE Declaration of Conformity
Goneur de Pneus
AirForce 11 / AirForce 12
MANUEL D’UTILISATION
Lisez attentivement ce manuel avant de l’utiliser et conservez-le pour vous y référer ultérieurement. Le
non-respect de cette consigne peut entraîner des blessures, des dommages matériels et peut annuler
la garantie. Les produits couverts par ce manuel peuvent varier en termes d’apparence, d’assemblage,
d’inclusions, de spécications, de description ou d’emballage.
Français

© ROHR
10 © ROHR
Français
AirForce 11 / AirForce 12
Ination des Pneus
01. Raccordez le connecteur de la valve à vis à la valve à air du pneu en le tournant dans le sens
des aiguilles d’une montre jusqu’à ce qu’il soit bien fixé.
02. Insérez la prise 12v dans la prise de courant de votre véhicule.
03. Allumez le moteur du véhicule.
04. Allumez le gonfleur de pneus. Surveillez la jauge PSI et éteignez l’appareil lorsque la pression
souhaitée est atteinte.
05. Retirez le connecteur de la valve en le tournant dans le sens inverse des aiguilles d’une
montre.
06. Débranchez la prise de courant et coupez le moteur du véhicule.
Guide de Démarrage RapideContenu
10 Contenu
11 Guide de Démarrage Rapide
12 AirForce 11
13 AirForce 12
14 Spécications
15 Santé et Sécurité
16 Déclaration de Conformité CE
