Roksan Audio Xerxes.20plus User manual

ROKSAN AUDIO LIMITED
JUBILEE CLOSE TOWNSEND LANE LONDON NW98TR ENGLAND
T
TE EL L. . + +4 44 4 ( (0 0) )2 20 08 8 9 90 00 0 6 68 80 01 1 F
FA AX X. .
+
[phone]
w
ww ww w. .r ro ok ks sa an n. .c co o. .u uk k e em ma ai il l i in nf fo o@ @r ro ok ks sa an n. .c co o. .u uk k
U
Us
se
e
r
r
m
ma
an
nu ua al l

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 2 of 22 ENGLISH
Congratulations on your purchase of the ROKSAN Xerxes.20plus Record Player. This record Player is designed
and manufactured to the highest specification and rigorously tested to offer you many years of trouble-free
pleasure.
Your Xerxes.20plus is at the heart of your record playing system and the link between the tone arm/cartridge and
the record. Its correct installation, set-up and operation will have a profound influence on the sonic performance
of the entire record playing system.
Please read the contents of this manual thoroughly. It will help you to understand your Xerxes.20plus better and
enhance your musical experience.
This manual is divided into the following sections:
•Introduction
•Unpacking
•Caution
•Design
•Setup Summary
•Setup Diagrams
•Installation
•Operation
•Troubleshooting
•Guarantee
•Specifications
•Notes
UNPACKING
Included in the packing of your Xerxes.20plus Record Player you will find:
•One Xerxes.20plus Inner Platter
•One Xerxes.20plus Outer Platter
•One Xerxes.20plus Drive Belt
•One Xerxes.20plus Spindle Cap
•One Vial of Xerxes.20 oil + Cotton Bud & lint free tissue
•One pair of cotton gloves
•One Xerxes.20plus Dust Cover
•Set of Allen Keys (2.5, 3.0 & 5.0mm A/F)
•One information pack and warranty card
After removing these items please retain all packing materials. Correct packing is necessary for future
transportation of your Xerxes.20 Record Player.
MAINTENANCE
First switch the amplifier off and place the stylus guard on; the record player may then be cleaned with a lightly
dampened soft cloth or a soft brush. Be extra careful if the cartridge has no stylus guard.
Avoid using abrasives or solvents.
*
** ** * T Ta ak ke e c ca ar re e n no ot t t to o d da am ma ag ge e t th he e c ca ar rt tr ri id dg ge e s st ty yl lu us s o or r t th he e t to on ne e a ar rm m. .
•The Main Bearing requires recharging with oil every 12-18 months. SEE BELOW
•The Drive belt requires cleaning with a wax based furniture polish every 12-18 months. SEE BELOW
INTRODUCTION
X
X
X
E
E
E
R
R
R
X
X
X
E
E
E
S
S
S
.
.
.
2
2
2
0
0
0
p
p
p
l
l
l
u
u
us
s
sRecord Player

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 3 of 22 ENGLISH
UNPACKING
X
X
X
E
E
E
R
R
R
X
X
X
E
E
E
S
S
S.
.
.
2
2
20
0
0
p
p
p
l
l
l
u
u
us
s
sRecord Player
ACCESSORIES
Careful not to
damage the
pulley
Rmat-5

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 4 of 22 ENGLISH
The Xerxes.20plus Record Player incorporates several unique design features and manufacturing
techniques. It is important to observe the following to avoid any damage and to ensure optimum
performance.
T Th he e S St tr ru uc ct tu ur re e
As with the original TMS turntable design, the Xerxes.20plus has three separate plinths used for decoupling
across a selective frequency band.
The sub-plinth which carries the main bearing/platter assembly and the tonearm is designed as a reference
platform to preserve the record/cartridge interface from unwanted disturbances. It has been computer modelled
using finite element analysis to determine the optimum shape and of coupling of this platform to the bottom
plinth.
The top plinth features the familiar cut-out, which was first seen on the original Xerxes, that follows the contour of
the sub-plinth without touching. The top plinth is connected to the bottom plinth via three suspension mounts.
The bottom plinth supports, decouples and isolates the top and the sub-plinths from external disturbances.
The motor is free to pivot on its own bearing on an axis of rotation coincident with the shaft of the motor. With this
unique dynamic system transient speed changes are absorbed and do not affect the measuring platform.
The armboard, which provides another level of isolation, is machined from a billet of Acetal with complimentary
damping between the tonearm and the sub-plinth. The detachable armboard is fixed by three stainless steel bolts
for easy tonearm mounting and adjustment.
T Th he e B Be ea ar ri in ng g / / P Pl la at tt te er r A As ss se em mb bl ly y
At the heart of Xerxes.20plus is Roksan’s unique and formidable self centring, self aligning true single point main
bearing. The innovative design of this bearing provides almost silent, frictionless rotation, precisely defining the
rotational axis. The bearing sleeve is gun-drilled from solid phosphor bronze and honed to provide
spindle/bearing sleeve gap of 2/10,000” along its length! The only contact is between the polished spindle tip and
the captive TMS 3 Tungsten Carbide super precision ball.
The spindle is made from hardened steel and is ground with a taper that locates into the inner platter without the
use of adhesive or the need for pressing.
DESIGN
X
X
X
E
E
E
R
R
R
X
X
X
E
E
E
S
S
S.
.
.
2
2
20
0
0Record Player
CAUTION
X
X
X
E
E
E
R
R
R
X
X
X
E
E
E
S
S
S.
.
.
2
2
20
0
0
p
p
p
l
l
l
u
u
us
s
sRecord Player
IMPORTANT
DO NOT attempt to run the record player without Main Bearing Oil
Careful when placing the Inner Platter
Careful when placing the Outer Platter onto the Inner Platter (Outer Platter should not hit
the Motor Pulley or drop onto the Inner Platter)

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 5 of 22 ENGLISH
The inner and outer platters are both machined from solid aluminium alloy instead of normal castings to ensure
the material is homogeneous. Each complete platter is constructed of two parts that are ‘friction’ fitted together.
Each part is designed as a tuning fork and hence it’s free from any nonlinearity. Their natural frequencies are
linearly damped, as these two parts are joined together by friction only. The platters are machined to extremely
high tolerances to ensure roundness and balance. Required inertia for a smooth and constant angular speed is
achieved through high peripheral distribution of mass. This maximizes inertia to mass ratio and reduces undue
pressure on the bearing contact point. It is this level of attention to detail throughout the design that ensures
musical integrity.

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 6 of 22 ENGLISH

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 7 of 22 ENGLISH
P Pl la ac ci in ng g t th he e X Xe er rx xe es s 2 20 0p
pl lu us s
Prepare a level surface, using a spirit level, on which to place the Xerxes.20plus (‘absolute’ level is not critical as
long as the surface is reasonably level). If you wish to use a dedicated equipment support, ensure that you get a
‘vertically’ rigid table. For best results it should sit rigid and level on a solid floor. For the wall mounted turntable
support, ensure the same.
R Re em mo ov vi in ng g t th he e M Mo ot to or r T Tr ra an ns si it t S Sc cr re ew w
This screw prevents the precision motor and its bearing mount assembly from being damaged in transit. Undo
and remove this screw from the transit pillar to release the motor body. With the screw in place the motor spring
is in tension so be careful as the motor will rotate back to its normal operating position. Please keep the motor
transit screw safe in the packaging for future use.
P Pr re ep pa ar ri in ng g t th he e M Ma ai in n B Be ea ar ri in ng g
Remove the rubber plug on the main bearing. Push a cotton Q-tip down to the bottom of the housing and rotate it
while gently pressing down. Keep turning as you pull it out. The cotton bud should now have a recess in its tip,
which shows that the precision ball bearing is correctly positioned at the bottom of the housing (See figure). From
the small vial of oil, pour 4 to 5 drops of oil into the bearing housing. Always replace the plug, to keep the bearing
housing clean, if you are not fitting the inner platter immediately.
P Pl la ac ci in ng g t th he e I In nn ne er r P Pl la at tt te er r
Remove the inner platter/spindle assembly from its plastic bag. The spindle is slightly oiled to protect the tool
steel spindle (remember to do the same if you are storing your Xerxes for a length of time).
Wipe the oil from the spindle using a soft lint-free tissue.
Remove the plug from the bearing and carefully guide the spindle into the main bearing hole. Gently spin the
inner platter. The platter will slowly sink over a period of about ten to twenty minutes. Do not force the platter
down. The spindle is factory fitted to ensure that the inner platter runs true. Take extra care not to knock or bend
the spindle.
You can check that the inner platter has settled by gently raising and lowering the spindle by about 3mm. You
should hear a quiet metallic click as it touches the ball bearing. If there is enough oil a ridge will be visible at the
top of the bearing housing.
If you do not see a ridge, use one more drop of oil.
F Fi it tt ti in ng g t th he e B Be el lt t
The belt should be wiped with a non-alcohol, wax based polish (i.e. aerosol type such as Pledge) before fitting.
When this has been done, the belt can then be fitted around the inner platter and motor pulley. Turn the inner
platter by hand for a few revolutions and the belt will come to rest in its correct operation position.
SETUP SUMMARY
X
X
X
E
E
E
R
R
R
X
X
X
E
E
E
S
S
S.
.
.
2
2
20
0
0
p
p
p
l
l
l
u
u
us
s
sRecord Player
NOTE: For best results use the Xerxes Upgrade Plinth
IMPORTANT: Always use ROKSAN supplied Main Bearing Oil

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 8 of 22 ENGLISH
F Fi it tt ti in ng g t th he e T To on ne ea ar rm m
You will need to follow the tonearm manufacturer’s instructions as most tonearms differ slightly in their methods
of fixing.
C Co on nn ne ec ct ti in ng g t th he e A Ar rm m C Ca ab bl le e
Use a standard type arm cable preferably the ROKSAN 5-pin Din High Definition Tonearm Cable. This must
either be ‘freely’ dressed in between the foam strips or fixed securely to the bottom plinth using cable ties (See
figure). It is important that the arm cable is ‘loose/free’ between the arm and plinth (The foam strips or the cable-
ties). Otherwise this will restrict the movement of the sub plinth/arm-board and interfere with the
decoupling/isolation of Xerxes.20plus.
F Fi it tt ti in ng g t th he e o ou ut te er r p pl la at tt te er r
Remove the outer platter from its plastic bag. Gently place the outer platter on the inner platter; the recess on the
inside locates onto the plate of the inner platter. Take care not to hit the motor pulley with the rim of the outer
platter.
F Fi it tt ti in ng g t th he e M Ma at t
The Xerxes.20plus is supplied with the Roksan Rmat-5 which is designed to provide optimum contact between
the record and the platter assembly. It fits over the main bearing spindle in the centre and rests uniformly over
the platter surface. Use the Rmat-5 retaining ‘O’ring and gently push it onto the spindle to secure the mat. This
will stop the mat ‘sticking’ to the record while changing record/sides.
T Th he e C Ce en nt tr re e P Pi ie ec ce e ( (S Sp pi in nd dl le e C Ca ap p) )
Roksan introduced this unique removable centre piece with the original Xerxes. Slide the centre piece over the
bearing spindle to assist placing the record centrally on the mat. Before playing the record, the centre piece can
be removed to eliminate any direct mechanical contact between the record and the main bearing spindle. The
only contact would be through the mat and the stylus. *** DO NOT USE RECORD CLAMPS ***
C Co on nn ne ec ct ti in ng g t th he e P Po ow we er r S Su up pp pl ly y
The dedicated turntable power supply is connected to the rear of the turntable using the 5 pin connector. Always
connect the power supplies before switching it on.
O Op pe er ra at ti io on n
Switch on the dedicated Xerxes Power Supply and choose the desired speed. The platter should start turning.
Place the record on the mat ensuring the centre piece is in place. When the record is on the platter remove the
centre piece and place it in spindle cap rest on the top plinth.
IMPORTANT: Use of any clamp directly connects the vinyl to the structure and allows
unwanted ‘noise’ to be immediately present in the vinyl and thus ‘picked up’ by the
cartridge.
Do not use any record weights as this may permanently damage the Main Bearing.

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 9 of 22 ENGLISH
SETUP DIAGRAMS
X
X
X
E
E
E
R
R
R
X
X
X
E
E
E
S
S
S.
.
.
2
2
20
0
0
p
p
p
l
l
l
u
u
us
s
sRecord Player
* Due to very tight tolerances the
Inner Platter will take some time to
settle down
1
2
2
5 44
3

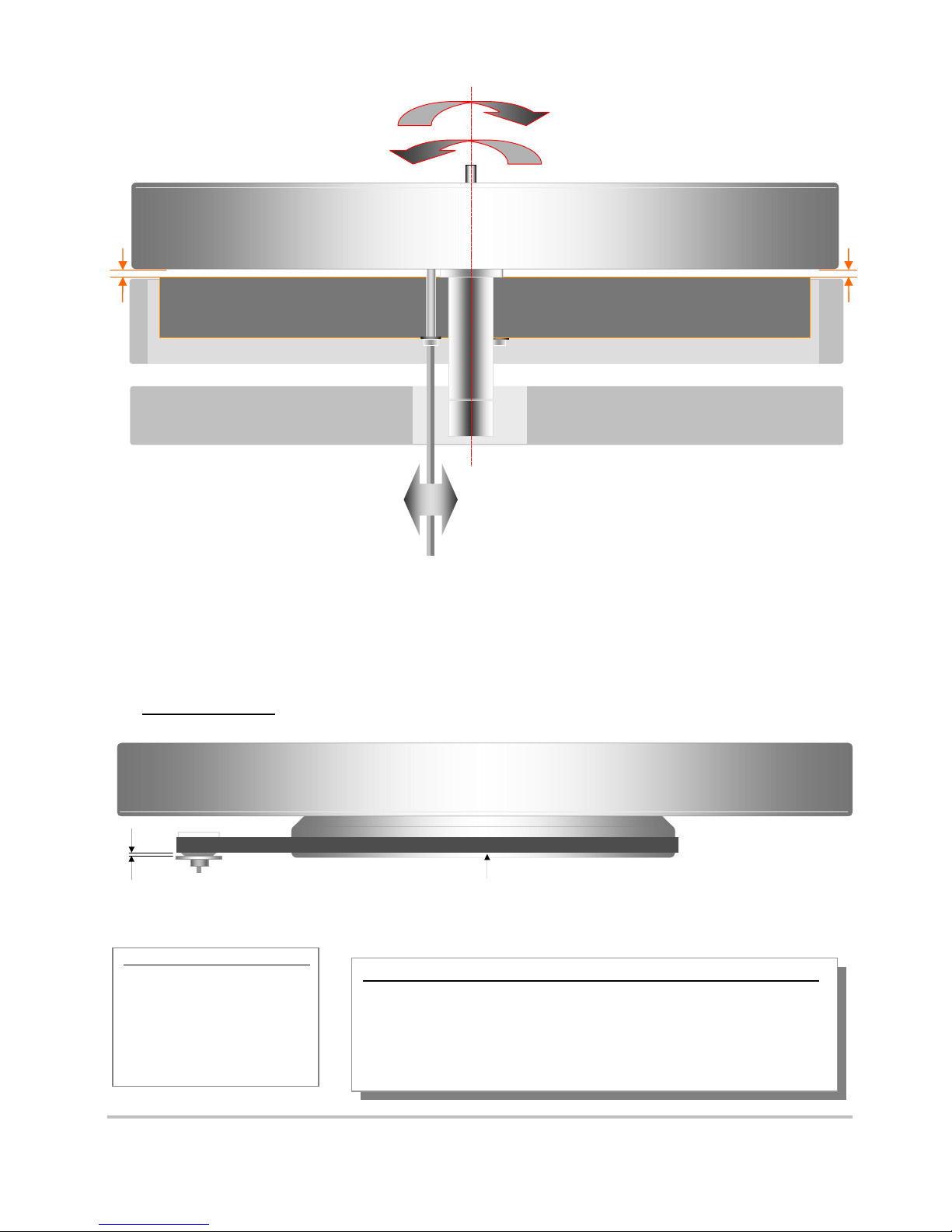

Fitting the Inner Platter
1 Pull out the Main Bearing Plug and place it in the Oil Vial bag
2 Carefully clean the Main Bearing with one of the Cotton Buds
and check that there is a ball impression on the tip
3 Remove the oil vial cap and charge the Main Bearing with 4to 5
drops of Roksan supplied Oil
4 Wear the cotton gloves and remove the Inner Platter from its
bag: use the Lint Free Tissue and gently clean the Inner Platter
Spindle free from any dirt
5 Gently place the Inner Platter Spindle into the Main Bearing and
allow it to settle down *

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 10 of 22 ENGLISH
Fitting Pickup Arm and Phono Cartridge
1 Use the 3mm A/F Allen key and remove the Acetal arm
board
2 Carefully fix the Phono cartridge to the head-shell
following manufacturer’s instructions
3 Carefully mount the Pickup arm to the arm board
following manufacturer’s instructions (do not fully tighten
the arm to the arm board allowing for later adjustments)
4 Remount arm board tightening the Allen bolts fully (if
required support the arm board from underneath while
tightening the bolts)
5 Plug in the pickup arm cable connector and check that
the sub-plinth assembly is free
6 Ensure the gap around the Sub-plinth is even (if
necessary gently lift the Sub-plinth and reposition it)
IMPORTANT NOTE 
The Xerxes.20plus sub-plinth alignment is factory set
according to the cutout on the arm board (e.g. Artemiz cut is
set for the Artemiz tone arm weight etc.). If the tone arm to be
fitted is heavier or lighter than the one anticipated, then the
Sub-plinth may require readjustment.

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 11 of 22 ENGLISH
View from B View from A
Motor Pulley & Inner/outer platter
alignment
Fitting Drive Belt, Outer Platter & Level Adjustments
1 Carefully place/fit tone arm counter weight
2 Carefully remove the motor transit screw (place in a bag and store
in the packaging carton for future use)
3 Remove the Drive belt from the bag and gently place it around the
inner platter and the motor pulley (Note: The Xerxes.20 will
perform better when the belt is not inside out and when it is the
right way up! To check for this consult Roksan Audio or your
Roksan retailer/distributor)
4 Remove outer platter from the bag and gently place it upside down
over the inner platter and seat it correctly on its recess. To avoid
marking/tarnishing the platters use the cotton gloves provided. (Be
extra careful to ensure the platter does not slip through your
hands as this could seriously damage your record player)
5 Check the alignment of the sub-plinth against the top plinth by
looking at the level all the way round (If necessary realign the sub-
plinth; see below)
6 Check the alignment of the motor pulley against the inner/outer
platter by looking in the directions ‘A’ & ‘B’ (View the Top edge and
the Flange of the pulley to see if it is level with the inner/outer
platter) for this adjustment see instructions below
Drive Belt Direction
To establish the correct belt
direction, try the belt inside out
first and then upside down and
each time listen to find out
which way round the music
‘flows’ better.
4
A
B
1
2
3
:
Sub-plinth
should be level
with Top Plinth
all the way round
NOTE:
Tonearm/counter weight & Platters must be
fitted when checking level adjustments

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 12 of 22 ENGLISH
NOTE:
TILT ADJUSTMENT
SCREW IS UNDER
THE INNER PLATTER
Y
T
4
1
Plinth Assembly Tilt Adjustment
1 Gently tighten or slacken fixing bolts 1& 4accordingly (using the 5mm
A/F Allen key) to adjust the level of the Sub-plinth/Inner Platter about the
axis ‘X’(Check that the Inner/Outer Platter assembly is level with the
Pulley; See view from ‘A’ above)
2 Gently tighten or slacken Tilt adjustment screw T(using the 3mm A/F
Allen key) to adjust the tilt of the Sub-plinth/Inner Platter about the axis ‘Y’
(Check that the Inner/Outer Platter assembly is level with the Pulley; See
view from ‘B’ above)
NOTE:
Use a small, light, spirit level to check relative levels if necessary.
X
TILT ADJUSTMENT ABOUT AXIS ‘X’
TILT ADJUSTMENT ABOUT AXIS ‘Y’
The Sub-plinth should be level with the Top Plinth. Check the ‘level’ all the way round. If necessary realign the sub-plinth.

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 13 of 22 ENGLISH
The Inner Platter is factory aligned and should be level with the sub-plinth. Carefully place the outer platter the
right way up on the inner platter and observe the gap between the under side of the outer platter and the top
surface of the sub-plinth. First look from the front of the record player and then from the side; the alignment of the
platter is achieved by adjusting the Main Bearing fixing screws. There are 3 fixing screws and
tightening/slackening these will tilt the axis of the main bearing and hence the platter level.
Platter level adjustment ensures correct azimuth between the platter/record and tonearm head-shell.
If any adjustment is required, you must first adjust the LEFT to RIGHT and then the FRONT to BACK. See
below:
PLEASE NOTE THE FIXING BOLT HEADS ARE NOT VISIBLE FROM THE SIDE GAP
Use a 2.5mm A/F Allen Key to adjust the Main Bearing Fixing Screws. Looking from the front adjusting the front
two screws will tilt the platter assembly LEFT to RIGHT as shown above. DO NOT over tighten or slacken the
fixing screws too much. Correct tension is to have the screws tightened by 1-1.5 turn after they have come into
contact with the sub-plinth. So when adjusting, slacken one a little and tighten the other a little. Adjustment of
these two screws will change the FRONT to BACK level. So you need to check the front to back level after
adjusting the left to right level. See below:
RIGHT HAND SIDELEFT HAND SIDE
A A
2.5mm A/F ALLEN KEY
SUB-PLINTH
TOP PLINTH
BOTTOM PLINTH
PLATTER
CORRECT AZIMUTH
88
PLATTER
INCORRECT AZIMUTH
PLATTER
INCORRECT AZIMUTH
9

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 14 of 22 ENGLISH
Use the 2.5mm A/F Allen Key and looking from the left hand side, adjust the back (3rd) screw to tilt the platter
assembly FRONT to BACK as shown above. DO NOT over tighten or slacken the fixing screw too much.
Adjustment of this screw will NOT change the LEFT to RIGHT level.
Belt riding position
The Belt should ride with at least
2mm clearance from the bottom of
the Inner Platte
r
NOTE:
•With the belt riding higher on the
pulley (i.e. more than 1mm gap),
the rotational speed would be
slightly increased.
•With the belt riding lower on the
pulley (i.e. less than 1mm gap),
the rotational speed would be
slightly decreased.
Drive Belt Set-up and Maintenance
1 If the levels are adjusted but the drive belt rides a little too high,
then remove the belt and gently stretch it. Wait a couple of
minutes and refit the drive belt and the outer platter and check the
running position again (Repeat this process if necessary)
1 mm gap between the Belt and the
Pulley flange
Ref.: Pulley flange thickness is 1mm
B
FRONTBACK
2.5mm A/F ALLEN KEY

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 15 of 22 ENGLISH
Drive Belt Set-up and Maintenance
2 The Motor/Pulley axis can also be aligned just as the Main
Bearing/Inner Platter axis. See above
3 If the levels are adjusted but the drive belt rides a little too high,
then remove the belt and gently stretch it. Wait a couple of
minutes and refit the drive belt and the outer platter and check the
running position again (Repeat this process if necessary)
View from B
BELT WOULD RIDE SLIGHTLY
HIGHER ON THE PULLEY
View from A
Motor Pulley & Inner/outer platter
alignment
A A
2.5mm A/F ALLEN KEY
BELT WOULD RIDE SLIGHTLY
HIGHER ON THE PULLEY
BELT WOULD RIDE SLIGHTLY
LOWER ON THE PULLEY

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 16 of 22 ENGLISH
TRANSIT PILLAR
FIXING SCREW
TRANSIT PILLAR
FIXING SCREW
MOTOR SPRING
MOTOR
BEARING
SMALL GAP
MOTOR AXIS
‘A’
MOTOR FREE TO
ROTATE ABOUT
‘A’
OPERATION
POSITION
Motor Transit & Operation Modes
Always fit the transit screw if the unit is to be
transported/shipped. There is no need to fit this screw if
you are merely moving the record player or taking it in
your car etc.
TRANSIT
POSITION
UNSCREW
&
REMOVE

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 17 of 22 ENGLISH
M Ma ai in nt te en na an nc ce e
The Xerxes.20plus requires minimal user maintenance.
•The Main Bearing should be cleaned and recharged with Roksan Oil every 12-18 months.
Important to ensure the Main Bearing Ball is in the housing before recharging with oil. See below
•The motor pulley and inner platter should be cleaned every six to twelve months depending on frequency
of use. Both parts will periodically build up with small deposits of rubber where the belt runs around
them.
Remove the centre piece, felt mat, outer platter and drive belt. Clean the motor pulley and inner platter
using alcohol or methylated spirit while they are still on the record player. DO NOT EXERT EXCESSIVE
PRESSURE as damage may occur.
DO NOT
PULL OR PUSH
BOTTOM
PLINTH
ARM BOARD
TOP
PLINTH
SUB-PLINTH
ARM BOARD
FIXING SCREW ARM CABLE GRIPPED
BETWEEN FOAM STRIPS
ARM CABLE
EARTH WIRE ARM CABLE
LOOSE & FREE
PLATTER/BEARING
GROUNDING SCREW
Arm Cable Dressing
Always ensure the arm cable is ‘free’ and ‘loose’ from the arm to the
plinth as shown. It is important that the sub-plinth and the top plinth
are ‘free’ and not being pulled or pushed by the arm cable.
Note the Xerxes.20plus has two foam strips fitted in the arm cable
channel which can grip the arm cable and provide the necessary
decoupling. See above.
Please ensure the ground wire of the arm cable (where applicable)
is attached securely to the platter grounding screw.

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 18 of 22 ENGLISH
•Clean the belt with a non-alcohol wax based polish. It is advisable to change the belt after every five
years or after five thousand hours of use.
•Clean the dust cover with a damp cloth as and when required.
•The turntable is made of very high quality real wood veneer (or high gloss lacquer) and should be looked
after with care. It may be cleaned with a very soft cloth. For any stubborn marks, use a very slightly
moistened lint free cloth. Very little high quality furniture wood polish may be used every six to eight
months. DO NOT USE CLEANING AGENTS, SOLVENT OR ABRASIVES.
Refer to SETUP section above for detail on charging the Main Bearing with Roksan Supplied oil.
5
Bearing Ball
Impression
4
No Bearing Ball
Impression

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 19 of 22 ENGLISH
Your Xerxes.20plus is designed to work on a level, light, vertically rigid non-resonant surface. If the unit is to be
on a floor mounted Hi-Fi rack, then ensure the rack is vertically rigid. It is not as important if the rack is slightly
compliant side ways. Please ensure the surface on which the record player is to be placed is reasonably level.
Remember the type of ‘shelf’ material can significantly affect the performance of any Hi-Fi equipment especially
record players. Please ensure this surface is as rigid and as non-resonant as possible.
Note: It is not necessary to have this surface over damped with sound absorbent material.
Note the Xerxes.20plus feet are adjustable and they are attached to the lower decoupling domes and thus are
part of the structural ‘suspension’ of the unit. These can be used to fine tune the level of the record player, but
they must not be at an angle/tilted to the side. Your Xerxes.20plus works much better when its feet are straight
and upright.
It is equally important to ensure the arm cable and the motor drive lead are not pulling or pushing the record
player plinth. Otherwise they will act as feed-back ‘channels’ and also ‘tilt’ the record player slightly and thus
move the feet out of their upright position. Take care when dressing these cables to avoid mechanical strain and
remember not to run these alongside mains power or speaker cables.
If the unit is to be used on a wall mounted shelf, please ensure the same.
In either case, follow the rack/shelf manufacturer’s instructions but do ensure good mechanical integrity of the
structure on which your Xerxes.20plus is to be sited.
Consult your Roksan distributor, retailer or Roksan Audio if you have any queries.
Switch on the dedicated Xerxes Power Supply and choose the desired speed. The platter should start turning.
Place the record on the mat ensuring the centre piece is in place. When the record is on the platter remove the
centre piece and place it in spindle cap rest on the top plinth. When you are not using the record player either
leave the Xerxes Power Supply on but in standby or switch it off completely.
INSTALLATION
X
X
X
E
E
E
R
R
R
X
X
X
E
E
E
S
S
S.
.
.
2
2
20
0
0
p
p
p
l
l
l
u
u
us
s
sRecord Player
OPERATION
X
X
X
E
E
E
R
R
R
X
X
X
E
E
E
S
S
S.
.
.
2
2
20
0
0
p
p
p
l
l
l
u
u
us
s
sRecord Player
NOTE: For best results use the Xerxes Upgrade Plinth
Foot at an angle & ‘tilted’ 4
Foot straight & upright 5
LOWER UNIT RAISE UNIT
ADJ.
FOOT

Roksan Audio ltd Xerxes.20plus Record Player User Manual
General Use
Version 2.00
All specifications are liable to change without notice. E&OE Page 20 of 22 ENGLISH
If you suspect that your ROKSAN Xerxes.20plus Record Player is not operating properly, first check all the
connections carefully. Below are some likely encountered problems with suggestions for possible cure. The list is
not exhaustive: If you have any unresolved problems, please consult your appointed ROKSAN dealer or
distributor.
SYMPTOM LIKELY CAUSE SUGGESTED REMEDY
Platter not turning Motor drive lead not inserted properly
Motor drive not switched on
Drive belt not fitted
Ensure Motor drive lead is fully inserted
Switch Motor drive on
Fit drive belt and try again
Start-up too slow (>10sec.) Motor locked in transit position
Belt dirty or sticky
Main bearing ‘dry’
Main bearing ball missing
Remove motor transit
Clean belt with wax based furniture
polish
Check, if no damage to bearing,
recharge with Roksan main bearing oil
(see above)
Check, if no damage to bearing, fit new
Xerxes.20 main bearing ball (if in doubt
consult your Roksan retailer)
Belt falling off
Platter touching the plinth
Incorrect motor alignment
Incorrect main bearing alignment
Check and realign motor (see above)
Check and realign bearing (see above)
There are no user-serviceable parts on your Xerxes.20plus Record Player. If a fault should develop, refer any
servicing to your appointed ROKSAN dealer, distributor or approved service agent.
Your ROKSAN Xerxes.20plus Record Player is guaranteed against any defect in materials and workmanship for
a period of two years from the date of purchase.
This guarantee only becomes effective if the warranty card is validated by the ROKSAN retailer from whom the
equipment was purchased and returned to ROKSAN within 28 days of purchase.
This guarantee excludes:
1. Damage caused due to accident, misuse, neglect and incorrect installation, adjustment or repair.
2. Liability for damage or loss during transit from the retailer or purchaser to ROKSAN or its authorised
distributor for the purposes of repair or inspection.
Carriage costs to ROKSAN shall be borne by the consignor.
All claims under this guarantee must be made through an authorised ROKSAN retailer.
If equipment returned for repair to ROKSAN is found on inspection to comply with the product specification
ROKSAN reserves the right to make a charge for examination and return carriage.
Unauthorised servicing will void this guarantee.
TROUBLESHOOTING
