Roland V-Drums TDW-20 User manual

*5100000349- 02*

3
Before using this product, carefully read the sections
entitled: “Using the Unit Safely” and “Important Notes”
(p. 4–p. 7 ). These sections provide important information
concerning the proper operation of the product.
Additionally, in order to feel assured that you have gained
a good grasp of every feature provided by your new
product, Owner’s manual should be read in its entirety.
The manual should be saved and kept on hand as a
convenient reference.
In the interest of product improvement, the specifications
and/or contents of this package are subject to change
without prior notice.
Copyright ©2008 ROLAND CORPORATION
All rights reserved. No part of this publication may be
reproduced in any form without the written permission of
ROLAND CORPORATION.
TDW-20_e.book 3 ページ ２００９年１１月１２日 木曜日 午後６時５１分

4

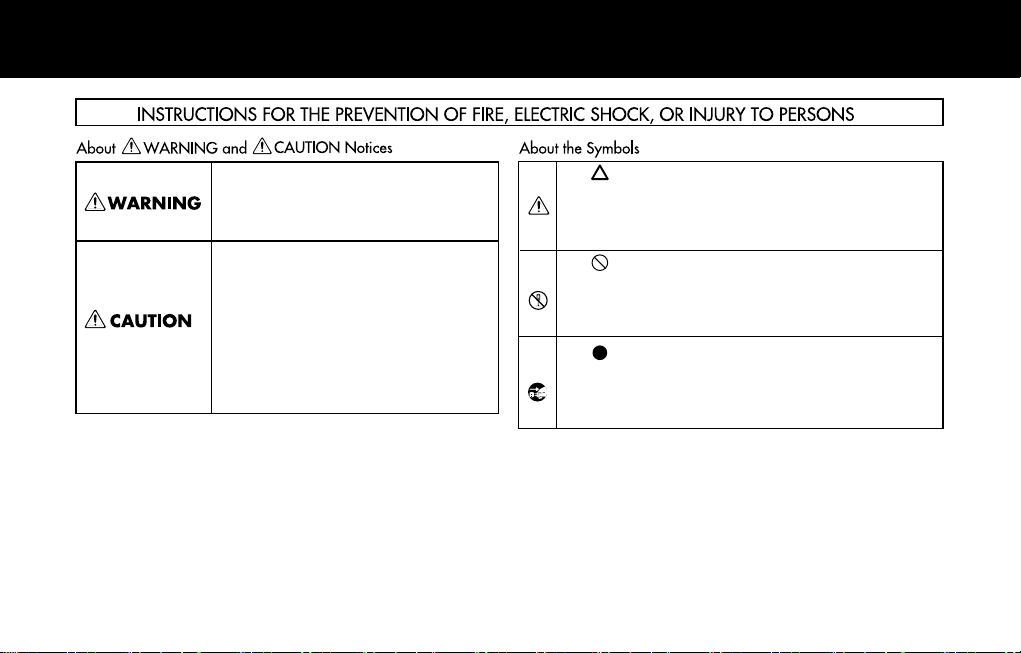

Using the Unit Safely
The symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In the
case of the symbol at left, it means that the power-cord
plug must be unplugged from the outlet.
Used for instructions intended to alert the
user to the risk of injury or material
damage should the unit be used
improperly.
* Material damage refers to damage or
other adverse effects caused with
respect to the home and all its
furnishings, as well to domestic animals
or pets.
Used for instructions intended to alert the
user to the risk of death or severe injury
should the unit be used improperly.
The symbol alerts the user to important instructions or
warnings.The specific meaning of the symbol is
determined by the design contained within the triangle. In
the case of the symbol at left, it is used for general
cautions, warnings, or alerts to danger.
The symbol alerts the user to items that must never be
carried out (are forbidden). The specific thing that must
not be done is indicated by the design contained within
the circle. In the case of the symbol at left, it means that
the unit must never be disassembled.
TDW-20_e.book 4 ページ ２００９年１１月１２日 木曜日 午後６時５１分

5
• Do not open or perform any
internal modifications on the
product. (The only exception
would be where this manual
provides specific instructions
which should be followed in
order to put in place user-
installable options; see p. 13.)
...............................................................................................
• Do not attempt to repair the
product, or replace parts within
it (except when this manual
provides specific instructions
directing you to do so). Refer all
servicing to your retailer, the
nearest Roland Service Center,
or an authorized Roland
distributor, as listed on the
“Information” page.
...............................................................................................
• Do not allow any objects (e.g.,
flammable material, coins,
pins); or liquids of any kind
(water, soft drinks, etc.) to
penetrate the TD-20.
...............................................................................................
• Never install the product in any
of the following locations.
• Subject to temperature
extremes (e.g., direct
sunlight in an enclosed
vehicle, near a heating duct,
on top of heat-generating
equipment); or are
• Damp (e.g., baths,
washrooms, on wet floors);
or are
• Exposed to steam or smoke;
or are
• Subject to salt exposure; or
are
• Humid; or are
• Exposed to rain; or are
• Dusty or sandy; or are
• Subject to high levels of
vibration and shakiness.
...............................................................................................
• In households with small
children, an adult should
provide supervision until the
child is capable of following all
the rules essential for the safe
operation of the product.
...............................................................................................
• Protect the product from
strong impact.
(Do not drop it!)
...............................................................................................
• Before installing the TDW-20,
you must first always turn off
the TD-20 and unplug its power
cord.
• Never step on, nor place heavy
objects on the product.
...............................................................................................
• Install the circuit board only
into the specified product (TD-
20). Remove only the specified
screws during the installation.
...............................................................................................
• Keep any screws you may
remove and the included
installation tool in a safe place
out of children’s reach, so there
is no chance of them being
swallowed accidentally.
...............................................................................................
TDW-20_e.book 5 ページ ２００９年１１月１２日 木曜日 午後６時５１分

6
Important Notes
Placement
• Do not expose the product to direct sunlight, place it near
devices that radiate heat, leave it inside an enclosed vehicle, or
otherwise subject it to temperature extremes. Excessive heat
can deform or discolor the product.
• When moved from one location to another where the
temperature and/or humidity is very different, water droplets
(condensation) may form. Damage or malfunction may result if
you attempt to use the product in this condition. Therefore,
before using the product, you must allow it to stand for several
hours, until the condensation has completely evaporated.
Repairs and Data
• Please be aware that all data contained in the product’s
memory may be lost when the product is sent for repairs.
Important data should always be backed up on a memory card,
or written down on paper (when possible). During repairs, due
care is taken to avoid the loss of data. However, in certain cases
(such as when circuitry related to memory itself is out of order),
we regret that it may not be possible to restore the data, and
Roland assumes no liability concerning such loss of data.
Additional Precautions
• Unfortunately, it may be impossible to restore the contents of
data that was stored on a CompacfFlash card once it has been
lost. Roland Corporation assumes no liability concerning such
loss of data.
• When you need to transport the product, package it in the box
(including padding) that it came in, if possible. Otherwise, you
will need to use equivalent packaging materials.
TDW-20_e.book 6 ページ ２００９年１１月１２日 木曜日 午後６時５１分

7
Before Using Cards
Using CompactFlash Cards
• CompactFlash cards are constructed using precision
components; handle the cards carefully, paying particular note
to the following.
• To prevent damage to the cards from static electricity, be
sure to discharge any static electricity from your own body
before handling the cards.
• Do not touch or allow metal to come into contact with the
contact portion of the cards.
• Do not bend, drop, or subject cards to strong shock or
vibration.
• Do not keep cards in direct sunlight, in closed vehicles, or
other such locations (storage temperature: -25 to 85˚ C).
• Do not allow cards to become wet.
• Do not disassemble or modify the cards.
* CompactFlash and are trademarks of SanDisk
Corporation and licensed by CompactFlash association.
* Roland Corporation is an authorized licensee of the
CompactFlash™and CF logo ( ) trademarks.
Copyright
• When you purchase the TDW-20 expansion board for TD-20
from an authorized Roland dealer, the included sounds are
licensed, not sold, to you by Roland Corporation, for
commercial use in music production, public performance,
broadcast, etc.
You may use any of the included sounds in a commercial or
noncommercial recording without paying any additional
license fees. However, you must strictly adhere to the following
crediting guidelines on any music recording that utilize material
from TDW-20.
Reproduction or duplication of any of the sound contained in
the TDW-20, either as they exist on this sound module or by any
means of reformatting, mixing, filtering, re-synthesizing,
processing or otherwise editing for use in another product or for
re-sale, is strictly prohibited without the express written
consent of Roland. All unauthorized giving, trading, lending,
renting, re-issue, re-distribution or re-sale of the sounds
included in the TDW-20 are expressly prohibited.
In Plain English: Be creative and respectful in your application of
the TDW-20 sounds. These sounds are for your use only. DO NOT
COPY THEM.
• Roland and V-Drums are either registered trademarks or
trademarks of Roland Corporation in the United States and/or
other countries.
TDW-20_e.book 7 ページ ２００９年１１月１２日 木曜日 午後６時５１分

8
Contents
Using the Unit Safely............................................ 4
Important Notes ................................................... 6
Installing the TDW-20 in the TD-20................... 10
IMPORTANT! Please Read
before Beginning the Installation Process .................................10

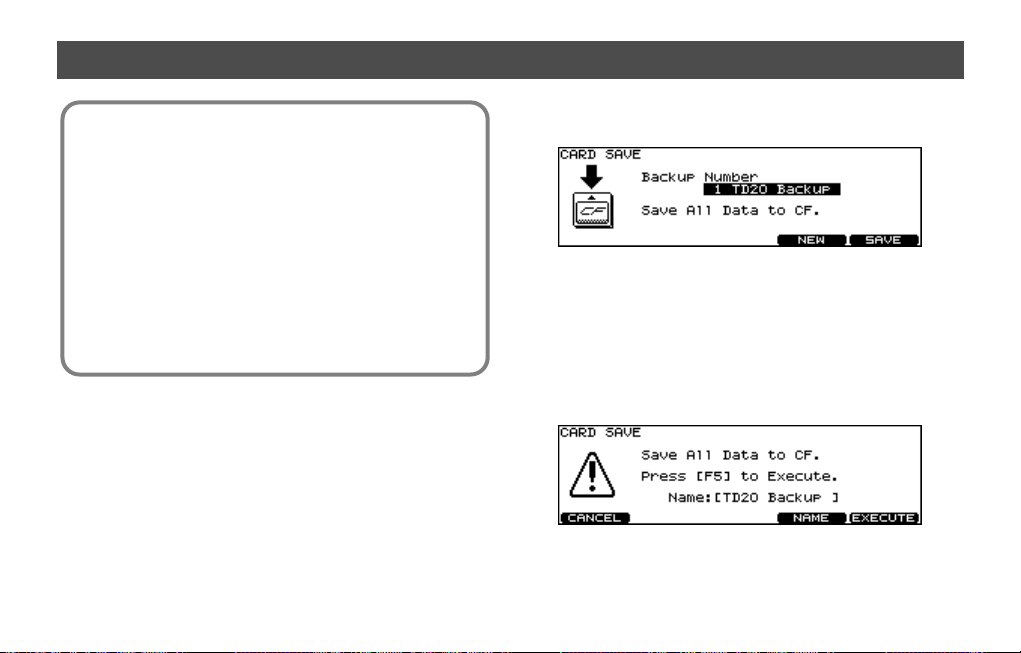

IMPORTANT! Backing Up Your Data .............................................12

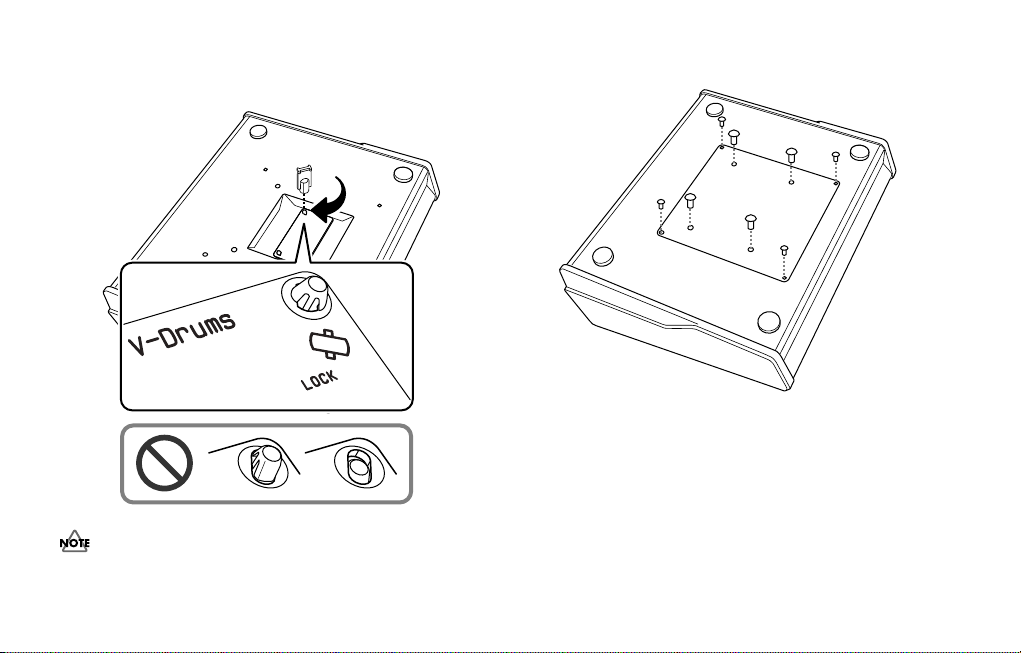

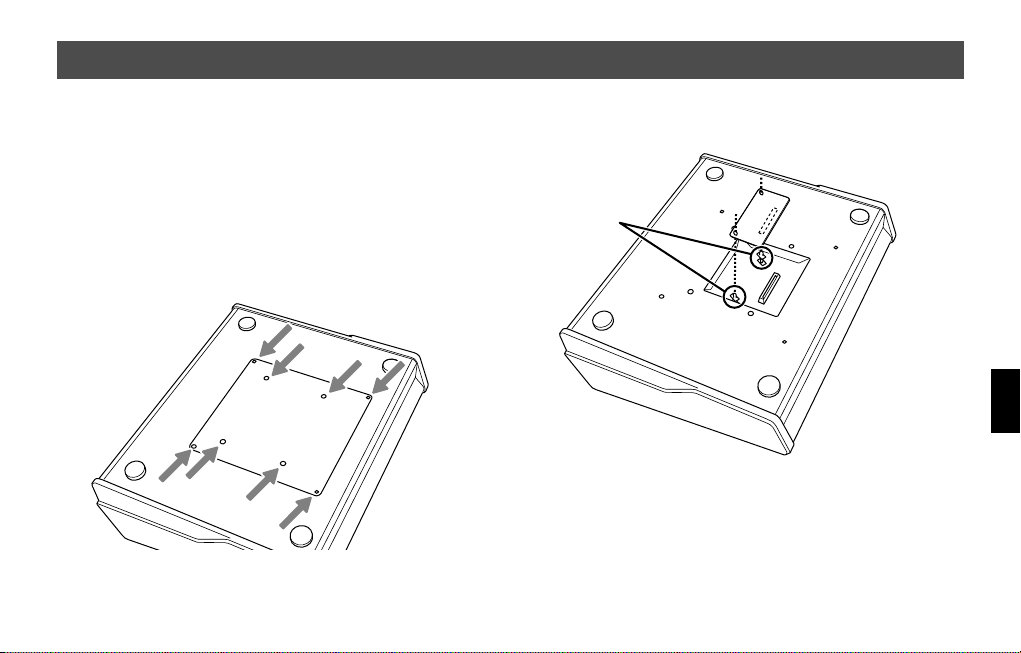

How To Install the TDW-20 Expansion Board............................13

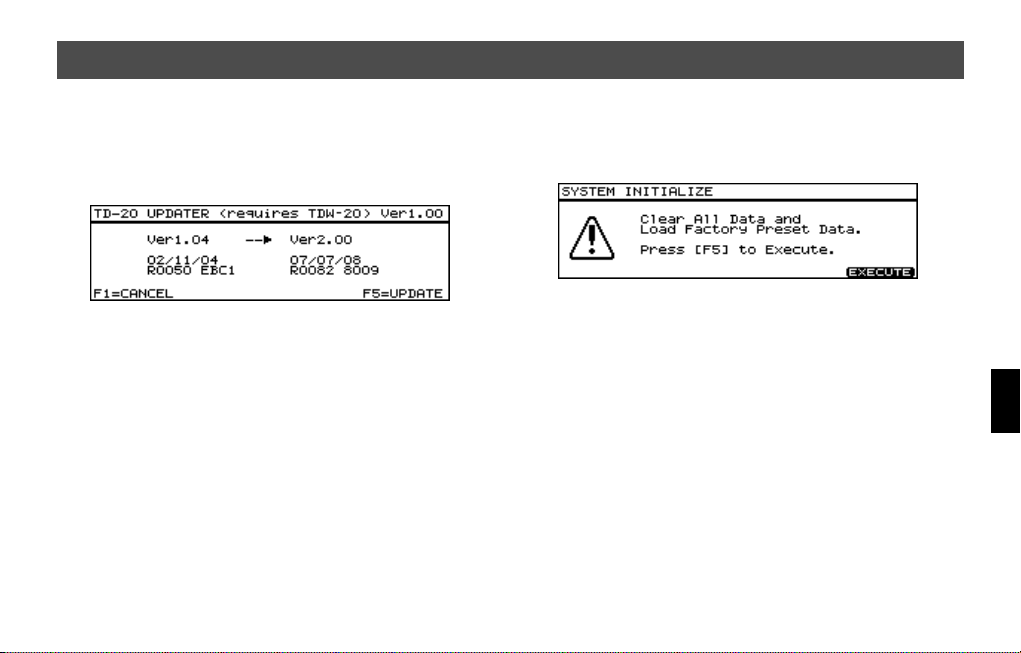

Updating the TD-20 with the CompactFlash Card..................15
Installation du TDW-20 dans le TD-20 .............. 16
IMPORTANT! Lire ce qui suit
avant d’entreprendre la procédure d’installation ...................16
IMPORTANT! Sauvegarde des données.......................................18

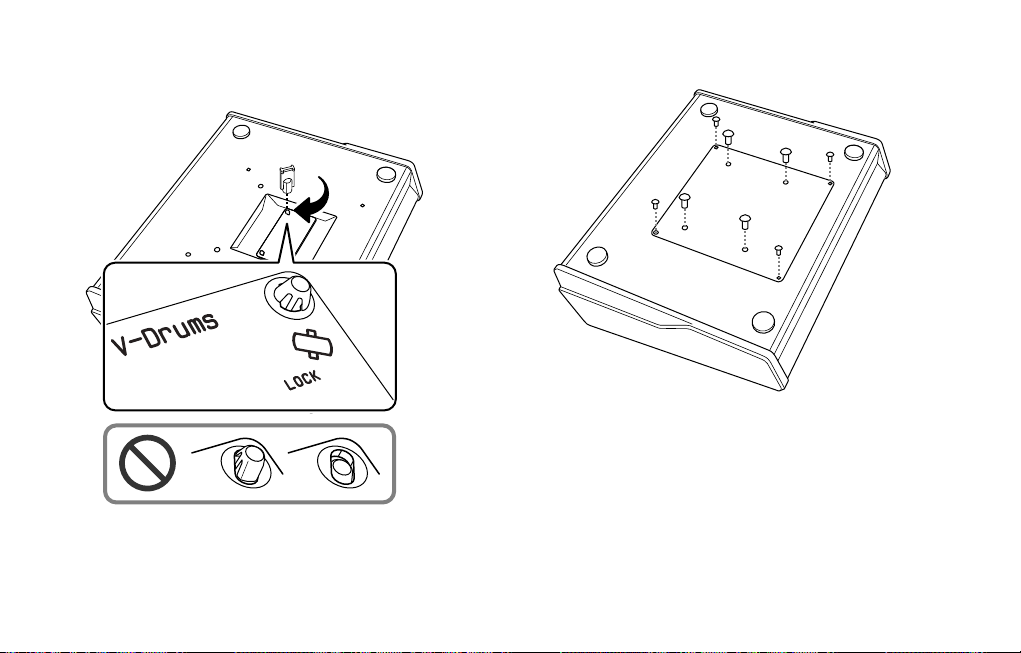

Installation de la carte d’expansion TDW-20.............................19
Mise à jour du TD-20 à l’aide de la carte CompactFlash........21
Features............................................................... 22
About the Drum Kits...........................................................................24
New Functions .................................................... 26
Drum Instruments Parameters [INST]..........................................26
Instrument Selection.................................................................26
About V-EDIT Parameters ........................................................26
Mixer Settings.......................................................................................29
Minimum Volume of Each Trigger Input............................29
Pad Compressor...................................................................................29
Parameter Improvements........................................................29
Ambience...............................................................................................30
New Room Types (15)...............................................................30
New Wall Types (3).....................................................................30
Mic Positions (9) ..........................................................................31
New Output Gain Parameter..................................................31
Ambience Monitor (“solo” mode).........................................31
Multi-Effects ..........................................................................................32
New Output Gain Parameter..................................................32
Multi-Effects Monitor (“solo” mode) ....................................32
Master Compressor.............................................................................32
Gain Reduction (GR) Meter......................................................33
Drum Kit Parameters [KIT]................................................................33
Pad Pattern ON/OFF Switch....................................................33
Trigger Settings....................................................................................34
Advanced Trigger Parameter Function ..............................34
TDW-20_e.book 8 ページ ２００９年１１月１２日 木曜日 午後６時５１分

9
Copy Functions ....................................................................................35
Trigger Bank Copy ......................................................................36
Copying an Instrument Set .....................................................36
Copying an Instrument.............................................................37
Newly Added Copy Functions................................................37
Quick Jump Functions to the Copy Screen .......................37
Settings for the Entire TD-20...........................................................38
Master Output..............................................................................38
Output Assign (OTHER).............................................................38
Using Foot Switches and Pad Switches ..............................39
MIX IN new Function .................................................................39
Importing Original TD-20 Data into the Expanded TD-20....40
About the Demo Songs.....................................................................40
Other Functions ...................................................................................41
The Kit Selection Function.......................................................41
Checking the Trigger Information ........................................41
Appendices ......................................................... 42
Drum Instrument List.........................................................................42
Preset Drum Kit List ............................................................................46
Information......................................................... 53
TDW-20_e.book 9 ページ ２００９年１１月１２日 木曜日 午後６時５１分

10
Installing the TDW-20 in the TD-20
Installation Procedure
1. Check the package contents to be sure you have the expansion
board, screwdriver (for removing the cover on the back of the
TD-20), locking key (for securing the expansion board into
place) and CompactFlash card. Please leave the expansion
board in its package until it is time to install it.
2. Back up your data (carefully read p. 12).
3. Install the TDW-20 expansion board (p. 13).
4. Update the TD-20 (p. 15).
Enclosed CompactFlash Card
• Do not format the included CompactFlash card.
• Do NOT use with a computer BEFORE executing the update
process.
Back up Your Original TD-20 Data!
• Save your current data to your CompactFlash card before you
install the TDW-20 (p. 12).
When executing an update, all data and settings in the TD-20
are lost. That’s why it is important to back up your data and
settings on a ConpactFlash card before updating. If you are
using the CompactFlash card included with your TDW-20,
insert the card ONLY AFTER turning the power on. Otherwise
the “updater” on the card will automatically open.
If You Have BULK DUMP Data Stored on Your
Computer
• If you have individual kit data or your entire kit’s data stored on
a computer, in order for it to be compatible with the expanded
version, you must load it into the TD-20, and save the data to a
CompactFlash card BEFORE updating with the TDW-20.
IMPORTANT! Please Read before Beginning the Installation Process
TDW-20_e.book 10 ページ ２００９年１１月１２日 木曜日 午後６時５１分

11
Data Compatibility
• Data created on the original TD-20 and backup data stored on
a CompactFlash card can be used with an expanded TD-20 (p.
40).
• The preset drum kits from the original (non-upgraded) TD-20
are provided in drum kit numbers 51–100 of the TDW-20 (with
the factory settings).
The TD-20’s preset drum kits can also be specified as a copy
source (p. 35).
• Backup data created with an expanded TD-20 is not
compatible with original TD-20.
• Backup data from the upgraded TD-20 is compatible with the
current TD-20X drum sound module (which is the equivalent of
the TD-20 + TDW-20), and can be used in the same way.
• On the TDW-20, improvements have been made to the master
compressor. If backup data from a non-upgraded TD-20 is
imported into the TDW-20, part of the master compressor
settings will be automatically converted to the closest possible
values.
Please check the settings, and make adjustments if necessary.
Caution when Handling the TDW-20
• Components of the TDW-20 can be damaged by static
electricity. Please observe the following precautions when
handling it.
• Before touching the TDW-20, you must touch some other
metal object to safely discharge any static electricity that
might be in your body or clothing.
• When holding the TDW-20, grasp the edges of the circuit
board and DO NOT touch the components on the circuit
board or the connectors.
• If you need to store or ship the TDW-20, place it in the
original bag (conductive bag for electrostatic protection).
• DO NOT touch the circuitry or connectors inside the TD-20.
• When inserting the TDW-20, do not force it into the slot. If
insertion is difficult, take the TDW-20 out and then try again.
Use the provided tool to lock it in place.
• When you’ve finished installing the TDW-20, double-check
your work.
• If a foreign object should get inside the TD-20, request
servicing by your retailer, the nearest Roland Service Center, or
an authorized Roland distributor, as listed on the “Information”
page.
• The TD-20 will not function if you remove the TDW-20 after
performing the update.
TDW-20_e.book 11 ページ ２００９年１１月１２日 木曜日 午後６時５１分

12
1. Insert a CompactFlash card into the TD-20’s front
panel memory card slot.
* Carefully insert the CompactFlash card all the way in—until
it is firmly in place.
2. Press [CARD].
The [CARD] and CompactFlash indicators light up. The “CARD
MENU” screen appears.
3. Then press [F1 (SAVE)].
4. In the “CARD SAVE” screen, use [+/-] or [VALUE] to
select the backup destination for the data you are
saving.
5. Press [F5 (SAVE)].
If you want to rename the backup, press [F4 (NAME)].
6. The confirmation screen appears, press [F5
(EXECUTE)] to save the data.
If you decide not to proceed with the backup, press [F1
(CANCEL)].
7. Press [F5 (EXECUTE)] to save the data.
IMPORTANT! Backing Up Your Data
NOTE
Please note the following cautions when using the included
CompactFlash card.
• Do not format the included CompactFlash card. Doing
so will delete the system updater, making it impossible
to upgrade the TD-20.
• You must switch on the TD-20’s power before you
insert the included CompactFlash card into the
memory card slot.
If you insert the included CompactFlash card and then
turn on the power, the TD-20’s update screen will
appear.
TDW-20_e.book 12 ページ ２００９年１１月１２日 木曜日 午後６時５１分

13
1. Power-off the TD-20, and unplug the power cord
from the AC outlet.
2. Turn the TD-20 over on its back.
* When turning the TD-20 on its back, take care not to damage
the buttons and knobs. To protect them, spread a cushion or
towel over your work surface.
3. Remove the eight screws (marked by arrows) on the
bottom panel. Take off the cover.
* Do not remove any screws other than those marked by ar-
rows.
4. Orient the circuit board holder as shown in the
illustration.
5. Insert the connector of the expansion board all the
way into the connector of the TD-20. Make sure that
the tip of each circuit board holder protrudes
through the holes in the TDW-20.
How To Install the TDW-20 Expansion Board
Circuit board
holders
TDW-20_e.book 13 ページ ２００９年１１月１２日 木曜日 午後６時５１分

14
6. Using the tool included with the TDW-20, turn the
circuit board holders in the LOCK direction to fasten
the TDW-20 in place.
When you’ve finished installing the TDW-20, double-check to
make sure that it is installed correctly and that the circuit board
holders are in the LOCK position.
7. Reattach the cover using the eight screws you
removed in step 3.
TDW-20_e.book 14 ページ ２００９年１１月１２日 木曜日 午後６時５１分

15
1. With the power off, insert the CompactFlash Card
provided in this package.
2. Turn the power on and the following screen
appears.
3. To execute the update, press the [F5=UPDATE]
button.
* It may take 3 minutes before update is finished.
* Do not turn the power off during the update process.
4. When the screen shows “Update Completed.”, turn
off the TD-20 and remove the CompactFlash card.
5. Turn the power back on and execute the system
initialize.
6. To initialize, press the [F5 (EXECUTE)] button.
Updating the TD-20 with the CompactFlash Card
TDW-20_e.book 15 ページ ２００９年１１月１２日 木曜日 午後６時５１分

16
Installation du TDW-20 dans le TD-20
Procédure d’installation
1. Vérifier le contenu de l’emballage pour s’assurer d’avoir la carte
d’expansion, un tournevis (pour retirer la plaque à l’arrière du
TD-20), l’outil de verrouillage (pour fixer la carte d’expansion) et
la carte CompactFlash. Laisser la carte d’expansion dans son
emballage jusqu’au moment de l’installer.
2. Faire une copie de sauvegarde des données (lire attentivement
la p. 18).
3. Installer la carte d’expansion TDW-20 (p. 19).
4. Mettre à jour le TD-20 (p. 21).
Carte CompactFlash jointe
• Ne pas initialiser la carte CompactFlash jointe.
• NE PAS utiliser avec un ordinateur AVANT d’avoir exécuté la
procédure de mise à jour.
Faire une copie de sauvegarde des données
originales du TD-20!
• Enregistrer les données sur la carte CompactFlash avant
d’installer le TDW-20 (p. 18).
Lors de l’exécution d’une mise à jour, toutes les données et
tous les paramètres enregistrés sur le TD-20 sont supprimés.
C’est pourquoi il est important de faire une copie de
sauvegarde des données et des paramètres sur une carte
CompactFlash avant de procéder à la mise à jour. Si la carte
CompactFlash jointe au TDW-20 est utilisée, elle doit être
insérée UNIQUEMENT APRÈS que l’appareil a été mis sous
tension. Sinon, le dispositif de mise à jour de la carte s’ouvrira
automatiquement.
IMPORTANT! Lire ce qui suit avant d’entreprendre la procédure
d’installation
TDW-20_e.book 16 ページ ２００９年１１月１２日 木曜日 午後６時５１分

17
Si des données BULK DUMP sont
enregistrées dans l’ordinateur
Si des données de trousses individuelles ou toutes les données de
la trousse sont enregistrées dans un ordinateur, elles doivent être
chargées dans le TD-20 et enregistrées sur une carte CompactFlash
AVANT de procéder à la mise à jour avec le TDW-20, pour être
compatibles avec la version expansée.
Compatibilité des données
• Les données créées sur le TD-20 original et les copies de
sauvegarde enregistrées sur une carte CompactFlash peuvent
être utilisées avec un TD-20 équipé d’une carte d’expansion.
• Les batteries originales du TD-20 (non mis à niveau) sont
incluses dans les batteries numéros 51-100 de la carte TDW-20
(avec les réglages faits en usine).
Il est aussi possible de spécifier les batteries préréglées du TD-
20 comme source à copier.
• Un TD-20 mis à niveau ne peut recevoir de données MIDI en
bloc d'un TD-20 original.
• Les données créées avec un TD-20 équipé d’une carte
d’expansion ne sont pas compatibles avec un TD-20 original.
• Le TD-20 ne fonctionne pas si le TDW-20 est retiré une fois que
la mise à jour a été faite.
Précautions à prendre pour manipuler le
TDW-20
• L’électricité statique peut endommager les composants du
TDW-20. Prendre les précautions suivantes pour le manipuler.
• Avant de toucher le TDW-20, il faut toucher un objet métal-
lique pour éliminer de façon sécuritaire l’électricité statique
qui peut s’être accumulée dans le corps ou dans les
vêtements.
• Pour tenir le TDW-20, saisir les côtés de la carte de circuits
imprimés et NE PAS toucher les composants sur la carte de
circuits imprimés ni les connecteurs.
• Si le TDW-20 doit être entreposé ou expédié, le placer dans
le sachet d’origine (sac conducteur offrant une protection
électrostatique).
• NE PAS toucher les circuits ni les connecteurs à l’intérieur du
TD-20.
• Lors de l’insertion du TDW-20, ne pas l’insérer de force dans la
fente. Si l’insertion est difficile, retirer le TDW-20 puis
réessayer. Utiliser l’outil fourni pour le verrouiller en place.
• Une fois l’installation du TDW-20 terminée, revérifier le travail
exécuté.
• Si un objet étranger tombe à l’intérieur du TD-20, s’adresser au
détaillant, au centre de services Roland le plus proche ou à un
distributeur Roland autorisé mentionnés dans la liste de la
page « Information » pour faire procéder à la réparation.
TDW-20_e.book 17 ページ ２００９年１１月１２日 木曜日 午後６時５１分

18
1.
Insérer une carte CompactFlash dans la fente pour carte
mémoire qui se trouve sur le panneau avant du TD-20.
* Insérer soigneusement la carte CompactFlash à fond –
jusqu’à ce qu’elle soit fermement en place.
2. Appuyer sur [CARD].
Les voyants [CARD] et CompactFlash s’allument. L’écran «
CARD MENU » s’affiche.
3. Appuyer ensuite sur [F1 (SAVE)].
4.
À l’écran « CARD SAVE », utiliser [+/-] ou [VALUE] pour
sélectionner la destination des données à sauvegarder.
5. Appuyer sur [F5 (SAVE)].
Pour renommer la copie de sauvegarde, appuyer sur [F4
(NAME)].
6. L’écran de confirmation s’affiche; appuyer sur [F5
(EXECUTE)] pour enregistrer les données.
Pour annuler les commandes et ne pas faire de copie de
sauvegarde, appuyer sur [F1 (CANCEL)].
7. Appuyer sur [F5 (EXECUTE)] pour enregistrer les
données.
IMPORTANT! Sauvegarde des données
NOTE
Prière de prendre note des mises en garde ci-dessous
concernant l'utilisation de la carte CompactFlash incluse.
• Ne pas initialiser la carte CompactFlash jointe.
L'initialisation supprimera le dispositif de mise à jour du
système et rendra impossible la à mise à niveau du TD-20.
• Il faut mettre le TD-20 sous tension avant d'insérer la
carte CompactFlash incluse dans la fente de carte
mémoire.
Si la carte CompactFlash est insérée avant la mise sous
tension du TD-20, l'écran de mise à jour s'affichera.
TDW-20_e.book 18 ページ ２００９年１１月１２日 木曜日 午後６時５１分

19
1. Mettre le TD-20 hors tension et débrancher le câble
d’alimentation de la prise.
2. Tourner le TD-20 sens dessus dessous.
* Veiller à ne pas endommager les boutons et les manettes en
tournant le TD-20 sens dessus dessous. Pour les protéger, dé-
poser un coussin ou une serviette sur la surface de travail.
3. Retirer les huit vis (indiquées par des flèches) de la
plaque inférieure. Retirer la plaque.
* Ne retirer aucune vis autre que celles qui sont indiquées par
des flèches.
4. Placer les supports de la carte de circuits imprimés
comme le montre l’illustration.
5. Insérer le connecteur de la carte d’expansion à fond
dans le connecteur du TD-20. S’assurer que
l’extrémité de chaque support de la carte de circuits
imprimés dépasse des ouvertures du TDW-20.
Installation de la carte d’expansion TDW-20
Support de carte de
circuits imprimés
TDW-20_e.book 19 ページ ２００９年１１月１２日 木曜日 午後６時５１分

20
6. À l’aide de l’outil fourni avec le TDW-20, tourner les
supports de la carte de circuits imprimés en
position LOCK (verrouillé) pour fixer le TDW-20.
* Une fois l’installation du TDW-20 terminée, revérifier le tra-
vail pour s’assurer qu’il est installé correctement et que les
supports de la carte de circuits imprimés sont à la position
LOCK (verrouillé).
7. Remettre le couvercle en place et le fixer à l’aide des
huit vis retirées à l’étape 3.
TDW-20_e.book 20 ページ ２００９年１１月１２日 木曜日 午後６時５１分
