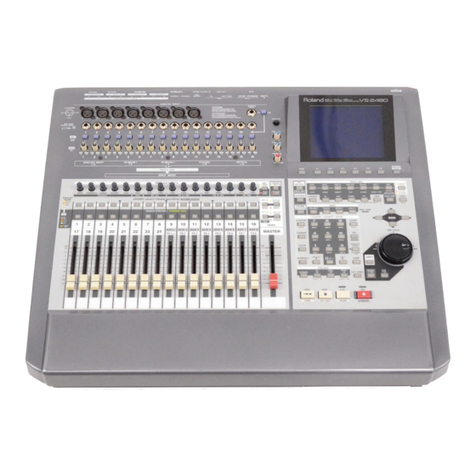

Roland V-studio VS-2480 Owner's manual

Version 2.0
Copyright © 2002 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the
written permission of ROLAND CORPORATION.
Roland Web Site: http://www.roland.co.jp/
Before using this unit, carefully read the sections entitled: “IMPORTANT SAFETY
INSTRUCTIONS” (Owner’s Manual p. 2), “USING THE UNIT SAFELY” (Owner’s
Manual p. 3), and “IMPORTANT NOTES” (Owner’s Manual p. 4). These sections
provide important information concerning the proper operation of the unit.
Additionally, in order to feel assured that you have gained a good grasp of every
feature provided by your new unit, User Guide, Owner’s Manual, and Appendices
should be read in its entirety. These manuals should be saved and kept on hand as a
convenient reference.
Newly Added Functions

2
Contents
Contents ................................................................................................. 2
Objects shown in the VGA display....................................................... 3
Common area..............................................................................................................................................3
Menu.................................................................................................................................................3
Time operations/Transport...........................................................................................................5
Knobs ................................................................................................................................................6
INPUT CLIP indicator....................................................................................................................6
HOME Screen..............................................................................................................................................6
Level Meter ......................................................................................................................................7
IN-OUT-FROM-TO Point Display................................................................................................7
Playlist ..............................................................................................................................................8
Function “F” Buttons & Status area............................................................................................10
MIXER Screen / Channel View..............................................................................................................10
Common area.................................................................................................................................10
Channel View (INPUT/TRACK MIXER)..................................................................................12
Channel View (EFFECT RETURN MIXER)...............................................................................14
MIXER Screen / Mixer View..................................................................................................................14
Mixer View (INPUT MIXER / MASTER BLOCK)...................................................................14
Mixer View (TRACK MIXER / EFFECT RETURN MIXER)...................................................16
MIXER Screen / Multi Channel Strip View .........................................................................................17
INPUT MIXER 1–16, 17–24/AUX MST .....................................................................................17
TRACK MIXER 1–16, 17–24/FX RTN........................................................................................ 18
INPUT MIXER 1–16, 17–24/AUX MST .....................................................................................20
UTILITY Screen.........................................................................................................................................21
ANALYZER Screen.......................................................................................................................21
EZ ROUTING Screen...............................................................................................................................22
CD-RW MASTERING Screen.................................................................................................................24
Functionality added in Version 2.00................................................... 25
Using an external VGA display to operate the VS-2480.....................................................................25
To switch the controlling display...........................................................................................................25
To use the VGA display for control............................................................................................25
To use the internal LCD for control............................................................................................25
To instantly switch the controlling display...............................................................................25
Adjusting the volume of a phrase (Phrase Parameter).......................................................................26
To fade-in a phrase........................................................................................................................26
Capture Audio data from Audio CD (CD Capture)............................................................................28
Canceling the capture...................................................................................................................30
Capturing Time .............................................................................................................................30
To save the plural automix data.............................................................................................................30
Loading automix data..............................................................................................................................31
Using the mouse to perform phrase TRIM-IN/TRIM-OUT ..............................................................31
Enhanced Grid Function .........................................................................................................................31
Grid Mode setting.........................................................................................................................31
Grid Resolution .............................................................................................................................32
Added shortcut buttons...........................................................................................................................32
Added Parameters....................................................................................................................................32
Changes in the CD Player screen...........................................................................................................32
Index...................................................................................................... 33
MEMO.................................................................................................... 36

3
Objects shown in the VGA display
On a VS-2480 with system version 2.0, and with the VS-2480CD, an externally
connected VGA monitor can be used to perform various operations. This chapter
explains the controls that are displayed in each screen.
Common area
fig.home-lm-trmix.eps_50
■ Menu
fig.common-menu_80
1. PROJECT
fig.pulldown-track.eps_50
Display a pull-down menu for moving to the Project screens.
• NEW, RELOAD, NAME, PROTECT, SPLIT, EXPORT
Move to screens where various things can be done with projects.
• PROJECT LIST
View a list of projects saved on the current drive.
• STORE
Save the current project.
• SHUTDOWN/EJECT
Exit operations on the VS-2480.
2. TRACK
fig.pulldown-track.eps_50
Display a pull-down menu for moving to the track edit screens.
• REGION COPY, MOVE, INSERT, CUT, ERASE, COMP/EXP., ARRANGE
Move to various region editing screens.
• TRACK IMPORT, EXCHANGE, NAME
Move to Track Import, Exchange, and Name screens.
• PHRASE COPY, MOVE, TRIM IN, TRIM OUT, DELETE, SPLIT, NEW,
NORMALIZE, DIVIDE, NAME
Move to various phrase editing screens.
• TAKE MANAGER
Move to the Take Manager screen.
3. EFFECT
fig.pulldown-effect.eps_50
Display a pull-down menu for moving to the effect screens.
• EFFECT VIEW
Display a list of the currently used effects.
• EFFECT 1 – EFFECT 8
Move to screens where you can edit each effect.
There are other screens that
can be operated from the
VGA display, but for
screens not discussed in
this manual, operation is
the same as with the
b
uilt-in LCD.
12
3456789

4
Objects shown in the VGA display
4. UTILITY
fig.pulldown-utility.eps_50
Display a pull-down menu for
moving to the utility screens.
• SYSTEM, GLOBAL,
PROJECT, PLAY/REC,
MIDI, SYNC PARAMETER
Move to a screen where you
can set various operating
parameters for the VS-2480.
• TEMPO MAP
Move to the tempo map setting screen.
• METRONOME
Move to the metronome setting screen.
• AUTO PUNCH/LOOP, MARKER, LOCATOR
Move to the setting screens for the auto
punch/loop function, markers, and locator.
• SCENE
Move to the scene setting screen.
• V.FADER
Move to the setting screen for the V-fader
function.
• SURROUND
Move to the surround setting screen.
• GEN/OSC
Move to the generator setting screen.
• ANALYZER
Move to the analyzer display screen.
• R-BUS CONFIG
Move to a screen for R-BUS related settings.
• AUTOMIX SETUP, AUTOMIX EDIT
Move to a screen for automix settings or editing.
• PHRASE SEQ EDIT
Move to an editing screen for the Phrase
Sequence function.
• DATE/TIME
Move to a screen for setting the date and time.
• PARAMTER INIT
Move to a screen where you can initialize
parameters.
5. MIXER
fig.pulldown-mixer.eps_50
Display a pull-down menu
for switching between the
various mixer screens.
• CH VIEW (INPUT,
TRACK, FX RTN)
Display the view screen for each channel. A
sub-menu will appear, allowing you to directly
specify the channel.
fig.pulldown-mixer.eps_50
• MASTER EDIT
Display the master edit screen.
• INPUT MIXER/MASTER BLOCK, TRACK
MIXER/FX RTN MIXER
Display the mixer view screen for each channel.
• MULTI CH STRIP VIEW
Display a list of the main parameters of the
channels or buses in the currently selected fader
layer.
6. EZ ROUTING
fig.pulldown-track.eps_50
Display a pull-down menu for
moving to the EZ routing screens.
• ROUTING VIEW
Display the current routing.
• LOAD, SAVE
Move to a screen where you can save and load
routings.
7. CD-RW MASTERING
fig.pulldown-track.eps_50
Display a pull-down menu for
moving to the CD-RW mastering
screens.
• MASTERING ROOM
Move to the mastering room screen.
• CD-R WRITE, CD PLAYER,
CD CAPTURE
Move to screens where you can use the CD-R
write, CD player, and CD capture functions.
• WAV IMPORT, TRACK EXPORT,
PHRASE EXPORT
Move to a screen where you can write.WAV
format files.
8. Date and Time
Display the current date and time.
9. HOME
Click to display the home screen.

5
Objects shown in the VGA display
■ Time operations/Transport
fig.common-time_75
1. Vari Pitch indicator
Project Protect indicator
ABS (Absolute Time) indicator
2. Current Time (Now Time)
3. Measure Display (MEAS BEAT TICK)
4. Marker Number
5. Marker Name
6. SCRUB switch
7. Preview TO button
Preview THRU button
Preview FROM button
8. Project Gauge
9. Transport buttons
ZERO button
REW (Rewind) button
FF (Fast-Forward) button
STOP button
PLAY button
REC button
Rewind and fast-forward find locations down to a precision of
one second.
10. MASTERING ROOM switch
MASTERING ROOM STATUS button
EXT SYNC switch
METRONOME switch
Click this switch to cycle between
“INT (Amber)”–”MIDI (Blue)”–”Off.”
PREVIOUS button
NEXT button
11. PHRASE SEQUENCE switch
PHRASE SEQUENCE STATUS button
PHRASE SEQUENCE UNDO/REDO
button
AUTO PUNCH switch
LOOP switch
MARKER button
TAP button
12. AUTOMIX switch
AUTOMIX Status
AUTOMIX UNDO/REDO button
SNAP SHOT button
13. UNDO button
REDO button
14.
Project Name, Sampling Frequency, Recording
Mode Display
15. LOCATOR button
SCENE button
16.
Scene Name Display
21
67 8 9 15 16
3
4
4
5
510 11 12 13
14

6
Objects shown in the VGA display
■ Knobs
fig.common-trpan_80
1. Knob switching tab
fig.common-trpan_50
This switches the knob functions (channel
pan or parameter editing). This is the same
function as the [PRM EDIT] button on the
operation panel.
2. Knobs
These knobs adjust channel pan or
parameters.
■ INPUT CLIP indicator
fig.common-clip.ep
This will light when the analog input is overloaded.
HOME Screen
fig.home-lm-trmix.eps_50
PAN
PRM EDIT

7
Objects shown in the VGA display
■ Level Meter
fig.common-trlevel_80
1. Level Meter
2. TRACK STATUS indicator/button
3. Level Measurement Point (PRE/POST)
4. Level Meter Mode switch
The level meters will switch as follows when you switch the display.
fig.all-level-meter_50
5. PEAK HOLD switch
6. Monitor Level Meter
7. Master Level Meter
■ IN-OUT-FROM-TO Point Display
fig.playlist-inout_80
1. IN Point Time
2. OUT Point Time
3. FROM Point Time
4. TO Point Time
5. Time location within the play list to which the mouse points
6. Grid Resolution (OFF – Measure – 1/2 ... 1/32) selector
7. EDIT MODE (REGION/PHRASE) switch
2 2 2 5 6 7
13
4
IN 1-24INPUT
TR 1-24 FX 1-8 RTN
AUX / DIR OUTPUT
12 3456 7

8
Objects shown in the VGA display
■ Playlist
fig.home-playlist_50
1. Physical Track Number
2. V.Track Number
When you click this, the V.Track Change
popup menu will appear. Here you can switch
V.tracks.
3. Track Name
4. MUTE switch
When you click this, getting it to turn yellow,
muting is turned on.
SOLO switch
When you click this, getting it to turn blue, solo
is turned on.
AUTOMIX STATUS button
PHRASE SEQUENCE STATUS
The automix and phrase sequence status is
indicated by the color.
• Amber: Manual
• Red: Write
• Green: Read
5. TRACK STATUS
indicator/button
The display will change according to the
status.
6. IN Point
7. OUT Point
8. Marker Point
• Amber: Marker
• Blue: CD Track Marker
9. Current Time (Now Time) Line
10. FROM Point
11. Playlist (Phrase)
12. TO Point
13. Measure Graduations
14. Playlist select button
This button switches the play list between a
wide display and a display that also includes
the V.Track map, locator, markers, and scene
operations.
15. Mode Reset button
Turns mute and solo switches off for each
channel. The automix or phrase sequence
status will switch together with this, in this
order: Manual - Write - Read.
16. Scroll Bar
12
3
3
4
4
15 16
587
610 1211914
17
16
17
18
13
Playlist (Wide)
Playlist + V.Track Map
Playlist + Locator/Scene

9
Objects shown in the VGA display
17. Zoom button
Switches the scale of the play list. If you switch the zoom setting in the direction of the tracks (vertically),
the parameters that are displayed will change.
18. WAVE Display button
Press this button to view the currently selected track’s audio as waveform
data or as a simple rectangle.
2-Tracks
4-Tracks
8-Tracks
12-Tracks
16-Tracks
24-Tracks

10
Objects shown in the VGA display
■Function “F” Buttons & Status area
fig.home-function1_80
1. PAGE button
2. Function “F” button (F1–F6)
3. Status indicator (SOLO/MUTE/PHRASE SEQ/MASTERING ROOM)
4. Remaining disk meter
5. Remaining recording time
MIXER Screen / Channel View
■Common area
fig.mixer-common1
Left Side area
1. Channel Number
2. PATCH BAY (Source)
3. PHANTOM Power switch
4. PHASE switch
5. ATT (Attenuator) knob
6. FADER GROUP selector
7. CHANNEL LINK switch
8. FADER LINK switch
9. AUTOMIX STATUS indicator/button
10. TRACK STATUS indicator/button
11. V.Track Selector
12. PHRASE SEQUENCE STATUS indicator/button
13. PHRASE PAD switch
14. PHRASE PAD Mode selector
15. AUX BUS ASSIGN selector
16. MONO switch
12 3
45
1
12
13
14
1
15
66
7
8
9
16
9
1
2
3
4
55
6
7
8
9
10
11
4
Input Mixer Track Mixer FX Return
Mixer

11
Objects shown in the VGA display
Lower area
fig.mixer-common2
1. EFFECT INSERT (when INPUT/TRACK MIXER)
fig.fxinsert-icon
The display will change according to the insert state. Of the two
graphs, the upper one shows the effect send level, and the lower
one shows the effect return level.
2. AUX SEND switching
AUX SEND Point switch
AUX SEND Level knob
3. DIR SEND switch
4. Effect connection diagram
From the upper left to right, this is displayed as FX1, FX2, ..., and the
bottom right is FX8. The audio will flow from FX1 toward FX8. The number
displayed for each effect is the effect patch number.
fig.mixer-common3
Right Side area
1. Level Meter
2. Level Measurement Point (PRE/POST) switching
3. SOLO switch
4. MUTE switch
5. MIX BUS SEND switch
6. PAN knob
7. Channel FADER
123
4
Ins Ins-L Ins-R Ins-S
no EffectOff used in Tr24
This is not displayed in the
channel view of the effect
return mixer.
The pre/post setting will
change in units of the AUX
b
us.
1
2
3
4
5
6
7

12
Objects shown in the VGA display
■Channel View (INPUT/TRACK MIXER)
fig.home-lm-trmix.eps_50
V.Track Information (only TRACK MIXER)
fig.mixer-common1
1. V.Track Number, Track Name
2. V.Track Map
DYNAMICS
fig.mixer-dynamics
1. DYNAMICS Curve
You can adjust the dynamics parameters by dragging the points.
2. DYNAMICS switch
3. DYNAMICS Mode switch
4. DYNAMICS Parameter RESET button
5. Level Meter
6. GR (Gain Reduction) Meter
7. KEY IN selector
12
COMPRESSOR EXPANDER EXP+COMP
1
8
234
5
6
10 10
7
1
9
234
5
6
7
1
8
9
234
5
6
If EXP+COMP mode is
used in the input mixer, it
cannot be used in the track
mixer. In the same way if it
is used in the track mixer, it
cannot be used in the input
mixer.

13
Objects shown in the VGA display
8. COMPRESSOR Adjustment knobs
9. EXPANDER Adjustment knobs
10. AUTO GAIN switch
EQUALIZER
fig.mixer-eq
1. EQ Curve Adjustment Point
You can adjust the equalizer parameters by
dragging the points.
2. EQ Switch
3. EQ Curve
4. EQ Parameter RESET button
Return the equalizer settings to flat response.
5. FILTER Mode selector
The icon will switch as follows, depending on the
filter you use.
fig.eq-filter-mode
6. FILTER Adjustment knobs
7. EQ Adjustment knobs
8. Level Meter
1
6
5
7
234 1 1 1
8

14
Objects shown in the VGA display
■Channel View (EFFECT RETURN MIXER)
fig.home-lm-trmix.eps_50
fig.mixer-eq
LOOP EFFECT ASSIGN
1. AUX BUS
2. DIR PATH
3. Switching the signal that is input to the effect
By dragging this connection point, you can select the signal that will be
input to the effect.
4. EFFECT PATCH Name
MIXER Screen / Mixer View
■Mixer View (INPUT MIXER / MASTER BLOCK)
fig.mixer-multi-inmix.eps
1
2
3
4

15
Objects shown in the VGA display
INPUT MIXER
fig.mixer-eq
1. DYNAMICS switch
2. EQ switch
3. AUX SEND Level
4. MUTE switch
SOLO switch
AUTOMIX STATUS indicator/button
5. PAN knob
6. INPUT MIXER CHANNEL FADER
7. LINK switch
MASTER BLOCK
fig.mixer-eq
1. DIR PATH SEND Point switching
2. DIR PATH AUTOMIX STATUS
indicator/button
3. DIR PATH Level
4. AUX BUS SEND Point switching
5. AUX BUS AUTOMIX STATUS
indicator/button
6. AUX BUS Balance knob
7. AUX MASTER Level FADER
8. AUX BUS LINK switch
9. MONITOR PAN knob
10. MONITOR Level knob (display only)
It is not possible to change the monitor level in the screen. Use
the monitor level knob on the VS-2480 to adjust this.
11. DIR PATH SEND knob
12. MASTER FADER
13. DITHER bit (Off/24/23/.../8) selector
The pre/post setting will change in units of the AUX bus.
1
2
3
4
5
6
7
1
2
4
3
5
6
7
11
12
13
10
9
8

16
Objects shown in the VGA display
■Mixer View (TRACK MIXER / EFFECT RETURN MIXER)
fig.mixer-multi-inmix.eps
TRACK MIXER
fig.mixer-eq
1. DYNAMICS
switch
2. EQ switch
3. AUXbusSend
Level
4. MUTE
switch
SOLO
switch
AUTOMIX
STATUS
indicator/
button
PHRASE
SEQUENCE
STATUS
5. PAN knob
6. TRACK STATUS
7. TRACK MIXER CHANNEL FADER
8. LINK switch
EFFECT RETURN MIXER
fig.mixer-eq
1. BUS selector
2. EFFECT PATCH Name
3. AUX bus Send Level
4. MUTE switch
SOLO switch
AUTOMIX STATUS
indicator/button
5. PAN knob
6. EFFECT RETURN FADER
7. MONO switch
1
2
3
4
5
7
6
8
1
2
5
3
4
6
7

17
Objects shown in the VGA display
MIXER Screen / Multi Channel Strip View
■INPUT MIXER 1–16, 17–24/AUX MST
fig.mixer-multi-inmix.eps
INPUT MIXER
fig.mixer-eq
1. PATCH BAY
2. PHASE switch
3. ATTENUATOR
4. DYNAMICS switch
5. DYNAMICS curve
6. EQ switch
7. EQ curve
8. AUX Send Level
9. DIR Send switch
10. MUTE switch
SOLO switch
AUTOMIX STATUS indicator/button
11. FADER GROUP selector
12. PAN
13. INPUT MIXER CHANNEL FADER
14. LINK switch
1
14
10
13
2
5
7
3
4
6
9
11
12
8

18
Objects shown in the VGA display
AUX MST
fig.mixer-eq
1. DIR SOURCE selector
2. SOURCE SEND to DIR Point switch
3. AUTOMIX STATUS indicator/button
4. DIR Level knob
5. SOURCE SEND to AUX Point switch
6. AUX Balance knob
7. AUX Level FADER
8. LINK switch
9. Channel Strip View Selector
10. MONITOR PAN knob
11. MONITOR Level knob (display only)
It is not possible to change the monitor level in the screen. Use the monitor
level knob on the VS-2480 to adjust this.
12. MASTER EFFECT INSERT
13. MASTER BALANCE
14. MASTER FADER
15. DITHER bit (Off/24/23/.../8) selector
■TRACK MIXER 1–16, 17–24/FX RTN
fig.mixer-multi-inmix.eps
8
7
2
1
9
4
3
5
3
6
10
11
12
13
14
15

19
Objects shown in the VGA display
TRACK MIXER
fig.mixer-eq
1. V.Track selector
2. PHASE switch
3. ATTENUATOR
4. DYNAMICS switch
5. DYNAMICS curve
6. EQ switch
7. EQ curve
8. AUX Send Level
9. DIR Send switch
10. MUTE switch
SOLO switch
AUTOMIX STATUS indicator/button
PHRASE SEQUENCE STATUS
11. FADER GROUP selector
12. PAN/Balance knob
13. TRACK STATUS
indicator/button
14. TRACK MIXER FADER
15. LINK switch
EFFECT RETURN MIXER
fig.mixer-eq
1. AUX BUS ASSIGN selector
2. EFFECT PATCH Name
3. AUX Send Level
4. DIR Send switch
5. MUTE switch
SOLO switch
AUTOMIX STATUS indicator/button
PHRASE SEQUENCE STATUS
6. FADER GROUP selector
7. PAN
8. EFFECT RETURN FADER
9. MONO switch
1
15
10
14
2
5
7
3
4
6
9
11
13
12
8
1
9
5
8
2
4
67
3

20
Objects shown in the VGA display
■INPUT MIXER 1–16, 17–24/AUX MST
fig.mixer-multi-inmix.eps
V.FADER
fig.mixer-eq
1. KNOB Parameter Selector
2. KNOB
3. FADER Parameter Selector
4. FADER
4
1
3
2
