Roland LX-15 User manual

* 5 1 0 0 0 2 1 5 9 8 - 0 1 *
* 5 1 0 0 0 2 1 5 9 8 - 0 1 *

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING - When using electric products, basic precautions should always be followed, including the following:
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in
accordance with the manufacturers instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.
BLUE:
BROWN:
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.
Under no circumstances must either of the above wires be connected to the earth terminal of a three pin plug.
NEUTRAL
LIVE
For the U.K.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Before using this unit, carefully read the sections entitled: “IMPORTANT SAFETY INSTRUCTIONS”, “USING THE UNIT SAFELY” (p.
55), and “IMPORTANT NOTES” (p. 56). These sections provide important information concerning the proper operation of the unit.
Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner’s
manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.
Copyright © 2011 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
Roland, GS, and SuperNATURAL are either registered trademarks or trademarks of Roland Corporation in the United States and/or other
countries.

1
2
Press one of the enclosed buttons.
How to read the explanatory illustrations
Press two buttons.
Numerals indicate the sequence of steps. While holding down a button, press another button.
 Contents
Look What You Can Do! ..............................................4
Operation Guide ....................................................6
Panel Descriptions ................................................ 10
Before You Play ................................................... 12
Opening/Closing the Lid ..............................................12
Opening/Closing the Top Lid ..........................................12
Turning the Power On/O .............................................13
Performing ....................................................... 14
Performing with Various Sounds .......................................14
Switching Tones .........................................................14
Performing with Two Layered Tones (Dual Play) . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Playing Dierent Tones with the Right and Left Hands (Split Play) . . . . . . . . . .16
Adjusting the Sound to Your Taste .....................................18
Adding Reverberation to the Sound (Ambience) . . . . . . . . . . . . . . . . . . . . . . . . . .18
Adjusting the Brightness of the Sound (Brilliance) . . . . . . . . . . . . . . . . . . . . . . . . .19
Adjusting the Keyboard Response (Key Touch) . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Dividing the Keyboard for Two-person Performance (Twin Piano) . . . . . . .20
Shifting the Pitch (Transpose) .........................................21
Practicing ........................................................ 22
Practicing with the Metronome .......................................22
Changing the Tempo ....................................................22
Changing the Time Signature ............................................22
Adjusting the Metronome’s Volume ......................................23
Adding a Count-in to Synchronize Your Performance . . . . . . . . . . . . . . . . . . . . . .23
Practicing with a Song ................................................24
Selecting and Playing a Song .............................................24
Playing Songs Consecutively (All Songs Play) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Adjusting the Volume Balance of the Song and the Keyboard
Performance (Song Balance) .............................................25
Adjusting a Song’s Tempo for Easier Practicing . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Practicing One Hand at a Time (Part Mute) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Repeatedly Practicing a Portion of a Song (AB Repeat) . . . . . . . . . . . . . . . . . . . .27
Recording the Song You’re Practicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
SMF Recording ..........................................................28
Overdubbing a Recorded Song ...........................................30
Converting a Song Recorded as an SMF to Audio . . . . . . . . . . . . . . . . . . . . . . . . .33
Audio Recording .........................................................34
Transposing a Song for Easier Performance (Audio Transpose) . . . . . . . . . . . . .35
Using a Digital Audio Player Song to Enjoy Karaoke (Center Cancel) . . . . . . .35
Burning an Audio Recording of a Song (WAV le) to a CD . . . . . . . . . . . . . . . . . .36
Saving an Internal Song ..................................................37
Personalizing Your Piano Sound (Piano Designer) . . . . . . . . . . . . . . . . . . . 38
Making Detailed Adjustments to the Piano Sound . . . . . . . . . . . . . . . . . . . . .38
Convenient Functions ............................................. 40
Adjusting the Brightness of the Display (Display Contrast) . . . . . . . . . . . . . .40
Making the Power Automatically Turn O After a Time (Auto O) . . . . . . .40
Retaining the Settings Even After Power-o (Memory Backup) . . . . . . . . .40
Restoring the Factory Settings (Factory Reset) . . . . . . . . . . . . . . . . . . . . . . . . .41
Copying a Saved Song (Copy Song) ....................................41
Deleting a Saved Song (Delete Song) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Initializing the Memory (Format Media) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Disabling the Buttons (Panel Lock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Various Settings (Function Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Making the Power Automatically Turn O After a Time (Auto O) (p. 40) . . .44
Matching the Pitch with Other Instruments (Master Tuning) . . . . . . . . . . . . . . .44
Changing the Tuning Method (Temperament) . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Specifying a Song’s Tonic (Temperament Key) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Adjusting the Dual Play Volume Balance (Dual Balance) . . . . . . . . . . . . . . . . . . .44
Adjusting the Volume (Master Gain) ......................................44
Adjusting the Volume of an Audio Playback Device (Input Volume) . . . . . . . .44
Playing Back an Audio File with Its Central Sound Minimized (Center
Cancel) ..................................................................45
Transposing an Audio File (Audio Transpose). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Specifying What the Transpose will Aect (Transpose Mode) . . . . . . . . . . . . . .45
Changing the Pitch of the Tone in Octave Steps (Octave Shift) . . . . . . . . . . . . .45
Selecting the Format for Recording (Recording Mode) . . . . . . . . . . . . . . . . . . . .45
Changing How the Pedal Eects Are Applied (Damper Pedal Part) . . . . . . . . .45
Changing How the Pedals Work (Center Pedal) . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Preventing Doubled Notes When Connected to a Sequencer (Local
Control) .................................................................46
MIDI Transmit Channel Settings (MIDI Transmit Channel) . . . . . . . . . . . . . . . . . .46
Setting the Type of CD To be Played Back (CD/Audio Type) . . . . . . . . . . . . . . . .47
Saving an Internal Song (Save Song) (p. 37) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Copying a Saved Song (Copy Song) (p. 41) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Deleting a Saved Song (Delete Song) (p. 42) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Initializing the Memory (Format Media) (p. 42) . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Changing the USB Driver Settings (USB Driver) . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Changing the USB ash drive Setting (USB Memory Mode) . . . . . . . . . . . . . . . .48
Controlling Video Equipment (Visual Control Mode) . . . . . . . . . . . . . . . . . . . . . .48
Specifying the Visual Control Channel (Visual Control Channel) . . . . . . . . . . . .48
Adjusting the Brightness of the Display (Display Contrast) (p. 40) . . . . . . . . . .49
Storing Your Settings (Memory Backup) (p. 40) . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Restoring the Factory Settings (Factory Reset) (p. 41) . . . . . . . . . . . . . . . . . . . . . .49
Troubleshooting .................................................. 50
Tone List ......................................................... 52
Internal Song List ................................................. 53
Main Specications ............................................... 54
USING THE UNIT SAFELY ........................................... 55
IMPORTANT NOTES ............................................... 56
About the Ivory Feel Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Assembling ....................................................... 58
Index ............................................................. 60
Error Messages ................................................... 60
3
Operation Guide Panel Descriptions Before You Play Performing Practicing Piano Designer
Convenient Functions
Appendix
Function Mode

Record Songs
 Record your performances
You can record your own playing.
 Use your computer to create a CD of a song you recorded
A song you’ve recorded can be copied to your computer, and written to a CD.
page 28
page 36
Environmentally Friendly Energy-Ecient Design
 The power will turn o after a specied time has elapsed
When thirty minutes have elapsed since you last played or operated the LX-15, the power will turn o automatically.
* If you don’t want the power to turn o automatically, change the “Auto O” setting (p. 40).
page 40
Play the Piano
 Play various sounds
The LX-15 contains a wide variety of tones (sounds).
You can freely select and perform using these tones.
 Play two layered tones
You can layer two tones on a single key.
 Play dierent tones with your left and right hands
You can divide the keyboard into left and right zones, and select a dierent tone for each zone.
 Play duets
You can divide the keyboard into left and right halves, playing it as though it were two pianos.
page 14
page 15
page 16
page 20
Practice Songs
 Sound a metronome
You can sound a metronome.
 Practice along with the built-in songs
The LX-15 contains numerous built-in songs.
For the song titles, refer to “Internal Song List” (p. 53).
 Practice each hand separately
You can practice along with a song while listening to only the right-hand or left-hand
part play back.
page 22
page 24
page 26
 Look What You Can Do!
4

Personalize Your Piano (Piano Designer)
 Adjust the openness of the grand piano’s lid
Closing the lid will produce a softer tone, and opening it will produce a brighter tone.
 Adjust the resonance of chords
You can modify the resonance of chords by changing the way in which the piano’s
soundboard vibrates.
 Switch the temperament
You can switch between various temperaments, such as historic temperaments used
during the Baroque era.
page 38
page 38
page 39
Adjust Your Piano
 Adjust the keyboard touch
You can adjust the touch sensitivity of the keyboard to match your own playing style.
 Add reverberation to the sound
You can add reverberation (ambience) to create the sensation of performing in a
concert hall.
 Adjust the brightness of the sound
You can adjust the tone quality of the sound, ranging from a brilliant timbre to a
mellow tone.
page 19
page 18
page 19
Convenient Functions
 Transpose the pitch of the keyboard or song
The Transpose function lets you shift the pitch of the keyboard or a song so that you
can perform more conveniently.
 Disable the buttons
The Panel Lock function lets you prevent sounds or settings from being changed when
buttons are pressed inadvertently.
page 21
page 43
5
Operation Guide Panel Descriptions Before You Play Performing Practicing Piano Designer
Convenient Functions
Appendix
Function Mode

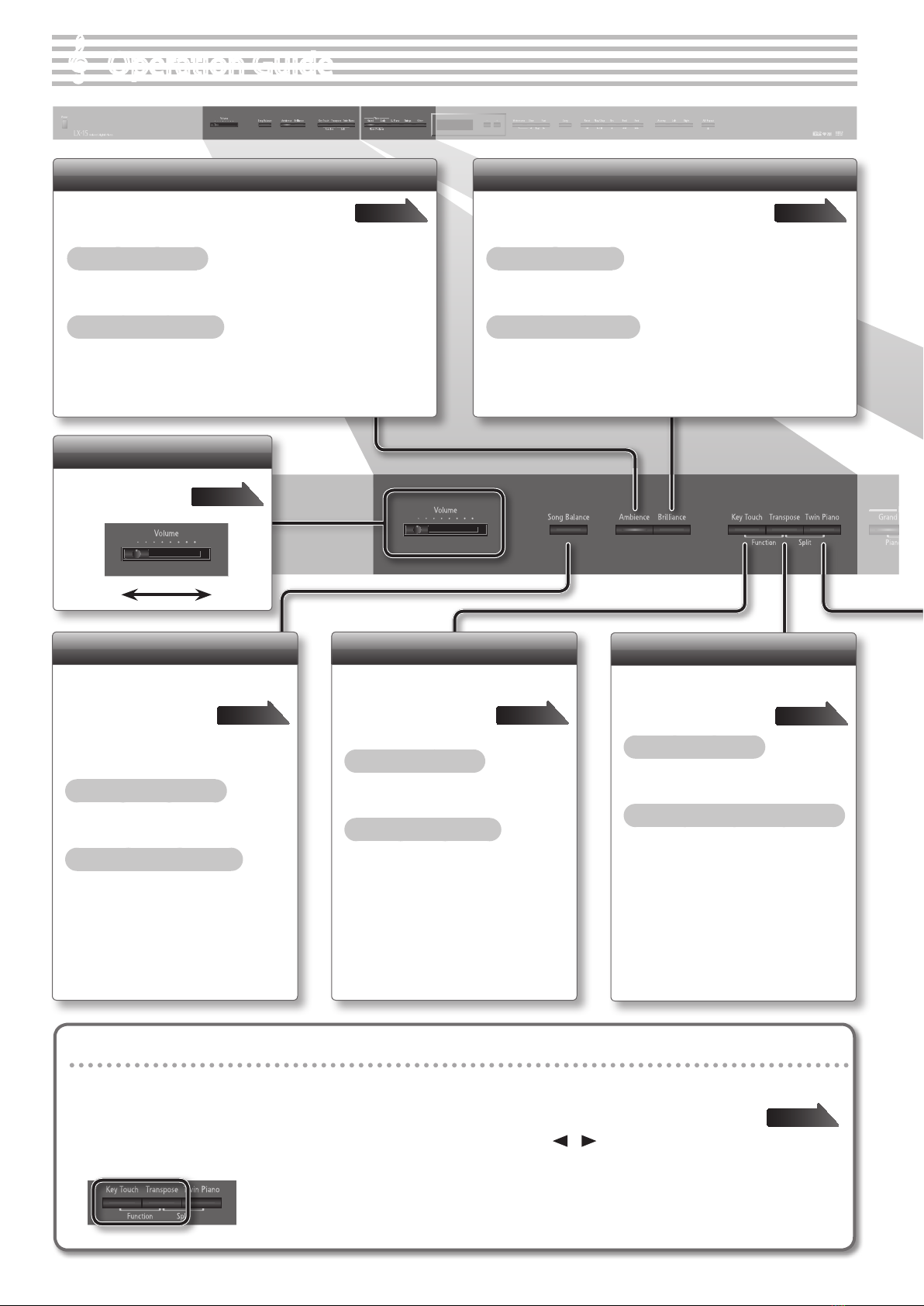

 Operation Guide
Adjusting the Brightness of the Sound (Brilliance)
You can adjust the brightness of the sound you play
from the keyboard or the sounds of a song you play
back.
To turn brilliance on
Press the [Brilliance] button so it’s lit.
To adjust the brilliance
While holding down the [Brilliance] button, press the [–] [+]
buttons.
page 19
Adding Reverberation (Ambience)
You can add a pleasant reverberation to the sounds,
producing the impression that you are performing in
a concert hall.
To turn ambience on
Press the [Ambience] button so it’s lit.
To adjust the ambience
While holding down the [Ambience] button, press the [–] [+]
buttons.
page 18
Adjusting the Overall Volume
Adjust the sound’s volume.
MaxMin
page 13
Retaining the settings even after power-o (memory backup)
The LX-15 allows you to adjust numerous settings, but these settings will return to their default values as soon as you turn o the
power.
However, by using the Memory Backup feature, you can have the changes you’ve made in settings be retained. page 40
Transposing Your Performance
(Transpose)
Transposes the keyboard
and/or song.
To turn transpose on
Press the [Transpose] button so it’s lit.
To adjust the amount of transposition
While holding down the [Transpose]
button, press the [–] [+] buttons.
page 21
Adjusting the Keyboard Touch
(Key Touch)
You can adjust the way
in which the keyboard
responds to your playing.
To turn key touch on
Press the [Key Touch] button so it’s lit.
To adjust the key touch
While holding down the [Key Touch]
button, press the [–] [+] buttons.
page 19
Adjusting the Song Volume
(Song Balance)
By modifying the
playback volume of the
song, you can adjust the balance
between the song and your keyboard
performance.
To turn song balance on
Press the [Song Balance] button so it’s lit.
To adjust the song balance
While holding down the [Song Balance]
button, press the [–] [+] buttons.
page 25
1. While holding down the [Key Touch]
button, press the [Transpose] button.
2. Use the [ ] [ ] (Slow/Fast) buttons to select
“Memory Backup.”
3. Press the [Song] button.
4. Use the [+] button to select “OK.”
5. Press the [Song] button.
6

Operation Guide
Dividing the Keyboard for Two-person Performance (Twin Piano)
This function divides the keyboard into left and right, allowing two
people to play the same range of pitches.
To turn twin piano on
Press the [Twin Piano] button.
To change how the sounds are heard
While holding down the [Twin Piano] button, press the [–] [+]
buttons.
Pair
The sound of the right-hand keyboard zone will
be heard more loudly from the right speaker than
from the left speaker.
The sound of the left-hand keyboard zone will
be heard more loudly from the left speaker than
from the right speaker.
Individual
The sound of the right-hand keyboard zone will
be heard only from the right speaker.
The sound of the left-hand keyboard zone will be
heard only from the left speaker.
page 20

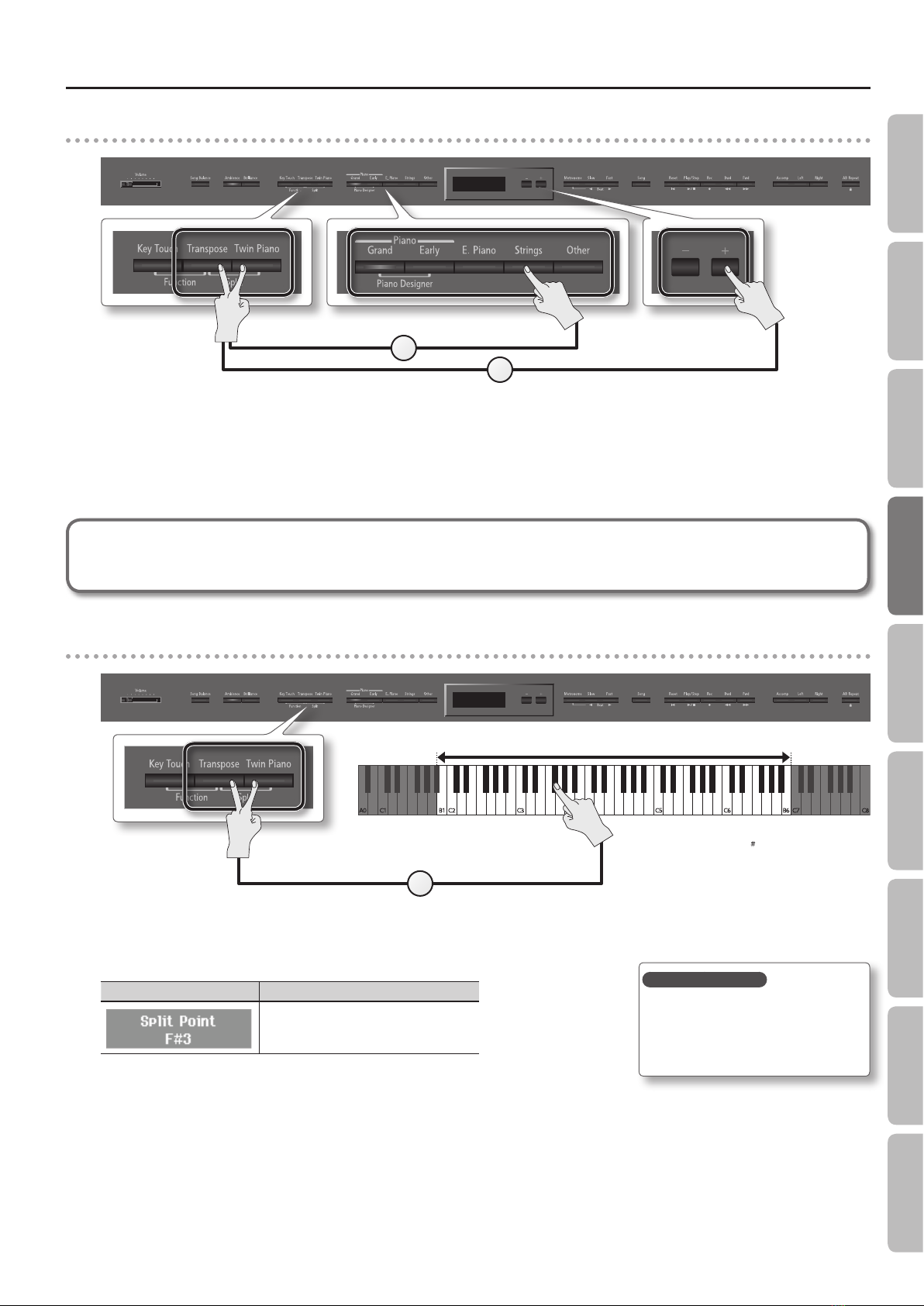

Playing Dierent Tones with the Right and Left Hands (Split Play)
This function divides the keyboard into left and right zones,
allowing you to play a dierent tone in each zone.
To turn split on
While holding down the [Transpose] button, press the [Twin Piano]
button.
To change the tones
Right-hand Tone 1. Press a tone button.
2. Press the [–] [+] buttons.
Left-hand Tone
1. While holding down the [Transpose] button and
[Twin Piano] button, press a tone button.
2. While holding down the [Transpose] button and
[Twin Piano] button, use the [–] [+] buttons.
Changing the keyboard’s split point
While holding down the [Transpose] button and [Twin Piano]
button, play the key that you want to specify as the split point.
page 16
Tone Buttons
To select a single tone
Press one of the tone buttons, and then use the [–] [+] buttons.
To layer two tones (dual play)
Press two tone buttons.
Press two
Tone 1 Press the [–] [+] buttons.
Tone 2 Hold down the right-most of the lit tone button, and then use
the [–] [+] buttons.
page 14
Press one
page 15
Customizing Your Piano Sound (Piano Designer)
You can adjust various elements of a grand piano’s sound to create your own personalized piano.
1. While holding down the Piano [Grand] button, press the Piano [Early] button.
2. Use the [ ] [ ] (Slow/Fast) buttons to select the item that you want to adjust.
3. Use the [–] [+] buttons to adjust the value.
page 38
7
Operation Guide Panel Descriptions Before You Play Performing Practicing Piano Designer
Convenient Functions
Appendix
Function Mode

Operation Guide
Selecting a Song
First, you need to access the song screen; this is where you can
select songs.
To select a song
1. Press the [Song] button to access the song screen.
Category
Tempo Time signature Measure
Song Name
2. Use the [–] [+] buttons to select a song.
To select a song that’s saved on a USB ash drive
1. Press the [Song] button to access the song screen.
2. While holding down the [Song] button, use
the [–] [+] buttons to select “USB.”
USB ash drive
3. Use the [–] [+] buttons to select a song.
page 24
Using the Metronome
Here’s how to sound the metronome.
To turn the metronome on
Press the [Metronome] button so it’s lit.
To adjust the metronome’s volume
While holding down the [Metronome] button, use the [–] [+]
buttons.
page 22
Changing the Tempo or Time Signature
You can adjust the tempo of the metronome or
song.
To change the tempo
Use the [ ] [ ] (Slow/Fast) buttons.
To change the time signature
While holding down the [Metronome] button, use the [ ] [ ]
(Slow/Fast) buttons.
page 22
Display
The display shows information such as the tone name, song title,
tempo, and time signature.
Tempo Time signature Measure Tone Name
or
Song Name
Selecting Variation Tones/Adjusting the Settings
You can select tone variations or songs, and adjust various settings.
• Holding down the [–] [+] buttons will make the value change
continuously.
• To rapidly increase the value, hold down the [+] button and press
the [–] button.
• To rapidly decrease the value, hold down the [–] button and press
the [+] button.
• To return the value to its default setting, press the [–] and [+] buttons
simultaneously.
8

Operation Guide
Disabling the Buttons (Panel Lock)
Hold down the [AB Repeat] button for a while.
To cancel panel lock
Hold down the [AB Repeat] button once again for several seconds.
page 43
Recording/Playback
Here’s how to play back or record a
song.
Return to the begin-
ning of the song Press the [ ] (Reset) button.
Play/Stop Press the [ ] (Play/Stop) button.
Enter recording-
standby mode While stopped, press the [ ] (Rec) button.
Record While in recording-standby mode, press the
[] (Play/Stop) button.
Rewind Press the [ ] (Bwd) button.
Fast-forward Press the [ ] (Fwd) button.
To play all songs (all song play)
While holding down the [Song] button, press the [ ] (Play/
Stop) button.
To make a new recording
1. Select the tone that you want to play.
2. Press the [ ] (Rec) button.
3. Press the [ ] (Play/Stop) button to start
recording.
4. Press the [ ] (Play/Stop) button to stop
recording.
To overdub
1. Select the tone to be played.
2. Select the song to be dubbed.
3. Press the [ ] (Rec) button.
4. Press the [+] button.
5. Press the button of the part that you want to record,
making it blink.
6. Press the [ ] (Play/Stop) button to start
recording.
7. Press the [ ] (Play/Stop) button to stop
recording.
page 28page 24
page 25
page 28
page 32
Selecting the Parts that will Play
Here’s how to select the parts that will play.
To select the right-hand part Press the [Right] button so it’s lit.
To select the left-hand part Press the [Left] button so it’s lit.
To select the other parts Press the [Accomp] button so it’s lit.
To adjust the playback volume of a part
Hold down the button of the part whose volume you want to adjust,
and use the [–] [+] buttons.
page 26
Repeatedly Practicing a Portion of a Song (AB Repeat)
Here’s how you can make a specic portion of a
song play back repeatedly.
1. Press the [ ] (Play/Stop) button to play back the
song.
2. At the beginning of the portion to be repeated, press
the [AB Repeat] button.
3. At the end of the portion to be repeated, press the [AB
Repeat] button once again.
page 27
9
Operation Guide Panel Descriptions Before You Play Performing Practicing Piano Designer
Convenient Functions
Appendix
Function Mode

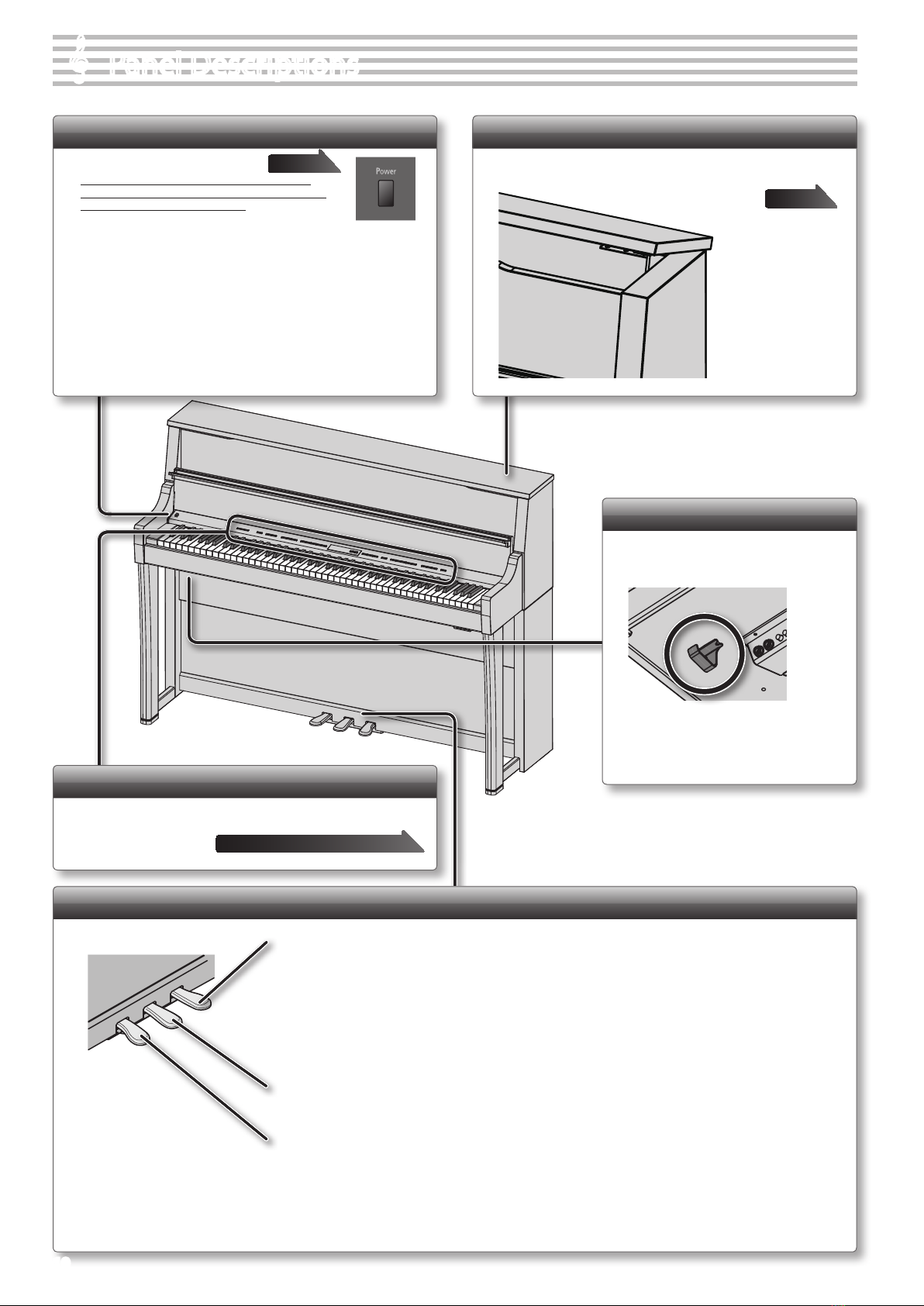

 Panel Descriptions
[Power] Switch
This turns the power on/o.
* With the factory settings, the LX-15’s power will
automatically be switched o 30 minutes after you
stop playing or operating the unit.
If the unit’s power has been turned o automatically, you can use the
[Power] switch to turn the unit back on again.
If you don’t want the power to turn o automatically, change the “Auto O”
setting to “O” as described on “Making the Power Automatically Turn O
After a Time (Auto O)” (p. 40).
* When turning the power on again, you must allow at least ve seconds after
power-o before you once again turn the power on.
If you fail to allow enough time, the Auto O function might not be reset,
preventing the power from turning on correctly.
page 13
Top Lid
By opening or closing the lid you can change the clarity of the
sound.
Damper Pedal
Use this pedal to sustain the sound. While this pedal is held down, notes will be sustained for an extended time even if you
release your ngers from the keyboard.
With the damper pedal on an acoustic piano, when you step on the pedal it will at rst oer only a slight amount of resistance,
but as you press down further it will start to feel much heavier. On the LX-15, this change in the feeling of resistance is
simulated.
On an acoustic piano, when you step on the damper pedal, you’ll rst hear the sound of the dampers releasing the strings. Then,
you should also be able to hear the sound of strings adjacent to the ones for the notes actually played resonate sympathetically,
resulting in a rich, resounding tone.
Additionally, when using half-pedaling techniques, the core of the sound disappears rapidly while a rich, spacious resonance
remains, producing a unique form of reverberation. On the LX-15, the unique, lingering tones produced by the half-pedaling
technique are reproduced in addition to released-string sounds (Damper Noise) and resonating sounds (Damper Resonance).
Sostenuto Pedal
The notes you are pressing when this pedal is depressed will be sustained.
Soft Pedal
This pedal is used to make the sound softer.
Playing with the soft pedal depressed produces a sound that is not as strong as when otherwise played with the equivalent
strength. This is the same function as the left pedal of an acoustic piano.
The softness of the tone can be varied subtly by the depth to which you press the pedal.
Pedals
page 12
Headphone Hook
Whenever you are not using the
headphones, you can hang them on the
headphone hook.
* Don’t hang anything other than headphones on
this hook, and don’t apply excessive force to it.
Doing so may damage the headphone hook.
Front Panel
These buttons and sliders are used to operate the LX-15.
“Operation Guide” page 6–9
10

Panel Descriptions

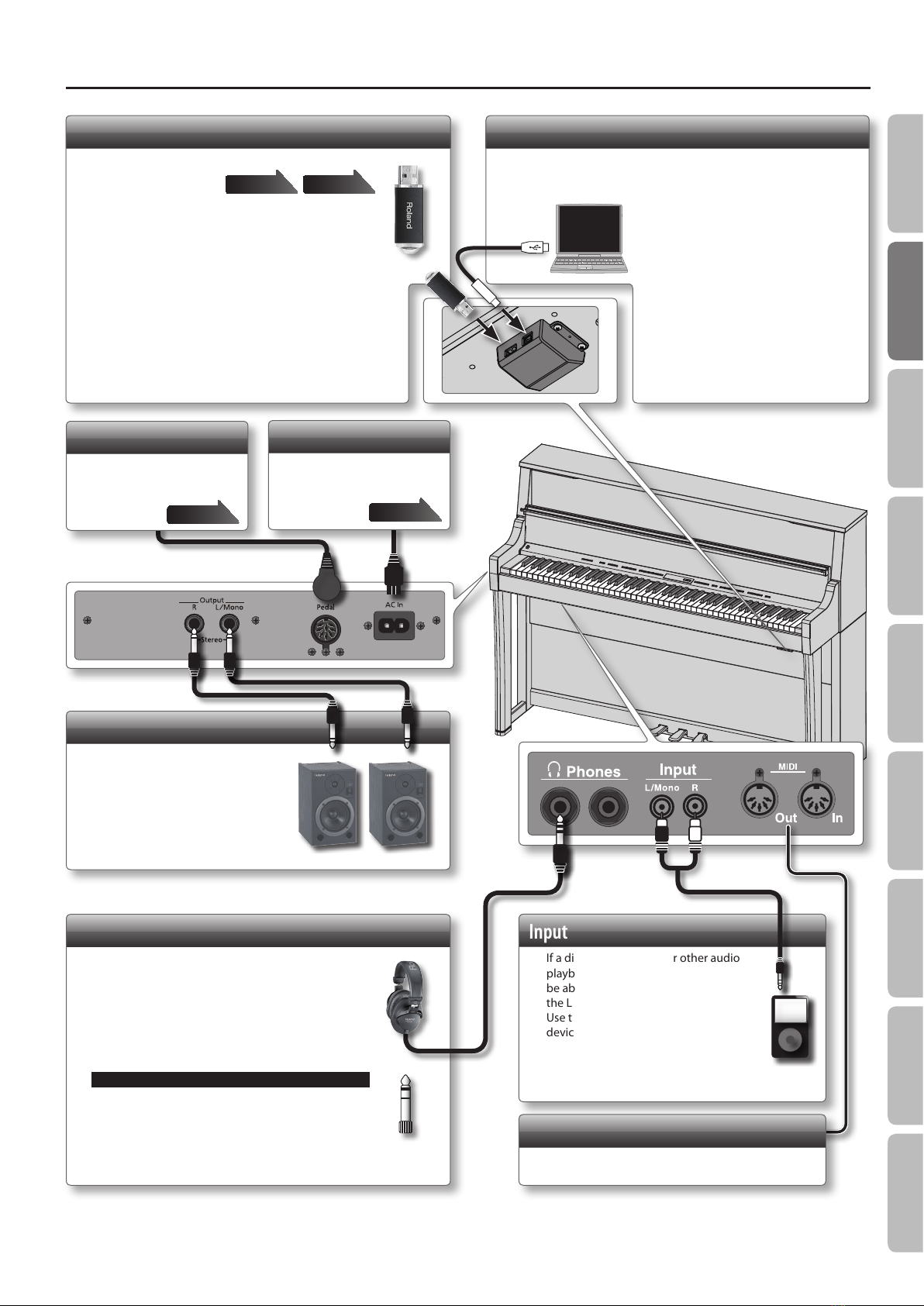

USB Memory Connector
If a USB ash drive is connected, you can use it to save
or play back songs.
You can do the
following things using a USB ash drive.
• WAVE les or MIDI les (SMF) data copied from your computer
can be played back by the LX-15.
• You can make audio recordings of your performances on the
LX-15.
• The audio recordings of songs that you’ve made can be played on
your computer, or burned to a CD.
* Carefully insert the USB ash drives all the way in-until it is rmly
in place.
* Use a USB ash drive sold by Roland. We cannot guarantee
operation if any other USB ash drive is used.
page 24 page 37
USB Connector
If you use a commercially available USB cable to connect the
LX-15’s USB connector to your computer’s USB connector, you’ll be
able to do the following things.
• SMF data played back by MIDI-compatible
software can be sounded by the LX-15.
• MIDI data can be transferred between
the LX-15 and your sequencer software,
opening up a wide range of possibilities for
music production and editing.
Input Jacks
If a digital audio player or other audio
playback device is connected here, you’ll
be able to listen to its playback through
the LX-15.
Use the controls of your audio playback
device to adjust the volume.
MIDI Connectors
You can connect these to external MIDI devices.
* To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn o the power on all devices before making any
connections.
* When connection cables with resistors are used, the volume level of equipment connected to the Input jacks may be low. If this happens, use connection cables that
do not contain resistors.
AC In (AC Inlet)
Connect the included power
cord here.
Pedal Connector
Connect the pedal cord of
the dedicated stand to this
connector.
page 59 page 59
Output Jacks
If you connect these jacks to
amplied speakers, the sound of
LX-15 will be heard through them.
Rear side
Phones Jacks
Here you can connect headphones.
The LX-15 has two headphone jacks, two people can
also use headphones simultaneously.
Don’t forget to remove your headphone adaptor plug!
If you leave a headphone adaptor plug inserted in
the headphone jack, no sound will be heard from the
piano. If you don’t hear sound from the piano, check
the headphone jacks.
11
Operation Guide Panel Descriptions Before You Play Performing Practicing Piano Designer
Convenient Functions
Appendix
Function Mode

1. To open the lid, use both hands to lift it. 2. To close the lid, use both hands to gently lower it.
 Before You Play
Opening/Closing the Lid
NOTE
To open the lid, use both hands to lift it lightly. The lid of the LX-15 is designed to close softly even if you remove your hands from it. However, it
will close quite abruptly if it has been opened only slightly. Be careful not to pinch your ngers in the gap.
NOTE
If you need to move the piano, make sure the lid is closed rst to prevent accidents.
Opening/Closing the Top Lid
Opening the lid will make the sound more sharply dened; closing the lid produces a more mellow sound.
NOTE
• The top lid must be opened or closed by an adult.
• Do not force the top lid backward; doing so will damage it.
• Be careful not to pinch your ngers in the gap.
Opening the Top Lid
1. Lift up the top lid with both hands.
Closing the Top Lid
1. Lift up the top lid with both hands.
2. Gently lower the top lid.
Top lid
Using the music rest
You can place music books or sheet music on the top edge of the opened lid.
Tips for placing music
• Insert the sheet music into the groove on the top edge of the lid.
• Crease sheet music so that it will stay open.
If this does not work, use paper clips to secure it.
• If the sheet music is thin, attach it to a clipboard before placing it on the music Rest.
12

Before You Play
Turning the Power On/O
NOTE
• Once the connections have been completed (p. 11), turn on power to your various devices in the order specied. By turning on devices in the wrong
order, you risk causing malfunction and/or damage to speakers and other devices.
• Before switching the power on/o, always be sure to turn the volume down. Even with the volume turned down, you might hear some sound
when switching the power on/o. However, this is normal and does not indicate a malfunction.
On
O
1
3
2
Min Max
Turning the power on
1. Move the [Volume] slider all the way to the left to minimize the volume.
2. Press the [Power] switch.
After a brief interval, you’ll be able to produce sounds by playing the keyboard.
* This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.
3. Use the [Volume] slider to adjust the volume.
Adjust the volume while playing something on the keyboard, so you can hear how it sounds.
The volume increases when you slide it to the right, and decreases when you slide it to the left.
MEMO
The LX-15 is designed so that nuances in the dynamics of your playing will be clearly heard even at low volume, and that the sound will remain
clear even at high volume.
Turning the power o
1. Move the [Volume] slider all the way to the left to minimize the volume.
2. Press the [Power] switch.
The power is turned o.
* If you need to turn o the power completely, rst turn o the POWER switch, then unplug the power cord from the power outlet. Refer to “Power
Supply” (p. 56).
If you don’t want the power to turn o automatically, change the “Auto O” setting to “O”!
With the factory settings, the LX-15’s power will automatically be switched o 30 minutes after you stop playing or operating the unit.
If the unit’s power has been turned o automatically, you can use the [Power] switch to turn the unit back on again.
If you don’t want the power to turn o automatically, change the “Auto O” setting to “O” as described on “Making the Power Automatically
Turn O After a Time (Auto O)” (p. 40).
NOTE
• When turning the power on again, you must allow at least ve seconds after power-o before you once again turn the power on. If you fail
to allow enough time, the Auto O function might not be reset, preventing the power from turning on correctly.
• The settings will be initialized after the power has been turned o. If you want to still be retained the next time you turn on the power, you
should refer to “Having Your Settings Be Retained after the Power Is Turned O (Memory Backup)” (p. 40) and save your settings.
13
Operation Guide Panel Descriptions Before You Play Performing Practicing Piano Designer
Convenient Functions
Appendix
Function Mode

 Performing
Performing with Various Sounds
In addition to piano sounds, the LX-15 lets you enjoy performing with many other sounds (347 types).
These sounds are called “Tones.” The Tones are divided into ve groups, each of which is assigned to a dierent Tone button.
Switching Tones
Let’s start by performing with a piano tone.
When you turn on the power, the “ConcertPiano” tone is selected.
12
1. Press a tone button to select the tone group.
The currently selected tone number and tone name are displayed.
Tone groups
Tone button Description
Piano [Grand] button Selects grand piano sounds.
Piano [Early] button Selects sounds of early historical pianos.
[E. Piano] button Selects various electric piano sounds used in pop or rock.
[Strings] button Selects the sounds of string instruments such as violins, as well as other instruments used in orchestras.
[Other] button
Selects a variety of sounds such as organ, bass, or accompaniment sounds.
* If you select tone numbers 43–51, you’ll be able to use the keyboard to play the sounds of a drum set.
* If you’ve selected an organ sound that provides a rotary eect (*1), such as a Combo Jz. Org or a Ballad Organ, pressing the [Other]
button will switch the speed of the rotary eect.
For details on the tones, refer to “Tone List” (p. 52).
*1 Rotary eect:
Rotary is an eect which simulates the sound of rotating speakers. There is a choice of two settings: Fast and Slow.
2. Use the [–] [+] buttons to select a variation within the tone group.
* If you’ve selected a drum set tone or an SFX set tone, some notes of the keyboard will not produce sound.
Auditioning tones (tone demo)
1. While holding down a tone button, press the [ ] (Play/Stop) button.
A tone demo will play.
2. To stop the tone demo, press the [Song] button.
If you are using the VIMA TUNES
You can connect a USB CD drive (sold separately) to the LX-15 (p. 47), and play back separately sold CD-ROMs created for the VIMA.
Songs on VIMA CD-ROM (VIMA TUNES) are programmed with “recommended tones” suitable for each song.
When you select a song from a VIMA CD-ROM (VIMA TUNES), recommended tones will be assigned to theLX-15’s [E. Piano],
[Strings], and [Other] tone buttons, and these three tone buttons will blink. When you press a ashing Tone button, the
recommended tone is then selected, enabling you to perform the selected song using a tone matched to that song as it plays back.
14

Performing
Performing with Two Layered Tones (Dual Play)
You can play two tones simultaneously from each note of the keyboard. This feature is called “Dual Play.”
As an example, here’s how to layer piano and strings tones.
1
2
1. While holding down the Piano [Grand] button, press the [Strings] button.
Both buttons will light.
When you play the keyboard, you’ll hear both the piano and the strings tones.
Selecting tones for dual play
Tone name Corresponding button How to select tones
Tone 1 Left tone button Press the [–] [+] buttons.
Tone 2 Right tone button While holding down the tone button for Tone 2 (the right-most of the lit Tone buttons), and press the [–] [+] buttons.
2. To exit Dual Play, press one of the tone buttons.
* Dual play is not available if Split Play (p. 16) or Twin Piano (p. 20) are turned on.
* For some combinations of sounds, the eect is not applied to tone 2, and this may aect how the tone sounds.
* It’s not possible to layer Piano [Grand] and Piano [Early] tones together.
Advanced techniques
Changing the pitch of tone 2 in steps of an octave: “Octave Shift” (p. 45)
Specifying the part(s) aected by the damper pedal: “Damper Pedal Part” (p. 45)
Adjusting the volume balance of the two tones: “Dual Balance” (p. 44)
What are eects?
In addition to reverb, the LX-15 provides a wide variety of other “eects” that can modify the sound in various ways.
The rotary eect is one of these eects.
15
Operation Guide Panel Descriptions Before You Play Performing Practicing Piano Designer
Convenient Functions
Appendix
Function Mode

Performing
Playing Dierent Tones with the Right and Left Hands (Split Play)
You can play dierent tones in the left and right sides of the keyboard, divided at a certain key.
This feature is called “Split Play,” and the key at which the keyboard is divided is called the “Split Point.”
21
1. While holding down the [Transpose] button, press the [Twin Piano] button.
The Split screen will appear.
When Split is turned on, the keyboard settings will be as follows.
C1 D1 E1 F1 G1 A1 B1A0 B0 C2 C3 C4 C5 C8B7
…
Split Point (Power-up default: F 3)
Left-hand Tone Right-hand Tone
2. To exit Split Play, hold down the [Transpose] button and press the [Twin Piano] button once again.
* Depending on which tones are being used together, the tones might sound dierent because no eect is applied to the left-hand zone.
Advanced technique
Specifying the part(s) aected by the damper pedal: “Damper Pedal Part” (p. 45)
Changing the right-hand tone
12
1. Press a tone button.
The number and name of tone currently selected for the right-hand zone are shown.
2. Press the [–] [+] buttons.
A dierent tone is selected.
16

Performing
Changing the left-hand tone
1
2
1. While holding down the [Transpose] button and [Twin Piano] button, press a tone button.
The number and name of the tone currently selected for the left-hand zone are shown.
2. While holding down the [Transpose] button and [Twin Piano] button, press the [–] [+] buttons.
A dierent tone is selected.
Advanced technique
Changing the pitch of the left-hand tone in steps of an octave: “Octave Shift” (p. 45)
Changing the keyboard’s split point
Split Point
Power-up default: F 3
The Split Point belongs to the left-hand
section of the keyboard
Range in which you can specify the split point (B1–B6)
1
1. While holding down the [Transpose] button and [Twin Piano] button, press the key that you want to assign as the split point.
The key you pressed becomes the new split point, and that key will be shown in the display.
Screen Value
B1–B6
(default: F#3)
Saving your settings
The LX-15’s settings will revert to
the default values when you turn o
the power, but you can save them as
described in “Retaining the Settings Even
After Power-o (Memory Backup)” (p. 40).
17
Operation Guide Panel Descriptions Before You Play Performing Practicing Piano Designer
Convenient Functions
Appendix
Function Mode

Performing
Adjusting the Sound to Your Taste
The LX-15 lets you add reverberation or modify the brightness of the sound.
Changing the clarity of the sound (opening/closing the lid)
Opening the lid will make the sound more sharply dened; closing the lid
produces a more mellow sound (p. 12).
Adding Reverberation to the Sound (Ambience)
You can add a pleasant reverberation to the sounds of the LX-15, producing the impression that you are performing in a concert hall. This eect is
called “Ambience.”
2
1 3
1. Press the [Ambience] button.
The [Ambience] button will light.
2. While holding down the [Ambience] button, press the [–] [+] buttons.
The display will indicate the depth of the ambience eect values.
Screen Value Explanation
1–10
(default: 5) Higher values apply deeper ambience.
3. To turn o the ambience eect, press the [Ambience] button once again.
The [Ambience] button will go out.
* It’s not possible to specify the depth of ambience individually for each tone. The eect will be applied in the same way to each tone.
* The amount of ambience for the song will not change.
Saving your settings
The LX-15’s settings will revert to
the default values when you turn o
the power, but you can save them as
described in “Retaining the Settings Even
After Power-o (Memory Backup)” (p. 40).
18

Performing
Adjusting the Brightness of the Sound (Brilliance)
You can adjust the brightness of the sounds played on the keyboard or played back by a song.
2
1 3
1. Press the [Brilliance] button.
The [Brilliance] button will light.
2. While holding down the [Brilliance] button, press the [–] [+] buttons.
The display will indicate the depth of the brilliance eect values.
Screen Value Explanation
-10–0–10
(default: 5)
Positive (+) values make the sound brighter; negative (-) values make the sound more
mellow.
3. To turn o the brilliance eect, press the [Brilliance] button once again.
The [Brilliance] button will go out.
Adjusting the Keyboard Response (Key Touch)
The way in which the keyboard responds to your playing strength can be adjusted to your personal taste.
2
1 3
1. Press the [Key Touch] button.
The [Key Touch] button will light.
2. While holding down the [Key Touch] button, press the [–] [+] buttons.
The display will indicate the key touch setting.
Screen Value Explanation
Fix, 1–100
(default: 70)
Higher values will make the keyboard feel heavier.
If you’ve specied “Fix”, notes will sound at the same volume regardless of how
strongly you play the keyboard.
3. To cancel key touch, press the [Key Touch] button once again.
The [Key Touch] button will go out.
Saving your settings
The LX-15’s settings will revert to
the default values when you turn o
the power, but you can save them as
described in “Retaining the Settings Even
After Power-o (Memory Backup)” (p. 40).
Saving your settings
The LX-15’s settings will revert to
the default values when you turn o
the power, but you can save them as
described in “Retaining the Settings Even
After Power-o (Memory Backup)” (p. 40).
19
Operation Guide Panel Descriptions Before You Play Performing Practicing Piano Designer
Convenient Functions
Appendix
Function Mode

Performing
Dividing the Keyboard for Two-person Performance (Twin Piano)
You can divide the keyboard into left and right zones so that two people can play the same range of pitches, just as though there were two pianos.
This function is called “Twin Piano.”
For example, you could use Twin Piano to allow a student to play along with their teacher.
31
1. Press the [Twin Piano] button.
The [Twin Piano] button will light, and the “ConcertPiano” tone will be
selected.
When you turn Twin Piano on, the keyboard and pedal settings will be as
shown in the illustration.
NOTE
If Twin Piano is on, damper resonance will not be applied; this may cause the piano to sound dierent.
2. Select the tone to be played (p. 14).
The left and right sections will have the same tone.
3. To cancel Twin Piano, press the [Twin Piano] button once again.
The [Twin Piano] button will go out.
Changing the way in which the sound is heard (twin piano mode)
1
1. While holding down the [Twin Piano] button, press the [–] [+] buttons.
The display will indicate Twin Piano mode.
Screen Value Explanation
Pair
The sound of the right-hand keyboard zone will be heard more loudly from the right speaker than
from the left speaker.
The sound of the left-hand keyboard zone will be heard more loudly from the left speaker than from
the right speaker.
When using headphones, you’ll be able to hear the other person’s playing.
Individual
(default)
The sound of the right-hand keyboard zone will be heard only from the right speaker.
The sound of the left-hand keyboard zone will be heard only from the left speaker.
When using headphones, you won’t be able to hear the other person’s playing.
* Ambience will turn o.
* For some tones, the sound might not be divided to left and right.
* If using headphones, connect them to the left Phones jack if playing the left keyboard zone; connect
them to the right Phones jack if playing the right keyboard zone.
* If you record while this is set to Individual, the playback might not be the same as what you heard
during recording.
C4 C5 C6 C7 C8C3C2C1
C4 C5 C6C3C4 C5C3 C6
The damper pedal
for the left area
The damper pedal
for the right area
Conventional
keyboard
Twin Piano
divide point
Saving your settings
The LX-15’s settings will revert to
the default values when you turn o
the power, but you can save them as
described in “Retaining the Settings Even
After Power-o (Memory Backup)” (p. 40).
20
