rollease acmeda AUTOMATE MT03-0301-411005 User manual

™
DC Power Distribution Panel
AUTOMATE
DC POWER
FEATURES:
• Capacity for up to 18 ARC DC motors (25mm and 28mm motors)
• Ability to parallel connect motor supplies for higher current motors (35mm and 45mm motors)
• LED status indication for checking whether power is being applied to panel
• LED status indication for each individual motor supply
AUTOMATE | DC Power Distribution Panel provides power for up to 18 separate ARC DC motors.
Higher 15V output allows for greater cable lengths from motor to power panel, freeing up routing
options within an installation.
Removes the need for multiple individual power adaptors for each DC motor in an installation,
combining each power source into a single location. Channels may also be wired in parallel to
provide additional power to larger motors. Additional information and updates are available at
https://www.rolleaseacmeda.com
INSTR. MT03-0301-411005 V1.7 JAN 2021
Part #: MT03-0301-411005 Automate |15V DC,24A,360W, 18CH Power 100-240VAC

2 | Automate™Installation Instructions | DC Power Distribution Panel ROLLEASE ACMEDA
CONTENTS
1 FEATURES 3
2 SAFETY INSTRUCTIONS 4
3 INSTALLATION 6
3.1 Cable Run Reference Table (Maximum Lengths) 6
3.2 Motor Power Distribution Setup 7
3.3 Wiring Diagram – Individual Connection (MTDCRF28/25) 8
3.4 Wiring Diagram – Two Wire Entry Connections in Parallel (MTDCRF45/35) 8
3.5 JST Connector Recommendations for Custom Cable Adaptors 9
3.6 Status LED Indication 10
4 SPECIFICATIONS 10
5 TROUBLESHOOTING 11
6 WIRE GAUGE DIMENSIONS 11
APPENDIX CONTENTS 12

3 | Automate™Installation Instructions | DC Power Distribution Panel ROLLEASE ACMEDA

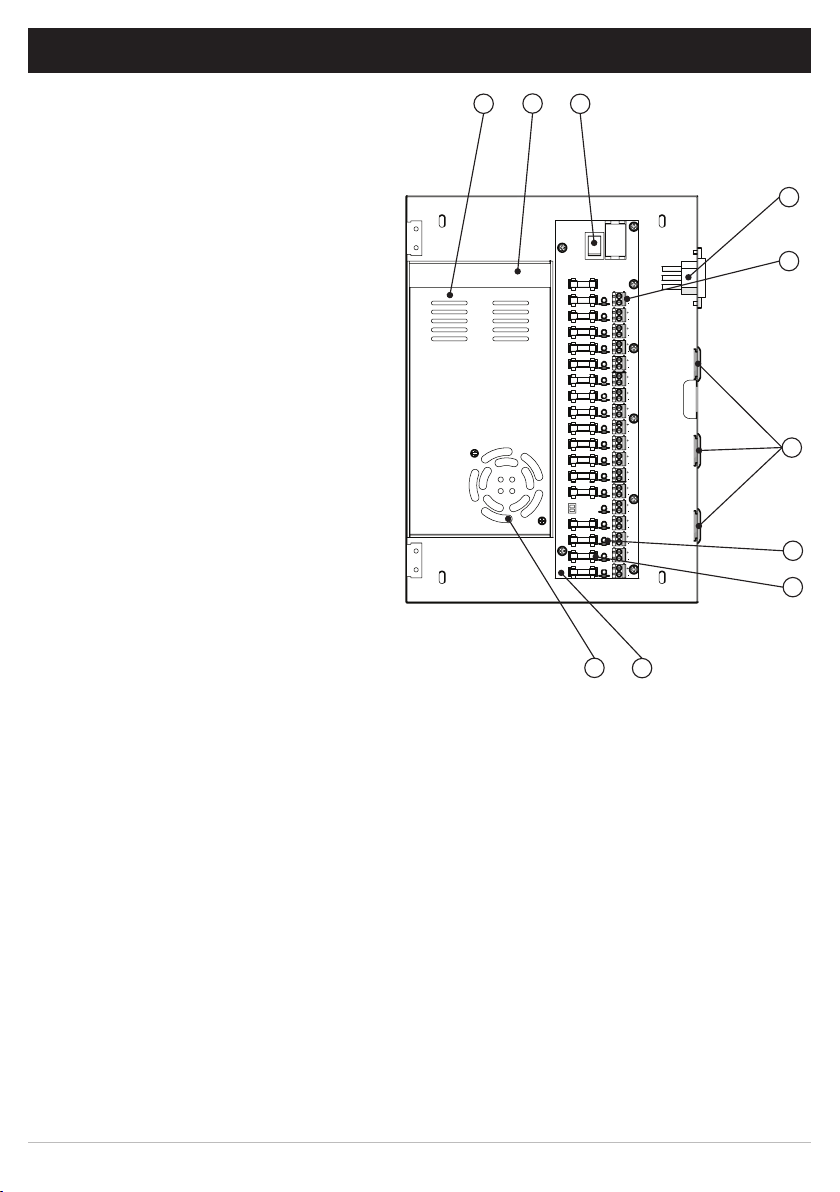

1. Internal power Switch
2. Mains Power supply (120V/240V)
3. 18 wire entries with clamp screws
4. IEC-C14 Connector for Mains Power Input
5. 18 Individual fuses for channel protection
(Quick Blow Fuse 3.15A M205)
6. 18 Channel Status LEDs
7. Plastic Plugs (For cable routing)
8. Potentiometer for output voltage adjustment
9. Cooling fan
10. Terminal Block
OUT 1OUT 2OUT 3OUT 4 OUT 5OUT 6OUT 7OUT 8 OUT 9 OUT 10 OUT 11 OUT 12 OUT 13 OUT 14 OUT 15 OUT 16 OUT 17 OUT 18
1
1
1
2
1
8
1
10
1
9
1
4
1
3
1
7
6
5
Note: Keys can’t be replaced if lost.
1 FEATURES

4 | Automate™Installation Instructions | DC Power Distribution Panel ROLLEASE ACMEDA
WARNING: Important safety instructions to be read before installation.
Incorrect installation can lead to serious injury, which may result in death and will void manufacturer’s liability and warranty.
AVERTISSEMENT: Consignes de sécurité importantes à lire avant l’installation.
Une installation incorrecte peut entraîner des blessures graves, voire mortelles, et annule la responsabilité et la garantie du
fabricant.
CAUTION
• Do not expose to moisture or extreme environments.
• Do not allow children to play with this device.
• Use or modification outside the scope of this instruction manual will void warranty.
• Installation and setup to be performed by a suitably qualified installer.
• For use with DC powered motorized shading devices.
• Frequently inspect for improper operation. Do not use if repair or adjustment is necessary.
• Keep clear when in operation.
• For use with DC motors only (NOT suitable for charging Li-ion Battery powered motors).
• Do not cut power cables

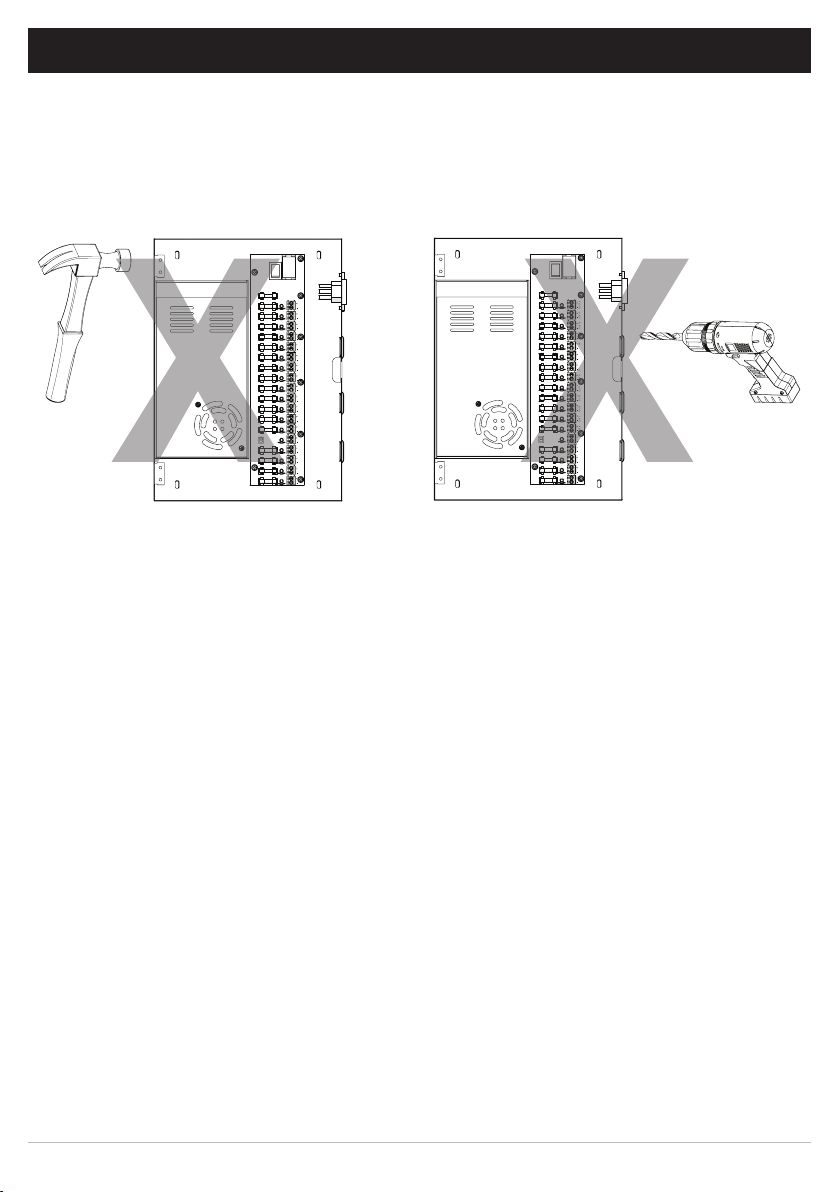

• Do not drill into motor body or distribution panel.
• The routing of cable through walls shall be protected by isolating bushing or grommets.
• Ensure motor power cable and aerial is clear and protected from moving parts.
• If cable or power connector is damaged do not use.
MISE EN GARDE
• Ne pas exposer à l’humidité ou à des environnements extrêmes.
• Ne laissez pas les enfants jouer avec cet appareil.
• Toute utilisation ou modification en dehors de ce manuel d’instructions annulera la garantie.
• L’installation et la configuration doivent être effectuées par un installateur qualifié.
• À utiliser avec les dispositifs d’ombrage motorisés alimentés en courant continu.
• Inspectez fréquemment l’utilisation non conforme. Ne pas utiliser si une réparation ou un réglage est nécessaire.
• Restez à l’écart lors de l’exploitation.
• À utiliser uniquement avec des moteurs à courant continu (NE convient PAS pour charger des moteurs alimentés
par batterie Li-ion).
• Ne pas couper les câbles d’alimentation
• Ne percez pas dans le corps du moteur ou le panneau de distribution.
• Le passage des câbles à travers les murs doit être protégé en isolant les traversées ou les passe-câbles.
• Assurez-vous que le câble d’alimentation du moteur et l’antenne sont dégagés et protégés des pièces mobiles.
• Si le câble ou le connecteur d’alimentation est endommagé, ne l’utilisez pas.
OUT 1OUT 2OUT 3OUT 4 OUT 5OUT 6OUT 7OUT 8 OUT 9 OUT 10 OUT 11 OUT 12 OUT 13 OUT 14 OUT 15 OUT16 OUT 17 OUT18
OUT 1OUT 2OUT 3OUT 4 OUT 5OUT 6OUT 7OUT 8 OUT 9 OUT 10 OUT 11 OUT 12 OUT 13 OUT 14 OUT 15 OUT16 OUT 17 OUT18
2 SAFETY INSTRUCTIONS

5 | Automate™Installation Instructions | DC Power Distribution Panel ROLLEASE ACMEDA
Save these instructions for future reference.
Conservez ces instructions pour référence future.
Important safety instructions to be read prior to operation.
• It is important for the safety of persons to follow the enclosed instructions.
• Persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
should not be allowed to use this product.
• Frequently inspect for improper operation. Do not use if repair or adjustment is necessary.
Consignes de sécurité importantes à lire avant utilisation.
• Pour la sécurité des personnes, il est important de suivre les instructions fournies.
• Les personnes (y compris les enfants) dont les capacités physiques, sensorielles ou mentales sont réduites ou qui
manquent d’expérience et de connaissances ne devraient pas être autorisées à utiliser ce produit.
• Gardez les télécommandes hors de la portée des enfants.
• Inspectez fréquemment l’utilisation non conforme. Ne pas utiliser si une réparation ou un réglage est nécessaire.
Do not dispose of in general waste.
Please recycle batteries and damaged electrical products appropriately.
Ne pas jeter avec les déchets ordinaires.
Veuillez recycler les piles et les produits électriques endommagés de
manière appropriée.
5014360
5005833
2 SAFETY INSTRUCTIONS

6 | Automate™Installation Instructions | DC Power Distribution Panel ROLLEASE ACMEDA
ROLLEASE
ACMEDA
MOTORS
MTDCRF25-1.1
MTDCRF28-2 MTDCRF35-3
MTDCRFQ45-3
MTDCRF45-10
MTDCRF-
CL-0.6-50
MT01-3001-
069001
MTDCRF-
TILT-1
14V 14V 12V 12V 14V 12V
CABLE RUN LENGTH TOTAL (m)
≤15m 24 AWG 24 AWG 22 AWG 20 AWG 20 AWG 18 AWG
20m 24 AWG 24 AWG 20 AWG 20 AWG 20 AWG 18 AWG
25m 24 AWG 22 AWG 20 AWG 20 AWG 20 AWG 18 AWG
30m 24 AWG 22 AWG 18 AWG 20 AWG 20 AWG 18 AWG
35m 22 AWG 20 AWG 18 AWG 20 AWG 20 AWG 18 AWG
40m 22 AWG 20 AWG 18 AWG 20 AWG 20 AWG 18 AWG
45m 22 AWG 20 AWG 18 AWG 20 AWG 20 AWG 18 AWG
50m - 60m 20 AWG 18 AWG 16 AWG 20 AWG 20 AWG 16 AWG
65m 20 AWG 18 AWG 16 AWG 18 AWG 20 AWG 16 AWG
70m 20 AWG 18 AWG 16 AWG 18 AWG 20 AWG 16 AWG
75m 20 AWG 18 AWG N/A 18 AWG 20 AWG N/A
80m 18 AWG 16 AWG N/A 18 AWG 18 AWG N/A
85m 18 AWG 16 AWG N/A 18 AWG 18 AWG N/A
90m 18 AWG 16 AWG N/A 18 AWG 18 AWG N/A
95m 18 AWG 16 AWG N/A 18 AWG 18 AWG N/A
100m 18 AWG 16 AWG N/A 16 AWG 18 AWG N/A
105m 18 AWG 16 AWG N/A 16 AWG 18 AWG N/A
110m 18 AWG 16 AWG N/A 16 AWG 18 AWG N/A
115m 18 AWG 16 AWG N/A 16 AWG 18 AWG N/A
120m - 160m 16 AWG N/A N/A 16 AWG 16 AWG N/A
165m 16 AWG N/A N/A N/A 16 AWG N/A
170m 16 AWG N/A N/A N/A 16 AWG N/A
175m 16 AWG N/A N/A N/A 16 AWG N/A
180m 16 AWG N/A N/A N/A 16 AWG N/A
185m - 210m N/A N/A N/A N/A 16 AWG N/A
215m N/A N/A N/A N/A N/A N/A
*Refer to section 6on page 11 for detailed American Wire Gauge (AWG) dimensions
3.1 Cable Run Reference Table (Maximum Lengths)
3 INSTALLATION
MOTOR POWER CABLE RUN LENGTHS MUST NOT EXCEED THE DISTANCES IN THE REFERENCE TABLE BELOW WHEN
VOLTAGE HAS BEEN REDUCED FOR USE WITH AUTOMATE PULSE 2 HUB AND APPLICATION.
Failure to do so will result in loss of voltage along the cable run, subsequently resulting in insufficient voltage
at the motor input terminals.
Before connection of any motors to the power distribution panel, check cable lengths and wire gauge (AWG),
against this table in order to ensure system will operate to specification.
IMPORTANT!

7 | Automate™Installation Instructions | DC Power Distribution Panel ROLLEASE ACMEDA
32 Motor Power Dstrbuton Setup
OVERVIEW
• One wire entry is connected to one of MTDCRF28/25 motors.
• Two wire entries are connected to one of MTDCRF45/35 motors.
• All motor connections must be made before power applies to the distribution panel.
• Use of two parallel connections ensures the power supply is not overloaded during
larger motor operation.
OUT 1OUT2OUT 3OUT 4 OUT5OUT 6OUT 7OUT 8 OUT 9 OUT 10 OUT 11 OUT 12 OUT 13 OUT 14 OUT15 OUT 16 OUT17 OUT 18
Cable Run
MT03-0304-050007 - Automate|1.8M/6FT 3 PIN US Plug
AC Power Cord Adaptor (required one per Panel)
MT03-0301-069012 - Automate Connection Harness for
DCRF Motors-JST sc (required one per motor)
Mains Power (120V/240V)

8 | Automate™Installation Instructions | DC Power Distribution Panel ROLLEASE ACMEDA

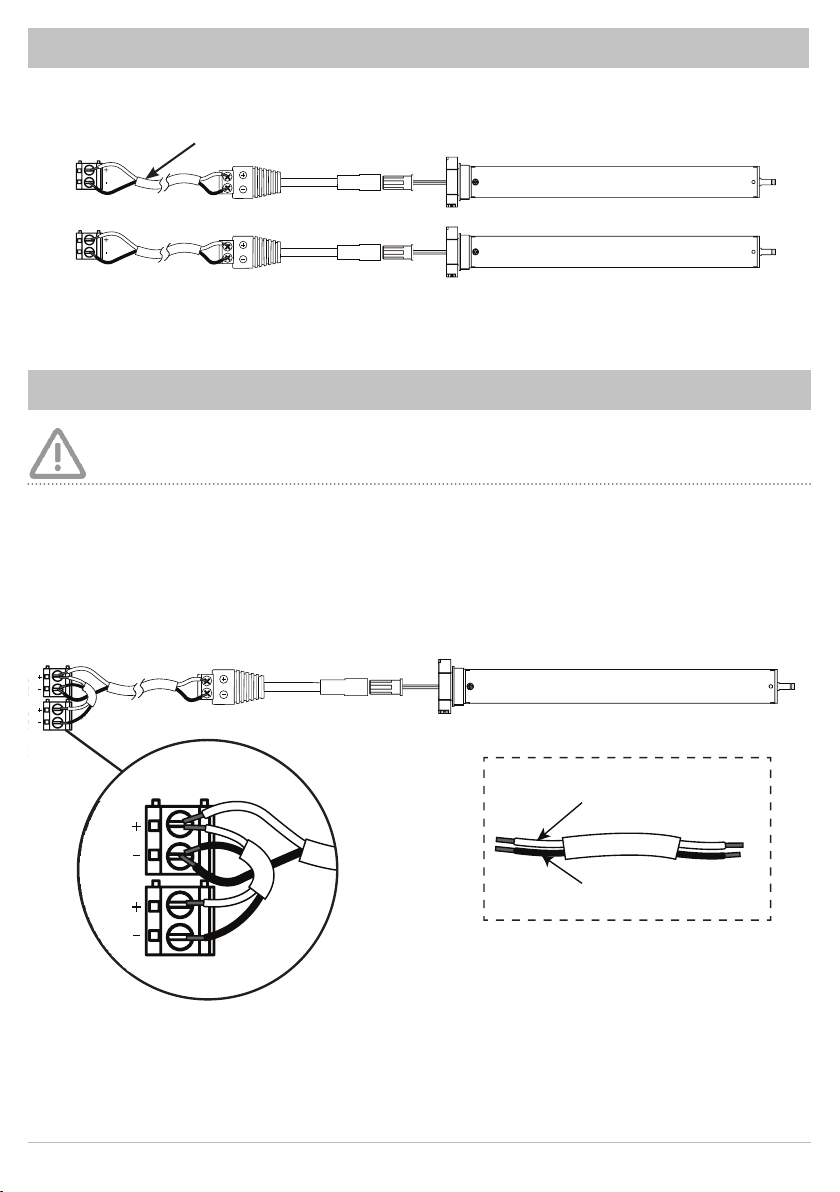

3.4 Wiring Diagram – Two Wire Entry Connections in Parallel (MTDCRF45/35)
WARNING: Important instructions to read before commencing wiring of 45mm and 35mm motors.
Due to higher power demands, these motors must be wired in a parallel configuration (shown below) utilizing two wire entries
in order to avoid overloading the power circuit and blow the protection fuses.
AVERTISSEMENT: Les instructions importantes à lire avant de commencer le câblage de 45mm et Moteurs 35mm.
En raison de demandes de puissance plus élevées, ces moteurs doivent être câblés dans une configuration parallèle (illustrée
ci-dessous) en utilisant deux canaux afin d’éviter de surcharger le circuit d’alimentation et d’endommager le tableau de
distribution.
Due to 1.33A limit per channel, working current can be doubled to 2.66A with parallel configuration as shown above, allowing connection of 45mm
and 35mm motors.
En raison de la limite de 1,33 A par canal, le courant de travail peut être doublé à 2,66 A avec une configuration en parallèle, comme indiqué ci-des-
sus, permettant la connexion de moteurs de 45 mm et 35 mm.
IMPORTANT!
3.3 Wiring Diagram – Individual Connection (MTDCRF28/25)
Low power motors may be connected individually to one wire entry of the terminal block, with care being taken
to ensure polarity is correct (see page 4). Incorrect polarity will stop the motor from functioning.
Cable Run
This connection may only be used when wiring 28mm & 25mm motors to the distribution panel, as these
motors do not exceed the 1.33 A current limit per channel.
Positive
Negative

9 | Automate™Installation Instructions | DC Power Distribution Panel ROLLEASE ACMEDA
CAUTION: Before plugging in this equipment to mains power;
• Ensure the internal power switch (page 2) is in the OFF position.
• Check the mains input (page 2) DC output for any loose wires, ensuring the plastic safety covers are covering the main power supply.
• Check motor connection terminal blocks (page 2) for loose wires, as well as polarity check each connection (See below)
ATTENTION: Avant de brancher cet équipement sur le secteur;
• Assurez-vous que l’interrupteur d’alimentation interne (page 2) est en position OFF.
• Vérifiez que l’entrée secteur (page 2) ne comporte pas de fils desserrés à la sortie CC, en veillant à ce que les capots de protection en
plastique soient en place. couvrant les borniers.
• Vérifiez que les borniers de connexion du moteur (page 2) ne présentent pas de fils desserrés, ainsi que la polarité. connexion (voir
ci-dessous)
WIRING POLARITY FROM PANEL TO MOTOR
Female (Power Output) Grey Dashes (Positive)
Male (Motor Input) Solid White (Positive)
1
1
2
2
10
10
Motor
Cable Run
Overmolded 2 PIN
terminal block part, white
Power Panel
2PIN JST connector, Red

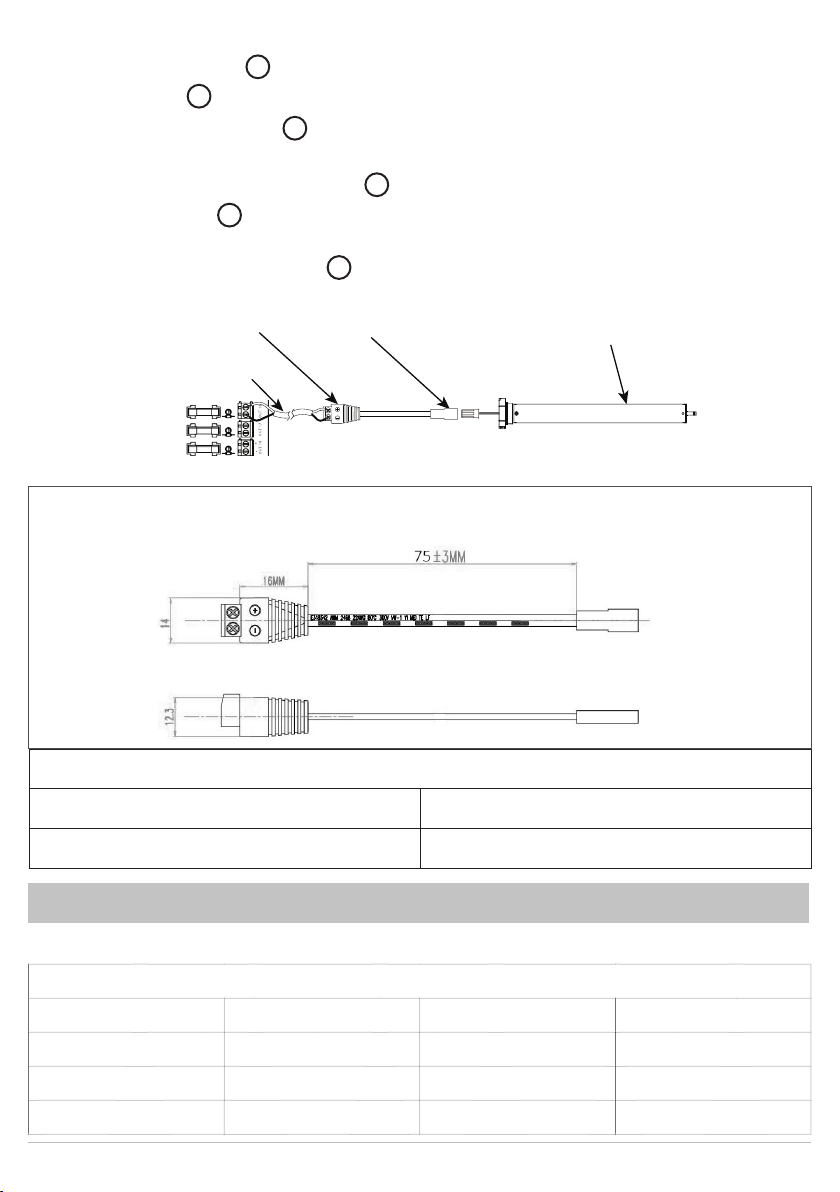

3.5 JST Connector Recommendations for Custom Cable Adaptors
Rollease Acmeda recommends the following JST connectors for DC power connections:
RECOMMENDED JST CONNECTORS
DESCRIPTION PART NO. MANUFACTURER Digikey.com PART NO.
Male Connector (White) SYR-02TV JST SALES AMERICA INC. 455-2655-ND
Male Connector (Red) SYR-02T JST SALES AMERICA INC. 455-2653-ND
Male Pin Contact SYM-001T-P0.6(N) JST SALES AMERICA INC. 455-1909-1-ND
DESCRIPTION: Automate Connection Harness for DCRF Motors - JST to Screw connectors
PART #: MT03-0301-069012

10 | Automate™Installation Instructions | DC Power Distribution Panel ROLLEASE ACMEDA

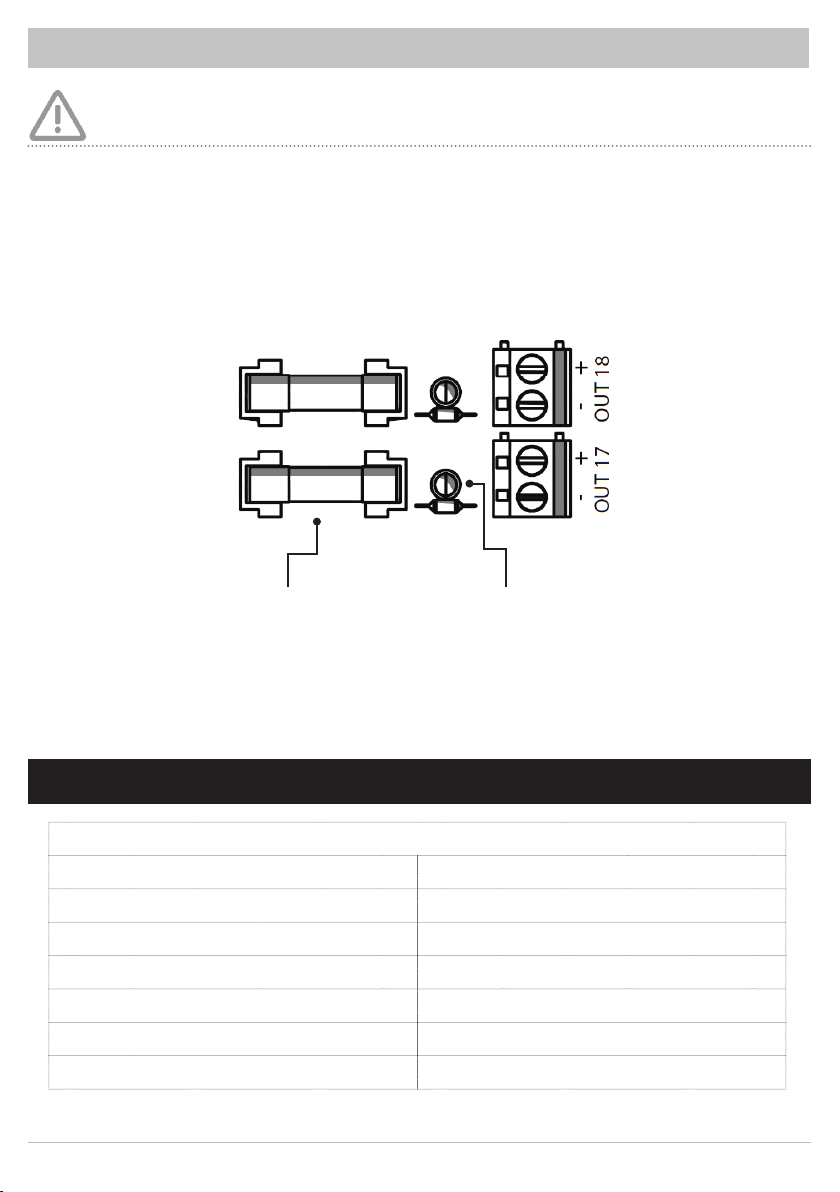

3.6 Status LED Indication
IMPORTANT!
Status LEDs for each motor channel indicate the condition of the inline fuse. If the status LED is not lit up when
power is supplied to the panel, then the inline fuse for that channel has blown.
Disconnect all power to the Panel and inspect the individual motor and supply cable to the motor in order to
determine why the fault occurred.
Once the fault has been determined, make the appropriate repairs and replace the fuse with a 3.15A M205
quick blow fuse.
In order to replace fuse, carefully pry the fuse out of the plastic cradle using a small tool (such as a small
screwdriver or pen). To replace, gently press the new fuse into the cradle.
To test LED, apply power to the distribution panel, and observe whether the channel LED is glowing.
3.15A M205 fuse in
plastic cradle
Green Fuse Status LED
TECHNICAL SPECIFICATIONS
PARAMETERS VALUE
Input Voltage Range 100 VAC - 240 VAC
Output Voltage Range 11.4 - 15 VDC
Maximum Output Current (all 18 channels) 24 A
Power Output Rating 360 W
Single Channel Absolute Maximum Current Output 1.33 A
Ingress Protection IP20
4 SPECIFICATIONS

11 | Automate™Installation Instructions | DC Power Distribution Panel ROLLEASE ACMEDA
5 TROUBLESHOOTING
6 WIRE GAUGE DIMENSIONS
IMPORTANT!
WARNING: Distribution panel is connected to (120V/240V) mains power. Do not attempt to troubleshoot panel without first
disconnecting all power and waiting a period of 5 minutes.
AVERTISSEMENT: le panneau de distribution est connecté au secteur (120V / 240V). Ne pas tenter dépanner le panneau
sans d’abord couper l’alimentation et attendre un certain temps de 5 minutes.
PROBLEM CAUSE REMEDY
No Motors are responding
A/C power supply not plugged in
Check exterior LED
Check Panel to power connection and
IEC connector and AC plug
Internal power switch turned off
Power is supplied to panel, but
exterior LED is not lit. Open panel and
switch internal power switch to ON
position
A/C terminal block wiring is incorrect
CAUTION: Do NOT attempt to rewire
mains power terminal block. Only to
be performed by a suitably qualified
installer
Individual Motor is not
responding
Motor channel fuse has blown
Check individual LED’s
Replace fuse as necessary (refer to
section 1.5)
Motor wiring is incorrect Refer to wiring diagram on page 6
Motor is in sleep mode
Refer to motor’s programming
instructions in order to change motor
sleep status
AMERICAN WIRE GAUGE DIMENSIONS
WIRE GAUGE DIAMETER CROSSSECTIONAL AREA
24 AWG 0.51054 mm (0.0201 in) 0.205 mm2(0.00032 in2)
22 AWG 0.64516 mm (0.0254 in) 0.326 mm2(0.00051 in2)
20 AWG 0.8128 mm (0.032 in) 0.518 mm2(0.00080 in2)
18 AWG 1.02362 mm (0.0403 in) 0.823 mm2(0.00128 in2)
16 AWG 1.29032 mm (0.0508 in) 1.31 mm2(0.00203 in2)

12 | Automate™Installation Instructions | DC Power Distribution Panel ROLLEASE ACMEDA
APPENDIX CONTENTS
A APPENDIX 1 | DC POWER DIST. PANEL + PULSE 2.0 HUB & APP.
A APPENDIX 1 | DC POWER DIST. PANEL + PULSE 2.0 HUB & APP. 12
A.1 PULSE 2.0 HUB - ADDITIONAL INSTALLATION/SET UP INSTRUCTIONS 13
A.2 ADJUSTMENT PROCEDURE 13
A.3 TROUBLE SHOOTING 14
A.4 NOTES 15

13 | Automate™Installation Instructions | DC Power Distribution Panel ROLLEASE ACMEDA
If motors powered by the DC Power Distribution Panel are to be used
with the Automate Pulse 2 Hub and Application, the output voltage of the
Distribution Panel MUST be adjusted to allow for proper communication
between the Hub and Motor.
If motors are connected to the Automate Pulse 2 Hub, it is RECOMMENDED the motors of the same type (MTDCRF28/25 or
MTDCRF45/35) are used in the installation. It is NOT recommended to power motors of differing types from one DC Power
Distribution Panel.
Output Voltage (11.4VDC to 15VDC) of the DC Power Distribution Panel
can be adjusted via the Trim-Pot located on the converter within the
Distribution Panel.
NOTE: Adjusted Output voltage is applicable to all 18 Channels.
WARNING: DANGEROUS LIVE VOLTAGE.
DO NOT ATTEMPT UNLESS QUALIFIED TO OPERATE AC MAINS VOLTAGE DEVICES.
Output Voltage of the Distribution Panel must
be monitored as it is adjusted. This involves
probing the output of the Panel while it is live.
Monitor output voltage using a multimeter,
and adjust potentiometer using an
appropriately sized Philips Head screwdriver.
When motors are to be controlled via the
Automate Pulse 2 Hub, the maximum
allowable voltages for each motor is as shown:
A.1 PULSE 2.0 HUB - ADDITIONAL INSTALLATION/SET UP INSTRUCTIONS
A.2 ADJUSTMENT PROCEDURE
MOTOR
12V
MTDCRF35-3
MTDCRFQ45-3
MTDCRF45-10
MTDCRF-CL-0.6-50
MTDCRF-TILT-1
14V
MTDCRF25-1.1
MTDCRF28-2
MT01-3001-069001
IMPORTANT!
IMPORTANT!
IMPORTANT!

14 | Automate™Installation Instructions | DC Power Distribution Panel ROLLEASE ACMEDA
WARNING: Distribution panel is connected to (120V/240V) mains power. Do not attempt to troubleshoot panel without first
disconnecting all power and waiting a period of 5 minutes.
AVERTISSEMENT: le panneau de distribution est connecté au secteur (120V / 240V). Ne pas tenter dépanner le panneau sans
d’abord couper l’alimentation et attendre un certain temps de 5 minutes.
A.3 TROUBLE SHOOTING
PROBLEM CAUSE REMEDY
Motor is not responding to the App/
updating App animation and motor position Panel Output Voltage is too low Adjust Trim-Pot to increase output voltage
Motor showing as offline Voltage at motor terminal is too high/too
low
Adjust Trim-Pot to decrease/increase the output
voltage
IMPORTANT!

15 | Automate™Installation Instructions | DC Power Distribution Panel ROLLEASE ACMEDA
A.4 NOTES

16 | Automate™Installation Instructions | DC Power Distribution Panel
ROLLEASE ACMEDA | AUSTRALIA
110 Northcorp Boulevard,
Broadmeadows VIC 3047
T [phone] | F [phone]
ROLLEASE ACMEDA | USA
7th Floor / 750 East Main Street,
Stamford, CT 06902 6320
T [phone] | F [phone]
ROLLEASE ACMEDA | EUROPE
Via Conca Del Naviglio 18, Milan
(Lombardia) Italy
T [phone] | F [phone]
[e-mail]
rolleaseacmeda.com
