Rollei Actioncam 230 User manual



 


RolleiActionCamera230

UserManual






3

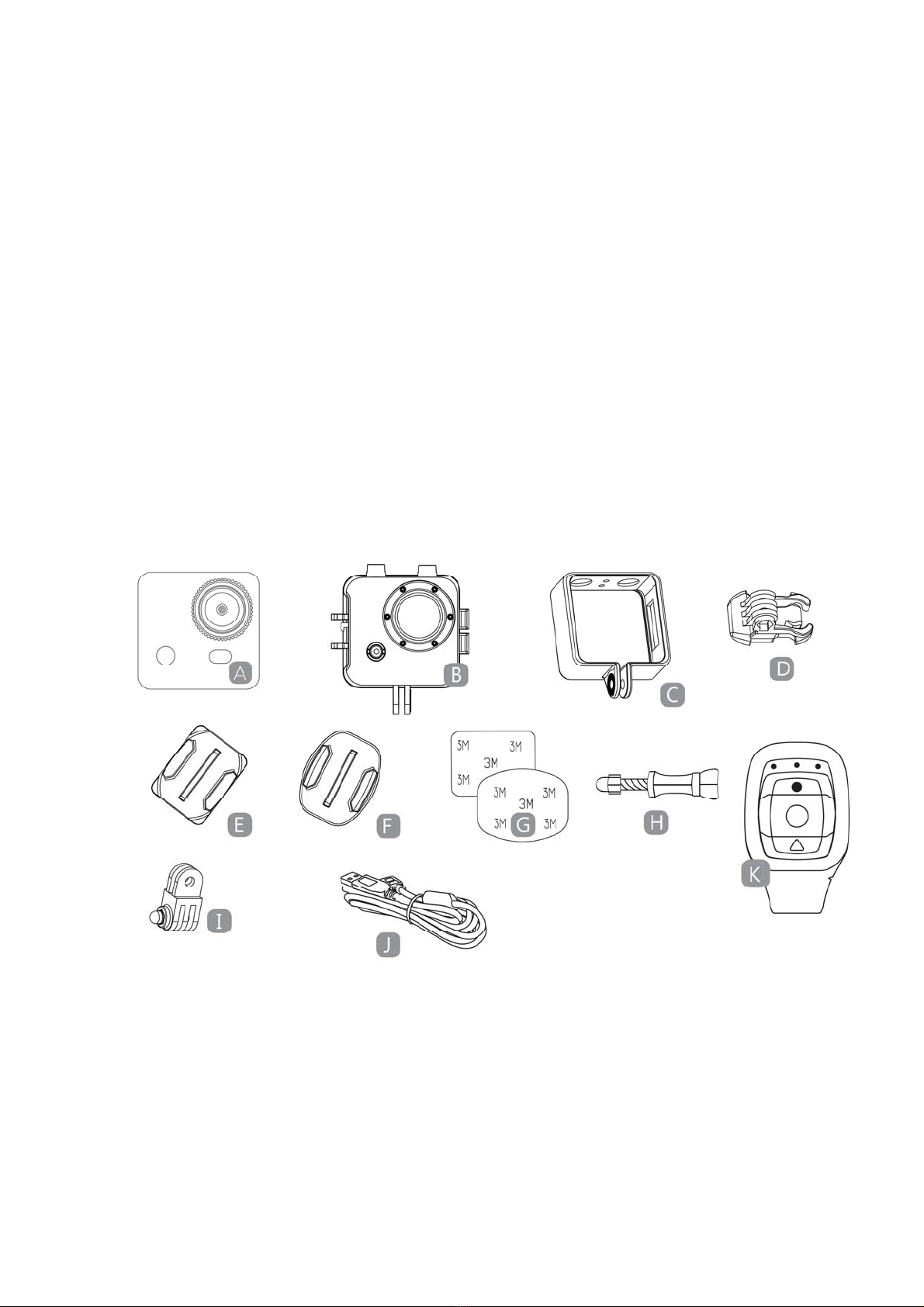

What’sinthebox
Pleaseensuretheproductpackagehasthefollowingcontents:
ARolleiActioncam230G3Madhesive
BWaterproofcaseHLockBolt
CPortablecameraframeIKnuckle
DQuickreleasemountJUSBcable
ECurvedmountKWristRemotecontroller
FFlatmount





4
ProductDiagram
AWI‐FIActivation(Downselect)FPOWER(andmenu)
BLEDpowerindicatorGUSBinterface
CLCDscreenHMicroSDcardport
DSHOOT(menuselect)IMiniHDMIinterface
EMicrophoneJRemovableLi‐Battery


 
 
LeftSideRightSide

5
RemoteDiagram
Pleasenote:withtheremotecontrolleryoucannotturnthecameraon.Please
ensurethecameraisswitchedonbeforeusingtheremote.
ALEDIndicators
BShootPhoto
CRecordVideo
DPowerOff
EMicroUSBChargeportonthebackofremote

Pressandholdthe“Poweroff”buttonaround4sec.toturnthecameraoff.
Tousetheremote,pleasecodefirstbeforepoweronthecamera.
Codingprocedures:
1. Pressandholdthe“Picture”&“Video”keysoftheremoteatthesametime,
thenturnthecameraon;
2. Whenthecameraentersintotherealliveinterface,releasethe“Photo”&
“Video”keys;
3. Themiddleblueindicatorlightsup,thenthecodingisfinished.

Note:
zPleasekeepholdingthe“Photo”&“Video”keysduringcoding;
zOnlyneedtocodeonce,afterwordsthecamerawillrecognize
automatically;
zWi–Fifunction&remotecontrollercannotbeusedsimultaneously.

6

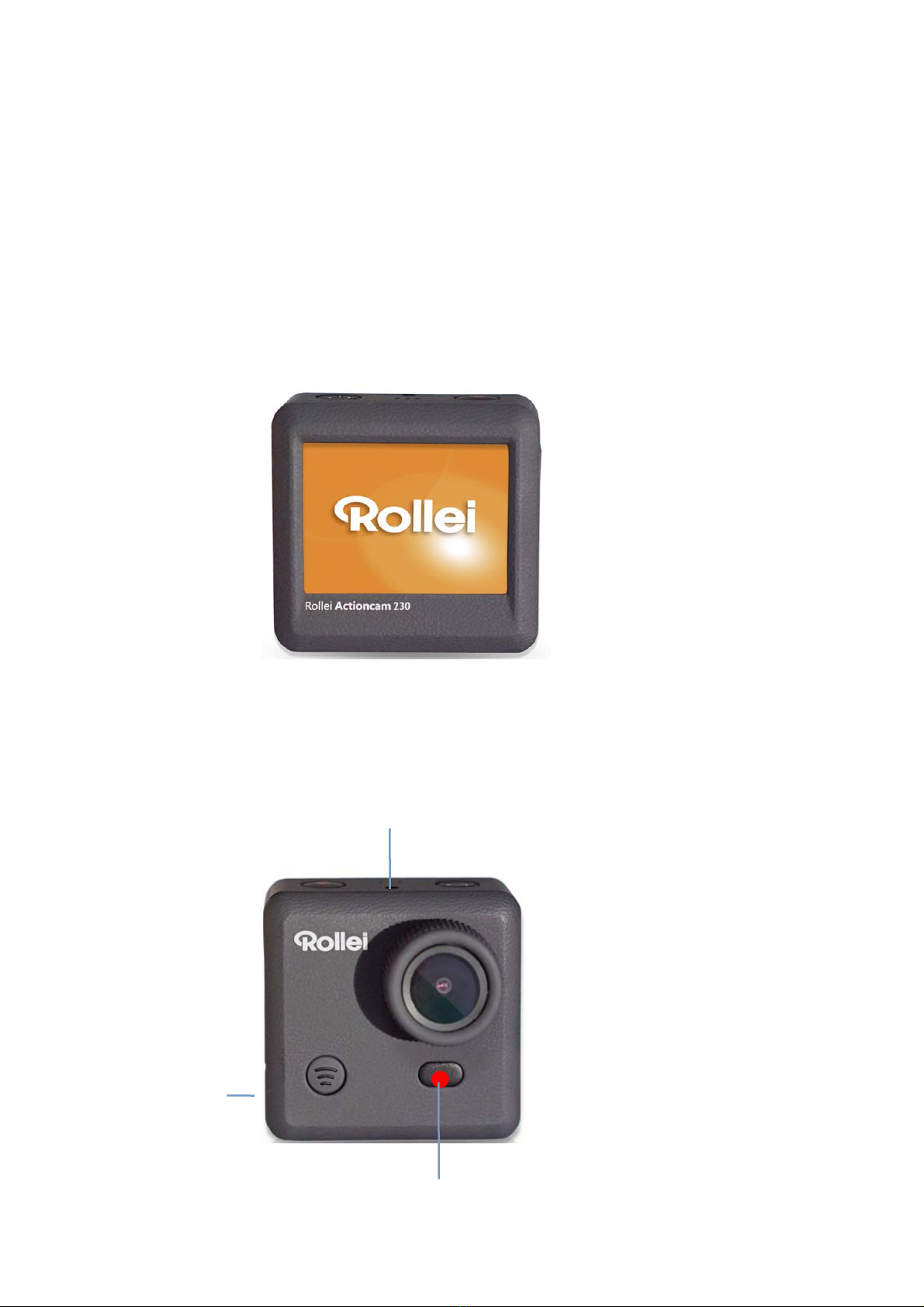

SetupYourRolleiActioncam230
Turnthecameraon‐pressandholdthePOWERbuttonforseveralseconds.

Whenthecameraison,theRolleilogowillappearonthescreenandthethree
redLEDlightswillglowred.Thecameraisnowinvideomode.

 




 

RedLED light
RedLED light
RedLED light

7
VideoMode
 
Videomodescreen

Oncethecameraisturnedon,itgoestothevideocapturemodebydefault.
PressSHOOTbuttontostartrecording.Whentherecordingstarts,youwillsee
theredlightsstartflashing.Toendrecording,presstheSHOOTbuttonagain.

ToentertheSettingsmenu,pressthePOWERbutton(pressandrelease
immediately‐ifitisheldtoolongthecamerawillswitchoff).

Note:TheSetupmenuisdependingontheactivemode.Ifthevideomodeis
active,itwilldisplayvideocapturesettingsorifthePicturemodeisactive,it
willdisplaytheImagecapturesettings.

Bydefault,videomodeistheactivemodewhenyouturnthedeviceon.


8
VideoSettings
 

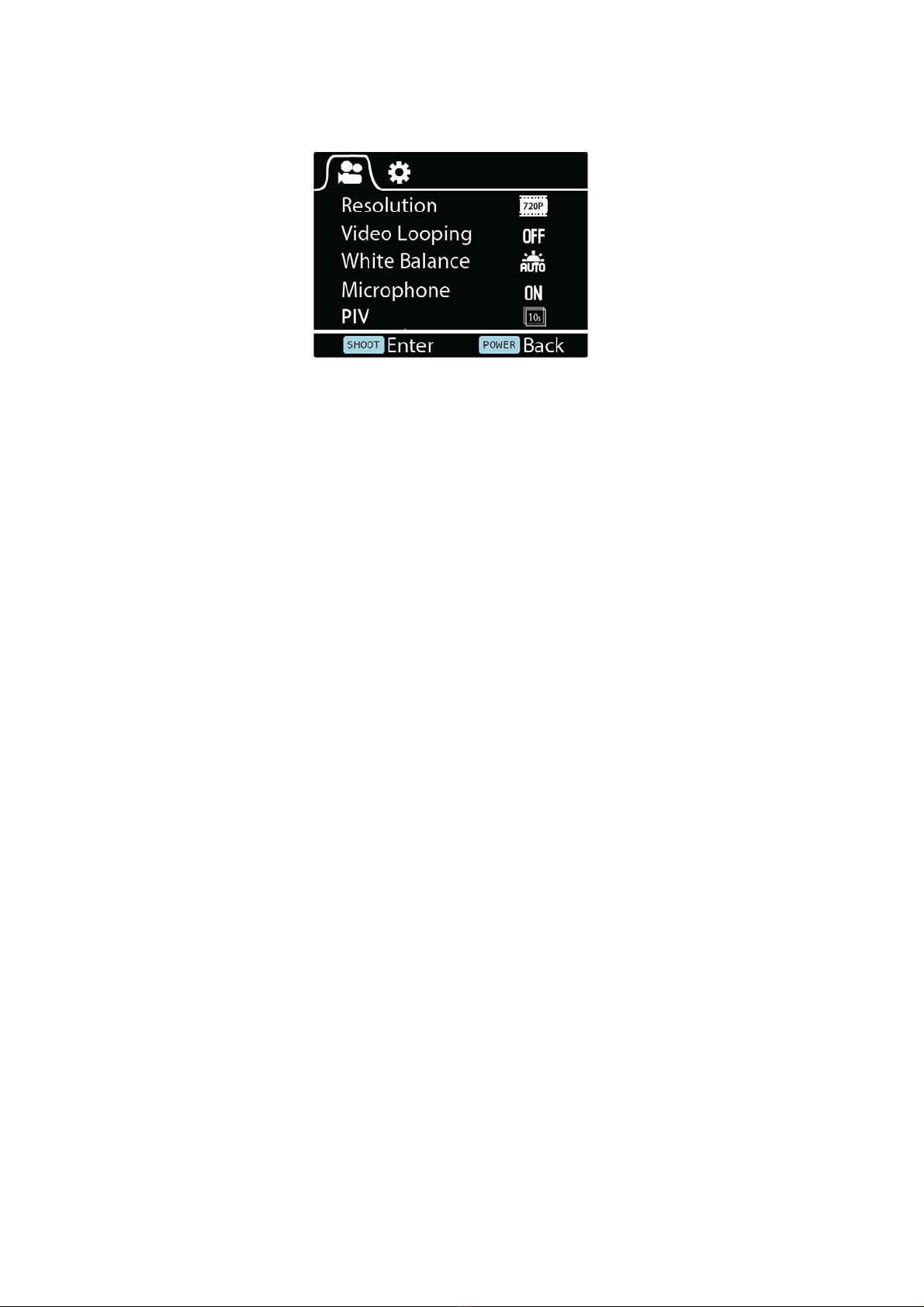

VideoSettingsScreen(Page1)
ThisallowsusertoadjustVideoqualitysettings.
Navigation:UseWi‐Fibuttontonavigate,SHOOTbuttontoEnter/Confirm
selection,POWERbuttontogoback.

Resolution
Thisallowsusertosettherecordingvideoresolution:
z1080P30fps
z720P30fps
z720P60fps

VideoLooping
Thisallowsusertosetrecordduration
zOFF‐Inthismode,camerawillgeneratenewfileonevery30mins

9
z2Min‐Inthismode,camerawillgeneratenewfileonevery2mins
z5Min‐Inthismode,camerawillgeneratenewfileonevery5mins

WhiteBalance
FactorydefaultisAuto.IfyouswitchAutoOFF,remembertoadjustwhen
lightingconditionschange.
Followingpre‐setmodesarealsoavailable
Daylight,Cloudy,Tungsten,Fluor

Microphone
SELECTOutdoororCartorecordindifferentsceneswithbetteraudioeffect,
SELECTOFFforvideoonly.

PIV
Thiswillenableautoimagecaptureduringthevideorecording:
zOff‐DisableAutoImageCapture
z10Sec‐Autocaptureonevery10sec
z20Sec‐Autocaptureonevery20sec
z30Sec‐Autocaptureonevery30sec
z60Sec‐Autocaptureonevery60sec


10
 
VideoSettingsScreen(Page2)
DateStamp
zOff:toturnoffdisplayingdatestamponcaptures
zDate:todisplaydateoncaptures
zDate&Time:todisplaydate&timeoncaptures

GeneralSettings
 

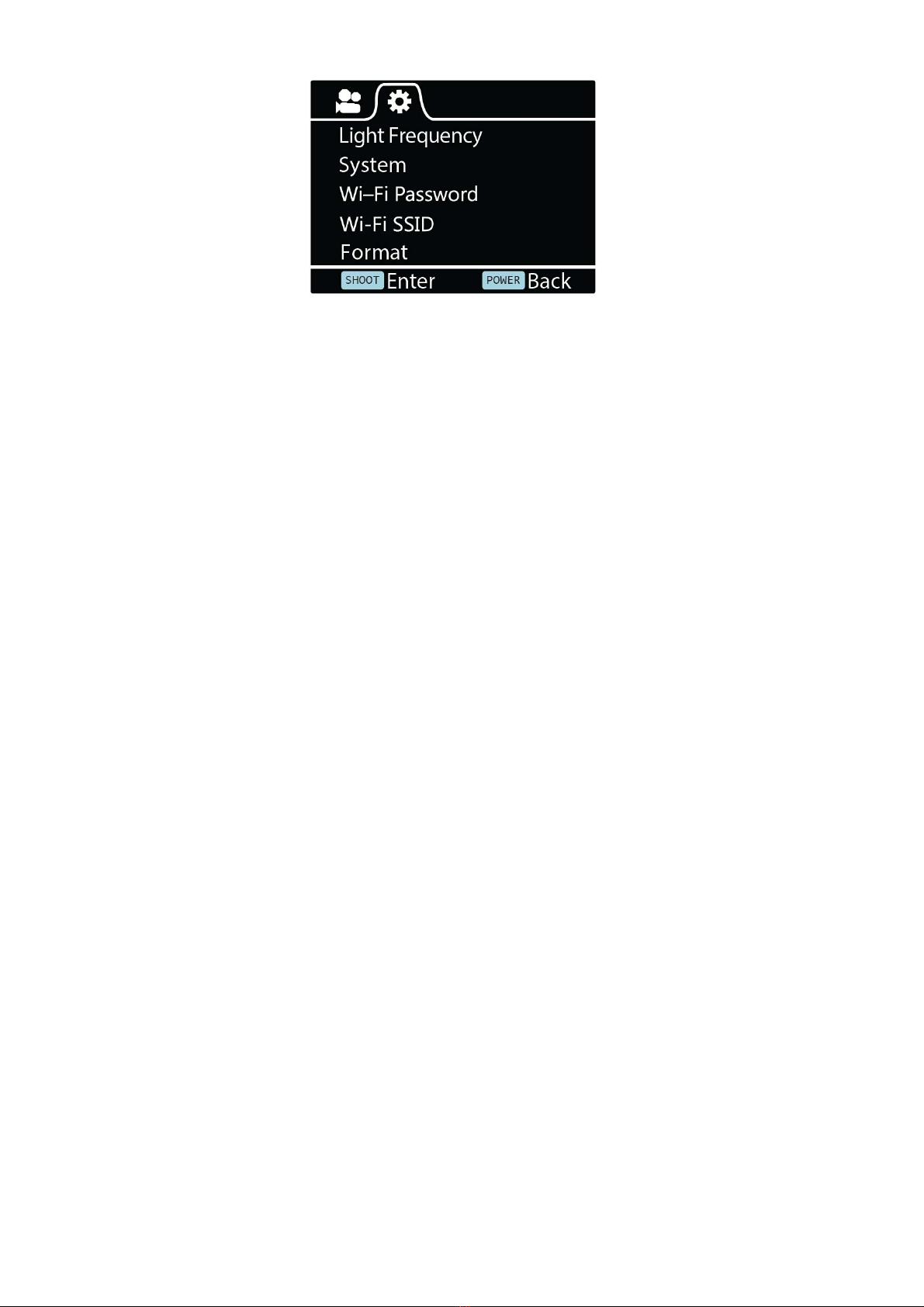

GeneralSettingsScreen(Page1)


Thisallowsusertoadjustthegeneraldevicesettings
ToenterGeneralSettings,entertheSettingsmenufirstbypressingPOWER
button,thenpressandholdtheSHOOTbuttonfor3secs

11
Navigation:UseWi‐Fibuttontonavigate,SHOOTbuttontoEnter/Confirm
selection,POWERbuttontogoback.

AutoPowerOff
TosetAutoPowerofffunction

AutoLCDOff
ThiswilldetermineiftheLCDwillturnoffafter1min,3minor5min.Pressany
keytoturnthescreenon.
SelectOFFtokeepthescreenalwaysON.

Screenrotation
Torotatethescreen.

Date&Time
Thisallowsusertoadjustthedate&time.
Note:UsetheWi‐Fibuttontochangethedateandtime,useSHOOTbuttonto
confirm.ThedateisenteredinYear/Month/Dayformat.Timeisbasedona
24hrclock.

