Before first use
Read the operating instructions and the safety instructions carefully
before using the device for the first time.
Keep the operating instructions together with the device for future use. If
other people use this device, make this manual available to them. If you pass
on the device to a third party, this manual belongs to the device and must be
supplied with it.
Explanation of symbols
The following symbols are used in this manual, on the camera or on the
packaging.
Products marked with this symbol comply with all relevant com-
munity regulations of the European Economic Area.
Products marked with this symbol
are operated with direct current.
CONTENT

Image sensor 1/3“, 1920x1080/60 fps, 8 M resolution
Photo resolution 16M (4640x3480) (interpolated), 12M (4000x3000)
(interpolated), 8M (3264x2448), 5M (2592x1936),
2M (1600x1200)
Video resolution 4K (3840x2160/30 fps) (interpolated), 2.7K
(2688x1520/30 fps), 1080P (1920x1080/60/30 fps),
720P (1280x720/90/60/30 fps)
Photo modes Single images, serial images, self-timer, time lapse
Video modes Normal, Time Lapse, Slow Motion, Loop
Objective 140° wide-angle lens | aperture F = 2.6 | focal
length f: 2.5 mm
Display 2.0" TFT (picture diagonal 5.08 cm)
Memory Slot for microSD cards up to SDXC 64 GB
Data format Photo: JPG | Video: mp4 (H.264)
Connections micro-USB 2.0
WiFi Integrated
Recording time Up to 70 minutes with fully charged battery (1080P)
Power supply Exchangeable lithium-ion battery
(3.7 V / 750 mAh / 2.775 Wh)
Input 5 V 1 A
Technical data 5

6
ENGLISH
Technical details are subject to change without notice. Misprints and errors
excepted. Reproduction of these operating instructions – even in part – is not
permitted.
Operating temperature -20 °C to +40 °C, suitable for use in tropical
climate
Dimensions 59.2 x 41 x 29.8 mm
Weight approx. 58 g / 42 g (with / without battery)
Box Content Rollei Actioncam 40s Pro, underwater protective
housing for diving depths up to 40 metres,
exchangeable battery, bicycle holder, clip holder,
4 holders,Velcro strap, adhesive stickers, USB
cable and 16 GB microSD memory card
Technical data

7
Camera Description
Operation
Indicator
Charging
Indicator
Display
Up/WiFi/
Zoom In
Down/Mute/
Zoom Out
Built-In Speaker
Battery Compartment
Cover
Shutter/Select
Button
WiFi
Indicator
Power/Mode
Button
Built-In
Microphone
microSD
Slot
Lens
Micro USB
Slot

8
ENGLISH
Waterproof Case
Insert Camera into Waterproof Case
1. Ensure the case is dry and clean.
2. Insert the camera and make sure the lens fits neatly in the lens cavity.
3. Close the locking clamps.
4. The camera can be mounted using the accessories provided.
Shutter/Select
Button
Up/WiFi/
Zoom In
Down/Mute/
Zoom Out
Power/Mode
Button
Lens Window

9
Battery
Before using the device for the first time, you must fully charge
the battery.
Charging the Battery
1. Connect the camera to a computer or USB power supply
(5V/1~2A recommended).
2. The red charging status light remains flashing while the battery is charging.
3. The red charging status light will light continuously when the battery is
fully charged.
Changing the Battery
1. To open the battery compartment, use the recess on the battery compart-
ment cover. Use a fingernail, or a flat object, to lift the lid up.
2. Remove the battery
3. lnsert the battery so the contacts line up with those of the camera.
Getting Started
Turn On
Press and hold the Power/Mode Button for 3 seconds.When the camera is
turned on, the blue Operation Indicator turns on.
Turn Off
Press and hold the Power/Mode Button for 3 seconds.

10
ENGLISH

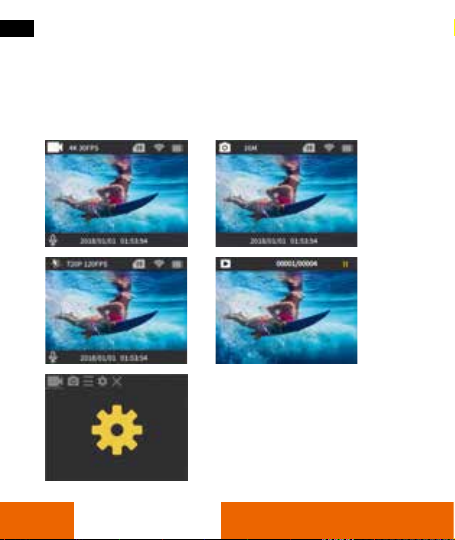

Overview
Turn On
Turn camera on and repeatedly press the Power/Mode Button to cycle
through camera modes and settings.The modes will appear in following
order: Video "Photo "Slow Motion Video "Playback video and photo "
Settings "Video
" "
"
"
"
"

11
Video/Photo Recording
Video Recording
Press the Shutter/Select Button when power on to start recording. A red
light on the screen will flash while recording. Press Shutter/Select Button again
to stop recording. With the Down Button you can turn on or off the sound.
Note: Video files may be split.This restarts the recording time.
Photo Capturing
Press the Shutter/Select Button to take a single picture. Use the Up Button
to zoom in and the Down Button to zoom out.
Slow Motion Video Recording
Press the Shutter/Select Button when power on to start recording. A red
light on the screen will flash while recording. Press Shutter/Select Button again
to stop recording. With the Down Button you can turn on or off the sound.
Playback/Delete Files
Playback Files on Camera
Make sure the camera is in Video or Photo Playback menu. Press the Up/Down
Button to cycle the videos or photos, then press the Shutter/Select Button
to playback and pause the videos. Press the Power/Mode Button to go back.
Delete Files on Camera
Press and hold the Shutter/Select Button for seconds to delete the optional file.
To exit playback mode, press the Power/Mode Button to the main preview
menu, press the Power/Mode Button again to switch to setting menu.

12
ENGLISH
Settings
Repeatedly press the Power/Mode Button to enter the Setting Menu, use
the Up or Down Button to cycle through the various options, and press the
Shutter/Select Button to select selected option.
Video Setting:
Video Resolution: 4K@30 fps (interpolated),
2.7K@30fps, 1080P@60fps, 1080P@30fps,
720P@90fps, 720P@60fps, 720P@30fps
Soundrecording: On/Off
Time-Lapse: Close/0.5sec/1sec/2sec/5sec/
10sec/30sec/60sec
Loop Recording: Close/2min/3min/5min
Slow Motion: 1080P@60fps/720p@90fps
Photo Setting:
Photo Resolution:
16M (4640x3480) (interpolated)/
12M (4000x3000) (interpolated)/
8M (3264x2448)/5M (2592x1936)/
2M (1600x1200)
Timed: Close/3sec/5sec/10sec/20sec
Auto: Close/3sec/10sec/15sec/20sec/30sec
Burst: Close/3pic/5pic/10pic

13
Settings
General Setting:
Exposure: +/–3~0
White Balance: Auto/Sunny/Cloudy/
Incandescent Light/Fluorescent Light
WiFi: On/Off. Press OK to activate the WiFi.
To deactivate the WiFi again, press the Up
Button. With the Up Button you can control
the WiFi function without entering the menu.
Image Rotation: On/Off
Driving Mode: On/Off
Light Source Frequency: Auto/50Hz/60Hz
LED Indicator Light: On/Off
Auto Screensaver: 10sec/20sec/30sec/close
Auto Shutdown: 1 min/3 min/5min/close
Time Watermark: On/Off
System Setting:
Language: English, French, German,
Italian, Czech, Portuguese, Spanish, Slovak,
Swedish, Danish, Norwegian, Dutch, Finnish,
Greek, Hungarian
Date & Time: YYYY/MM/DD hh:mm:ss
Format Memory Card: Yes/No
Reset: Yes/No
Firmware Version

14
ENGLISH
Settings

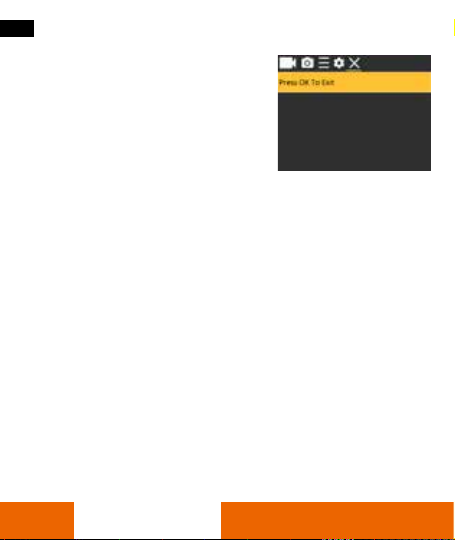

Exit:
Press the Shutter Button to exit.
Storage/Memory Cards
This camera is compatible with 8 GB, 16 GB, 32 GB and 64 GB capacity
microSD and microSDXC memory card. You must use a microSD card with a
CLASS 10 (80M/S) speed rating at least. We recommend using brand-name
memory cards for maximum reliability in high vibration activities.
Tips:
• Please format the microSD or microSDXC memory card on the camera before
using.
• Please restart the camera after formating.
• Please insert the memory card in correct way, otherwise the card slot
maybe damaged.

15
WiFi Setting / Operation via App
You can connect your camera via the built-in WiFi connection with your smart-
phone. Open the camera menu and go to the third tab. Select the WiFi option
and press OK, or just press the Up button.The WiFi network name “Action
Cam” and the password “1234567890” will be displayed on the camera
screen. The LED indicator lights up red. Connect your smartphone via the WiFi
settings of the phone with the WiFi network “Action Cam”. Download the free
“Rollei 4s Plus” app from Google Play or the Apple App Store and install
it on your smartphone.After the installation open the app.The WiFi network
of the camera is displayed as the current WiFi connection.Tick on the current
connection. The app will open to the live-view screen and you will see the
camera picture of the camera on your smartphone.To exit the WiFi mode, press
the Up Button on the camera.
Frequency: 2.412 – 2.472 GHz; transmitting power: 10 mW

16
ENGLISH
Firmware Updates
If the firmware changes, we release new updates which you can download
from our download centre and install yourself. You will find the current firm-
ware version on your camera in the menu under Firmware Version. To install
an update, please copy the file with the extension. FEX via a card reader to
your microSD card. Disconnect the memory card from the PC and insert it into
the camera. Turn on the camera and confirm the firmware update. When the
update is complete, the camera will turn off. Format the microSD card in the
Actioncam using the settings menu before using it again.
WiFi Setting / Operation via App
Here you can download the app:
Download on the

17
Disposal
Dispose of the packaging according to its type. Use the local
possibilities for collecting paper, cardboard and other materials.
(Applicable in the European Union and other European countries
with systems for the separate collection of recyclable materials).
Devices that are marked with this symbol must not be dispo-
sed of with household waste! You are legally obliged to dispose
of old devices separately from to dispose of household waste.
Information on collection points that accept old appliances free of
charge can be obtained from your local authority or town council.
Batteries and rechargeable accumulators must not be dis-
posed of in household waste! As a consumer you are legally
obliged to dispose of all batteries and accumulators, whether they
contain harmful substances* or not, to be disposed of in an environmentally
sound manner. Accumulators and batteries are therefore marked with the
symbol shown opposite. For more information, contact your dealer or contact
return and collection points in your community.
*marked with: Cd = Cadmium, Hg = Mercury, Pb = Lead

18
ENGLISH
Safety instructions
Hazards for children and persons with reduced physical, sensory or
mental abilities (e.g. partially disabled, older persons with reduced
physical and mental abilities) or lack of experience and knowledge
(e.g. older children).
• This product can be used by children aged 14 and over. Cleaning and user
maintenance must not be carried out by children without supervision.
• The packaging material is not a toy. Do not let children play with the
packaging material. They can get caught in it and suffocate while playing.
• Supervise children to ensure that they do not play with small parts
(screws, plugs, memory card,
batteries/rechargeable batteries). If you suspect that a small part has been
swallowed, consult a doctor immediately.
• Store small parts so that they are inaccessible to children and animals.
CAUTION! Risk of injury!
Improper handling of the product can lead to injuries.
• Remove the battery and, if necessary, the charging cable immediately if
there are unusual noises or smells or smoke from the housing.
NOTE! Risk of damage to property!
Improper handling of the product can lead to damage.
• Never place the device on or near hot surfaces (e.g. hotplates etc.) or open
re. Never expose the device to excessive temperatures (heating, etc.).
• Never pour liquid into the unit.
• Never use a steam cleaner for cleaning.
• Do not use the unit if the plastic or metal parts of the unit have cracks or
crazing or have become deformed.

19
Safety instructions
NOTE! Risk of damage to property!
• Handle the device with care. Impacts, falling or knocks can damage the
device.
• Never immerse the product in water or other liquids.
• Remove the battery if you are not going to use the product for a long
period of time to prevent damage from a leaking battery.
• Only use the product in a temperature range between -20 °C and +40 °C.
The product is suitable for use in a tropical climate.
• Do not modify the product.
• Never open the casing, leave the repair to qualied personnel. Contact
a specialist workshop for this purpose. Liability and warranty claims are
excluded in the event of repairs carried out independently, improper
connection or incorrect operation.
• Do not operate the unit if it shows visible damage or defects.
• When not using the unit, cleaning it or if a fault occurs, always switch off
the unit, remove the battery and disconnect all connections.
• If the product has problems due to static discharge, switch the device off
and then switch it on again after about 10 seconds.

20
ENGLISH
Conformity
The Rollei GmbH & Co. KG herewith declares, that the type of radio installa-
tion “Rollei Actioncam 40s Pro” complies with the directive 2014/53/EU.
The complete text of the EU Declaration of Conformity
can be downloaded at the following Internet address:
www.rollei.com/egk/ac40spro
Rollei GmbH & Co. KG
In de Tarpen 42, D-22848 Norderstedt,
Germany
