Rollei Actioncam 540 User manual

EN
1
Warning
Introduction
1. Keep it safe from falling and dropping.
2. Keep it distance from any strong magnetic interference objects like electrical machines to avoid strong
radio waves that might be damaging the product and affect the sound or image quality.
3. Don’t expose the product directly to high temperatures and strong sunlight.
4. We recommend using high quality Micro SD Cards for the best results.
5. Don’t place your Micro SD card near strong magnetic objects to avoid data error.
6. In case of overheating, unwanted smoke or unpleasant smell from the device, unplug it immediately f
rom the power outlet to prevent hazardous fire.
7. Keep it safety from children while on charging.
8. Stored the device in a cool, dry and dust free location.
Thank you for purchasing this Rollei product! Please read this manual carefully before using this camera.

EN
2

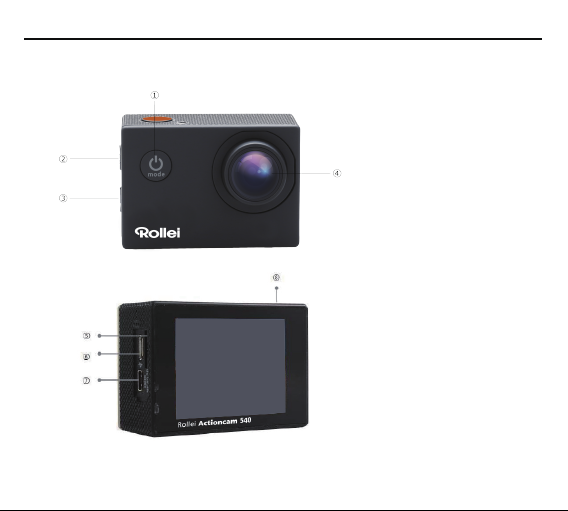

Product
5.TF card slot
6.USB slot
7.HDMI
8.OK
1.Power/Mode
2.UP/WI-FI
3.DOWN
4.LENS

EN
3
Getting Started
To power ON:
Press the Power/Mode Button.
To power OFF:
Press and hold the Power/Mode Button.
Overview
Turn camera ON and repeatedly press the Power/Mode Button to cycle through camera modes and
settings.The modes will appear in the following order:
Video Record Video
Capture a single photoPhoto
Time-lapse videoTime-lapse
Play back Video and photoPlay back
Adjust camera settingsSettings

EN
4
Video setting
Press the OK Button to enter the settings menu. Press the Power/Mode Button repeatedly to cycle through
the options and press the OK Button to select desired option.
Video Resolution 4K@30FPS/2.7K@30FPS/1080P@60FPS/1080P@30FPS/720P@120FPS
Video sound ON/OFF
Time-lapse OFF/0.5S/1S/2S/5S/10S/30S/60S
Loop Recording OFF/2min/3 min /5 min
Slow motion 1080P@60FPS/720P@120FPS
Pixel set 16M/12M/8M /5M/2M
Self Timer 3S/5S/10S/20S/OFF
Auto
3S/10S/15S/20S/30S/OFF
Burst shot 3P/S、5P/S、10P/S、OFF
Exposure -2 to +2
White balance Auto/Sunny/Cloudy/Incandescent light/Fluorescent light
Image Rotation ON/OFF
WIFI ON/OFF
Light source frequency
Auto/50HZ/60HZ
Settings

5
EN
Settings
Video mode
1. To record video, please make sure, that the camera is in the video mode.
2. If the Video icon” ” is visible on screen, press the OK button to start recording a video, at the
same time a red LED is flashing.
3. Click the OK button again to stop the video, also the red icon disappears.
LED indicator light
ON/OFF
Auto Screen saver 10S/20S/30S/OFF
Auto shutdown 1min/3min/5min/OFF
Time watermark ON/OFF
Language
English/German/French/Italian/Spanish/ Portuguese/ Finnish/
Danish/ Swedish/ Norway/ Czech/ Hungarian/ Dutch/ Slovakia/
Greece
Date-time 2018/01/01 12:00:00
Format Confirmation/cancel
Reset Confirmation/cancel
Micro SD 4K@30FPS/108
0P@60FPS
1080P@30
FPS
720P@60
FPS
32GB 120min 240min 320min
16GB 60min 120min 160min

6
EN
Picture mode
1. To take picture, please make sure, that the camera is in the picture mode.
2. If the picture icon ” ” is visible on screen, press the OK button to take pictures.
Slow motion
1. To record slow motion video, please make sure, that the camera is in the slow-motion mode.
2. If the slow motion Video icon” ” is visible on screen, press the OK button to start video, at the
same time also the red LED flashing.
Time-lapse
1. Enter the setting menu, open this function, return to video mode.
2. If the slow motion Video icon” ” on screen is showing, press the OK button to start the time-laps
video, at the same time is the red LED flashing”.
Playback
Playing back video and photos
1. Verify the camera is in playback menu
2. Press up or down button to select file and press OK button to playback the video or photo

7
EN
Battery
1. install and remove the battery
a. Slide the latch to the side and open the cover.
b. Insert the battery into the slot with the correct side and polarity.
c. To take out the battery, remove the cover fist, after that pull out the battery at the tab.
2. Charge the battery
a. Connect camera with the USB cable to a computer.
b. Use an external power adapter to charge the battery (not included).
c. Use a car charger to recharge the battery inside a car (not included).
d. Charge while video function is active (inside the function table Settings the car mode must be
ac-tivated).
Camera WIFI APP
1. Download the APP client (iOS App Store or Google Play Store) and install it to the smart phone, which
displays the “Rollei AC540” application icon after installation. Direct search “Rollei AC540”, and click
install. After the installation of the mobile phone interface will appear an APP application icon. Click to
enter the APP "Rollei AC540" interface .
2. Activate the WIFI function
a. You can select "WIFI" in the general setup menu and press "OK" button to activate WiFi.The screen will show the
WIFI icon and some seconds later the WiFi parameter.

EN
8
SSID: Rollei AC540******,
PWD:12345678
b. Or you can press short the UP button to activate WiFi connection. The screen will show the WIFI icon
and some seconds later the WiFi parameter.
c. Open the WiFi setting on your smartphone, search for the Rollei AC540***** and enter all required
parameters.
d. After the Rollei AC540 WiFi connection is established, open the “Rollei AC540” APP and search to

EN
9
SSID: Rollei AC540******,
PWD:12345678
b. Or you can press short the UP button to activate WiFi connection. The screen will show the WIFI icon
and some seconds later the WiFi parameter.
c. Open the WiFi setting on your smartphone, search for the Rollei AC540***** and enter all required
parameters.
d. After the Rollei AC540 WiFi connection is established, open the “Rollei AC540” APP and search to
Parameter
LCD 2.0LTPS
LENS 146 degree A+high resolution wide Angle lens
Language English/German/French/Italian/Spanish/ Portuguese/ Finnish/ Danish/ Swedish/
Norway/ Czech/ Hungarian/ Dutch/ Slovakia/ Greece in language
video 4K 30FPS
2.7K 30FPS
1080P 60FPS/30FPS
720P 120FPS/60FPS/30FPS
720P (1280*720) 120FPS
video format MP4
Compression format
H.264
16M/12M/8M/5M/2M
Memory
Micro SD UPTO 64GB
Picture mode Single/timer /（2S/5S/10S）/Continuous shot
L
ight source frequency 50Hz/60Hz
USB
USB2.0
Power
5V 1A
Battery
750MAH
Video time
1080P/ 90min
Charge time
About 3hours
System
Windows XP/Vistaor Above/Win7/Mac os
