Rollei EW700 User manual

EW700

01
*None-use periods: Ifyou are notgoing to usethe unit fora long periodof time,
please turn thepower off.To extendthe battery life,it is recommendedto
re-charge the batteryat least onceper month duringthe non-use periodto
maximize the batterylife.
*Do not usethe unit inplaces that areextremely hot, cold,dusty, orhumid.
*Avoid theunit being dropped.
*The battery servicelife may differunder different usageconditions and models
*Please replace thebattery when anyof the followingcases occur:
The logo appearsand displays: low battery please charge it
The keys becomeinactive
The unit stopsrunning under normalcondition.
*No matter itis power onor off; theunit can becharged once isconnected
with the USBport on thecomputer.
Important information:
Please read and retain all the operating instructions before operating the unit, we do
not assume any liability arising out of improper operation or incidental damages.
Be note to operate this unit with care and back up any files if necessary.
Precautions
Create User Logo
Features
Introduction
Screen Display
Power On/Off
Music Playback
- Playback
- Volume Setting
- EQ and Play Modessetting
- Language Setting
- A-B Repeat Function
Voice Playback
File Delete
Music and Voice Shifting
FM Tuner
Voice and FM Recording
Auto Power Off Setting
Check the Capacity of thePlayer

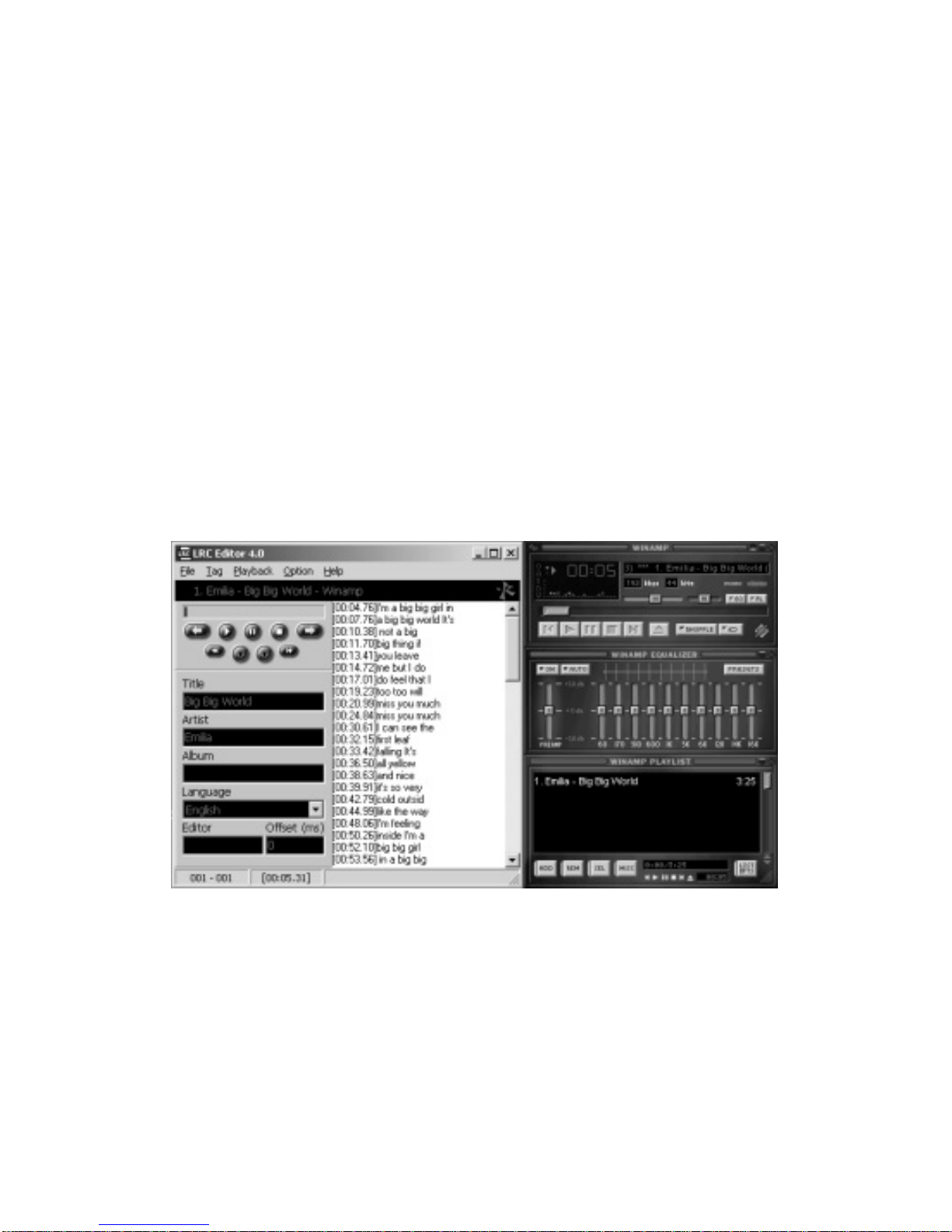

Lyrics Edit
Screen Saving Edit
Line-in Funtion
Connecting with a Computer
Installing of Driving Program
Connecting to a Computer
Upload/Download Files
Upgrade/Re-install Firmware
Format the MP3 Player
Uninstall the Driving Program
Trouble Shooting
Specification
P.01
P.02
P.03
P.04
P.05
P.06
P.07
P.10
P.11
P.11
P.11
P.13
P.14
P.15
P.15
P.17
P.17
P.18
P.18
P.19
P.21
P.24
P.25
P.31
P.35
PRECAUTIONS

01
*None-use periods: Ifyou are notgoing to usethe unit fora long periodof time,
please turn thepower off.To extendthe battery life,it is recommendedto
re-charge the batteryat least onceper month duringthe non-use periodto
maximize the batterylife.
*Do not usethe unit inplaces that areextremely hot, cold,dusty, orhumid.
*Avoid theunit being dropped.
*The battery servicelife may differunder different usageconditions and models
*Please replace thebattery when anyof the followingcases occur:
The logo appearsand displays: low battery please charge it
The keys becomeinactive
The unit stopsrunning under normalcondition.
*No matter itis power onor off; theunit can becharged once isconnected
with the USBport on thecomputer.
Important information:
Please read and retain all the operating instructions before operating the unit, we do
not assume any liability arising out of improper operation or incidental damages.
Be note to operate this unit with care and back up any files if necessary.
Precautions
Create User Logo
Features
Introduction
Screen Display
Power On/Off
Music Playback
- Playback
- Volume Setting
- EQ and Play Modessetting
- Language Setting
- A-B Repeat Function
Voice Playback
File Delete
Music and Voice Shifting
FM Tuner
Voice and FM Recording
Auto Power Off Setting
Check the Capacity of thePlayer
Lyrics Edit
Screen Saving Edit
Line-in Funtion
Connecting with a Computer
Installing of Driving Program
Connecting to a Computer
Upload/Download Files
Upgrade/Re-install Firmware
Format the MP3 Player
Uninstall the Driving Program
Trouble Shooting
Specification
P.01
P.02
P.03
P.04
P.05
P.06
P.07
P.10
P.11
P.11
P.11
P.13
P.14
P.15
P.15
P.17
P.17
P.18
P.18
P.19
P.21
P.24
P.25
P.31
P.35
PRECAUTIONS

CREATE USER LOGO FEATURES
OLED display
MP3/WMA playback
FM tuner with20 station memoriesand FM digitalrecording
LINE-IN function
High-level digital recording
No driver Programnecessary under win2000/XP/ME
32/64/128/256MB portable USBdata storage
A-B Repeat playback.
Equalizer: 5 modes.
ID3 tag supportwith file name lyrics display (editin advance needed)
Low power consumption
Built-in rechargeable lithium-ionbattery
To create your own logo.
Steps
1. Turnon unit andconnect it withyour PC.
2. In themobile disck (the unit), createa bmp filewith the nameas
3.Open the bmpfile.
4.Set the filewith pixel as128x64, and colouras black andwhite( very
important)
5.Create any logoas you likeon the file.
6.Save the fileand exit.
7.Disconnect the unitwith your PC.The startup logowill be yours.
If you wantto activate theoriginal logo (Rollei ), simplydelete the
bmp file.
02 03

CREATE USER LOGO FEATURES
OLED display
MP3/WMA playback
FM tuner with20 station memoriesand FM digitalrecording
LINE-IN function
High-level digital recording
No driver Programnecessary under win2000/XP/ME
32/64/128/256MB portable USBdata storage
A-B Repeat playback.
Equalizer: 5 modes.
ID3 tag supportwith file name lyrics display (editin advance needed)
Low power consumption
Built-in rechargeable lithium-ionbattery
To create your own logo.
Steps
1. Turnon unit andconnect it withyour PC.
2. In themobile disck (the unit), createa bmp filewith the nameas
3.Open the bmpfile.
4.Set the filewith pixel as128x64, and colouras black andwhite( very
important)
5.Create any logoas you likeon the file.
6.Save the fileand exit.
7.Disconnect the unitwith your PC.The startup logowill be yours.
If you wantto activate theoriginal logo (Rollei ), simplydelete the
bmp file.
02 03

SCREEN DISPLAY
Music
Recording
FM turner
Volume
USB mode
Remaining capacity ofbattery indication
Name of musicor REC files song ordinal numberand recording time
001/008 00:08/02:21
Recycling mode
Recycling includes 5 modes: repeat one, repeat all, random play, random repeat
and normal (nologo display fornormal mode)
EQ mode
EQ mode includes5 modes: normal,rock and roll,jazz, classic andpop
INTRODUCTION SCREEN DISPLAY
2
3
4
5
6
68
9
10
7
11. Neck strapslot
2. Earphone jack
3.LINE-IN input jack
4. Menu/power on& off
5. Volume -/ previous,RW
Volume-/ next, FF
6. OLED display
7. USB slot
8. Recording REC/A-B repeat
9. Play/pause/stop
10. power switch
FM
Big Big World. mp3
Emilia
001/006 00 : 08 / 02 : 21
0504

SCREEN DISPLAY
Music
Recording
FM turner
Volume
USB mode
Remaining capacity ofbattery indication
Name of musicor REC files song ordinal numberand recording time
001/008 00:08/02:21
Recycling mode
Recycling includes 5 modes: repeat one, repeat all, random play, random repeat
and normal (nologo display fornormal mode)
EQ mode
EQ mode includes5 modes: normal,rock and roll,jazz, classic andpop
INTRODUCTION SCREEN DISPLAY
2
3
4
5
6
68
9
10
7
11. Neck strapslot
2. Earphone jack
3.LINE-IN input jack
4. Menu/power on& off
5. Volume -/ previous,RW
Volume-/ next, FF
6. OLED display
7. USB slot
8. Recording REC/A-B repeat
9. Play/pause/stop
10. power switch
FM
Big Big World. mp3
Emilia
001/006 00 : 08 / 02 : 21
0504

1.Power on/off
On: Press Mbutton shortly to turn on the unit, and LCD displays the logo of the
player. Then the unit enters MUSIC mode at stop status, including
the current mode m (MUSIC), the track number, total number,
total time, track name, the singer, recycling indicator, volume, stop
Indicator, EQ indicator, and battery level.
Off: Press and hold Mbutton continuously (about 2 seconds),
When the Off Schedule Bar is full, you can turn off the digital player.
2)Charging: When the battery indicator displays: please charge it. The unit
provides two ways for charging:
A)No matter it is on or off, link the unit to the computer via USB cable.
B)By provided charger.
Note: 1: When the battery is too low, please charge it in time. Otherwise,
the unit cannot be turned on.
2: When the remaining battery is too low LCD display: low battery, it
will off on LCD, the player will automatically off.
3: Charging process should not be longer than 8 hours.
4: When it is playing, the indicated battery capacity may change. It is
because the electric charge oscillation generated due to different power
consumption during the play.
Note: we recommend you to turn off the player before charging. The
charging time is about 2 to 3 hours.
3) Power switch
Push the switch toward OFF , it is power off; push it toward opposite direction, it is
power on.
Note: unless you plan not to use the unit for a long period of time or the
player is in abnormal condition, you needn't to use the power switch.. Please
keep the switch in ON.
2.Music Playback:
Note: this unit can supports MP3 (layer3 of MPEG1, MPEG2 and MPEG2.5)
and WMA files.
1)Playback:Press button to start playback under stop or pause
status, the playback indicator, repeat indicator, track number, total
number, total time, track name, the singer, volume, EQ indicator,
And battery level. If the lyrics have been edited in advance, it will
also be displayed.
BASIC OPERATION BASIC OPERATION
Like Humans Do
David Byr look Into
001/006 00 : 08 / 02 : 21
Like Humans Do
David Byr look Into
001/006 00 : 08 / 02 : 21
0706

1.Power on/off
On: Press Mbutton shortly to turn on the unit, and LCD displays the logo of the
player. Then the unit enters MUSIC mode at stop status, including
the current mode m (MUSIC), the track number, total number,
total time, track name, the singer, recycling indicator, volume, stop
Indicator, EQ indicator, and battery level.
Off: Press and hold Mbutton continuously (about 2 seconds),
When the Off Schedule Bar is full, you can turn off the digital player.
2)Charging: When the battery indicator displays: please charge it. The unit
provides two ways for charging:
A)No matter it is on or off, link the unit to the computer via USB cable.
B)By provided charger.
Note: 1: When the battery is too low, please charge it in time. Otherwise,
the unit cannot be turned on.
2: When the remaining battery is too low LCD display: low battery, it
will off on LCD, the player will automatically off.
3: Charging process should not be longer than 8 hours.
4: When it is playing, the indicated battery capacity may change. It is
because the electric charge oscillation generated due to different power
consumption during the play.
Note: we recommend you to turn off the player before charging. The
charging time is about 2 to 3 hours.
3) Power switch
Push the switch toward OFF , it is power off; push it toward opposite direction, it is
power on.
Note: unless you plan not to use the unit for a long period of time or the
player is in abnormal condition, you needn't to use the power switch.. Please
keep the switch in ON.
2.Music Playback:
Note: this unit can supports MP3 (layer3 of MPEG1, MPEG2 and MPEG2.5)
and WMA files.
1)Playback:Press button to start playback under stop or pause
status, the playback indicator, repeat indicator, track number, total
number, total time, track name, the singer, volume, EQ indicator,
And battery level. If the lyrics have been edited in advance, it will
also be displayed.
BASIC OPERATION BASIC OPERATION
Like Humans Do
David Byr look Into
001/006 00 : 08 / 02 : 21
Like Humans Do
David Byr look Into
001/006 00 : 08 / 02 : 21
0706

2) Pause/stop/turn off
Pause: under playback mode, shortly press button, Pause indicator displayed on
the LCD. Press button again, the playback continue.
Stop: under playback or pause status, press and hold button, stop indicator
displayed on the LCD, the unit stop playing.
Power off: under playback/pause/stop status, button (about 2 second) until the off
schedule bar was full, the unit power off press and hold.
Note: Under pause mode, the unit will be automatically turned off in 60 seconds if
no button is pressed for saving the battery power.
3)Previous file/next file, FF/REW
Shortly press button to skip to previous file, button to skip to next file.
Press and hold button to move fast-forward and playback; button to fast-
rewind and playback.
4)Volume Setting
Under playback mode, shortly press M button to enter the menu, select
and press M button to confirm. Then the volume indicator will flash on the
LCD.Shortly press button to increase the volume, and press button to
decrease. The volume indicator on he LCD changed accordingly.
5)EQ setting:
Under music or voice mode, shortly press Mbutton to enter
menu mode. Select and press Mbutton to confirm,
and then select voice effect, press Mbutton to enter EQ mode
selectionEQ includes 5 modes: normal, rock, jazz, classic and pop, you can shift those
modes by pressing button or button. Then press Mbutton to return.
Note: when shifting the EQ modes, do not press buttons
too fast; please change them one by one.
6)Playmode Setting
Under music or voice status, shortly press Mbutton to enter the menu, select
and press Mbutton to confirm. Then select playback mode, press M
button to enter the playback mode settings. By pressing or button, the
playback mode will change in below order:Normal, repeat one( ), repeat all( ),
shuffle( ), random repeat( ).
Press Mbutton to confirm and return.
7)Language Setting
Under music or voice mode, shortly press M button to enter menu mode. Select
and press Mbutton to confirm, then select language, press m button to enter language
BASIC OPERATION BASIC OPERATION
Volume
Setting
Normal Rock
Pop
Classical
Jazz
Setting
Setting
0908
