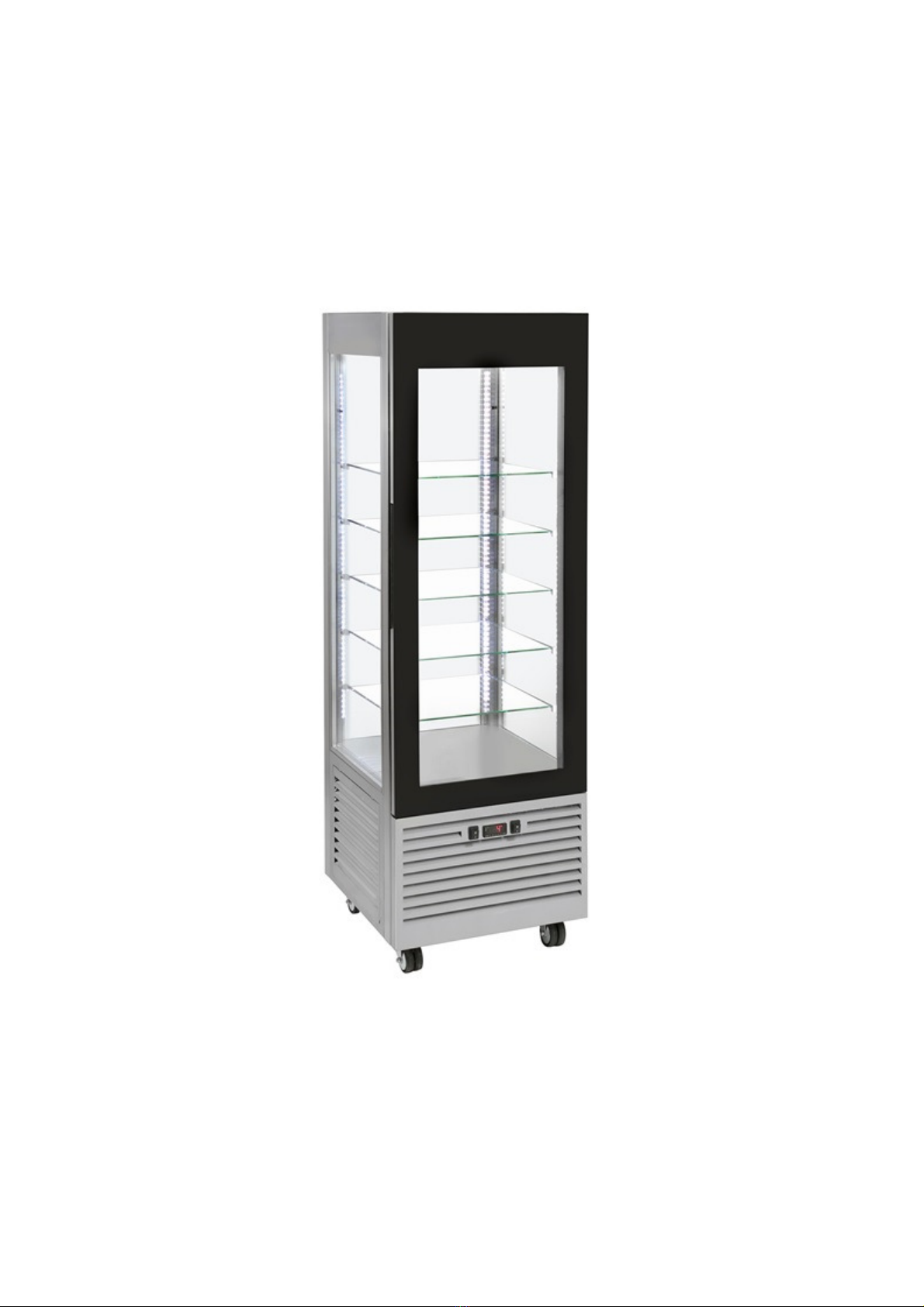

Roller Grill RDN 600 F User manual

COOLING DISPLAY
RDN 600 – 800 F
Made in France

9
COOLING DISPLAY
RDN 600 – 800 F
Congratulations for purchasing this top end professional equipment! You have chosen
equipment that combines optimum technical properties with extreme user comfort.
We want you to get the greatest possible satisfaction out of this equipment.
1. SAFETY INSTRUCTIONS
Please respect these instructions scrupulously to avoid any risk of fire,
electric shock, scald or other wounds and damage. During the use of this
appliance, fundamental circumspection of security must always be noticed,
such as :
- Take into account the instructions to be systematically kept with the
appliance.
- Install the appliance always in instructions respect. A 10 cm distance
minimum with the partition or the wall is necessary.
- Protect the appliance from direct light of the sun, frost and humidity.
- Never leave the appliance within the reach of children or disabled persons
without surveillance.
- The machine has to be used only by qualified person.
- Never move the appliance when it is working.
- Check that the appliance is definitely off before connecting it up or
disconnecting it.
- Do not touch the hot surfaces of the appliance. The temperature of the hot
surfaces can be very important when the appliance is working. Always use
handles and control knobs.
- Do not use the appliance for other functions than determined use.
- Do not leave the electrical cord in contact of hot surfaces.
- The appliance should not be used close to combustible materials.
- During use, look after not to obstruct hearings of aeration of the appliance
- To avoid any electric shock, never plunge the cord or plug in water or quite
other liquid.
- If the cord is harmed, it must be replaced by the producer, its after sale
service or persons of similar skills to avoid any risk.
- Entrust repairs only to a skilled person.
- Use only spare parts of origin.
- Before cleaning the appliance, do not forget to disconnect it.

10
2. CONTENTS OF CARDBOARD PACKAGING
Device : Cooling Display
Accessories :5 glass
Technical documentation of the thermostat
The present note
3. CONFORMITY OF USE
Use the equipment exclusively for keeping fresh frozen food at temperatures
included between -18°C and -5°C . You get a refrigerating panoramic
Fresh frozen products will be presented during working and service hours.
Afterwards they will be stored in a conventional cool chamber.
To take shelter from light is very important for hygiene and it lasts the storage of
foodstuff. The light generates a photochemical reaction on the food, which causes
discoloration, loss of flavour and alimentary characteristics.
In order to soften this phenomenon, avoid to exhibit the machine at the sun.
4. WAY OF FUNCTIONING
The cooling display keeps food at a constant temperature of -18°C pre-adjusted in the
factory.
Press on the switch (n°3 on picture), the machine is on. The preset electronic
thermostat (n°2 on picture) flashes and displays the temperature. Press on the
switch (n°1 on picture) to turn on light.
1
2
3
Switch Light+Turning plates
Switch On/Off
1
2
3
Electronic thermostat

11
5. FUNCTIONING / MANIPULATION
a) Installation / Assembly :
-Place the equipment on a stable surface.
-Position the accessories
-A distance of 10 cm from the partition or the wall is considered enough.
- Never place the device near a wall or near a partition made of combustible
materials even if it is very well isolated.
- Caution : the display cooling must not be exposed at the sun.
b) First starting :
First cleaning
Clean the device before the first use. (See 6 Cleaning)
Connection of the device
-Make sure that the voltage and frequency of the electrical system comply with
the values indicated on the nameplate.
-Always check that the electric power supply cable or plug are free of damage.
-Make sure that every control knob is positioned on 0.
-Remove the flange at the bottom left (when facing the display) to pay out the
entire length of the cord and feed it through the square hole then close it before
inserting the plug into the socket.
-Connect the electric power supply cable to a socket with a protection wire.
-The display is now connected.
NB: To connect the display to a socket without any protection wire, or to connect
directly to the electrical system, ask for a qualified electrician to make the
connection.
c) Use of device :
Elements of command and display
Command/Display Function
Electronic thermostat (n°2 on picture) Temperature setting
Switch 0/I (n°1 on picture) Light On/Off
Switch 0/I (n°3 on picture) On/Off

12
Starting
- Press on the on/off switch (n°3 on picture) to start the unit. The electronic
thermostat turns on.
- Wait for the unit to be at the right temperature (stop of the compressor).
- Press on the light switch (n°1 on picture) to start the light.
Temperature setting
The electronic thermostat is preset in factory. It can be adjusted if necessary.
To modify the temperature, refer to the technical documentation of the
thermostat.
Regulation of defrost
The defrost is an important operation for ventilated refrigerating displays.
A homogeneous temperature is ensured thanks to the air circulation through the
evaporator. This evaporator has a negative temperature when the compressor is
working. In this way, its blades “trap” the humidity as frost, and the air of the
chamber dries. If there is too much frost, the air cannot circulate through the
evaporator and the internal temperature rises.
In order to avoid this phenomenon, the defrost programmed in the factory stops the
compressor 10min every 2 hours.
These values can be adjusted by your technician. It depends on the type of products
presented in the refrigerating display, on the use and the environment.
To stop the display during the night and the closing days enables a total defrost.
Stopping the appliance
Set each switch (n°1 and 3 on picture) on 0: the appliance is no longer
functioning.
Disconnect the power supply cable.
Clean the appliance. (See 6. Cleaning)
d) Breakdown / repair :
In case of breakdown or of damaged part, please call your after-sales service and
confide any technical operation to a qualified person.
When you contact the after-sales service of your distributor or your store, provide
him with the complete reference of your device (commercial name, type and serial
number). This information appears on the visible descriptive plate behind the device.

13
6. CLEANING AND MAINTENANCE
Disconnect the device
- Clean regularly the metallic parts after each use by using only use non-abrasive
products, warm water and wash liquid: avoid the abrasive toweling. Rinse your
device with a wet sponge and dry it with a soft cloth.
- Dry the device with a clean soft cloth.
- Never clean the device under a water jet, the infiltrations would risk to damage it in
an irreparable way.
- Never immerse the cord or the plug in the water or quite other liquid to avoid any
electric shock
- Every week the condenser must be removed from any dust with a vacuum-cleaner.
First, always disconnect the display before doing this operation. Then, to have an
access to the condenser, remove the front grid of the display. The container for the
evaporation of condensation particles must be cleaned with a wet sponge as well.
To have an access, remove the side grid of the display.
CAUTION : In places with a high rate of humidity (>60%), it is obligatory to
proceed to a total defrost every week.
7. TECHNICAL SPECIFICATIONS
Model RDN 600 F RDN 800 F
Effective Volume 360 l 340 l
Dimensions 650x600x1865 650x800x1865
Weight 180 Kg 200 Kg
Power 900 W 940 W
Gas R 404 A R 404 A
Temperature -18°à -5°C -18°à -5°C
Voltage 220-240 V ~ 220-240 V ~
Frequency 50-60 Hz 50-60 Hz
Grids 465 x 455 (x5) 465 x 455 (x5)
Climatic Level Tropicalised condensing
unit
Tropicalised condensing
unit
Maximum weight/grid 10 kg 10 kg

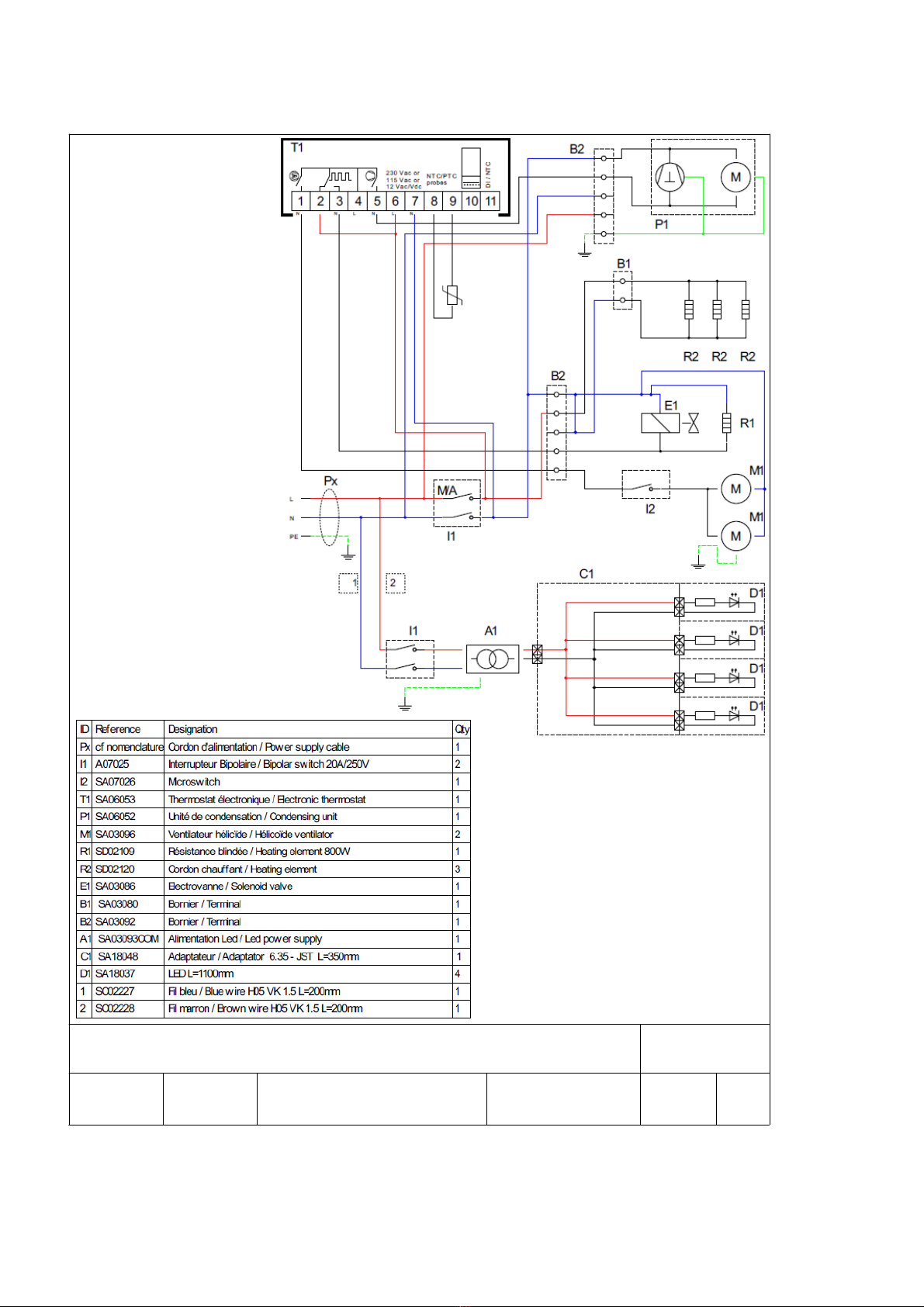

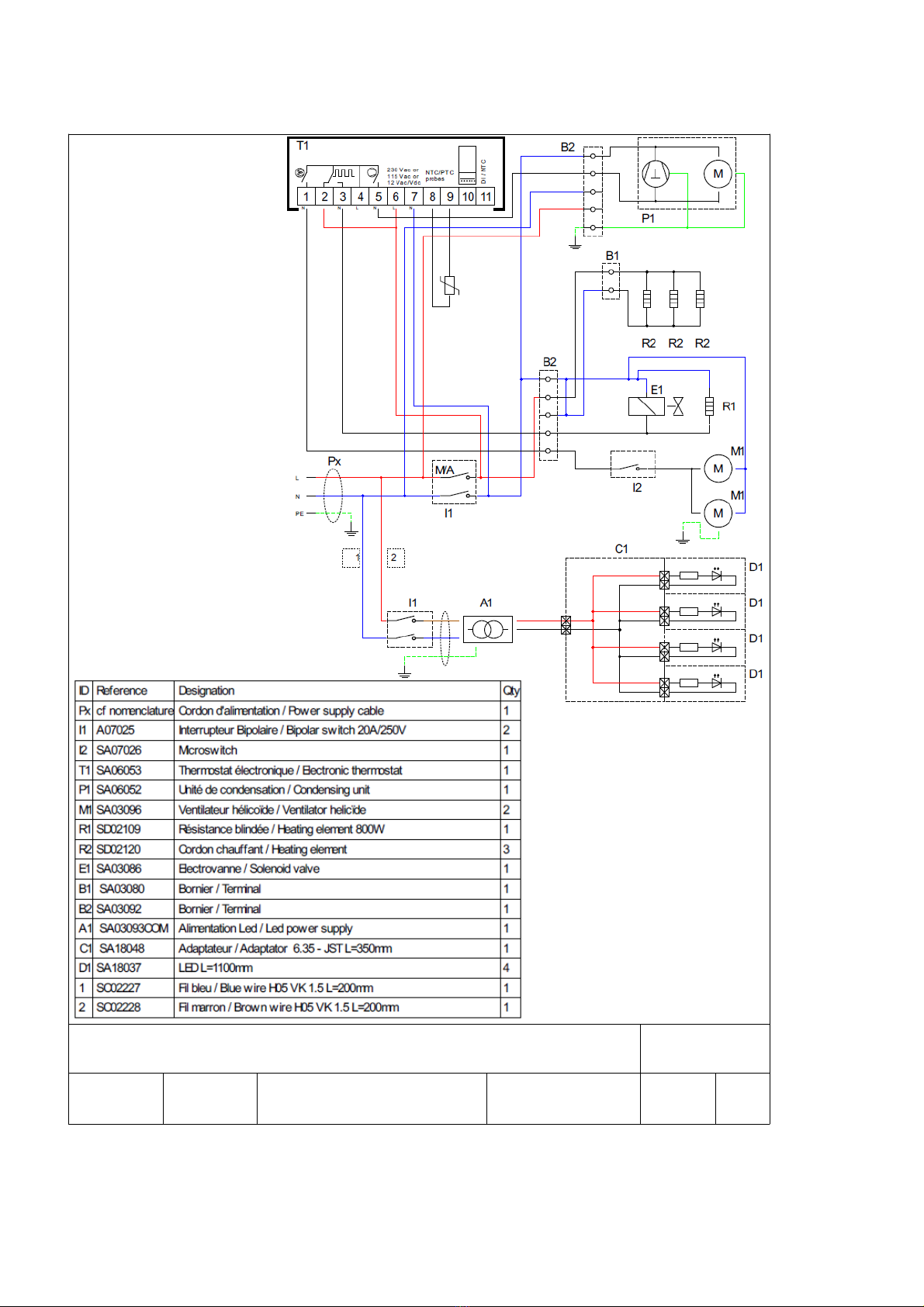

Wires colours correspondence:
Phase Brown or Black or Grey
Neutral Blue
Earth Yellow-Green

14
8. GUARANTEE
Conditions of guarantee
The guarantee applicable to any device is the commercial guarantee of the
distributor or the retailer. Please contact the store where you bought your device to
know the precise conditions.
The guarantee grants no right for damages.
The dispositions which follow are not exclusive of the profit of the legal guarantee
planned by articles 1641 and following ones of the Civil code relative to the defects
and the latent defects.
Exclusion clauses of the guarantee
Bad installation and bad maintenance, in particular if they do not respect
current regulations or instructions appearing in this user guide.
Guarantee cannot apply for bad manipulations during service, inapropriate usage,
negligences, device overload and electric power supply variations, overload or
defective installation.
Damages due to impacts or bad weather are not covered by the guarantee. Final
user is responsible for the transport. If delivred by a transporter, the recipient must
issue reserves before delivery.
Guarantee ends with interventions, reparations, modifications by non-qualified
persons, or inappropriate usage.
9. MAINTENANCE GUIDE
ANOMALIE
CAUSE
REMEDE
The display does not start
Switch on position « off » Switch on position « on»
No information on the thermostat Check the plug
The display does not stop No refrigerating power Clean the condenser
The display does not
regulate
Helicoïd ventilator is blocked Remove foreign or
Eventually replace the ventilator
The temperature rises up Presence of ice Make a total defrost
Presence of water droplets
on the top
Appearance of ice
Adjust the parameters of defrost
Presence humidity marks on
the display
High level of humidity in the air
Presence of condensation
on the display
Display in defrost phase
Presence of water under the
display
Container for condensation
particles is full, total defrost too late
Empty and clean the container
and reposition the holds

15
10. NORMS AND LEGALS DISPOSALS
The device is conform to :
73/23 CEE: 19/02/1973
86/336 CEE: 03/05/1989
CEE: 92/31
CEE: 28/04/1992
CEE: 22/07/1993
EN 60335-1
EN 55104
EN 60555-2
EN 60555-3
In order to comply with the directive 2004/108/CE concerning the electromagnetic
compatibility, and according to the norm EN 61000-3-11, the maximal impedance of
the network accepted (Zmax) at the plug in point has to be under 0,42 Ω.The
technician has to check this value, with the distributor if necessary.
11. ELIMINATION OF THE ELECTRIC AND ELECTRONIC WASTE
The device respects the directives :
2002/96/CE (DEEE) N°34270064800021
2002/95/CE (ROHS)
Reach rule
Never put the device among household waste.
The device must be put down in a center of recycling for the electric equipments.
The materials of the device are indeed reusable. By eliminating correctly the electric
and electronic wastes, the recycling and quite other shape of re-use of worn
equipments, you participate in a significant way in the environmental protection.
For any information about the collection of electric and electronic waste, please
contact your distributor.

16
RDN 600 F
VUE ECLATEE / EXPLODED VIEW
Vue éclatée
J.Godéré
76301
76294
SA03088
76147
76132
SA03096 (x2)
76292
SA03019 (x2)
SG05114_2000 (x3)
SA18037 (x4)
76290SE
MONTANT
76297
76291SE
MONTANT AVG
BANDEAU AV
CONTRE PORTE
SH03030
76283 (x2)
76266 (x2)
76282 (x2)
76259 (x2)
GRILLE AV
SA06053
A07025 (x2)
SB06051
76270SE
SA07026
SA03093COM
76349
76276
SA06052X6
SA06052X4
SA06052X5
SA03087
SA03086
SA06052X9
SB04071
SA06052X3
SA06052X8
SA06052X2
SA03098
SA03099
SA06052X1
SA06052X7
76117
76257 (x4)
SF08015 (x4)
76138
A10018
CORDON
BANDEAU (x3)
SH01090 (x3)
SD02120 (x3)
TRAVERSE (x3)
GRILLE (x3)
76295 (x5)
SH01137 (x5)
SA03080
76160
76290SE
76298
SH03027_2000
SD02109
MONTANT AVD
MONTANT
76291SE
76300 (x3)
SA03042
SB04107
B08004 (x2)
PORTE
SA03092
PROFIL
SA13017 (x2)
76296 (x5)
SH02001
SH02001
SH02003
SH02004
CADRE (x3)
CADRE AV
76139SE
CADRAN
SI07001
76354
Date :
05/12/2017
Indice
C
Dessiné par :
R.L
Approuvé par :
RDN 600 F
DT 163
Date :
21/12/2017

17
RDN 600 F
NOMENCLATURE / BILL OF MATERIALS
Nomenclature
J.Godéré
CODE QTE PIECE SPARE PART
76117 1 SOC LE RDS 60 BASE RDS 60
76132 1 BANDEAU REFLECTEU R RDN 60 REFLECTOR PANEL RDN 60
76138 1 BAC A EAU RDN 60 WATER C ONTAINER RDN 60
76139SE 1 S/E BAC EVAPORATEUR RDN 60 EVAPORATOR TRAY RDN 60
76147 1 GOU TTIERE EVAPORATEUR RDN 60 EVAPORATOR GUTTER RDN 60
76160 1 SUPPORT BOITE RACC ORDEMEN T RDN 60 CONNEC TION BO HOLDER RDN 60
76257 4 RONDELLE ROUE RD 800 WHEEL WASH ER RD 800
76259 2 PROFILE PORTE LATERALE E T RD 800 E TERIOR SIDE DOOR PROFILE RD 800
76266 2 PROFILE PORTE LATERALE INT RD 800 INTERIOR SIDE DOOR PROFILE RD 800
76270SE 1 S/E PLATINE CHARNIERE INF RD 800/600 BOTTOM HINGE FRAME RD 800/600
76276 1 PLAQUE ISOLATION RD 600 INSU LATION PLATE RD 600
76282 2 PROFILE PORTE TRANSVERSALE E T RD 600 E TERIOR TRANSVERSAL DOOR PROFILE RD 600
76283 2 PROFILE PORTE TRANSVERSALE INT RD 600 INTERIOR TRANSVERSAL DOOR PROFILE RD 600
76290SE 2 S/E MONTANT IN TERIEUR DROIT RDN 60 RIGHT INSIDE UPRIGHT RD 60
76291SE 2 S/E MONTAN T INTERIEU R GAUCHE RDN 60 LEFT IN SIDE UPRIGHT RDN 60
76292 1 REFLECTEUR RDN 600 REFLECTOR RDN 600
76294 1 CAPOT RDN 600 COVER RDN 600
76295 5 SUPPORT ETAGERE DROIT RDN 600 RIGHT SHELF HOLDER RDN 600
76296 5 SUPPORT ETAGERE GAUCHE RDN 600 LEFT SHELF HOLDER RDN 600
76297 1 CACH E MONTAN T GAU C HE RDN 600 LEFT UPRIGH T COVER RDN 600
76298 1 CAC H E MONTAN T DROIT RDN 600 RIGHT UPRIGHT C OVER RDN 600
76300 3 CAC H E ISOLANT RDN 600 INSULATION COVER RDN 600
76301 1 TOIT RDN 600 ROOF RDN 600
76349 1 PLATEAU RDN 60 B TRAY RDN 60 B
76354 1 PLATINE CHARNIERE SUPERIEURE RDN 600/RDN 800 TOP HINGE FRAME RDN 600/RDN 800
A07025 2 INTERRUPTEU R NOIR ETANCHE BIP 20A/250V BLACK SWITCH BIP 20A/250V
A10018 1 SERRE CABLE DM6 RF1 CORD CLOSER DM 6 RF1
B08004 2 RIVET TERRE EARTH RIVET
CADRAN 1 CADRAN FRONT PAN EL
CORDON 1 CORDON CORD
SA03019 2 GRILLE VENTILATEUR VENTILATOR GRID
SA03042 1 ADAPTATEUR FRP 150L ADAPTOR FRP 150L
SA03080 1 BOITIER RAC C ORDEMENT ELECTRIQUE ELECTRICAL CON NECTION BO
SA03086 1 ELECTROVANE RDN 60 ELECTROGATE RDN 60
SA03087 1 BOBINE POUR ELECTROVANE RDN 60 COIL FOR ELECTROGATE RDN 60
SA03088 1 EVAPORATEU R RDN 60 EVAPORATOR RDN 60
SA03092 1 BORN IER RDN 60 DOMINO RDN 60
SA03093COM 1 ALIMEN TATION LED ASSEMBLEE ASSEMBLY LED ALIMEN TATION
SA03096 2 VEN TILATEUR HELICOIDE RD 60 NEGATIVE VENTILATOR RDN 60
SA03098 1 DETENDEUR RDN 60 REGULATOR RDN 60
SA03099 1 ORIFICE 02T2 PLAT RDN 60 ORIFICE 02T2 RDN 60
SA06052 1 GROUPE FROID RND 60 COOLING UNIT RDN 60
SA06052X1 1 SUPPORT COMPRESSEUR RDN 60 COMPRESSOR HOLDER RDN 60
SA06052X2 1 SUPPORT MOTEUR RDN 60 MOTOR HOLDER RDN 60
SA06052X3 1 MOTEUR RDN 60 MOTOR RDN 60
SA06052X4 1 HELICE FAN BLADE
SA06052X5 1 CARTER FAN BRACKET
SA06052X6 1 CONDENSEUR CONDENSER
SA06052X7 1 RESERVOIR LIQUIDE RDN 60 LIQUID RES ERVOIR RDN 60
SA06052X8 1 BOITIER ELECTRIQUE RDN 60 ELECTRICAL BOX RDN 60
SA06052X 1 COMPRES SEUR COMPRESSOR
SA06053 1 THERMOSTAT ELECTRONIQU E RDN 60 ELECTRONIC THERMOSTAT RDN 60
SA07026 1 MICROSWITCH MIC ROSWITCH
SA13017 2 PIED PLASTIQUE RD/RDN 600-800 PLASTIC FOOT RD/RDN 600-800
SA18037 4 LED Lg= 1100 mm LED Lg= 1100 mm
SB04071 1 DESHYDRATEUR CUIVRE SM 2/15 6.5-6.5 COPPER DEHYDRATOR SM 2/15 6.5-6.5
SB04107 1 TE EGAL F 5/16 "T" LINK F 5/16
SB06051 1 BAGU E POUR PORTE RDN 60 RING DOOR RDN 60
SD02109 1 RESISTANCE CHAUFFANTE 800 W 230 V HEATIN G ELEMENT 800 W 230 V
SD02120 3 CORDON CHAUFFANT RDS 60 HEATING CABLE RDS 60
SF08015 4 ROUE WHEEL
SG05114_2000 3 TUBE ISOLANT MOUSSE 9 x 12 mm FOAM INSULATION TUB 9 x 12 mm
SH 01090 3 COTE TRIPLE VITRAGE 495 1330 RDN 60 TRIPLE GLASS SIDE RDN 60
SH 01137 5 VERRE ETAGERE VBP 60 P/N SHELF GLASS VBP 60 P/N
SH 02001 2 ISOLAN T LATERAL RDN 600/800 SIDE INSULATION RDN 600/800
SH 02003 1 ISOLANT C ENTRAL RDN 600 CENTRAL INSU LATION RDN 600
SH 02004 1 ISOLANT ARRIERE RDN 600/800 BACK INSULATION RDN 600/800
SH03027_2000 1 TUYAU EVAC U ATION CONDENSAT CONDEN SATE DRAIN PIPE
SH 03030 1 JOINT MAGNETIQUE RD 60 NM MAGNETIC SEAL RD 60 NM
SI07001 2 VIS TH 10 x 140 SC REW TH 10 x 140
PIECE QTE COULEUR : INOX / NOIR / BLANC COLOR : STAINLESS-STEEL / BLACK / WHITE
BANDEAU 2
BANDEAU AV 1
BANDEAU D 1
CADRE 3
CADRE AV 1
CONTRE PORTE 1
GRILLE 3
GRILLE AV 1
MONTANT 2
MONTANT AVD 1
MONTANT AVG 1
PORTE 1
PROFIL 1
TRAVERSE 3
76150 / 76150LATN / 76150B
76237 / 76237GRIN / 76237B
76289 / 76289N / 76289B
76293SE / 76293 / 76293B
76254SE / 76254N / 76254B
76255 / 76255N / 76255B
76280 / 76280N / 76280B
76281SE / 76281SEN / 76281SEB
76284SEV / 76284SENV / 76284SEBV
H03004_350 / H03004_350 / SH 03002_350
76239 / 76239MON N / 76239B
76102 / 76102 / 76102B
76102 / 76102CADN / 76102B
76150SE / 76150SEN / 76150SEB
Date :
05/12/2017
Indice
C
Dessiné par :
R.L
Approuvé par :
RDN 600 F
DT 163
Date :
21/12/2017

18
RDN 600 F
SCHEMA ELECTRIQUE / ELECTRICAL DRAWING
Schéma électrique
Damien L.
Date :
05/12/2017
Indice
C
Dessiné par :
R.L
Approuvé par :
RDN 600 F
DT 163
Date :
21/12/2017

19
RDN 600 F

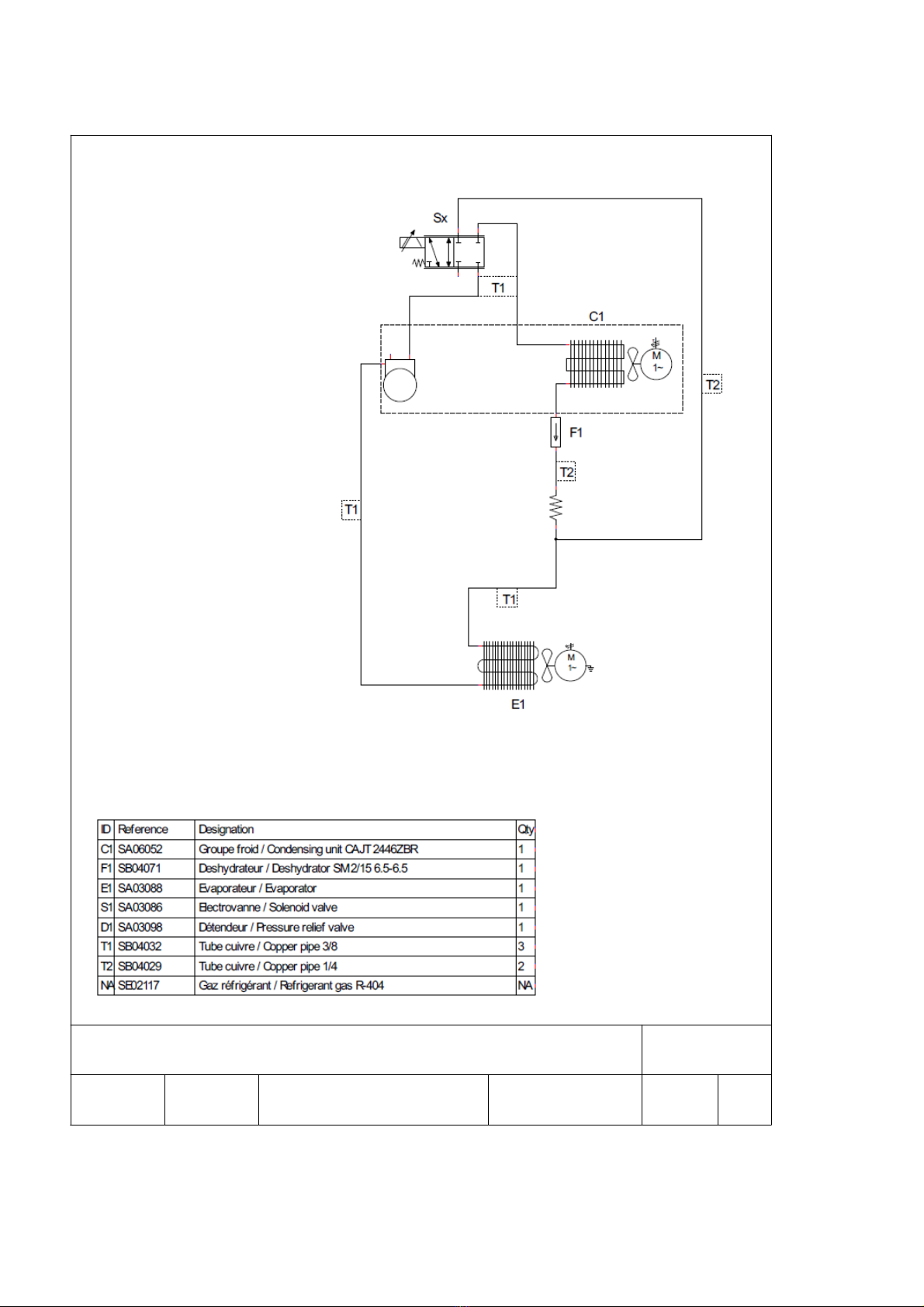

SCHEMA FRIGORIFIQUE / COOLING DRAWING
Damien L.
Schéma frigorifique
Date :
05/12/2017
Indice
C
Dessiné par :
R.L
Approuvé par :
RDN 600 F
DT 163
Date :
21/12/2017

20
RDN 800 F
VUE ECLATEE / EXPLODED VIEW
Vue éclatée
J.Godéré
76308
76307
SA03088
SD02109
76147
SA03096 (x2)
76306
SG05114_2000 (x3)
SA18037 (x4)
76296 (x5)
MONTANT
76290SE
76291SE
MONTANT AVG
BANDEAU AVCONTRE PORTE
SH03029
76267 (x2)
76259 (x2)
A07025 (x2)
SB06051
SA07026
SA06052X6
SA06052X4
SA06052X5
SA03086
SA06052X2
SA03098
SA06052X1
SA06052X7
76273
76257 (x4)
SF08015 (x4)
76138
A10018
CORDON
BANDEAU AR
SH01134
76310
GRILLE AR
SH01138 (x5)
SA03080
76160
76290SE
76298
SH03027_2000
MONTANT AVD
MONTANT
SB04107
SA03092
PROFIL
SH02001
SH02002
SH02001
SH02004
76300 (x2)
76312
TRAVERSE (x2)
SH01090 (x2)
76295 (x5)
BANDEAU G
76304
76354
SA06052X8
SA06053
SA03019 (x2)
76297
CADRE (x2)
PORTE
76260 (x2)
76266 (x2)
SA06052X3
SA06052X9
SA03087
CADRE AV AR (x2)
76313
76323 (x48)
SD02120 (x2)
76291SE
GRILLE (x2)
76334
SI07001 (x2)
SA03093COM
B08004 (x2)
SA03099
SB04071
BANDEAU D
76139SE
76305
SA13017 (x2)
SD02120
76270SE
GRILLE AV
CADRAN
76356
SA03117
Date :
15/12/2016
Indice
C
Dessiné par :
R.L
Approuvé par :
RDN 800 F
DT 166
Date :
21/12/2017

21
RDN 800 F
NOMENCLATURE / BILL OF MATERIALS
Nomenclature
J.Godéré
CODE QTE PIECE SPARE PART
76138 1 BAC A EAU RDN 60 WATER CON TAINER RDN 60
76139SE 1 S/E BAC EVAPORATEU R RDN 60 EVAPORATOR TRAY RDN 60
76147 1 GOUTTIERE EVAPORATEUR RDN 60 EVAPORATOR GU TTER RDN 60
76160 1 SU PPORT BOITE RACCORDEMENT RDN 60 CONN ECTION BO HOLDER RDN 60
76257 4 RONDELLE ROUE RD 800 WHEEL WASHER RD 800
76259 2 PROFILE PORTE LATERALE E T RD 800 E TERIOR SIDE DOOR PROFILE RD 800
76260 2 PROFILE PORTE SUPERIEURE E T RD 800 E TERIOR TOP DOOR PROFILE RD 800
76266 2 PROFILE PORTE LATERALE INT RD 800 INTERIOR SIDE DOOR PROFILE RD 800
76267 2 PROFILE PORTE TRAN SVERSALE INT RD 800 INTERIOR TRANSVERSAL DOOR PROFILE RD 800
76270SE 1 S/E PLATINE CHARNIERE INF RD 800/600 BOTTOM HINGE FRAME RD 800/600
76273 1 SOCLE RD 800 BASE RD 800
76290SE 2 S/E MON TANT INTERIEU R DROIT RDN 60 RIGHT INSIDE U PRIGHT RD 60
76291SE 2 S/E MONTAN T IN TERIEU R GAUCH E RDN 60 LEFT IN SIDE UPRIGHT RDN 60
76295 5 SU PPORT ETAGERE DROIT RDN 600 RIGH T SHELF H OLDER RDN 600
76296 5 SUPPORT ETAGERE GAUC H E RDN 600 LEFT SHELF HOLDER RDN 600
76297 1 CAC HE MONTANT GAUCH E RDN 600 LEFT UPRIGH T COVER RDN 600
76298 1 CACH E M ON TANT DROIT RDN 600 RIGHT U PRIGH T COVER RDN 600
76299 2 PLAT FERM ETURE RDN 600 CLOSING FLAT RDN 600
76300 2 CAC HE ISOLANT RDN 600 INSULATION COVER RDN 600
76304 1 CLOISON REFLECTEUR RDN 800 REFLECTOR BULHKEAD RDN 800
76305 1 BANDEAU REFLECTEUR RDN 800 REFLECTOR PAN EL RDN 800
76306 1 REFLECTEUR RDN 800 REFLECTOR RDN 800
76307 1 CAPOT REFLECTEU R RDN 800 REFLECTOR C OVER RDN 800
76308 1 TOIT RDN 800 ROOF RDN 800
76312 1 CAC HE ISOLANT RDN 800 INSULATION COVER RDN 800
76313 1 PLAQUE ISOLATION RDN 800 INSULATION PLATE RDN 800
76323 48 C ONTRE POIDS RD 800 AGAINST WEIGHT RD 800
76334 1 PLATEAU RDN 80 TRAY RDN 80
76354 1 PLATIN E C HARN IERE SU PERIEURE RDN 600/RDN 800 TOP H IN GE FRAME RDN 600/RDN 800
76356 1 C APOT EVAPORATEU R RDN 800/RDN 80 EVAPORATOR COVER RDN 800/RDN 80
A07025 2 INTERRUPTEU R NOIR ETAN CH E BIP 20A/250V BLACK SWITCH BIP 20A/250V
A10018 1 SERRE CABLE DM6 RF1 CORD C LOSER DM 6 RF1
B08004 2 RIVET TERRE EARTH RIVET
CADRAN 1 CADRAN FRONT PAN EL
CORDON 1 CORDON C ORD
SA03019 2 GRILLE VENTILATEUR VENTILATOR GRID
SA03080 1 BOITIER RACCORDEM ENT ELECTRIQUE ELECTRIC AL CONNECTION BO
SA03086 1 ELECTROVAN E RDN 60 ELECTROGATE RDN 60
SA03087 1 BOBINE POUR ELECTROVAN E RDN 60 COIL FOR ELEC TROGATE RDN 60
SA03088 1 EVAPORATEUR RDN 60 EVAPORATOR RDN 60
SA03092 1 BORNIER RDN 60 DOMINO RDN 60
SA03093COM 1 ALIMEN TATION LED ASSEMBLEE ASSEMBLY LED ALIMENTATION
SA03096 2 VENTILATEUR H ELIC OIDE RD 60 N EGATIVE VENTILATOR RDN 60
SA03098 1 DETEN DEUR RDN 60 REGULATOR RDN 60
SA03099 1 ORIFICE 02T2 PLAT RDN 60 ORIFICE 02T2 RDN 60
SA03117 1 ADAPTATEUR T2 1/4 RDN ADAPTATOR T2 1/4 RDN
SA06052 1 GROUPE FROID RND 60 COOLING UNIT RDN 60
SA06052 1 1 SU PPORT COMPRESSEUR RDN 60 COMPRESSOR HOLDER RDN 60
SA06052 2 1 SUPPORT MOTEUR RDN 60 MOTOR H OLDER RDN 60
SA06052 3 1 MOTEU R RDN 60 MOTOR RDN 60
SA06052 4 1 HELIC E FAN BLADE
SA06052 5 1 CARTER FAN BRACKET
SA06052 6 1 CON DENSEU R CONDEN SER
SA06052 7 1 RESERVOIR LIQUIDE RDN 60 LIQUID RESERVOIR RDN 60
SA06052 8 1 BOITIER ELECTRIQU E RDN 60 ELEC TRICAL BO RDN 60
SA06052 9 1 COM PRESSEUR C OMPRESSOR
SA06053 1 THERMOSTAT ELECTRONIQUE RDN 60 ELECTRONIC THERMOSTAT RDN 60
SA07026 1 MIC ROSWITCH MICROSWITCH
SA13017 2 PIED PLASTIQUE RD/RDN 600-800 PLASTIC FOOT RD/RDN 600-800
SA18037 4 LED Lg= 1100 mm LED Lg= 1100 mm
SB04071 1 DESHYDRATEUR C U IVRE SM 2/15 6.5-6.5 C OPPER DEHYDRATOR SM 2/15 6.5-6.5
SB04107 1 TE EGAL F 5/16 "T" LINK F 5/16
SB06051 1 BAGUE POUR PORTE RDN 60 RING DOOR RDN 60
SD02109 1 RESISTANCE CHAUFFANTE 800 W 230 V HEATING ELEMENT 800 W 230 V
SD02120 3 CORDON C HAUFFANT RDS 60 HEATING CABLE RDS 60
SF08015 4 ROU E WHEEL
SG05114_2000 3 TUBE ISOLANT M OU SSE 9 x 12 mm FOAM IN SULATION TUB 9 x 12 mm
SH 01090 2 COTE TRIPLE VITRAGE 495 1330 RDN 60 TRIPLE GLASS SIDE RDN 60
SH 01138 5 VERRE ETAGERE VBP 80 P/N SHELF GLASS VBP 80 P/N
SH 01134 1 VERRE ARRIERE TRIPLE RDN 800 TRIPLE BAC K GLASS RDN 800
SH 02001 2 ISOLANT LATERAL RDN 600/800 SIDE INSULATION RDN 600/800
SH 02002 1 ISOLAN T CENTRAL RDN 800 CENTRAL INSULATION RDN 800
SH 02004 1 ISOLANT ARRIERE RDN 600/800 BACK INSULATION RDN 600/800
SH03027_2000 1 TUYAU EVAC UATION CONDENSAT CON DENSATE DRAIN PIPE
SH 03029 1 JOINT MAGNETIQU E RD 80 MAGN ETIC SEAL RD 80
SI07001 2 VIS TH 10 x 140 SCREW TH 10 x 140
PIECE QTE COULEUR : INOX / NOIR / BLANC COLOR : STAINLESS-STEEL / BLACK / WHITE
BANDEAU AR 1
BANDEAU AV 1
BANDEAU D 1
BANDEAU G 1
CADRE 2
CADRE AV AR 2
CONTRE PORTE 1
GRILLE 2
GRILLE AR 1
GRILLE AV 1
MONTANT 2
MONTAN T AVD 1
MONTANT AVG 1
PORTE 1
PROFIL 1
TRAVERSE 2
TRAVERSE AR 1
H03004_350 / H03004_350 / SH 03002_350
76289 / 76289N / 76289B
76310 / 76310N / 76310B
76244 / 76244N / 76244B
76237 / 76237GRIN / 76237B
76239SE / 76239MONN / 76239B
76245 / 76245N / 76245B
76102 / 76102CADN / 76102B
76244SE / 76244SEN / 76244SEB
76262SEV / 76262SENV / 76262SEBV
76275 / 76275N / 76275B
76336SE / 76336N / 76336B
76247 / 76247N / 76247B
76248SE / 76248SEN / 76248SEB
76239SE1 / 76239DN / 76239DB
76239SE2/ 76239GN / 76239GB
76261 / 76261N / 76261B
Date :
15/12/2016
Indice
C
Dessiné par :
R.L
Approuvé par :
RDN 800 F
DT 166
Date :
21/12/2017

22
RDN 800 F
SCHEMA ELECTRIQUE / ELECTRICAL DRAWING
Schéma électrique
Date :
15/12/2016
Indice
C
Dessiné par :
R.L
Approuvé par :
RDN 800 F
DT 166
Date :
21/12/2017

23
RDN 800 F
SCHEMA FRIGORIFIQUE / COOLING DRAWING
Schéma frigorifique
Date :
15/12/2016
Indice
C
Dessiné par :
R.L
Approuvé par :
RDN 800 F
DT 166
Date :
21/12/2017
