Roller Grill BAR 1000 Operation manual

INSTRUCTIONS FOR USE AND INSTALLATION
TOASTERS
BAR 1000 / BAR 2000
Made in France
September 2012

15

14
Rep Code Qty Pièce Spare part
130030 1Toit Roof
2F01052 4Grille protége tubes Tube protection grid
3A02008 1Minuterie Timer
4A14078 1Bouton Knob
5A08003 1Voyant orange Orange pilot light
6A01017 1Commutateur Commutator
7A14078 1Bouton Knob
830036 1Plat Tray
9F01056 2Grille Grid
10 30039 1Socle Base
11 30033 1Fond socle Bottom enclosure
12 30035SE 2Montant Upright
13 A13003 4Pied Foot
14 30032 2Flasque Side casing
15 B07025 12 Clips Clips
16 D04022 6Résistance+tube quartz Quartz tube assembly
17 A10007 1Bornier Conecting block
18 C03013 1Cordon Cord with plug
19 30038 1Arrière Back
20 F03006 1Poignée support grille Grid holder handle
Nomenclature BAR 2000
Spare parts BAR 2000
TOASTERS
BAR 1000 / BAR 2000
Congratulations for the acquisition of this upmarket appliance made in France. You
chose an appliance which alloys the best technical qualities with a big user-
friendliness. We wish you the biggest contentment
1. SECURITY INSTRUCTIONS
Please respect these instructions scrupulously to avoid any risk of fire, electric shock,
scald or other wounds and damage. During the use of this appliance, fundamental
circumspection of security must always be noticed, such as:
-Take into account the instructions and keep it systematically with the appli-
ance.
-Install the appliance always in instructions respect. A 10 cm distance minimum
with the partition or the wall is necessary.
-Protect the appliance from direct light of the sun, frost and humidity.
-Never leave the appliance within the reach of children or disabled persons
without surveillance.
-Never move the appliance when it is working or when the surfaces of cooking
are still hot.
-Check that the appliance is definitely off before connecting it up or disconnect-
ing it.
-Do not touch the hot surfaces of the appliance. The temperature of the hot sur-
faces can be very important when the appliance is working. Always use handles
and control knobs.
-Do not use the appliance for other functions than determined use.
-Do not leave the electrical cord in contact of hot surfaces.
-The appliance should not be used close to combustible materials.
-During use, look after not to obstruct hearings of aeration of the appliance
-To avoid any electric shock, never plunge the appliance, the cord or plug in
water or quite other liquid.
-If the cord is harmed, it must be replaced by the producer, his after sale ser-
vice or persons of similar skills to avoid any risk.
-Entrust repairs only to a skilled person.
-Use only spare parts of origin.
-At the end of cooking, before cleaning the appliance, do not forget to discon-
nect it.
3

2. CONTENTS OF CARDBOARD PACKAGING
Device: A toaster with protecting grids
Accessories: -One tray
-One cooking grid (BAR 1000)
-Two cooking grids (BAR 2000)
-One grid holder handle (BAR 1000 / BAR 2000)
-The present note
Option : Sandwich tong
See exploded views for BAR 1000 / BAR 2000 at the end of the document
3. CONFORMITY OF USE
Use the appliance only to cook or reheat sandwiches, croque-monsieur, pizzas,
quiches, cheese/meat puffs, croissants….or to brown onion soups, to toast ba-
guettes and bread.
4. WAY OF FUNCTIONING
These toasters exist in 2 versions (1 or 2 levels). According to the dimension of the
machine, you can cook instantly at core with no smoke and odour thanks to the rays
of the infrared quartz tubes from 150 to 300 toasts per hour.
Preheat is not necessary as the temperature rise is very fast, less than 30 sec.
To turn on the toaster, just action the commutator (n°1 on picture) on the desired po-
sition (from 2 to 4), turn on the timer (n°3 on picture) according the desired cooking
time. The orange pilot light (n°2 on picture) ignites. Your machine is working
The selection of the cooking zone is made through the commutator
Never use the toaster without its tray (n°4 on picture)
41313

12
Nomenclature BAR 1000
Spare parts BAR 1000
Rep Code Qty Pièce Spare part
130030 1Toit Roof
2F01052 2Grille protége tubes Tube protection grid
3A02008 1Minuterie Timer
4A14078 1Bouton Knob
5A08003 1Voyant orange Orange pilot light
6A01017 1Commutateur Commutator
7A14078 1Bouton Knob
830036 1Plat Tray
9F01056 1Grille Grid
10 30039 1Socle Base
11 30033 1Fond de socle Bottom enclosure
12 30034SE 2Montant Upright
13 A13003 4Pied Foot
14 30031 2Flasque Side casing
15 B07025 8Clips Clips
16 D04022 4Résistance+tube quartz Quartz tube assembly
17 A10007 1Bornier Conecting block
18 C03006 1Cordon avec prise Cord with plug
19 30037 1Arrière Back
20 F03006 1Poignée support grille Grid holder handle
Commutator On/off pilot light
Timer 15 min Tray
5. FUNCTIONING / MANIPULATION
a) Installation / assembly:
-Unpack carefully the device of its packaging.
-Place it on a plane and heatproof surface.
-Never place the device near a wall or near a partition makes of combustible ma-
terials even if it is very well isolated.
-A distance of minimum 10 cm with the partition or the wall is necessary.
-Remove the protective films
b) First starting:
During the first use, warm your machine up outside to evacuate residual smokes of
manufacturing oil from the metallic parts. This may emit a slight smell for a few mo-
ments.
First cleaning
Clean the device before the first use. (See 6. Cleaning)
5
1
3
1 2
4
4
3
2

Connection of the device
-Check that the tension and the frequency of the electricity network suit to the values
indicated on the descriptive plate.
-Check that neither the cord nor the plug are damaged. If necessary, it has to be
replaced by the manufacturer, its after sale service or any qualified person to avoid
any risk.
-Make sure that every control knob is positioned on 0.
-Unwind completely the electric power cable and connect it in a plug connected with
the earth.
-The device is connected.
NB: in case of connection of the device in a plug without earth protection or directly
on the electricity network, confide its connection to a qualified person .
c) Use of device :

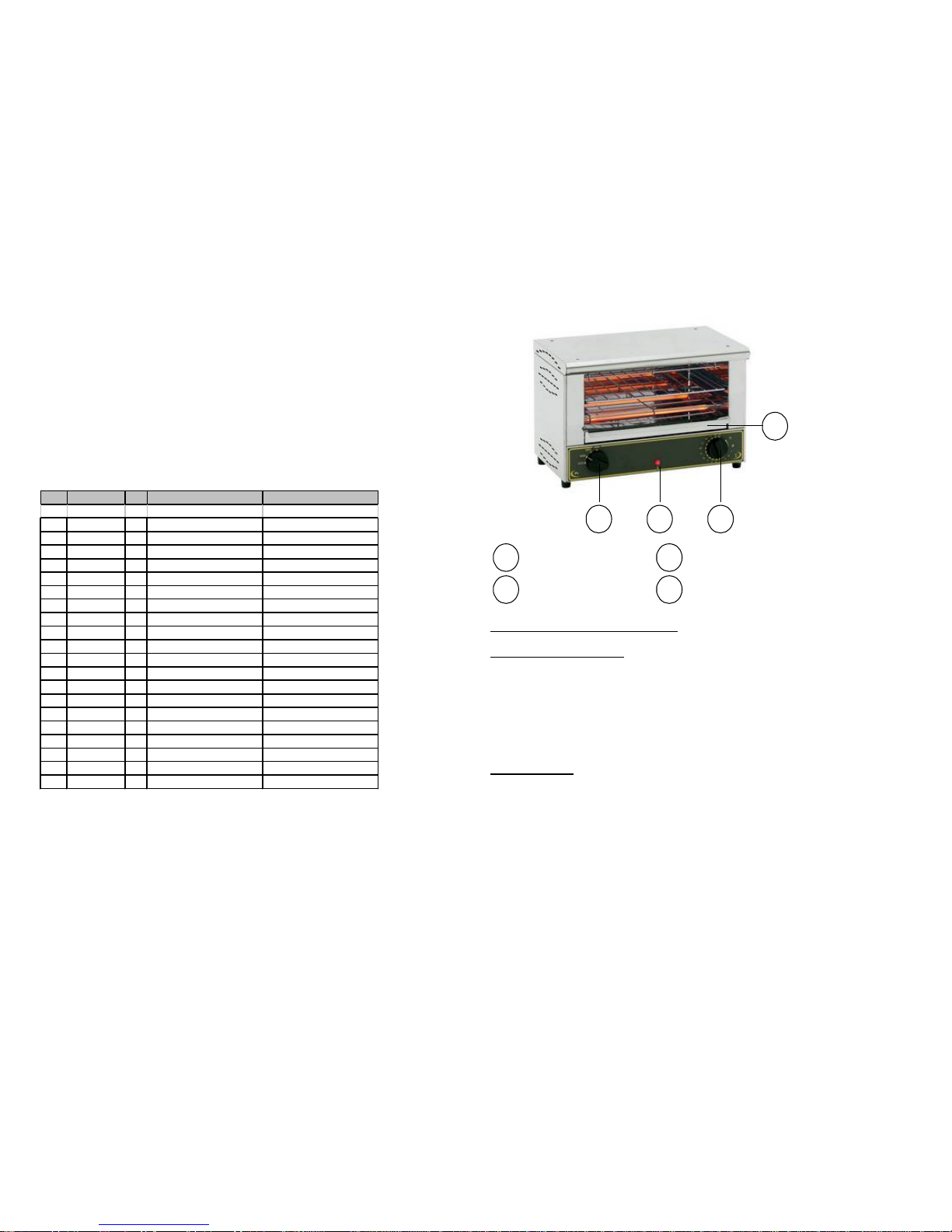

Elements of command and display
Putting on
Turn on the commutator (n°1 on picture) on the wished position.
Turn on the timer control knob (n°3 on picture) on the wished cooking time
The orange pilot light (n°2 on picture) ignites. The machine is on.
You can use your toaster in continuous by turning the timer on left side from position
0. Caution : do not forget to turn off your pizza oven after use.
Temperature setting
Set the power desired by positioning the commutator (n°1 on picture) to the wished
position.
Command/Display Function
Commutator 4 positions
(n° 1 on picture) :
Position 1
Position 2
Position 3
Position 4
Stop
Bottom quartz tubes only
Top quartz tubes only
All the tubes warm
Orange pilot light (n°2 on
picture) Machine is on
Timer 15 min (n°3 on pic-
ture) Cooking time
611

10
Stopping the appliance
Set the timer (n°3 on picture) on 0
Set the commutator (n°1 on picture) on 0: the appliance is no longer functioning.
Disconnect the power cable.
Clean the appliance. (see 6. Cleaning)
d) Breakdown / repair:
In case of breakdown or of damaged part, please call your after-sales service and
confide any technical operation to qualified person.
When you contact the after-sales service of your distributor or your store, give him
the complete reference of your device (commercial name, type and serial number).
This information appears on the visible descriptive plate behind the device.
6. CLEANING AND MAINTENANCE
-Disconnect the device.
-Let cool completely the device before any technical intervention or cleaning.
-Never clean the quartz tubes when they are hot
-Avoid touching quartz tubes with your fingers but use a cloth moistened with spirit.
-Clean regularly the external walls of your device with warm water and wash liquid:
avoid the abrasive towelling. Rinse your device with a wet sponge.
-Never clean the device under a water jet, the infiltrations would risk to damage it in
a irreparable way.
-Never immerse the device, the cord or the plug in the water or quite other liquid to
avoid any electric shock.
-During a prolonged non-use, we recommend you strongly to keep the device
shielded from the humidity.
7. TECHNICAL SPECIFICATIONS
7
Models BAR 1000 BAR 2000
Outside dimensions 450x285x305 mm 450x285x420 mm
Weight 10 Kg 12 Kg
Power 2000 W3000 W
Nb quartz tube 4 6
Current 8.7 A 13 A
Volt 220-240 V ~ 220-240 V ~

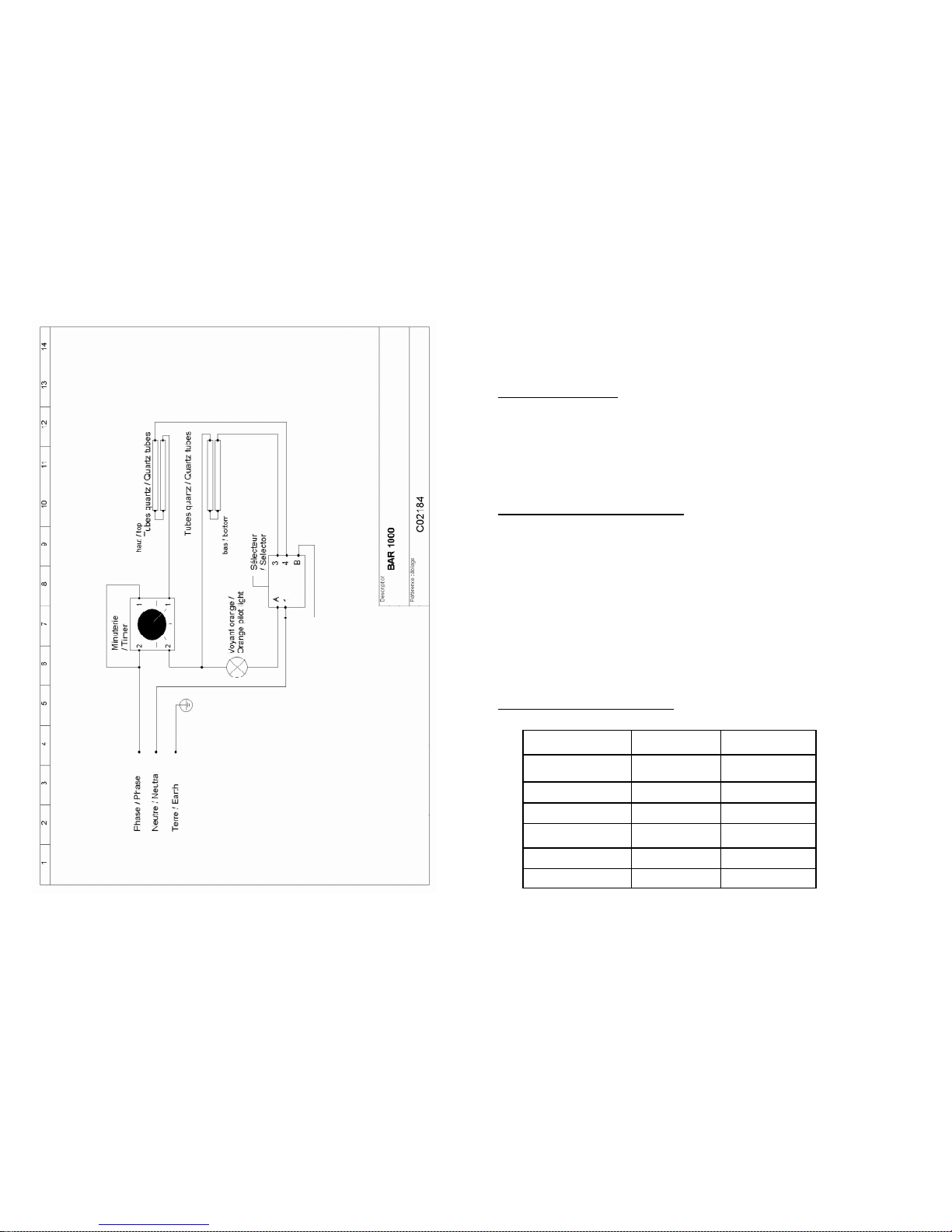

Wires colours correspondence Phase Brown/Black/Grey
Neutral Blue
Earth Yellow-Green
8. NORMS AND LEGALS DISPOSALS
The device is conform to :
IEC/EN 60335-1
IEC/EN 60335-2-48
EN 55014-1 + 55014-2
EN 61000-3-2 + 61000-3-3
9. ELIMINATION OF THE ELECTRIC AND ELECTRONIC WASTE
The device respects the directives:
2002/96/CE (DEEE) N°34270064800021
2002/95/CE (ROHS)
2006/95 CE
2004/108 CE
Reach rule
Never put the device among household waste.
The device must be put down in a centre of recycling for the electric equipments.
The materials of the device are indeed reusable. By eliminating correctly the electric
and electronic wastes, the recycling and quite other shape of re-use of worn equip-
ments, you participate in a significant way in the environmental protection.
For any information about the collection of electric and electronic waste, please con-
tact your distributor.
10. GUARANTEE
Conditions of guarantee
The guarantee applicable to any device is the commercial guarantee of the distributor
or the retailer. Please contact the store where you bought your device to know the
precise conditions.
The guarantee grants no right for damages.
8
The dispositions which follow are not exclusive of the profit of the legal guarantee
planned by articles 1641 and following ones of the Civil code relative to the defects
and the latent defects.
Exclusion clauses of the guarantee
Bad installation and bad maintenance, in particular if they do not respect cur-
rent regulations or instructions appearing in this user guide.
Cannot benefit from the guarantee the repairs required as a result of false opera-
tions, of inappropriate use, of carelessness or of excess loads of the device, as well
as those resulting from variations of the power supply, over tension or from defective
installations.
The damage due to shocks, bad weather is not flatware by the guarantee. The mate-
rial travels at the risks of the user; in case of delivery by carrier, the consignee has to
have reservations towards the carrier before any delivery of the device.
The guarantee comes to an end in case of intervention, of repair, of modification by
no qualified persons, or of use in inappropriate purposes.
9
