Rondish Nexus Call System User manual

Nexus Call System
User Instructions
V2.3.0, August 2022

NEXUS CALL SYSTEM by Rondish
P2
Contents
1. PRODUCT OVERVIEW .............................................................................................................................. 5
1.1 Compatible Equipment...................................................................................................................... 6
1.2 System Layout Options.................................................................................................................... 10
1.2.1 Receiver Dongle & Over-Door Lights........................................................................................ 11
1.2.2 Master & Network Repeaters................................................................................................... 12
1.3 Site Testing ...................................................................................................................................... 13
1.3.2 Pre-Install Survey...................................................................................................................... 14
1.3.3 Installation................................................................................................................................ 15
1.3.4 Full System Test........................................................................................................................ 16
2. INSTALLATION........................................................................................................................................ 17
2.1 Master Station................................................................................................................................. 18
2.1.1 Station Hardware...................................................................................................................... 18
2.1.2 Registering Nexus ..................................................................................................................... 22
2.1.3 Activating/Deactivating Kiosk Mode ........................................................................................ 22
2.2 Configuring a Repeater Network..................................................................................................... 23
2.2.1 Network ID................................................................................................................................ 24
2.2.2 Frequency Channel................................................................................................................... 24
2.2.3 Target Address.......................................................................................................................... 25
2.2.4 Data Rate .................................................................................................................................. 25
2.2.5 Repeater Address ..................................................................................................................... 25
2.2.6 Programming a Signal Hop ....................................................................................................... 27
2.3 Call Points ........................................................................................................................................ 28
2.4 Over-Door Lights.............................................................................................................................. 29
2.5 DoorWatcher................................................................................................................................... 31
2.5.1 DoorWatcher Settings .............................................................................................................. 31
2.5.2 Adding DoorWatcher to Nexus................................................................................................. 32
2.5.3 Mounting DoorWatcher ........................................................................................................... 32
2.5.4 Activate Patient Tags................................................................................................................ 33
2.5.5 Adjust Detection Distance ........................................................................................................ 33
2.6 BedWatcher..................................................................................................................................... 34
2.6.1 Adding Monitors to Nexus........................................................................................................ 34

NEXUS CALL SYSTEM by Rondish
P3
2.6.2 Synch Sensory Devices with Monitor ....................................................................................... 34
2.7 Messaging........................................................................................................................................ 35
2.7.1 Configuring Nexus..................................................................................................................... 36
2.7.2 Transmitter Setup..................................................................................................................... 36
2.7.3 Pager Setup............................................................................................................................... 37
2.7.4 Remote Display Setup............................................................................................................... 38
2.7.5 Smartphones............................................................................................................................. 40
3. USING NEXUS......................................................................................................................................... 41
3.1 Behavior Table................................................................................................................................. 41
3.2 Home Screen ................................................................................................................................... 42
3.2.1 Network Repeater Status ......................................................................................................... 42
3.3 Alarm Screen ................................................................................................................................... 43
3.3.1 Display Details .......................................................................................................................... 43
3.3.2 Admin Reset.............................................................................................................................. 44
3.4 Device Management........................................................................................................................ 45
3.4.1 Add New Device........................................................................................................................ 46
3.4.2 Device Location......................................................................................................................... 46
3.4.3 Delete Device............................................................................................................................ 47
3.5 Event Log ......................................................................................................................................... 48
3.6 Settings............................................................................................................................................ 49
3.6.1 Change Settings ........................................................................................................................ 49
3.6.2 Backup/Restore ........................................................................................................................ 50
3.6.3 Export Log................................................................................................................................. 50
3.6.4 Network Settings ...................................................................................................................... 51
3.6.5 Target IP Address...................................................................................................................... 51
3.6.6 Mobile Phone Provisioning....................................................................................................... 51
3.6.7 Messaging Settings................................................................................................................... 51
4. MAINTENANCE ...................................................................................................................................... 52
4.1 Battery Life ...................................................................................................................................... 52
4.2 Lost Device Detection...................................................................................................................... 52
4.3 Nexus Updates................................................................................................................................. 52
5. TROUBLESHOOTING .............................................................................................................................. 53
Appendix: FCC & CE statements................................................................................................................ 54

NEXUS CALL SYSTEM by Rondish
P4

NEXUS CALL SYSTEM by Rondish
P5
1. PRODUCT OVERVIEW
Nexus is a wireless call system designed for various applications including nurse and emergency call,
assisted living, elderly care homes, rapid deploy for hospitals, and bathroom alarms. The system
integrates emergency alarm call, wander prevention, bed alarms for fall management, and mobile calling
devices for residents to wear on their wrist or around the neck.
A tablet allows up to three calls to be displayed at a time, with higher priority calls automatically moved
to the top of the alarm display. Priority levels include Call (lowest), Bath/Bed/Door, Emergency, and Code
Blue (highest). If more than three calls happen to be active at the same time, the three highest priority
events will be shown; and lower priority calls will display as events are reset, or can be seen by scrolling
down the alarm screen. All events are logged with a record of event location, call type, time of trigger
and duration.
Optional Over-Door lights show Call, Bath or Emergency status. Each light has an internal buzzer with
adjustable volume, and can repeat the signal to greatly extend range and improve the reliability of
wireless coverage.
Nexus is supervised for lost connections, fault or battery low; and a software watchdog will restart the
application in the event of a system crash. A junction controller box goes even further and includes a
hardware watchdog as the ultimate safety feature (available for Nexus 2.3.0 and higher).
Messaging options include remote monitor displays large or small, mobile phones and pagers.

NEXUS CALL SYSTEM by Rondish
P6
1.1 Compatible Equipment
Model
Description
NDP-21
Rugged Tablet
•Operate Nexus as a desktop touch screen
•Connect either DON-30 or ZP-01(M) to establish a
wireless network for your facility
•Docking station (DOCK-01) includes three USB
ports for paging transmitter or external memory
drive
•Ethernet port allows networking multiple stations
TVB-21
Control Box
•Operate Nexus as a desktop computer or touch
screen
•Bluetooth compatibility for mouse and keyboard
•Connect DON-30 or ZP-01(M) to establish a
wireless network for your facility
•Connect with GP2009TR to enable remote corridor
displays and/or paging
•Ethernet port allows network of multiple stations

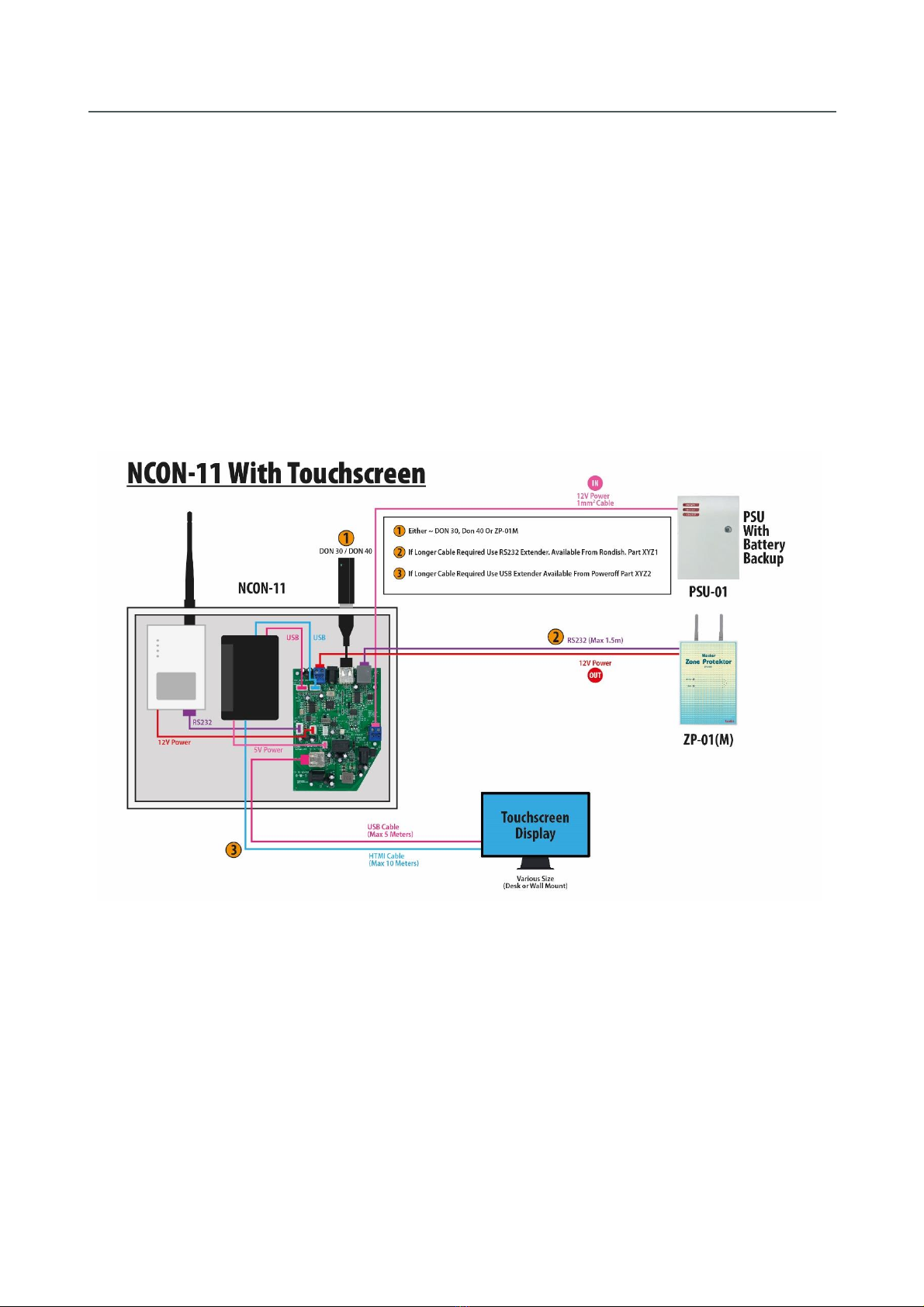

NCON-11
Junction Box
•Includes TVB-21
•Includes GP2009TR
•Connect DON-30 or ZP-01(M) to establish a
wireless network for your facility
•Surge protection and watchdog functionality to
restart Nexus if system becomes unresponsive
•Connects to touch screen monitor through USB
connection.
DON-30
Receiver Dongle
•Links with ILB-21 for smaller areas
•Suitable for individual wards, outpatient surgical
centers, or small care homes.
ZP-01(M)
ZP-01(S)
Master Controller & Network Repeaters
•ZP-01(M) Master connects with Rugged Tablet,
Control Box or Junction Box to operate the system
•ZP-01(S) Repeater expands wireless coverage of
your system (up to 2km open space)
•Allows use of bed monitoring, door monitoring,
and patient pendants

NEXUS CALL SYSTEM by Rondish
P7
GP2009TR
Paging Transceiver
•Signals to data pagers
•Used to receive signals for remote displays
•Alarm escalation to supervisor or neighboring
wards
GP2009N
Data Pager
•Notifies nursing staff of active events
•Alarm details match what is set on Nexus
WCP-11C
Bedhead Call Point
•Call and reset buttons
•Double press sends Emergency call
•RJ10 input for NEC-12 handset (shown)
•Handset remove alert
•Includes mounting screws
•Replaceable CR2477 lithium batteries
•Back plate available to cover 1-gang back boxes
•Low battery indication
NEC-12
Patient Handset
•Call button for patient access from the bed
•RJ10 plug connects with WCP-11C
•USB break connection
•Includes wall-mount bracket and screws
WCP-11
Bathroom Call Point
•Call and reset buttons
•Pull cord with dual triangles
•Includes mounting screws
•Replaceable CR2477 lithium batteries
•Back plate available (BP-01) to cover 1-gang back
boxes
•Low battery indication
•Rated IP65
NEC-05
Wireless Patient Handset
•Call and reset buttons
•Includes wall-mount bracket and screws
•Uses 2 x AAA alkaline batteries
•Low battery indication
ILB-21
Over-Door Light
•Dual-color LED light –shows RED for normal call
devices or WHITE for bath units
•Buzzer with adjustable volume
•Call forward function to extend range
•Includes wall-mount bracket and screws
•Uses 6 x C-type alkaline batteries
•Low battery indication
NEC-12
WCP-11C

NEXUS CALL SYSTEM by Rondish
P8
TXP-11(V2)
Patient Transmitter
•Mobile call button for active residents
•Wearable as wristband or pendant
•Man-down alert in case of falls (wristband only)
•Replaceable CR2450 lithium battery
•Low battery indication
•Rated IP65
DMS-21
DoorWatcher Sensor
•Triggers audible and visual alert when an at-risk
patient approaches a protected doorway
•Configurable with door lock to restrict access or
delay egress
•Allows caregivers to escort patients through
protected doors without alarming
TXP-21
DoorWatcher Resident Tag
•Faux leather with removable clasp
•Triggers alert on DMS-21 if area matches
•Low battery indication
•Rated IP67
NGM-21
CordFree Bed Monitor
•Room controller for integrated falls management
system
•Pause & reset alarms
•Works with bed/chair/floor sensormats
•Motion sensor and door/window compatible
•Uses 3 x AA alkaline batteries
•Low battery indication
TM-11(V3)
Transmitter Module
•Insert into Cordless sensorpad or floor mat to
connect with NGM-21 Cordfree monitor
•15 months battery life
WMBP-20
Cordless Under-Mattress Sensorpad
•Triggers alarm from patient bed exit
•Paired with NGM-21 monitor
•Invisible to residents for improved comfort
•More hygienic than sensorpads that may come
into contact with the skin
•Durable and long-lasting
•Low battery indication (from TM-11 transmitter
module)

NEXUS CALL SYSTEM by Rondish
P9
CCP-01
Cordless Chair Sensorpad
•Triggers alarm from patient chair exit
•Paired with NGM-21 monitor
•Durable and long-lasting
•Low battery indication (from TM-11 transmitter
module)
CMAT-02
Cordless Floor Sensormat
•Triggers alarm when stepped upon
•Paired with NGM-21 monitor
•Durable and long-lasting
•Low battery indication (from TM-11 transmitter
module)
PIR-21
Motion Sensor
•Narrow-angle detection for bedside use
•Paired with NGM-21 monitor

NEXUS CALL SYSTEM by Rondish
P10

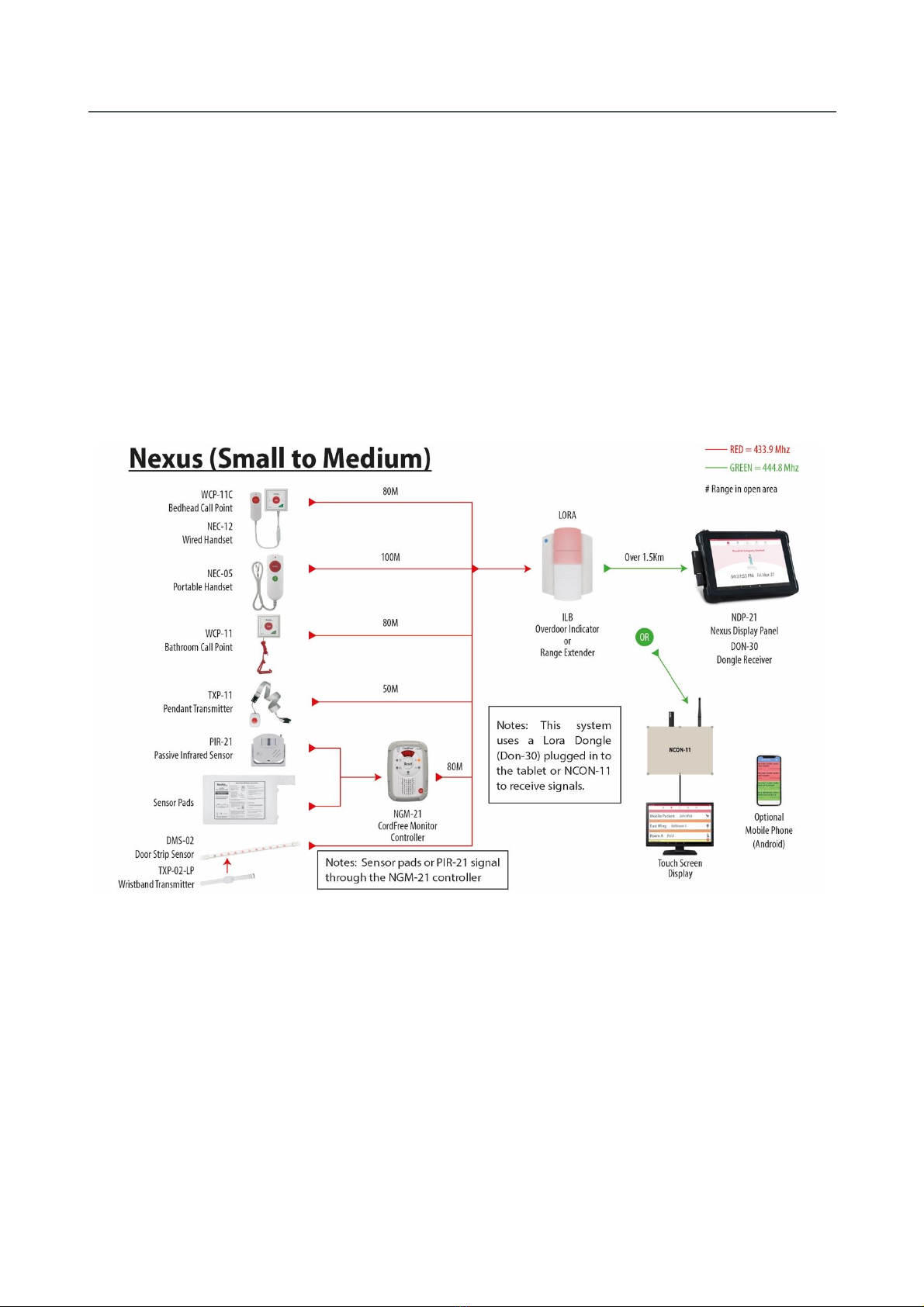

1.2System Layout Options
Nexus uses a proprietary wireless format to direct signals from call points and sensory devices to a nurse
station, where calls are displayed on the main Nexus panel. Once received, this panel can direct messaging
to staff using a paging transmitter, where messages can be displayed on Remote displays, pagers or
Android phones.
Receiving options are available to cover buildings of various sizes. Signals are brought into the Android
device using a Receiver Dongle (DON-30) for smaller areas, or Master Controller and Network Repeaters
(ZP-01(S)), which relay the call points and sensory devices status. When using Network Repeaters, signals
can be “hopped” from one repeater to another to further extend the wireless coverage.
The following layout diagrams give an overview to the options available depending on the complexity and
size of the building and type of equipment required.

NEXUS CALL SYSTEM by Rondish
P11
1.2.1 Receiver Dongle & Over-Door Lights
Over-Door lights (ILB-21) receive local signals from a variety of calling units, and can either be configured
as lights/sounder by reading into memory the calling unit, or configured as basicsignal repeaters to extend
system coverage. The ILB-21 communicates with a Receiver Dongle (DON-30) plugged into a Rugged
Tablet (NDP-21), Nexus Control Box (TVB-21), or Nexus Junction Box (NCON-11).
When used as a range extender the ILB-21 transmitter uses LoRa on a separate 400MHz channel to the
calling device. When connecting the ILB-21 you can trigger a range by touching a magnetic key to the
program point –this reduces the signal by 3bB to ensure the connection is secure. The open-air ranges
of the devices are shown on the diagram below.
The ILB-21 can be battery operated with a standby life of 18 months –ideal for a fast deploy or bathroom
alarms –or powered from a 12V supply with batteries used as backup.

NEXUS CALL SYSTEM by Rondish
P12
1.2.2 Master & Network Repeaters
Medium to Large systems can be set up using a Master and Network Repeater (ZP-01(M) and ZP-01(S))
configuration. Each repeater has a range in excess of one mile in open space, and repeaters can be
programmed to “hop” through other repeater units, allowing multiple floors or a campus of buildings to
be covered.
Example: Multi-floor building
Up to 3 hops can be used on the
system, and using the RSSI readings
viewable through the Event log on
Nexus this can be optimized for the
best layout.
There may be a bit of trial and error
to achieve the best RSSI levels by
changing the target address and
seeing if the RSSI level is higher or
lower.
You will be able to cover large areas
and multi-floor buildings using this
method to configure the system.

NEXUS CALL SYSTEM by Rondish
P13
1.3 Site Testing
Conducting a site survey can help you determine how many signal repeaters are needed for your facility,
and ideal locations for them to be installed. Two pieces of equipment are available from Rondish for
measuring effective range on site.
Due to the long-distance signaling between ZP-01(S) to ZP-01(M), and ability to hop between repeater
units, the main limitation on a site survey is the distance from the call points and sensory devices to the
nearest ZP-01(S).
For this we offer NGM-21T handheld testers with a range equivalent to -3dBm, as is recommended by UL
guidance. To perform a survey, use the tester to receive and alarms and reset at the locations you propose
to install the ZP-01(S) repeater units and test at the extremes of that particular zone. If your calling device
can be received by the tester at the proposed install location, you can be confident that it will reliably
work when a more sensitive ZP-01(S) is used for the actual installation.
For smaller facilities the ILB-21 Over-Door Lights can serve as the repeaters –the TTEST-01 can be used
for surveying these sites if necessary.
Model
Description
NGM-21T
Pegasus Monitor
•Use for testing signal reliability into ZP-01(S)
TTEST-01
Tag Tester
•Audio headphones can detect transmissions and
interference on 433.92MHz that may affect the
reception of alarm signals
•Check call points and sensory devices are
transmitting - shows the ID of the unit transmitting
•Use for testing signal reliability into ILB-21
The free space distance from devices is around,
Alarm Device
Range to ZP-01(S)
… to NGM-21T
… to ILB-21
… to TTEST-01
TXP-11(V2)
120m
90m
WCP-11
180m
120m
70m
55m
NGM-21
120m
90m

NEXUS CALL SYSTEM by Rondish
P14
1.3.2 Pre-Install Survey
Rondish recommends using floor plans to propose locations for ZP-01(S) signal repeaters in corridors at
regular intervals, around 40-50m apart. For a multi-story building operating as a single system, you can
offset the positions of repeaters on different floors (if you don’t care about locating mobile alarms). The
distances achievable will depend vary according to the structure of the building, with steel and concrete
much lower than wood and drywall.
Once you have proposed installation positions for the ZP-01(S) repeater units, you can visit the site with
your map and test out a few of the locations with the Pegasus range tester.
Place a WCP-11 at the furthest distances from the proposed ZP-01(S) location and test the Pegasus can
receive the signal. If the Pegasus tester will receive alarm and reset signals you can be confident about
the signal reliability into a ZP-01(S) repeater. In particular check the locations in the corners and make
sure the nearest ZP-01(S) is well within range. Pay particular attention when going through multiple
walls.
If TXP-11 are being used on this site, repeat using this device at the furthest distance it will be used, and/or
where there are obstacles blocking the path.
Note:

NEXUS CALL SYSTEM by Rondish
P15
If using a Receiver Dongle & ILB-21 Over-Door Lights, use the TTEST-01 instead of an NGM-21T
•Use TTEST-01 where you propose to place the ILB-21
•Use the TXP-11 to test for itself or the NGM-21
•Use the WCP-11 for its range
•Use the head set to listen for any noise on the site
1.3.3 Installation
Based on the site survey you should have a good idea if your original ZP-01(S) positioning will cover the
area and can start the installation.
Place each ZP-01(S) at the proposed locations and then power up the repeaters. When the Nexus is
launched, it will attempt to establish the repeater network, linking to each ZP-01(S) in turn. Make sure
each ZP-01(S) is programmed correctly using the same Network ID, Frequency Channel, and each has a
unique address (See Section 2.2).
When the link is established, a Relative Signal Strength Indication (RSSI) value will be recorded in the
Nexus Event Log, which will be a number between 0-255. An RSSI value of 80 or above is OK, however
Rondish recommends that readings below 100 be programmed to hop through a ZP-01(S) with a higher
RSSI reading for the most reliable performance. You are allowed to hop through 2 x ZP-01(S) units (3
hops).
Once the network is optimized you can start to install call points or other alarm devices throughout the
building. The main thing to ensure is that the units have different ID codes and that the site code is set
correctly, if applicable.
Once the WCP-11 is installed in the position required you can do a range safety check using the magnet
keychain device (or any magnet) to send a signal ~ -3dB to trigger the system. This is done by placing a
magnetic key on the reset button and pressing the call button.
The TXP-11 units should be tested at the extremes of the area to ensure they can be received and detailed
records of the tests kept.
Note:
If using a Receiver Dongle & ILB-21 Over-Door Lights, you can test the network by touching a magnet to
the blue dot on the ILB-21 to reduce the signal transmission by -3dB. This will confirm the signal strength
between ILB-21 & DON-30 is sufficiently strong.
In the event you cannot reach the Nexus main station you will need to add a Range extender or reposition
the position of the ILB-21 units.
Finally check all the call points are working correctly.

NEXUS CALL SYSTEM by Rondish
P16
1.3.4 Full System Test
Test all call points throughout the building. You can check the RSSI reading on the computer to see if any
readings are low to give a guide, especially the pendant TXP-11 units. Keep a record of all test results for
future reference.
Test all units for call and reset.
It is important to be methodical in this testing and keep good records so it is recommended
to make a matrix of test results to ensure all units are tested and in good order. Check all the worst-case
positions to ensure calls can be received.
The test procedures are similar to the ZP-01(S) except the range to an ILB-21 Over-Door light is more
limited, requiring a different range tester must be used. This is achieved but using the TTEST-01 unit
above.

NEXUS CALL SYSTEM by Rondish
P17
2. INSTALLATION
Nexus is designed for a straightforward installation process that minimizes your time spent on site.
Following these steps will have your system up and running in just a few hours:
1. Switch on the NDP-21/TVB-21 and connect the DON-30 Receiver Dongle or ZP-01(M) Master
Controller –the application will automatically open to a splash screen displaying the version of
Nexus installed on this device
2. Change the PIN and enter name of your organization (optional) in the Settings menu. If a DON-
30, skip to Step 5. If repeaters are used you must configure the Network ID and Channel.
3. Program ZP-01(S) Repeaters to use the same Network and Channel selected at ZP-01(M) Master
Controller –Refer to section 2.2 for details. When all Repeaters in the network are initialized by
the Master, power up or connection, check the RSSI values shown in the Event Log. Rondish
recommends programming a signal hop if recorded RSSI values are below 100
4. Add and mount call points (Section 2.3) and sensors in Device Management and define how each
should display during a call –refer to Section 3.3 for details of adding and renaming devices.
5. Pair call points and sensors with Over-Door lights (optional)
6. Mount Over-Door lights (if used), call buttons and brackets for patient handsets
7. Test all of the call points three times (call & reset) to ensure that signals are reliably received by
the Nexus

NEXUS CALL SYSTEM by Rondish
P18
2.1 Master Station
Start your installation by powering up the device you will use for the Master Station. There are two
current hardware options:
2.1.1 Station Hardware
Nexus can operate on a Rugged Tablet (NDP-21) for an easily configurable desktop solution, or on a
versatile Control Box (TVB-21) that allows a monitor or any size to be connected. A System Controller
(NCON-11) includes a Control Box, Paging Transmitter, USB hub and failsafe circuitry in one housing, and
will allow the user to interface with Nexus using a touch screen or wireless keyboard & mouse.
Nexus Rugged Tablet (NDP-21)
The Rugged Tablet comes with a docking station that allows convenient placements on a nurse desk. The
back of the docking station includes three USB connections, allowing a DON-30 or ZP-01(M) to connect a
network, and a GP2009TR paging transmitter to signal paging signals. The ethernet port allows for a LAN
and central database of multiple Nexus stations.
Setup
•Connect the power adapter provided
•Insert DON-30 or connect ZP-01(M) to launch Nexus
The docking station has three USB ports for a
receiver, paging transmitter and data backup.
The LAN allows connecting to a central
database.

NEXUS CALL SYSTEM by Rondish
P19
Nexus Control Box (TVB-21)
Nexus Control Boxes can be configured with software to function as remote displays mounted on a wall
or corridor. An ethernet port allows multiple stations to be networked with a central database. For
details, see Section 2.5.3.
Setup
•Connect the power adapter provided
•Connect with HD monitor using HDMI cable
•Connect Bluetooth keyboard and mouse in Setting -> Connected Devices -> Pair new devices, then
follow the instruction
•Insert DON-30 or ZP-01(M) to launch Nexus
•Disable AC Lost/Low battery Warning is turned OFF in the Settings menu
Power input
HDMI –Computer
monitor
Ethernet –to LAN
for database
Audio out –external
speaker
USB 2.0 –Dongle or ZP-
01(M)
USB 3.0 –GP2009TR
paging transmitter
Power button

NEXUS CALL SYSTEM by Rondish
P20
Nexus Junction Box (NCON-11)
The Nexus Junction Box (NCON-11) has been designed as a control box so that you can simply plug into
the box the items that you require, including DON-30, ZP-01(M). It includes a TVB-21 to run Nexus –which
can be connected to computer monitors of various sizes through an HDMI cable –and a GP2009TR
transmitter for messaging.
The NCON-11 includes power handling (surge suppression, fuses, regulators) with outputs for the various
items, AC lost and battery low detection, and a hardware watchdog to reset the system in the unlikely
event of a system crash. For Master Station we recommend a touchscreen for ease of use, although a
Bluetooth mouse or keyboard can also be used.
