Rongpeng RP9061-2/LT50 User manual

RON5PEN6
The Famous Name In Tools
Instruction Manual
Pneumatic Finish Nailer
Model No.
RP9061-2/l T50
Ga.16(1.6x1.4mm)
length:20mm-50mm(3/4" -2" )
Upon receipt ofthe product, read and follow all safety
rules, operating instructions before first ues
it. And retain this manual
for future reference.
RP2011

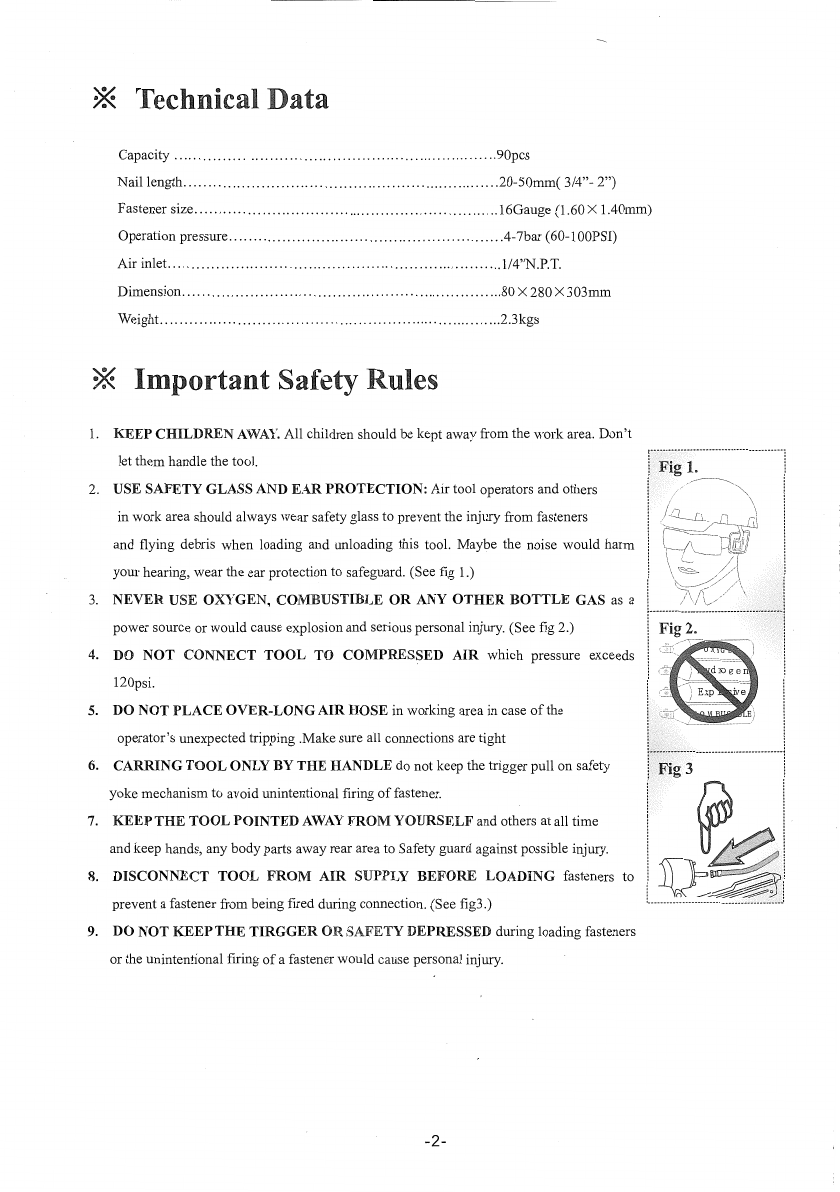

* Technical Data
Capacity ................................................................... 90pcs
Nail length
.................................................................. 20-50mm( 3/4"- 2")
Fastener size
................................................................ 16Gauge (1.60X l.40nun)
Operation pressure
........................................................ .4-7bar (60-1 OOPS I)
Air inlet
..................................................................... .l/4''N.P. T.
Dimension ................................................................... 80 X280X303mm
Weight.
....................................................................... 2.3kgs
* Important Safety Rules
1. KEEP CHILDREN AWAY. All children shonld be kept away from the workarea. Don't
let them handle the tool.
2. USE SAFETY GLASS AND EAR PROTECTION: Air tool operators and others
in work area should always wear safety glass to preventthe injury from fasteners
and flying debris when loading and unloading this tool. Maybe the noise would harm
your hearing, wear the ear protection to safeguard. (See fig 1.)
3.
NEVER USE OXYGEN, COMBUSTIBLE OR ANY OTHER BOTTLE GAS as a
power source or would cause explosion and serious personal injury. (See fig 2.)
4. DO NOT CONNECT TOOL TO COMPRESSED AIR which pressure exceeds
120psi.
5.
DO NOT PLACE OVER-LONG AIR HOSE in working area in case of the
operator's unexpected tripping .Make sure all connections are tight
6. CARRING TOOL ONLY BY THE HANDLE do not keep the triggerpull on safety
yoke mechanism to avoid unintentional firing
of fastener.
7.
KEEP THE TOOL POINTED AWAY FROM YOURSELF and others at all time
andkeep hands, any body parts away rear area to Safety guard against possible injury.
8.
DISCONNECT TOOL FROM AIR SUPPLY BEFORE LOADING fasteners to
prevent a fastener from being fired during connection. (See fig3.)
9. DO NOT KEEP THE TIRGGER OR SAFETY DEPRESSED during loading fasteners
orthe unintentional firing
of a fastener would cause personal injury.
-2-

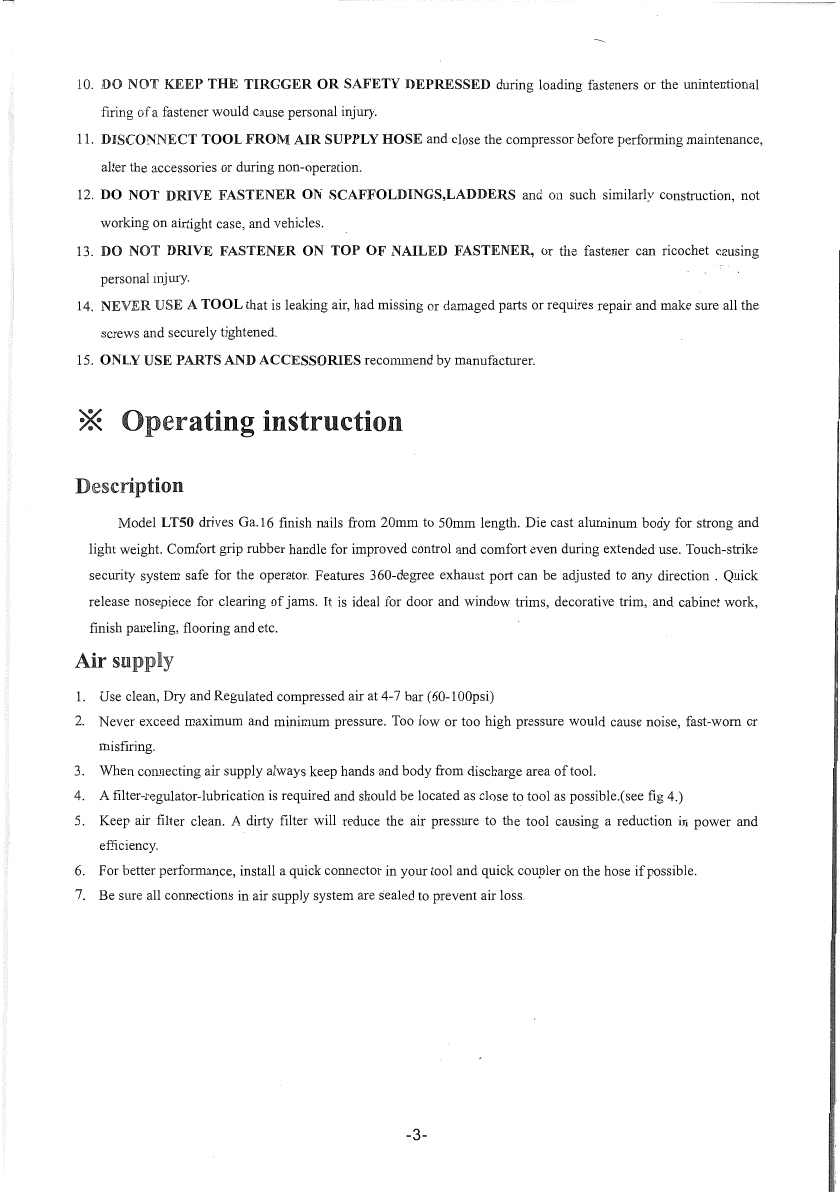

I 0. DO NOT KEEP THE TIRGGER OR SAFETY DEPRESSED during loading fasteners or the unintentional
firing
of a fastener would cause personal injury.
11. DISCONNECT TOOL FROM AIR SUPPLY HOSE and close the compressor before performing maintenance,
alter the accessories or during non-operation.
12. DO NOT DRIVE FASTENER ON SCAFFOLDINGS,LADDERS and on such similarly construction, not
working on airtight case, and vehicles.
13. DO NOT DRIVE FASTENER ON TOP OF NAILED FASTENER, or the fastener can ricochet causing
personal injury.
14. NEVER USE A TOOL that is leaking air, had missing or damaged parts or requires repair and make sure all the
screws and securely tightened.
15. ONLY USE PARTS AND ACCESSORIES recommend by manufacturer.
* Operating instruction
Description
Model LTSO drives Ga.16 finish nails from 20mm to 50mm length. Die cast aluminum body for strong and
light weight. Comfort grip rubber handle for improved control and comfort even during extended use. Touch-strike
security system safe for the operator. Features 360-degree exhaust port can be adjusted to any direction . Quick
release nosepiece for clearing
of jams. It is ideal for door and window trims, decorative trim, and cabinet work,
finish paneling, flooring and etc.
Air supply
1. Use clean, Dry and Regulated compressed air at 4-7 bar (60-lOOpsi)
2. Never exceed maximum and minimum pressure. Too low or too high pressure would cause noise, fast-worn or
misfiring.
3. When com1ecting air supply always keep hands and body from discharge area
of tool.
4. A filter-regulator-lubrication is required and should be located as close to tool as possible.(see fig 4.)
5. Keep air filter clean. A dirty filter will reduce the air pressure to the tool causing a reduction in power and
efficiency.
6. For better performance, install a quick connector in your tool and quick coupler on the hose if possible.
7. Be sure all connections in air supply system are sealed to prevent air loss.
-3-

---------------------------------------------------------------------------··----------------------------------------------------------------------------------------------·
i
~~ i
Quick Quick ,!
Connector Connector :
I Tool I~~~~ · .. 'I
Qu1 ick QU lk ~ ~
Coupler Coupler j J
Air Jose Regulator j
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------=

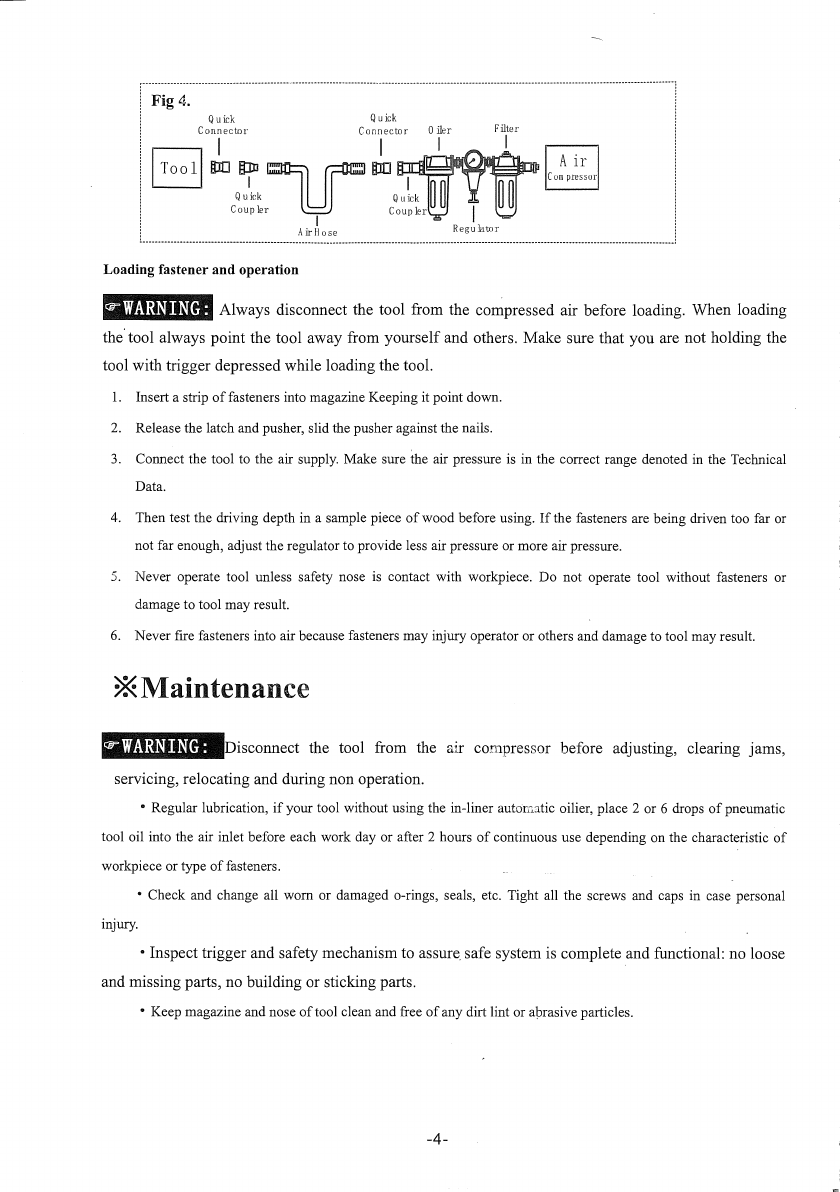

Loading fastener and operation
dyf;f QHl~(i Always disconnect the tool from the co~pressed air before loading. When loading
the· tool always point the tool away from yourself and others. Make sure that you are not holding the
tool with trigger depressed while loading the tool.
I. Insert a strip of fasteners into magazine Keeping it point down.
2. Release the latch andpusher, slid the pusher against the nails.
3. Connect the tool to the air supply. Make sure the air pressure is in the correct range denoted in the Technical
Data.
4. Then test the driving depth in a sample piece of wood before using. If the fasteners are being driven too far or
not far enough, adjust the regulator to provide less air pressure or more air pressure.
5. Never operate tool unless safety nose is contact with workpiece. Do not operate tool without fasteners or
damage to tool may result.
6. Never fire fasteners into air because fasteners may injury operator or others and damage to tool may result.
*Maintenance
M./idMlldMDisconnect the tool from the air compressor before adjusting, clearing jams,
servicing, relocating and during non operation.
• Regular lubrication, if your tool without using the in-liner automatic oilier, place 2 or 6 drops of pneumatic
tool oil into the air inlet before each work day or after 2 hours
of continuous use depending on the characteristic of
workpiece or type of fasteners.
• Check and change all worn or damaged o-rings, seals, etc. Tight all the screws and caps in case personal
injury.
• Inspect trigger and safety mechanism to assure_ safe system is complete and functional: no loose
and missing parts, no building or sticking parts.
• Keep magazine and nose of tool clean and free of any dirt lint or aprasive particles.
-4-

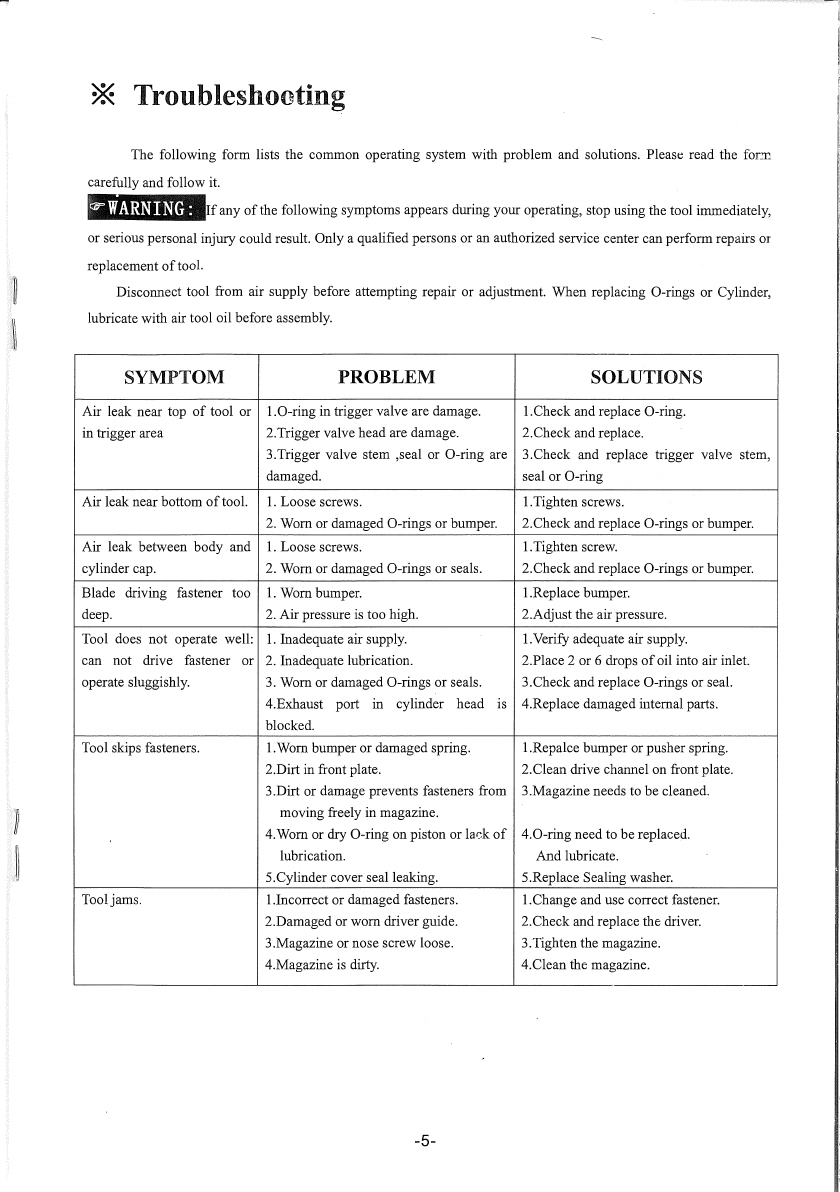

* Troubleshooting
The following form lists the common operating system with problem and solutions. Pleas~ read the form
carefully and follow it.
.J;\Mll~Mf any of the following symptoms appears during your operating, stop using the tool immediately,
or serious personal injury could result. Only a qualifiedpersons
or an authorized service center canperform repairs or
replacement of tool.
Disconnect tool from air supply before attempting repair or adjustment.
When replacing 0-rings or Cylinder,
lubricate with air tool oil before assembly.
SYMPTOM PROBLEM SOLUTIONS
Air leak near top of tool or 1.0-ring in trigger valve are damage. I.Check and replace 0-ring.
in trigger area 2.Trigger valve head are damage.
2. Check and replace.
3.Trigger valve stem ,seal or
0-ring are 3.Check and replace trigger valve stem,
damaged. seal
or 0-ring
Air leaknear bottom of tool. I. Loose screws. I.Tighten screws.
2. Worn or damaged 0-rings or bumper. 2.Check and replace 0-rings or bumper.
Air leak between
body and 1. Loose screws. 1. Tighten screw.
cylinder cap. 2. Worn or damaged
0-rings or seals. 2.Checkand replace
0-rings or bumper.
Blade driving fastener too
1. Worn bumper. I.Replace bumper.
deep. 2.
Air pressure is too high. 2.Adjustthe air pressure.
Tool does not operate well:
1. Inadequate air supply. I.Verify adequate air supply.
can not drive fastener or 2. Inadequate lubrication. 2.Place 2 or 6 drops
of oil into air inlet.
operate sluggishly. 3. Worn or damaged
0-rings or seals. 3.Check andreplace 0-rings or seal.
4.Exhaust port in cylinder head is 4.Replace damaged internal parts.
blocked.
Tool skips fasteners. I.Worn bumper
or damaged spring. l .Repalce bumper or pusher spring.
2.Dirt in front plate. 2.Clean drive channel on front plate.
3
.Dirt or damage prevents fasteners from 3.Magazine needs to be cleaned.
moving freely in magazine.
4.Worn
or dry 0-ring on piston or lack of 4.0-ring need to be replaced.
lubrication. And lubricate.
5.Cylinder cover seal leaking. 5.Replace Sealing washer.
Tool jams. I.Incorrect
or damaged fasteners. I.Change and use correct fastener.
2.Damaged
or worn driver guide. 2.Check andreplace the driver.
3.Magazine
or nose screw loose. 3.Tighten the magazine.
4.Magazine is dirty. 4.Clean the magazine.
-5-

MODEL:LT-1650
Parts List
No
Description
No
Des:t:dntlon
l
Bolt
42 Switch Seat
Ai.r Deflector 43 Trigger Pin
3
Sprin& Slice
44 Snap R~~-.tim:r
4 Bolt
M5x10 45 Tri!."e:o:r
5
Spring Washer 5 4-0 Siifety Spacer
Cylinder Cov.e;
47
Pin
] ><25
7
Spring Washer 48 i S.!i.fety yoke
Sprimz:&at 49 I
Bolt
Compres.""cd Spring 50 Compres.scd. Spring
10 0--ring
33.6,.. 2 51
Nul
I!
Switch Valve.
52
Silfel:y
12 0-ring 46
x2
53
S::ifo:ty Case
13 So!.nling Wushc-r 54 Pin 3 x 18 I
!4
0-ring 33,3 >< 3.5
55
Qukk Release Handk
1
15 Main pi:i;ton 56
Ri!leuse Bm;on
16 Collar
57
Pin
A4><20
l7 Fixed Ring 58 Cover Plnre
18
0-ring 63 ,.. 2.5
58A Cover PJa!e Unit
f
19
0-ring 42.5 x 2.5
59 Boll
M5"' ~4
20 Cylinder
60 Boll MS>< 16
21
Bumncr
61 Driver Gujdcr
22 SeuI Plale 62 fl:>:.ed r
.... 1-~-:ne
23 Cyliridcr Crip Seal 63 Jnlav Siicc
J'·;
24 Gun Body 64 Movable M~..,.azinc
'
H~
' W>lSher
65
Bolt
I
26
0-dng 41 >< 1.6
""
Compres~ Sp.ring
1~27
Cover Pl::ilc
67 Siopper
?3 Spring Wa.o;.}mr
68
Su ............. rt~at
29 Bolt M6><20
fJ9 Sorl-nll"\\>•.a!dler
30 Llnder
70
Bolt
M4><6
31
0-ring l.5 >< 2_65
71
Sol~ M4><8
32
0-ring 17.4 x LS
72
FhedScnl
33
Valve Sea.l
73 Pin
34
O-rir1g 6.2 >< 1.8
74 Spring
35
0-ring
6A;~2
75 Re!ewre Latch
36 0-ring
9,. 1.8
76
Nu1
37 Pilm Valve
77 Rubber Handk Cu-.c
38
0-ring 2.5 )« 1.5
78
End Cup Wa!>hc r
39 Spring 79
End C:ip
40
Switch Pipe
~
80 ldr Plug
.. ,
0-ring Z0.3 " 2.-3 '
-6-

RO
NEi
The Famous Name In Tools
ZHEJIANG RONGPENG AIR TOOLS CO.,LTD.
WWW.RONGPENG.CQM
MADE
IN CHINA
