Rongpeng F30F User manual

1
Air Nailer F30F http://www.rongpeng.com
OPERATING INSTRUCTIONS FOR FASTENER DRIVING TOOLS OPERATED BY
COMPRESSED AIR
Air Nailer (Brad Nailer) Model No.: F30F(bigger housing)
Residual risks
Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following
hazards may arise in connection with the tool’s construction and design:
Damage to lungs if an effective dust mask is not worn.
Damage to hearing if effective hearing protection is not worn.
Health defects resulting from vibration emission if the power tool
is being used over longer period of time or not adequately
managed and properly maintained.
Wear eye protection.
Content:
1 Technical data 2.7 Actuating systems
1.1 Fastener 3 Compressed air system
1.2 Accessories 4 Preparing the tool for use
1.3 Description/Features 4.1 Preparing a tool for first operation
1.4 Location of Parts 4.2 Connection to the Compressed air system
2 Special references 4.3 Filling the magazine
2.1 Regulations 4.4 Handling the tool
2.2 Noise emission 5. Maintenance
2.3 information on mechanical impact (vibration) 6 Troubleshooting

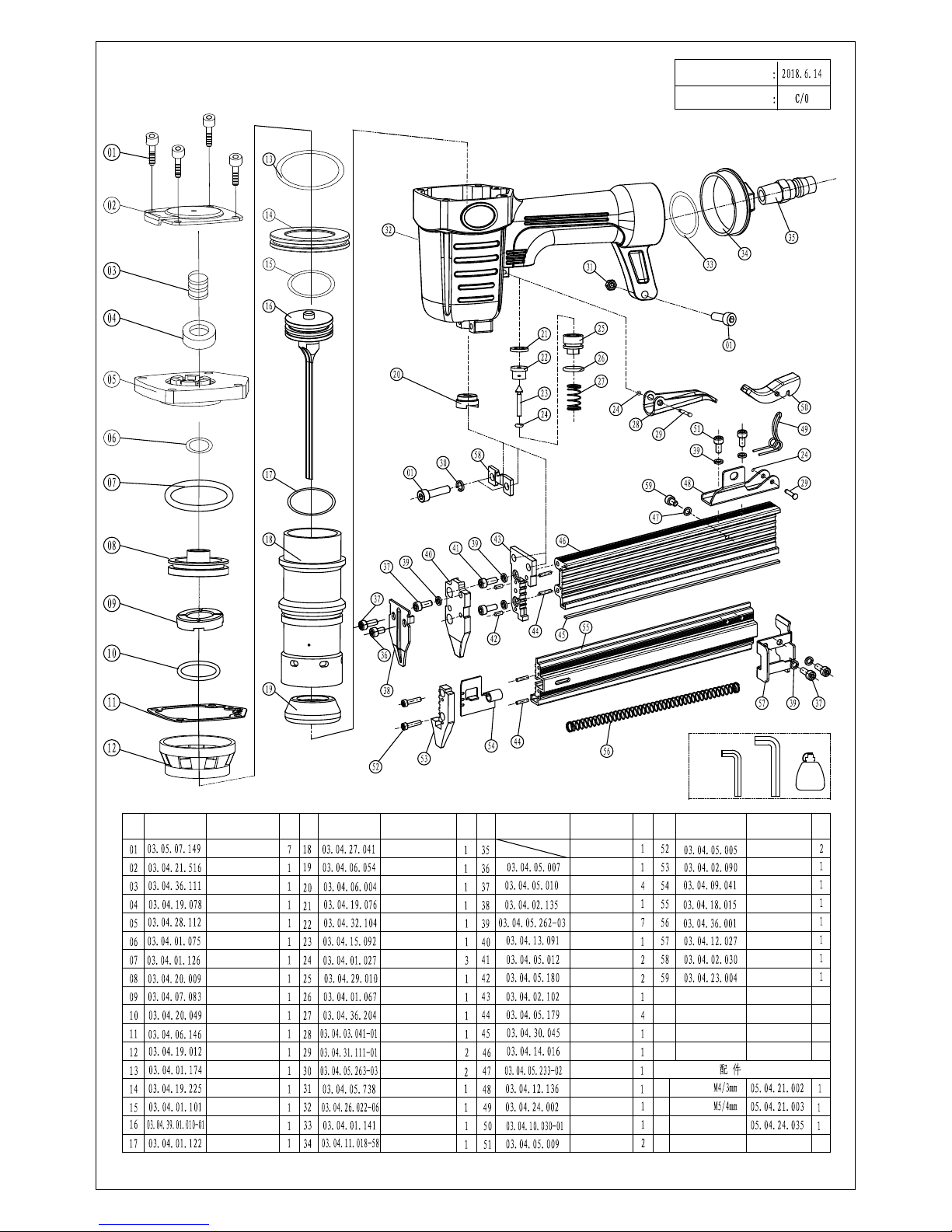

2.4 Safety of fastener driving tool 7 explode drawing
2.5 Safety at work 8 Spare parts list
2.6 Triggering devices
IMPORTANT:
Read all safety rules and operating Instructions carefully before first use
it. Keep this Manual for future reference.

2
Air Nailer F30F http://www.rongpeng.com
1. Technical data
Type of tool
F30F
Weight (without fasteners)
1.22kg (2.7Lb)
Activation mode
single sequential
Required pressure
70-110PSI (4.8-7.5bar)
Nail
Brad nail
Max. pressure
120PSI (8.3bar)
Nail Capacity
100Pcs
Recommended lubricant
white mineral oil 10＃
1.1 Fastener
Fastener size: Ga18 (1.25×1.0mm)
Nail length: 10-30mm(3/8”-1-3/16”)
Magazine capacity: 100pcs
1.2 Accessories
Hexagon Key
Lubricant
Operating instruction
1.3 Description/Features
Innovative design with light weight
Easily open magazine latch for fast loading by one hand
Continuous operation for high efficiency
Heat treated air inlet plug prolonged the life.

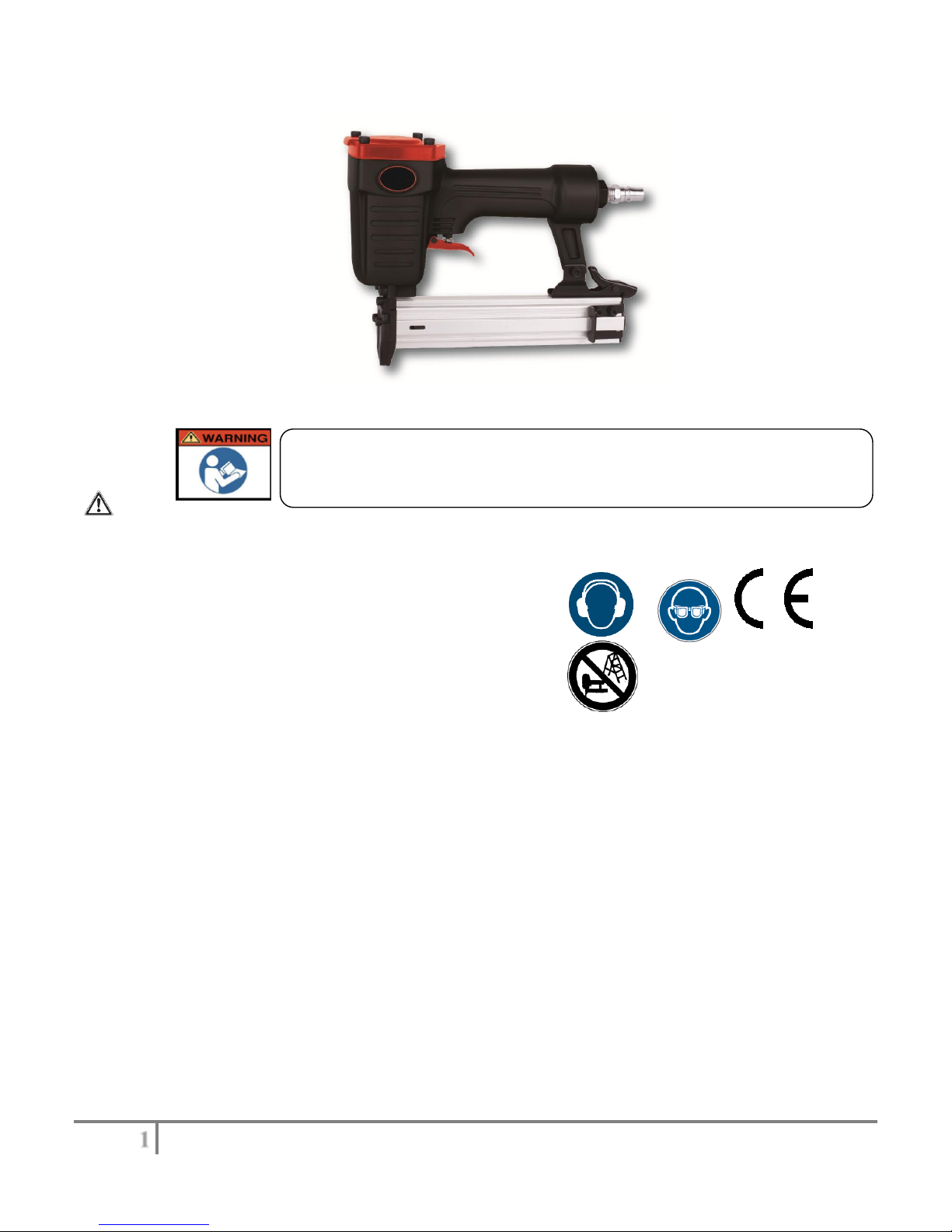

1.4 locations of Parts (see Figure 1)
A-Magazine
B-Trigger
C-Exhaust Vent
D- Air Quick Coupler
2 .Special references
2.1 Instructions
The following standard is applicable to fastener driving tools; EN792-13:2000+A1:2008”Hand-held non-electric
power tools-safety requirements –Part 13: Fastener driving tools”.
This standard requires that
-only those fasteners which are specified in the operating instructions (see TECHNICAL DATA)shall be used
in fastener driving tools. The fastener driving tool and the fasteners specified in the operating instructions are
to be considered as one unit safety system;
-quick action couplings shall be used for connection to the compressed air system and the non-sealable
nipple must be fitted at the tool in such a way that no compressed air remains in the tool after disconnection;
-oxygen or combustible gases shall not be used as an energy source for compressed air operated fastener
driving tools;
-fastener driving tools shall only be connected to an air-supply where the maximum allowable pressure of the
tool cannot be exceeded by more than 10%;in the case of higher pressure ,a pressure reducing valve which
includes a downstream safety valve shall be built into the compressed air supply;
-only spare parts specified by the manufacturer or his authorized representative shall be used in the repair of
fastener driving tools;
-repairs shall be carried out only by the manufacturers authorized agents or by other experts, having due
regard to the information given in the operating instructions.
-stands for mounting the fastener driving tools to a support, for example to a work table, shall be designed and
constructed by the stand manufacturer in such a way that the fastener driving tools can be safely fixed for the
B
C
D
A

3
Air Nailer F30F http://www.rongpeng.com
intended use, thus for example avoiding damage, distortion, displacement.
Special fields of application for the fastener driving tool may require the observance of additional provisions and
regulations.
-only the main energy and lubricants listed in the operating instructions may be used:
-fastener driving tools marked with an inverted equilateral triangle standing on one point may only be used
with an effective safety yoke;
-for the maintenance of fastener driving tools, only spare parts specified by the manufacturer or his authorized
representative shall be used;
-repairs shall be carried out only by agents authorized by the manufacturer or by other specialists, having due
regard to the information given in the operating instructions;
-NOTE: Specialists are those who, as a result by professional training or experience, have sufficient
expertise in the field of fastener driving tools and sufficient familiarity with relevant govemmental industrial
protection provisions, accident prevention regulations, directives and generally recognized technical
regulations(e.g. CEN-and CENELEC-standards),to be able to assess the safe working condition of fastener
driving tools.
2.2 Noise emission
The characteristic noise values for the fastener driving tool have been determined in accordance with
EN12549:1999 and EN ISO4871”Acoustics-Noise test code for fastener driving tools-Engineering method”(see
Technical Data).
These values are tool-related characteristic values and do not represent the noise development at the point of use.
Noise development at the point of use will for example depend on the working environment, the work piece, the
work piece support and the number of driving operations, etc.
Depending in the conditions at the workplace and the form of the workplace, individual noise attenuation measures
may need to be carried out, such as placing work pieces on sound-damping supports, preventing work piece vibration by
means of clamping or covering, adjusting to the minimum air pressure required for the operation involved, etc,
It is necessary to wear hearing protection equipment.
2.3 Information on mechanical impact (vibration)
The characteristic vibration values for the fastener driving tool have been determined in accordance with ISO
8662-11:1999 and EN 12096 –Measurement of vibration in hand-held power tools –Part 11:Fastener driving
tools(see Technical Data).
This value is a tool-related characteristic value and does not represent the influence to the hand-arm-system when
using the tool. An influence to the hand-arm-system when using the tool will for example depend on the gripping
force, the contact pressure force, the working direction, the adjustment of energy supply, the workplace, the work
piece support.
2.4 Safety of the fastener driving tool
-Check prior to each operation that the safety and triggering mechanism is functioning properly and that all
nuts and bolts are right.
-Do not carry out any alterations to the fastener driving tool without the manufactures authorization.
-Do not disassemble or make inoperative any parts of the fastener driving tool such as
the safety yoke.
-Do not perform any” emergency repairs” without proper tools and equipment.
-The fastener driving tool should be serviced properly and at regular intervals in
accordance with the Manufacturer’s instructions.
-Avoid weakening or damaging the too, for example by: punching or engraving;
-modification not authorized by the manufacturer guiding against templates made of
hard material such as steel;
-use the equipment as a hammer;applying excessive force of any kind
Fig 2

4
Air Nailer F30F http://www.rongpeng.com
2.5 Safety at work
-Never point any operational fastener driving tool at yourself or at any other person or animals.
-Hold the fastener driving tool during the work operation in such a way that no injuries can be caused to the head or
to the body in the event of possible recoil consequent upon a disruption in the energy supply or hard areas within
the workplace.（see fig 2）
-Never actuate the fastener driving tool into free space. This will avoid any hazard caused
by free flying fasteners and excessive strain of the tool.
-The tool shall be disconnected from the compressed air system for the purpose of
transportation, especially where ladders are used or where an unusual physical posture is

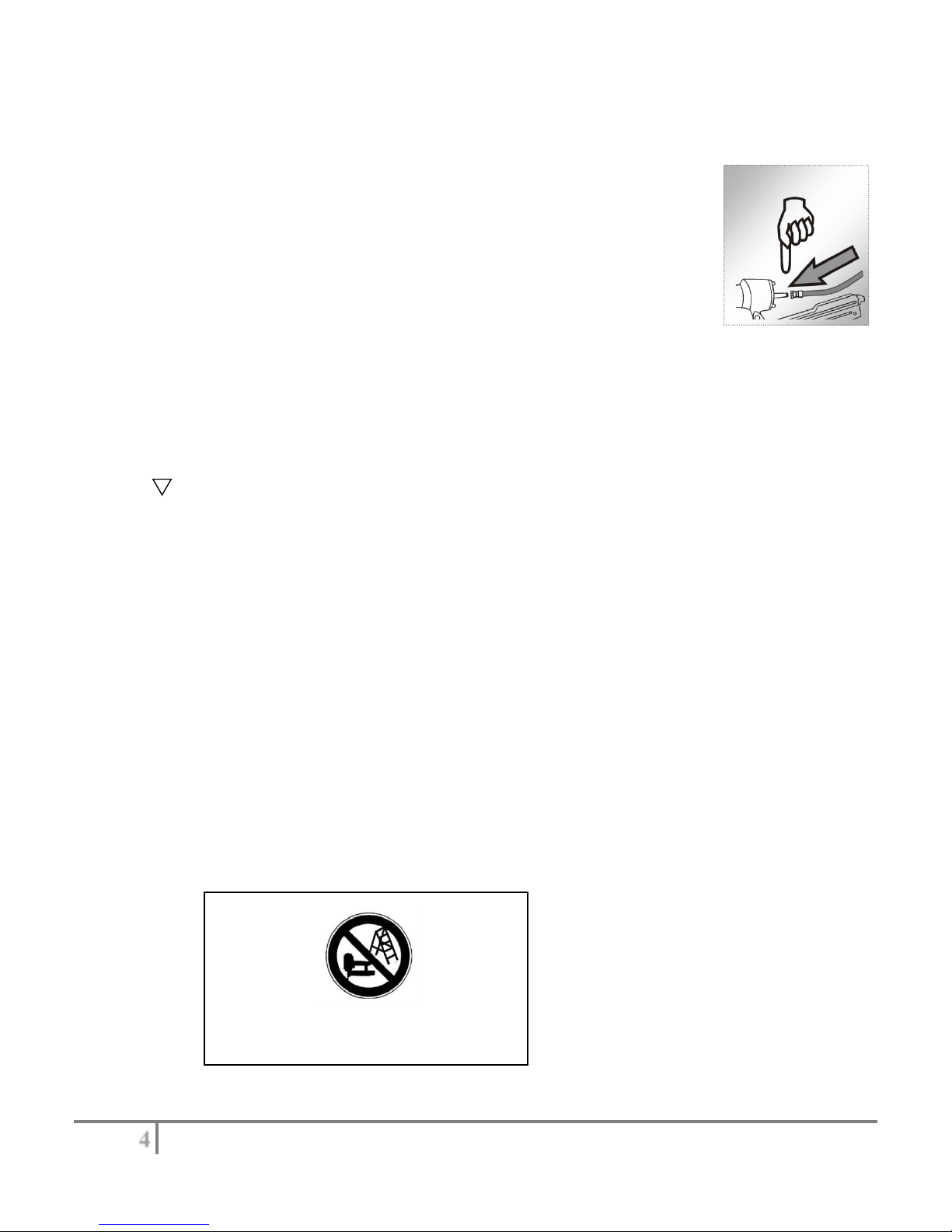

adopted whilst moving(see Fig 3).
-Carry the fastener driving tool at the workplace using only the handle, and never with the
trigger actuated. Take conditions at the workplace into account. Fasteners can penetrate
thin work pieces or slip off corners and edges of workplaces, and thus put people at risk.
-For personal safety, use protective equipment such ad hearing and eye protection (see fig 2)
IMPORTANT: DO NOT direct the adjustable vent hole to the operator or other person or animals during the use.
2.6 Triggering devices
Fastener driving tools are operated by actuating the trigger using finger pressure.
In addition, fastener driving tool is fitted with a safety yoke which enables the driving operation to be carried out
only after the muzzle of the tool is pressed against a work piece, These tool are marked with an inverted
triangle( ) behind the serial number and are not permitted for use without an effective safety yoke.
2.7 Actuating systems
Depending on their purpose, fastener driving tool is fitted with actuating system of single sequential actuation and
contact actuation.
You could switch to one nail figure to choose single sequential actuation, and switch to two nail figure to choose
contact actuation.
- Single sequential actuation: An actuating system in which the trigger and the safety yoke have to be activated so
the only one single driving operation is actuated via the trigger after the muzzle of the tool has been applied to the
driving location, Thereafter further driving operations can only be performed after the trigger has been returned to
the non driving position whilst the safety yoke remains depressed.
-Contact actuation (restricted version):An actuating system in which the trigger and the safety yoke have to be
actuated for each driving operation, with the order of actuation not being specified .For repeated driving operations,
it is sufficient if either the trigger remains activated and the safety yoke is activated thereafter, or vice versa.
Fastener driving tools equipped with contact actuation must be marked with the symbol” Do not use on scaffoldings,
ladders’ (see Fig.4) and shall not be used for specific application for example:
-when changing one driving location to another involves the use of scaffoldings, stairs, ladders, or ladder alike
constructions, e.g. roof laths;
-closing boxes or crates; fitting transportation safety systems e.g. on vehicles and wagons.
Colours:
Red on white ground,
fastener driving tools and
ladder black
Fig 3
Fig. 4: Symbol” Do not use on scaffoldings,
ladders”

5
Air Nailer F30F http://www.rongpeng.com
3. Compressed air system
Proper functioning of the fastener driving tool requires filtered, dry and lubricated compressed air in adequate
quantities.
If the air pressure in the line system exceeds the maximum allowable of the fastener driving tool, a pressure
reducing valve followed by a downstream safety valve shall additionally be fitted in the supply line to the tool.
NOTE: When compressed air is generated by compressors, the natural moisture in the air condenses and
collects as condensed water in pressure vessels and pipelines. This condensate must be removed by water
separators. These water separators must be checked on a daily basis and if necessary drained, since
corrosion can otherwise develop in the compressed air system and in the fastener driving tool. Which
serves to accelerate wear?
The compressor plant shall be adequately dimensioned in terms of pressure output and performance (volumetric
flow) for the consumption which is to be expected. Line sections which are too small in relation to the length of the
line (pipes and hoses), as well as overloading the compressor, will result in pressure drops.
Permanently laid compressed air pipelines should have an internal diameter of at least 19 mm and a corresponding
large diameter where relatively long pipelines or multiple users are involved.
Compressed air pipelines should be laid so as to form a gradient (highest point in the direction to the
compressor).Easily accessible water separators should be installed at the lowest points.
Junctions for users should be joined to the pipelines from above,
Connecting points for fastener driving tools should be fitted with a compressed air servicing unit(filter/water
separator/oiler)directly at the junction point.
Oilers must be checked on a daily basis and if necessary topped up with the recommended grade of oil (see
TECHNICAL DATA). Where hose lengths of over 10 m are used., the oil supply for the fastener driving tool cannot
be guaranteed, We therefore recommend that 2to 5drops (depending on the loading of the fastener driving tool)of
the recommended oil (see TECHNICAL DATA) should be added via the air inlet of the tool, or an oiler attached
directly to the fastener driving tool. (see fig 5)
4. Preparing the tool for use
4.1 Preparing a tool for first time operation
Please Read and observe these Operating Instruction before using the tool. Basic safety measures should always
be strictly followed to protect against damage to the equipment and personal injury to the user or other people
working in the vicinity of operation.
4.2 Connection to the compressed air system
Ensure that the pressure supplied by the compressed air system does not exceed themaximum allowable pressure
of the fastener driving tool. Set the air pressure initially to the lower value of the recommended allowable pressure
(see TECHNICAL DATA).
Empty the magazine to prevent a fastener from being ejected at the next stage of work in the event that internal
WARNING
Never free-fire the tool at high pressure.

6
Air Nailer F30F http://www.rongpeng.com
parts of the fastener driving tool are not in the starting position following maintenance and repair work or
transportation.
Connect the fastener driving tool to the compressed air supply using suitable pressure hose equipped with
quick-action connectors.
Check for proper functioning by applying the muzzle of the fastener driving tool to a piece of wood or wooden
material and actuating the trigger once or twice.
4.3Filling the magazine
Only those fasteners specified under TECHNICAL DATA (see 1.1) may be used
When filling the magazine, hold the tool so that the muzzle is not pointing towards the operator or any other person
or animals.
4.4 Handling the tool
Pay attention to 2-Special Reference-of these operating instructions.
Having checked that the fastener driving tool is functioning correctly, apply the tool to a work piece and actuate the
trigger.
Check whether the fastener has been driven into the work piece in accordance with the requirements.
- if the fastener is protruding, increase the air pressure in increments of 0.5 bar, checking the result after each new
adjustment;
- if the fastener is driven into an excessive depth reduce the air pressure I increments of 0.5 bar until the result is
satisfactory.
You should endeavor in any event to work with the lowest possible air pressure. This will give you three significant
advantages;
1. Energy will be saved, 2. Less noise will be produced, 3. A reduction in fastener driving tool wear will be
achieved.
Avoid triggering the fastener driving tool if the magazine is empty.
Any defective or improperly functioning fastener driving tool must immediately be disconnected from the
compressed air supply and passed to a specialist for inspection.
In the event of longer breaks in work or at the end of the working shift, disconnect the tool from the compressed air
supply and it is recommended to empty the magazine.
The compressed air connectors of the fastener driving tool and the hoses should be protected against
contamination, the ingress of coarse dust chips, sand etc, will result in leaks and damage to the fastener driving
tool and the couplings.
5. Maintenance
Disconnect the tool from the compressor before adjusting, clearing jams, servicing &maintenance, relocating and
during non operation.
Regular lubrication, if your tool without using the in-liner automatic oilier, place 2 or 6 drops of pneumatic tool oil
into the air inlet before each work day or after 2 hours of continuous use depending in the characteristic of work
piece or type of fasteners.
Air-operated tools must be inspected periodically, and worn or broken parts must be replaced to keep the tool
operating safely and efficiently. Check and change all worn or damaged O-ring, Seals, etc. Tighten all the screws
and caps to avoid personal injury. This should be done by an expert.
Make regular inspection for free movement of trigger, spring and safety mechanism to assure safe system is
complete and functional: no loose and missing parts, no building or stocking parts.
Keep magazine and nose of tool clean and free of any dirt lint or abrasive particles.
When temperatures are below freezing, tools should be kept warm by any convenient, safe method.

7
Air Nailer F30F http://www.rongpeng.com
6. Trouble shooting (See Table 1)
SYMPTOM
PROBLEM
SOLUTIONS
Air leak near top of
tool or in trigger area
1. O-ring in trigger valve is damaged.
2. Trigger valve head are damage.
3. Trigger valve stem, seal or O-ring are damaged.
1. Check and replace O-ring.
2. Check and replace.
3.Check and replace trigger valve stem, seal or O-ring
Air leak near bottom of
tool.
1. Loose screws.
2. Worn or damaged O-rings or bumper.
1. Tighten screws.
2. Check and replace O-rings or bumper.
Air leak between body
and cylinder cap.
1. Loose screws.
2. Worn or damaged O-rings or seals.
1. Tighten screw.
2. Check and replace O-rings or bumper.
Blade driving fastener
too deep.
1. Worn bumper.
2. Air pressure is too high.
1. Replace bumper.
2. Adjust the air pressure.
Tool does not operate
well: can not drive
fastener or operate
sluggishly.
1. Inadequate air supply.
2. Inadequate lubrication.
3. Worn or damaged O-rings or seals.
4. Exhaust port in cylinder head is blocked.
1. Verify adequate air supply.
2. Place 2 or 6 drops of oil into air inlet.
3. Check and replace O-rings or seal.
4. Replace damaged internal parts.
Tool skips fasteners.
1. Worn bumper or damaged spring.
2. Dirt in front plate.
3. Dirt or damage prevents fasteners from moving
freely in magazine.
4. Worn or dry O-ring on piston or lack of
Lubrication.
5. Cylinder covers seal leaking.
1. Replace bumper or pusher spring.
2. Clean drive channel on front plate.
3. Magazine needs to be cleaned.
4. O-ring needs to be replaced.
And lubricate.
5. Replace Sealing washer.
Tool jams.
1. Incorrect or damaged fasteners.
2. Damaged or worn driver guide.
3. Magazine or nose screw loose.
4. Magazine is dirty.
1. Change and use correct fastener.
2. Check and replace the driver.
3. Tighten the magazine.
4. Clean the magazine.

F30F(big housing)Explosive View and Parts list Issue date:
Version no.:
No.
Figure number
Description
Qty.
No.
Figure number
Description
Qty.
No.
Figure number
Description
Qty.
No.
Figure number
Description
Qty.
Bolt M5x20
Exhaust cap
Compressed spring
Sealing washer
Cylinder cap
O-ring 13.7X2.4
O-ring 31.2X2.5
Head Valve Piston
Gasket
O-ring 24.8X3.5
Sealing washer
Collar
O-ring 48.7x2.65
Collar
O-ring 21.3x3
Piston assembly
O-ring 30x1.8
Cylinder
Bumper
Rubber Washer
Rectangle Washer
Trigger Valve Stem
Trigger Valve Pipe
O-ring 1.7x2
Trigger Valve Guide
O-ring 11.2*2
Compressed Spring
Trigger
Pin
Spring washer
Nut M5
Housing
O-ring 36.3x3.55
End cap
Air inlet plug
Bolt M4X6
Bolt M4X10
Adjust board
Spring washer
Cover plate
Bolt M4X14
Pin 2.5x5
Fixed driver guide
Pin 2x10
Inlay Slice
Fixed magazine
Washer
Foxed Seat
Torsion spring
Orientation handle
Bolt M4*8
Bolt M3*12
Driver guide board
Pusher
Movable Magazine
Pusher spring
Fix seat
Partition
Limit screw
Wrench
Wrench
Oiler
