Ronix 7514 User manual

7514
ELECTRIC STAPLER/NAIL GUN

USER MANUAL 1
SPECIFICATION
Model 7514
Power 20W
Frequency 50Hz
Voltage 220V
Nb of Shots/Min 20
Maximum Magazine
Capacity 100
Staple Size 10.6 , 11.3 mm
Max Nail Length F30 )30mm)-Gauge
18
Weight 0.95kg
Supplied in Ronix Color box
Includes 400 Pcs Staples + 100
Pcs Nails

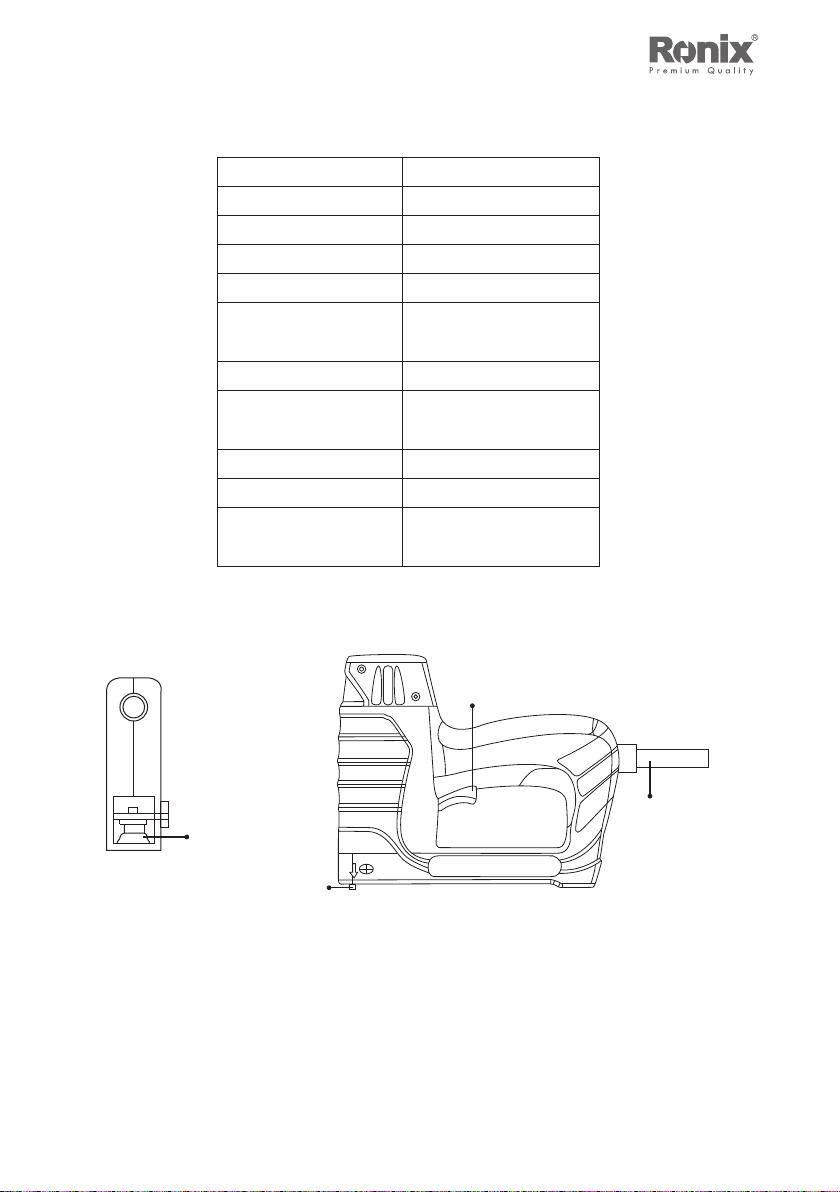

PART LIST
Staple Feeder
Trigger
Power Cord
Safety Yoke
LIST OF MAIN PARTS
1) Trigger
2) Safety yoke
3) Power Cord
4) Staple Feeder

ELECTRIC STAPLER/NAIL GUN
2
GENERAL SAFETY RULES
WARNING!
Read and understand all instructions. Failure to follow all instructions
listed below may result in electric shock, fire and/or serious personal in-
jury. The warnings, cautions, and instruction discussed in this instruction
manual cannot cover all possible conditions and situations that may
occur. It must be understood by the operator that common sense and
caution are a factor which cannot be built into this product, but must be
supplied by the operator.
.WORK AREA
1. Keep your work area clean and well organized. Cluttered benches
and dark areas invite accidents.
2. Do not operate power tools in explosive atmosphere, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep bystanders, children and visitors away while operating a power
tool. Distractions can cause you to lose control.
.ELECTRICAL SAFETY
1. Do not change the plug in any way. Double Insulation
eliminates the need for the three wire grounded power cord and
grounded power supply system.
2. Avoid body contact with grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if
your body is grounded.
3. Don’t expose Staple Gun to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord to carry the tools or pull
the plug from an outlet. Keep cord away from heat, oil, sharp edges or
moving parts. Replace damaged cords immediately. Damaged cords
increase the risk of electric shock; it may create a risk of fire.

USER MANUAL 3
5. When operating a power tool outside, use an extension cord suitable
for outdoor use and is marked “W-A” or “W.” These cords are rated for
outdoor use and reduce the risk of electric shock.
6. During normal operation, if anything happens, the power should be
cut off at once and the tool should be checked and repaired.
.PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use tool while tired or under the influence
of drugs, alcohol, or medication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long
hair. Keep your hair, clothing and gloves away from moving parts. It is
recommended to wear protective goggles, gloves, sturdy non-slipping
shoes and an apron while operating the machine.
3. Avoid accidental starting. Be sure switch is off before plugging
in. Carrying tools with your finger on the switch or plugging in tools that
have the switch on invites accidents.
4. Remove adjusting wrench before turning the tool on. A wrench or a
key that is.
5. left attached to a rotating part of the tool may result in personal injury.
6. Do not overreach. Keep proper footing and balance at all times. Proper
footing and balance enables better control of the tool in unexpected
situations.
7. Use safety equipment. Always wear eye protection. Dust mask,
non-skid safety shoes, hard hat, or hearing protection must be used for
appropriate conditions.
.TOOL USE AND CARE
1. Use clamps or other practical way to secure and support the work
piece to a stable platform. Holding the work by hand or against your
body is unstable and may lead to loss of control.
2. Do not force tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.

ELECTRIC STAPLER/NAIL GUN
4
3. Do not use tool if switch does not turn ON and OFF. Any tool that
cannot be controlled with the switch is dangerous and must be repaired.
4. Disconnect the plug from the power source before making any adjust-
ments, changing accessories or storing the tool. Such preventive safety
measures reduce the risk of starting the tool accidentally.
5. Store idle tools out of reach of children and other untrained persons.
Tools are dangerous in the hands of untrained users. They should be
kept away from work area.
6. Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintained tools, with sharp cutting edges are less likely to bind and are
easier to control.
7. Check for misalignment or binding of moving parts, breakage of parts,
and any other condition that may affect the tools operation. If damaged,
have the tool serviced before using. Many accidents are caused by
poorly maintained tools.
8. Use only accessories that are recommended by the manufacturer for
your model. Accessories that may be suitable for one tool, may become
hazardous when used on another tool.
.NOISE / VIBRATION INFORMATION
Measured values determined according to EN 60745-1 and EN 60745-
2-16 . The A-weighted noise levels of the tool are typically: sound pres-
sure level: 81.5 dB (A); sound power level: 92.5 dB (A).
Measuring inaccuracy K = 3 dB(A).
Wear hearing protection! The typical hand-arm vibration is 2.63 m/s2,
Measuring inaccuracy K = 1.5 m/s2
.SERVICE
1. Tool service must be performed only by qualified repair personnel.
Service or maintenance performed by unqualified personnel could result
in a risk of injury.
2. When servicing a tool, use only identical replacement parts. Fol-
low instructions in the Maintenance section of this manual. Use of

USER MANUAL 5
unauthorized parts or failure to follow Maintenance Instructions may
create a risk of electric shock or injury.
PLEASE READ AND SAVE THESE INSTRUCTIONS TO ENSURE
THE SAFE ANDEFFECTIVE USE OF THIS TOOL
1. Staple Gun must not be loaded with staples and nails at the same
time.
2. Do not lubricate. The Staple Gun has been lubricated at the factory.
Under normal use it will not need further lubrication.
3. Do not hold the Stapler Gun toward people, it could invite serious
injuries.
4. Store Staple Gun a dry locked cabinet and keep it out of reach of
children.
5. Always assume that the tool contains fasteners. Careless handling
of the tacker can result in unexpected firing of fasteners and personal
injury.
6. Do not point the tool towards yourself or anyone nearby. Unexpected
triggering will discharge the fastener causing an injury.
7. Do not actuate the tool unless the tool is placed firmly against the
work piece. If the tool is not in contact with the work piece, the fastener
may be deflected away from your target.
8. Disconnect the tool from the power source when the fastener jams
in the tool. While removing a jammed fastener, the tacker may be
accidentally activated if it is plugged in.
9. Do not use this tacker for fastening electrical cables. It is not designed
for electric cable installation and may damage the insulation of electric
cables thereby causing
electric shock or fire hazards.
OPERATION
There is one safety related switches, Safety Yoke (fig.1)

ELECTRIC STAPLER/NAIL GUN
6
For safety concern, the operating step should take in the order of
“Connect the plug to a socket on wall or on extension cord” “Place
the tool so that the safety yoke is lightly in contact with the workspace”
“Press the Push Button and press the down the tool instantaneously so
that the safety you could have sufficient stroke to actuate the fasteners.
TO LOAD THE FASTENERS
1 2 3
.STAPLE LOADING
1. Turn tacker upside down and pull the magazine to the end (Fig. 1)
2. Load a strip of staples or nails into the tunnel (Fig.2) push back the
magazine to it is lock position (Fig. 3)
3. The staples can only be loaded into the tunnel with the backs of
staples facing downwards (Fig.2).
4. The nails can only be loaded into the tunnel at this side (Fig.2)
ARROW ® JT-21
ESCO # 530
KWB # 053
NOVUS # 53
RAPID #53
ROCAFIX # 3
STANLEY # A/53
0.7mm
11.3
mm
8-16
mm
0.7mm
10.6
mm
8-16
mm
18 GAUGE BRAD NAIL
ARROW 1810
ESCO # 300
NOVUS#J
ROCAFIX#8
14-16
mm

USER MANUAL 7
TO CLEAN
Use only dry cloth to clean the housing. Using of aggressive or alcoholic
cleaners is not permissible.
MAINTENANCE
CAUTION:
Always be sure that the tool is switched OFF.
.CLEANING
Clean dust and debris form the staple gun vents. Keep the staple gun
clean, dry and free of oil and grease. Use only mild soap and a damp
cloth to clean the staple gun. Certain cleaning agents and solvents
are harmful to plastic and other insulated parts. Do not use gasoline,
turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvent,
ammonia, or household cleaning detergents containing ammonia to
clean staple gun.
ENVIRONMENTAL PROTECTION
If the tool should no longer work at all, please make sure that it is
disposed in an environmentally friendly way, by handing it into a public
collection point. Please do not put it with your household waste.
