Ronix RA-1850 User manual

18 GAUGE 55MM BRAD NAILER
RA-1850

USER MANUAL 1
SPECIFICATIONS OF NAILER

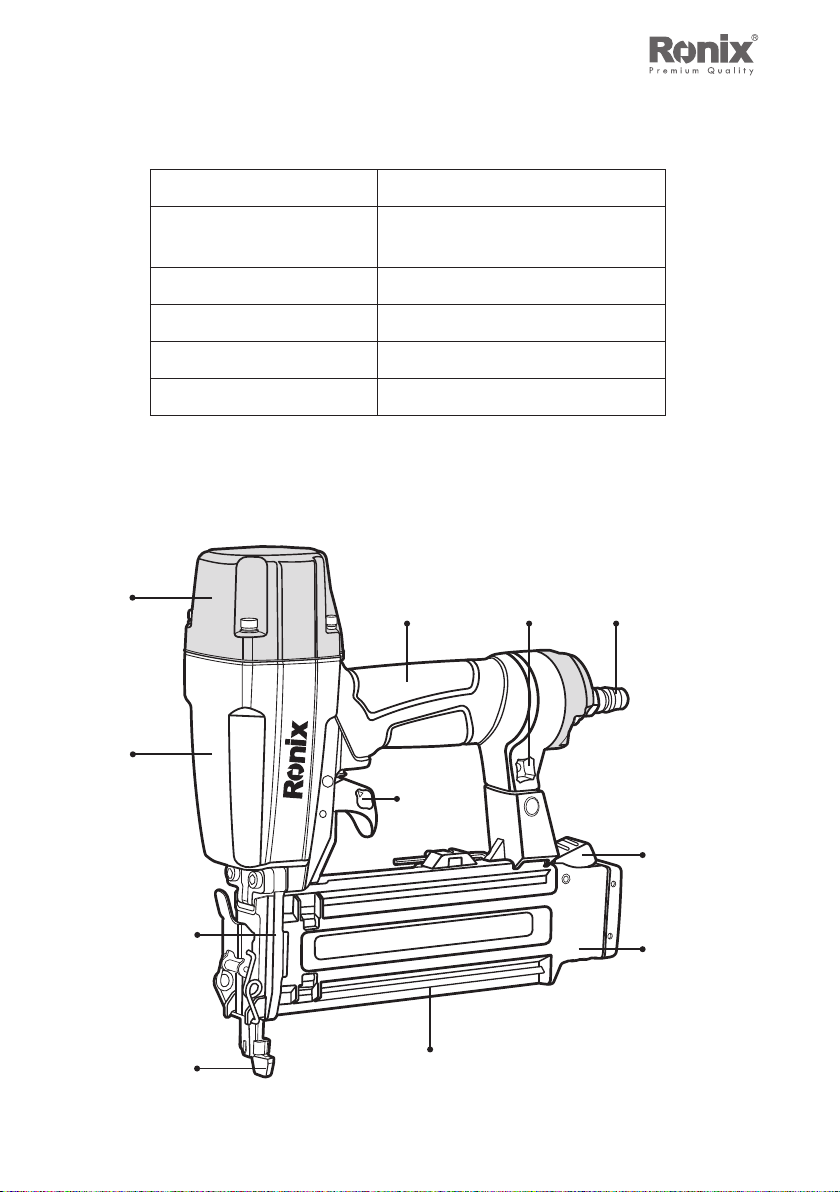

.NAME OF PARTS
Model RA-1850
Dimensions (LxHxW) 10" × 10" × 2-3/5"
253 mmx255mmx65mm
Weight 1.3 Kg
Operating Pressure 60 ~ 100 psi (4~7 kgf/cm2)
Nail Capacity 100 Nails
Nail Spec 1.26mmx1.05mm head:2 mm
Body
Driver Guide
Cantact Arm Magazine
Cap Grip Air Plug
Magazine
End Cap
Click Lever
Bracket
Trigger

18 GAUGE 55MM BRAD NAILER
2

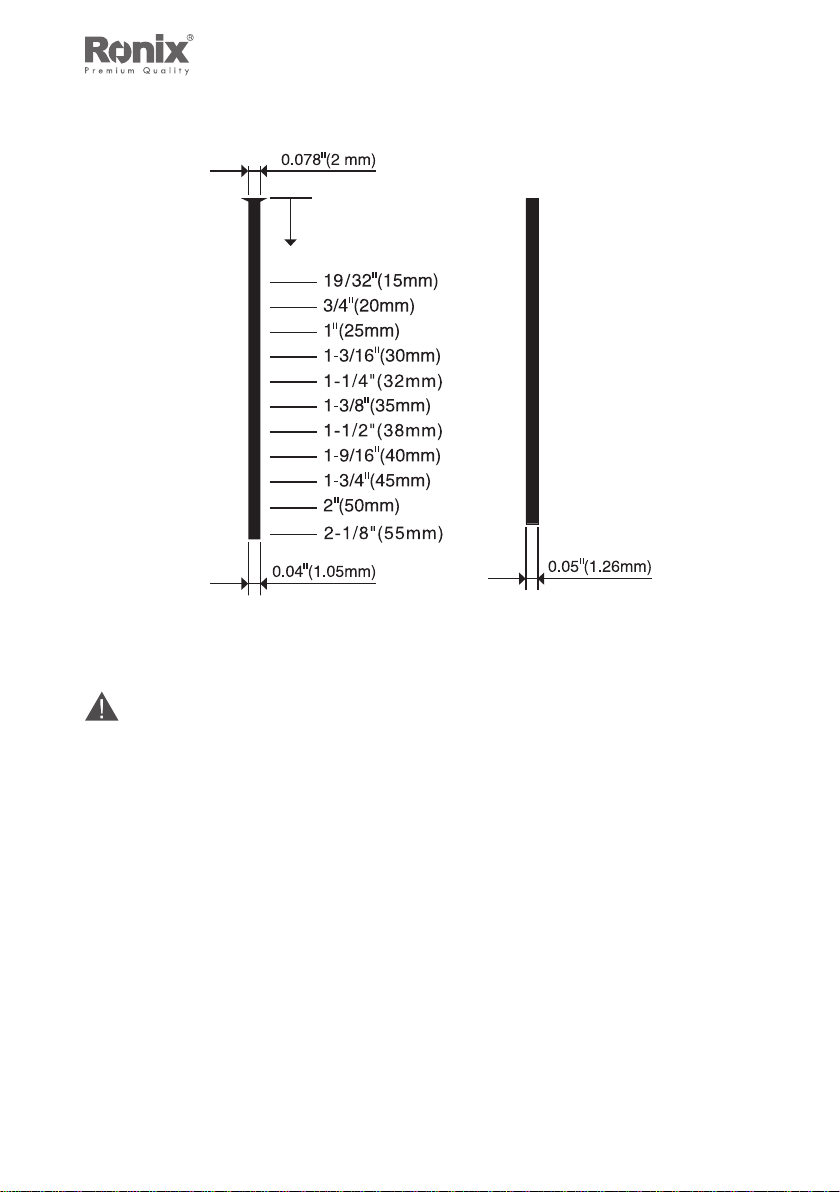

FASTENER SPECIFICATIONS
SAFETY INSTRUCTIONS
DANGER!
1) Be sure to put goggles on before operation
Since a fastener red wrongly through careless handling can spring
out or you are always exposed to danger that can be caused by dust
and extraneous substances dispersed by exhausted air, you must
always wear goggles for operation. Goggles should meet requirements of
ANSI Z89.1-1997 and be able to protect both the front and the sides. An
employer has responsibility for having workers and all the other persons
wear protective equipment in a workshop.
2) Put on hearing protective equipment in certain working environment.
In working environment exposed to loudness which may result in
hearing loss, an employer (management) must provide hearing
protection equipment to a user and others in the workshop and a worker

USER MANUAL 3
must wear it if necessary.
3) Never use any power source but compressed air.
As this tool is designed and manufactured to operate using air
pressure that is generated by an air compressor authorized by a safety
certication authority, you cannot use any kind of gas combustible
gases such as oxygen and acetylene except this. Otherwise, it may
not only cause mechanical trouble but also malfunction or explosion,
resulting in iniction of fatal injury on a user or those around him or her.
4) Use it within the optimum range of air pressure.
This tool is designed to operate within a range of pressure between
58 psi and 100 psi (or between 4 bar and 7 bar). Connect this tool to a
pressure controllable device so that you can work under xed pressure.
When operating this tool, never use it under pressure of 120psi (8bar)
and over. this tool can not connected to pressure higher than 120 psi (or
8 bar) , or wil damaged the parts.
5) Don’t use it near inammables (combustibles).
Never operate this tool near inammables (such as thinner and
gasoline). Combustible gas from such materials can be sucked into
a compressor and compressed together with air, possibly resulting in
explosion.
6) Be careful not to aim or re it toward yourself or any other person in
any case.
You should be careful not to aim it toward yourself or any other person
in any case whether the tool is loaded with fasteners or not. Then, even
if malfunction or undesired ring occurs, you can minimize damage
caused by the red fasteners. Otherwise, it may result in serious injury.
7) Never touch the trigger except when this tool operates for work.
Never touch the trigger except when air is connected to this tool,
which operates for work. It is especially very dangerous to change the
position or move around during operation with your nger xed
on the trigger, and you may not do any similar action. Otherwise
possible carelessness may result in iniction of serious injury on a
user or those around him or her.

18 GAUGE 55MM BRAD NAILER
4
WARNING!
8) Connect a proper connector to this tool correctly.
The connector for this tool should never have pressure kept when air
supply is cut off. If an improper part is applied, then the tool can oper-
ate due to pressure left within it even after the airline is disconnected
possibly resulting in injury.
9) Disconnect the air line and empty the fasteners out of the container in
case that the tool is not used.
Be sure to cut off air supply and empty the fastener container when the
work is completed or when you move to another workshop, maintain,
disassemble, or repair this tool, or clear jam. Make sure that the airline
is disconnected in loading the container with fasteners again.
CAUTION:
10) Make sure that each fastener is locked tightly.
The tool can be damaged if you use it with each fastener loosened, or
screws or bolts assembled wrongly. Make sure that all screws and bolts
are assembled correctly and tightly before using the tool.
11) Never let a worker remove or manipulate a safety device, or
recompose the tool at his or her discretion.
If you remove a safety device, or manipulate or recompose the tool at
will, it can cause a drop in performance and breakdown of the tool and
result in injury due to mechanical trouble and malfunction.
12) Be sure to disconnect the air line and empty fasteners out of the
container if the tool is not used.
You must disconnect the air line and empty the fastener container when
the work is completed or suspended, when you go out of a workshop,
when you move or transfer the tool, or on other occasions.
13) Stick the muzzle correctly to the target plane for drive a fastener.
If correct drive a fastener is not implemented on the target plane, the
red fastener can spring out, possibly resulting in injury.
14) You are prohibited from using the tool for other purposes than drive
a fastener and from throwing or dropping it.

USER MANUAL 5
The resultant shock can cause damage to main parts or malfunction,
possibly resulting in injury.
15) Never drive a fastener on hard or thin objects, an edge of the target
surface or a fastener crown already driven.
Otherwise, the fastener fails to be driven in but springs out, thus
inicting an injury on a worker or those around him or her.
16) Conduct operations in an upright and safe position all the time.
Long-time work in an unstable and wrong position may put excessive
stress on the body, possibly resulting in an injury.
17) When the temperature falls below zero, it is important to note that
you should keep the tool warm in a safe and convenient way.
If you fail to do this, make the tool get warm according to the following
procedure.
1) Control air pressure in the range of 40psi to 70psi.
2) Remove all the fasteners loaded in the tool.
3) Connect the airline to the tool and try mock drive a fastener.
- Keep pressure low enough to operate the tool in a proper way.
- Operate it slowly to let the actuator get warm.
- Piston operation helps bumper and O-ring maintain the original
elasticity.
APPLICATIONS
- Finish and Trim (interior and exterior)
- Decorative Trim
- Cabinets
- Case Backs
- Molding
- Mirror and Picture Frames
- Paneling

18 GAUGE 55MM BRAD NAILER
6
INSTRUCTIONS FOR OPERATION
.BE SURE TO READ THE SAFETY INSTRUCTION BEFORE USING
THIS TOOL
.PREPARATIONS
1) Be sure to put on personal protective equipment for example
goggles, earplugs, safety cap before using this tool.
2) Be sure to use an air compressor authorized by the safety certi-
cation authority as a pressure source for operating this tool within the
optimum range of pressure (58~100psi).
3) Make sure that this tool has no trouble about the safety device, the
trigger, fasteners such as bolts, and so on.
4) Inject three or four drops of oil used exclusively for a tool into the air
plug before using this tool. (Do this regularly once a day if possible.)
5) Check the airline and the air connector for damage and don’t use
longer airline than necessary (over 17ft).
PRELIMINARY CHECKUP
1) To give a checkup to the tool, adjust the operating pressure to 58 psi
(4 bar) before air connection.
2) Keep pressure low as far as it may cause no trouble in operation
within the optimum range of pressure according to hardness of the
working plane and length of fasteners.
LOADING NAILS
WARNING!
Turn the muzzle downward and never pull the trigger in loading or
unloading nails.
1) Pull the magazine backward with the click lever pressed.

USER MANUAL 7
2) Load nails from the side of the magazine.
3) Keep pushing the magazine until it is xed in the click lever.
UNLOADING NAILS
1) Pull the magazine backward with the click lever pressed.
2) Unload nails from the side of the magazine.
3) Keep pushing the magazine until it is xed in the click lever.
MAINTENANCE AND INSPECTION
Be sure to read the safety instruction before inspecting or maintaining
this tool.
WARNING!
Be sure to disconnect the air line before clearing jam, or repairing or
inspecting the tool.

18 GAUGE 55MM BRAD NAILER
8

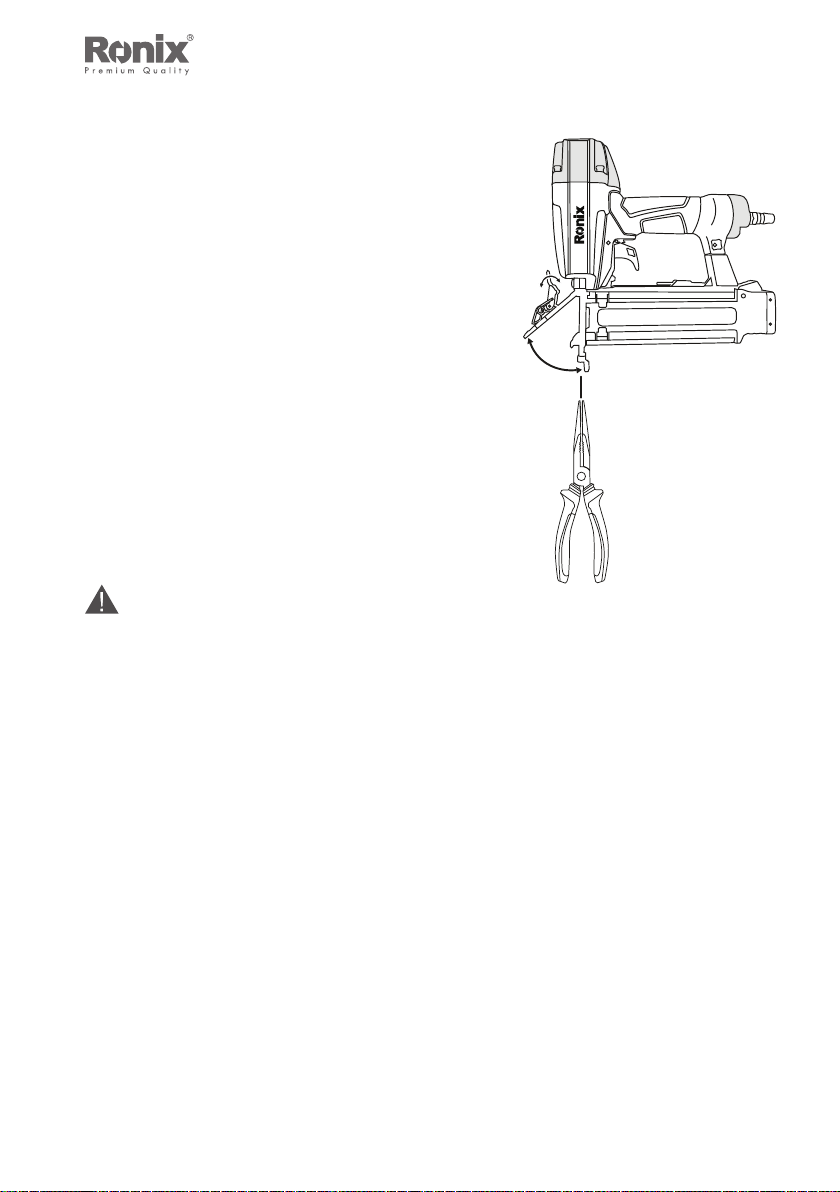

.CLEARING A JAM
If jam occurs during the nailing process,
clear it according to the following
procedure.
1) Disconnect the air line from the tool.
2) Unload nails left in the magazine.
3) Open the guide cover B.
4) Use a long nose to remove a nail
caught in.
CAUTION:
- After clearing jam, make sure that the product has no trouble before
using it.
- If jam or other factors damage main parts, it can prevent normal
operation.
- If any trouble occurs, stop using the tool and ask a nearby A/S center
or a distributor for A/S.
INSPECTING THE MAGAZINE
1) Disconnect the air line from the tool.
2) Inspect if the inside of the magazine is cleared or damaged. (Dust or
alien substances such as pieces of wood in the operation body of the
pusher within the magazine can prevent smooth operation.)

USER MANUAL 9
STORING
1) When not in use for an extended period, apply a thin coat of the
lubricant to the steel parts to avoid rust.
2) Do not store the tool in a cold weather environment. Keep the tool in
a warm area.
3) When not in use, the tool should be stored in a warm and dry place.
4) Keep out of reach of children.
5) All quality tools will eventually require servicing or replacement of
parts because of wear from the normal use.
OPERATOR TROUBLESHOOTING (REFERENCE)
.SUPPLEMENT TO THE OPERATING INSTRUCTION
According to the European Norm EN 792-13 the regulation is valid from
01.01.2001 that all fastener driving tools with contact actuation must be
marked with the symbol «Do not use on scaffoldings, ladders» and they
shall not be used for specic application for example:
- When changing one driving location to another involves the use of
scaffoldings, stairs, ladders or ladder alike constructions e.g. roof laths.
- Closing boxes or crates.
- Fitting transportation safety systems e.g. on vehicles and wagons.
SERVICE AND REPAIRS (A/S REQUEST)
WARNING!
- It is important to note that users or distributors who want to have
this tool repaired must get A/S from A/S personnel trained in
RONIX SERVICE.
- Use only parts supplied or authorized by RONIX SERVICE for repair.

18 GAUGE 55MM BRAD NAILER
10
MAINTENANCE CHART & OPERATOR TROUBLESHOOTING
.MAINTENANCE CHART
.OPERATOR TROUBLESHOOTING
Practice Reason Method
Drain air line lter daily Prevent accumulation of
moisture and dirt. Open manual petcock.
Keep lubricator lled. Keep the tool lubricated Fill with RONIX SERVICE pneu-
matic tool lubricant.
Clean magazine and feeder
mechanism. Prevent a jam & Dry re. Blow clean daily.
Lubricate the Tool after nailing. Extend the tool life. Supply 3~4 drops of lubricant into
the tool.
Drain air compressor. Keep the tool operated
properly.
Open petcock on air compressor
tank.
Problem Check Method Correction
Tool operates, but
no nail is driven.
Check air pressure. Reduce air pressure. (58~100psi)
Check for a jam. Clean a jam. (Refer to 4-1)
Check for proper nail. Use only recommended nails.
Tool operates, but
no nail is driven. Check air line & Plug
Check for air line connection and dam-
age to tting part (Change it in case of
damage)
Check for abnormality in head
valve Change O-ring in case of damage
Check air pressure. Reduce air pressure. (58~100psi)
Check position Piston set Readjust.
- Supply of lubricant into the tool.
Driver blade worn or damaged? Part change (Contact RONIX SERVICE
or Distributor)
Piston O-ring worn or damaged? -
Check air pressure. Reduce air pressure. (58~100psi)
Check air pressure. Reduce air pressure. (58~100psi)
Check for proper nail. Use only recommended nails.
- Supply of lubricant into the tool.
Piston O-ring cut or heavily worn? Part change. (Contact RONIX SERVICE
or Distributor)
Check air pressure. Reduce air pressure. (58~100psi)
Check inside diameter of air hose. Use larger air hose.
