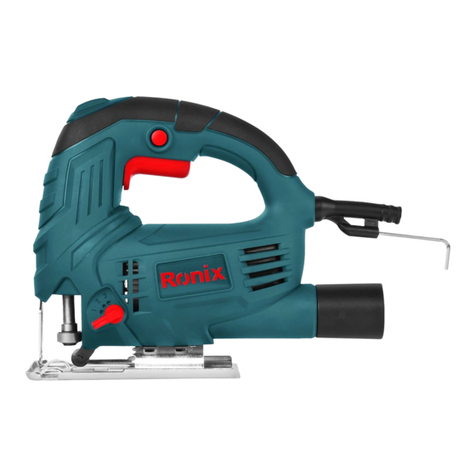

Ronix 4150V User manual

ELECTRIC JIG SAW
4150V

USER MANUAL 1
SPECIFICATIONS
PARTS LIST
Cutting capacity Wood: 65mm, Steel: 8mm
Voltage 220V
Frequency 60HZ
Rated power 550W
No- load speed 1500-3000RPM
Net Weight 2.0kg
Accessories Spanner 1pc / Dust Port 1pc
Speed Control
Lock-on Button
On/Off Trigger
Blade
Guard
Cutting
Speed
Control
Cutting
Blade Dust Extraction
Adaptor
Hex Key
Cable
Hose
Adjustable
Base Plate

ELECTRIC JIG SAW
2
SAFETY INSTRUCTIONS
WARNING!
WHEN USING ELECTRIC TOOLS, ALL THE SAFETY INSTRUCTIONS
SHOULD ALWAYS BE OBSERVED TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK AND PERSONAL INJURY BEFORE ATTEMPTING
TO OPERATE THE TOOL, PLEASE READ ALL THE INSTRUCTIONS
AND SAVE IT FOR FURTHER REFERENCE.
.BASIC SAFETY PRECAUTIONS FOR ALL ELECTRIC TOOLS
1) Keep work area clean
Cluttered area and benches invite injuries.
2) Consider work area environment
Don’t use electric tools in damp or wet locations. Don’ t expose electric
tools to rain. Keep work area well, In particular, no inammable liquids
or gases must be present.
3) Avoid electric shock.
when you are operating tools, don’t touch metal being grounded, such
as pipe, radiator, freezer, etc.
4) Keep children and visitors away
Don’t let children contact tool or extension cord. All visitors should be
kept away from work place.
5) Store idle tool
when not in use, tools should be stored in dry, high, or locked - up place.
6) Don’t force tool
It will do the job better and safer at the rate for which it was intended,
Avoid unnecessary overload which may put the operator at risk and impair
functions of the tools.
7) Use right tool
Don’t force small tools and attachment to do the job of a heavy duty tool.
Don’t use tools for purpose not intended, for example, don’t use electric
circular saw for cutting logs or tree limbs.
8) Dress properly

USER MANUAL 3
Don’t wear loose clothes or jewelry. They can be caught in moving parts.
Rubber gloves and non- skid footwear are recommended when working
outdoors. Wear protective hair covering to contain long hair.
9) Use safety goggles
Always wear safety goggles. If dust is produced, use the special masks.
10) Don’t abuse cables
Never carry tool by cable or yank it to disconnect it form socket. Keep
cable from heat, oil and sharp edges.
11) Don’t overreach
Keep proper footing and balance at all times.
12) Maintain tools with care
Keep tools sharp and clean for better and safer performance. Follow
instructions for lubricating and changing accessories. Inspect tool cords
periodically and replace if damaged. Keep handles dry, clean and free
from oil and grease.
13) Disconnect tools
when not in use, before servicing, and when changing accessories such
as blades, bits and cutters.
14) Remove adjusting keys wrenches
from the habit of checking to see that keys and adjusting wrenches are
removed from tool before turning it on.
15) Avoid unintentional starting
Don’t carry plugged - in tool with nger on switch. Make sure switch is
off when connecting the plug to the socket.
16) Use extension cord
If an extension cord is required, always check that its cross- section
measurement is equal to or greater then that of the tool capabilities and
so marked.
17) Stay alert
Watch what you are doing. Use common sense. Do not operate tool
when you are tired.
18) Check damaged parts
Before further use of the tool, a guard or other parts that is damaged

ELECTRIC JIG SAW
4
should be carefully checked to determine that it will operate properly
and perform its intended function. Check for alignment of moving parts,
binding of moving part, breakage of parts, mounting and any other
condition that may affect its operations, A guard or other part that is
damaged should be properly repaired or replaced by a qualied service
center unless otherwise indicated elsewhere in the instruction manual.
Have defective switches replaced by a qualitied service center. Do not
use tool if switch does not turn on and off.
19) Check the voltage
Do not plug the electric tool into the mains until you have checked that
the voltage shown on the data plate corresponds to the voltage available.
20) Replace parts
The use of improper accessory or attachment other than recommended
present a risk of personal injuries.
21) Have your tool repaired by an expert
This electric tool is in accordance with the relevant safety regulations.
Repairing of electric tool may be carried out only by expert. Otherwise,
it may cause considerable danger of the user.
.JIG SAW USE
This jig saw is intended for the cutting of wood pieces, steel, aluminum,
plastic with different types of cutting blade.
.ADDITIONAL SAFETY REGULATIONS
1) BEFORE USING THE TOOL, PLEASE CHECK THE SWITCH IS
OFF AND THE PLUG IS NOT CONNECTED TO ELECTRICITY SOCKET.
2) The tool should not touch any objects when turning on the tool to
avoid any danger.
3) Before plug in the electricity socket, please make sure the machine is
switched off and put the cable on back side.
4) Switch on the tool, then start cutting on work piece.
5) Don’t touch the moving parts especially the blade.
6) Make sure there is no obstacle objective on work piece.

USER MANUAL 5
7) Hold the tools tightly when operating the tool.
8) Don’t lay down the tool on the ground or working table before switch
it off.
9) Don’t cut the material with asbestos. When cutting some material like
ber, please wear mask.
10) When switch off the tool, don’t stop the blade by pressing, Don’t
touch the blade by hand because it is quite hot when just stop working.
11) Only use sharp and indefective blade. The blade must be replaced
if it is broken, with crack, distorted or blunt.
11) If the extended cord need, please use the same type of the tool.
12) If the working surrounding is too hot, damp or too much dust, please
use an circuit- cut device to assure the safety of operator.
OPERATION REGULATIONS
.FITTING AND REMOVING A SAW BLADE
NOTE:
Prior to assembly and adjustment, always unplug the tool. This tool has
SDS system for quick and easy changing of saw blade.
Blade Latch
Blade

ELECTRIC JIG SAW
6
.FITTING THE BLADE
- Open the blade holder by screwing it to right with the key.
- Insert the saw blade into the blade holder, screw back left to the rst place.
.REMOVING THE BLADE
- screw back the tool holder to left and pull the blade out of the holder.
.SAW BLADES INSTRUCTION
The blade is supplied with customers’ requirement. The above blades
may not be supplied with tool.
.SETTING THE BEVEL ANGLE
The adjustable shoe allows cutting of left hand or Right hand bevel an-
gles from 0 -45°. The bevel scale has preset positions at 0° , 15° , 30° , 45°
- RELEASE THE SHOE SCREW.
- Slide the shoe backward the saw blade.
Blade type Application
Fine- toothed cutting blade For smooth straight cuts
Coarse - toothed cutting blade For fast straight cuts
Metal cutting blade For ferrous and non - ferrous metals
Flush cutting blade For nishing off cuts up to a wall or edge

USER MANUAL 7
- Tilt the shoe and set the desired bevel angle by using the scale
- Tighten the shoe screw.
.SWITCHING ON AND OFF
Note: please make sure that the switch is off when the tool plug into
electricity socket.
1) To run the tool, press the on/ off switch.
2) For continuous operation , press and hold down the switch, press the
lock- on button and release the switch.
3) To stop the tool, release the switch.
4) To stop the tool in continuous operation, press the switch briey and
release it. Always switch off the tool when work is nished and before
unplugging.
.SETTING THE ELECTRONIC SAWING SPEED
To preset the sawing speed, turn the control dial to the desired level.
The higher the rate, the higher the sawing speed. The required setting
depends on the thickness and kind of material.
Electronic
Controler
Switch Lock
ON/OFF Switch

ELECTRIC JIG SAW
8
Using high speeds for sawing soft materials such as wood, Use low
speeds for sawing metal. Please refer to below information.
.SETTING THE PENDULUM ACTION
The four pendulum action settings allow optimum adaptation of cutting
speed, cutting capacity and cutting pattern to the material being sawed.
The pendulum action can be adjusted in four steps with the adjustment
lever. Switching is possible with the machine running:
.EFFECTIVE AND SAFE CUTTING
Working objective Control dial level
Wood 5-6
Sheet steel 3-6
Stainless steel 3-4
Aluminum 2-3
Plastic 1-4
Position Cutting method example
0 No pendulum action Cutting mild steel, stainless steel
or plastic, wood, and plywood
1 Small pendulum action Cutting mild steel, Aluminum
and hard wood
2 Medium pendulum action Cutting wood and plywood, fast
Cutting aluminum and mild steel
3 Large pendulum action Fast Cutting wood, and plywood
Adjustment
Lever

USER MANUAL 9
NOTE:
Please lubricate the guide rather frequently.
- If necessary . draw a cutting line.
- Drill a hole (¢ Min.12mm) and introduce the saw blade.
Switch the tool on.
follow THE LINE WHEN CUTTING STRAIGHTLY.
.For pendulum cutting. Please move the tool slightly.
1) Sawing in metal
. Mount an appropriate saw blade.
.Proceed as described above.
.Use a cooling lubricant (cutting oil) to prevent overheating of the saw
blade or the workpiece.
2) Dust extraction
When the tool is used indoor for extended periods of time, use a suitable
dust extractor designed in compliant with applicable directives regarding
dust emission.
The dust extraction tube in combination with the dust protector helps
extracting the dust from the workpiece surface, when connected to a
suitable dust extraction system.
SERVICE AND MAINTENANCE

ELECTRIC JIG SAW
10
1) Always disconnect the tool before carrying out inspection or cleaning.
2) Never use water or other liquids to clean the tool. Clean the tool by
brushing it with a brush.
3) Check and replace the carbon brush frequently.
4) The air- vent of the tool should be cleaned regularly to avoid the motor
too hot due to air- vent blocked.
5) Always check if the components of the tool are xed well.
6) The parts of tool should be without trace of crack or damage.
7) Always check if the cable is without damage.
.REPLACING THE CARBON BRUSHES
NOTE:
The carbon brush of this tool is internal type. Please replace the carbon
brush only by our maintenance service center or dealers. Don’t replace
it by yourself.
- Replace the carbon brushes when the tool does not run and makes too
much sparkle.
- Carbon brushes which are worn out ( burned, broken or shorter than
5mm) have to be replaced by new ones.
- Always replace both carbon brushes at the same time and use the
brush by RONIX SERVICE
- The brushes have to fall in the holders easily.
- After placing the new carbon brushes, let the tool run for some minutes
so that the brushes t better.
.REPAIRS
Please only use accessories and spare part recommended by the Ronix.
If the tool get malfunction, please hand over the tool to our dealer or
appointed maintenance station. Don’t disassemble the tool by yourself
or replace the parts supplied by other factories.

USER MANUAL 11
WARRANTEE
- All the tools we produce are with the guarantee by our company.
- Damages that are attributable to improper handing, overloading, or
natural wear and rear are excluded from the guarantee.
- The prerequisite is that the tool is handed over assembled, and completed
with the proof of sate and guarantee. Don’t disassemble the tool.
- For guarantee claim, only use the original packaging.
