Sealey SA78X User manual

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT:PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE
THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
pWARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to
when using this equipment.
pWARNING! Disconnect from air supply before refilling with staples, servicing or performing maintenance.
3Maintain the stapler in good condition (use an authorised service agent).
3Replace or repair damaged parts. Use genuine parts only. Non-authorised parts may be dangerous and
will invalidate the warranty.
3Use in suitable clean and tidy working area, free from unrelated materials and ensure there is adequate lighting.
pWARNING! Always wear approved eye or face and hand protection when operating the stapler
3Remove ill fitting clothing. Remove ties, loose jewellery, and contain and/or tie back long hair.
3Wear appropriate protective clothing and keep hands and body clear of working parts.
3Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
3Keep children and unauthorised persons away from the working area.
3Check moving parts alignment on a regular basis.
3Ensure workpiece is secure before operating the stapler. Never hold a workpiece by hand.
3Avoid unintentional operation by always engaging the trigger safety catch when not in use or during pauses
in operation.
pWARNING! Ensure correct air pressure is maintained and not exceeded. Recommended pressure 50-90psi.
3Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure
that all connections are secure.
3Prolonged exposure to vibration from this stapler poses a health risk. It is the Employers/Owners and operators
responsibility to correctly assess the potential hazard and issue guidelines for safe periods of use and offer
suitable protective equipment.
7DO NOT point the staple discharge outlet at yourself or anyone else.
7DO NOT use any power source except an air compressor.
7DO NOT operate the stapler near any inflammable substance or on any container that once contained an
inflammable substance.
7DO NOT use the stapler for a task it is not designed to perform.
7DO NOT operate stapler if any parts are damaged or missing as this may cause failure and/or personal injury.
7DO NOT carry the stapler by the hose, or yank the hose from the air supply.
7DO NOT place the stapler close to your face and do not point at other persons or animals.
7DO NOT operate stapler when you are tired, under the influence of alcohol, drugs or intoxicating medication.
7DO NOT carry the stapler with your finger on the trigger.
7DO NOT direct air from the air hose at yourself or others.
3When not in use engage the trigger safety catch, disconnect from air supply and store in a safe, dry,
childproof location.
SA78X - 0016 - (1) - 170701
INSTRUCTIONS FOR
AIR OPERATED STAPLER
Model: SA78X
01284 757500 E-mail: [e-mail]
01284 703534
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component
parts without prior notice. IMPORTANT: No liability is accepted for incorrect use of this equipment. WARRANTY: Guarantee is 12
months from purchase date. proof of which will be required for any claim. INFORMATION: Call us for a copy of our latest catalogue
and promotions on 01284 757525 and leave your full name and address including your postcode.
Sole UK Distributor, Sealey Group, Bury St. Edmunds, Suffolk.
ITEM PART NO. DESCRIPTION
1SA78X/01 SCREW 5*22
2SA78X/02 EXHAUST COVER
3SA78X/03 COMPRESSION SPRING
4SA78X/04 SEAL,AIR
5SA78X/05 CYLINDER CAP
6SA78X/06 0-RING 11.8*2.4
7SA78X/07 PISTON SET
8SA78X/08 WASHER 7.3*4.7*0.8
9SA78X/09 HEAD VALVE PISTON
10 SA78X/10 PISTON STOPPER
11 SA78X/11O-RING 26.6*2.4
12 SA78X/12 O-RING 21.3*3
13 SA78X/13 COLLAR
14 SA78X/14 O-RING 33*2
15 SA78X/15 CYLINDER
16 SA78X/16 BUMPER
17 SA78X/17 GASKET
18 SA78X/18 BODY
19 SA78X/19 NOZZLE
20 SA78X/20 SEAL,AIR
21 SA78X/21 TRIGGER VALVE HEAD
22 SA78X/22 TRIGGER VALVE STEM
23 SA78X/23 O-RING 3.8*1.5
24 SA78X/24 TRIGGER VALVE GUIDE
25 SA78X/25 O-RING 9.8*1.9
26 SA78X/26 COMPRESSION SPRING
27 SA78X/27 TRIGGER SPRING
28 SA78X/28 TRIGGER STOPPER
29 SA78X/29 HOLDER SPRING
30 SA78X/30 E-RING 2.5 DIAM
ITEM PART NO. DESCRIPTION
31 SA78X/31 TRIGGER
32 SA78X/32 STEP PIN 5*17.5
33 SA78X/33 O-RING 31.42*2.62
34 SA78X/34 TAIL COVER
35 SA78X/35 AIR PLUG
36 SA78X/36 COMPRESSION SPRING
37 SA78X/37 CLICK LEVER
38 SA78X/38 STEP PIN 5*26
39 SA78X/39 O-RING 17.3*3
40 SA78X/40 PISTON HEAD
41 SA78X/41 DRIVER BLADE PIN
42 SA78X/42 OUTER SPRING PIN 4*10
43 SA78X/43 INNER SPRING PIN 2.5*10
44 SA78X/44 DRIVER BLADE
45 SA78X/45 SCREW 4*16
46 SA78X/46 DRIVER GUIDE
47 SA78X/47 SPACER
48 SA78X/48 SCREW 4*8
49 SA78X/49 STOPPER
50 SA78X/50 UPPER MAG
51 SA78X/51 SCREW 4*8
52 SA78X/52 EXTENSION SPRING
53 SA78X/53 PUSHER
54 SA78X/54 MAGAZINE ASSEMBLY
55 SA78X/55 CYLINDER CAP SET
56 SA78X/56 HEAD VALVE PISTON SET
57 SA78X/57 COLLAR SET
58 SA78X/58 CYLINDER ASSEMBLY
59 SA78X/59 TRIGGER VALVE SET
60 SA78X/60 TRIGGER SET
Issue Date: 170701
Issue No: 1
Date Modified: N/A

2. INTRODUCTION & SPECIFICATION
3.1. Air Supply
3.1.1. Ensure the safety catch on the air valve trigger is in place before connecting to the air supply.
3.1.2. You will require an air pressure between 50-90psi, and an air flow according to the specification above.
3.1.3. pWARNING! Ensure the air supply is clean and does not exceed 90 psi while operating the stapler.
Too high an air pressure and unclean air will shorten the product life due to excessive wear, and may be
dangerous causing damage and/or personal injury.
3.1.4. Drain the air tank daily. Water in the air line will damage the stapler and will invalidate your warranty.

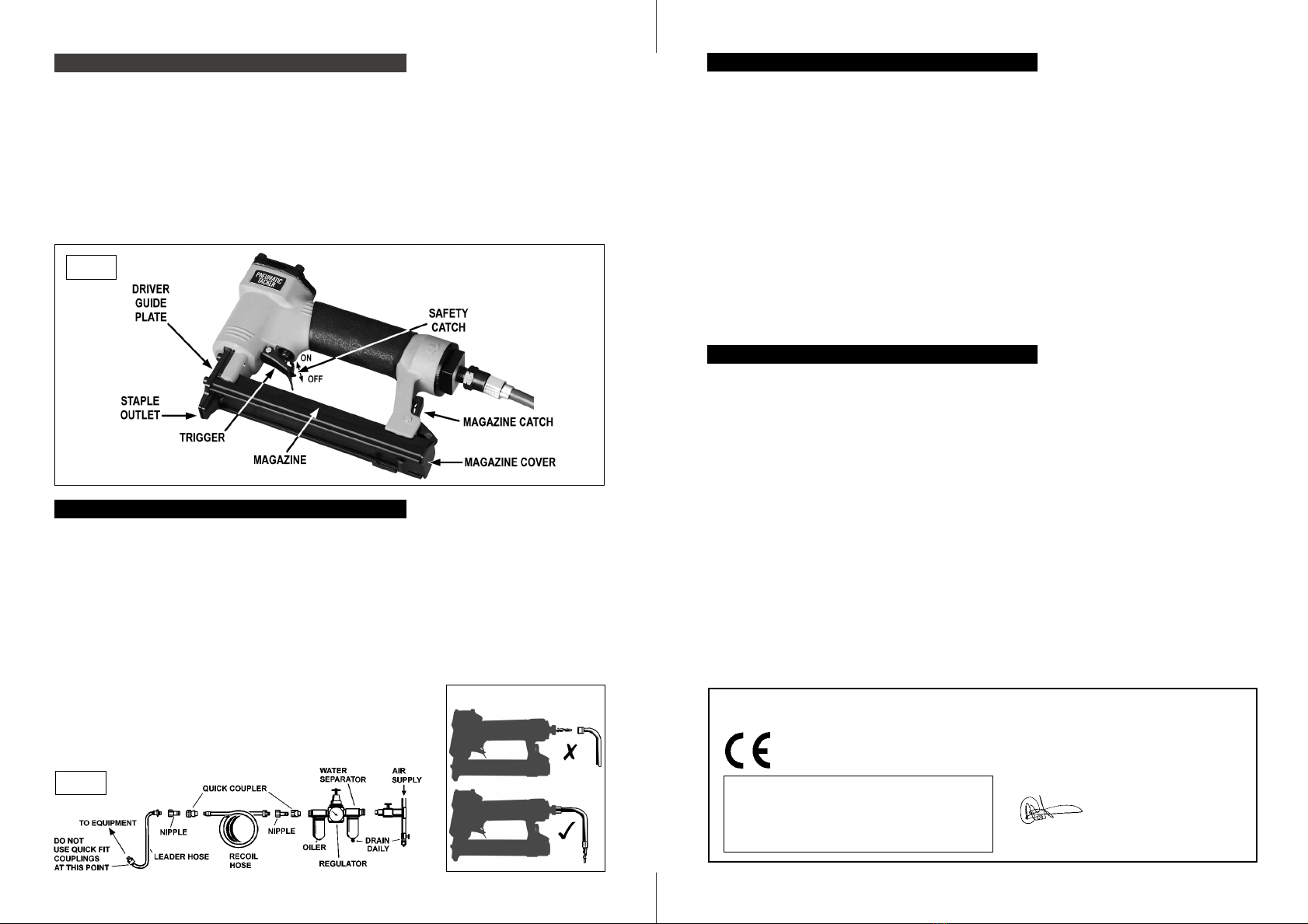

3.1.5. Clean air inlet filter weekly. Recommended hook-up procedure is shown in fig 1.
3.1.6. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres).
The minimum hose diameter should be 1/4 I.D. and fittings must have the same inside dimensions.
3.1.7. Keep hose away from heat, oil and sharp edges. Check hoses for wear, and make certain that all
connections are secure.
3.2. Couplings.
Vibration may cause failure if a quick change coupling is connected directly
to the air stapler. To overcome this, connect a leader hose to the stapler. A
quick change coupling may then be used to connect the leader hose to the
air line recoil hose. See fig 1 & 2.
pWARNING! Disconnect stapler from air supply before refilling with staples, servicing or performing
maintenance. Replace damaged parts.
Use genuine parts only. Non-authorised parts may be dangerous and will invalidate the warranty.
5.1. Lubricate the air stapler daily with a few drops of the air tool oil supplied, dripped into the air inlet before
use. ( To re-order air tool oil use Sealey part Nos. ATO/500 or ATO1000.)
5.2. Clean the stapler after use and engage safety catch.
5.3. Loss of power or erratic action may be due to the following:
a) Excessive drain on the air line. Moisture or restriction in the air pipe. Incorrect size or type of hose
connectors. To remedy check the air supply and follow instructions in chapter 3.
b) Grit or gum deposits in the stapler may also reduce performance. If your model has an air strainer
(located in the area of the air inlet), remove the strainer and clean it. Flush the stapler out with gum
solvent oil or an equal mixture of SAE No 10 oil and kerosene. Allow to dry before use.
If you continue to experience problems, contact your local Sealey service agent.
5.4. For a full service contact your local Sealey service agent.
5.5. When not in use, disconnect from air supply, clean stapler and store in a safe, dry, childproof location.
5.6 On a weekly basis check the security of the hex bolts holding the driver guide plate in place and tighten if
necessary. (see fig.3)
3. PREPARING STAPLER FOR USE
4. OPERATING INSTRUCTIONS
5. MAINTENANCE
pWARNING! Ensure you read, understand and apply safety instructions before use.
4.1 Before connecting to an air line ensure that the safety catch on the trigger is engaged by pivoting it
towards the stapler body. ( See fig.3 )
4.2 Load the magazine with staples before connecting the airline. To load the staples press and hold open the
magazine catch ( situated below the air inlet ) and slide open the magazine cover to its full extent. Place a
batch of staples into the open magazine chamber with the staple legs facing outwards.
4.3 Slide the magazine cover shut until it clicks into place behind the catch. As you do this the internal spring
will start to bear onto the batch of staples holding them in place ready for stapling.
4.4 Connect the air line to the stapler as described in Section 3.
4.5 Bring the stapler to the workpiece and when ready to commence stapling pivot the trigger safety catch
towards the end of the trigger to release it. Ensure that the staple outlet is pressed flat onto the material to
be stapled and is at approximately 900to the surface.
4.6 When the trigger is depressed a single staple will be fired. To fire the next staple release the trigger and
depress again. Repeat as required.
4.7 When the work is complete or when you have paused, engage the safety catch to prevent accidental
discharge of staples.
fig 1
SPECIFICATION
Capacity . . .6,8,10,12,14mm 20 gauge staples
Operating Pressure . . . . . . . . . . . . .50 - 90psi
Air Consumption . . . . . . . . . . . . . . . . . . .4cfm
Air Inlet . . . . . . . . . . . . . . . . . . . . . . .1/4BSP
Weight . . . . . . . . . . . . . . . . . . . . . . . . . .0.8kg
The SA78X is a light weight well balanced stapler suitable for stapling a wide variety of materials including woods,
plastics and fabrics. It has a rubber comfort grip and trigger safety catch. The kit supplied includes a starter pack
of staples, goggles, hex keys and air tool oil. A carrying case is supplied.
We, the sole importer into the UK, declare that the product listed here is in conformity with the
following EEC standards and directives. The construction file for this product is held by the
Manufacturer and may be inspected, by a national authority, upon request to Jack Sealey Ltd.
For Jack Sealey Ltd. Sole importer into the UK
of Sealey Power Products.
Air Operated Stapler
Model: SA78X
98/37/EC Machinery Directive
93/68/EEC Marking Directive
17th July 2001
Declaration of Conformity
Signed by Mark Sweetman
SA78X - 0016 - (1) - 170701
fig 2
Staples available in packs of 5000 (20 gauge).
Part No. Crown. Length
SA-AS/06 12.8 6mm
SA-AS/08 12.8 8mm
SA-AS/10 12.8 10mm
SA-AS/12 12.8 12mm
SA-AS/14 12.8 14mm
fig 3
