Ronix RP-1160 User manual

RP-1160
INDUCTION PRESSURE WASHER

USER MANUAL 1
SPECIFICATIONS
Model RP-1160
Power 2200W
Voltage 220V
Frequency 50Hz
Max. pressure 160Bar
Max. flow 7.3 L/min
Net. Weight 19.58 Kg

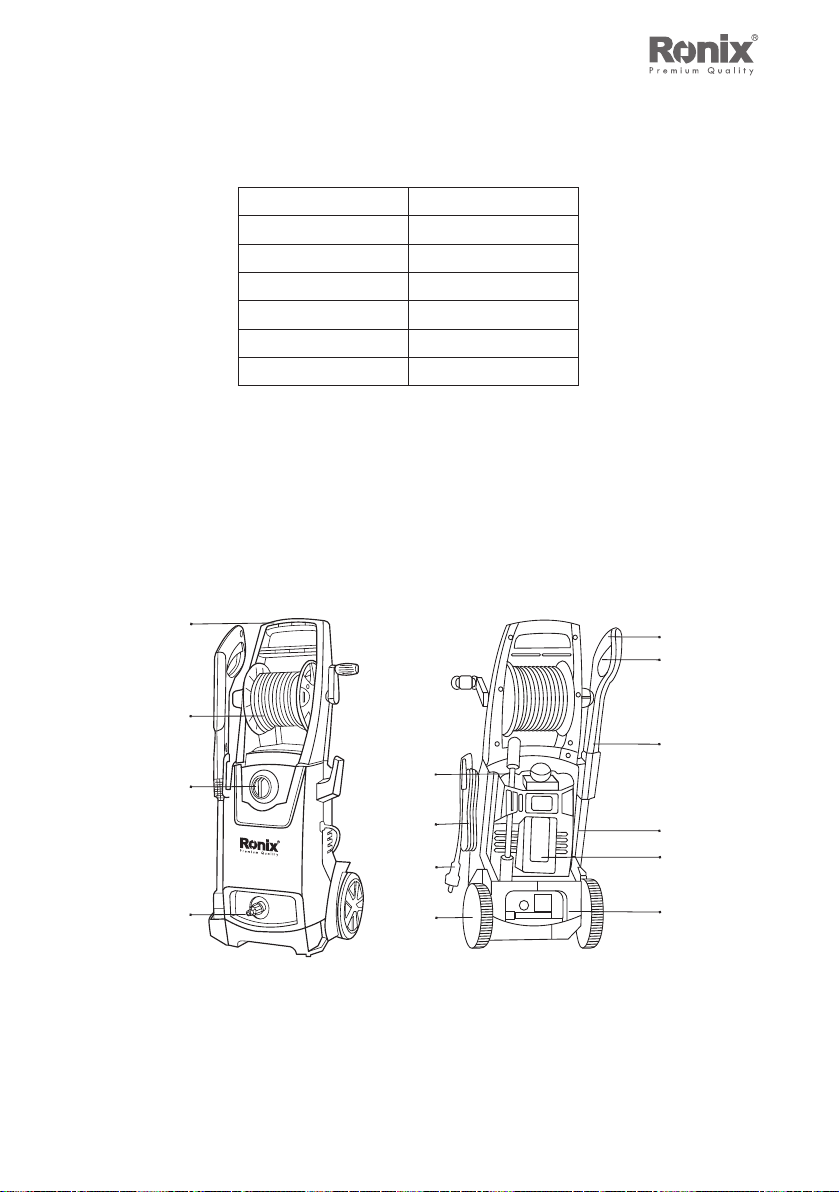

PARTS LIST
Power cord
Handle
On/Off switch
Water inlet
High pressure hose
Gun lock
Trigger
Spray gun
Warning label
Spray lance
Detergent
bottle
Rating label
Turbo lance
Wheel

INDUCTION PRESSURE WASHER
2
PRODUCT DESCRIPTION
.PURPOSE
- The high pressure cleaner is designed to clean vehicle, machines,
buildings, facades, etc. in the private sector.
.AREAS OF APPLICATION
- Never use the machine in potentially explosive areas under any
circumstances!
- The operating temperature must be between 0 and +40°C
- The machine consists of an assembly with a pump, which is encased
in a shock absorbing housing. For an optimal working position the
machine come with a lance and a non-slip handle grip, whose shape
and configuration comply with the applicable regulations.
- Do not cover or modify the lance or the spray nozzles in any way.
- The high pressure cleaner is designed to be used with cold or lukewarm
(max.60); higher temperatures can damage the pump.
- Do not use water that is dirty, gritty or contains any chemical products,
as these could impair operation and shorten the life of the machine.
- Accessories can be used to carry out work with foam cleaners, sand spraying.
IMPORTANT:
This machine is not suitable for connection to the potable water mains.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
This appliance is not intended for use by children or other persons
without assistance or supervision if their physical, sensory or mental
capabilities prevent them from using it safely.
Children should be supervised to ensure that they do not play with the appliance.
Before starting up your machine please check it carefully for any defects.
If you find any, do not start up your machine and contact your distributor.

USER MANUAL 3
.ESPECIALLY CHECK
The insulation of the power cord should be faultless and without any cracks.
If the power cord is damaged, an authorized distributor should replace it.
WARNING!
- Do not use this appliance without reading this instruction sheets.
- The electric supply connection shall be made by a qualified electrician
and comply with IEC60364-1.
- The electric supply to this appliance should include either a residual
current device that will interrupt the supply if the leakage current to earth
exceeds 30Ma for 30ms or device that will interrupt the earth circuit.
WARNING!
This appliance has been designed for use with the cleaning agent
supplied or recommended by the manufacture. The use of other cleaning
agents or chemicals may adversely affect the safety of the appliance.
WARNING!
Do not use the appliance within range of persons unless they wear
protective clothing.
WARNING!
High pressure jets can be dangerous if subject to misuse. The jet must not
be directed at persons, live electrical equipment or the appliance itself.
- Do not direct the jet against yourself or others in order to clean clothes
or foot-wear.
- Risk of explosion – Do not spray flammable liquids.
- Disconnect from the electrical power supply before carrying out user
maintenance.
- High pressure cleaners shall not be used by children or untrained
personnel.
-To ensure appliance safety, use only original spare parts from the
manufacturer or approved by the manufacturer.

INDUCTION PRESSURE WASHER
4
WARNING!
Water that has flown through backflow preventers is considered to be
non-potable.
WARNING!
The machine shall be disconnected from its power source during
cleaning or maintenance and when replacing parts for mains operated
machines by removing the plug from the socket-outlet.
WARNING!
High pressure hoses, fittings and couplings are important for safety of
the appliance. Use only hoses, fittings and couplings recommended by
the manufacturer.
- Do not use the appliance if a supply cord or important parts of the
appliance are damaged, e.g. safety devices, high pressure hoses,
trigger gun.
WARNING!
If an extension cord is used, the plug and socket must be of watertight
construction.
WARNING!
Inadequate extension cords can be dangerous.
- This high pressure washer must not be used at temperatures below 0°C
WARNINIG!
- Cord on drums should always be completely un winded to prevent the
cord from overheating.
- If an extension cord is used, the plug and socket must be of watertight
construction.
- Inadequate extension cords and be dangerous.
- Comply with the below-mentioned requirements for length and
cored dimensions.

USER MANUAL 5
1.0mm2max. 12.5m
1.5mm2max. 20m
2.5mm2max. 30m
- Power cord connections should be kept dry and off the ground.
- If the power cord is damaged, it must be replaced by the manufacturer or
his service agent or similarly qualified person in order to avoid a hazard.
- All keep the machine on a stable and flat surface during operation,
handling, transportation and storage. Sudden overturn of machine will
cause injury to body.
- In the event of accident or breakdown, switch off the machine
immediately. (e.g. contact with detergent: rinse with an abundance of
clean water.
ATTENTION:
Through poor conditions of the electrical MAINS, shortly voltage drops
can appear when starting the EQUIPMENT. This can influence other
equipment (e.g. Blinking of a lamp). If the MAINS-IMPEDANCE Zmax <
0.335 OHM, such disturbances are not expected. (In case of need, you
may contact your local supply authority for further information.)
WARNING!
ELECTRICAL SHOCK HAZARD
Improper connection of the equipment – grounding conductor can result
in a risk of electrical shock. Check with a qualified electrician or service
person if you are unsure if an outlet is properly grounded. DO NOT
modify the plug provided with the appliance to fit an outlet, have a proper
outlet installed by a qualified electrician.
.MAINS POWER CONNECTION
The following should be observed when connecting the high pressure
washer to the electric installation:
- The electric installation shall be made by a certified electrician and
comply with IEC-364.

INDUCTION PRESSURE WASHER
6
It is recommended that the electric supply to this appliance should
include either a residual current device that will interrupt the supply if
the leakage current to earth exceeds 30mA for 30ms.
IMPOTANT:
Only use water without any impurities.
- Safety devices
- If there is a risk of running sands in the inlet water (i.e. from your own
well), an additional filter should be mounted.
- The unloader valve can reduce pressure if it exceeds pre-set values.
The spray gun features a locking device. When the pawl is activated, the
spray gun cannot be operated.
- Thermal sensor
A thermal sensor protects the motor against overloading. The machine
will restart after a few minutes when the thermal sensor has cooled.
ASSEMBLY
- The high pressure cleaner is designed to clean vehicle, machines,
buildings, facades, etc. in the private sector.
- The washer must be used standing on a secure, stable, positioned as shown.

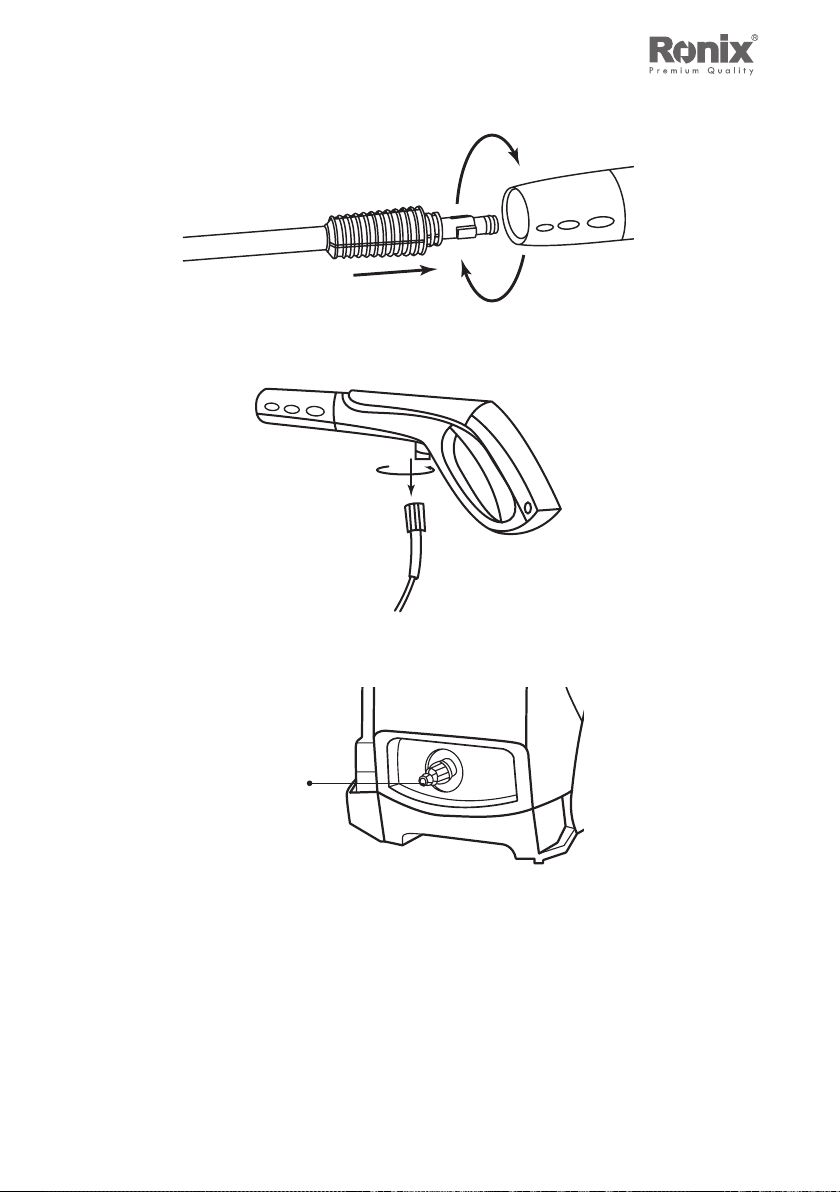

- Fit the lance into the gun and rotate it until the two parts are completely locked.

USER MANUAL 7
- Connect the gun to high pressure hose.

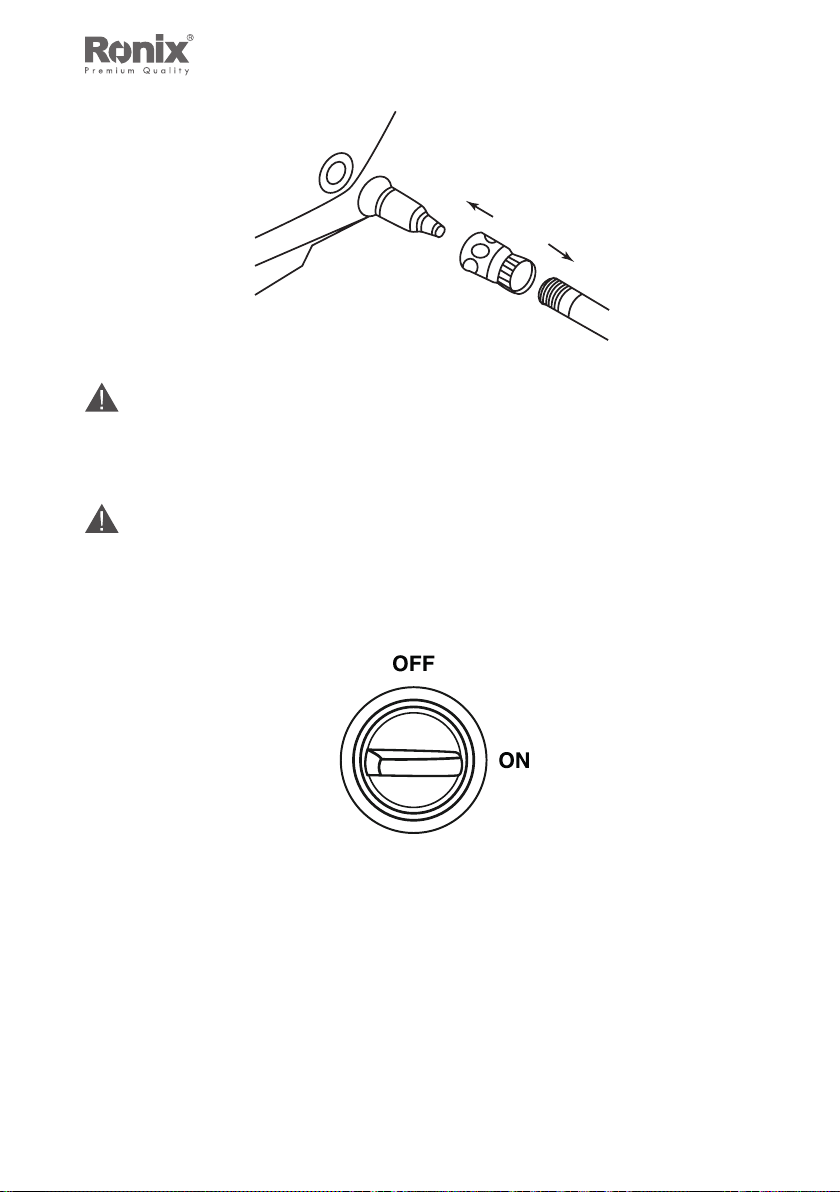

- Connect the high pressure hose to the water outlet on the washer.
Outlet
- Connect the water supply hose to female coupler. Then connect to
the water inlet of the washer. The supply hose must have an internal
diameter of at least 13mm (1/2 in) and must be reinforced. the water
supply must be at least equal to the washer delivery capacity.

INDUCTION PRESSURE WASHER
8
WARNING!
The intake water temperature must not exceed 40. The water supply
must not exceed 0.7 MPa.
CAUTION:
The washer must only be used with clean water; use of unfiltered water
of corrosive chemicals will damage the washer.

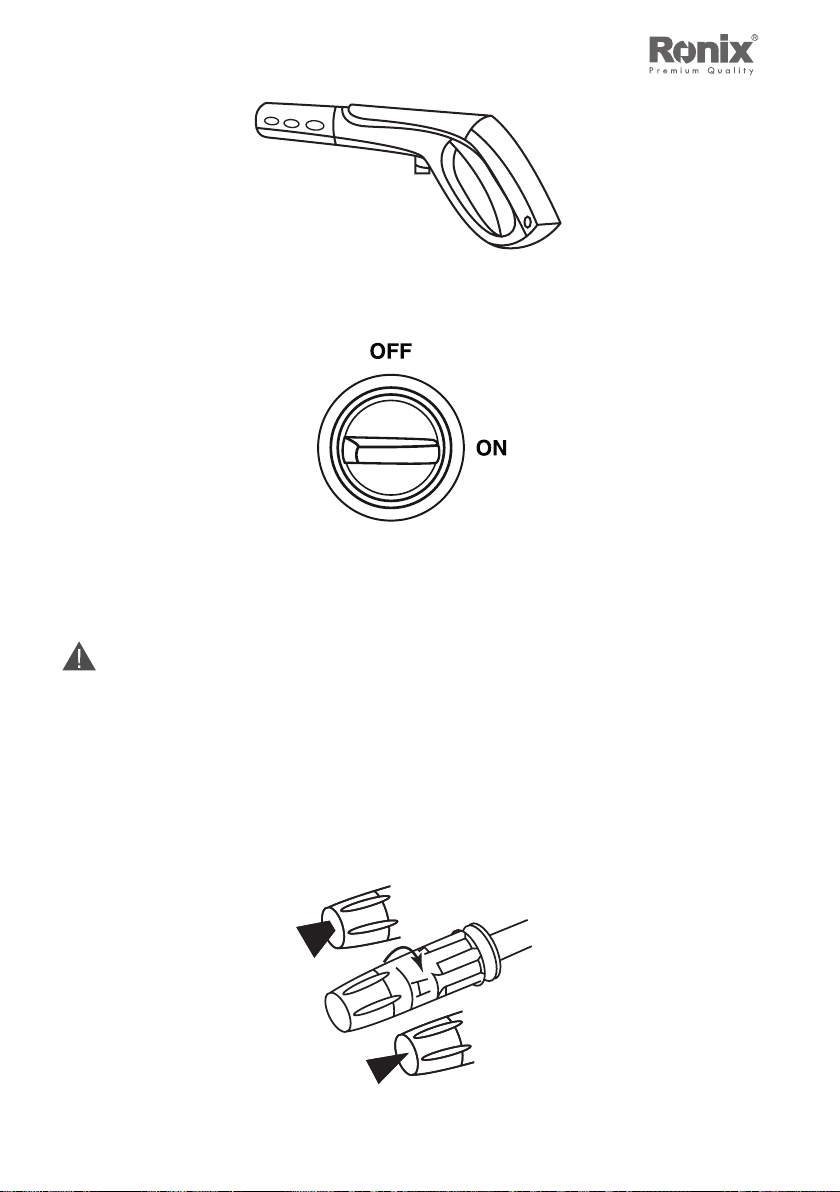

- Push the motor switch to “OFF” position.
- Check that the electrical supply voltage and frequency (Volt/Hz)
correspond to those specified on the washer rating plate. If the power
supply if correct, you may now plug in the washer.
OPERATION
- Turn on the water supply tap fully.
8

USER MANUAL 9
- Release the safety lock then press the trigger for a few seconds to
allow air to escape and dis charge residual pressure in the hose.
- Keeping the trigger pressed, push the switch to start the motor
- When re-starting the motor, always keep the trigger pressed.
NOTE:
THE MOTOR ONLY RUNS WHEN THE TRIGGER IS OPERATED.
CORRECT USE OF STANDARD ACCESSORIES
- The washer is equipped with the adjustable nozzle.
- Jet adjustment from pencil to fan.
9

INDUCTION PRESSURE WASHER
10
WARNING!

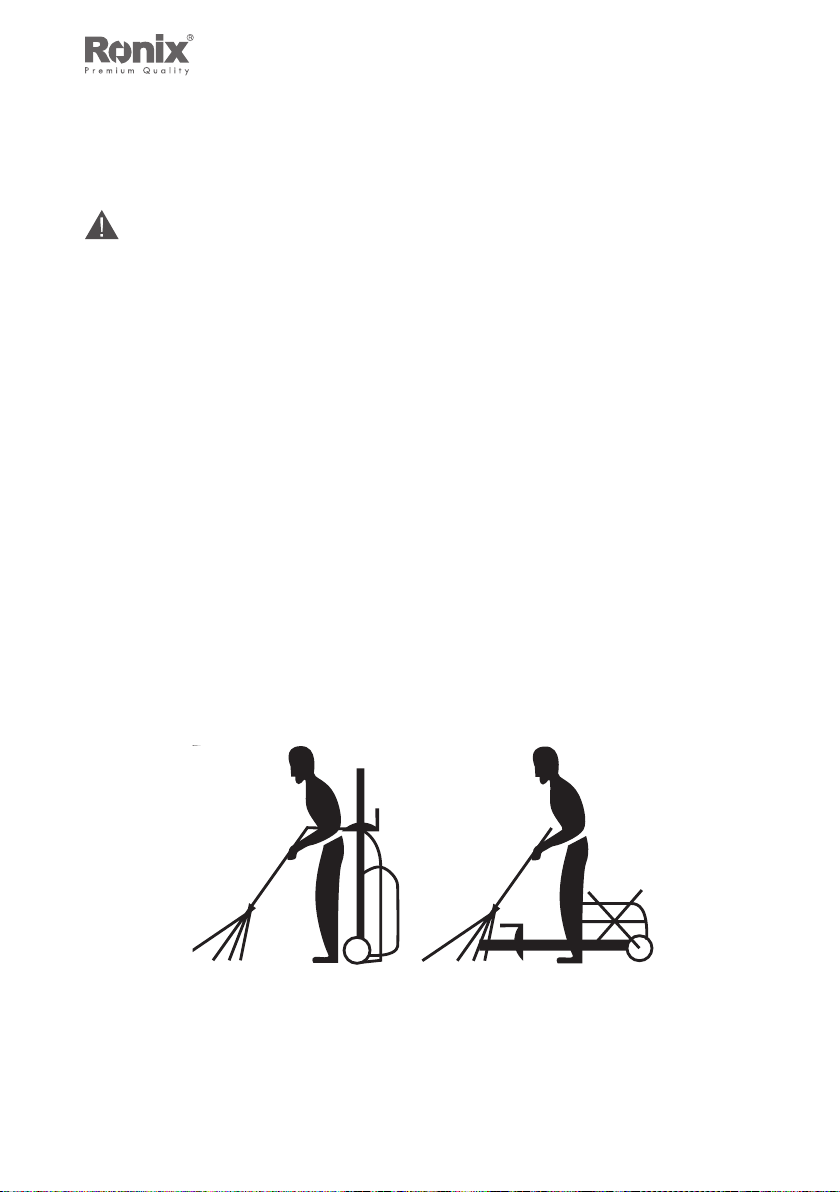

DO NOT ADJUST THE NOZZLE WHILE THE TRIGGER IS SQUEEZED.
RECOMMENDED CLEANINIG PROCEDURE
- Dissolve dirty by applying detergent with the fan jet to the dry surface.
On vertical surfaces, work from the bottom upwards. Leave the detergent
to act tor 1 to 2 minutes, but do not allow to dry out. Apply the high from
the surface, working from the bottom upwards.
- Avoid allowing the rinsing water to run on to unwanted surfaces.
STORAGE
- Switch off the washer.
- Turn off the water supply tap.
- After use, the detergent residuals should be removed from the tank.
- Discharge residual pressure by pressing the trigger until no more water
comes out of the lance nozzle.
- Engage the gun safety lock.
- Remove the plug from the socket.
- Operate the washer with non-corrosive /non-toxic antifreeze before
storing for the winter.
WARNING!
BEFORE REUSING, COMPLERELY FLUSH THE UNIT OUT WITH PLAIN
WATER. ANTI-FREEZE CAN DAMAGE PANTWORK SO YOU MUST ENSURE
THERE IS NO ANTI-FREEZE LEFT IN THE SYSTEM BEFORE USING IT AGAIN.

USER MANUAL 11
MAINTENANCE
CAUTION:
Before working on the washer, disconnect the lug from the power
supply socket.
- to ensure good performance. check and clean the suction and detergent
filters after every 50 hours of operation.

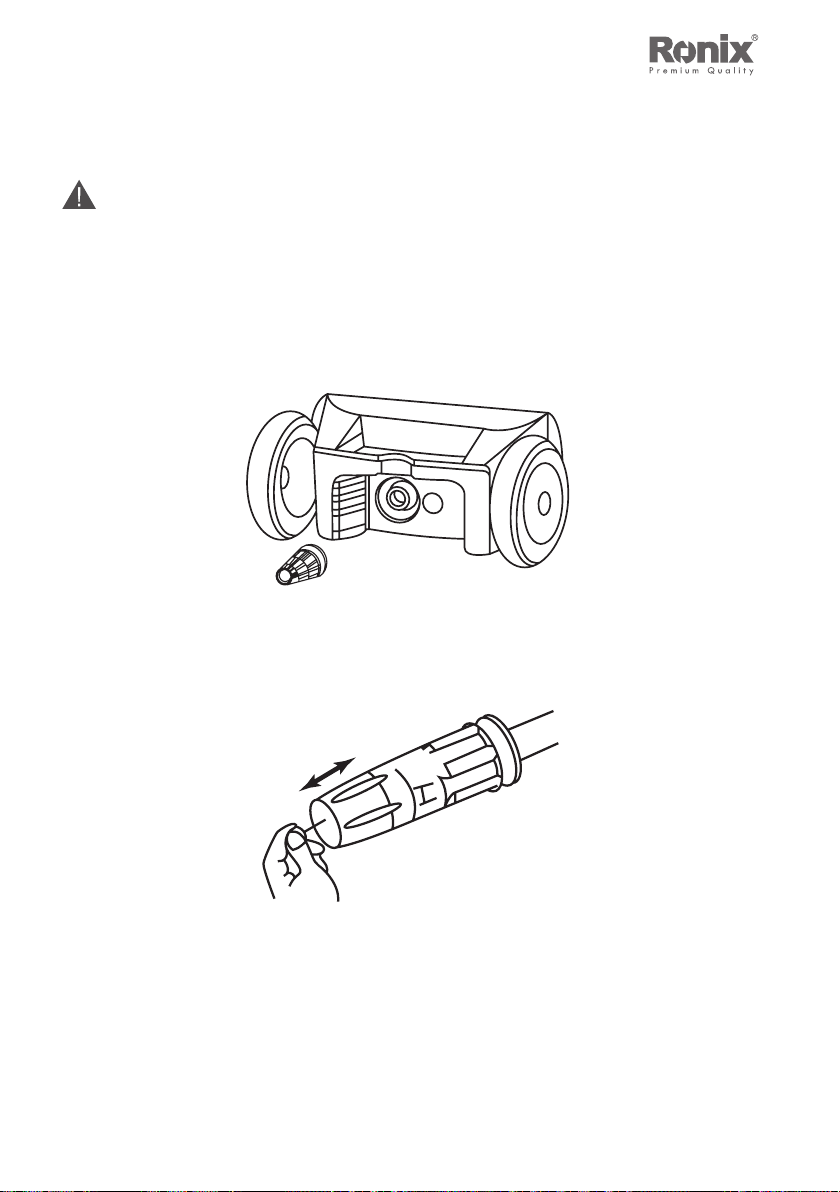

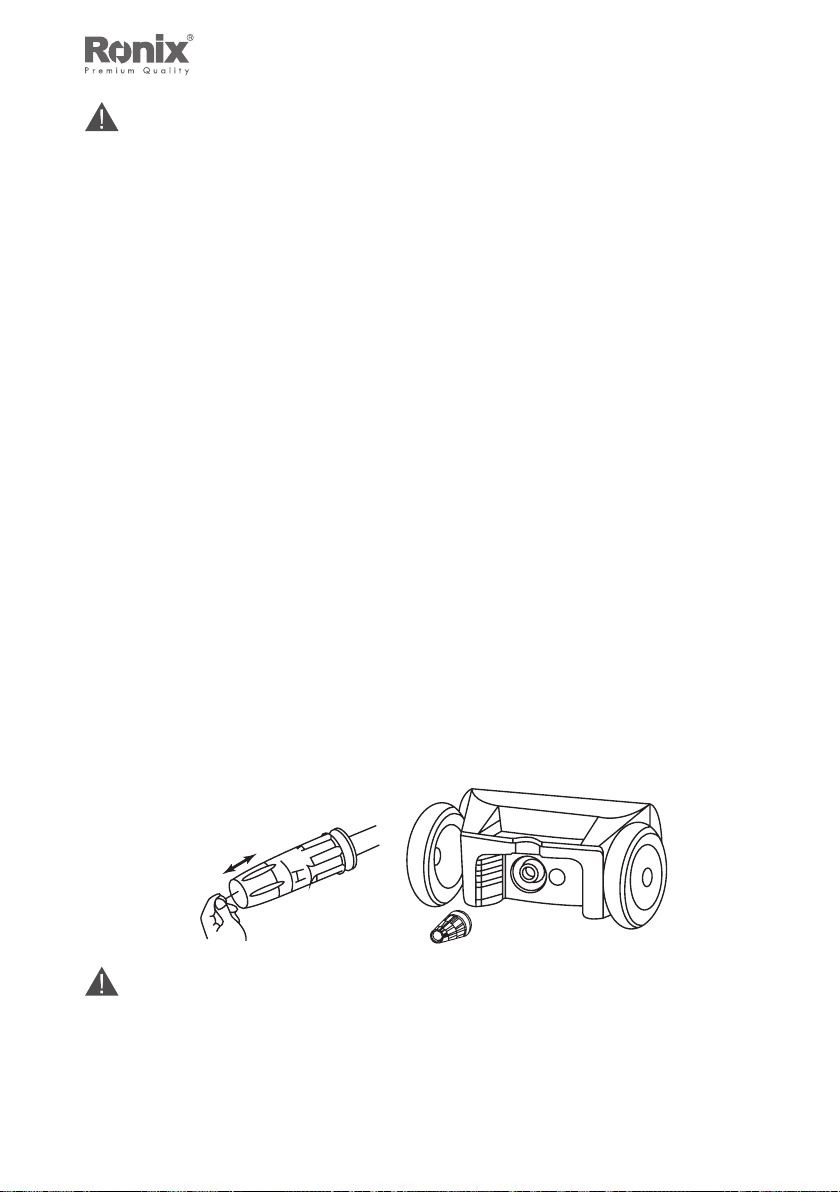

- Clean the nozzle with the tool provided. Remove the lance from the
gun; remove any dirt from the nozzle hole
TROUBLESHOOTING
Disconnect from the electrical power supply before carrying out user
maintenance or checking is correct functioning. To avoid unnecessary
disappointments, you should check the following before contacting the
service organization.

INDUCTION PRESSURE WASHER
12
In case problems other than the above occur, please contact your local
distributor.
Symptom Cause Recommended Action
Machine refuses to
start
- Machine not plugged in
- Defective socket
- Fuse has blown
- Defective extension cord
- Plug in machine
- Try another socket
- Replace fuse
- Switch off other machine
- Try without the exten-
sion cord
Fluctuating pressure
- Pump sucking air
- Valve is dirty, worn out
or stuck
- Pump seals worn out
- Check that hoses and
connections are airtight
- Clean and replace or
refer to local distributor
- Clean and replace or
refer to local distributor
Machine stops
- Fuse has blown
- Incorrect mains voltage
- Thermal sensor activat-
ed
- Nozzle partially blocked
- Replace fuse
- Switch off other ma-
chines
- Check that the main volt-
age corresponds to specifi-
cation on the model tag
- Leave the washer for 5
minutes to cool down
- Clean the nozzle
Fuse blows Fuse too small
- Change to an installation
higher than the amp con-
sumption of the machine
- You may try without the
extension cord
Machine pulsating
- Air in inlet hose
Inadequate supply of
mains water
- Nozzle partially blocked
water filter blocked
- Hose kinked
Allow machine to run with
open trigger until regular
working pressure resumes
- Check the water supply
corresponds to specifica-
tions required
- Avoid using long, thin
hoses (min1/2”)
- Clean the nozzle
- Clean the filter
- Straighten out hose

USER MANUAL 13
Machine often starts
and stops by itself
Pump/spray gun is leaking
Centre
Contact your nearest
Service
Machine starts, but no
water comes out
- Pump/hoses or accesso-
ry frozen
- No water supply
- Water filter blocked
- Nozzle blocked
- Wait for Pump/hoses or
accessory to thaw
- Connect inlet water
- Clean the filter
- Clean the nozzle
