Ronix RP-U130 User manual

UNIVERSAL PRESSURE
WASHER 130BAR
RP-U130

USER MANUAL 3
SPECIFICATIONS
PARTS LIST
1) On/off switch
2) Adjustable Lance
3) Water inlet
4) Water outlet
5) Spray Gun
6) Trigger
7) Gum lock
8) High Pressure Hose
9) Trigger
10) Power cord
11) Detergent Bottle
1
Model RP-U130
Power 1600W
Voltage 220V
Frequency 50Hz
Protection class II
Degree of protection IPX5
Rated pressure 90 Bar
Max. pressure 130 Bar
Rated ow 5.5 L/min
Max. ow 7.2 L/min
Rated temperature 0 - 40°C
Max inlet pressure 0.7MPa
Sound pressure level Uncertainty LpA=77 dB(A) - KPA=3dB
Sound power level Uncertainty LwA=90dB(A)
Weight 9.3Kg

HIGH PRESSURE WASHER
4
12) Wheel
13) Turbo lance
PRODUCT DESCRIPTION
.PURPOSE
- The high pressure cleaner is designed to clean vehicle,
machines, buildings, facades, etc. in the private sector.
.AREAS OF APPLICATION
- Never use the machine in potentially explosive areas under
any circumstances!
- The operating temperature must be between 0 and +40°C
- The machine consists of an assembly with a pump, which
is encased in a shock absorbing housing. For an optimal
working position the machine come with a lance and a
non-slip handle grip, whose shape and conguration comply
with the applicable regulations.
- Do not cover or modify the lance or the spray nozzles in
any way.
- The high pressure cleaner is designed to be used with cold
or lukewarm (max.60); higher temperatures can damage the
pump.
- Do not use water that is dirty, gritty or contains any chemical
products, as these could impair operation and shorten the life
of the machine.
- Accessories can be used to carry out work with foam
cleaners, sand spraying.
2

USER MANUAL 5
IMPORTANT:
This machine is not suitable for connection to the potable
water mains.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
This appliance is not intended for use by children or other
persons without assistance or supervision if their physical,
sensory or mental capabilities prevent them from using it
safely.
Children should be supervised to ensure that they do not
play with the appliance.
Before starting up your machine please check it carefully
for any defects. If you nd any, do not start up your machine
and contact your distributor.
.ESPECIAL CHECK
The insulation of the power cord should be faultless and with-
out any cracks. If the power cord is damaged, an authorized
distributor should replace it.
WARNING!
- Do not use this appliance without reading this instruction
sheets.
- The electric supply connection shall be made by a qualied
electrician and comply with IEC60364-1.
- The electric supply to this appliance should include either
a residual current device that will interrupt the supply if the
leakage current to earth exceeds 30Ma for 30ms or device
3

HIGH PRESSURE WASHER
6
that will interrupt the earth circuit.
WARNING!
This appliance has been designed for use with the cleaning
agent supplied or recommended by the manufacturer. The
use of other cleaning agents or chemical may adversely
affect the safely of the appliance.
WARNING!
Do not use the appliance within range of person unless
they wear protective clothing.
WARNING!
- High pressure jets can be dangerous if subject to misuse.
The jet mast not be directed at persons, live electrical
equipment or the appliance itself.
- Do not direct the jet against yourself or others in order to
clean clothes or foot-wear,
- Risk of explosion – do not spray ammable liquids.
- Disconnect from the electrical power supply before carrying
out user maintenance.
- High pressure cleaners shall not be used by children or
untrained personnel.
- To ensure appliance safety, use only original spare parts
from the manufacturer or approved by the manufacturer.
WARNING!
Water that has own through backow preventers is considered
to be non-potable.
4

USER MANUAL 7
WARNING!
The machine shall be disconnected from its power source
during cleaning or maintenance and when replacing parts
for mains operated machines by removing the plug from
the socket-outlet.
WARNING!
High pressure hoses, ttings and couplings are important for
safety of the appliance. Use only hoses, tting and couplings
recommended by the manufacturer.
- Do not use the appliance if a supply cord or important
parts of the appliance are damaged, e.g. Safety devices,
high pressure hoses, trigger gun.
WARNING!
If an extension cord is used, the plug and socket must be
of watertight construction.
WARNING!
Inadequate extension cords can be dangerous.
- This high pressure washer must not be used at temperatures
below 0°C.
WARNINIG!
- Cord on drums should always be completely un winded
to prevent the cord from overheating.
- If an extension cord is used, the plug and socket must be
of watertight construction.
- Inadequate extension cords and be dangerous.
- Comply with the below-mentioned requirements for length
and cored dimensions.
5

HIGH PRESSURE WASHER
8
1.0mm max.12.5m
1.5mm max. 20m
2.5mm max. 30m
- Power cord connections should be kept dry and off the
ground.
- If the power cord is damaged, it must be replaced by
the manufacturer or his service agent or similarly qualied
person in order to avoid a hazard.
- All keep the machine on a stable and at surface during
operation, handling, transportation and storage. Sudden
overturn of machine will cause injury to body.
- In the event of accident or breakdown, switch off the ma-
chine immediately. (e.g. contact with detergent: rinse with an
abundance of clean water.
ATTENTION:
Through poor conditions of the electrical MAINS, shortly
voltage drops can appear when starting the EQUIPMENT.
this can inuence other equipment (e.g. Blinking of a lamp).
If the MAINS-IMPEDANCE Zmax <0.335 OMH, such
disturbances are not expected. (in case of need, you may
contact your local supply authority for further information.)
WARNING!
ELECTRICAL SHOCK HAZARD
Improper connection of the equipment – grounding con-
ductor can result in a risk of electrical shock. Check with
a qualied electrician or service person if you are unsure
if an outlet is properly grounded. DO NOT modify the plug
provided with the appliance to t an outlet, have a proper
outlet installed by a qualied electrician.
6

USER MANUAL 97
.MAINS POWER CONNECTION
The following should be observed when connecting the
high pressure washer to the electric installation:
- The electric installation shall be made by a certied electrician
and comply with IEC-364.
It is recommended that the electric supply to this appliance
should include either a residual current device that will interrupt
the supply if the leakage current to earth exceeds 30 mA
for 30 ms.
IMPOTANT:
Only use water without any impurities. If there is a risk of
running sands in the inlet water (i.e. from your own well),
an additional lter should be mounted.
- Safety devices
- The unloader valve can reduce pressure if it exceeds pre-
set values. the spray gun features a looking device. When
the pawl is activated, the spray gun cannot be operated.
- Thermal sensor
A thermal sensor protects the motor against overloading.
Machine will restart after a few minutes when the thermal
sensor has cooled.
ASSEMBLY

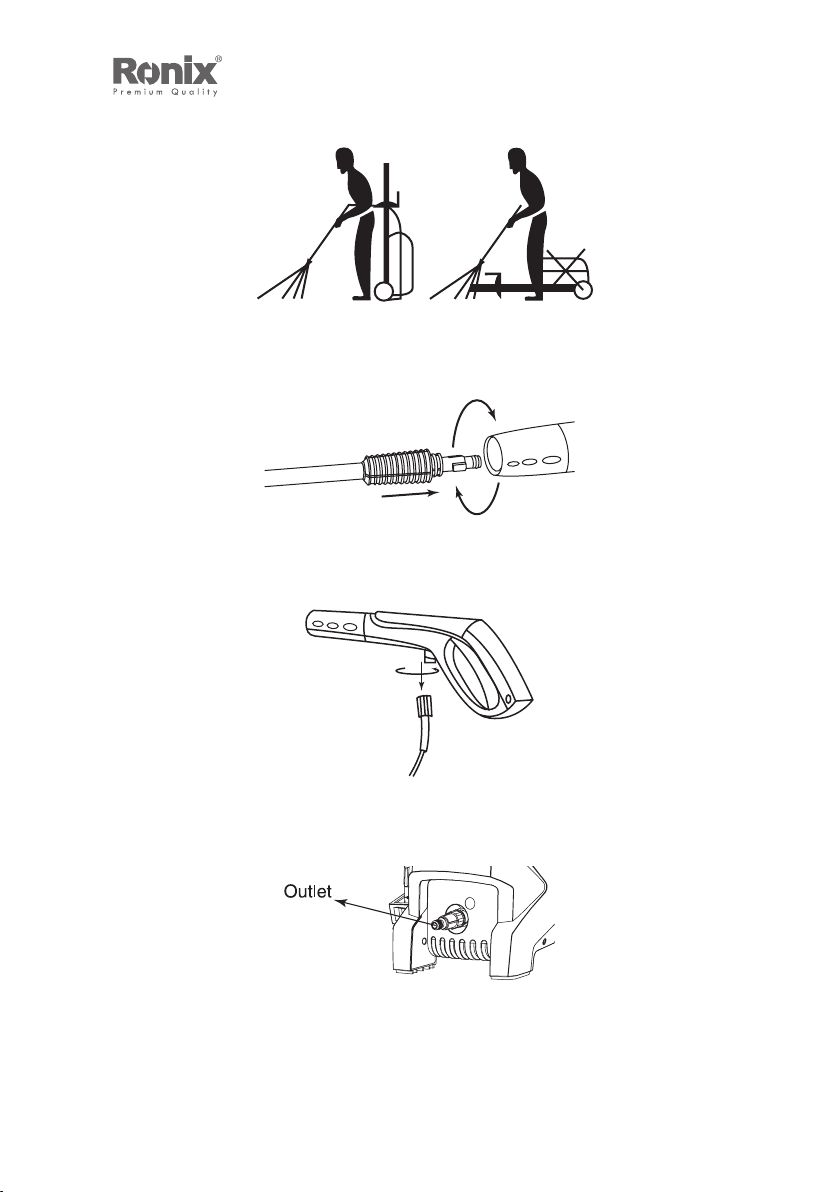

-Position the washer as NEAR as possible to the water
supply.
- The washer must be used standing on a secure, stable,
positioned as shown.

HIGH PRESSURE WASHER
10
- Fit the lance into the gun and rotate it until the two parts
are completely locked.
- Connect the gun to high pressure hose.
- Connect the high pressure hose to the water outlet on
the washer.
- Connect the water supply hose to female coupler. Then
connect to the water inlet of the washer. The supply hose
8

USER MANUAL 11
must have an internal diameter of at least 13mm (1/2 in)
and must be reinforced. the water supply must be at least
equal to the washer delivery capacity.
WARNING!
The intake water temperature must not exceed 40. The
water supply must not exceed 0.7 MPa.
CAUTION:
The washer must only be used with clean water; use of
unltered water of corrosive chemicals will damage the
washer.
- Push the motor switch to “OFF” position.
Check that the electrical supply voltage and frequency
(Volt/Hz) correspond to those specied on the washer
rating plate. If the power supply if correct, you may now
plug in the washer.
OPERATION
- Turn on the water supply tap fully.
9

HIGH PRESSURE WASHER
12

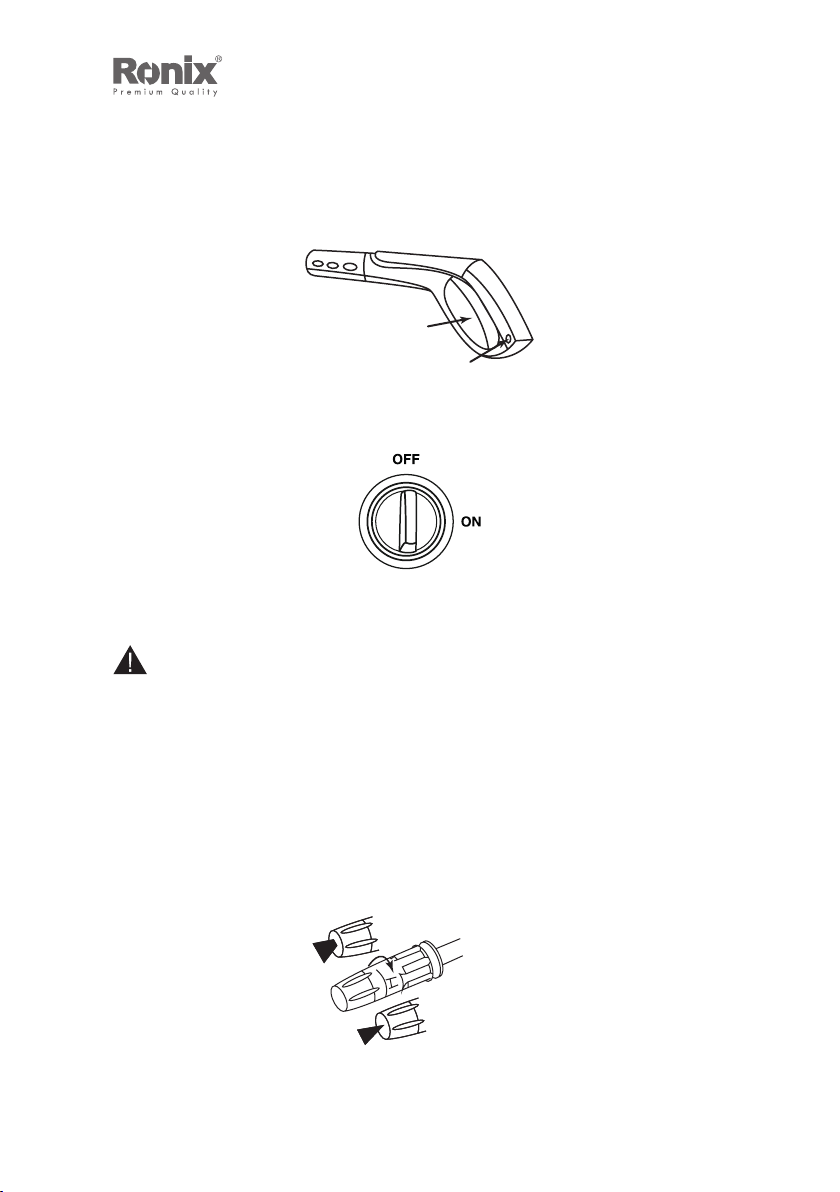

- Release the safety lock then press the trigger for a few
seconds to allow air to escape and dis charge residual
pressure in the hose.
- Keeping the trigger pressed push the switch to start the
motor.
- When re-starting the motor, always keep the trigger pressed.
NOTE:
THE MOTOR ONLY RUNS WHEN THE TRIGGER IS
OPERATED.
CORRECT USE OF STANDARD ACCESSORIES
- The washer is equipped with adjustable nozzle.
- Jet adjustment from pencil to fan.
10

USER MANUAL 13

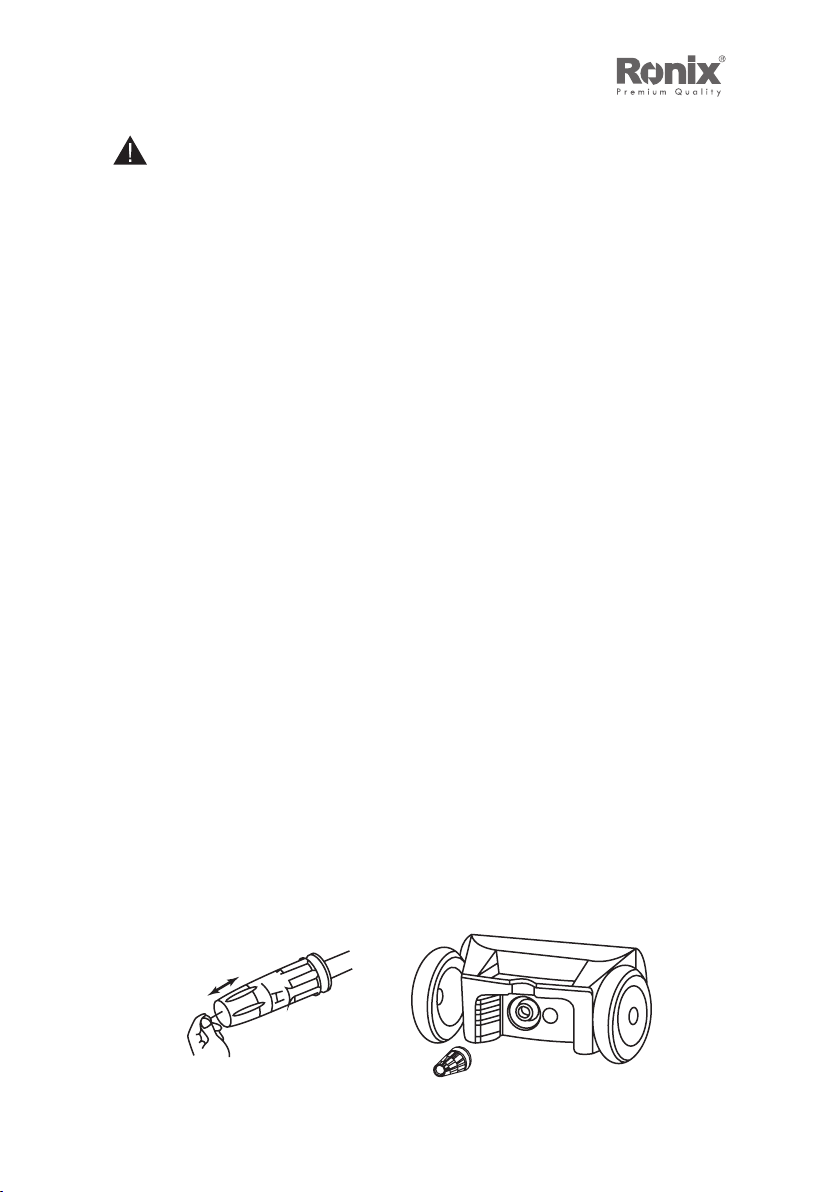

WARNING!
DO NOT ADJUST THE NOZZLE WHILE THE TRIGGER
IS SQUEEZED.
RECOMMENDED CLEANINIG PROCEDURE
- Dissolve dirt by applying detergent with the fan jet to the
dry surface. on vertical surfaces, work from the bottom
upwards. leave the detergent to act for 1to 2minutes, but
do not allow to dry out. Apply the high from the surface,
working from the bottom upwards.
- Avoid allowing the rinsing water to run on to unwanted
surfaces.
STORAGE
- Switch off the washer.
- Turn off the water supply tap.
- After use, the detergent residuals should be removed
from the tank.
- Discharge residual pressure by pressing the trigger until
no more water comes out of the lance nozzle.
- Engage the gun safety lock.
- Remove the plug from the socket.
- Operate the washer with non-corrosive /non-toxic antifreeze
before storing for the winter.
11

HIGH PRESSURE WASHER
14
WARNING!
BEFORE REUSING, COMPLETELY FLUSH THE UNIT
OUT WISH PLAIN WATER. ANTI-FREEZE CAN DAMAGE
PAINTWORK SO YOU MUST ENSURE THERE IS NO
ANTI-FREEZE LEFT IN THE SYSTEM BEFORE USING
IT AGAIN.
MAINTENANCE
CAUTION:
Before working on the washer, disconnect the lug from the
power supply socket.
- to ensure good performance. check and clean the suction
and detergent lters after every 50 hours of operation.

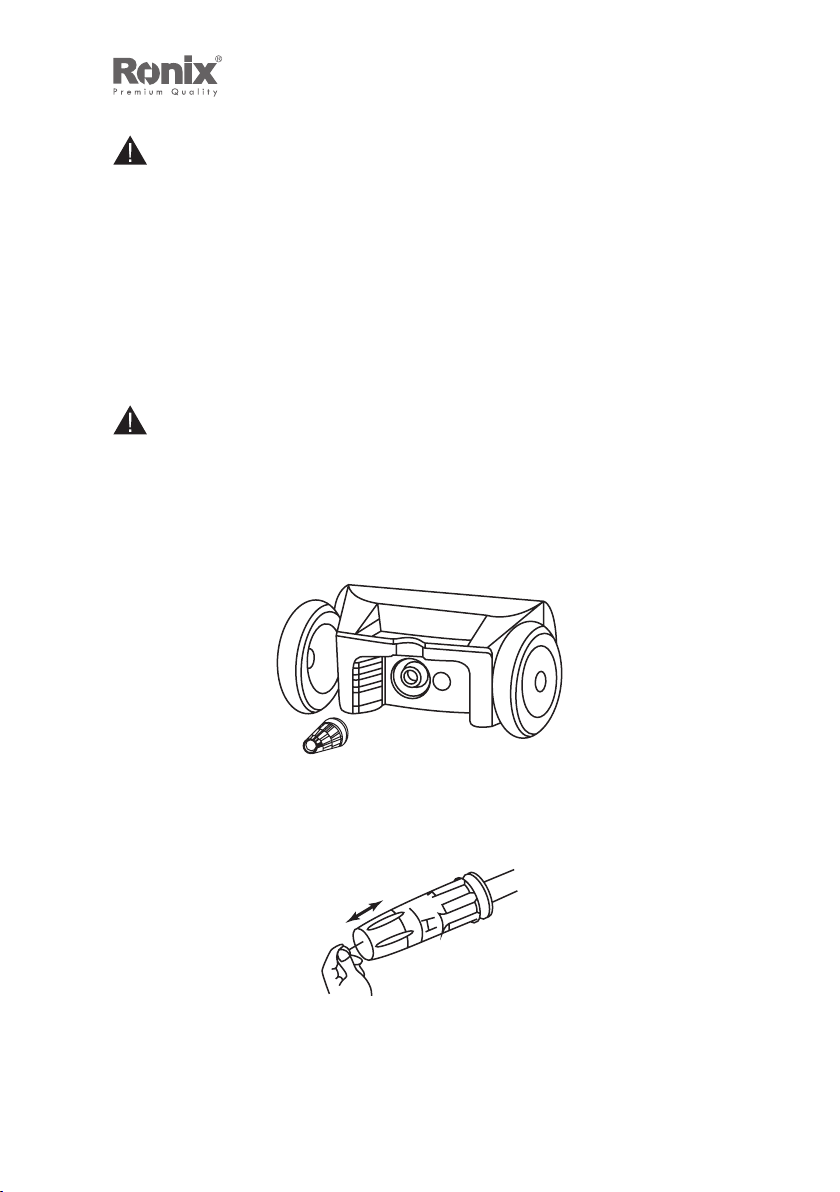

- clean the nozzle with tool provided. remove the lance
from the gun, remove any dirt from the nozzle hole and
rinse.
12

USER MANUAL 15
TROUBLESHOOTING
Disconnect from the electrical power supply before carrying
out user maintenance or checking is correct functioning.To
avoid unnecessary disappointments, you should check the
following before contacting the service organization.
In case problems other than the above occur, please contact
your local distributor.
13
Symptom Cause Recommended Action
Machine refuses to
start
- Machine not plugged in
- Defective socket
- Fuse has blown
- Defective extension cord
- Plug in machine
- Try another socket
- Replace fuse
- Switch off other machine
- Try without the extension cord
Fluctuating pressure - Pump sucking air
- Valve is dirty, worn out
or stuck
- Pump seals worn out
- Check that hoses and connec-
tions are airtight
- Clean and replace or refer to local
distributor
- Clean and replace or refer to local
distributor
Machine stops - Fuse has blown
- Incorrect mains voltage
- Thermal sensor acti-
vated
- Nozzle partially blocked
- Replace fuse
- Switch off other machines
- Check that the main voltage
corresponds to specication on the
model tag
- Leave the washer for 5 minutes to
cool down
- Clean the nozzle

HIGH PRESSURE WASHER
16
Fuse blows Fuse too small - Change to an installation higher
than the amp consumption of the
machine
- You may try without the extension
cord
Machine pulsating - Air in inlet hose
Inadequate supply of
mains water
- Nozzle partially blocked
water lter blocked
- Hose kinked
Allow machine to run with open
trigger until regular working pressure
resumes
- Check the water supply corre-
sponds to specications required
- Avoid using long, thin hoses
(min1/2”)
- Clean the nozzle
- Clean the lter
- Straighten out hose
Machine often starts
and stops by itself
Pump/spray gun is
leaking Centre
Contact your nearest Service
Machine starts, but
no water comes out
- Pump/hoses or accesso-
ry frozen
- No water supply
- Water lter blocked
- Nozzle blocked
- Wait for Pump/hoses or accessory
to thaw
- Connect inlet water
- Clean the lter
- Clean the nozzle
14
