ROOTECH Accura 2350-DO User manual

Notice
Accura 2350-DO User Guide
Page 2
ⓒ2018 Rootech Inc. All Rights Reserved
Notice
Symbols
Caution
Indicates the presence of dangerous voltage which can cause severe injury or death if
proper precautions are not followed.
Caution
Alerts users of the presence of hazards which can cause injury to persons, property damage
or damage to the device if proper precautions are not followed.
Note
Indicates major instructions for the installation, operation, and maintenance of the product.
Indicates alternative voltage or current.
Indicates direct voltage or current.
Installation Considerations
The installation, operation, and maintenance of the product should be performed only by qualified,
competent personnel that have received appropriate training for high voltage and current devices.
Caution
If hazardous voltages are mishandled while installing and operating the product in the field, it can cause
serious injury or death.
◼This device must be installed and serviced only by qualified personnel who have in-depth knowledge of
installing, commissioning and operating the device and have had appropriate training. He or she should
have read and understood the various safety measures and warnings stated in the instructions.
◼Before carrying out any work on the device, switch off the power supply to the device.
◼Always use an appropriate voltage detection device to confirm the absence of voltage.
◼Always power the device with the correct rated voltage.
◼Install the device in a suitable electrical cabinet by following recommended installation instructions. Failure
to take these precautions could cause serious injuries or death.

Accura 2350-DO User Guide
Notice
ⓒ2018 Rootech Inc. All Rights Reserved
3
Caution
Observe the following instructions, or it may cause permanent damage to the product.
To ensure that the device operates correctly, make sure that:
◼The device is correctly installed.
About the Manual
Rootech, Inc. reserves the right to make changes in the product specifications shown in this User Guide
without Rootech, Inc. reserves the right to make changes in the product specifications shown in this User
Guide without prior notice. We recommend that customers should obtain the latest information on product
specifications and the manual before making orders.
In the absence of written agreements, Rootech, Inc. assumes no liability for applications assistance,
customer’s system design, or infringement of patents or copyrights induced by third parties arising from
the use of the products described herein.
We endeavor to provide accurate information in the document. However, we are not responsible for any
errors which may appear here and reserves the right to make changes without prior notice.
Limitation of Liability
Where applicable law allows and does not prohibit or restrict such limitation, Rootech, Inc’s liability for
this product shall be limited to the amount actually paid by customers for the product.

Warranty
Accura 2350-DO User Guide
Page 4
ⓒ2018 Rootech Inc. All Rights Reserved
Warranty
Rootech Inc. provides warrants for two years from the product receipt date only to the original purchaser
of the products and software that are sold or licensed by the company.
To obtain warranty service, the purchased products should be free from serious defects in material and
workmanship.
The software is provided in an up-to-date version, thus we do not offer any warranty for the software
product.
In order to make a product claim under the warranties described above, the original purchaser should
immediately contact Rootech headquarters. Upon receiving claims, Rootech will check out the product
either at where the purchaser is or at the company after receiving the product from the customer, who is
responsible for the cost of shipping the product. After inspecting the product, we will provide repair or
replacement services for the product.
Rootech will decide at its discretion whether to repair or replace it or give a refund for the product for
when the warranty period for the product expired or issues related to the product are not applicable for
warranty terms and conditions.
Limitation of Warranty
The Warranty does not apply to uninterrupted or error-free operation of the product or cover normal wear
and tear of the product or costs caused by the removal, installation, or troubleshooting of the customer's
electrical systems.
Defects caused by any of the following factors are not covered under the warranty.
◼Improper use(alteration, accident, misuse, abuse) or failure to act in accordance with installation,
operation or maintenance instructions
◼Unauthorized modifications, changes or repair attempts
◼Failure to comply with applicable safety standards & regulations
◼Damages coming from when transporting or storing the product
◼Damages caused by the force majeure event, including fire, flood, earthquakes, storm damage,
overvoltage & lightning
◼If the original identification marks(trade-mark, serial number, etc.) have been defaced, altered, or
removed
Rootech shall not be liable for any other claims except the claims made by customers, including the
original purchaser, his employees, agents, or contractors for any loss, damage, or expense incurred related
to the purchased product when the above warranty terms and conditions are not fulfilled.

Accura 2350-DO User Guide
Warranty
ⓒ2018 Rootech Inc. All Rights Reserved
5
Any technical assistance with system design provided by Rootech's personnel or representatives shall be
deemed to be a suggestion. The original purchaser is responsible for determining the feasibility of such
suggestions and should conduct tests to prove their feasibility.
It is the original purchaser’s responsibility to determine the suitability of the product and associated
documentation. The original purchaser should acknowledge that 100% up time is not realizable because
of possible hardware or software defects. The original purchaser should recognize that such defects and
failures may cause inaccuracies or malfunctions.
No agency, corporate entity, or employee of Rootech or other companies has authority to amend, modify
or extend the terms and conditions of this warranty in any way without express written authorization from
Rootech, Inc.
Standard Compliance
Process Control Equipment
E324900

Revision History
Accura 2350-DO User Guide
Page 6
ⓒ2018 Rootech Inc. All Rights Reserved
Revision History
The following versions of 「Accura 2350-DO User Guide」have been released.
Revision
Date
Description
1.00
May 16, 2014
Initial release
1.02
June 17, 2014
Changed the external power supply value from 5 V to 24 V
1.03
August 7, 2014
Added content on current consumption and the product weight
1.10
December 18, 2014
Added the Notice, Standard Compliance, Warranty, and Contents
sections, as well as the communication setup section.
1.11
April 20, 2015
Changed the symbols indicating the commands 0 and 1 issued to DO
channels and related descriptions.
Changed the logos of standards
Changed the symbol used to indicate a range from ~ to –
1.12
February 8, 2022
Changed the image and text on the cover page, the product’s
dimensions, and information on certifications
Updated the document according to the latest version of the
documentation

Accura 2350-DO User Guide
Contents
ⓒ2018 Rootech Inc. All Rights Reserved
7
Contents
Chapter 1 Installation and Wiring...................................................................................................................................... 9
Before Installation ..................................................................................................................................................................................................9
Components...................................................................................................................................................................................................9
Dimensions......................................................................................................................................................................................................9
Installation...............................................................................................................................................................................................................11
Panel Mounting ......................................................................................................................................................................................... 11
DIN-Rail Mounting...................................................................................................................................................................................11
Wiring .............................................................................................................................................................................................................12
Chapter 2 Accura 2350-DO Operation/Setup ................................................................................................................ 13
Power Supply.........................................................................................................................................................................................................13
Functions .................................................................................................................................................................................................................14
Button Operation ................................................................................................................................................................................................ 16
LCD Screen ............................................................................................................................................................................................................. 17
Display Mode..............................................................................................................................................................................................17
Setup Mode.................................................................................................................................................................................................18
Communication Setup............................................................................................................................................................................19
LED Status Indicators.........................................................................................................................................................................................21
Chapter 3 Accura 2300[S] Operation/Setup................................................................................................................... 22
Display Mode of Accura 2300[S].................................................................................................................................................................22
Full-screen Display Mode of Accura 2300[S] ..............................................................................................................................23
Appendix A Specifications................................................................................................................................................. 24
8 Digital Output channels .................................................................................................................................................................... 24
Appendix B Ordering Information ................................................................................................................................... 26

Figures
Accura 2350-DO User Guide
Page 8
ⓒ2018 Rootech Inc. All Rights Reserved
Figures
Fig 1.1 Accura 2350-DO Components ..............................................................................................................................................9
Fig 1.2 Accura 2350-DO Front ..............................................................................................................................................................9
Fig 1.3 Accura 2350-DO Rear ................................................................................................................................................................9
Fig 1.4 Accura 2350-DO Side.............................................................................................................................................................. 10
Fig 1.5 Panel Mounting.......................................................................................................................................................................... 11
Fig 1.6 DIN-Rail Mounting ................................................................................................................................................................... 11
Fig 1.7 Connection to Power Supply and DOs and Connection via Cable.................................................................. 12
Fig 2.1 Accura 2350-DO Front ...........................................................................................................................................................13

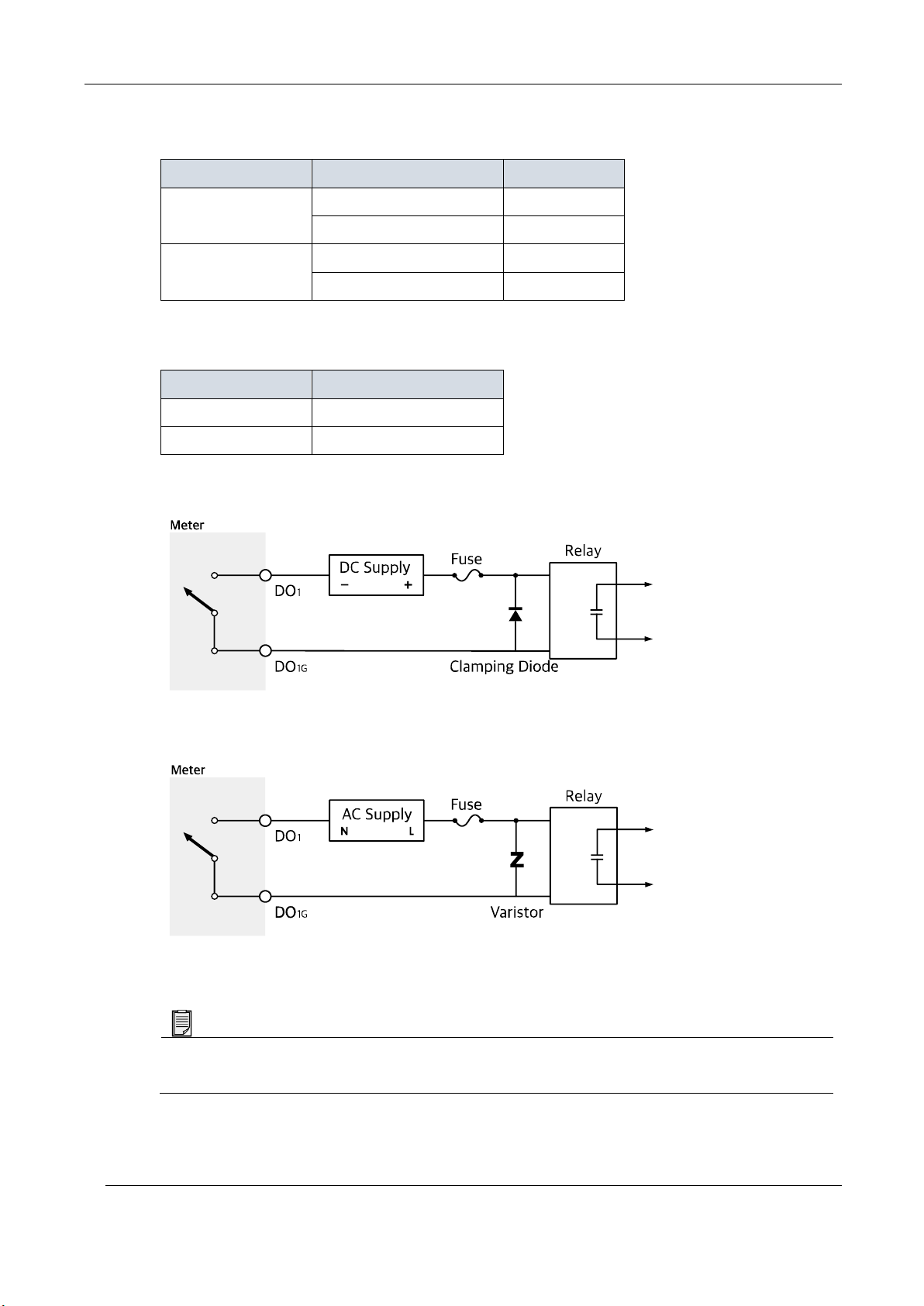

Fig 2.2 DC Relay Application...............................................................................................................................................................15
Fig 2.3 AC Relay Application............................................................................................................................................................... 15
Fig 3.1 Display Screen of the DO Module showing the Status of Channels 1,2,3,4 / 5,6,7,8.............................22

Accura 2350-DO User Guide
Chapter 1 Installation and Wiring
ⓒ2018 Rootech Inc. All Rights Reserved
9
Chapter 1 Installation and Wiring
Before Installation
Components
Fig 1.1 Accura 2350-DO Components
Accura 2350-DO
Mounting wings L/S
Two screws
RJ12 6C communication line
Dimensions
Fig 1.2 Accura 2350-DO Front
Fig 1.3 Accura 2350-DO Rear

Chapter 1 Installation and Wiring
Accura 2350-DO User Guide
Page 10
ⓒ2018 Rootech Inc. All Rights Reserved
Fig 1.4 Accura 2350-DO Side

Accura 2350-DO User Guide
Chapter 1 Installation and Wiring
ⓒ2018 Rootech Inc. All Rights Reserved
11
Installation
Panel Mounting
Fig 1.5 Panel Mounting
DIN-Rail Mounting
Fig 1.6 DIN-Rail Mounting

Chapter 1 Installation and Wiring
Accura 2350-DO User Guide
Page 12
ⓒ2018 Rootech Inc. All Rights Reserved
Wiring
①Connect the external power to Accura 2350-DO module. Connections to the external power supply
should be made according to the positive/negative polarity of ports. The device can also operate with
the internal power supplied via the RJ12 6C communication line when it is not connected to the
external power supply. In this case, when digital output contacts operate, a voltage drop may occur
due to increased current consumption when current flows through the RJ12 6C communication line.
It can reduce the power supply voltage. Thus, when the contacts of all DO channels of the DO module
are closed[with the greatest current consumption], make sure to check if the power supply voltage
operates properly.
②Make connections to the DO contacts.
③Connect the RJ12 6C communication line to the RJ12A/RJ12B port.
(Accura 2350-DO module receives power from Accura 2300[S] via the RJ12 6C communication line.)
Fig 1.7 Connection to Power Supply and DOs and Connection via Cable

Accura 2350-DO User Guide
Chapter 2 Accura 2350-DO Operation/Setup
ⓒ2018 Rootech Inc. All Rights Reserved
13
Chapter 2 Accura 2350-DO Operation/Setup
Fig 2.1 Accura 2350-DO Front
Power Supply
Item
Description
Connector type
Terminal block
Wire specification
1.5 to 3.5 mm2 (16 to 12 AWG), copper or aluminum
Power supply
DC voltage 5 V to 24 V ±10% 1
Receives power from Accura 2300[S] through the RJ12 6C communication line 2
Current consumption
DC 5V power supply
80 mA
All DO channels are open.
120 mA
1 DO channel is closed.
440 mA
All DO channels are closed.
DC 24V power supply
20 mA
All DO channels are open.
30 mA
1 DO channel is closed.
100 mA
All DO channels are closed.
1. When the external power supply is not connected to the Accura 2350-DO module, it operates with the internal
power supplied through the RJ12 6C communication line.
2. When the external power supply is not connected to the Accura 2350-DO module, make sure to check if the power
supply voltage operates properly considering a voltage drop may occur when the maximum current flows through the
RJ12 6C communication line. If there is any problem in the power supply, you should additionally connect the
external power supply to the module.

Chapter 2 Accura 2350-DO Operation/Setup
Accura 2350-DO User Guide
Page 14
ⓒ2018 Rootech Inc. All Rights Reserved
Functions
8 Digital Output Channels
Ch 1
Ch 2
Ch 3
Ch 4
Ch 5
Ch 6
Ch 7
Ch 8
Port name
DO1
DO2
DO3
DO4
DO5
DO6
DO7
DO8
Ground 1
DO1G
DO2G
DO3G
DO4G
DO5G
DO6G
DO7G
DO8G
1. DO1G , DO2G …and DO8G are different grounds corresponding to each channel.
Item
Description
Connector type
Terminal block
Wire specification
1.5 to 3.5 mm2 (16 to 12 AWG), copper or aluminum
Output type
Latch/ Periodic pulse / Uncountable pulse/ Countable pulse 1
Turn-on time
Maximum 6 msec
Turn-off time
Maximum 3 msec
Isolation
AC 2,000 V for one minute
Maximum rating
AC 250 V 5 A, DC 110 V 0.3 A, DC 30 V 5 A
1.Operations of different digital outputs are as follows.
Output Type
Command Value
Operation when Normal Polarity is Set
Latch
1
Closed contact is maintained.
0
Open contact is maintained.
Periodic Pulse1
1
A pulse occurs periodically on the closed contact.
0
After completion of the pulse that has occurred, pulse
generation is stopped.
Uncountable Pulse1
1
A single pulse occurs on the closed contact. The
command(Logic 1) issued after the occurrence of a single
pulse is cleared automatically. Additional commands
issued within the pulse period are ignored.
0
It is unavailable because the command(Logic 1) is
automatically cleared after pulse generation.
Countable Pulse 1
1
A single pulse occurs on the closed contact. The
command(Logic 1) issued after the occurrence of a single
pulse is cleared automatically. Additional commands
issued within the pulse period are counted and the
counted number of pulses occur after the end of the pulse
period. Pulses can be output according to the measured
energy value.
0
It is unavailable because the command(Logic 1) is
automatically cleared after pulse generation.
1.Pulse period and pulse on-time can be set via communication.

Accura 2350-DO User Guide
Chapter 2 Accura 2350-DO Operation/Setup
ⓒ2018 Rootech Inc. All Rights Reserved
15
Logic values for commands appear on the LCD screen on Accura 2350-DO module as follows.
Polarity
Command Value for DO
Contact Status
0 [Normal]
1 [numeric value]
Closed
0 [numeric value]
Open
1 [Reverse]
1 [numeric value]
Open
0 [numeric value]
Closed
The LCD screen on Accura 2350-DO module displays the actual status of the DO contact.
Contact Status
Status Display Symbol
Closed
o [lower-cased alphabet]
Open
_ [underline]
Fig 2.2 DC Relay Application
Fig 2.3 AC Relay Application
Note
It is recommended that you should use a clamp diode or varistor in order to ensure that
the rated voltage of the digital output is not exceeded while switching DO operation modes.

Chapter 2 Accura 2350-DO Operation/Setup
Accura 2350-DO User Guide
Page 16
ⓒ2018 Rootech Inc. All Rights Reserved

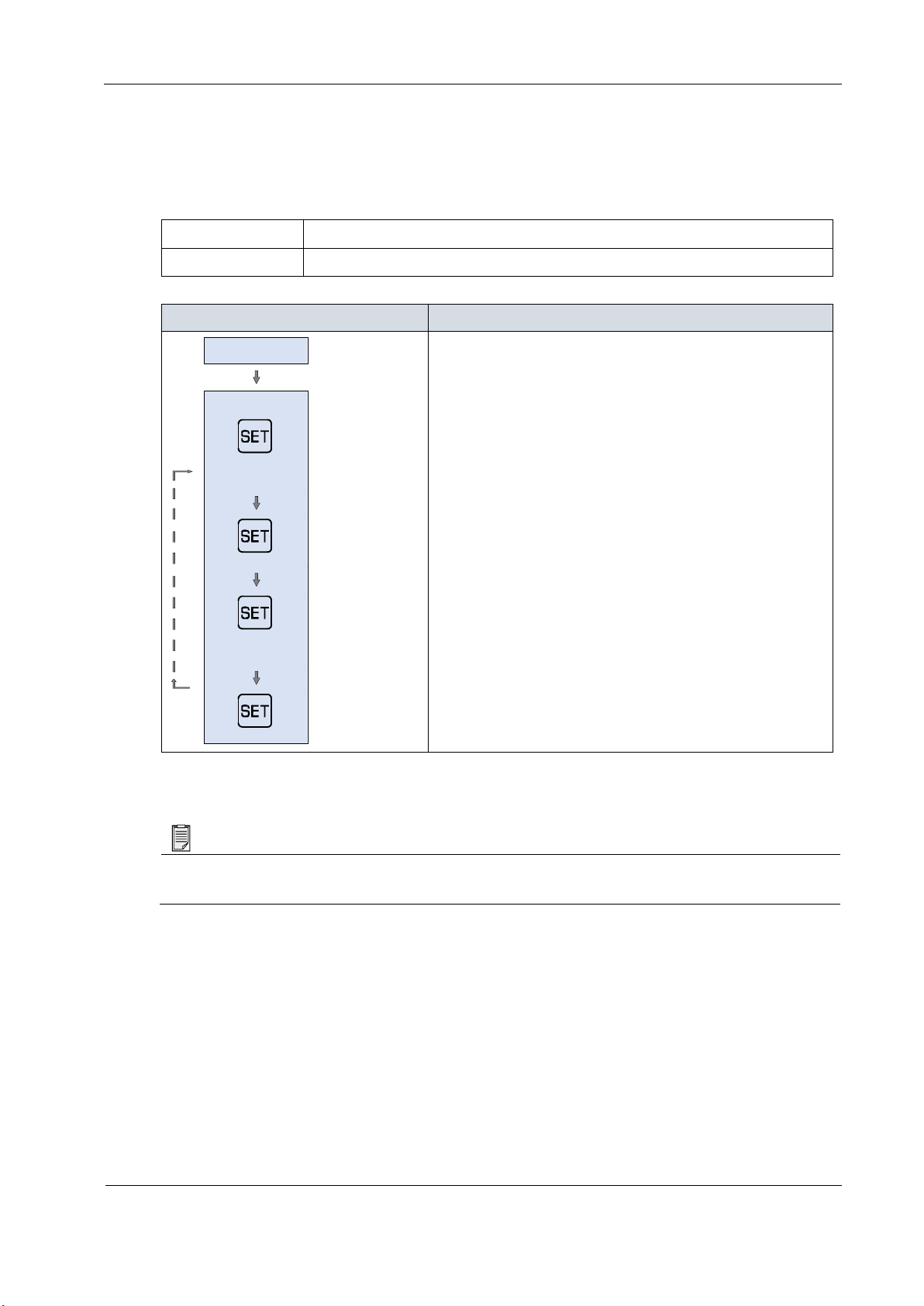

Button Operation
The SET button on the Accura 2350-DO module is used to perform the following functions.
Display mode
Displays the module ID and the status of the DO contact
Setup mode
Sets up the module ID and controls the DO status for each DO channel
Button
Function
[Display Mode]
Displays the module ID and the status of the DO contact
[Setup Mode]
Short press 1
Move to the setup screen.
(The setup menu is sequentially selected each time the SET button
is pressed.)
Long press 2
Move to the screen on which you will change settings.
Preset values blink and can be changed.
Short press
Select a preset value to change by pressing the button.
(The setup value changes sequentially each time the button is
pressed.)
Long press
Save the selected setup value. And then the screen stops blinking.
(Move to the next setup menu.)
1. Press the button and release it immediately.
2. Release the button after pressing it for 1 second.
Note
If there is no button operation for 10 seconds on the setup mode, the screen automatically returns to
the display mode.

Accura 2350-DO User Guide
Chapter 2 Accura 2350-DO Operation/Setup
ⓒ2018 Rootech Inc. All Rights Reserved
17
LCD Screen
Display Mode
The LCD screen displays the ID of Accura 2350-DO module and the status of the DO contact. Screens
appear in sequence as shown below. Short press the SET button on the display mode to move to the
setup mode.
ID
Status of DO
channels 1 & 2
Status of DO
channels 3 & 4
Status of DO
channels 5 & 6
Status of DO
channels 7 & 8
ID Display
Display
ID [d][d] 1
Accura 2350 ID 2
1. d →decimal number
2. Module IDs are divided into as follows. The standby ID 255 is assigned to all Accura 2350 modules as a factory
default value.
Module ID
ID
Description
Communication ID
ID 0 - 39
ID of the Accura 2350 module that enables communication
Conflict ID
Redundant IDs
There are more than 2 identical IDs. communication unavailable
Standby ID
ID 255
Module ID for checking connection status, communication unavailable
Channel Status Display [C →Channel]
The LCD screen displays the contact status of 2 DO channels at once.
-
Display
C.1.2
Displays the contact status of Channels 1 and 2
C.3.4
Displays the contact status of Channels 3 and 4
C.5.6
Displays the contact status of Channels 5 and 6
C.7.8
Displays the contact status of Channels 7 and 8
Lower-cased letter o
Displays the status of closed contact
Underline _
Displays the status of open contact

Chapter 2 Accura 2350-DO Operation/Setup
Accura 2350-DO User Guide
Page 18
ⓒ2018 Rootech Inc. All Rights Reserved

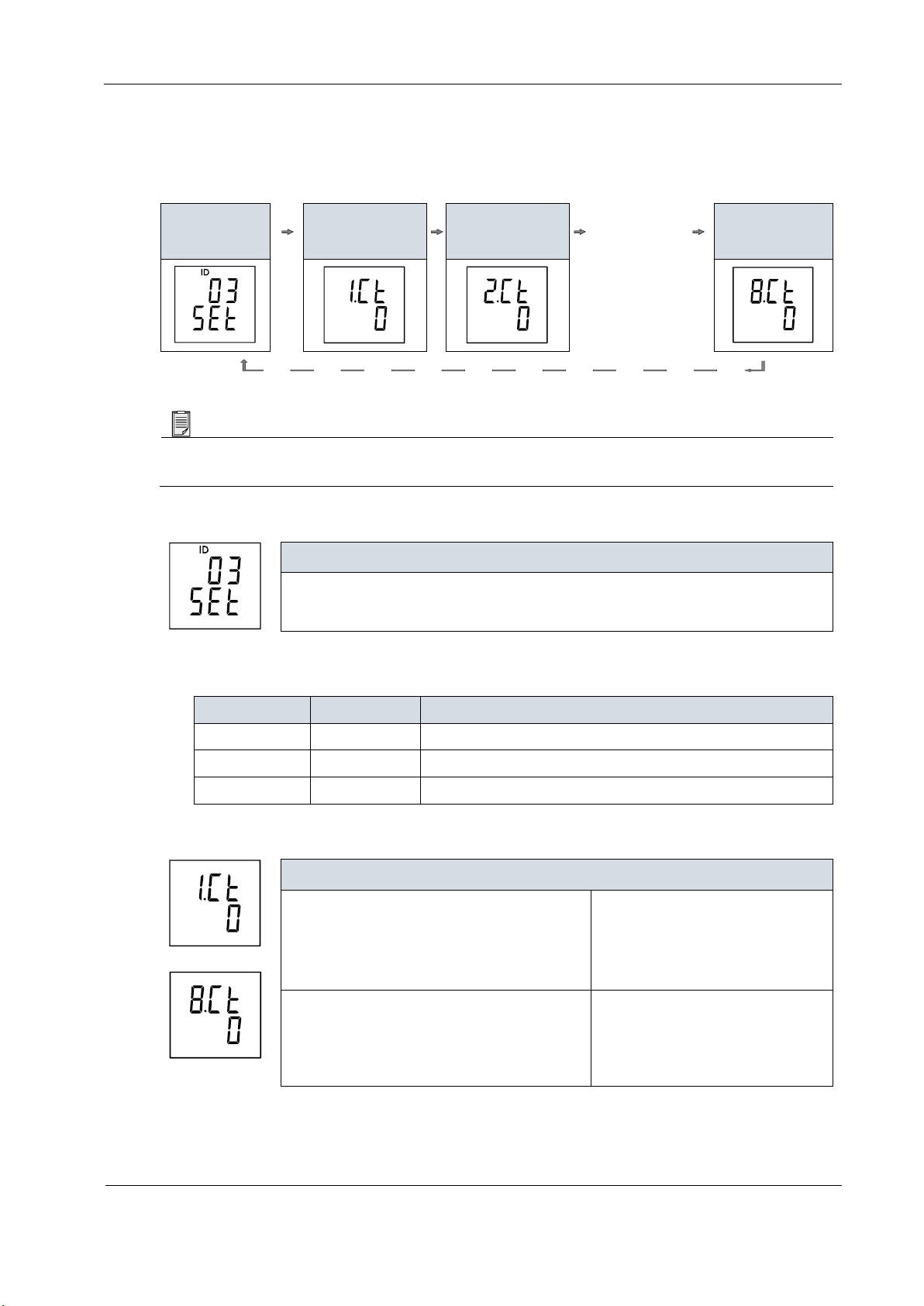

Setup Mode
Each time the SET button is short pressed, the next setup menu is selected.
ID Setup
Output Control of
Channel 1
Output Control of
Channel 2
Channels
3-7
Output Control
of Channel 8
Note
If there is no button operation for 10 seconds on the setup screen, the screen automatically returns to
the display screen.
ID Setup
Setup Range
ID [d][d] 1
Default 255
Accura 2350 ID 2
Setup range: 0 - 39
1. d →decimal number.
2. Module IDs are divided into three types of IDs as follows. The standby ID 255 is assigned to all Accura 2350
modules as a factory default value.
Module ID
ID
Description
Communication ID
ID 0 - 39
ID of the Accura 2350 module that enables communication
Conflict ID
Redundant IDs
There are more than 2 identical IDs. communication unavailable
Standby ID
ID 255
Module ID for checking connection status, communication unavailable
Output Control Setup for Channels [Ct →Control]
-
Setup Range
0 [numeric value]
[default]
Outputs the command to
open the contact
Polarity=0 [Normal] status
1 [numeric value]
Outputs the command to
close the contact
0 [numeric value]
Outputs the command to
close the contact
Polarity=1 [Reverse] status
1 [numeric value]
Outputs the command to
open the contact
Channel control commands can be issued via Modbus communication. Refer to 「Accura 2300[S]/2350
Communication User Guide」for details on controls via communication.

Accura 2350-DO User Guide
Chapter 2 Accura 2350-DO Operation/Setup
ⓒ2018 Rootech Inc. All Rights Reserved
19
Communication Setup
The following parameters can be set up via Modbus communication. Refer to 「Accura 2300[S]/2350
Communication User Guide」for details on communication settings.
Register
Number
Name
Format
Attribute
Description
1261
Module ID for
extended device
setup
Uint16
PRW
Designates the ID of Accura 2350-DO module for which
device setup is performed
For the module ID assigned to this register, extended setup
for registers 3801 and 3802-4000 is performed.
Setup range: 0 - 39 Default : 0
3801
Access for
extended device
setup
Uint16
PRW
Base register for accessing registers 3802-4000
By reading this register, the data collected from the module ID
assigned to register 1261 can be fetched to registers 3802-4000.
After a successful fetch, the Bit[15] is indicated as 1. By writing 1
to this register, data on registers 3802-4000 are applied to the
designated module.
3802
Confirmation of
module type
Unit16
PRW
Detection code for the DO module: 2
By writing the detection code 2 to the register, device setup for
the DO module can be performed. If the detection code is not
entered properly, device setup for the DO module cannot be
performed.
3803
Polarity of
DO channel 1
Uint16
PRW
Sets up the polarity of the DO channel 1
0 : (default) normal
The contact is closed when the command value is set to 1 in
latch mode.
1 : reverse
The contact is open when the command value is set to 1 in latch
mode.
3804
Operation mode
of DO channel 1
Uint16
PRW
Sets up the operation mode of DO channel 1
0 : (default) Latch mode:
1/0 (1:Closed / 0:Open) The status of the output signal is
maintained.
1: Periodic pulse mode:
If the command value is set to 1, a pulse occurs periodically. If
the command value is set to 0, a periodic occurrence of a pulse
is stopped, and the output signal is low.
2: Uncountable pulse mode:
If the command value is set to 1, a single pulse occurs. The
command value is automatically cleared. Thus, there is no need
to reset the value to 0. The command issued during the pulse
period is ignored.

Chapter 2 Accura 2350-DO Operation/Setup
Accura 2350-DO User Guide
Page 20
ⓒ2018 Rootech Inc. All Rights Reserved
3 : Countable pulse mode:
If the command value is set to 1, a single pulse occurs. The
command value is automatically cleared. Thus, there is no need
to reset the value to 0. When an additional command with the
logic value 1 is issued during the pulse period, the number of
commands is added, and additional pulses are generated after
the pulse period is over.
3805
Pulse Period
of DO channel 1
Uint16
PRW
The pulse period indicates a complete cycle during which a pulse
occurs.
Unit : 100 msec
Setup range : 2 - 655 [100 msec] (0.2 sec - 65.5 sec)
Default : 4 [100 msec] (0.4 sec)
3806
Pulse On time
of DO channel 1
Uint16
PRW
Time the pulse is On. Pulse On time should be shorter than or
equal to the pulse period. If the Pulse On time is longer than the
pulse period, the pulse period is applied as the pulse On time.
Unit : 100 msec
Setup range : 1 - 655 [100 msec] (0.1 sec - 65.5 sec)
Default : 2 [100 msec] (0.2 sec)
3807-
Reserved
3815-
Channel 2
PRW
Setup is performed in the same way Channel 1 is set up. Refer
to registers 3803-3806.
3827-
Channel 3
PRW
Setup is performed in the same way Channel 1 is set up. Refer
to registers 3803-3806.
3839-
Channel 4
PRW
Setup is performed in the same way Channel 1 is set up. Refer
to registers 3803-3806.
3851-
Channel 5
PRW
Setup is performed in the same way Channel 1 is set up. Refer
to registers 3803-3806.
3963-
Channel 6
PRW
Setup is performed in the same way Channel 1 is set up. Refer
to registers 3803-3806.
3975-
Channel 7
PRW
Setup is performed in the same way Channel 1 is set up. Refer
to registers 3803-3806.
3987-
Channel 8
PRW
Setup is performed in the same way Channel 1 is set up. Refer
to registers 3803-3806.
