Roper BGC430W BGP430W User manual

Gas24” Built-In Single Ovens
Useand
CareGuide
ROPERn
Home Appliances
Self-Cleaning BGS470W
Continuous-Cleaning BGC430W
Standard-Cleaning BGP430W
Thank you for choosinga
Roperappliance.
This Useand Care Guide will help you
operate and maintain your new, quality-
built Roperbuilt-in oven. Keep this Use
and CareGuide in a safeplace for future
reference.
Completeand mail the
ProductRegistration Card.
This card enters your warranty into our
warranty system that ensures efficient
claim processing, can be used asa proof
of purchase for insurance claims and
helps Roperto contact you immediately
in the unlikely event of a product-safety
recall.
You areresponsible for
It is your responsibility to be sure that
your oven:
. Is installed by aqualified installer.
. Hasbeen properly installed where it
is protected from the elements, and
in a wall or cabinet strong enough
to support its weight. (Seethe
Installation Instructions.)
. Is not used by anyone unable to
operate it properly.
n Is properly maintained.
n Is used only for jobs expected of a
home oven.
TOTHEINSTALLER:PLEASE
LEAVETHISINSTRUCTION
BOOKWITH THEUNIT.
TOTHECONSUMER:PLEASE
READAND KEEPTHISBOOK
FORFUTUREREFERENCE.
Contents
Important Safety Instructions Page Page
PartsAndFeatures i
Caring For Your Oven
Thecontrolknobsandcommandbuttons :z
using Youroven
z
ThecontrolPanel 12
The electronic oven controls Removing and replacing the oven door _ 12
Setting the clock
Using the Minute Timer z Removing and replacing the oven bottom ;;
Using the Cancel button The standardcleaning oven
The oven racks i The continuous-cleaning oven :i
Baking with preheating
Baking/roasting without preheating 87
Using the Self-Cleaning cycle
Cleaningchart 16
Broiling The oven light 8 Before You Call
For Service :i
Adjusting the oven temperaturecontrol-6
Using the electronic Cook Timer clock _ 10
WaITallty
18
The oven vent How to get service or assistance
The storage drawer ::

Important Safety Instructions
Gasranges have been thoroughly tested for safeand efficient operation. However, aswith any appliance, there are specific
installation and safety precautions which must be followed to ensure safeand satisfactory Operation.
To reduce the risk of fire, elex%rkal shock, injury to persons, or damage when using the
range, follow basic precautions, including the following:
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS
tN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
WHAT TO DO IF YOU SMELL GAS:
. DO NOT TRY TO LIGHT ANY APPLIANCE.
n DO NOT TOUCH ANY ELECTRICAL SWITCH; DO NOT USE ANY PHONE IN
YOUR BUILDING.
9 IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A NEIGHBOR’S PHONE.
FOLLOW THE GAS SUPPLIER’S INSTRUCTIONS.
. IF YOU CANNOT REACH YOUR GAS SUPPLIER, CALL THE FIRE DEPARTMENT.
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER,
SERVICE AGENCY OR THE GAS SUPPLIER.
1.Install or locate the oven only in 6.Use the oven only for its intended 12. Donot use water on greasefires.
accordancewith the provided use as described in this manual. Never pick up
a flaming pan.
Installation Instructions. It is 7. Donot wear loose or hanging Smotherflaming pan by covering
recommended that the oven be garments when using the oven. with awell-fitted lid. cookie sheet
installed by aqualified installer. They could ignite if they touch a or flat tray. Flaming grease
The oven must be properly hot surface and you could be outside of pan can be
connected to the proper gas supply burned. extinguished with baking soda
or,
and checkedfor leaks. The oven 8. Donot touch interior surfaces of if available, a multipurpose dry
must aLsobe properly connected to oven. Interior surfacesof an oven chemical or foam-type
electrical supply and grounded. becomehot enough to causeburns. extinguisher.
2. Gasfuels and their use in During and after use, do not touch, 13. Usecarewhen opening oven
appliances can causeminor or let clothing or other flammable door. Let hot air or steam escape
exposures to benzene, materials contact interior surfaces before removing or replacing
formaldehyde, carbon monoxide of oven until they have had food.
and soot,primarily from sufficient time to cool. Other 14.Always position oven rack(s)in
incomplete combustion. Significant surfaces of the oven may become desired location while oven is
exposure to these substances can hot enough to causeburns; such cool.
causecancer or reproductive harm.
Properly adjusted burners with a as,the oven vent opening, the 15.Donot store flammable materials
blue, rather than a yellow, flame surface near the vent opening, the in or near the oven or in the
oven door and the oven door
will minimize incomplete storage drawer. They could
window.
combustion. Venting with a hood explode or burn.
or an open window will further 9.Use only dry potholders. Moist or 16.Do not store things children might
minimize exposure. damp potholders on hot surfaces want above the oven. Children
3.Donot operate the oven if it is not may result in burns from steam. Do could be burned or injured while
not use a towel or bulky cloth for a
worldng properly, or if it has been climbing on it.
damaged. potholder. It could catch on fire. 17.Donot leave children alone or
10.Do not heat unopened containers.
4. Donot use the oven for warming or They could explode. The hot unattended in areawhere the
heating the room.Personscould be oven is in use. They should never
burned or injured, or afire could contents could causeburns and be allowed to sit or stand on any
container particles could cause
StZU-t.
injury. part of the oven. They could be
5.Donot attempt to light the oven burned or injured.
burner during apower failure. 11.Greaseis flammable and should be 18.Never use a match or other flame
Personalinjury could result. handled carefully. Let fat cool to look for a gas leak. Explosion
before attempting to handle it. and injury could result.
19.Know where your main gas shut-
off valve is located.
-_
Page2 1 I

20.Keep oven vents unobstructed.
21.Clean your oven regularly. See
care and cleaning instructions in
this manual.
22.Be sure all oven parts are cool
before cleaning.
23.Donot clean door seal It is
essential for a good seal.Care
should be taken not to rub,
damage,or move the seal.Clean
only parts recommendedin this
Useand Care Guide.
24.Donot use oven cleaners in
continuous- or self-cleaning ovens
(Models BGS470Wand
BGC430W).No commercial oven
cleaner or oven liner protective
coating of any kind should be used
in or around any part of the oven.
25.Beforeself-cleaning the oven
(Model BGS470W),remove broiler
pan, broiler grid, oven racks and
other utensils. Donot use your
oven to clean miscellaneous parts.
26.Donot repair or replace any part of
the oven unless specifically
recommended in this manual All
other servicing should be referred
to aqualified technician.
27.Disconnect the electrical supply
before servicing the oven.
. SAVETHESEINSTRUCTIONS.

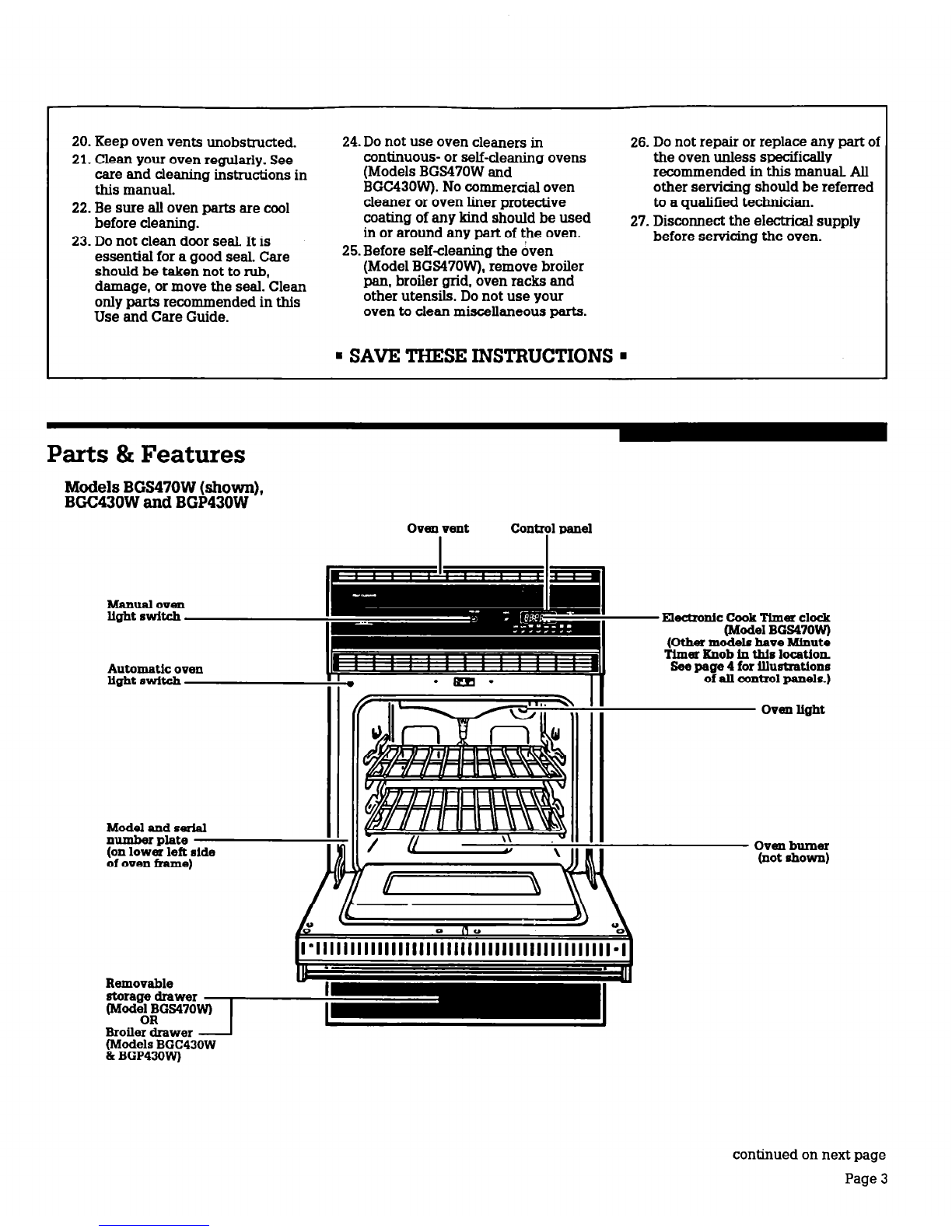

Parts & Features
Models BGS470W (shown),
BGC430W and BGP430W ovenvent
control panel
Manual ovm
light switch
Automaticoven
light switch
Modelandserial
numhar plate
(onlower left side
ofovenkame)
- BlectronIcCookTimarclock
(ModelBGS470W)
(OthermodelshaveMhwt8
TimerKnobin tbfs1ecaUon
Seepage4forfllustratfons
ofah controlpanels.)
Ovenlight
Ovanburner
(notshown)
Removable
storagedrawer
Broiler drawer
rByp;;430W
continued on next page
Page3

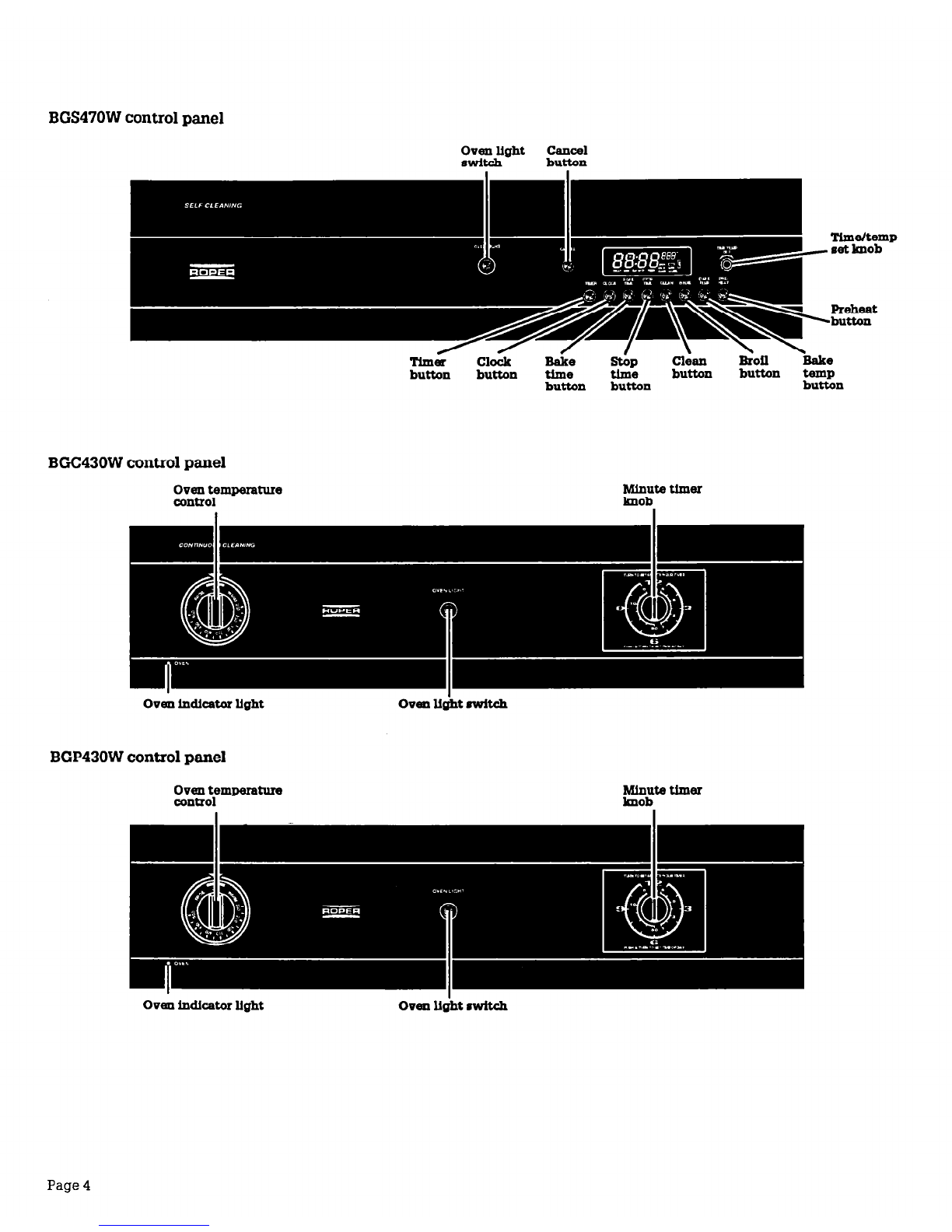

BGS470Wcontrol panel
:lE2ght
C8IlCd
buttan
Tim& Clock Bake
Z
cl&n Broil Bake
button button time button buttm
button button tiz%.l
BGC430W control panel
Oven temperature
control lwnute timer
knob
Oven indkstm light
BGP430W control panel
Oven tempemture Mlnuta timer
control knob
Page 4

Using Your Oven
Theelectronic ovencontrols
(Model BGS470W)
There arethree parts ln the oven
control section:
- The display.
- The command buttons.
- The TimeRemp SetKnob.
Instructions for eachoven control are
covered on the following pages.Read
them carefully.
When you first plug in the oven, the
time display wiII Sashuntil you set a
new time. If, after you set the clock (see
below) the time display flashes, your
electricity was off for a while. Resetthe
Clock.
Display/clock
When YOU are not usino the oven. this is
an accurate digital clock.When using
the oven or Minute Timer, the display
wil.l show the time, temperature
settings and what command buttons
have been pressed.
When showing the time of day, the
display will show the hour and minutes.
When using the Minute Timer, the
display shows minutes and secondsin
the following sequence:
. For settings from 0minutes to 1
minute 55seconds,the display will
increase in 5second increments.
. For settings from 2 minutes to 9
minutes 50 seconds,the display-
will increase in lo-second
increments.
For settings from lo-59 minutes,
the display wih increase in
l-minute increments.
For settings from 1hour to 1hour
55minutes, the display will
increase in 5-minute increments.
For settings from 2hours to 9 hours
55minutes, the display wilI
increase in lo-minute increments.
When using BakeTime, the display
shows hours and minutes.
Command buttons Models BGC430W and BGP430W:
The command buttons tell the oven what
to do and in what order. A few
examples:
- Clock t.elIsthe oven you are going to
set the clock.
- Cancel tells the oven to turn off.
Each commandbutton (except Cancel)
has its own indicator. The indicator
comeson when you touch the command
buttons.
Timehemp set knob
Onceyou’ve pushed a commandbutton
to tell the oven what you want it to do,
you’ll use the Time/remp SetKnob to set
a temperature or time. Turning the
Time/remp SetKnob clockwise
increases the number on the display.
Turning the Time/remp SetKnob
counterclockwise decreasesthe number
on the display.
Setting the clock
Model BGS470W:
1.Push the Clockbutton. The TIME
indicator will show in the display.
Releasethe Clockbutton.
2.Turn the Timeflemp SetKnob until
the correct time shows in the large
display.
Push in and turn the Minute Timer
Knob to set the clock
1. Push in Minute Timer Knob and
turn clockwise until clock shows
the correct time of day.
2. Let the MinuteTimerKnobpop
out. Turn clockwise until Minute
Timer hand points to OFF. The
cIock setting will change if you
push in the knob when turning.
Using the Minute Timer
Model BGS470W:
The Minute Timer does not start or stop
the oven. It works like akitchen timer. It
can be set in minutes and secondsup to
9hours, 55minutes. You wil.l hear three
beepswhen the set time is up, then one
beep every 10seconds for 5minutes or
until the Timer button is pushed.
1.Push the Timer button. The TIMEB
indicator will comeon and the large
display wih show ‘:OO”.
2.Turn the Time/remp SetKnob until
the desired time shows in the large
display. The Minute Timer will
begin counting down 2 seconds
after the time is set.
When time is up, you will hear
three beeps.
To cancel the Minute Timer:
Push the Timer button.
continued on next page
Page5

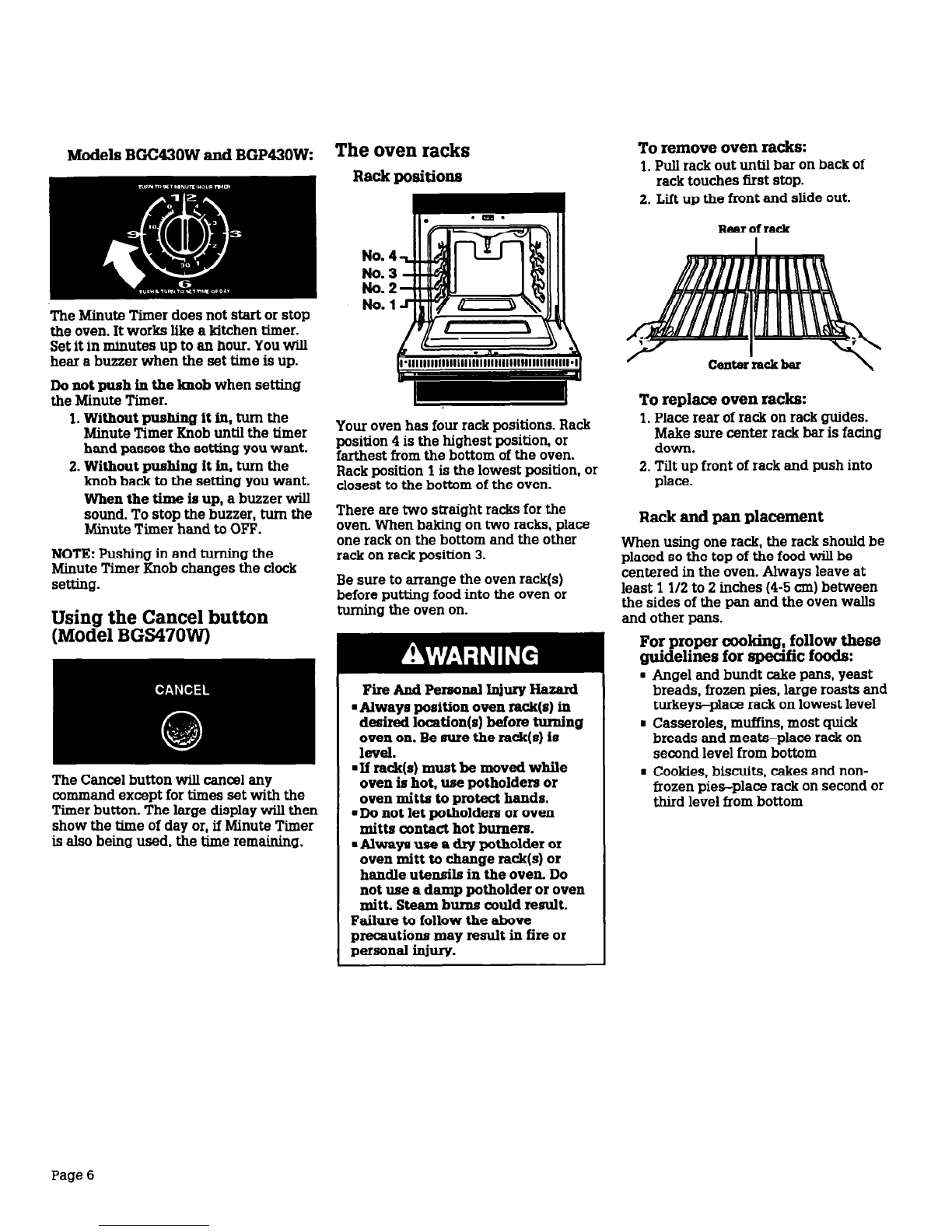

Models BGC430W and BGP430W:
The Minute Timer doesnot start or stop
the oven. It works like a kitchen timer.
Setit in minutes up to an hour. You will
hear abuzzer when the set tlme is up.
Do not push in the knob when setting
the Minute Timer.
1. Without pushing it in, turn the
Minute Timer Knob until the timer
hand passesthe setting you want.
2. Without puehing it in, turn the
knob back to the setting you want.
When the time is up, a buzzer will
sound. To stop the buzzer, turn the
Minute Timer hand to OFF.
NOTE:Pushing in and turning the
Minute Timer Knob changes the clock
setting.
Using the Cancelbutton
(Model BGS470W)
The Cancel button will cancel any
commandexcept for times set with the
Timer button. The large display will then
show the time of day or, if Minute Timer
is also being used, the time remaining.
The ovenracks
Rack positions
No.4
E:X
No.1
Your oven has four rack positions. Rack
position 4is the highest position, or
farthest from the bottom of the oven.
Rackposition 1is the lowest position, or
closest to the bottom of the oven.
There aretwo straight racksfor the
oven. When baking on two racks,place
one rack on the bottom and the other
rack on rack position 3.
Besure to arrange the oven rack(s)
before putting food into the oven or
turning the oven on.
FireAlldPert3oMllnjuryHazard
. Always position oven rack(s) in
desired location(s) before turning
oven on. Be me the rack( 13)is
klfel.
.lf rack(s) must ba moved while
oven is hot, use potholders or
oven mitts to protect hands.
. Do not let potholders or oven
mitts contact hot burners.
9Always use a dry potholder or
oven mitt to change rack(s) or
handle utensils in the oven. Do
not use a damp potholder or oven
mitt. Steam bums oould result.
Failure to follow the above
precautions may result in fire or
personal injury.
To remove oven racks:
1.Pull rack out until bar on back of
rack touches first stop.
2. Llft up the front and slide out.
Rearof rack
/ center;ackbar \
To replace oven racks:
1.Placerear of rack on rack guides.
fIo&I sure center rack bar is facing
2.Tilt up front of rack and push into
place.
Rack and pan placement
When using one rack, the rack should be
placed sothe top of the food will be
centered ln the oven. Always leave at
least 1 l/2 to 2 inches (4-5cm) between
the sides of the pan and the oven walls
and other pans.
For proper cooking, follow these
guidelines for specific foods:
HAngel and bundt cakepans, yeast
breads, frozen pies, large roasts and
turkeys-place rack on lowest level
I Casseroles,muffins, most quick
breads and meats-place rack on
secondlevel from bottom
I Cookies,biscuits, cakesand non-
frozen pies-place rack on secondor
third level from bottom
Page6

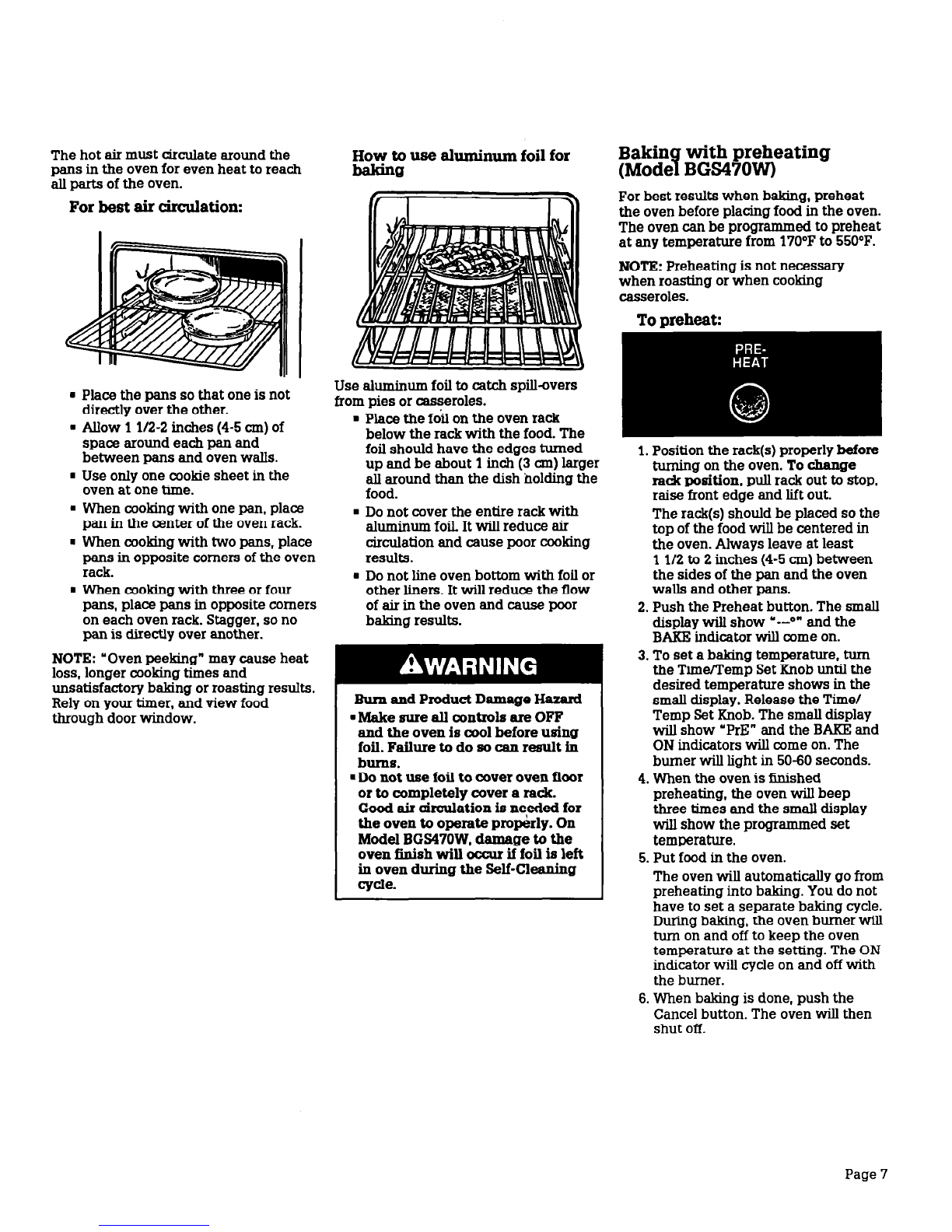

The hot air must circulate around the
pans in the oven for even heat to reach
all parts of the oven.
For best air circulation:
n Placethe pans so that one is not
directly over the other.
. Allow 1 l/2-2 inches (4-5cm) of
spacearound each pan and
between pans and oven walls.
. Useonly one cookie sheet in the
oven at one time.
n When cooking with one pan. place
pan in the center of the oven rack.
. When cooking with two pans, place
pans in opposite comers ofthe oven
rack.
. When cooking with three or four
pans, place pans in opposite comers
on each oven rack. Stagger,sono
pan is directly over another.
NOTE: “Oven peeking” may causeheat
loss, longer cooking times and
unsatisfactory baking or roasting results.
Rely on your timer, and view food
through door window.
How to use aluminum foil for
b-w
Usealuminum foil to catch spill-avers
from pies or casseroles.
mPlacethe foil on the oven rack
below the rack with the food. The
foil should have the edges turned
up and be about 1inch (3 cm) larger
all around than the dish holding the
food.
. Donot cover the entire rack with
aluminum foil It will reduce air
circulation and causepoor cooking
results.
n Donot line oven bottom with foil or
other liners. It will reduce the flow
of air in the oven and causepoor
baking results.
Bum and Product Damage Hazard
.Make sure all controls are OFF
and the oven is cool before using
foil. Failure to do so can result in
burns.
n Do not use foil to cover oven floor
or to completely cover a rack.
Goaf air circulation is needed for
the oven to operate prop&y. On
Model BG!S470W,damage to the
oven finish will occur if foil is left
in oven during the Self-Cleaning
cycle.
Baking with preheating
(Model BGS470W)
For best results when baking, preheat
the oven before placing food in the oven.
The oven can be programmed to preheat
at any temperature from 170°Fto 550°F.
NOTE:Preheating is not necessary
when roasting or when cooking
casseroles.
To preheat:
1.Position the rack(s) properly before
turning on the oven. To change
radr position, pull rack out to stop,
raise front edge and lift out.
The rack(s)should be placed sothe
top of the food will be centered in
the oven. Always leave at least
1 l/2 to 2inches (4-5cm) between
the sides of the pan and the oven
walls and other pans.
2.Push the Preheat button. The small
display will show “--On and the
BAKEindicator will comeon.
3.To set a baking temperature, turn
the Time/Temp SetKnob until the
desired temperature shows in the
small display. Releasethe Time/
Temp SetKnob. The small display
will show ‘PrE” and the BAKEand
ON indicators will comeon. The
burner will light in 50-60seconds.
4.When the oven is finished
preheating, the oven will beep
three times and the small display
will show the programmed set
temperature.
5.Put food in the oven.
The oven will automatically gofrom
preheating into baking. You do not
have to set a separate baking cycle.
During baking, the oven burner will
turn on and off to keep the oven
temperature at the setting. The ON
indicator will cycle on and off with
the burner.
6.When baking is done, push the
Cancelbutton. The oven will then
shut off.
Page7

Baking/roasting without
preheating
Model BGS470W:
1.Position the rack(s) properly before
turning on the oven (Formore
information, seeitem %lin “Baking
with preheating” on page 7.)
2.Push the BakeTemp button. The
small display will show “--On and
the BAKEindicator will comeon.
3.To set a baking/roasting
temperature, turn the Time/Temp
SetKnob until the desired
temperature shows in the small
display. The display will increase in
5°Fincrements. The BAKEand ON
indicators will comeon. The burner
will light in 50-60seconds.
4. Put food in the oven.
During baking/roasting, the oven
burner will turn on and off to keep
the oven temperature at the
setting. The ON indicator will cycle
on and off with the burner.
5.When bakfng/roasting is done,
push the Cancel button. The oven
will then shut off.
Models BGC430W and BGP430W:
1.Position the rack(s) properly before
turning on the oven. To change
position. pull rack out to stop, raise
front edge and lift out.
2. Push in and turn the Oven
Temperature Control to the
temperature you want. The oven
burner will automatically light in
50-60seconds.
3.When baking, preheat the oven for
10minutes. (Preheating is not
needed when roasting.) The oven is
preheated when the Oven Indicator
Light first goes off. Put the food in
the oven.
NOTE: Donot place food directly
on the oven bottom.
4. During baking/roasting, the oven
bumerwiRtumonandoffto
maintain the temperature setting.
The Oven Indicator Light will turn
on and off with the burner.
When baking/roasting is done, turn
the Oven Temperature Control to
OFF.
Broiling
Model BGS470W:
1.Position the rack before turning on
the oven. Referto the chart on page
9for recommended rack positions.
2.Preheat at BROILfor 5minutes
with oven door closed. Donot
preheat with broiler pan in place.
3.To preheat, push the Broil button.
The small display will show “--”
and the BROILindicator will come
on.
4. You can broil at one of two
settings-‘LO” or ‘HI”. Turn the
TimeA’emp SetKnob to the setting
you want. When the oven turns on,
the ONindicator will comeon. The
burner lights automatically in 50-60
seconds.Preheat for 5 minutes.
NOTE:For most foods, broil at
“HI”. The “LO” setting can be used
when broiling foods which
overcookeasily, such asfish or
meringues. The “LO” setting can
alsobe used when broiling foods
that are precooked.
5.After preheating, put the broiler
pan and food on the rack.
6. Completely close the oven door to
assureproper broiling tempera-
tures.
7.When broiling is done, push the
Cancelbutton. The time of day will
then show in the large display.
Page8

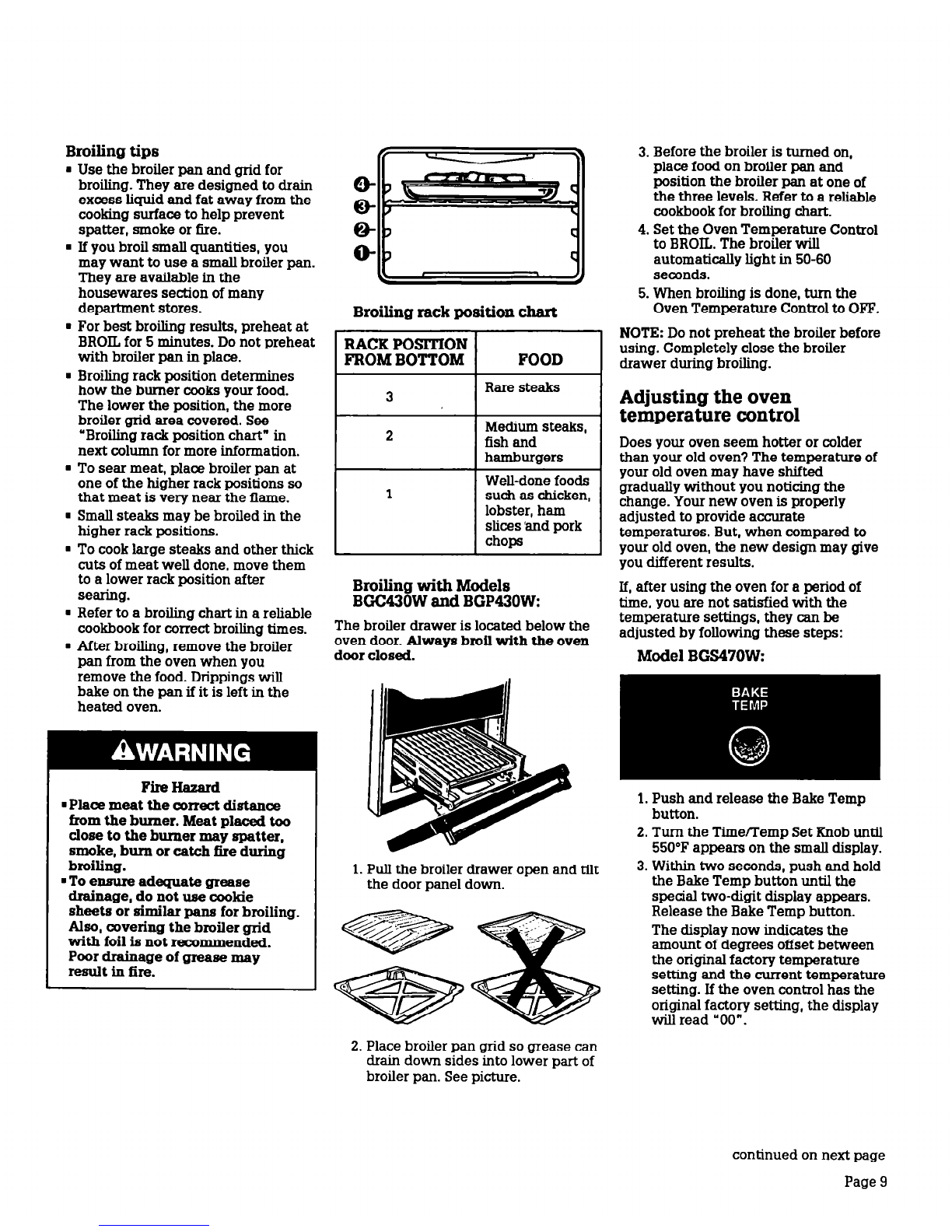

Broiling tips
n Usethe broiler pan and grid for
broiling. They are designed to dram
excessliquid and fat away from the
cooking surface to help prevent
spatter, smokeor 6re.
. If you broil small quantities, you
may want to use a small broiler pan.
They are available in the
housewares section of many
department stores.
n For best broiling results, preheat at
BROILfor 5 minutes. Do not preheat
with broiler pan in place.
. Broiling rack position determines
how the burner cooksyour food.
The lower the position, the more
broiler grid area covered. See
“Broiling rack position chart” in
next column for more information.
. To sear meat, place broiler pan at
one of the higher rack positions so
that meat is very near the flame.
. Smallsteaks may be broiled in the
higher rack positions.
. To cooklarge steaks and other thick
cuts of meat well done, move them
to a lower rack position after
searing.
. Referto a broiling chart in a reliable
cookbookfor correct broiling times.
. After broiling, remove the broiler
pan from the oven when you
remove the food. Drippings will
bake on the pan if it is left in the
heated oven.
FireHazard
. Place meat the correct distanoa
from the burner. Meat placed too
close to the burner may spatter,
smoke, bum or catch fire during
broiling.
n To ensure adequate grease
drainage, do not use cookie
sheets or similar pans for broiling.
Also, covering the broiler grid
with foil is not recommended.
Poor drainage of g-mase may
result in fire.
3.Beforethe broiler is turned on,
place food on broiler pan and
position the broiler pan at one of
the three levels. Referto a reliable
cookbookfor broiling chart.
Broiling rack position chart
4. Setthe Oven Temperature Control
to BROIL.The broiler will
automatically light in 50-60
seconds.
5.When broiling is done, turn the
Oven Temperature Control to OFF.
RACKPOSITION
FROM BOTTOM FOOD
- NOTE: Donot preheat the broiler before
using. Completely closethe broiler
drawer during broiling.
3 I Raresteaks I
2
1
Medium steaks,
fish and
hamburgers
Well-done foods
such aschicken,
lobster, ham
slices‘endpork
chops
Adjusting the oven
temperature control
Doesyour oven seem hotter or colder
than your old oven? The temperature of
your old oven may have shifted
gradually without you noticing the
change. Your new oven is properly
adjusted to provide accurate
temperatures. But, when wmpared to
your old oven, the new design may give
you different results.
Broiling with Models
If, after using the oven for a period of
BGC430W and BGP430W: time, YOU are not satisfied with the
The broiler drawer is located below the
oven door. Alwavs broil with the oven
doorclosed. -
temperature settings, they can be
adjusted by following these steps:
Model BGS470W:
1.Push and release the BakeTemp
button.
2.Turn the Timeflemp SetKnob until
550°Fappears on the small display.
1.Pull the broiler drawer open and tilt
the door panel down. 3.Within two seconds,push and hold
the BakeTemp button until the
special two-digit display appears.
Releasethe BakeTemp button.
The display now indicates the
amount of degrees offset between
the original factory temperature
setting and the current temperature
setting. If the oven control has the
original factory setting, the display
will read “00”.
2.Placebroiler pan grid so grease can
drain down sides into lower part of
broiler pan. Seepicture.
continued on next page
Page9

4. You can now change the setting up
or down 35”F, in 5°Fsteps. To do so,
turn the Time/remp SetKnob until
the desired amount of offset
appearsin the display.
NOTE: If you have decreasedthe
setting, aminus sign (-)will appear
before the number.
5.When you have made the desired
adjustment, push the Cancelbutton
to go back to the time of day
display.
NOTE:Adjusting the oven temperature
control will only change cooking
temperatures. It will not affect self-
cleaning temperatures.
Models BGC430W and BGP430W:
Locklua
3. Loosen the locking screws about
one turn each. Indicator
1.Turn the Oven Temperature Control
Knob to the off position. Pull knob
straight off and flip it over.
Tighten the locking
screws and replace
the control knob.
2. On the back of the knobis a series
of small marker lines next to the
knob shaft. One of these marker
lines is positioned next to a small
indicator. Note the position of the
indicator.
4. To lower the temperature, hold
knob handle firmly and turn the
inside adjustment plate to move the
indicator one marker line to the
right Eachline equals about 10°F
(5°C). To raise the temperature,
hold knob handle firmly and turn the
inside adjustment plate to move the
indicator one marker line to the left.
Eachline equals about 10°F(5%).
Using the electronic Cook
Timer clock
(Model BGS47OW)
The electronic CookTimer clock is
designed to turn the oven on and off at
times you set, even when you are not
around.
Automatic baking/roasting is ideal for
foodswhich do not require apreheated
oven such asmeats and casseroles. Do
not use the automatic cycle for cakes,
cookies, etc. ... undercooking will
result.
To start baking/roasting now
and stop automatically:
1.Position rack(s) properly, and place
the food in the oven.
2. Push the BakeTime button. The
large display will show “-:-” and
the blue BAKEand TIME indicators
will wme on.
3.Turn the Time/Temp SetKnob
clockwise until the desired baking/
roasting time, up to 11hours 59
minutes, shows in the large
display.
4. Push the BakeTemp button and set
the desired temperature. The
display will show the set
temperature and the time
remaining. The red ON and BAKE
indicators will wme on.
5. The display will count down in
l-minute increments.
6. When baking/roasting time is
completed, the oven will turn off
automatically, beep 3times, then
beep once every 10secondsfor 5
minutes or until the Cancelbutton
is pushed. The time of day will
show in the large display.
Page10

To delay start and stop
automatically:
1.Position rack(s) properly, and place
the food in the oven.
2.Push the BakeTime button. The
large display will show “--:-” and
the blue BAKEand TIME indicators
will wme on.
3. Turn the TimefI’emp SetKnob
clockwise until the desired baking/
roasting time, up to 11hours 59
minutes, shows in the large
display.
4. Push the StopTime button. The
blue BAKE,STOPand TIME
indicators will wme on. Turn the
Time/Temp SetKnob clockwise
until the desired stop time shows in
the large display.
The display will then change to
showing the baking/roasting time
and the blue BAKEand TIME
indicators will comeon. The oven
will beep onceand the red BAKE
indicator will flash. If aba&ng/
roasting temperature is not
selected within 15seconds,the
control will cancel.
5.Push the BakeTemp button and set
the desired temperature. The stop
time will show in the large display.
The red BAKEindicator and both
DELAY indicators will wme on.
6. Changes can be madeat any time
by pressing a commandbutton.
7. When the start time is reached, the
DELAY and STOPindicators will go
off. The display will show the set
temperature and the ONindicator
will wme on.
8.When baking/roasting time is
completed, the oven will turn off
automatically, beep 3times, then
beep once every 10secondsfor 5
minutes or until the Cancelbutton
is pushed. The time of day will
show in the large display.
To cancel the electronic Cook
Timer clock setting:
Push the Cancelbutton. The time of day
will then show in the large display.
To avoid sickness and foal waste
when using the Cook Timer clock:
n DonotusefoodsthatwBlspoil
while waiting for cooking to start,
such as dishes with milk or eggs,
cream soups, and cooked meats or
fish. Any food that has to wait for
cooking to start should be very
cold or frozen before it is put in
the oven. MOST UNFROZEIN
FOODS SHOULD NEVER STAND
MORE THAN TWO HOURS
BEFORE COOKING STARTS.
. Do not use foods containing
baking powder or yeast when
using delay start. They will not
rise properly.
l Do not allow food to remain in
oven for more than two hours
after end of cooking cycle.
The ovenvent
Hot air and moisture escapefrom the
oven through a vent located above the
control panel. The vent is needed for air
circulation. Do not block the vent. Poor
baking/roasting will result.
The storagedrawer
(Model BGS470VV)
The storage drawer is for storing pots
and pans. The drawer can be removed to
makeit easier to clean under the oven.
Use care when handling the drawer.
EGe9g the storage
.
.
1.Empty drawer of any pots and pans
before removing drawer.
2. Pull drawer out slightly. Lift front
and pull all the way out
zf$epg the storage
:
Drawer slide rail
1.Fit ends of drawer slide rails into
the oven slide rails on both sides of
opening.
2.Lift front and slide drawer closed.
Explosion and Fire Hazard
Do not store flammable materials
in the storage drawer. They could
explode or burn.
Page11

Caring For Your Oven
Burn, Electrical Shock, Fire And
Explosion Hazard
.Make sure all controls are OFF
and the oven is cool before
cleaning.
. Do not we oven cleaners, bleach
or NSt removers.
. Do not use gasoline or other
flammable liquids or vapors to
clean this or any other appliance.
. Do not use your oven for storage.
. Keep the appliance area clear and
free from combustible materials,
gasoline and other flammable
vapors and liquids.
. h not ObstNct the flow of
combustion and ventilation air.
Failure to follow these guidelines
could result in bums, electrical
shock, fire or explosion.
Thecontrol knobs and
commandbuttons
1.Make sure all control knobs are
turned to OFF.
2.Pull control knobs or command
buttons straight off.
3.Washin warm, soapywater.
4. Rinsewell and dry completely. Do
not soak.
Thecontrol panel
1.Wipe with warm, soapy water or
spray glass cleaner, and a soft
cloth.
2.Rinsewell.
3.Dry with soft cloth.
4. Replacecontrol knobs or command
buttons by pushing them firmly into
place.
NOTE:When cleaning, never use steel
wool, abrasives, or commercial oven
cleanerswhich may damagethe finish.
After cleaning, make sure all control
knobs point to the off position. Make
sure you have not turned oven on when
replacing buttons. If oven has been
turned on,push Cancel button.
Removing and replacing the
oven door (ModelsBGC430W
and BGP430W)
The oven door may be removed to make
cleaning inside the oven easier.
Personal Injury Hazard
.Oven doora are heavy. Use both
hands to remove the oven doors.
. Grasp only the sides of the oven
door. Do not we any portion of
the front frame or trim for lifting.
Failure to properly grasp the oven
door could result in personal injury
or product damage.
To remove:
1.Open the door completely.
2. Removethe screws at the top of
the retaining brackets above the
oven door hinges.
3.Removethe retaining brackets.
4. Closethe door about 3/4 of the
way.
5.Hold the doorfirmly on both sides
and lift the door up and out of the
hinge slots to remove. Setthe door
aside.
To replace:
1.Grasp the door firmly on both sides.
Placethe hinge arm against the top
of the opening in the oven frame.
Push the bottom of the door in until
the hinge mm is all the way into
the opening.
2.Gently lower the door sothat the
bottom of the hinge arm rests on
the bottom of the opening.
3.Open the door completely.
4. Replacethe retaining brackets and
screw on each side of the oven
door.
5.Closeand open the door slowly to
makesure it is replaced properly.
Removingand replacing the
ovenbottom (Models
BGC430Wand BGP430W)
The oven bottom can be removed for
easier cleaning.
1.Open the oven door.
2. Removethe oven racks.
3.Locate the oven bottom retainer
located at the rear of the oven
bottom.
4. Lift oven bottom retainer. Slide
oven bottom forward to disengage
rear tabs.
5.Lift front of oven bottom and lift out
of oven.
6.To replace the oven bottom,
reverse the steps above.
Page12

The standard-cleaning oven
(Model BGP430VV)
The standardcleaning oven has to be
handcleaned. Usewarm, soapywater,
soapy steel wool pads or a commercial
oven cleaner. See“Cleaning Chart” on
page 16for further instructions.
NOTE: Donot allow commercial oven
cleaner to contact the heat seal,
thermostat or exterior surfacesof the
oven Damagewill occur.
Usefoil during cooking to keep oven
clean. See“How to use aluminum foil for
baking” on page 7for more information.
Thecontinuous-cleaning
oven(Model BGC430W)
Standardcleaning oven walls are coated
with smooth porcelain. Your continuous-
cleaning oven walls are coatedwith a
special, rougher porcelain. A fat spatter
beadsup on the smooth surface,but
spreadsout on the rougher surface.The
bead of fat on the smooth surface chars
and turns black. The spread-out fat on
the rough surface mually bums away
at medium to high baking/roasting
temperatures so the oven can return to a
presentably clean condition.
Fatspatter standard-
beadsup.
Tumsblack.
@-=-NJ
pozceldn
Fat spati
spreadsout.
Rums away.
COilt.hUOllS-
cleaning
por=m
Cleaning tips
1.The oven window and racks are not
coated. Clean them by hand.
2.The oven door doesnot get ashot
asthe walls. Somehand-cleaning
may be needed.
3.lf you do more broiling than baking
or roasting, hand-cleaning may be
needed.
4.Usealuminum foil or a shallow pan
on the lower rack according to
instructions below. Spill-avers may
not burn away and could stain the
bottom.
Hand-cleaning
.--
--e --
Personal Injury Hazard
Do not use oven cleaning lxoducts
in a continuous-cleaning oven.
Some am become trapped in the
porcelain surface and give off
harmful fumes.
WALLS AND DOOR-Washwith warm,
soapy water. Use a steel wool pad or
plastic scouring pad for heavily soiled
areas.Rinse well.
WINDOW-Keep clean with warm, soapy
water or spray glass cleaner. Usea
plastic scouring pad for heavily soiled
areas.Rinse well. Do not use steel wool
or abrasive cleansers.
RACKS-Usea soapy steel wool pad for
best cleaning results. Rinsewell. Page13

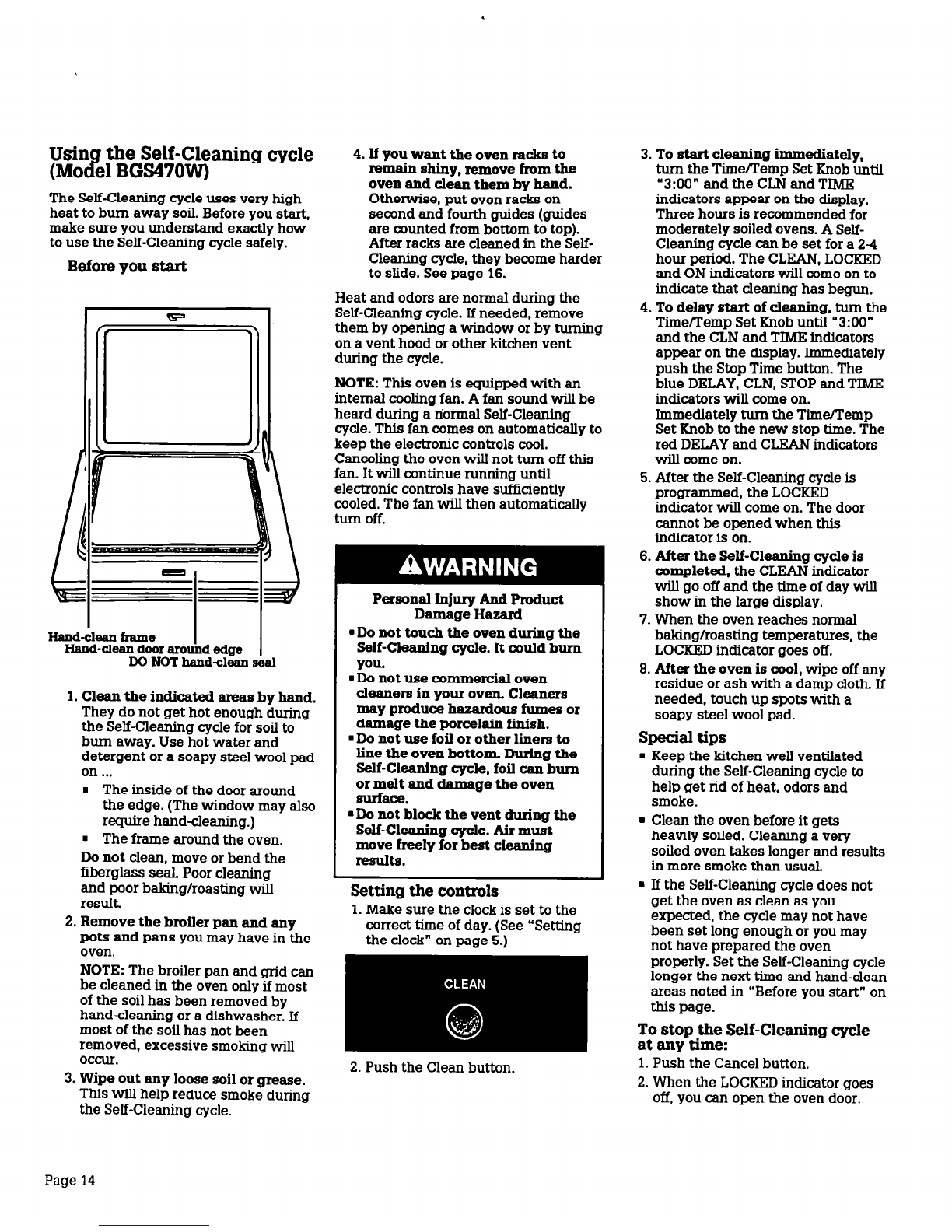

Using the Self-Cleaning cycle
(Model BGS470W)
The Self-Cleaning cycle uses very high
heat to burn away soil. Beforeyou start,
makesure you understand exactly how
to use the Self-Cleaning cycle safely.
Before you start
Fiend-cleanframe I
Hand-deandooraroundedge I
DONOThand-cleanseaI
1. Clean the indicated awzasby hand.
They do not get hot enough during
the Self-Cleaning cycle for soil to
burn away. Use hot water and
detergent or a soapy steel wool pad
on ...
n The inside of the door around
the edge. (The window may also
require hand-cleaning.)
. The frame around the oven.
Do not clean, move or bend the
fiberglass seal Poorcleaning
and poor baking/roasting will
result
2. Remove the broiler pan and any
pots and pans you may have in the
oven.
NOTE: The broiler pan and grid can
be cleaned in the oven only if most
of the soil has been removed by
hand-cleaning or a dishwasher. If
most of the soil has not been
removed, excessive smoking will
occur.
3.Wipe out any loose soil or grease.
This will help reduce smokeduring
the Self-Cleaning cycle.
4. If you want the oven racks to
remain shiny, remove from the
oven and clean them by hand.
Otherwise, put oven racks on
secondand fourth guides (guides
are counted from bottom to top).
After racks are cleaned in the Self-
Cleaning cycle, they becomeharder
to slide. Seepage 16.
Heat and odors are normal during the
Self-Cleaning cycle. If needed, remove
them by opening a window or by turning
on a vent hood or other kitchen vent
during the cycle.
NOTE:This oven is equipped with an
internal cooling fan. A fan sound will be
heard during a normal Self-Cleaning
cycle.This fan comeson automatically to
keep the electronic controls cool.
Canceling the oven will not turn off this
fan. It will continue running until
electronic controls have sufficiently
cooled.The fan will then automatically
turn off.
Personal Injury And Product
Damage Hazard
. Do not touch the oven during the
Self-Cleaning cycle. It could burn
YOU.
. Do not use commercial oven
cleaners in your oven. Cleaners
may produce hazardous fumes or
damage the porcelain finish.
. Do not use foil or other liners to
line the oven bottom. During the
Self-Cleaning cycle, foil can burn
or melt and damage the oven
surface.
. Do not block the vent during the
Self-Cleaning cycle. Air must
move freely for best cleaning
results.
Setting the controls
1.Make sure the clock is set to the
correct time of day. (See“Setting
the clock” on page 5.)
2. Push the Clean button.
3. To star& cleaning immediately,
turn the Timeflemp SetKnob until
‘3:OO” andtheCLNandTIMB
indicators appear on the display.
Three hours is recommendedfor
moderately soiled ovens. A Self-
Cleaning cycle canbe set for a 24
hour period. The CLEAN,LOCKED
and ONindicators will comeon to
indicate that cleaning has begun.
4. To delay start of cleaning, tum the
Time/Temp SetKnob until ‘3:OO”
and the CLN and TIME indicators
appear on the display. Immediately
push the StopTime button. The
blue DELAY,CLN, STOPand TIME
indicators will comeon.
Immediately turn the Time/Temp
SetKnob to the new stoptime. The
red DELAY and CLEAN indicators
will comeon.
5. After the Self-Cleaning cycle is
programmed, the LOCKED
indicator wilI comeon. The door
cannot be opened when this
indicator is on.
6. After the Self-Cleaning cycle is
completed, the CLEAN indicator
willgooffandthetimeofdaywill
show in the large display.
7. When the oven reachesnormal
baking/roasting temperatures, the
LOCKEDindicator goesoff.
8.After the oven is cool, wipe off any
residue or ash with a damp cloth If
needed, touch up spots with a
soapy steel wool pad.
special tips
n Keepthe kitchen well ventilated
during the Self-Cleaning cycle to
help get rid ofheat, odors and
smoke.
. Clean the oven before it gets
heavily soiled. Cleaning a very
soiled oven takes longer and results
in more smoke than usual
. If the Self-Cleaning cycle doesnot
get the oven as clean asyou
expected, the cycle may not have
been set long enough or you may
not have prepared the oven
properly. Setthe Self-Cleaning cycle
longer the next time and hand-clean
areasnoted in “Before you start” on
this page.
To stop the Self-Cleaning cycle
at any time:
1.Push the Cancel button.
2. When the LOCKEDindicator goes
off, you can open the oven door.
Page14

How it works
During the Self-Cleaning cycle, the oven
gets much hotter than it doesfor baking,
roasting or broiling ... approximately
875°F(46S°C).This heat breaks up
greaseand soil and burns it off.
This graph shows approximate
temperatures and times during a Self-
Cleaning cycle for three hours.
Self-Cleaning cycle-three-hour setting
(Approximate temperatures and times)
1OOOT
800°F
600°F
400°F
200°F
START l/2 hr. 1 hr. 1 l/2 hrs. 2 hrs. 21nhls. 3hrs. 31/2hrs.
538°C
427°C
316°C
204°C
93°C
STOP
Noticethat the heating stopswhen the three-hour setting is up, but that it takes longer for
the oven to cooldown enough to unlock.
Page15

Cleaning chart
Bum And Electrical Shock Hazard
Make sure all controls are OFF and the oven is cool before cleaning. Failure to do 80 can
result in bums or electrical shock.
PART WHAT TO USE HOW TO CLEAN
Control knobs
Warm, soapy water and a soft cloth.
n Wash,rinse and dry well.
n Do not soak.
~to&panel and other exterior
Warm, soapy water or spray glass . Wash,rinse and dry welL
cleaner, and a soft cloth.
n Follow directions provided with
cleaner.
Broiler pan and grid
(Model BCS470W)
Warm, soapy water or a soapy steel
wool pad.
n Clean after each use.
n Wash,rinse and dry well.
n Donot clean in the Self-Cleaning Oven
if broiler pan and grid are heavily
soiled. (Seenote on page 14.)
Broiler drawer. pan and grid
Warm, soapy water or a soapy steel
n Clean after eachuse.
(Models BGC430W and BGP430W)
wool pad.
n Wash,rinse and dry welL
n After broiler is cool, wipe interior
with warm, damp cloth. For heavily
soiled areas,use a soapy steel wool
pad.
Oven racks Use Self-Cleaning cycle.
(Model BGS470W)
n Leave in oven during Self-Cleaning
cycle.
NOTE:The oven racks will discolor and
be harder to slide when left in the oven
during the Self-Cleaning cycle. If you
want them to stay shiny, remove from
the oven and clean by hand. If racks are
left in the oven during the Self-Cleaning
cycle, apply a small amount of vegetable
oil to the sides of the racks to make
them easier to slide.
Warm, soapy water or soapy steel
wool pads.
n Wash,rinse and dry welL Usesoapy
steel wool pads for heavily soiled
areas.
Oven door glass
Sprayglass cleaner or warm, soapy
water and a nonabrasive plastic
scouring pad.
n Make sure oven is cool
l Follow directions provided with the
cleaner.
n Wash,rinse and dry well.
Page 16

PART WHAT TO USE HOW TO CLEAN
Standard-cleaning oven
(Model BGP430W)
Warm,soapy water or soapy steel wool
pa&.
n Make sure oven is cool
n Removedoor and oven bottom for
easier access.
OR
n Clean heavily soiled areasor stains.
Rinsewell with water.
Commercial oven cleaners. I Removedoor and oven bottom for
easier access.
n Placenewspaper on floor to protect
floor surface.
n Follow directions provided with the
oven cleaner.
n Rinse well with clear water.
n Usein well-ventilated room.
n Do not allow commercial oven
cleanera to contact the heating
elements, heat seal, thermostat or
exterior surfaces of the oven.
Damage will oaxr.
Heavy-duty aluminum foil or shallow
pan-
n Placepiece offoil or shallow pan,
slightly larger than the cooking
container, on rack under food to catch
spilhvers.
Continuous-cleaning oven
(Model BCC430W) Warm,
soapy water or a soapy steel
wool pad.
n Make sure oven is cool
n Removedoor and oven bottom for
easier access.
a Clean heavily soiled areasor stains.
Rinse well with water.
Heavyduty elurninum foil or shallow I Placepiece of foil or shallow pan,
slightly Largerthan the cooking
container, on lower rack to catch spill-
over-s.
n Do not use commercial oven cleaners.
n Most fat splatters on oven walls and
floor will gradually reduce to a
presentably clean condition during
baking or roasting.
Self-cleaning oven
(Model BGS470W)
For areasoutside the Self-Cleaning area
n Follow directions starting on page 14,
use warm, soapy water or soapy steel “Using the Self-Cleaning cycle.”
wool pads.
n Donot use commercial oven cleaners.
n Donot use foil to line the bottom of
your Self-Cleaning Oven. (Seepage 7
for proper use of aluminum foiL)
Page17

Theoven light
The Oven Light will comeon when you
open the oven door. To turn the light on
when the oven door is closed, push the
Oven Light Switch on the control panel.
Push the switch again to turn off the
light.
Electrical Shock And Personal
Injury Hazard
. Make sure oven and light bulb are
cool and power to the oven has
been turned off before replacing
the light bulb. Failure to do so
wuld result in electrical shock or
bums.
n The bulb cover mud be in place
when using the oven. The cover
protects the bulb from breaking,
and from high oven temperatures.
Because bulb cover is made of
glass, be careful not to drop it.
Broken glass could cause injury.
To replace the oven light:
1.Unplug appliance or disconnect at
the main power supply.
2. Removethe glass bulb cover in the
back of the oven by pushing the
wire holder to the side and pulling
out the glass cover.
3.Removethe light bulb from its
socket. Replacewith a 40-watt
appliance bulb.
4. Replacethe bulb cover and snap
the wire holder in place.Plug in
appliance or reconnect at the main
power supply.
NOTE: Make sure the oven light is off
during the Self-Cleaning cycle. Keeping
oven light on will shorten bulb life.
Page18

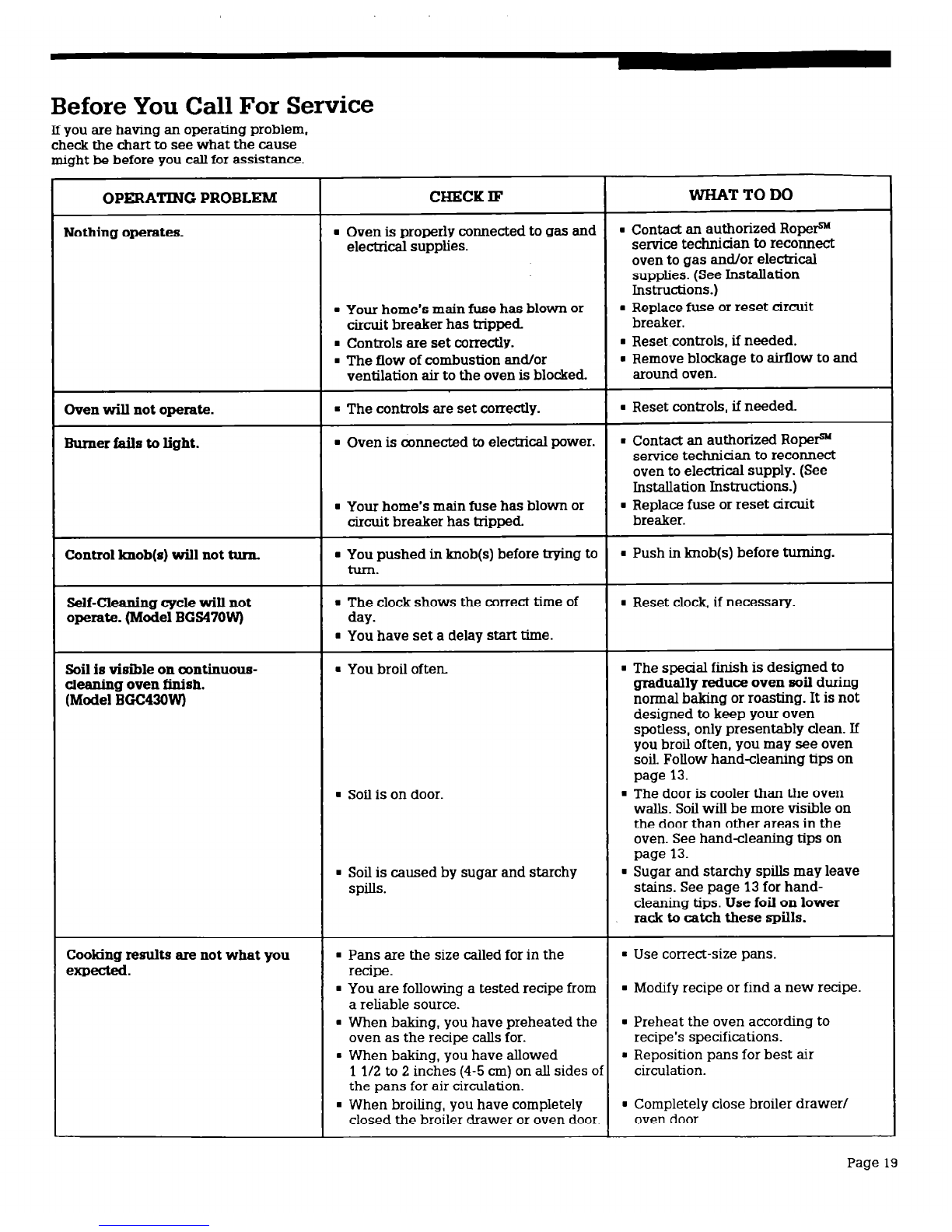

Before You Call For Service
If you are having an operating problem,
check the chart to seewhat the cause
might be before you call for assistance.
OPERATING PROBLEM CHECK IF WHAT TO DO
Nothing operates. n Oven is properly wnnected to gas and
n Contact an authorized Ropep
electrical supplies. service technician to reconnect
oven to gas and/or electrical
supplies. (SeeInstallation
Instructions.)
n Your home’s main fuse has blown or
circuit breaker has tripped
n Controls are set correctly.
n The flow of combustion and/or
ventilation air to the oven is blocked.
n Replacefuse or reset circuit
breaker.
n Resetcontrols, if needed.
n Removeblockage to airflow to and
around oven.
Oven will not operate. n The controls are set correctly.
n Resetwntrols, if needed
Burner fails to light.
. Oven is connected to electrical power.
n Contact an authorized Rope?“
service technician to reconnect
oven to electrical supply. (See
Installation Instructions.)
n Your home’s main fuse has blown or
circuit breaker has tripped
n Replacefuse or reset circuit
breaker.
Control knob(s) will not turn. n
You pushed in knob(s) before Bying to NPush in knob(s) before turning.
turn.
Self-Cleaning cycle will not
operate. (Model BGS470VV) n
The clock shows the correct time of
day.
n You have set a delay start time.
n Resetclock, if necessary.
Soil is visible on wntinuous-
cleaning oven finish.
(Model BGC43OW)
l You broil often.
n Soil is on door.
n The special finish is designed to
gradually reduce oven soil during
normal baking or roasting. It is not
designed to keep your oven
spotless, only presentably clean. If
you broil often, you may seeoven
soiLFollow hand-cleaning tips on
page 13.
. The door is cooler than the oven
walls. Soilwill be more visible on
the door than other areas in the
oven. Seehand-cleaning tips on
page 13.
. Soil is caused by sugar and starchy
spills. mSugarand starchy spills may leave
stains. Seepage 13for hand-
cleaning tips. Use foil on lower
rack to catch these spills.
Cooking results are not what you
expected. . Pansare the size called for in the
recipe.
. You are following a tested recipe from
a reliable source.
. Usecorrect-size pans.
. Modify recipe or find a new recipe.
. When baking, you have preheated the mPreheat the oven according to
oven asthe recipe calls for. recipe’s specifications.
l When baking, you have allowed mReposition pans for best air
1 l/2 to 2 inches (4-5cm) on all sides of circulation.
the pans for air circulation.
. When broiling, you have completely mCompletely close broiler drawer/
closed the broiler drawer or oven door. oven door.
Page19

LIMITED WARRANTY
ROPERm
Home Appliances
LENGTHOFWARFMNTY
(Fromdate of purchase)
PRODUCTSCOVERED
FULLONEYEARWARRANTY I All RoperAppliances
FuLLFNEYEARwARRANTY
Refrigerators Replacementparts and repair labor for the sealed
Freezers refrigeration system (compressor.evaporator,
Air Conditioners condenser, drier or connecting tubing) which we
Dehumidifiers find to be defective in materials or workmanship.
LIMITED2ND-5THYEAR
WARRANTY
I
Microwave Ovens
Eb?D-STHYEAR
Automatic Washers
WHATWEWILLPAYFOR
Replacementparts and repair labor to correct
defects in materials or workmanship.
Repair or replacement of magnetron tube which we
find to be defective in materials or workmanship.
Repair or replacement of any part of the gear case
assemblywhich we find to be defective in materials
or workmanship.
WHATWEWILL NOTPAYFOR
A SERVICECALLSTO:
1. Correct the installation of your appliance.
2. Instruct you how to use your appliance.
3. Replacehouse fuses or correct house wiring or plumbing.
4. Replaceowner accessiblelight bulbs.
B. Repairswhen appliance is used in other than normal, single-family household use.
C. Pick up and delivery. Your appliance is designed to be repaired in the home.
D. Damageto appliance caused by accident, misuse, fire. flood, acts of Cod. or use of product not approved by us.
E. Any labor costs during the limited warranties.
F. Repairs to parts or systems caused by unauthorized modifications made to the appliance.
This Roperappliance is warranted by Whirlpool Corporation. Under no circumstances shall it he liable under this warranty for
incidental or consequential damagesand all implied warranties are limited to the sametime periods stated in the express
warranties for RoperBrand Appliances. Somestates do not allow the exclusion or limitation of incidental or consequential
damagesor limitations of how long an implied warranty may last, so the above limitations or exclusions may not apply to YOU.
This warranty gives you specific legal rights, and you may alsohave other rights which vary from state to state.
Outside the United States,a different warranty may apply. For details, please contact your franchised Roper distributor or
military exchange.
HOWTOGETSERVICE:ORASSISTANCE
If you need service, first seethe “Before You Call For Service” section of this book. If you still need service after checldng this
section, additional help can be found if you:
. Contact your selling dealer for the authorized servicer in your areat
OR
n Phone 1-80844-ROPER(l-800-447-6737) between 8:00 a.m. and 4:30 p.m. Eastern Time, Monday through Friday’!
OR
n Forfurther information, write to: Consumer Relations Dept., Roper Brand Appliances, 2000M-63 North, Benton Harbor,
Ml 49022:
l When requesting assistance,please provide the model and serial numbers, date of purchase, and a complete description of the
problem. The model and serial numbers are located behind the oven door on the oven frame (seeillustration on page 3).
If you are not satisfied with the service received, contact the Major Appliance ConsumerAction Panel (MACAP). MACAP is a
group ofindependent consumer experts that voices wnsumer views at the highest levels of the major appliance industry.
Contact MACAP only when the dealer, authorized servicer or RoperBrand warrantor have failed to resolve your problem:
Major Appliance Consumer Action Panel
20North WackerDrive
cbicago, IL 60606
MACAP Will in turn i.nfOrlnUSof your action.
PartNo. 56001180108/816770
01991 Whirlpool Corporation TM Trademark / SMServiceMark of Whirlpool Corporation Printed in U.S.A.
