ViewLink Coax
WWW.ROSE.COM
Mini KVM distance extender
Extends KVMs up to 250 feet away using
coax cable
Small, compact, and convenient
Compatible with PC, Apple, and Sun
Application transparent
Features and Benefits
JExtends keyboard, monitor, and mouse up to
250 feet from computer
JAvailable for PC/UNIX, Apple, or Sun
computers
JResolutions up to 1280 x 1024
JAvailable in four applications
JComputer to keyboard, monitor, and
mouse
JComputer to Rose switch
JRose switch to keyboard, monitor, and
mouse
JRose switch to Rose switch
JSmall, convenient and versatile
JKits contain a ViewLink™ transmitter and
receiver; any necessary cables to the CPU,
keyboard, monitor, and mouse, and a power
transformer where necessary (order link
cable separately)
JDirect connect to Rose switches
JLED indicator shows that ViewLink is
receiving proper power
JApplication transparent
JAvailable for longer distances,
contact Rose for more details
JMade in USA
The ViewLink™ Coax Advantage . . .
The ViewLink™ allows you to extend your keyboard,
monitor, and mouse up to 250 feet away.
ViewLink comes in a kit that includes a transmitter and
receiver, keyboard and CPU cabling and a power
transformer (if required). ViewLink units are connected by
coax cable which is ordered separately.
ViewLink is a small, convenient, and extremely versatile
extension unit. In addition to extending your KVM away
from your computer, you can use ViewLink to connect a
computer to a Rose switch, a switch to a keyboard,
monitor, and mouse, or you can connect a Rose switch to
a Rose switch.
Since the ViewLink attaches directly to the DB25 port on
any Rose switch, it is a convenient method to extend
either the computer or KVM port of a Rose switch.

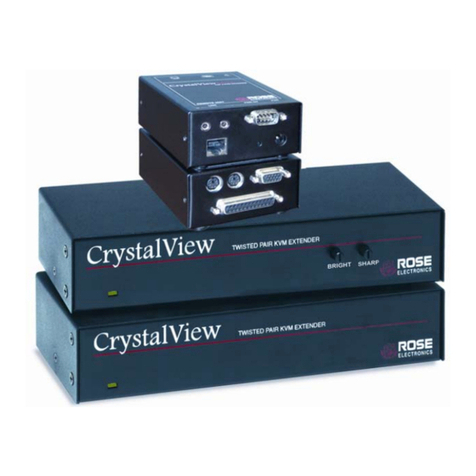

Please also check out our CrystalView which extends your
KVM up to 1000 feet from your computer using twisted
pair cable or 33,000 feet using fiber. Give us a call to
discuss your extension application.
Connect ViewLink Directly
into a Rose switch

Phone: [phone] E-mail: [email protected] 
10707 Stancliff Rd. Houston, TX 77099
Rose Electronics – Europe: [phone] Rose Electronics – Asia: [phone]
DS-VLK 1.7 Copyright 2004 Rose Electronics. All rights reserved WWW.ROSE.COM
Typical Application
ViewLink Models The ViewLink is available for PC/UNIX,
Apple, or Sun. The ViewLink units consist of a receiver and
transmitter that connect to each other with a link cable. This
cable is purchased separately and is required for installation.
Installation ViewLink units work in pairs and can be
thought of as a transmitter unit and a receiver unit connected
by a single cable. Each unit plugs into one end of the
equipment to be interconnected. The two units are then
connected with a link cable. The ViewLink extender units are
truly plug-and-play. Once connected to the equipment, the
extender system acts like a regular cable. There are no user
installation steps other than connecting the units.
Operation The LED on the side of the unit lights when the
ViewLink is receiving power. When used with Rose switches
which indicate CPU power on the front of the switch, the
power state of the CPU is passed through correctly, regardless
of whether the ViewLink is powered on or not.
Part Numbers
All models come ready for installation, you must also order a
ViewLink cable
PC PS/2 mouse models
VLK-CKP PC to keyboard-monitor-PS/2 mouse
VLK-CSP PC to Switch-PS/2 mouse
VLK-SKP Switch to PC keyboard-monitor-PS/2 mouse
PC RS232 mouse models
VLK-CKR PC to keyboard-monitor-RS232 mouse
VLK-CSR PC to Switch-RS232 mouse
VLK-SKR Switch to PC keyboard-monitor-RS232 mouse
Apple models
VLK-CK/MAC Apple CPU to keyboard-monitor-mouse
VLK-CS/MAC Apple CPU to Switch
VLK-SK/MAC Switch to Apple keyboard-monitor-mouse
Sun models
VLK-CK/SUN Sun CPU to keyboard-monitor-mouse
VLK-CS/SUN Sun CPU to Switch
VLK-SK/SUN Switch to Sun keyboard-monitor-mouse
/SV suffix = Sun VGA
Switch to switch models
VLK-SS Switch to Switch
Cables
CAB-VLnnn Cables: nnn = 50 - 250 feet
Specifications
Dimensions 2.1" W x 2.5" D x 0.75" H
(6.4 x 5.3 x 1.5 cm.)
Weight Unit 2 oz. (.06 kg.)
Transformer 10 oz. (.28 kg.) US
8 oz. (.23 kg.) International
VLK-CK Kit* 3 lb. (1.36 kg.)
VLK-CS Kit* 2 lb. (.91 kg.)
VLK-SK Kit* 3 lb. (1.36 kg.)
VLK-SS Kit* 1 lb. (2.2 kg.)
*Also MAC and SUN models
Power VL-C, VL-C/AS kit 5VDC 50 ma from CPU
VL-K, VL-K/AS kit 5VDC 50 ma from Transformer
VL-S, VL-S/AS kit 9VDC 50 ma from Rose Switch
US transformer in: 120 VAC 60 HZ
US transformer out: 5VDC 300 ma,
Intl. transformer in: 100-240 VAC
50-60 HZ, IEC320
Intl. transformer out: 5VDC 1000 ma,
Connectors Link side DB25M / Device side DB25F
bandwidth 250 MHz (unit only)
Video sync All types
Controls None
Indicators Power LED (yellow)
Chassis Electro galvanized steel, powder coated,
with graphic label
Environmental 0 to 55° C, 0% to 80% non-condensing relative
humidity
CPU to keyboard, monitor, and mouse
CPU to Rose switch
Rose switch to keyboard, monitor, and mouse
Rose switch to Rose switch
