INTRODUCTION
CrystalLink USB2.0 CATx Extender Manual 1
Disclaimer
While every precaution has been taken in the preparation of this manual, the manufacturer assumes no
responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting
from the use of the information contained herein. The manufacturer reserves the right to change the
specifications, functions, circuitry of the product, and manual content at any time without notice.
The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances
outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury
arising directly or indirectly from the use of this product (See limited warranty).
System Introduction
Thank you for choosing the Rose Electronics CrystalLink USB2.0 CATx extender.
The CrystalLink USB2.0 CATx has proven to be a valuable investment for any business, big or small, that has
a need to access and extend their USB1.1 or 2.0 peripherals up to 330ft (1200 meters) from a remote location.
The receiver unit’s USB ports connect to your USB peripherals. The number of peripherals can be increased
by using a standard USB hub.
The USB peripherals can be USB1.1 devices (low-speed or full-speed) or USB2.0 high-speed devices
operating up to 480 Mb/s. The receiver unit can supply up to 600ma per USB port for driving high-power USB
devices.
Plug-and-play installation makes the product simple and easy to use. Connect the transmitter to the computers
USB port, connect the USB ports on the receiver to your USB devices, connect the transmitter to the receiver
with up to 330 feet of industry standard CATx cable and power on the system.
The instructions in this manual assume a general knowledge of computer installation procedures, familiarity
with cabling requirements, and some understanding of USB device operation.
Features
■Supports transparent extension of USB 2.0 (high-speed) and USB 1.1 (low and full speed) devices
■Extends USB devices up to 330 feet (100meters) over solid-core CATx cable
■Four-port integrated USB2.0 hub on the receiver unit
■Standard USB hubs can be used to increase the number of connected devices up to 30.
■USB3.0 devices will work at USB2.0 speeds through the extender
■Up to 600ma of power is available at each USB port for high-powered USB devices
■Plug-and-Play installation, no configuration or set-up needed
■Operating system independent and supports all major operating systems

CrystalLink USB2.0 CATx Extender Manual 2
Package Contents
The package contents consist of the following:
■Transmitter unit
■Receiver unit
■USB2.0 cable
■24V DC Power Adapter (1) and AC power cable (1)
■Manual
Additional Items Required
■USB compatible computer (host computer) with a USB compliant operating system
■USB compatible device(s) for remote-end connection
■Solid-core CATx Unshielded Twisted Pair (UTP) cable or shielded (STP) cable up to a maximum of 330ft
(100meters).
■For optimum performance, the CATx cable should be run straight and not coiled, and not routed close to
electrical cables or radio interference. Terminate the cables according to T568A/T568B.
All references to CAT5e/6/7 cable in this document refer to solid-core cable and represent the minimum
CAT5e/6//7 specification requirements. Use of UTP or STP patch-cables may reduce the recommended cable
extension distances.

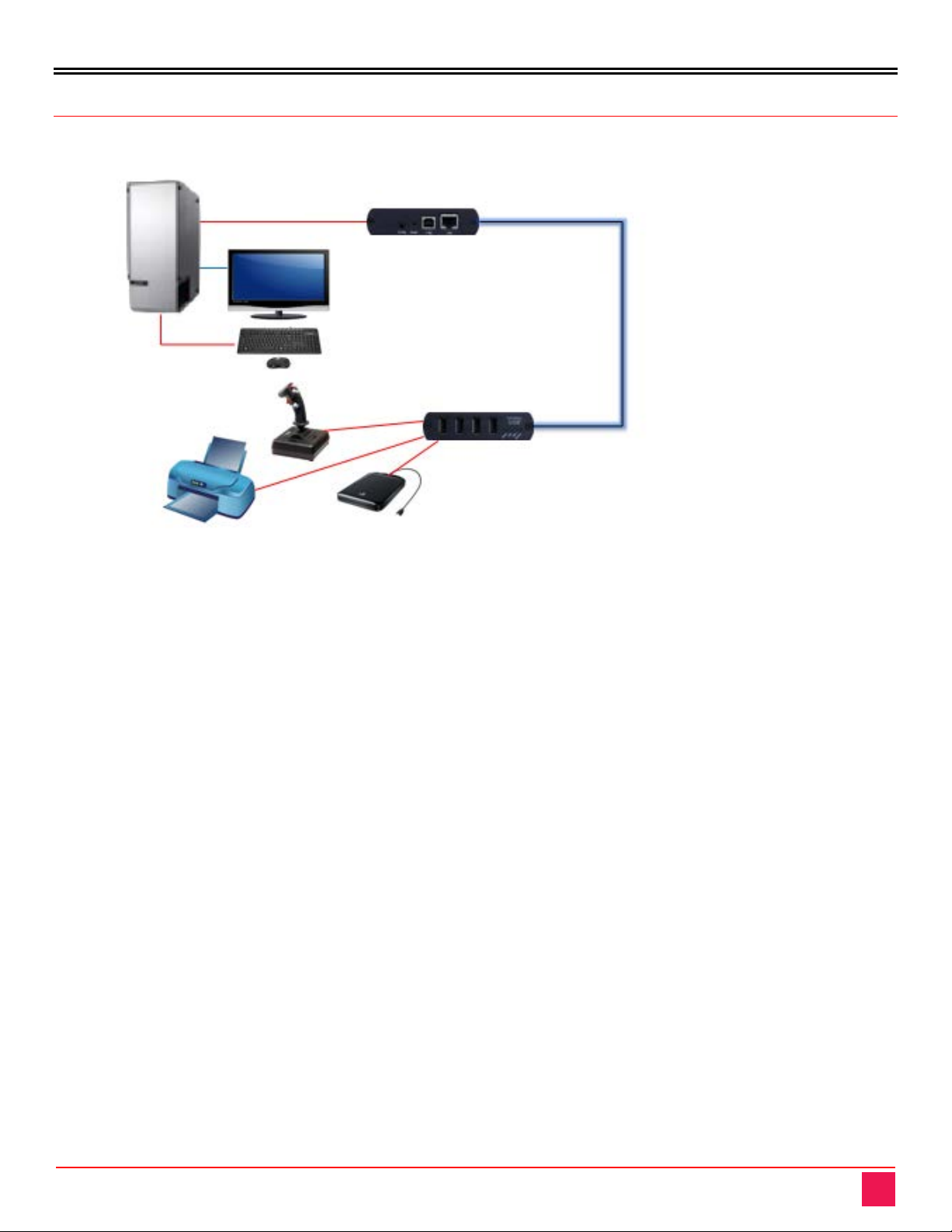

Application Examples
The CrystalLink USB2.0 CATx extender is ideal for use with any USB2.0 device in an office, computer room
or industrial environment where USB devices need to be connected remotely from a host PC.
■Industrial control
■Interactive whiteboard
■Connection to network attached devices
■Boardroom and conferencing presentations.
■Extension of multiple USB devices including hard drivers, printer, scanner, camera control, touchscreens

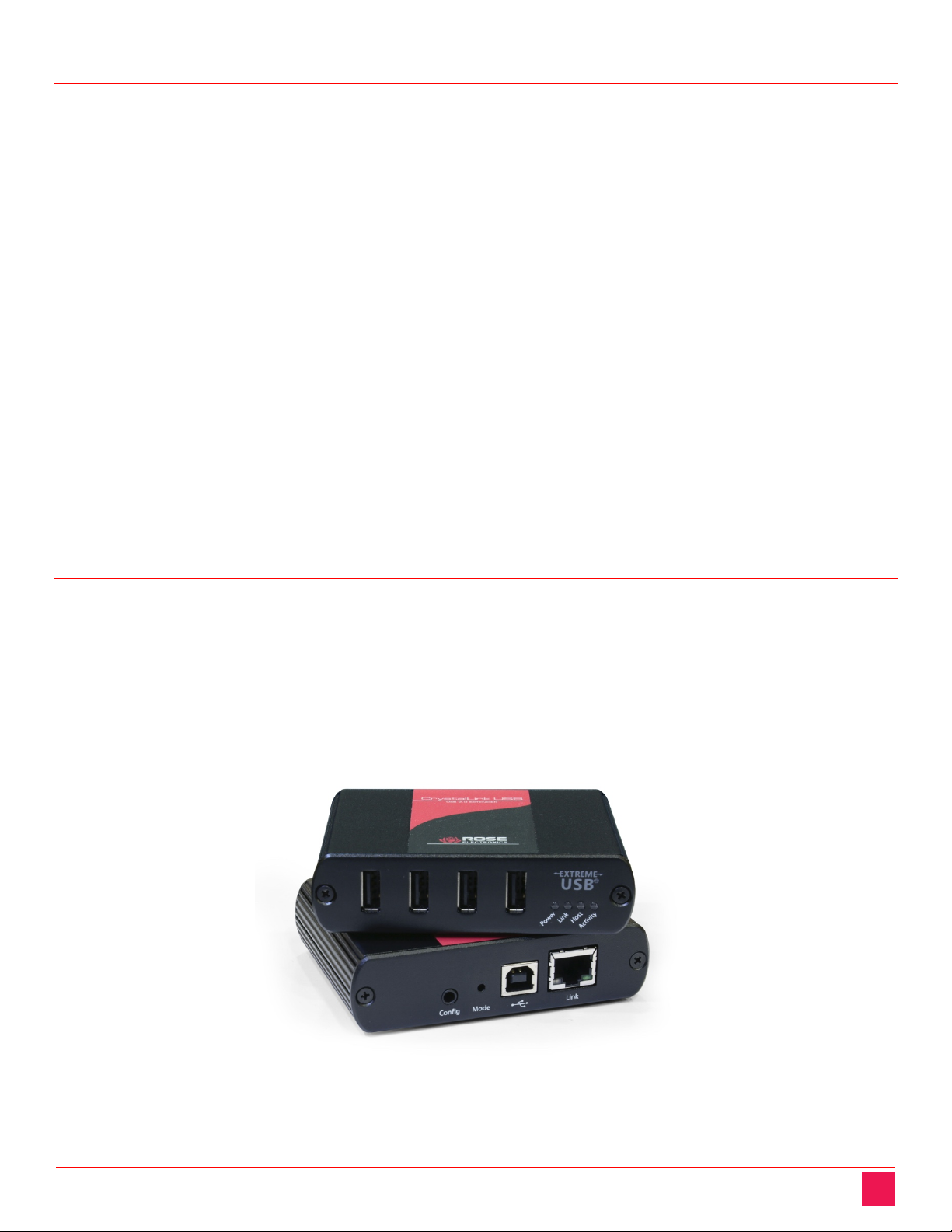

Figure 1. CrystalLink USB2.0 CATX Extender – front and back panels

MODELS
CrystalLink USB2.0 CATx Extender Manual 3
CrystalLink USB2.0 CATx Models
The CrystalLink USB2.0 CATx enables users to extend beyond the standard 15ft (5.0 meter) cable limit for
USB peripherals by locating high-speed USB device(s) up to 330 feet (100 meters) from the computer.
Transmitter Unit
The transmitter connects to the host device using the supplied USB cable. Power for the transmitter is provided
by the host computer. Power and status LED’s are conveniently located on the front panel for user reference.

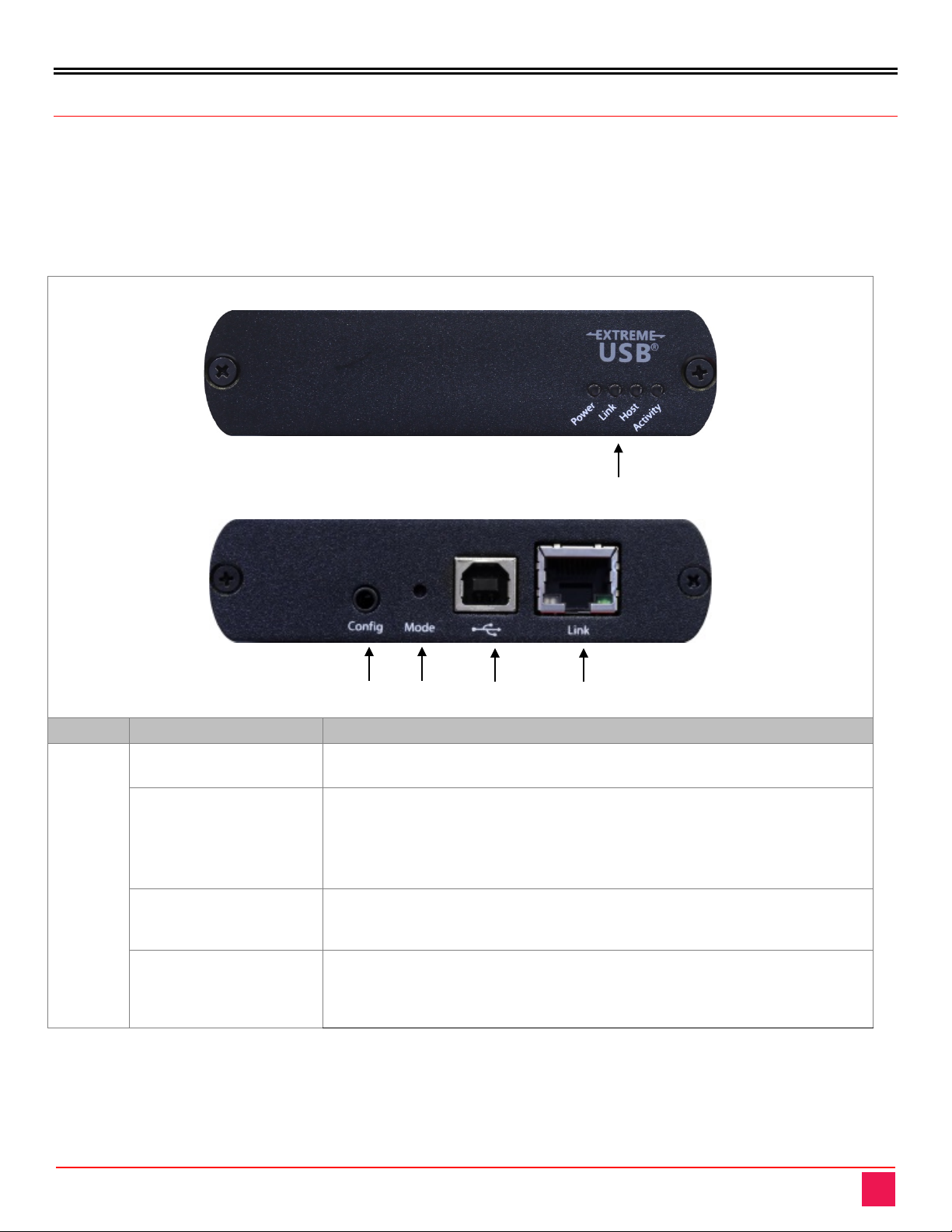

Transmitter unit – front panel view
Transmitter unit – rear panel view
Item Type Description
1
Power LED (Blue) LED turns on when power is supplied.
LED is off when no power is supplied by the host computer.
Link LED (Green)
Indicates a valid USB link is established between the local and remote
extenders.
LED turns on when link between local and remote extender is established.
LED is off when there is no link between local and remote extenders.
LED is slow blinking when the unit is attempting to establish a link
Host LED (Green) LED turns on when the extender system is properly enumerated on the
host computer.
LED blinks when in a suspended state.
Activity LED (Amber)
Indicates data transmission is occurring between local and remote
extenders.
LED blinks intermittently with or without a USB device connected. When
the local and remote extenders are in suspend mode, the LED is off.
5
4
2
3
1

CrystalLink USB2.0 CATx Extender Manual 4
2 Config Reserved for engineering use
3 Mode Reserved for engineering use
4 USB Host Port
Used to connect the local extender unit to the host computer. Accepts Type
B connector into the local extender unit.
5 Link Port (RJ45) Accepts RJ45 connector for CAT5e/6/7 cabling to connect the local
extender unit to the remote extender unit.
Figure 2. Transmitter unit – LED’s and connectors
Receiver Unit
The receiver has four USB Type-A ports for connecting up to four USB devices. Additional devices may be
connected by attaching a USB hub to the receiver unit. The receiver is powered directly by the included 24V
power supply, delivering 600mA of current per USB port.
Receiver unit – front panel view
Receiver unit – rear panel view
Item Type Description
1 USB Device Ports Accepts USB device(s) using Type A connectors
2
Power LED (Blue) LED turns on when power is supplied, off when no power is supplied.
Link LED (Green)
Indicates a valid USB link is established between the local and remote
extenders.
LED turns on when link between local and remote extenders is established.
LED is off when there is no link between local and remote extenders.
Host LED (Green) Indicates that the RG2304 system is properly enumerated on the host
computer. The LED blinks when in a suspended state.
Activity LED (Amber)
Indicates data transmission is occurring between local and remote
extenders. LED blinks intermittently with or without a USB device
connected. When the local and remote extenders are in suspend mode,
the LED is off.
6
5
4
3
2
1

CrystalLink USB2.0 CATx Extender Manual 5
3 DC Power Port Connects to the AC power supply. Required at the remote extender for
proper operation.
4 Config Reserved for manufacturer use.
5 Mode Reserved for manufacturer use.
6 Link Port (RJ45) Accepts RJ45 connector for CAT 5e/6/7 cabling to connect the local
extender to the remote extender unit
Figure 3. Receiver unit – LED’s and connectors

INSTALLATION
CrystalLink USB2.0 CATx Extender Manual 6
Installation Procedure
Before beginning an installation, ensure you have all products and components ready for the installation
Figure 4. CrystalLink USB2.0 CATx extender – standard installation

Determine where the computer is to be located and set up the computer.

Determine where you want to locate the remote USB device(s).

Remember the product supports a maximum distance of 330ft (100m) for transparent USB devices. If
using patch (stranded) cables or premise wiring, the achievable extension distance may be less.

Avoid potential sources of interference such as electrical wiring, fluorescent lighting and radio
communications equipment.

Ensure that the CATx cable is terminated with matching connectors. For example, a CAT6 cable should
be terminated with compatible CAT6 connectors.
Installation Using Premise Wiring
If you are using premise cabling, ensure CATx cabling is installed between the two locations, with CATx
premise outlets located near both the computer and the USB device(s), and the total length, including patch
cords is not more than 330ft (100m).
Installing the Transmitter Unit

Place the transmitter unit near the computer.

Install the supplied USB cable between the transmitter and USB port on the host computer.
Installing the Receiver Unit
Place the receiver unit near the USB device(s) in the desired remote location.
USB Host
TX Unit
RX Unit
CATx Cable
330ft (100m)
USB2.0
Devices

CrystalLink USB2.0 CATx Extender Manual 7
Connecting the Transmitter to Receiver
To ensure optimum operation, it is recommended to use only solid core CATx UTP cabling to connect the
transmitter and receiver units. The cabling must have a straight-through conductor configuration with no
crossovers and must be terminated with 8 conductor RJ45 connectors at both ends. The combined length of
any patch cords using stranded conductors must not exceed 330ft (100m).
Connection Using Surface Cabling

Plug one end of the CATx cabling (not included) into the Link port (RJ45) on the transmitter unit.

Plug the other end of the CATx cabling into the Link port (RJ45) on the receiver unit.
Connection Using Premise Cabling

Plug one end of a CATx patch cord (not included) into the Link port (RJ45) on the transmitter unit.

Plug the other end of the patch cord into the CATx information outlet near the host computer.

Plug one end of the second CATx patch cord (not included) into the Link port (RJ45) on the receiver unit.

Plug the other end of the second patch cord into the CATx information outlet near the USB device.
Connecting a USB Device

Install any software required to operate the USB device(s). Refer to the documentation for the USB
device(s), as required.

Connect the USB device to the device port on the remote extender.

Check that the device is detected and installed properly in the operating system.
Checking the Installation
Check that the Power, Link, Host, and Activity LEDs are on at each end. If the Host or Link LEDs are
permanently off, then the cabling between the local and remote extenders may not be installed properly or is
defective.
For Windows users (XP, 7, 8, 10), open the Device Manager to confirm that the CrystalLink Extender has
installed correctly. Expand the entry for Universal Serial Bus controllers. If the CrystalLink Extender has been
installed correctly, you should find it listed as a “Generic USB Hub”.
For Mac OS X users, open the System Profiler (open the Finder, select Applications, open the Utilities folder
and select System Profiler) to confirm that the CrystalLink Extender has installed correctly. In the left-hand
column under Hardware, select “USB” and inspect the right-hand panel. If the CrystalLink Extender has been
installed correctly, you should find it listed as a “Hub” under the USB High-Speed Bus/USB Bus.
Compatibility
The CrystalLink USB2.0 CATx extender complies with USB 1.1 and USB 2.0 specifications governing the
design of USB devices. However, it is not possible to guarantee that all USB devices or hosts will be
compatible as there are a number of different characteristics that may impact the operation of USB devices
over extended distances.

CrystalLink USB2.0 CATx Extender Manual 8
Transmitter and Receiver Mounting Options
The bottom of the chassis includes four pre-drilled holes for optional mounting. Based on your requirements,
choose from two available mounting options:

USB Extender Mounting Kit (Purchased separately - USB Mounting Kit - Black)

USB Extender Direct Surface Mounting (Using your own rack-shelf or tray)
Option 1: CrystalLink USB2.0 CATx Extender Mounting Bracket Kit
Contents:
2 mounting brackets
4 (M3.0) locking washers
4 (M3.0 x 5mm) Phillips screws
Mounting bracket installation guide (see diagram below)
1 kit required to mount per transmitter chassis or receiver chassis
Using a Phillips screwdriver, fasten and secure the provided screws, locking washers and brackets into place.
Option 2: CrystalLink USB2.0 CATx Extender Mounting Plate
(using your own rack-shelf or rack-tray) The bottom of the enclosure features four pre-drilled holes for optional
surface mounting.
Note: Do not exceed a screw depth of 0.4” (10mm) into the chassis or damage may occur

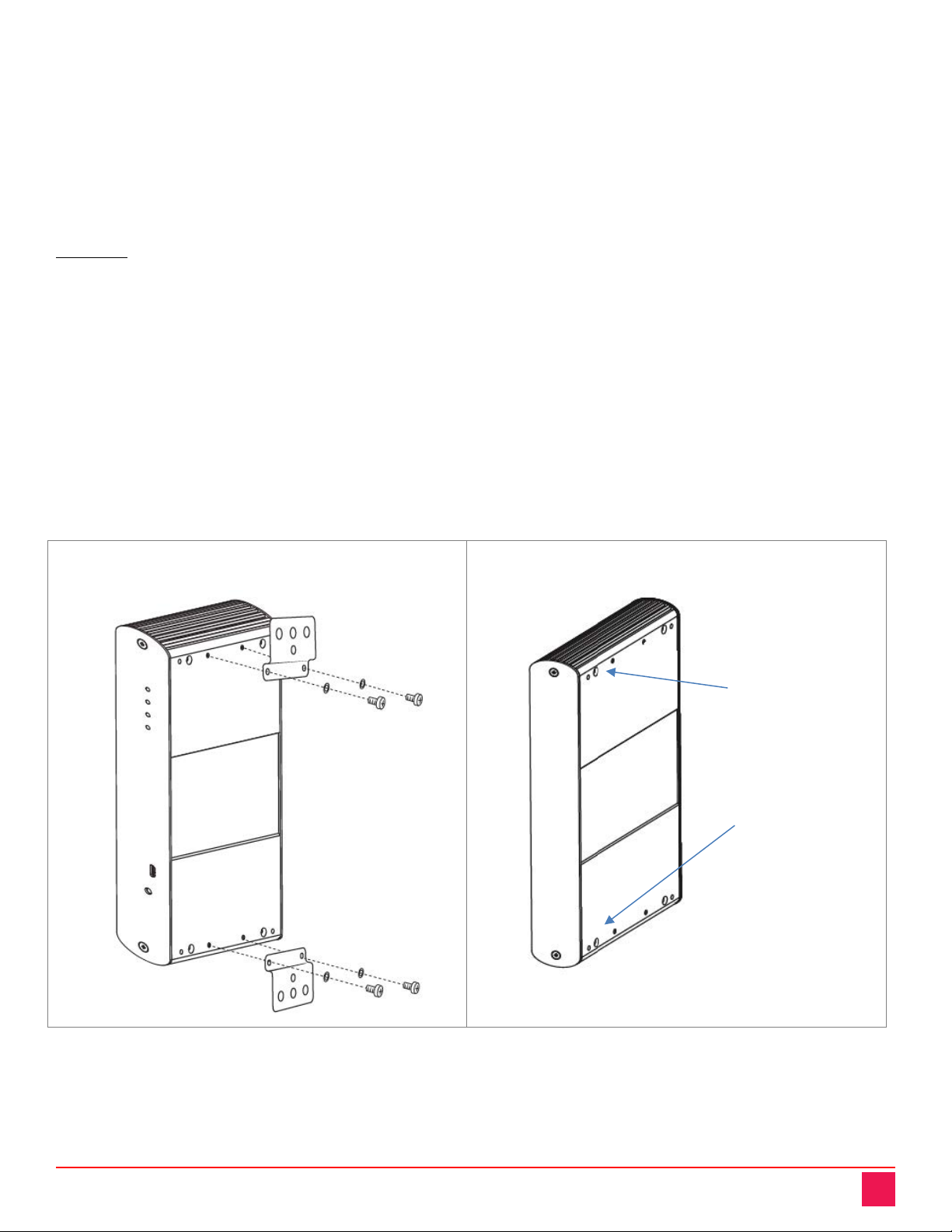

CrystalLink USB2.0 Mounting Bracket Illustration
CrystalLink USB2.0 Mounting Plate Holes
Figure 5. Chassis mounting options
Mounting plate
holes
Distance between
the mounting holes
is 1.653” x 3.0315
(42.0 x 77.0mm)

TROUBLESHOOTING
CrystalLink USB2.0 CATx Extender Manual 9
Troubleshooting Guide
The following table provides troubleshooting tips. The topics are arranged in the order in which they should be
executed in most situations. If you are unable to resolve the problem after following these instructions, please
contact Technical Support for further assistance.
Problem Cause Solution
ALL LEDs are OFF on the
transmitter.
The transmitter is not receiving
power from the USB port.
Ensure that the host computer is connected to
the transmitter.
Move the USB connector to another USB port
on the host computer.
ALL LEDs are OFF on the
receiver.
The transmitter is not receiving
power from the AC adapter.
Ensure that the host computer is connected to
the AC adapter.
Check the AC adapter is connected to a live
source of electrical power. Check that the
POWER LED on the receiver is illuminated.
LINK LEDs on the
transmitter and receiver
are OFF.
There is no connection
between the transmitter and
receiver.
Ensure that no more than 100m of CATx
cabling is connected between the transmitter
and receiver. The CATx cable should be UTP or
STP, with a straight through connector and no
crossovers, and 8 conductor RJ45 connectors
are used at each end.
Connect a short patch cable between the
transmitter and receiver. Recheck the link
status. If the LINK LED is now SOLID ON, the
previous cable is defective or not capable of
supporting the link.
LINK LED’s are blinking There is no active connection
between the transmitter and
receiver.
Ensure both the transmitter and receiver are
connected together.
Change the CATx cable.
LINK LED on the transmitter
is ON, HOST LED on the
transmitter is OFF.
The host computer is not
powered on.
The transmitter is not
connected to a computer.
The host computer does not
support USB Hubs.
The unit is malfunctioning.
Disconnect all USB devices from the receiver.
Disconnect transmitter from the host
computer.
Disconnect AC adapter from the receiver.
Reconnect the transmitter to the host
computer.
Reconnect the AC adapter to the receiver.
Check that the extender has enumerated as a
USB hub in Windows Device Manager, MacOS
System Profiler or using “Isusb” command in a
Linux Terminal.
If the problem is not resolved, contact
Technical Support.
Table 1. Troubleshooting procedures

PRODUCT SAFETY
CrystalLink USB2.0 CATx Extender Manual 10
Safety
The CrystalLink USB2.0 CATx extender, like all electronic equipment, should be used with care. To protect
yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety
instructions.

Follow all instructions and warnings marked on this Unit.

Except where explained in this manual, do not attempt to service this Unit yourself.

Do not use this Unit near water.

Assure that the placement of this Unit is on a stable surface.

Provide proper ventilation and air circulation.

Keep connection cables clear of obstructions that might cause damage to them.

Use only power cords, power adapter and connection cables designed for this Unit.

Keep objects that might damage this Unit and liquids that may spill, clear from this Unit. Liquids and
foreign objects might come in contact with voltage points that could create a risk of fire or electrical
shock.

Do not use liquid or aerosol cleaners to clean this Unit. Always unplug this Unit from the power source
before cleaning.
Remove power from the unit and refer servicing to a qualified service center if any of the
following conditions occur:

The connection cables are damaged or frayed.

The Unit has been exposed to any liquids.

The Unit does not operate normally when all operating instructions have been followed.

The Unit has been dropped or the case has been damaged.

The Unit exhibits a distinct change in performance, indicating a need for service.

SERVICE AND MAINTENANCE
CrystalLink USB2.0 CATx Extender Manual 11
Maintenance and Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance,
you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center.
This Return Authorization number must appear on the outside of the shipping container.
See Limited Warranty for more information.
When returning a Unit, it should be double-packed in the original container or equivalent, insured and shipped
to:
Rose Electronics
Attn: RA __________
10707 Stancliff Road
Houston, Texas 77099 USA
Technical Support
If you are experiencing problems, or need assistance installing your product consult the appropriate section of
this manual. If, however, you require additional information or assistance, please contact the Rose Electronics
Technical Support Department at:
Phone: [phone]
E-mail: [e-mail]
Web: www.rose.com
Technical Support hours are from: 8:00 am to 6:00 pm CST (USA), Monday through Friday.
Please report any malfunctions in the operation of this Unit or any discrepancies in this manual to the Rose
Electronics Technical Support Department.

APPENDICES
CrystalLink USB2.0 CATx Extender Manual 12
Appendix A —Specifications
Part Number Description
CLK-4U2TPB-100M USB 2.0 CATx Extender. 4 USB ports. Transmitter & Receiver Kit
CAB-USBAB006 USB-AB cable, 6ft (2.0m)
CAB-USBAB010 USB-AB cable, 6ft (3.0m)
Chassis Dimensions (W x D x H)
Transmitter and Receiver chassis 3.9” x 3.0” x 1.0” (100 x 76 x 26 mm)
Power Requirements
Power source Transmitter: Powered via USB cable from host computer
Receiver: 100-240VAC, AC input, 24V 1A DC output
Maximum current for USB devices Receiver: Up to 600mA output per USB port
Interconnect Cable Requirements
CAT5e/6/7, RJ45 CATx solid core, UTP or STP terminated as EIA/TIA 568-B
Cable Distances
CAT5e/6/7 cable Up to 330 feet (100 meters) over solid core CATx cable.
Use of patch cable may reduce the operating distance
USB Support
USB Device Support High-speed devices (USB 2.0) at 480Mbps, backwards compatible
Full-speed devices (USB 1.1), 12Mbps, backwards compatible
USB Hub Support Up to 30 USB devices connected using powered USB hubs. The extension
distance may be reduced with each hub added to the system.
USB Host Support EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
Connectors and LED’s
Transmitter unit Receiver unit
USB connector 1 x USB2.0 Type B 4 x USB2.0 Type A female
Link cable connector 1 x RJ45 Link 1 x RJ45 Link
LED’s Power, Link, Host, Activity Power, Link, Host, Activity
Nil 1 x 24VDC power jack
Environmental
Operating Temp 32°F to 122°F (0°C to 50°C)
Storage Temp -4°F to 158°F (-20°C to 70°C)
Operating Humidity 20% to 80% relative, non-condensing
Storage Humidity 10% to 90% relative, non-condensing
Approvals FCC Part 15 Class B, CE Class B, ICES-003, EMC EN55022, EN55024, and
EN61000, RoHS2 (CE), WEEE

CrystalLink USB2.0 CATx Extender Manual 13
Appendix B —CAT5e/6/7 Cable Termination
Use either T568A or T568B termination for your CAT5e/6/7 cable.
Use CATx, solid-core, either UTP or STP cable. STP is recommended for improved EMI protection.
Figure 6. CAT5e/6/7 cable termination pinning

WWW.ROSE.COM
▪
[e-mail]
▪
[phone]
Rose Electronics
▪10707 Stancliff Road ▪Houston, Texas 77099
Rose USA (281)
933-7673 ▪Rose Europe [phone]
Rose Asia [phone]
▪Rose Australia [phone]
WWW.ROSE.COM
