Rose electronics CRK-T1DFXDM-DLT User manual

CrystalView DVI Micro LT
Multi
-mode or Single-mode DVI Fiber Extender
Installation
and
Operation Manual
10707 Stancliff Road
Houston, Texas 77099
Phone: [phone]
[email protected]

LIMITED WARRANTY
Copyright Rose Electronics 2018. All rights reserved.
No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and
recording, without the prior written permission of Rose Electronics.
manual-crystalview-dvi-micro-lt-2018-03-02
Rose Electronics®warrants the CrystalView DVI Micro LT Extender to be in good working order for one year
from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good
working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or
replace the Unit as set forth below. Repair parts and replacement units will be either reconditioned or new. All
replaced parts become the property of Rose Electronics. This limited warranty does not include service to
repair damage to the Unit resulting from accident, disaster, abuse, or unauthorized modification of the Unit,
including static discharge and power surges.
Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to Rose
Electronics or an authorized repair center providing a proof of purchase date. If this Unit is delivered by mail,
you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay shipping charges to the
warranty service location, and to use the original shipping container or its equivalent. You must call for a return
authorization number first. Under no circumstances will a unit be accepted without a return authorization
number. Contact an authorized repair center or Rose Electronics for further information.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A
PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS
OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTIED ABOVE, YOUR SOLE
REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL ROSE
ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS, LOST
SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR
THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER
PARTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH MAY VARY FROM STATE TO STATE.

TABLE OF CONTENTS
Contents
Disclaimer 1
System Introduction 1
Features 1
Package Contents 2
Compatibility 2
Application Examples 2
CrystalView DVI Micro LT Models 3
Installation Procedure 4
System Connection 4
LC Fiber 4
Status Indicators 4
Manual Self-EDID Programming 4
Programming Procedure 5
Device Power 5
AC/DC Power Adaptor 5
DVI Panel Layout – Connectors and LED’s 6
DVI Connector - Pin Designations 7
Safety 8
Maintenance and Repair 9
Technical Support 9
Appendix A — Specifications 10
Figures
Figure 1. CrystalView DVI Micro, front and back composite 3
Figure 2. Connecting the CrystalView DVI Micro LT 4
Figure 3. Active Power LED 5
Figure 4. DVI panel layout (transmitter and receiver) 6
Figure 5. DVI-D (male) connector pinout 7
Tables
Table 1. DVI connectors and LED’s ................................................................................................... 6
Table 2. DVI Pin designations ........................................................................................................... 7
Appendices
Appendix A —Specifications 10

INTRODUCTION
CrystalView DVI Micro LT Manual 1
Disclaimer
While every precaution has been taken in the preparation of this manual, the manufacturer assumes no
responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting
from the use of the information contained herein. The manufacturer reserves the right to change the
specifications, functions, circuitry of the product, and manual content at any time without notice.
The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances
outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury
arising directly or indirectly from the use of this product (See limited warranty).
System Introduction
Thank you for choosing the Rose Electronics CrystalView DVI Micro LT fiber extender.
Utilizing both single-mode and multi-mode optical fiber, the product transmits DVI signals up to 1640ft (500m)
on multi-mode fiber, and 4920ft (1500m) on single-mode fiber. The built-in EDID technology provides ease of
installation and flexible compatibility with any display, regardless of resolution. In addition, the front-panel
placement of the EDID button, power supply input, and status indicators allows for the convenient operation
and monitoring of the module.
The instructions in this manual assume a general knowledge of computer installation procedures, familiarity
with cabling requirements, and some understanding of DVI and EDID device operation. An external power is
required to operate this device.
Features
■Compact Size (H x W x D : 0.58” x 1.54” x 2.12” / 14.6mm x 39.0mm x 53.9mm )
■Duplex LC fiber optic connectors
■Single-mode or Multi-mode Fiber
■Long distance transmission of high resolution DVI video signals up to 1920 x 1200@60Hz)
■Transmitter can be programmed with the EDID of any display
■Indicators for transmitter and receiver signal status
■Single +5V power supply for receiver, optional +5V power supply for transmitter
■Metal enclosure
■Low power consumption
■RoHS compliant

CrystalView DVI Micro LT Manual 2
Package Contents
CrystalView Micro LT unit
■1x 5V 0.85A power supply
■User Manual
Additional power supply and cables can be ordered separately. If the package contents are not correct, contact
Rose Electronics or your reseller so the problem can be quickly resolved.
Compatibility
Hardware: Any device with DVI video input or output
Operating Systems: All operating systems
Application Examples
The CrystalView DVI Micro LT is ideal for use in mechanical or industrial environments, hazardous
operational areas and between buildings.
■Industrial control
■Operational campus
■Transportation systems, ports and railways
■Mobile cranes

MODELS
CrystalView DVI Micro LT Manual 3
CrystalView DVI Micro LT Models
The CrystalView DVI Micro LT comes in a single model. The following figures show the buttons and connectors
on the unit.
Figure 1. CrystalView DVI Micro, front and back composite

INSTALLATION
CrystalView DVI Micro LT Manual 4
Installation Procedure
Before beginning an installation, ensure you have all products and components ready for the installation
System Connection
Connect the transmitter to the DVI source, and the receiver to the DVI display.
Figure 2. Connecting the CrystalView DVI Micro LT
LC Fiber
Plug the duplex LC fiber into the LC connectors on the CrystalView DVI Micro LT transmitter and receiver
units. When the fiber is connected properly, the “Fiber LOS” LED will be blinking. Depending on the
requirement of the host devices, the optical extender will utilize either single-mode or multi-mode fiber.
Status Indicators
The correct installation of the device results in a steady green signal on the transmitter’s Laser Active Indicator
and a blinking orange signal on the LOS Receiver LED.
Manual Self-EDID Programming
The EDID (Extended Display Identification Data) contains information on a monitor’s capabilities. A default
EDID is programmed into the transmitter unit. If this table works with a DVI source, it is not necessary to
reprogram the extender. CrystalView DVI Micro LT can also be programmed with any display’s EDID table, to
provide full compatibility with the display.

CrystalView DVI Micro LT Manual 5
Programming Procedure
Insert a small pin or paper clip into the EDID button hole, and press and hold down the button. Release the
button once the EDID indicator begins to blink rapidly. Connect the transmitter unit to the DVI cable of the
display. When the contents of the display EDID are recorded, the EDID indicator will stop flashing and remain
steadily illuminated.
To restore the factory default EDID information, insert the pin into the EDID button hole and press the button
continuously. The EDID indicator will light up. Release the button when the indicator is again illuminated,
indicating that the default EDID has been restored.
Device Power
Power on the display and plug the AC/DC power adaptor into the transmitter. Check that the Power indicator
and EDID indicator are illuminated
AC/DC Power Adaptor
Transmitter Unit:There are two power input options for the CrystalView DVI Micro LT Transmitter unit. Power
is normally supplied from the graphic card through PIN14 (+5V) of the DVI connector. However, if the power
output of the graphic card is insufficient for the operation of the transmitter unit, an AC/DC power adaptor may
be used to power the unit. Built-in protection circuits are used to accommodate dual power inputs. The power
indicator LED will be illuminated when sufficient power is applied.
Figure 3. Active Power LED
Receiver Unit:The CrystalView DVI Micro LT receiver module requires the included external AC/DC power
adaptor to operate.

CrystalView DVI Micro LT Manual 6
DVI Panel Layout – Connectors and LED’s

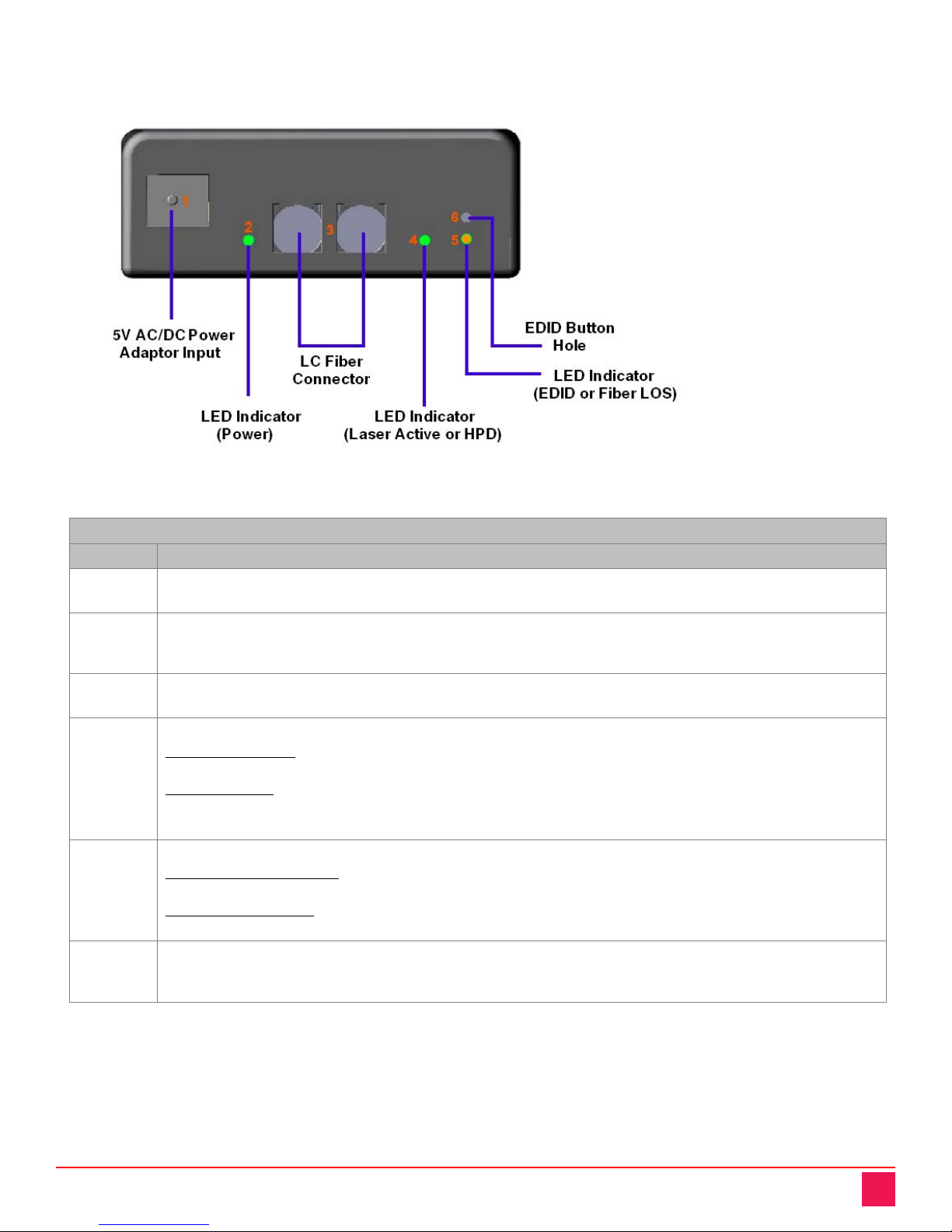

Figure 4. DVI panel layout (transmitter and receiver)
DVI Panel - Connectors and LED’s
Number Description
1 Power adaptor: DC jack
2
Power Indicator: Illuminated when 5V power is supplied from either the transmitter DVI connector
or the 5V external power supply
3 LC fiber optic connector
4
Data Indicator: displays signal transmission status:
Transmitter status - Green light indicates that a valid video signal has been received by the
transmitter and the transmission laser is active.
Receiver status - Orange light indicates that receiver is not detecting a transmitted signal
This may be caused by loss of power at the transmitter, or by an unplugged fiber cable
5
EDID Programming Status Indicator on transmitter unit, Display Connect LED on receiver unit
Transmitter EDID Status - LED will flash orange when a display’s EDID is being programmed into
the Transmitter
Receiver Display LED - green light indicates the receiver is connected to a display
6
EDID button (Transmitter) - Allows the user to manually program a display’s EDID data into the
transmitter’s EEPROM. The button must be pressed and held down using a pin or paper clip
Table 1. DVI connectors and LED’s

CrystalView DVI Micro LT Manual 7
DVI Connector - Pin Designations
Transmitter Unit Receiver Unit
Pin Designation Pin Designation
1 T.M.D.S Data 2- 1 T.M.D.S Data 2-
2 T.M.D.S Data 2+ 2 T.M.D.S Data 2+
3 T.M.D.S Data 2 Shield 3 T.M.D.S Data 2 Shield
6 DDC Clock 6 DDC Clock
7 DDC Data 7 DDC Data
8 No Connect 8 No Connect
9 T.M.D.S Data 1- 9 T.M.D.S Data 1-
10 T.M.D.S Data 1+ 10 T.M.D.S Data 1+
11 T.M.D.S Data 1 Shield 11 T.M.D.S Data 1 Shield
14 +5V 14 +5V
15 Ground 15 Ground
16 Hot Plug Detect 16 Hot Plug Detect
17 T.M.D.S Data 0- 17 T.M.D.S Data 0-
18 T.M.D.S Data 0+ 18 T.M.D.S Data 0+
19 T.M.D.S Data 0 Shield 19 T.M.D.S Data 0 Shield
22 T.M.D.S Clock Shield 22 T.M.D.S Clock Shield
23 T.M.D.S Data Clock+ 23 T.M.D.S Data Clock+
24 T.M.D.S Data Clock- 24 T.M.D.S Data Clock-
Table 2. DVI Pin designations
Figure 5. DVI-D (male) connector pinout

PRODUCT SAFETY
CrystalView DVI Micro LT Manual 8
Safety
The CrystalView DVI Micro LT, like all electronic equipment, should be used with care. To protect yourself from
possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions.

Follow all instructions and warnings marked on this Unit.

Except where explained in this manual, do not attempt to service this Unit yourself.

Do not use this Unit near water.

Assure that the placement of this Unit is on a stable surface.

Provide proper ventilation and air circulation.

Keep connection cables clear of obstructions that might cause damage to them.

Use only power cords, power adapter and connection cables designed for this Unit.

Keep objects that might damage this Unit and liquids that may spill, clear from this Unit. Liquids and
foreign objects might come in contact with voltage points that could create a risk of fire or electrical
shock.

Do not use liquid or aerosol cleaners to clean this Unit. Always unplug this Unit from the power source
before cleaning.
Remove power from the unit and refer servicing to a qualified service center if any of the
following conditions occur:

The connection cables are damaged or frayed.

The Unit has been exposed to any liquids.

The Unit does not operate normally when all operating instructions have been followed.

The Unit has been dropped or the case has been damaged.

The Unit exhibits a distinct change in performance, indicating a need for service.

SERVICE AND MAINTENANCE
CrystalView DVI Micro LT Manual 9
Maintenance and Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance,
you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center.
This Return Authorization number must appear on the outside of the shipping container.
See Limited Warranty for more information.
When returning a Unit, it should be double-packed in the original container or equivalent, insured and shipped
to:
Rose Electronics
Attn: RA __________
10707 Stancliff Road
Houston, Texas 77099 USA
Technical Support
If you are experiencing problems, or need assistance installing your product, consult the appropriate section of
this manual. If, however, you require additional information or assistance, please contact the Rose Electronics
Technical Support Department at:
Phone: [phone]
E-mail: [e-mail]
Web: www.rose.com
Technical Support hours are from: 8:00 am to 6:00 pm CST (USA), Monday through Friday.
Please report any malfunctions in the operation of this Unit or any discrepancies in this manual to the Rose
Electronics Technical Support Department.

APPENDICES
CrystalView DVI Micro LT Manual 10
Appendix A — Specifications
Part Numbers Description
CRK-T1DFXDM-DLT CrystalView DVI Micro LT Fiber Extender
Chassis Dimensions (W x D x H)
Transmitter and receiver chassis 1.53” x 2.12” x 0.57” (39 x 54 x 14.6 mm)
Power Requirements
Power source Transmitter unit is interface powered (from DVI circuit). Alternatively, use an
external power supply if required.
Receiver unit, one external 100-240VAC, AC input, +5V 1A
Video Resolution
DVI-D Video 1600 x 1200@60Hz, 1920 x 1080@60Hz, 1920 x 1200@60Hz
Signal format DVI
Interconnect Cable Requirements
Fiber Cable Multi-mode fiber, OM3, 50/125μ m, bandwidth (1300nm:500MHz/km)
Single-mode fiber (9/125μ m, (G.652D)
Cable Distances
Fiber Cable Multi-mode to 1640ft (500m)
Single-mode to 4920ft (1500m)
Connectors
DVI Connector Transmitter and receiver units: 1 x DVI-D (M)
DDC Protocol
EDID Self-EDID programming
Environmental
Operating Temp 32°F to 122°F (0°C to 50°C)
Storage Temp -4°F to 158°F (-20°C to 70°C)
Operating Humidity 0% to 80% relative, non-condensing

WWW.ROSE.COM
▪
[e-mail]
▪
[phone]
Rose Electronics
▪10707 Stancliff Road ▪Houston, Texas 77099
Rose USA (281) 933
-7673 ▪Rose Europe [phone]
Rose Asia [phone]
▪Rose Australia [phone]
WWW.ROSE.COM
