Ross openGear UDC-8225 User manual

Ross Video Limited
UDC-8225(-W)
MD-SDI Up/Down/Cross Converter
User Manual
Ross Part Number: 8225DR-004
Issue: 02A

UDC-8225(-W) •MD-SDI Up/Down/Cross Converter User Manual
• Ross Part Number: 8225DR-004
• Document Issue: 02A
• Printed in Canada.
The information contained in this User Manual is subject to change without notice or obligation.
Copyright
© 2007 Ross Video Limited. All rights reserved.
Contents of this publication may not be reproduced in any form without the written permission of
openGear. Reproduction or reverse engineering of copyrighted software is prohibited.
Notice
The material in this manual is furnished for informational use only. It is subject to change without
notice and should not be construed as a commitment by Ross Video Limited. Ross Video Limited
assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.
Trademarks
•is a registered trademark of Ross Video Limited.
•is a registered trademark of Ross Video Limited.
•Ross, ROSS, ROSS®, and MLE are registered trademarks of Ross Video Limited.
•All other product names and any registered and unregistered trademarks mentioned in
this manual are used for identification purposes only and remain the exclusive property
of their respective owners.

Important Regulatory and Safety Notices
Before using this product and any associated equipment, refer to the “Important Safety Instructions”
listed below so as to avoid personnel injury and to prevent product damage.
Products may require specific equipment, and /or installation procedures be carried out to satisfy
certain regulatory compliance requirements. Notices have been included in this publication to call
attention to these Specific requirements.
Symbol Meanings
This symbol on the equipment refers you to important operating and maintenance
(servicing) instructions within the Product Manual Documentation. Failure to heed
this information may present a major risk of damage or injury to persons or
equipment.
Warning
The symbol with the word “Warning” within the equipment manual indicates a
potentially hazardous situation, which if not avoided, could result in death or serious
injury.
Caution
The symbol with the word “Caution” within the equipment manual indicates a
potentially hazardous situation, which if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices.
Notice
The symbol with the word “Notice” within the equipment manual indicates a
situation, which if not avoided, may result in major or minor equipment damage or a
situation which could place the equipment in a non-compliant operating state.
ESD
Susceptibility
This symbol is used to alert the user that an electrical or electronic device or
assembly is susceptible to damage from an ESD event.
Important Safety Instructions
Caution
This product is intended to be a component product of the openGear 8000 series
frame. Refer to the openGear 8000 series frame User Manual for important safety
instructions regarding the proper installation and safe operation of the frame as well
as it’s component products.
Warning
Certain parts of this equipment namely the power supply area still present a safety
hazard, with the power switch in the OFF position. To avoid electrical shock,
disconnect all A/C power cords from the chassis' rear appliance connectors before
servicing this area.
Warning
Service barriers within this product are intended to protect the operator and service
personnel from hazardous voltages. For continued safety, replace all barriers after
any servicing.
This product contains safety critical parts, which if incorrectly replaced may present
a risk of fire or electrical shock. Components contained within the product’s power
supplies and power supply area, are not intended to be customer serviced and should
be returned to the factory for repair.
To reduce the risk of fire, replacement fuses must be the same type and rating.
Only use attachments/accessories specified by the manufacturer.

EMC Notices
US FCC Part 15
This equipment has been tested and found to comply with the limits for a class A Digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
users will be required to correct the interference at their own expense.
Notice
Changes or modifications to this equipment not expressly approved by Ross Video
Ltd. could void the user’s authority to operate this equipment.
CANADA
This Class “A” digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de classe “A” est conforme à la norme NMB-003 du Canada.
EUROPE
This equipment is in compliance with the essential requirements and other relevant provisions of CE
Directive 93/68/EEC.
INTERNATIONAL
This equipment has been tested to CISPR 22:1997 along with amendments A1:2000 and A2:2002 and
found to comply with the limits for a Class A Digital device.
Notice
This is a Class A product. In domestic environments this product may cause radio
interference in which case the user may have to take adequate measures.
Maintenance/User Serviceable Parts
Routine maintenance to this openGear product is not required. This product contains no user
serviceable parts. If the module does not appear to be working properly, please contact Technical
Support using the numbers listed under the “Contact Us” section on the last page of this manual. All
RossGear products are covered by a generous 5-year warranty and will be repaired without charge for
materials or labor within this period. See the “Warranty and Repair Policy” section in this manual for
details.

Environmental Information
The equipment that you purchased required the extraction and use of natural resources for its
production. It may contain hazardous substances that could impact health and the environment.
To avoid the potential release of those substances into the environment and to diminish the need for
the extraction of natural resources, Ross Video encourages you to use the appropriate take-back
systems. These systems will reuse or recycle most of the materials from your end-of-life equipment in
an environmentally friendly and health conscious manner.
The crossed-out wheeled bin symbol invites you to use these systems.
If you need more information on the collection, reuse, and recycling systems, please contact your local
or regional waste administration.
You can also contact Ross Video for more information on the environmental performances of our
products.

UDC-8225(-W) User Manual (Iss. 02A) Contents •i
Contents
Introduction 1-1
In This Chapter .......................................................................................................................1-1
A Word of Thanks....................................................................................................1-1
Overview ..................................................................................................................1-1
Functional Block Diagram .......................................................................................1-2
Features ....................................................................................................................1-3
Documentation Terms ..............................................................................................1-4
Installation and Setup 2-1
In This Chapter .......................................................................................................................2-1
Static Discharge........................................................................................................2-1
Unpacking ................................................................................................................2-1
Local Reference Termination Jumper ......................................................................2-2

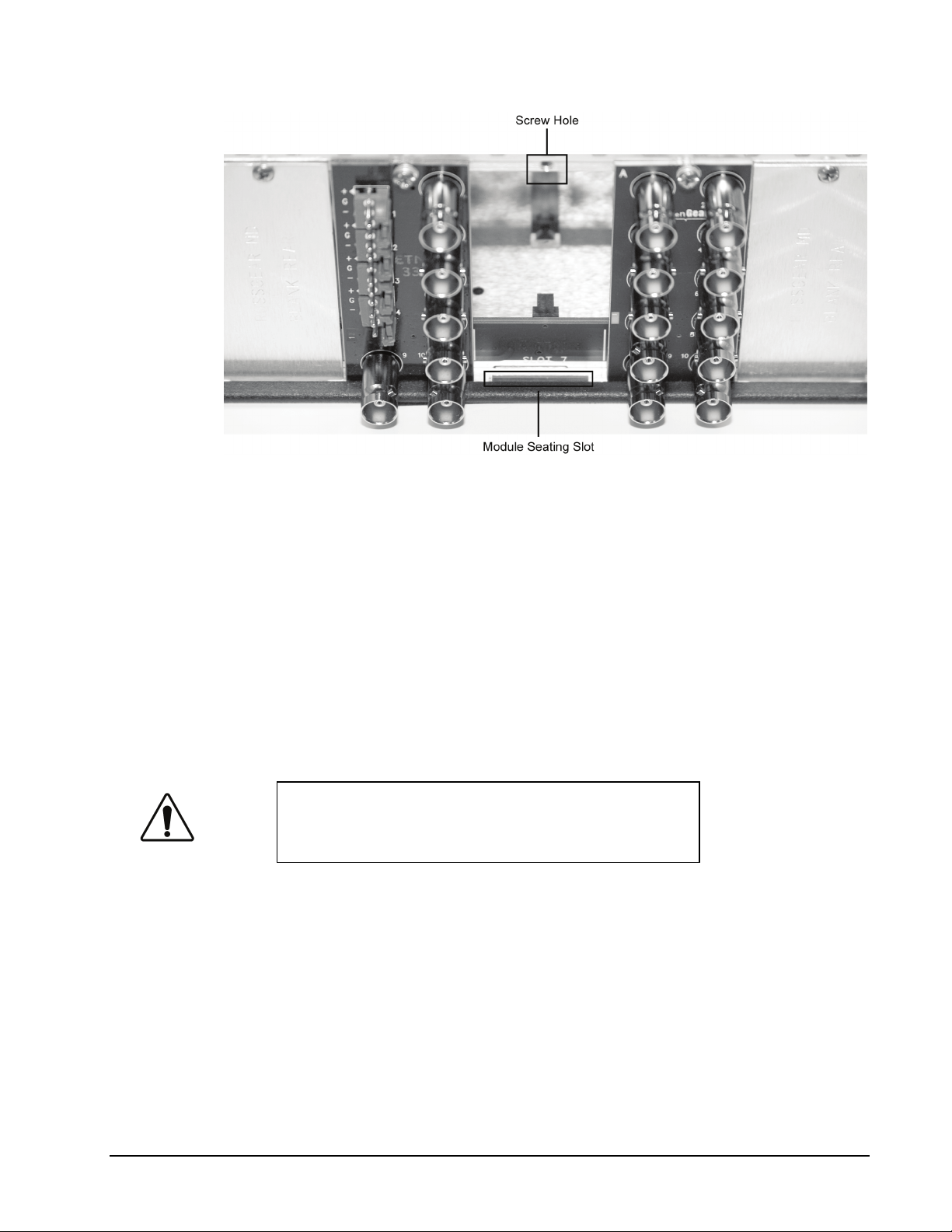

Rear Module Installation (Optional) ........................................................................2-2
Board Installation .....................................................................................................2-3
BNC Labels ..............................................................................................................2-4
Cable Connections....................................................................................................2-4
Installing Licensed Software Keys...........................................................................2-5
User Controls 3-1
In This Chapter .......................................................................................................................3-1

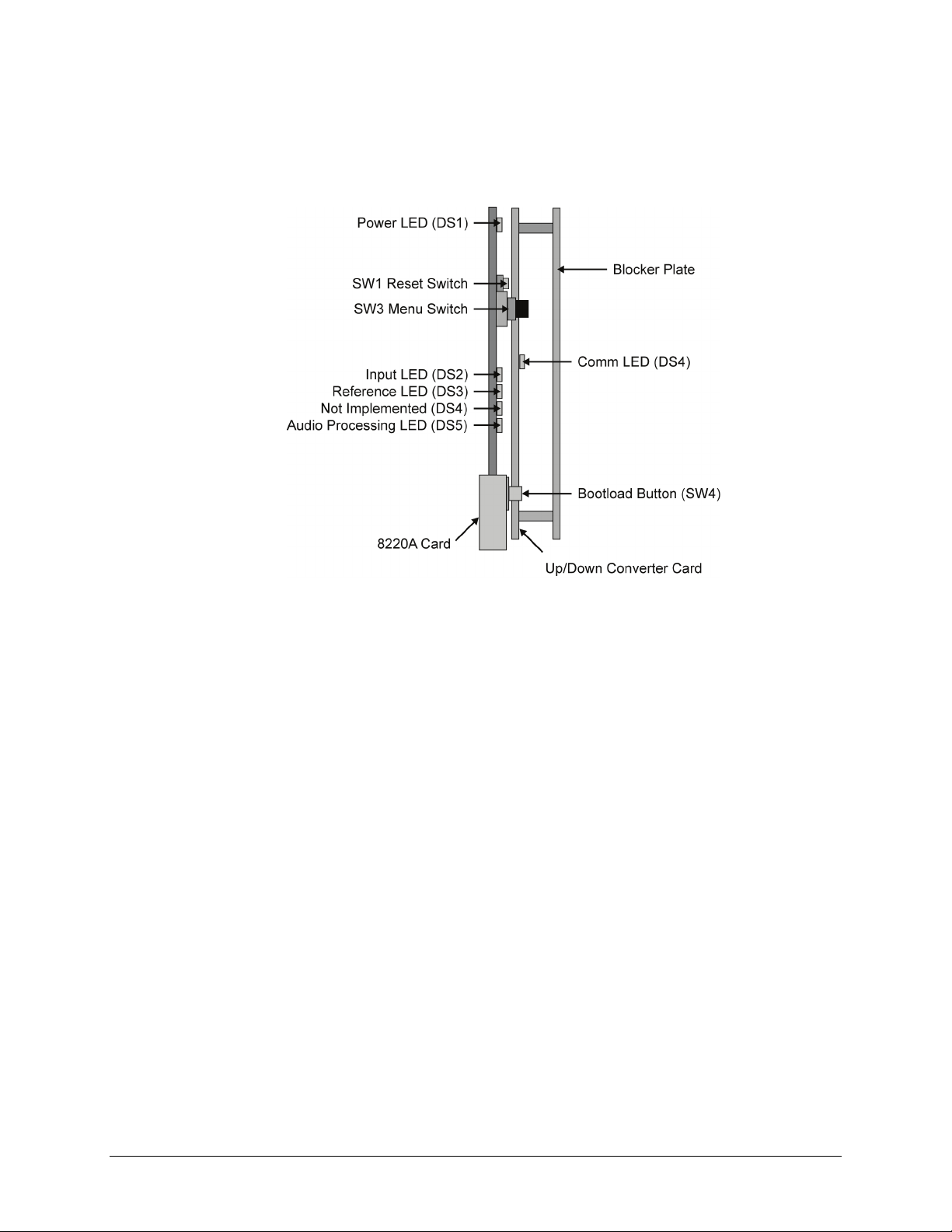

Card-edge User Controls..........................................................................................3-2
LEDs.........................................................................................................................3-3
Control and Monitoring 4-1
In This Chapter .......................................................................................................................4-1
Aspect Ratio Conversion..........................................................................................4-1
Output Format Reference Compatibility ..................................................................4-3
Wings Input Setup....................................................................................................4-3
Heads-Up Display ....................................................................................................4-4
DashBoard Control System Software.......................................................................4-8
The Menu System.....................................................................................................4-8
SNMP Monitoring and Control..............................................................................4-14
Specifications 5-1
In This Chapter .......................................................................................................................5-1

ii •Contents UDC-8225(-W) User Manual (Iss. 02A)
Service Information 6-1
In This Chapter ...................................................................................................................... 6-1
Troubleshooting Checklist....................................................................................... 6-1
Power LED Conditions............................................................................................ 6-2
Bootload Button....................................................................................................... 6-2
Warranty and Repair Policy .................................................................................... 6-2
Ordering Information 7-1
UDC-8225 and Related Products........................................................................................... 7-1

UDC-8225(-W) User Manual (Iss. 02A) Introduction •1-1
Introduction
In This Chapter
This chapter contains the following sections:
• A Word of Thanks
• Overview
• Functional Block Diagram
• Features
• Documentation Terms
A Word of Thanks
Congratulations on choosing the openGear UDC-8225 MD-SDI Up/Down/Cross Converter. The
UDC-8225 is part of a full line of Digital Products within the openGear Terminal Equipment family of
products, backed by Ross Video’s experience in engineering and design expertise since 1974.
You will be pleased at how easily your new UDC-8225 fits into your overall working environment.
Equally pleasing is the product quality, reliability and functionality. Thank you for joining the group
of worldwide satisfied Ross Video customers!
Should you have a question pertaining to the installation or operation of your UDC-8225, please
contact us at the numbers listed on the back cover of this manual. Our technical support staff is always
available for consultation, training, or service.
Overview
The UDC-8225 is a universal cross-converter designed for broadcast use. It can provide SD to HD up-
conversion, HD to SD down-conversion, as well as HD to HD cross-conversion.
The UDC-8225 supports all popular standard definition and high definition video formats, with or
without four groups (16 channels) of embedded 48 KHz synchronous audio, including 480i, 576i,
720p, and 1080i. The format of incoming video is automatically detected, simplifying system setup.
A licensed software option for the UDC-8225 includes an additional input which is used to insert
additional content into the blank areas of the converted output (Letter Box and Pillar Box). This is
accomplished through implementing a Box Mask, which matches the active area on the converted
output, and enabling the insertion of the input on a signal that has been converted by our aspect ratio
converter.

1-2 •Introduction UDC-8225(-W) User Manual (Iss. 02A)
The UDC-8225 converts the incoming SDI video, on the main SDI In, to any supported video format.
Using advanced video de-interlacing algorithms, dynamic edge detection, adaptive noise reduction
circuitry and full 10-bit processing, format conversion is performed with the highest possible picture
quality. As part of the format conversion process, a flexible aspect ratio converter allows the video to
be resized to a number of standard aspect ratios.
The UDC-8225 incorporates a video frame synchronizer, allowing the output video to be timed to an
external video reference.
Any openGear frame supports a distributed frame reference, allowing incoming reference sync signals
to feed timing information to all modules in a frame. Thus, a single composite or tri-level sync signal
can be used for multiple cross-converters. Alternatively, each card accepts an additional reference
signal providing additional system timing flexibility.
To make configuration easier, the cross-converter offers a unique Heads-Up Display on a separate
composite monitoring output. When activated, card status and parameters can be viewed and adjusted
using the card-mounted finger joystick and an easy to use menu system. Alternately, you can configure
the UDC-8225 using the DashBoard Control System Software which also enables you to install
licensed software features such as the Wings Input option.
The UDC-8225 is fully compliant with all openGear technical specifications and supports remote
monitoring via the DashBoard Control System Software.
Functional Block Diagram
Figure 1. Simplified Block Diagram of UDC-8225 Functions

UDC-8225(-W) User Manual (Iss. 02A) Introduction •1-3
Figure 2. Simplified Block Diagram of UDC-8225 Functions with Wings Input
Features
The following features make the UDC-8225 the best solution for SD to HD up-conversion, HD to SD
down-conversion, SD to SD aspect ratio conversion, as well as HD to HD cross-conversion:
• Converts between any of the following SD (270Mb/s) and HD (1.485Gb/s) formats:
o 480i/59.94
o 720p/59.94
o 1080i/59.94
o 576i/50
o 720p/50
o 1080i/50
• Automatically detects the incoming video format, and converts to the assigned
output format
• Advanced video processing algorithms provide the highest quality conversion
• Additional input for inserting content into the unused portion of the raster of the
Letter Boxed and/or Pillar Boxed image (Wings Input licensed feature only)
• Flexible aspect ratio control
• Handles 4 groups (16 channels) of synchronous embedded audio on the incoming
video stream:
o 20-bit 48 KHz synchronous on SD video formats
o 24-bit 48 KHz synchronous on HD video formats
• Compliance with SMPTE 272M-A 48kHz 24-bit
• Compliance with SMPTE 299M-2004 48 kHz 24-bit
• Compliance to AES-3id 2001, and AES-2003
• Built-in Frame Synchronizer times output to a local or frame-wide reference
• Composite monitoring output with Heads-Up Display menu system

1-4 •Introduction UDC-8225(-W) User Manual (Iss. 02A)
• Includes the following inputs and outputs:
o 1 reclocked copy of the input
o 1 reclocked copy of the Wings input (Wings Input licensed feature only)
o 2 processed SDI outputs
• 5 year transferable warranty
• Fully compliant with openGear specifications
Documentation Terms
The following terms are used throughout this guide:
• “Frame” refers to the DFR-8300 series frame that houses the UDC-8225 card, both
cooling and non-cooling versions, as well as any openGear frames.
• All references to the DFR-8310 also include the DFR-8310-C versions with the
cooling fan option. See the respective User Manuals for details.
• “Operator” and “User” refer to the person who uses the UDC-8225.
• “Board”, and “Card” refer to the UDC-8225 card itself, including all components
and switches.
• “System” and “Video system” refer to the mix of interconnected production and
terminal equipment in which the UDC-8225 operates.

UDC-8225(-W) User Manual (Iss. 02A) Installation and Setup •2-1
Installation and Setup
In This Chapter
This chapter contains the following sections:
• Static Discharge
• Unpacking
• Local Reference Termination Jumper
• Rear Module Installation (Optional)
• Board Installation
• BNC Labels
• Cable Connections
• Installing Licensed Software Keys
Static Discharge
Whenever handling the UDC-8225 and other related equipment, please observe all static discharge
precautions as described in the following note:
ESD
Susceptibility
Static discharge can cause serious damage to sensitive
semiconductor devices. Avoid handling circuit boards in high
static environments such as carpeted areas, and when wearing
synthetic fiber clothing. Always exercise proper grounding
precautions when working on circuit boards and related
equipment.
Unpacking
Unpack each UDC-8225 you received from the shipping container, and check the contents against the
packing list to ensure that all items are included. If any items are missing or damaged, contact your
sales representative or Ross Video directly.

2-2 •Installation and Setup UDC-8225(-W) User Manual (Iss. 02A)
Local Reference Termination Jumper
If you have elected to use a local reference signal, it must be terminated on the card with jumper J20.
To terminate the local reference on the card, see Figure 3:
Figure 3. Reference Termination Jumper
Set jumper J20 local reference options as follows:
• Install the jumper in the TERM position to terminate the reference on this card (the
rightmost two pins). This is the factory default setting.
• Install the jumper on the leftmost two pins to leave the reference unterminated. For
example, configure this setting if you wish to use a looping reference.
Rear Module Installation (Optional)
The UDC-8225 requires a 10-BNC rear module, and is also compatible with the 100-BNC rear module
on the DFR-8310-BNC frame. If you are installing the UDC-8225 in an openGear DFR-8310-BNC
frame, or the 10-BNC rear module is already present, skip this section.
If you received an RM-8300-B Rear I/O Module with your UDC-8225, you will need to install the I/O
module in your DFR-8300 series frame before you can install the UDC-8225 in the frame, or connect
cables to the card frame slot you have chosen for the UDC-8225.
Use the following procedure to install the Rear I/O Module in a DFR-8300 series frame:
1. Refer to the DFR-8300 series frame User Manual to ensure that the frame is properly
installed according to instructions.
2. On the rear of the frame, locate the card frame slot.
3. Remove the Blank Plate from the rear of the selected card frame slot. If there is no
Blank Plate installed, proceed to the next step.
4. As shown in Figure 4, seat the bottom of the rear module in the seating slot at the
base of the back plane of the frame.

UDC-8225(-W) User Manual (Iss. 02A) Installation and Setup •2-3
Figure 4. Rear Module Installation (UDC-8225 not shown)
5. Align the top hole of the rear module with the screw hole on the top edge of the back
plane of the frame.
6. Using a Phillips driver, and the supplied screw, fasten the rear module to the DFR-
8300 series back plane. Do not over tighten.
7. Ensure proper frame cooling and ventilation by having all rear frame slots covered
with rear I/O modules or Blank (metal) Plates. If you need Blank Plates, refer to the
chapter, “Ordering Information” in your frame User Manual, and contact your
Ross Video sales representative.
This completes the procedure for installing the Rear I/O Module in a DFR-8300 series frame.
Board Installation
Use the following procedure to install the UDC-8225 in a DFR-8300 series frame:
Notice
Due to power consumption and heat dissipation requirements,
the UDC-8225 must only be installed in a frame with the
cooling fan option installed.
1. Refer to the User Manual of your frame to ensure that the frame is properly installed
according to instructions.
Due to slot space requirements, a maximum of five UDC-8225 modules can be
installed in a DFR-8300 series frame. Ross Video recommends locating the UDC-
8225 modules in Slots 1, 3, 5, 7 and 9. Note that Slot 1 is the left most slot as you
look into the frame from the front.
The blocker plate mounted on the UDC daughter card is designed to prevent the
accidental installation of any other cards in right-hand adjacent card slots.

2-4 •Installation and Setup UDC-8225(-W) User Manual (Iss. 02A)
2. After selecting the desired card frame slot, hold the UDC-8225 card by the edges
and carefully align the card edges with the slots in the frame. Then fully insert the
card into the frame until the rear connection plugs are properly seated on the
midplane and rear modules.
This completes the procedure for installing the UDC-8225 in a DFR-8300 series frame.
BNC Labels
Affix the supplied BNC label, as per the included instructions, to the BNC area on the rear of the rack
frame.
Cable Connections
This section provides information for connecting cables to the installed BNC rear modules of the
UDC-8225 card on the DFR-8300 series frame backplane. Connect the input and output cables
according to the following diagram. The inputs are internally terminated in 75 ohms. It is not
necessary to terminate unused outputs.
Refer to Figure 1 and Figure 2, for representations of signal flow through the rear module connector.
Figure 5. BNC Designations for the UDC-8225 Rear Module

UDC-8225(-W) User Manual (Iss. 02A) Installation and Setup •2-5
Figure 6. BNC Designations for the UDC-8225 with Wings Input Rear Module
Installing Licensed Software Keys
This section provides information on installing licensed software keys for the UDC-8225 card, such as
the Wings Input licensed feature, using the DashBoard Control System Software.
Note Ensure your UDC-8225 card is of a hardware Issue G,or
higher, before installing software keys.
When installing a software key on the UDC-8225 card using the DashBoard Control System Software:
• You must have the DashBoard Control System Software installed and
communicating with the openGear frame that houses the UDC-8225 card you wish
to install the licensed software key for. The DashBoard Control System software and
manual are available from the Ross Video website.
• Ensure that you are using version 2.0, or higher, of the Dashboard Control System
Software. This information is available by selecting Help DAbout DashBoard
from the DashBoard main toolbar.
• Refer to the DashBoard User Manual for details on using the DashBoard menus.

2-6 •Installation and Setup UDC-8225(-W) User Manual (Iss. 02A)
Installing the Wings Input Software Key
Use the following procedure to install the software key for the Wings Input licensed feature:
1. Open DashBoard on your computer.
2. Open a tab in the Device View of DashBoard for the UDC-8225 card you wish to
install the software key for.
3. Select the Setup tab in the Device View to display the setup information.
4. Make a note of the Request Code in the Wings License Adapter box.
5. Contact Ross Video Technical Support using the information found in the “Contact
Us” section of this manual.
• When you speak to your Technical Support representative, tell them your
name, your facility name, and the Request Code from the Setup tab.
• You will be given a License Key that must be entered in the Wings License
Adapter box of the Setup tab.
6. Enter the License Key in the Wings License Adapter box of the Setup tab.
7. When the installation is complete, verify that the following has occured:
• the Setup tab displays “Licensed” in the Wings License Adapter field
• the Wings License Adapter box displays a green background
• the Output tab displays the Wings Enable and Wings Crop parameters
• the read-only Wings Format field displays in the Signal tab.
• the device status indicator now displays “UDC-8225-W” as the name
This completes the procedure for installing the software key for the Wings Input licensed feature. For
information on setting up and using the Wings Input feature, refer to the section “Wings Input
Setup”.

UDC-8225(-W) User Manual (Iss. 02A) User Controls •3-1
User Controls
In This Chapter
This chapter contains a description of the UDC-8225 user controls:
• Card-edge User Controls
• LEDs

3-2 •User Controls UDC-8225(-W) User Manual (Iss. 02A)
Card-edge User Controls
The following are general descriptions of the user controls identified in the figure below.
Figure 7. Card-edge User Controls
SW1 — Reset Switch
This button is used for rebooting the card.
SW3 — Menu Switch
The Menu Switch (SW3)is used to navigate the UDC-8225 menu system and configure item
parameters. The Menu Switch is a five-direction, square, finger joystick.
Refer to Chapter 4, “Control and Monitoring” for instructions on using the Menu Switch with
the Heads-Up Display.
SW4 — Bootload Button
This button is used for factory service in the unlikely event of a complete card failure. Do not
press this button unless instructed to do so by Technical Support personnel. The Bootload process
is further described in the “Service Information” chapter of this manual.
