Ross RAC733 User manual

Protect yourself and others by observing all safety information, warnings, and cautions. Failure to
comply with instructions could result in personal injury and/or damage to product or property.
Please retain instructions for future reference!
RAC733
3/8” AIR
RATCHET
WRENCH

GENERAL SAFETY INFORMATION
This product is a part of a high pressure system and the following safety precautions must be
followed at all times along with any other existing safety rules.
1. Read all manuals included with these product carefully. Be thoroughly familiar with the
controls and the proper use of the equipment.
2. Only persons well acquainted with these rules of safe operation should be allowed to use
the air tool.
3. Do not exceed any pressure rating of any component in the system.
4. Disconnect the air tool from air supply before changing tools or attachments, servicing and
when not in use.
5. Always wear safety glasses during operation.
6. Do not wear loose fitting clothing, scarves, or neck ties. Loose clothing may become caught
in moving parts and result in serious personal injury.
7. Do not wear jewellery when operating any tool. Jewellery may become caught in moving
parts and result in serious personal injury.
8. Do not depress trigger when connecting the air supply hose.
10. Never trigger the tool when not applied to a work object. Attachments must be securely
attached. Loose attachments can cause serious injury.
11. Protect air lines from damage or puncture.
12. Never point an air tool at oneself or any other person. Serious injury could occur.
13. Check air hoses for weak or worn condition before each use. Make sure all connections are
secure.
WARNING!: RELEASE ALL PRESSURE FROM THE SYSTEM BEFORE ATTEMPTING TO INSTALL, SER-
VICE, RELOCATE OR PERFORM ANY MAINTENANCE.
14. Keep all nuts, bolts and screws tight and ensure equipment is in safe working condition.
15. Do not put hands near or under moving parts.
LUBRICATION
This air tool REQUIRES lubrication BEFORE the initial use and BEFORE and AFTER each additional
use. Proper lubrication is the owner's responsibility. Failure to lubricate the air tool properly
will dramatically shorten the life of the tool and will void the warranty.
If your air system does not include and automatic oiler then it must be oiled manually.

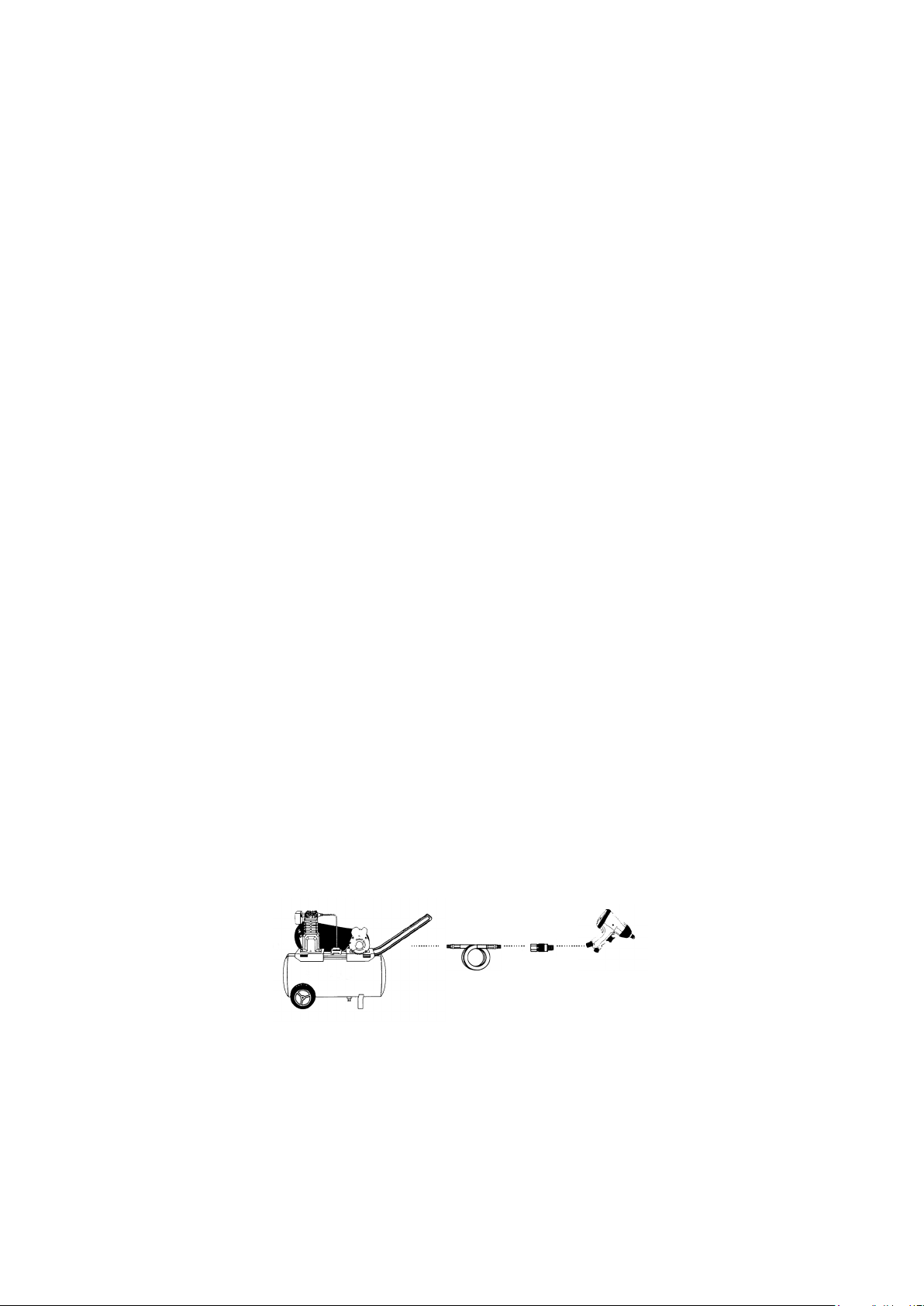

Air Connection
Compressor
Air Line
Oiler Tool
Air Motor Lubrication. (manually if the automatic oiler is not fitted)
The motor must be lubricated daily.
WARNING!: DISCONNECT THE AIR TOOL FROM THE AIR SUPPLY BEFORE LUBRICATING.
1. Disconnect the impact wrench from the air supply.
2. Turn the tool upside down so the air inlet faces upward.
3. Put 2 or 3 drops of air tool oil in the air inlet.
4. Reconnect the air supply and run the tool for a couple of seconds.
5. Clean any excessive oil from the air exhaust of the tool.

WARNING!: Always wear safety glasses
TECHNICAL SPECIFICATIONS
No-Load Speed
Air Consumption
Max Torque
Working Air Pressure
Air Inlet
180rpm
115L/Min Avg.
102Nm (75ft-lb)
6.2bar (90psi)
¼” BSP
WARNING!: The ratchet should never be used to set the torque. Use a torque
wrench to set the torque.
To remove nuts, turn the forward/reverse dial to the right.
To install nuts, turn the forward/reverse dial to the left. Reverse the procedure
if the threads are left-handed. Do not overtighten the nuts.
THROTTLE LEVER
SPEED CONTROL
EXHAUST PORT
SAFETY TOGGLE
AIR INLET
FORWARD / REVERSE SELECTOR
DRIVE SPIGOT
OIL BEFORE USE
