Rotec WAVE BED User manual

Document Version 1 | May 2023
MODEL: WAVE BED BY ROTEC
ADJUSTABLE BED FRAME
OWNER’S MANUAL

02 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL
CONTENTS
01. SAFETY .....................................................................................................................................03
02. INTRODUCTION .......................................................................................................................08
03. BOX CONTENTS.......................................................................................................................10
04. ASSEMBLY................................................................................................................................12
05. OPERATION ..............................................................................................................................20
06. DISASSEMBLY AND TRANSPORTATION................................................................................24
07. CLEANING AND MAINTENANCE.............................................................................................25
08. TROUBLESHOOTING...............................................................................................................26
09. TECHNICAL DATA.....................................................................................................................28
10. FINAL DISPOSAL......................................................................................................................28
11. WARRANTY...............................................................................................................................29
COPYRIGHT®
This original documentation is protected by copyright. All rights, especially the rights to translate or reproduce
the document, are reserved. No part of this manual may be reproduced mechanically, electronically, or by other
means, in any form, without prior written permission of ROTEC INTERNATIONAL. Violations involving copyright
may result in legal action.
2023
ROTEC INTERNATIONAL
CONTACT INFORMATION
ROTEC INTERNATIONAL
420 Marie-Victorin Road
Baie-du-Febvre, (Quebec) J0G 1A0
CANADA

WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 03
1. SAFETY
IMPORTANT SAFETY INSTRUCTIONS
All users must read the Owner’s Manual. All users have a responsibility to observe the safety instructions.
Important accident prevention advice is found in this chapter.
GENERAL SAFETYINFORMATION
The following safety regulations and obligations are valid when handling the system:
▪Do not operate the product unless it is in full working order
▪Do not remove, change, bridge, or bypass any protection or safety features
▪Do not convert or modify the Adjustable Bed Frame without written approval
▪Do not use unauthorized spare parts for repair
▪Only physically able adults are allowed to assemble the product
▪Do not attempt tochange or replace parts unless the product is in a de-energized state
▪Ensure that no children or animals are in the proximity of the Bed Frame when operating it
▪Ensure nothing obstructsthe Bed Frame’s range of motion (e.g. night stands or open windows)
▪Do not sit directly on any Platform when operating the Bed Frame. Distribute your weight evenly
INTENDED USE
The Adjustable Bed Frame is an electrically controlled Bed Frame. Its sole intended use is described in this
documentation. The Adjustable Bed Frame is designed for indoor use and household use only. Outdoor use is
forbidden. The Bed Frame is operated by a Remote Control.
HOSPITAL / MEDICAL DISCLAIMER
The Adjustable Bed Frame is not designed to comply with medical or hospital standards. It is therefore
not suitable for domestic or commercial medical use.
▪Do not use the Bed Frame near to tent type oxygen or therapy equipment
▪Do not use the Bed Frame near to other potentially explosive gases
The Adjustable Bed Frame may only be used with suitable mattresses. Suitable mattresses must comply with
Federal Register 16 CFR Part 1633. If unsure, ask your mattress provider if your mattress is compatible with
electrically adjustable Bed Frames. The Bed Frame must not be used without a mattress, or with water-based
mattresses. The Bed Frame may only be assembled and used by adults. It is not designed for children or animals.

04 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL
The recommended maximum load on the Bed Frame is 700 lbs (including the mattress). Weight must be
distributed evenly. No individual Platform is designed to support or lift this weight. Users should get in and out
foot section, especially if the Bed Frame is in an elevated position. Do not stand on the Bed Frame or Platforms
at any time. Exceeding the recommended maximum load could damage the product and void the warranty.
Usage outside of the intended use described in this Owner’s Manual is only allowed with written consent by
ROTEC . Improper operation or usage outside of the intended use can result in personal injury and damage to the
system. Liability and warranty claims are void in cases of usage outside of the intended use.
REASONABLY FORESEEABLE MISUSE
Reasonably foreseeable misuse with the Adjustable Bed Frame includes, but is not limited to:
▪Using the Bed Frame as a climbing aid
▪Jumping on the Bed Frame
▪Allowing children or animals toclimb on or under the Bed Frame
▪Using the Bed Frame without a mattress or with a water-based mattress
▪Overloading the Bed Frame (max. load is 700 lbs evenly distributed)
▪Continuous use of the Bed Frame (see below)
NOTICE
The Bed Frame is not designed for continuous operation. If the motors are overworked, the Bed Frame will
time-out automatically for several minutes. During this time, you will not be able to operate the Bed Frame.
Continued excessive use of the Bed Frame can damage the product.
▪Do not operate the Bed Frame continuously
▪If the time-out is reached, do not operate the Bed Frame for at least 6 minutes. This will reset the time-out
TARGET AUDIENCE
This Manual is addressed to all adults responsible for assembling the Bed Frame, who:
▪Have (at least) basic technical knowledge
▪Are physically able to lift the components
▪Have fully read and understood this Owner’s Manual

WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 05
EXPLANATIONOF SYMBOLS AND SIGNAL WORDS
DANGER
The signal word DANGER indicates a hazardous situation which, if not avoided, will result in death or serious
injury.
WARNING
The signal word WARNING indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION
The signal word CAUTION indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
NOTICE
The signal word NOTICE indicates a situation that will not lead to personal injury, but could lead to damage to
the product or the environment.

06 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL
RESIDUAL RISKS
Residual risks are the risks that remain after all relevant safety standards have been complied with. These have
been evaluated through a thorough risk assessment. Read all instructions before assembling and operating
the Bed Frame.
DANGER
To reduce the risk of electric shock:
▪Always unplug the Bed Frame from the electrical outlet before cleaning.
WARNING
▪Unplug the Bed Frame from the outlet before putting on or taking off parts.
▪
Close supervision is necessary when the Bed Frame is used by, or near children, invalids, or disabled persons.
▪Use this Bed Frame only for its intended use as described in these instructions. Do not use attachments
not recommended by the manufacturer.
▪
Never operate the Bed Frame if it or any parts have a damaged Cable or Plug, are not working properly, have
been dropped or damaged, or dropped into water. Return the bed for examination and repair or replace it.
▪
and that are at least as servicable as SP-2, SPE-2, SPT-2, SV, SVE or SVTtypes.
▪Keep all Cables away from heated surfaces.
▪Never drop or insert any object into any opening.
▪Do not use outdoors.
▪Do not operate the Bed Frame where aerosol (spray) products are being used or where oxygen is being
administered.
▪To disconnect the Bed Frame, turn all controls tothe off position, then remove plug from outlet.
▪Keep children away from the extended foot support (or other similar parts).
WARNING
Moderate risk ofdeath or seriousinjury
The Adjustable Bed Frame can withstand a maximum load of 700 lbs (evenly spread, including mattress).
Overloading the Bed Frame, or any single Platform, may lead to death or serious injury.
▪Do not overload the Bed Frame under any circumstances
▪Do not stand on the Bed Frame
▪Do not apply the maximum load tothe Foot or Head Platforms
▪Do not sit on the mattress while the Bed Frame is in motion. Distribute your weight evenly

WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 07
WARNING
Review the instructions to ensure the appropriate critical components and accessories are being used with
the furnishing.
WARNING
Moderate risk ofdeath or seriousinjury
components on the Bed Frame may lead to death or serious injury.
▪Do not convert or modify the Adjustable Bed Frame
▪Never open electrical components
WARNING
Moderate risk ofdeath or seriousinjury through crushing
Crawling, laying, or reaching underneath the Bed Frame may lead to death or serious injury through crushing.
▪Do not crawl, lay, or reach underneath the Bed Frame
WARNING
Moderate risk ofdeath or seriousinjury in explosive atmospheres
Operating the Adjustable Bed Frame in potentially explosive atmospheres may lead to death or serious injury
through explosions.
▪Read the relevant directives to determine whether an atmosphere is potentially explosive
▪Do not operate the Adjustable Bed Frame in potentially explosive atmospheres
WARNING
Moderate risk ofdeath or seriousinjury through crushing
When the Bed Frame moves to a new position, it is possible that persons will be crushed between the Bed
Frame and foreign objects.This may lead to death or serious injury.
▪Do not store foreign objects underneath the Bed Frame
▪Ensure nothing obstructsthe Bed Frame’s range of motion (e.g. night stands or open windows)
WARNING
Moderate risk ofdeath or seriousinjury to children
Misuse of the Bed Frame around children may lead to death or serious injury.
▪Activate the Child Lock when children are present
▪Keep children away from moving Platforms
▪Do not allow children to play with the Bed Frame
SAVE THESE INSTRUCTIONS

08 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL
PREFACE
With the Adjustable Bed Frame, every effort has been made to ensure your comfort and safety. Each Bed Frame
is rigorously tested to comply with all relevant safety standards and their requirements.
This Owner’s Manual is intended to enable persons to assemble and operate the Bed Frame safely. However,
incorrect installation of the product, or usage outside of the intended use described in this Owner’s Manual
may lead to hazardous situations. In Chapter 1, “Safety”, and throughout this Owner’s Manual, potential risks,
their consequences, and steps to avoid harm are explained.
Observing the safety instructions in this Owner’s Manual will help you to avoid hazards and minimize damage
to the system. All persons involved in the assembly of the system must have the full product documentation
available to them atall times. Product documentation consists of this Owner’s Manual and any other relevant
documents supplied by the manufacturer. Documentation must always be kept complete and legible.
Contact information can be found on page 2 of the Owner's Manual.
Visit www.rotecbeds.com for a full list of customer support options.
LIABILITY
The descriptions of product characteristics in this Owner’s Manual are not a guarantee of the presence of these
characteristics.
ROTEC is not liable for damage or injury caused by:
▪Improper product use
▪Disregard of the documentation
▪Unauthorized product alterations
▪Improper work on and with the Adjustable Bed Frame
▪Operation of damaged products
▪Improperly performed repairs
▪Unauthorized changes tothe operating parameters
▪
damages caused directly or indirectly by the delivery, performance, or usage of this documentation.
ROTEC assumes no liability for technical or printing errors, for deficiencies in this documentation, or for
2. INTRODUCTION

WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 09
FCC STATEMENT
The Radio Frequency for this product is 2.4 GHz
FCC COMPLIANCE
The Adjustable Bed Frame complies with FCC CFR 47 Part 15 Subpart B/C. Operation is subject tothe
following conditions:
1. The product may not cause harmful interference
2.
The product must accept any interference received, including interference that may cause undesired operation
To comply with the FCC RF exposure compliance requirements, you may not make any changes to the product
or the antenna. Changes to the antenna or the product could result in the product exceeding the RF exposure
requirements. This may void your authority to use the product.
SERVICING OF DOUBLE-INSULATED PRODUCTS
In a double-insulated product, two systems of insulation are provided instead of grounding.
No grounding means is provided on a double-insulated product, nor is a means for grounding to be added to
the product. Servicing a double-insulated product requires extreme care and knowledge of the system, and
identical to the parts they replace. A double-insulated product is marked with the words "DOUBLE INSULATION"
or "DOUBLE INSULATED." The symbol (square within a square) is also able to be marked on the product.

10 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL
The Adjustable Bed Frame is delivered in one box. The box contains all the parts and tools necessary to fully
assemble and operate the system. Upon opening the packaging, use thischecklist to ensure all the parts are
place at room temperature.
present and in perfect condition. If any part is damaged or missing, contact
ROTEC . You can find the relevant
contact details at the beginning of the Owner's Manual. Ensure that the box is stored in a flat position in a dry

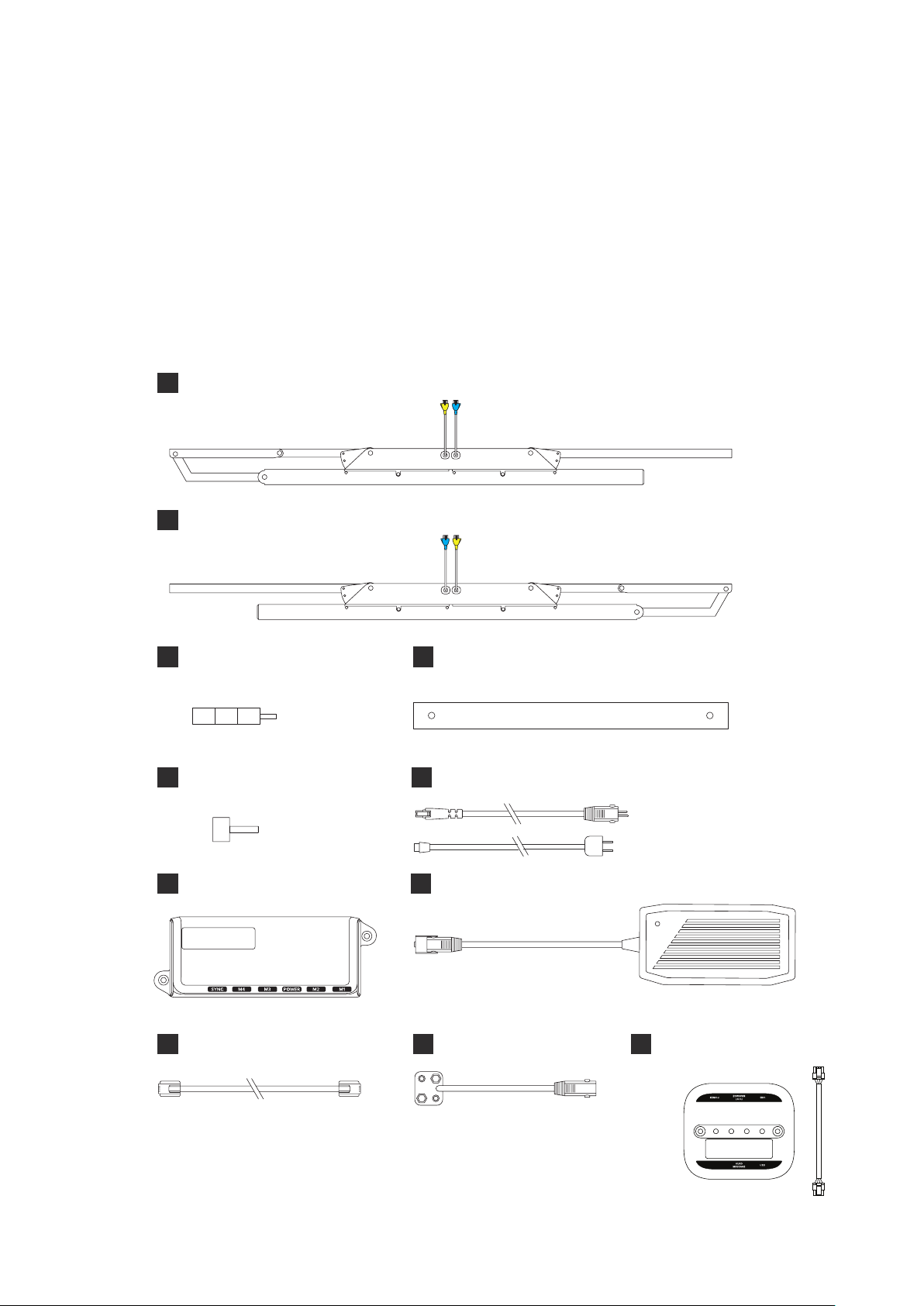

3. BOX CONTENTS
ASIDE RAIL (RIGHT)
BSIDE RAIL (LEFT)
2x CROSSBAR
D
POWER CONVERTER
KI
CONTROL BOX
POWER CABLES
J
4X CROSSBAR KNOB
E
C4x LEG
EMERGENCY
LOWERING STRAP
CONNECTIVITY BOX
AND CABLE
Y ZX SYNC CABLE

WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 11

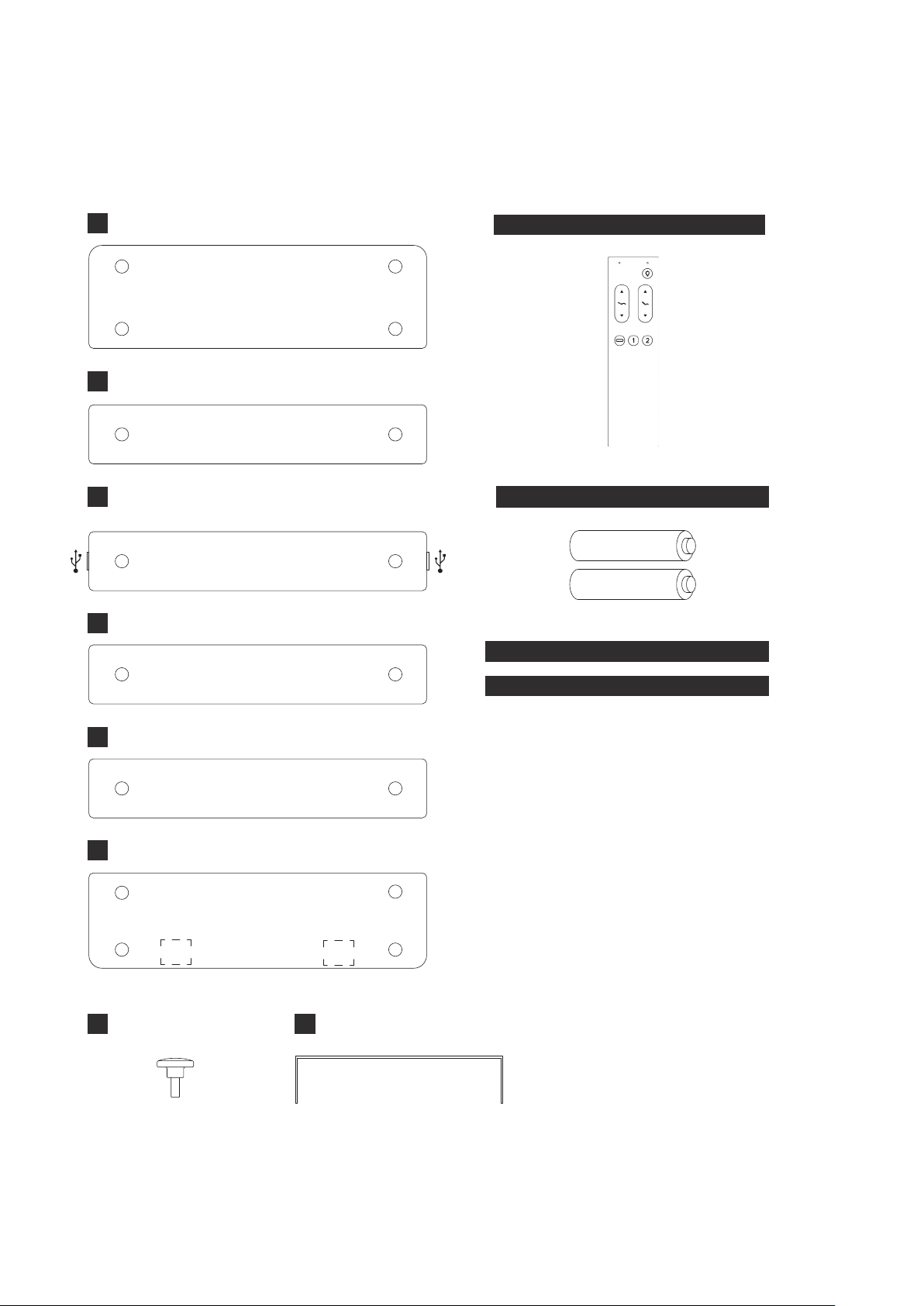

REMOTE CONTROL
HEAD PLATFORM
F
BASE PLATFORM
Only one USB port for Twin XL size
H
N16X PLATFORM SCREWMRETAINER BAR
G3 INNER PLATFORM
LFOOT PLATFORM
FOOT
G1 INNER PLATFORM
HEAD
BASE
INNER
INNER PLATFORMG2
INNER
QUICK START GUIDE
OWNER'S MANUAL
2X AAA BATTERIES
INNER

12 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL
TOOLS AND EQUIPMENT
The Adjustable Bed Frame should be assembled by two adults. If you assemble the Bed Frame alone, be careful
when lifting heavy parts. Ensure the assembly area is larger than the Bed Frame. Follow the steps carefully
to assemble the Bed Frame correctly.
UNPACKAGING
open the packaging and check its contents, as described in Chapter 3, “Box Contents”.
WARNING
Moderate risk ofdeath or seriousinjury to children and animals
The plastic packaging of the Bed Frame is a potential suffocation hazard. Leaving children or animals unsupervised
with the empty packaging may lead to death through suffocation.
▪Do not leave children or animals unsupervised
▪Dispose of unnecessary packaging immediately
NOTICE
Ensure all parts are at room temperature. Parts that are too cold or hot may affect assembly.
NOTICE
Do not use a knife or a sharp object to unpackage the Bed Frame. This may damage the product.
NOTICE
▪Use the cardboard packaging material tocushion the impact and avoid damage.
CAUTION
Risk of minoror moderate injury through cutting
Contact with sharp edges may lead to minor or moderate injury through cutting.
▪Avoid contact with sharp edges
4. ASSEMBLY

WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 13

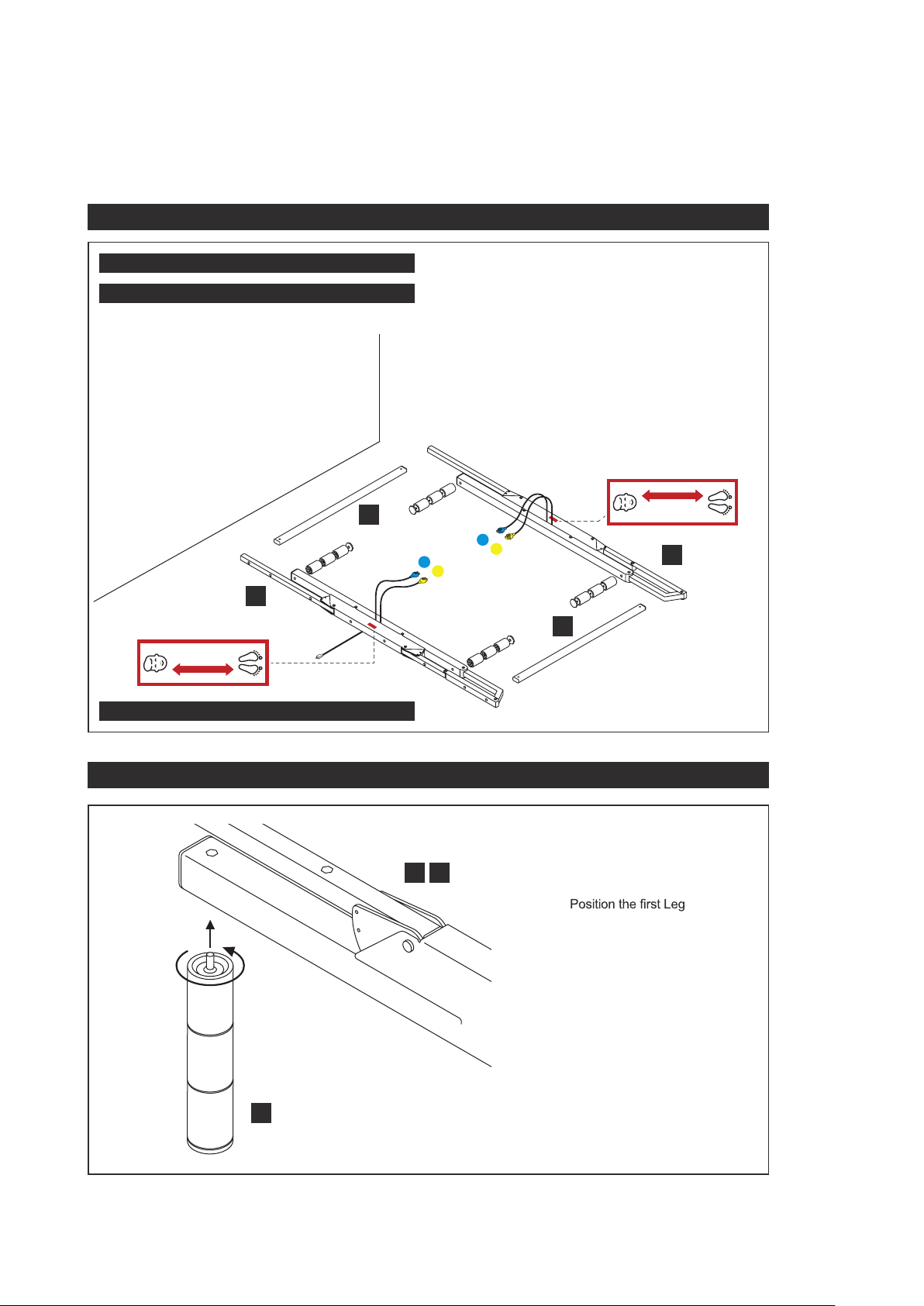

STEP2: ATTACHING THE LEGS
1. (C)below
the Side Rail (A/B) as shown in
the picture.
2.
Turn the Leg to screw it into
the Side Rail. It should be hand
tight.
3. Repeat Steps 1 and 2 to Screw
in the other 3 Legs.
A B
C
DO NOT REMOVE STRAPPING TAPE
USE LABELS ON SIDE RAILS
DO NOT REMOVE PROTECTIVE MATERIAL
STEP1: PREPARING THE OUTER FRAME
WALL
Lay the Crossbars (D)and Side Rails (A, B) on
the ground, as shown in the picture.
IMPORTANT:
▪
Ensure the Crossbars are parallel and
roughly 5feet (150 cm) apart.
▪Use the labels on the Side Rails to ensure
they are oriented correctly.
▪Use the Crossbars to determine the position
of the Side Rails. The Side Rails should be
the width of the Crossbar apart.
D
D
B
A
INSIDE OF FRAME
INSIDE OF FRAME
HEAD
FOOT

14 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL
TOP
SIDE
TOP
SIDE
STEP3: CONNECTING THE BARS
CAUTION
Risk of minoror moderate injury through crushing
The Side Rails are not secured while they are standing alone. If they fall over, this may lead to minor or moderate
injury through crushing.
▪Do not attempt tostand the Side Rails upright before they are connected tothe Crossbars
▪Be careful not toknock over the Side Rails
▪Ensure that you are wearing suitable footwear while assembling the Bed Frame
1. (D)and
place one end of it into a slot on
the Side Rail (Right) (A).
Ensure the Thread on the Side
Rail (the metal part facing
upwards) passes through the
hole at the end of the Crossbar.
2.
Place a Crossbar Knob (E) onto
the thread connecting the Side
Rail and the Crossbar. Turn the
Knob clockwise until it is hand
tight.
3.
Repeat steps 1 and 2 for the
second Crossbar.
REMOVE PROTECTIVE MATERIAL
REMOVE STRAPPING TAPE
D
D
A
D
E

WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 15
CAUTION
Risk of minoror moderate injury through crushing
While screwing in the Crossbar Knobs, you will need to lift the moving parts of the Side Rails. Allowing these
parts tofall may lead to minor or moderate injury through crushing.
▪Ensure moving parts do not fall down during assembly
CAUTION
Risk of minoror moderate injury through crushing
Gripping the Side Rails' moving parts may lead to minor or moderate injury through crushing.
▪Do not touch moving parts when lifting or moving the Side Rails
4. Connect the Crossbars (D)to
the Side Rail (Left) (B)as shown
in steps 1-3.
D
DB
A
STEP4:MOUNTING THE BASE PLATFORM
CAUTION
Risk of minoror moderate injury through tripping
While mounting the Platforms, you may have to step over the Power Cable. Tripping over the Cable may lead
to injury.
▪Be careful not totrip over the Cable
1. Lay the Base Platform (H)
upside down across the Bed
Frame.
H
I

16 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL
1. Turn over the Base Platform (H)
of the Bed Frame.
2.
Ensure that the Platform is
correctly positioned. There
should be 2 Mounting Holes on
each Side Rail (A, B) either side
of the Platform.
3. Use 4 Platform Screws (M)to
each screw until it is hand-tight.
H
A
B
M
4x
STEP5: CONNECTING THE CABLES
STEP6: PLACE THE PLATFORMS CENTRALLY
1. Insert the 4 Motor Cables from
the Side Rails (A, B) into the
Plug Ports on the Control Box
(I). Ensure that the color of the
Plug matches the color of the
Plug Port.
2.
Insert the Power Converter
Cable (J)into the Control Box.
to reduce the risk of tripping.
AB
J
I
J

WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 17
FOOT
HEAD
STEP8:MOUNTING THE HEAD AND FOOT PLATFORMS
IMPORTANT:
▪Use the labels on the Side Rails (A, B) to ensure the Platforms are at the right end.
▪Ensure the the Platforms are oriented correctly. The curved edges should face outwards and the Brackets for
the Retainer Bar should face downwards.
USE LABELS ON SIDE RAILS AND PLATFORMS 1.
Lay the Head and Foot
Platforms (F, L) in position on
the Side Rails.
2.
(M)to attach the Head and Foot
Platforms to the Side Rails (A,
B).
1.
Ensure that the Platforms (G)
are correctly positioned. There
should be 2 Mounting Holes on
each Side Rail (A, B) either side
of the Platform.
2. Use 4 Platform Screws (M)
the Platform by hand. Turn each
screw until it is hand-tight.
H
G3
G2
G1
A
B
M
STEP7:MOUNTING THE INNER PLATFORMS
4x
F
G1
H
G3
L
G2
M
!
8x

18 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL
1. Connect the Power Cable (J)
from the Control Box to the
cable of the Power Converter
(K).
2. Connect the main power cable
to the Power Converter then to
the main.
3.
Lay the main power cable along
the wall behind the Bed Frame
to minimize the risk of tripping.
1
2
STEP10: CONNECTING THE POWER CABLE
STEP9: ATTACHING THE RETAINER BAR
1. Move the Retainer Bar (N)
into position. The two ends of
the Bar should be inside the
Brackets at the end of the Foot
Platform (L).
2.
Press the Retainer Bar (N)
to click it into place.
L
N

WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 19
NOTICE
Stretching the Power Cable may damage it. This may lead to malfunctions with the Bed Frame.
NOTICE
Ensure the Cable is plugged into the mains properly. Bad connections can damage the system.
NOTICE
If the Bed Frame is too close to the wall (or touching it), it may collide during movement. To avoid damage to
the Bed Frame and the wall, ensure a small distance is kept.
STEP 11: INSERTING THE BATTERIES
NOTICE
Replace the batteries in the Remote Control once a year. Do not use rechargeable batteries.
Insert two 1,5V AAA batteries into
the Remote Control and slide the
cover into position. The batteries are
provided for you.

20 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL
5. OPERATION

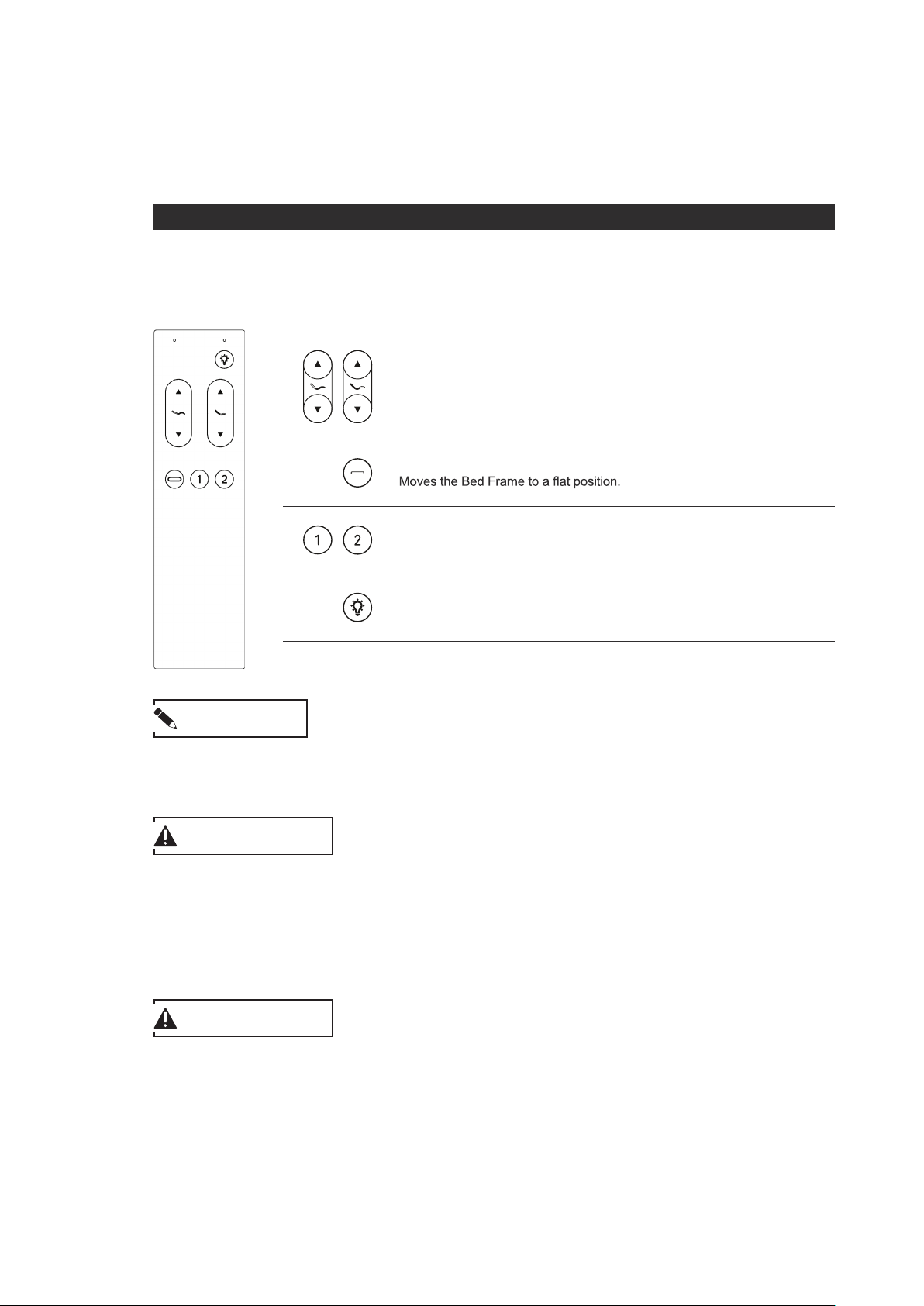

REMOTE CONTROL
Each Adjustable Bed Frame is supplied with a Remote Control. Your Remote Control allows you to operate the
Bed Frame from a distance of 16 feet (5 m). The Remote Control supplied with your product depends on the
model you have ordered. Your Remote Control may include the following:
NOTICE
Pressing too many Buttons in a short space of time can cause damage tothe system.
▪Wait one second between pressing different Buttons
CAUTION
Risk of minoror moderate injury to children
Misuse of the Remote Control by children could lead to minor or moderate injury.
▪Activate the Child Lock when children are present
▪In Sync Mode, ensure the Child Lock feature is activated on both Remote Controls
▪Do not allow children to play with the Remote Control
CAUTION
Risk of minoror moderate injury
Multiple Bed Frames may be in range of your Remote Control. Operating the wrong Bed Frame may lead to
minor or moderate injury.
▪Ensure the Remote Control is paired tothe correct Bed Frame
▪Ensure the Remote Control has been safely unpaired before using it on another Bed Frame
NOTE: The Remote Control supplied with your product may vary.
Head UP/DOWN and Foot UP/DOWN Buttons
Move the Head and Foot Platforms up and down.
Sleeping Position Button
Memory Position Buttons
Move the Bed Frame to a saved Memory Position.
Under Bed Light Button
Turn the Under Bed Light ON/OFF
