Rotel RDV-995 User manual

Technical
Manual
DVD PLAYER
RDV-995
Table of Contents
Specification......................................1
Parts List...........................................2~14
Wiring................................................15

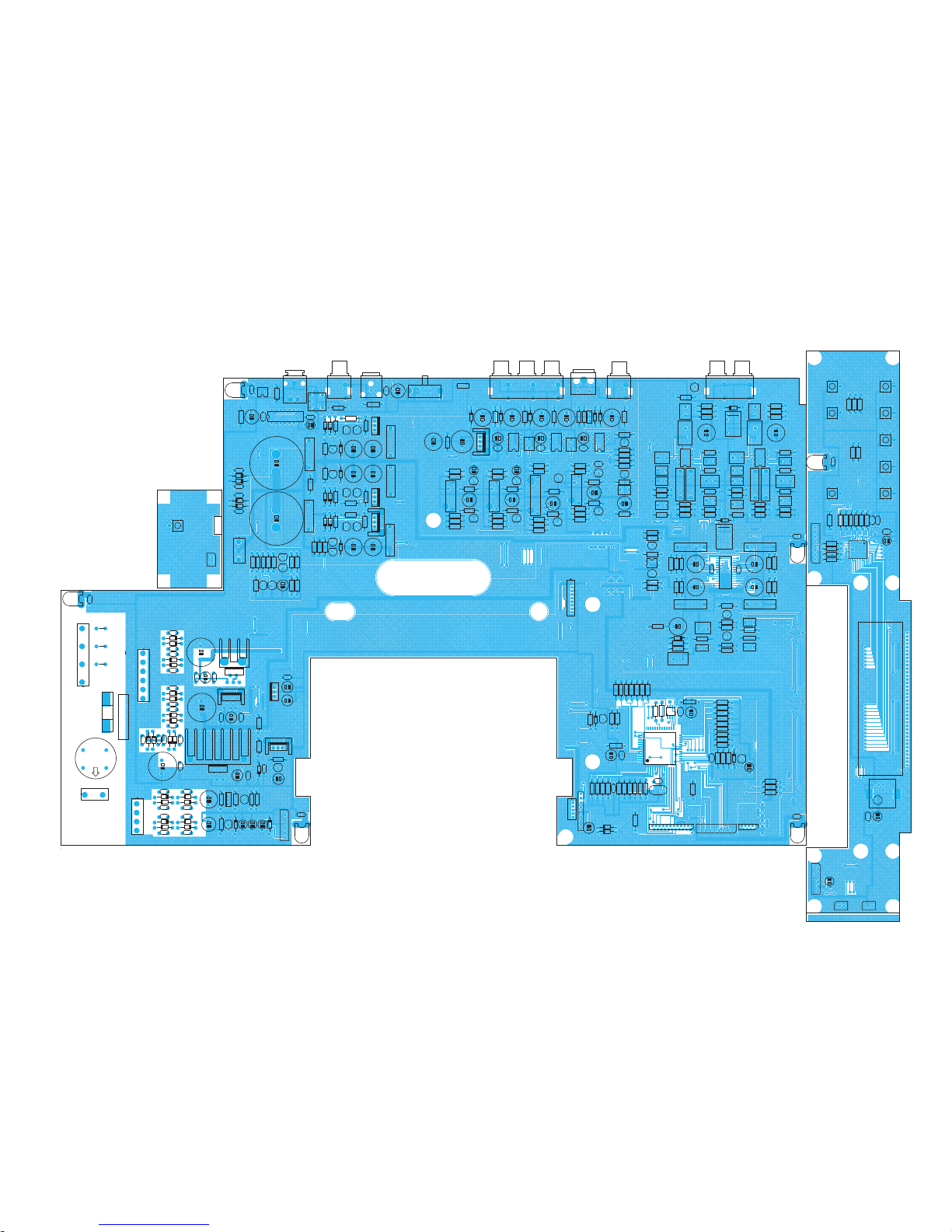

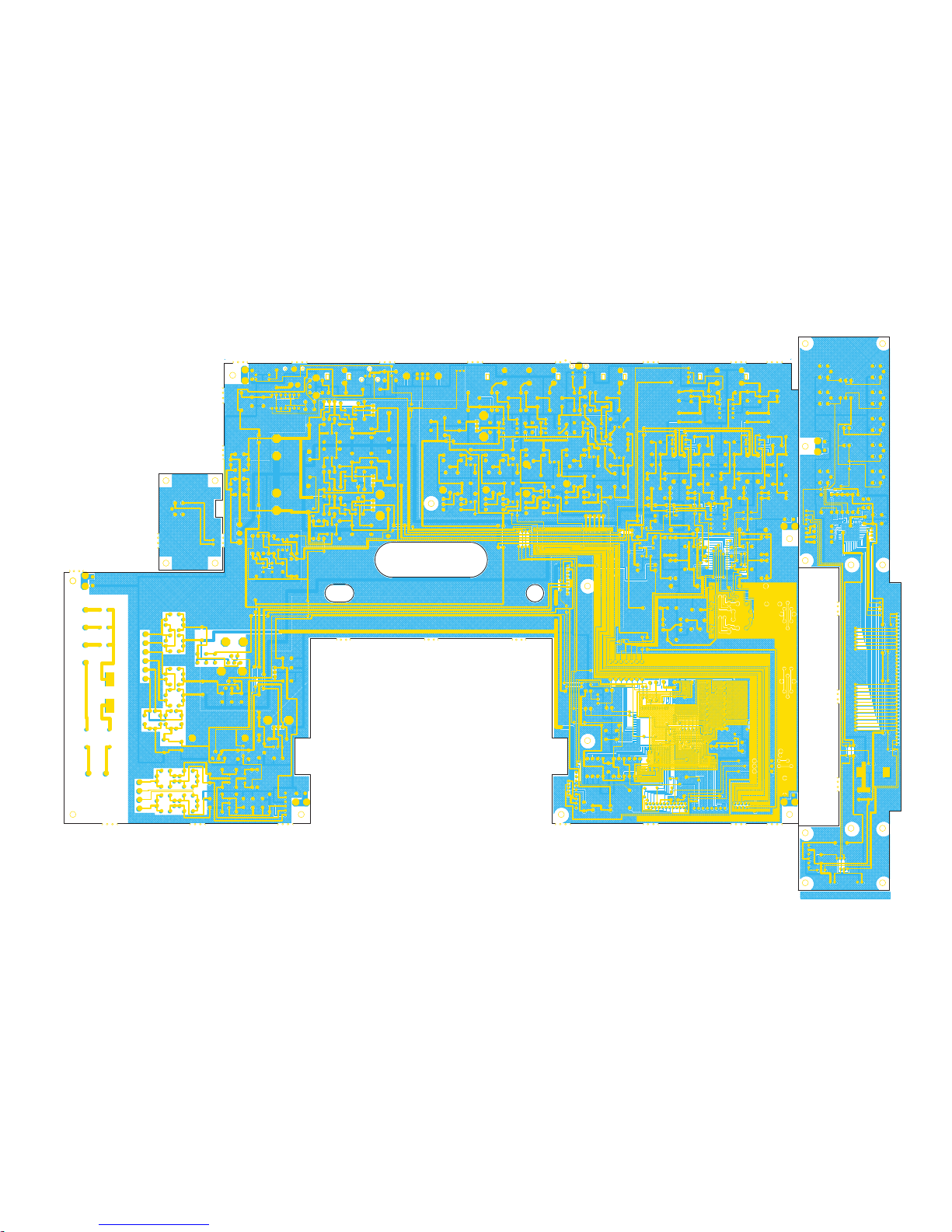

PCB Assembly..................................16~17

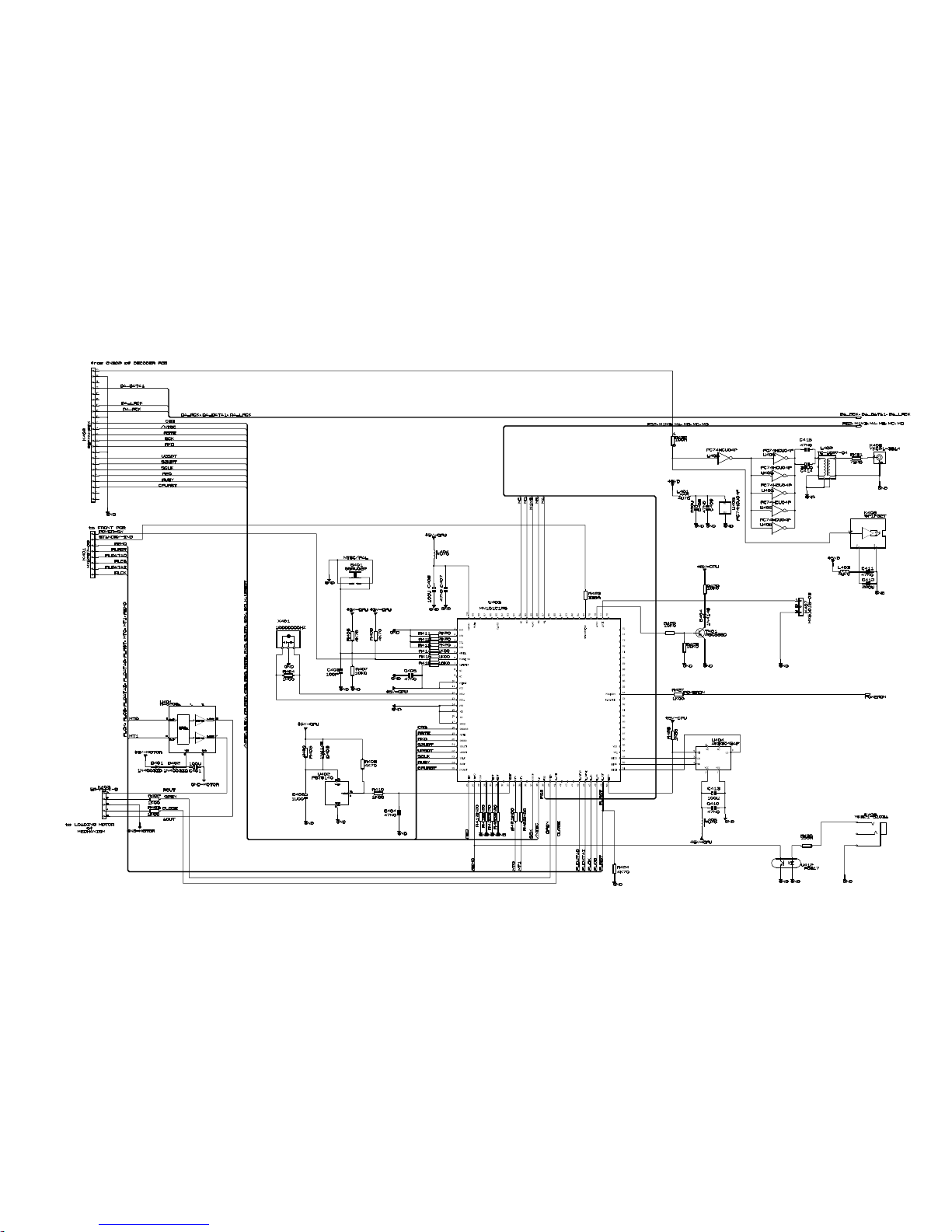

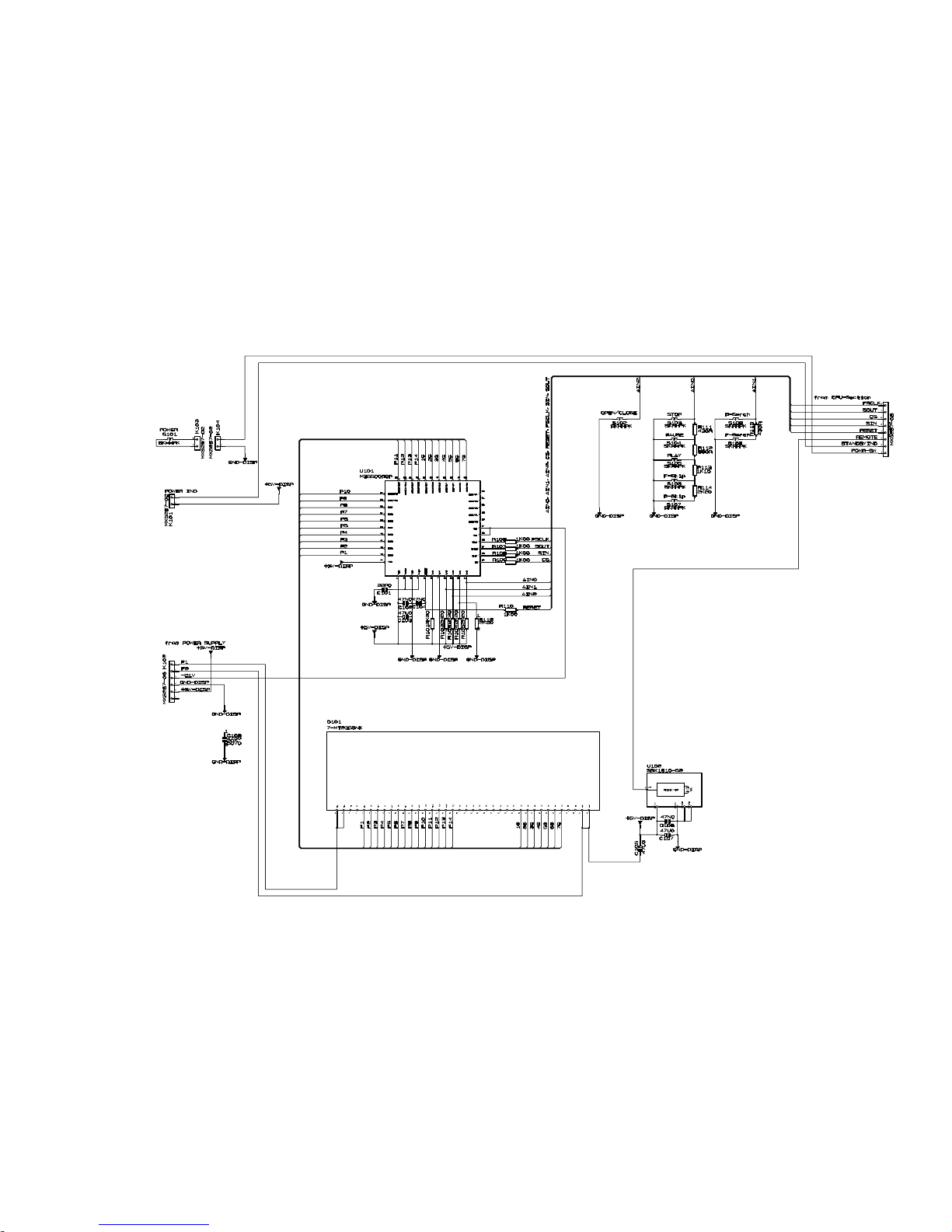

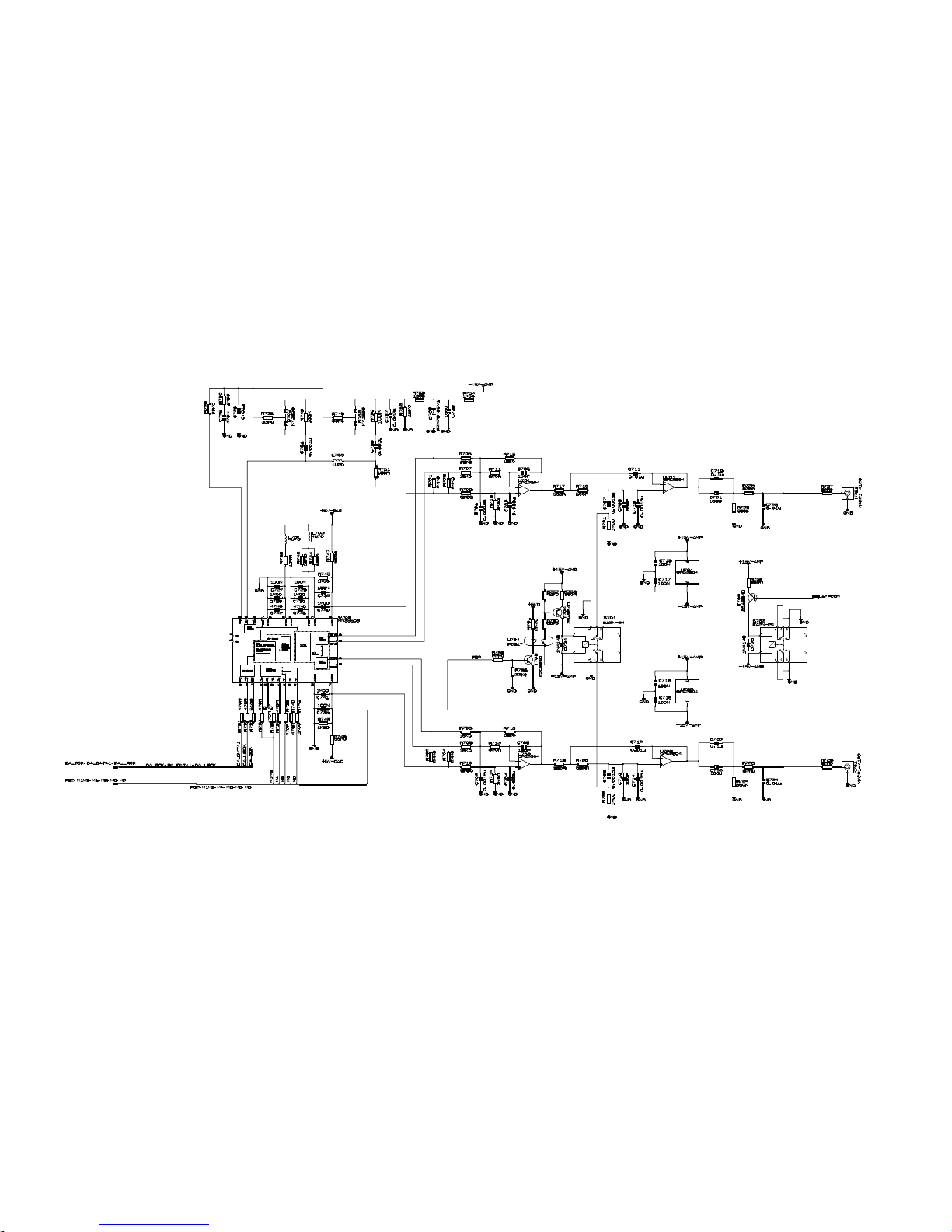

Schematic Diagram ..........................18~24
SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA-KU,
TOKYO 150-0045, JAPAN
Serial. NO.
Beginning
®
Quality Uncompromised
Y-352A-0107/W
THE ROTEL CO., LTD.
Specifications
General
Readable Discs: DVD VIDEO, Audio CD, Video CD
Video Format: PAL or NTSC selectable
Video 0utput
Pin Jack 1.0 Vp-p (75 ohms)
Component (pin jack):
Y Output: 1.0 Vp-p (75 ohms)
PB/P ROutput: 0.7 Vp-p (75 ohms)
S-VIDEO OUT (S jack):
Y Output: 1.0 Vp-p (75 ohms)
C Output: 286 mVp-p (75 ohms)
Horizontal Resolution: 500 Lines
Signal to Noise Ratio: 65 dB
Audio Output
ANALOG OUT (pin jack): 2.0 Vrms (150 ohms)
DIGITAL OUT
Optical: Ð 21 to Ð15 dBm (peak)
Coaxial: 0.5Vp-p (75 ohm terminatio)
Audio Characteristics
Frequency Response:
CD: (sampling frequency 44.1 kHz): 2 Hz to 20 kHz
DVD (sampling frequency 48 kHz): 2 Hz to 22 kHz
DVD (sampling frequency 96 kHz): 2 Hz to 44 kHz
Dynamic Range:
16 bit: More than 98 dB
20 bit: More than 106 dB
24 bit: More than 106 dB
Wow and Flutter: Unmeasurable (less than ±0.002%)
Total Harmonic Distortion: Less than 0.002%
Physical
Power Requirements:
USA Version: AC 115V, 60Hz
AC 230V, 50Hz
European Version:
Power Consumption: 20 W (POWER ON), 3 W (STANDBYmode)
Weight: 5.8 kg (12.8 lbs)
Dimensions (W x H x D): 440 x 92 x 314 mm
1715/16 x 3 /
58 8x 123/inch

DVD PLAYER RDV995
STANDBY OPN/CLS
STOP PAUSEPLAY TRACK
SEARCH
3D-PHONIC
TITLE
TRACK
CHAP
DVD
EACH
REMA N
VCD
PROGRAM RANDOM REPEAT 1A-B
RESUME THEATER
PAL NTSC
DVD PLAYER
ANALOG
OUTPUT
LR
THIS DEV CE COMPLIES WITH PART 15 OF THE FCC RULES OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION
Manufacured under license from Digital Theater Sys ems Inc US Pat
No 5 451 942 and other world wide patents issued and pending "DTS"
"DTS Digital Surround" are trademarks of Digital Theater Systems Inc
Copyright 1996 Digi al Theater Systems Inc A l Righ s Reserved
PRODUCT COMPLIESWITH DHHS RULES
21 CFR SUBCHAPTER J IN EFFECT AT DATE
OF MANUFACTURE.
Manufactured under license from Dolby Laboratories."Dolby" and the
double-D symbol are trademarks of Dolby Laboratories.Confidential
UnpublishedWorks.© 1992 - 1997 Dolby Laboratories,Inc. All rights
reserved.
COMPOSITE S VIDEO
Y
VIDEO OUT
COMPONENT
P R P B
Apparatus Cla ms of
U S Patent Nos
4 631 603 4 577 216
4 819 098 and
4 907 093 licensed
for imited viewing
uses only
OPTICAL COAXIAL
DIGITAL OUT
EXT REM
IN
CLASS 1
LASER PRODUCT
MODEL NO. RDV-995
POWER CONSUMPTION :20W
RP-385
Appearance

Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged,
can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.

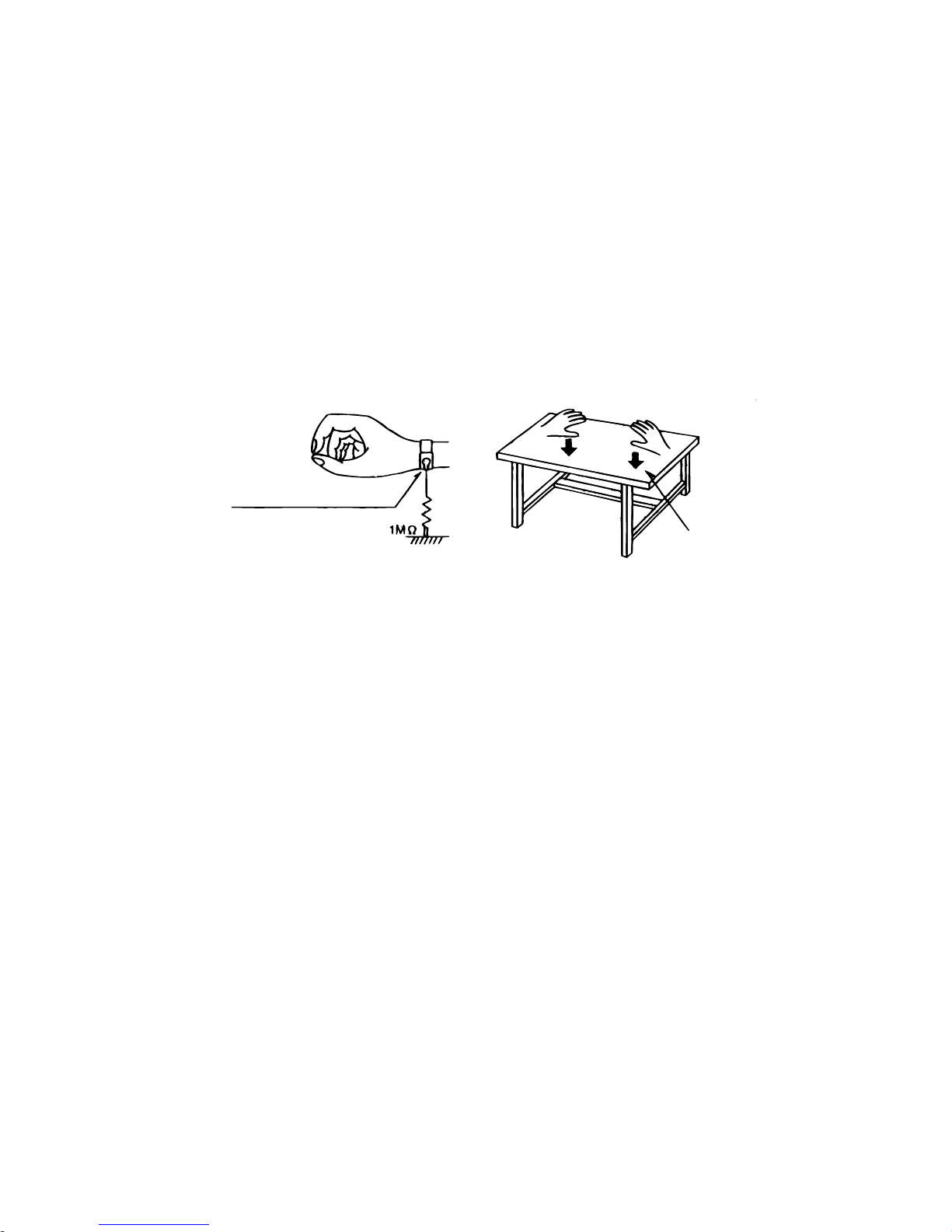

1.1. Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as DVD players.
Be careful to use proper grounding in the area where repairs are being performed.
1.1.1. Ground the workbench
1. Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over
it before placing the traverse unit (optical pickup) on it.
1.1.2. Ground yourself
1. Use an anti-static wrist strap to release any static electricity built up in your body.
1.1.3. Handling the optical pickup
1. In order to maintain quality during transport and before installation, both sides of the laser diode on the
replacement optical pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
2. Do not use a tester to check the condition of the laser diode in the optical pickup.The tester's internal power
source can easily destroy the laser diode.
1.2. Handling the traverse unit (optical pickup)
1. Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
2. Cut off the shorted part of the flexible cable using nippers, etc.after replacing the optical pickup. For specific
details, refer to the replacement procedure in the text. Remove the anti-static pin when replacing the traverse
unit. Be careful not to take too long a time when attaching it to the connector.
3. Handle the flexible cable carefully as it may break when subjected to strong force.
4. It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it
Conductive material
(conductive sheet) or iron plate
(caption)
Anti-static wrist strap

Parts List 1/7
SYMBOL PARTS NO DESCRIPTION SYMBOL PARTS NO DESCRIPTION
C401 041 UTES1C101-FB CAPACITOR ELEC.16V100UF C924 041 VX1C472 CAPACITOR ELEC.16V4700UF
C402 041 UTES1H010-FB CAPACITOR ELEC.50V1UF C925.926 041 GS1V472 CAPACITOR ELEC.35V4700UF
C403 043 TC50V101 CAPACITOR CERA.50V100PF C927-929 043 TC50V473 CAPACITOR CERA.50V0.047UF
C404.405 043 TC50V473 CAPACITOR CERA.50V0.047UF C930.931 044 KP10-2C104M CAPACITOR FILM 160V0.1UF
C406 041 UTES1C101-FB CAPACITOR ELEC.16V100UF C932.933 041 UTES1V100-FB CAPACITOR ELEC.35V100UF
C407 043 TC50V473 CAPACITOR CERA.50V0.047UF C934 041 UTES1C101-FB CAPACITOR ELEC.16V100UF
C408 041 TVX1C221 CAPACITOR ELEC.16V220UF C935.936 041 TVX1C101 CAPACITOR ELEC.16V100UF
C409-411 043 TC50V473 CAPACITOR CERA.50V0.047UF C937 041 UTES1H100-FB CAPACITOR ELEC.50V10UF
C412 041 TVX1C221 CAPACITOR ELEC.16V220UF C938.939 041 25BGF100M CAPACITOR ELEC.25V100UF
C413 041 UTES1C101-FB CAPACITOR ELEC.16V100UF C940-942 043 TC50V473 CAPACITOR ELEC.50V0.047UF
C414 041 UTES1E330-FB CAPACITOR ELEC.25V33UF C943.944 044 KP10-2C104M CAPACITOR ELEC.160V0.1UF
C701.702 044 TCQM2A152J CAPACITOR FILM 100V1500PF C945.946 041 25BGF100M CAPACITOR ELEC.25V100UF
C703.704 044 TCQM2A333J CAPACITOR FILM 100V0.033UF C947 041 UTES1C101-FB CAPACITOR ELEC.16V100UF
C705.706 044 TCQM2A181J CAPACITOR FILM 100V180PF C948 043 TC50V473 CAPACITOR CERA.50V0.047UF
C707.708 044 TCQM2A152J CAPACITOR FILM 100V1500PF C949 041 25BGF100M CAPACITOR ELEC.25V100UF
C709.710 044 TCQM2A331J CAPACITOR FILM 100V330PF C950 044 KP10-2C104M CAPACITOR FILM 160V0.1UF
C711.712 044 TCQM2A103J CAPACITOR FILM 100V0.01UF C951 041 25BGF100M CAPACITOR ELEC.25V100UF
C713.714 044 TCQM2A152J CAPACITOR FILM 100V1500PF C953 043 TC50V473 CAPACITOR CERA.50V0.047UF
C715-718 044 KP10-2C104M CAPACITOR FILM 160V0.1UF C954 041 TVX1C101 CAPACITOR ELEC.16V100UF
C719.720 044 TCQM2A104J CAPACITOR FILM 100V0.1UF C955 041 UTES1E101-FB CAPACITOR ELEC.25V100UF
C721.722 041 UKZ1E101MB CAPACITOR ELEC.25V100UF C956-961 043 TC500V103 CAPACITOR CERA.500V0.01UF
C723.724 044 TCQM2A103J CAPACITOR FILM 100V0.01UF C962 041 UTES1C101-FB CAPACITOR ELEC.16V100UF
C725 044 TBF074D0474J CAPACITOR FILM 63V0.47UF C963-967 043 TC50V473 CAPACITOR CERA.50V0.047UF
C726 044 TCQM2A103J CAPACITOR FILM 100V0.01UF D401.402 034 T1N4003-TB DIODE
C727 044 KP10-2C104M CAPACITOR FILM 160V0.1UF D403.404 034 T1N4148-86 DIODE
C728 041 UFG1A102MHJ CAPACITOR ELEC.10V1000UF D701.702 034 KV1555NT VARIABLE CAPACITANCE DIODE
C729 044 KP10-2C104M CAPACITOR FILM 160V0.1UF D703 034 TRD5.1JST1 ZENER DIODE
C730 041 UFG1A102MHJ CAPACITOR ELEC.10V1000UF D704.705 034 T1N4148-86 DIODE
C731 044 TCQM2A102J CAPACITOR FILM 100V1000PF D801-805 034 T1N4148-86 DIODE
C732 044 KP10-2C104M CAPACITOR FILM 160V0.1UF D903-920 034 T1N4003-TB DIODE
C733.734 041 UFG1A102MHJ CAPACITOR ELEC.10V1000UF D921 034 TRD24JST1 ZENER DIODE
C735 044 KP10-2C104M CAPACITOR FILM 160V0.1UF D922-925 034 T1N4148-86 DIODE
C736 044 TCQM2A102J CAPACITOR FILM 100V1000PF D926 034 TRD2.0EST1 ZENER DIODE
C737 044 TCQM2A473J CAPACITOR FILM 100V0.047UF D927.928 034 TRD15JST1 ZENER DIODE
C738 041 25BGF100M CAPACITOR ELEC.25V100UF D929.930 034 T1N4148-86 DIODE
C801 041 VX1C222 CAPACITOR ELEC.16V2200UF D931 034 TRD5.6JST1 ZENER DIODE
C803.804 041 TVX1C220 CAPACITOR ELEC.16V22UF D932 034 T1N4148-86 DIODE
C805 044 TBF014D0473J CAPACITOR FILM 63V0.047UF D933-938 034 T1N4003-TB DIODE
C806.807 044 TBF074D0155J CAPACITOR FILM 63V1.5UF F901 036 5ST1 MINI FUSE 250VT1A for STD
C808 041 TVX1C101 CAPACITOR ELEC.16V100UF 036 5ST500 M NI FUSE 250VT500mA for CEE, UK, AUSTRALIA
C809 043 TC50V473 CAPACITOR CERA.50V0.047UF K402 068 23FMN-BTRK FFC 23P CONNECTOR
C810 041 TVX1C101 CAPACITOR ELEC.16V100UF K405 065 YKB21-5103A MINI JACK
C811 043 TC50V473 CAPACITOR CERA.50V0.047UF K406 066 C-4733A01 1P PINJACK(BLK)
C812 041 TVX1C101 CAPACITOR ELEC.16V100UF K408 066 GP1F32T OPTICAL TERMINAL
C813 043 TC50V473 CAPACITOR CERA.50V0.047UF K701 066 C-4725A00 2P PINJACK
C814-817 041 TVX1C102 CAPACITOR ELEC.16V1000UF K801 068 09FMN-BTRK FFC 9P CONNECTOR
C818 044 TBF014D0104J CAPACITOR FILM 63V0.1UF K802 066 C-4466A00 4P DIN SOCKET
C819 044 TBF074D0155J CAPACITOR FILM 63V1.5UF K803 066 C-4733A02 1P PINJACK(YEL)
C820 041 TVX1C102 CAPACITOR ELEC.16V1000UF K804 066 C-4726A00 3P PINJACK
C821-825 041 TVX1C221 CAPACITOR ELEC.16V220UF L401 021 TRL-395 MICRO INDUCTOR 4.7UH
C826 041 TVX1C102 CAPACITOR ELEC.16V1000UF L402 021 TC1027-04 DIGITAL OUTPUT COIL
C902-919 043 TC500V103 CAPACITOR CERA.500V0.01UF L403-405 021 TRL-395 MICRO INDUCTOR 4.7UH
C920 041 UTES1C102 CAPACITOR ELEC.16V1000UF L701.702 021 TRL-395 MICRO INDUCTOR 4.7UH
C921 041 TUTES1H101-T CAPACITOR ELEC.50V100UF L703 021 LF151A00 MICRO INDUCTOR 1.2UH
C922.923 041 VX1E222 CAPACITOR ELEC.25V2200UF L801.802 021 LF148A00 VIDEO FILTER
X-1301-01 PCB ASSEMBLY

Parts List 2/7
SYMBOL PARTS NO DESCRIPTION SYMBOL PARTS NO DESCRIPTION
L803 021 LF149A00 VIDEO FILTER R759 053 CR14-391J-A RESISTOR CARBON 390R
L804 021 LF150A00 VIDEO FILTER R760 054 TMFR4068K RESISTOR METAL 1% 68K
L901 021 TRL-356 LINE CHOKE COIL R761 054 TMFR402K2 RESISTOR METAL 1% 2.2K
R402.403 053 CR14-102J-A RESISTOR CARBON 1K R801.802 054 TMFR402K2 RESISTOR METAL 1% 2.2K
R404 053 CR14-105J-A RESISTOR CARBON 1M R805.806 054 TMFR4001K RESISTOR METAL 1% 1K
R405 053 CR14-102J-A RESISTOR CARBON 1K R807.808 054 TMFR4180R RESISTOR METAL 1% 180R
R406 053 CR14-472J-A RESISTOR CARBON 4.7K R809-814 054 TMFR4001K RESISTOR METAL 1% 1K
R407 053 CR14-103J-A RESISTOR CARBON 10K R815.816 054 TMFR4220R RESISTOR METAL 1% 220R
R408.409 053 CR14-472J-A RESISTOR CARBON 4.7K R817.818 054 TMFR402K2 RESISTOR METAL 1% 2.2K
R410 053 CR14-102J-A RESISTOR CARBON 1K R819.820 054 TMFR4001K RESISTOR METAL 1% 1K
R411-413 053 CR14-222J-A RESISTOR CARBON 2.2K R821 054 TMFR4220R RESISTOR METAL 1% 220R
R414.415 053 CR14-102J-A RESISTOR CARBON 1K R822 054 TMFR4001K RESISTOR MERAL 1% 1K
R416 053 CR14-103J-A RESISTOR CARBON 10K R823 054 TMFR4220R RESISTOR METAL 1% 220R
R417-420 053 CR14-222J-A RESISTOR CARBON 2.2K R824-826 054 TMFR4075R RESISTOR METAL 1% 75R
R421.422 053 CR14-102J-A RESISTOR CARBON 1K R827 054 TMFR402K2 RESISTOR METAL 1% 2.2K
R423 053 CR14-331J-A RESISTOR CARBON 330R R828.829 054 TMFR4001K RESISTOR METAL 1% 1K
R424 053 CR14-472J-A RESISTOR CARBON 4.7K R830 054 TMFR4220R RESISTOR METAL 1% 220R
R425 053 CR14-103J-A RESISTOR CARBON 10K R831 054 TMFR402K2 RESISTOR METAL 1% 2.2K
R426.427 053 CR14-102J-A RESISTOR CARBON 1K R832-834 054 TMFR4075R RESISTOR METAL 1% 75R
R428.429 053 CR14-103J-A RESISTOR CARBON 10K R835-839 054 ERD2FCJ4R7P FUSIBLE RESISTOR 4.7R
R430 053 CR14-101J-A RESISTOR CARBON 100R R840 054 ERQ14AJ2R2P FUSIBLE RESISTOR 2.2R
R431 054 TMFR4075R RESISTOR METAL 1% 75R R841 054 TMFR4220R RESISTOR METAL 1% 220R
R701-704 054 TMFR4024K RESISTOR METAL 1% 24K R842 054 TMFR4001K RESISTOR METAL 1% 1K
R705-708 054 TMFR4016K RESISTOR METAL 1% 16K R843.844 054 TMFR4180R RESISTOR METAL 1% 180R
R709.710 054 TMFR406K8 RESISTOR METAL 1% 6.8K R901 053 CR14-103J-A RESISTOR CARBON 10K
R711.712 054 TMFR4820R RESISTOR METAL 1% 820R R902.903 054 TMFR4047K RESISTOR METAL 1% 47K
R713.714 054 TMFR403K6 RESISTOR METAL 1% 3.6K R904 053 CR14-103J-A RESISTOR CARBON 10K
R715.716 054 TMFR4018K RESISTOR METAL 1% 18K R905 053 CR14-223J-A RESISTOR CARBON 22K
R717-720 054 TMFR4560R RESISTOR METAL 1% 560R R906.907 054 TMFR4022K RESISTOR METAL 1% 22K
R721.722 054 TMFR4001M RESISTOR METAL 1% 1M R908.909 053 CR14-103J-A RESISTOR CARBON 10K
R723.724 054 TMFR4560K RESISTOR METAL 1% 560K R910 054 TMFR4560R RESISTOR METAL 1% 560R
R725-728 054 TMFR4082R RESISTOR METAL 1% 82R R911.912 054 TMFR4120R RESISTOR METAL 1% 120R
R729 054 TMFR4033K RESISTOR METAL 1% 33K R913.914 054 TMFR4100R RESISTOR METAL 1% 100R
R730 054 TMFR4001K RESISTOR METAL 1% 1K R915.916 054 TMFR4047K RESISTOR METAL 1% 47K
R731.732 054 TMFR4470R RESISTOR METAL 1% 470R R917 054 TMFR4022K RESISTOR METAL 1% 22K
R733 054 TMFR4510R RESISTOR METAL 1% 510R R918 054 TMFR4560R RESISTOR METAL 1% 560R
R734 054 TMFR4470R RESISTOR METAL 1% 470R R919 054 TMFR4120R RESISTOR METAL 1% 120R
R735 054 TMFR4033K RESISTOR METAL 1% 33K R920 054 TMFR4100R RESISTOR METAL 1% 100R
R736.737 054 TMFR4470R RESISTOR METAL 1% 470R R922 053 CR14-223J-A RESISTOR CARBON 22K
R738 054 TMFR4100R RESISTOR METAL 1% 100R R923 053 CR14-103J-A RESISTOR CARBON 10K
R739.740 054 TMFR4470R RESISTOR METAL 1% 470R R924 054 TMFR401K5 RESISTOR METAL 1% 1.5K
R741 054 TMFR4001K RESISTOR METAL 1% 1K R925 054 TMFR404K7 RESISTOR METAL 1% 4.7K
R742 054 TMFR4056R RESISTOR METAL 1% 56R R926 053 CR14-103J-A RESISTOR CARBON 10K
R743 054 TMFR4100K RESISTOR METAL 1% 100K R927 054 TMFR4620R RESISTOR METAL 1% 620R
R744 054 TMFR4056R RESISTOR METAL 1% 56R R928 053 CR14-150J-A RESISTOR CARBON 15R
R745.746 054 TMFR401K5 RESISTOR METAL 1% 1.5K R929 053 CR14-393J-A RESISTOR CARBON 39K
R747.748 054 TMFR4056R RESISTOR METAL 1% 56R R930 053 CR14-154J-A RESISTOR CARBON 150K
R749 054 TMFR4033K RESISTOR METAL 1% 33K R931 053 CR14-103J-A RESISTOR CARBON 10K
R750 054 TMFR4100K RESISTOR METAL 1% 100K R932 053 CR14-222J-A RESISTOR CARBON 2.2K
R751 054 TMFR4180R RESISTOR METAL 1% 180R R933.934 053 CR14-153J-A RESISTOR CARBON 15K
R752 054 TMFR4015K RESISTOR METAL 1% 15K S401 064 4TR-2341 SLIDE SWITCH(PAL/NTSC)
R753 054 TMFR4100K RESISTOR METAL 1% 100K S701.702 063 EA2-24 RELAY
R754 054 TMFR401K5 RESISTOR METAL 1% 1.5K T401 032 TC536-FG TRANSISTOR(2SC536K-FG)
R755-757 054 TMFR4022K RESISTOR METAL 1% 22K T703 032 TC536-FG TRANSISTOR(2SC536K-FG)
R758 054 TMFR4039R RESISTOR METAL 1% 39R T704.705 032 TA1450-ST TRANSISTOR(2SA1450-ST)

Parts List 3/7
SYMBOL PARTS NO DESCRIPTION SYMBOL PARTS NO DESCRIPTION
T801-810 032 TA1015-YO TRANSISTOR(2SA1015-YO) R114 053 CR14-222J-A RESISTOR CARBON 2.2K
T901 032 D600-EF TRANSISTOR(2SD600K-EF) R115 053 CR14-431J-A RESISTOR CARBON 430R
T902 032 TA608-FG TRANSISTOR(2SA608K-FG) R116 053 CR14-222J-A RESISTOR CARBON 2.2K
T903 032 TC2362-FG TRANSISTOR(2SC2362K-FG) S102-109 061 C-4679A03 TACT SWITCH
T904 032 TA608-FG TRANSISTOR(2SA608K-FG) U101 031 M35500AFP IC(FL DRIVE)
T905.906 032 TA1016-FG TRANSISTOR(2SA1016K-FG) U102 031 SBX3010-52B IC(REMOTE EYE)
T907.908 032 TC2362-FG TRANSISTOR(2SC2362K-FG)
T909 032 TA1016-FG TRANSISTOR(2SA1016K-FG)
T910 033 B1274-RS TRANSISTOR(2SB1274-RS) S101 061 C-4679A03 TACT SWITCH
T911 033 D1913-RS TRANSISTOR(2SD1913-RS)
T912 032 TC2362-FG TRANSISTOR(2SC2362K-FG) 011 FP-534B FRONT PANEL ASSY
T913.914 032 TA1016-FG TRANSISTOR(2SA1016K-FG) 014 4TR-2797#2 ORNAMENT SIDE MOULDING
T915 032 TC2362-FG TRANSISTOR(2SC2362K-FG) 014 C-4550A07 UPPER COVER
T916 033 B1274-RS TRANSISTOR(2SB1274-RS) 014 FP-535 PLASTIC DOOR
T917 032 TC3708-ST TRANSISTOR(2SC3708-ST) 015 RP-385B PRINTED REAR CHASSIS
T918 032 TC2362-FG TRANSISTOR(2SC2362K-FG) 019 4TSH-19#2 PLASTIC FOOT 50F
T919 032 TC3708-ST TRANSISTOR(2SC3708-ST) 022 T-1079T01/02 POWER TRANSFORMER
T920 033 B1274-RS TRANSISTOR(2SB1274-RS) 069 C-4629A01 AC INLET
T921 032 TC536-FG TRANSISTOR(2SC536K-FG) 072 C-4620A01 AC CORD SET for STD
T922 032 TA608-FG TRANSISTOR(2SA608K-FG) 072 C-4622A01 AC CORD SET for AUSTRALIA
U401 031 BA6208 IC(MOTOR DRIVE) 072 C-4623A01 AC CORD SET for U.K
U402 031 PST9140-T IC(RESET) 072 C-4624A01 AC CORD SET for CEE
U403 031 MN101C12GHA IC(MICOM) 072 C-4735A01 3P AV PIN CORD
U404 031 AK93C45AF-E1 IC(EPROM) 072 C-4736A01 COAXIAL CORD
U405 031 TC74HCU04AP IC(HEX INVERTER) 073 C-4737A01 S VIDEO CORD
U412 031 PC817B PHOTO COUPLER 081 TL3-15A00 INSIDE CARTON
U701.702 031 OPA2604AP IC(OPE DUAL) 081 TZ-165 STYROL SIDE MOULDING
U703 031 MN35503M-X IC(CONVERTER) 092 RDV995MECHA ASSY LOADER MECHA ASSY
U704 031 PC817B PHOTO COUPLER
U801 031 NJM7805FA IC(REGULATOR +5VDC) 092 LVA10168-02A SERVO PCB ASSY
192 RR-DV92 REMOTE UNIT
U802.803 031 NJM2267D IC(VIDEO AMP)
U804 031 NJM2268D IC(VIDEO AMP)
U901 031 SI3090J IC(REGULATOR +9VDC)
U902 031 SI3120J IC(REGULATOR +12VDC)
U903 031 SI3050J IC(REGULATOR +5VDC)
U904 031 NJM7805FA IC(REGULATOR +5VDC)
X401 023 CST10.0MTW CERAMIC RESONATOR
019 TO-126 INSULATION SHEET(S)
019 TO-220 INSULATION SHEET(L)
069 C-3417A FUSE CLIP
C101 043 TC50V220 CAPACITOR CERA.50V22PF
C102 043 TC50V473 CAPACITOR CERA.50V0.047UF
C103 041 UTES1C470 CAPACITOR ELEC.16V47UF
C104 043 TC50V473 CAPACITOR CERA.50V0.047UF
C105 041 UTES1C470 CAPACITOR ELEC.16V47UF
C106 043 TC50V473 CAPACITOR CERA.50V0.047UF
C107 041 UTES1C470 CAPACITOR ELEC.16V47UF
C108 043 TC50V473 CAPACITOR CERA.50V0.047UF
O101 035 7MT235GNK FL TUBE
R101-105 053 CR14-222J-A RESISTOR CARBON 2.2K
R106-110 053 CR14-102J-A RESISTOR CARBON 1K
R111 053 CR14-431J-A RESISTOR CARBON 430R
R112 053 CR14-681J-A RESISTOR CARBON 680R
R113 053 CR14-112J-A RESISTOR CARBON 1.1K
OTHERS
X-1301-03 PCB ASSEMBLY
X-1301-02 PCB ASSEMBLY
(NOT AVAILABLE)

Parts List 4/7
SYMBOL PARTS NO DESCRIPTION SYMBOL PARTS NO DESCRIPTION
C1 NCB31CK-104X CERAMIC CAP C207 NCB31HK-471X CERAMIC CAP
C2 NEA70JM-226X E/C CAP C208 NCB31CK-104X CERAMIC CAP
C3 NEA70JM-226X E/C CAP C209 NCB31HK-102X CERAMIC CAP
C4 MCB31CK-104X CERAMIC CAP C210 NCB31HK-102X CERAMIC CAP
C5 NEX40JM-156X E/C CAP C222 NCB31HK-562X CERAMIC CAP
C6 NCB31CK-104X CERAMIC CAP C223 NCB31HK-102X CERAMIC CAP
C11 NEA70JM-107X E/C CAP C224 NCB31CK-104X CERAMIC CAP
C12 NCB31CK-104X CERAMIC CAP C225 NBE91CM-105X E/C CAP
C15 NCB31CK-104X CERAMIC CAP C227 NCB31HK-102X CERAMIC CAP
C16 NBE20JM-106X TS E CAP SVB20J C228 NCB31HK-102X CERAMIC CAP
C17 NCB31CK-104X CERAMIC CAP C237 NCB31CK-104X CERAMIC CAP
C101 NCB31HK-561X CERAMIC CAP C238 NCB31CK-104X CERAMIC CAP
C102 NCB31CK-104X CERAMIC CAP C239 NCB31CK-183X CERAMIC CAP
C103 NCB31CK-104X CERAMIC CAP C240 NCS31HJ-470X CERAMIC CAP
C104 NCB31CK-104X CERAMIC CAP C241 NCB31CK-103X CERAMIC CAP
C105 NCB31CK-104X CERAMIC CAP C242 NCB11CK-105X CERAMIC CAP
C109 NEA70JM-476X CERAMIC CAP C244 NCB31CK-104X CERAMIC CAP
C112 NEA70JM-476X E/C CAP C245 NCB31CK-103X CERAMIC CAP
C118 NCB21CK-154X E/C CAP C246 NCB31CK-104X CERAMIC CAP
C119 NCS31HJ-221X CERAMIC CAP C247 NCB31CK-104X CERAMIC CAP
C120 NCS31HJ-820X CERAMIC CAP C248 NCB21CK-154X C.CAPA. C.M
C121 NCS31HJ-220X CERAMIC CAP C249 NCB31CK-104X CERAMIC CAP
C122 NCB31HK-271X CERAMIC CAP C250 NCB31CK-104X CERAMIC CAP
C123 NCB31CK-104X CERAMIC CAP C251 NCB31CK-104X CERAMIC CAP
C124 NCB31CK-104X CERAMIC CAP C252 NCB31CK-104X CERAMIC CAP
C125 NCB31CK-104X CERAMIC CAP C253 NCB31CK-104X CERAMIC CAP
C126 NEX40JM-566X E/C CAP C254 NEA70GM-336X E/C CAP
C127 NCB31HK-102X CERAMIC CAP C255 NCB31CK-104X CERAMIC CAP
C128 NCB31CK-104X CERAMIC CAP C256 NEA70GM-107X E/C CAP
C130 NCB31CK-104X CERAMIC CAP C257 NCB11CK-105X CERAMIC CAP
C131 NCS31HJ-120X CERAMIC CAP C258 NEA70GM-107X E/C CAP
C132 NCB31CK-104X CERAMIC CAP C259 NCB11CK-105X CERAMIC CAP
C133 NCB31HK-561X CERAMIC CAP C260 NCB31HK-561X CERAMIC CAP
C134 NCB31HK-561X CERAMIC CAP C261 NCB31CK-104X CERAMIC CAP
C135 NCB 31CK-273X CERAMIC CAP C262 NCB31CK-104X CERAMIC CAP
C136 NCB31CK-473X CERAMIC CAP C263 NCB31CK-104X CERAMIC CAP
C138 NCB31CK-104X CERAMIC CAP C264 NCB21CK-474X CERAMIC CAP
C139 NCB31CK-104X CERAMIC CAP C271 NCB31EK-332X CERAMIC CAP
C140 NEA70JM-226X E/C CAP C272 NCB31HK-331X CERAMIC CAP
C141 NCB31CK-104X CERAMIC CAP C276 NCB31CK-104X CERAMIC CAP
C143 NCB31CK-104X CERAMIC CAP C277 NCB31CK-104X CERAMIC CAP
C144 NCB31CK-104X CERAMIC CAP C278 NCB31HK-102X CERAMIC CAP
C145 NCB31CK-103X CERAMIC CAP C279 NCB31HK-272X CERAMIC CAP
C151 NEX40JM-156X E/C CAP C281 NCB31CK-103X CERAMIC CAP
C152 NEX40JM-156X E/C CAP C283 NCB31CK-223X CERAMIC CAP
C153 NCB31CK-104X CERAMIC CAP C284 NCB31CK-473X CERAMIC CAP
C159 NCB31CK-104X CERAMIC CAP C288 NCB31CK-223X CERAMIC CAP
C160 NCB31CK-104X CERAMIC CAP C289 NCB31CK-104X CERAMIC CAP
C161 NEA70GM-336X E/C CAP C291 NCB31CK-104X CERAMIC CAP
C202 NCB31HK-561K CERAMIC CAP C292 NEA70JM-226X E/C CAP
C203 NCB31HK-561K CERAMIC CAP C293 NEA71CM-226X E/C CAP
C204 NCB31HK-331K CERAMIC CAP C301 NCB31CK-104X CERAMIC CAP
C205 NCS31HJ-121X CERAMIC CAP C302 NCB31CK-104X CERAMIC CAP
C206 NCS31HJ-271X CERAMIC CAP C303 NCB31CK-104X CERAMIC CAP
LAV10168-02A PCB ASSEMBLY

Parts List 5/7
SYMBOL PARTS NO DESCRIPTION SYMBOL PARTS NO DESCRIPTION
C304 NCB31CK-104X CERAMIC CAP C519 NCB31CK-104X CERAMIC CAP
C305 NCB31CK-104X CERAMIC CAP C520 NCB31CK-104X CERAMIC CAP
C306 NCB31CK-104X CERAMIC CAP C521 NCB31CK-104X CERAMIC CAP
C307 NCB31CK-104X CERAMIC CAP C522 NCB31CK-104X CERAMIC CAP
C309 NCB31CK-104X CERAMIC CAP C523 NCB31CK-104X CERAMIC CAP
C310 NCB31CK-104X CERAMIC CAP C524 NCB31CK-104X CERAMIC CAP
C311 NCB31CK-104X CERAMIC CAP C525 NCB31CK-104X CERAMIC CAP
C312 NCS31HJ-180X CERAMIC CAP C526 NCB31CK-104X CERAMIC CAP
C313 NCS31HJ-180X CERAMIC CAP C527 NCB31CK-104X CERAMIC CAP
C314 NCB31CK-104X CERAMIC CAP C528 NCB31CK-104X CERAMIC CAP
C315 NCB31CK-104X CERAMIC CAP C529 NCB31CK-104X CERAMIC CAP
C316 NEA70GM-107X E/C CAP C530 NEA70JM-107X E/C CAP
C317 NCB31CK-105X CERAMIC CAP C531 NCB31CK-104X CERAMIC CAP
C318 NCB31CK-104X CERAMIC CAP C532 NCB31CK-104X CERAMIC CAP
C319 NCB31CK-104X CERAMIC CAP C533 NCB31CK-104X CERAMIC CAP
C320 NCB31CK-104X CERAMIC CAP C534 NEA70JM-107X E/C CAP
C321 NCB31CK-104X CERAMIC CAP C535 NCB31CK-104X CERAMIC CAP
C324 NCB31CK-104X CERAMIC CAP C536 NCB31CK-103X CERAMIC CAP
C326 NCB31CK-104X CERAMIC CAP C537 NEA70JM-226X E/C CAP
C327 NEA70GM-107X E/C CAP C538 NCB31CK-104X CERAMIC CAP
C341 NCB31CK-104X CERAMIC CAP C539 NCB31CK-104X CERAMIC CAP
C342 NCB31CK-104X CERAMIC CAP C540 NEA70JM-226X E/C CAP
C343 NCB31CK-104X CERAMIC CAP C541 NCB31CK-104X CERAMIC CAP
C344 NCB31CK-104X CERAMIC CAP C542 NEA70JM-226X E/C CAP
C345 NEA70JM-107X E/C CAP C543 NCB31CK-104X CERAMIC CAP
C346 NCB11CK-105X CERAMIC CAP C556 NEA70JM-107X E/C CAP
C373 NCB31CK-104X CERAMIC CAP C557 NCB31CK-104X CERAMIC CAP
C401 NCB31CK-104X CERAMIC CAP C561 NCB31CK-104X CERAMIC CAP
C402 NCB31CK-104X CERAMIC CAP C562 NEA70JM-226X E/C CAP
C405 NCB31CK-104X CERAMIC CAP C563 NCB31CK-104X CERAMIC CAP
C406 NCB31CK-104X CERAMIC CAP C564 NCB31CK-104X CERAMIC CAP
C407 NCB31CK-104X CERAMIC CAP C565 NCB31CK-104X CERAMIC CAP
C408 NEA70JM-226X E/C CAP C566 NCB31CK-104X CERAMIC CAP
C409 NCB31CK-104X CERAMIC CAP C567 NEA70JM-226X E/C CAP
C411 NCB31CK-104X CERAMIC CAP C568 NCB31CK-104X CERAMIC CAP
C412 NCB31CK-104X CERAMIC CAP C569 NEA70JM-226X E/C CAP
C501 NCB31CK-104X CERAMIC CAP C570 NCB31CK-104X CERAMIC CAP
C502 NCB31CK-104X CERAMIC CAP CN101 QGF0501F3-40X FFC/FPC CONNE
C503 NCB31CK-104X CERAMIC CAP CN501 QGB2027L1-10X W TO B CONNE
C504 NCB31CK-104X CERAMIC CAP CN502 QGB2027L1-22X CONNECTOR
C505 NCB31CK-104X CERAMIC CAP CN503 QGB2027L1-10X W TO B CONNE
C506 NCB31CK-104X CERAMIC CAP D501 1SR154-400-X DIODE
C507 NCB31CK-104X CERAMIC CAP D551 1SS355-X DIODE
C508 NCB31CK-104X CERAMIC CAP D552 1SS355-X DIODE
C509 NCB31CK-104X CERAMIC CAP IC 1 RN5RZ33BA-X IC
C510 NCB31CK-104X CERAMIC CAP IC101 AN8702FH IC
C511 NCB31CK-104X CERAMIC CAP IC102 RN5RZ33BA-X IC
C512 NCB31CK-104X CERAMIC CAP IC201 MN67706ZY IC
C513 NCB31CK-104X CERAMIC CAP IC202 TC7WT125FU-X IC (DIGITAL)
C514 NCB31CK-104X CERAMIC CAP IC271 M56788FP-W IC
C515 NCB31CK-104X CERAMIC CAP IC301 MN103S13BDA IC
C516 NCB31CK-104X CERAMIC CAP IC311 TC7SH08FU-X IC
C517 NCB31CK-104X CERAMIC CAP IC312 TC7SH32FU-X IC
C518 NCB31CK-104X CERAMIC CAP IC321 TC7WH74FU-X IC

Parts List 6/7
SYMBOL PARTS NO DESCRIPTION SYMBOL PARTS NO DESCRIPTION
IC322 TC7VHC00FT-X IC R 342 NRSA63J-0R0X MG RESISTOR
IC401 MN102L25GDZ3 IC C.M R 343 NRSA63J-102X MG RESISTOR
IC402 MSM531622F84G-X IC (u-h) R 345 NRSA63J-562X MG RESISTOR
IC403 AK93C65AF-X IC R 346 NRSA63J-472X MG RESISTOR
IC501 ZIVA3-PEO IC R 347 NRSA63J-102X MG RESISTOR
IC502 NAX0393-001X CXO C.M R 348 NRSA63J-102X MG RESISTOR
IC503 TC74VHC00FT-X IC R 349 NRSA63J-102X MG RESISTOR
IC504 HY57V161610DTC8 IC R 350 NRSA63J-102X MG RESISTOR
IC505 HY57V161610DTC8 IC R 364 NRSA63J-0R0X MG RESISTOR
IC554 MC44724AVFU IC R 403 NRSA63J-472X MG RESISTOR
K 102 NQR0007-002X IC R 405 NRSA63J-472X MG RESISTOR
K 103 NQR0007-002X FERRITE BEADS R 408 NRSA63J-472X MG RESISTOR
K 201 NQR0007-002X FERRITE BEADS R 410 NRSA63J-0R0X MG RESISTOR
K 202 NQR0007-002X FERRITE BEADS R 411 NRSA63J-472X MG RESISTOR
K 203 NQR0007-002X FERRITE BEADS R 412 NRSA63J-103X MG RESISTOR
K 301 NQR0007-002X FERRITE BEADS R 413 NRSA63J-472X MG RESISTOR
K 302 NQR0007-002X FERRITE BEADS R 414 NRSA63J-472X MG RESISTOR
K 303 NQR0007-002X FERRITE BEADS R 415 NRSA63J-472X MG RESISTOR
K 401 NQR0007-002X FERRITE BEADS R 416 NRSA63J-472X MG RESISTOR
K 402 NQR0007-002X FERRITE BEADS R 417 NRSA63J-472X MG RESISTOR
K 501 NQR0007-002X FERRITE BEADS R 418 NRSA63J-472X MG RESISTOR
K 502 NQR0007-002X FERRITE BEADS R423 NRSA63J-0R0X MG RESISTOR
K 503 NQR0007-002X FERRITE BEADS R424 NRSA63J-0R0X MG RESISTOR
K 504 NQR0201-001X FERRITE BEADS R431 NRSA63J-472X MG RESISTOR
K 505 NQR0269-001X FERRITE BEADS R432 NRSA63J-472X MG RESISTOR
K 506 NQR0007-002X FERRITE BEADS R501 NRSA63J-102X MG RESISTOR
K 507 NQR0007-002X FERRITE BEADS R502 NRSA63J-222X MG RESISTOR
K 550 NQR0007-002X FERRITE BEADS R504 NRSA63J-330X MG RESISTOR
K 551 NQR0007-002X FERRITE BEADS R505 NRSA63J-330X MG RESISTOR
K 553 NQR0007-002X FERRITE BEADS R506 NRSA63J-330X MG RESISTOR
K 554 NQR0007-002X FERRITE BEADS R507 NRSA63J-330X MG RESISTOR
K 555 NQR0007-002X FERRITE BEADS R508 NRSA63J-330X MG RESISTOR
K 556 NQR0007-002X FERRITE BEADS R509 NRSA63J-330X MG RESISTOR
K 557 NQR0007-002X FERRITE BEADS R510 NRSA63J-330X MG RESISTOR
K 558 NQR0007-002X FERRITE BEADS R511 NRSA63J-330X MG RESISTOR
K 559 NQR0007-002X FERRITE BEADS R512 NRSA63J-330X MG RESISTOR
R 301 NRSA63J-473X MG RESISTOR R513 NRSA63J-330X MG RESISTOR
R 302 NRSA63J-473X MG RESISTOR R514 NRSA63J-330X MG RESISTOR
R 303 NRSA63J-473X MG RESISTOR R515 NRSA63J-330X MG RESISTOR
R 304 NRSA63J-473X MG RESISTOR R516 NRSA63J-330X MG RESISTOR
R 305 NRSA63J-473X MG RESISTOR R517 NRSA63J-330X MG RESISTOR
R 306 NRSA63J-473X MG RESISTOR R518 NRSA63J-330X MG RESISTOR
R 307 NRSA63J-473X MG RESISTOR R519 NRSA63J-330X MG RESISTOR
R 308 NRSA63J-473X MG RESISTOR R520 NRSA63J-330X MG RESISTOR
R 309 NRSA63J-103X MG RESISTOR R521 NRSA63J-330X MG RESISTOR
R 310 NRSA63J-102X MG RESISTOR R522 NRSA63J-330X MG RESISTOR
R 311 NRSA63J-102X MG RESISTOR R523 NRSA63J-181X MG RESISTOR
R 312 NRSA63J-102X MG RESISTOR R524 NRSA63J-181X MG RESISTOR
R 316 NRSA63J-105X MG RESISTOR R525 NRSA63J-181X MG RESISTOR
R 317 NRSA63J-0R0X MG RESISTOR R526 NRSA63J-181X MG RESISTOR
R 318 NRSA63J-0R0X MG RESISTOR R527 NRSA63J-181X MG RESISTOR
R 322 NRSA63J-473X MG RESISTOR R528 NRSA63J-181X MG RESISTOR
R 324 NRSA63J-473X MG RESISTOR R529 NRSA63J-181X MG RESISTOR
R 328 NRSA63J-473X MG RESISTOR R530 NRSA63J-181X MG RESISTOR

Parts List 7/7
SYMBOL PARTS NO DESCRIPTION SYMBOL PARTS NO DESCRIPTION
R531 NRSA63J-330X MG RESISTOR
R532 NRSA63J-0R0X MG RESISTOR
R533 NRSA63J-330X MG RESISTOR
R534 NRSA63J-330X MG RESISTOR
R535 NRSA63J-330X MG RESISTOR
R536 NRSA63J-330X MG RESISTOR
R537 NRSA63J-330X MG RESISTOR
R538 NRSA63J-330X MG RESISTOR
R539 NRSA63J-330X MG RESISTOR
R540 NRSA63J-330X MG RESISTOR
R541 NRSA63J-0R0X MG RESISTOR
R542 NRSA63J-0R0X MG RESISTOR
R543 NRSA63J-0R0X MG RESISTOR
R544 NRSA63J-0R0X MG RESISTOR
R545 NRSA63J-472X MG RESISTOR
R547 NRSA63J-222X MG RESISTOR
R548 NRSA63J-332X MG RESISTOR
R550 NRSA63J-0R0X MG RESISTOR
R564 NRSA63D-152X MG RESISTOR
R565 NRSA63D-332X MG RESISTOR
R 571 NRSA63J-100X MG RESISTOR
R 572 NRSA63J-181X MG RESISTOR
R 573 NRSA63J-181X MG RESISTOR
R 574 NRSA63J-181X MG RESISTOR
R 575 NRSA63J-181X MG RESISTOR
R 576 NRSA63J-181X MG RESISTOR
R 577 NRSA63J-181X MG RESISTOR
R 578 NRSA63J-181X MG RESISTOR
R 579 NRSA63J-181X MG RESISTOR
R 580 NRSA63J-181X MG RESISTOR
R 581 NRSA63J-101X MG RESISTOR
R 582 NRSA63J-181X MG RESISTOR
R 586 NRSA63D-122X MG RESISTOR
R 587 NRSA63D-122X MG RESISTOR
R 588 NRSA63D-102X CMF RESISTOR
R 589 NRSA63D-102X CMF RESISTOR
X301 NAX0375-001X CRYSTAL
X401 NAX0331-001X RESONATOR

ITEM PARTS NO DESCRIPTION
25 DVD TRAVERSE MECHA
26 DVD LOADING BASE
28 E406293-001 SPECIAL SCREW
29 E26756-222SS CD CLAMPER BASE
30 LV31675-002A CLAMPER
31 LV31676-001A YOKE
32 LV41118-001A MAGNET
33 LV41741-001A SPECIAL SCREW
34 QYSBSF3008M SCREW
35 LV10324-001A TRAY
36 QYSBSF3008M SCREW
37 LV41362-201A HEAT SINK
38 LV41363-202A HOLDER
39 QYSBSGG3006Z SCREW
43 QYSBST3020Z T. SCREW
45 QYSBST3020Z T. SCREW
46 QUQ605-4015AJ FFC WIRE
Parts List (Loader Assembly)
Loader Assembly

ITEM PARTS NO DESCRIPTION
1 LV20638 001A MECHA BASE
2 LV20635 001A SHAFT HOLDER
3 QYSBST2606M T.SCREW
4 VDG1099001TSVME SP. MOTOR ASS'Y
5 QUM193 08B2B2 PARA RIBON WIRE
6 QYSBST2606M T.SCREW
7 OPTIMA 2010A1 DVD PICKUP
8 LV31670 001A SWITCH ACTUATOR
9 LV31666 002A LEAD SPRING
10 QYSPSGT2040M SCREW
11 LV31743 002A P.U.SPRING
12 QYSPSGT1416M MINI SCREW
13 LV41121 002A SHAFT
14 LV41121 002A SHAFT
15 LV41732 001A SKEW SPRING
16 LV31669 001A SHAFT STOPPER R
17 LV31668 001A SHAFT STOPPER F
18 QYSBST2614M SCREW
19 QYSBST2614M SCREW
20 LV31746 003A FEED HOLDER ASY
21 QAR0127 001 FEED MOTOR
22 LV41510 001A FEED GEAR T
23 QYSPSPU2040M SCREW
24 LV41512 001A FEED GEAR E
25 LV41517 001A LEAD SCREW
26 LV41511 002A FEED GEAR M
27 LV31667 001A THRUST SPRING
28 QYSPSPU2040M SCREW
29 QYSBST2606M T.SCREW
30 QYYASPF2608N HEX SCREW
31 QYSBST2606M T. SCREW
Parts List (DVD Mechanism)
Pick-Up Mechanism Assembly

ITEM PARTS NO DESCRIPTION
1 E102357-441 LOADING BASE
2 MMN-6F1LB8K MOTOR
3 E75984-001SC MOTOR PULLEY
4QYSPSPT2640Z MINI SCREW
5 E75950-002 BELT
6 E75985-222SS GEAR(1)
7 E60912-005SS SPEED NUT
8 E75986-221SS GEAR(2)
9 E75987-221SS GEAR(3)
10 E307162-331 LEVER
11 E307252-331 CAM PLATE
12 E65923-003 TAPPING SCREW
13 E75989-001 SPRING
14 QYSBSF3008Z SCREW
15 E307179-332 E. BASE ASS'Y
16 LV30225-089A SPACER
17 LV41527-001A INSULATOR
18 LV41527-002A INSULATOR
19 E406871-001 SPRING
20 LV30226-019A SPACER
21 E65923-003 TAPPING SCREW
22 QYSBSF3008Z T. SCREW
23 LV41961-001A TRAY TUBE
24 EMW10095-003 P.C. BOARD
25 QGA2001F1-05 5P PLUG ASSY
26 QSW0472-001 SWITCH
Parts List
(DVD Loading Base)
Loader Base Assembly

Wire Parts
No. Part Number Description
068 C-4595A03 MECH to K403
068 C-4588A44 K104 to K103
068 C-4595A04 CN501 to K907
068 C-4618A09 K105 to K401
068 C-4618A08 K102 to K908
072 C-4729B00 MECH to CN101
072 C-4728A00 CN502 to K402
072 C-4727A00 CN503 to K801
1
2
3
4
5
6
7
8
Wiring Diagram

1
GreenBlueRed
AC18
AC19
AC20
AC21
AC22
REPLACE WITH SAME TYPE 250V FUSE
T500mA L
AC2
AC1
CAUTION:
C921
C920
M3
M5
D938
D937
D936
D935 D934
D933
C961C960
C959
C958 C957
C956
K910
C932
D921
D904
C903
C902
D903
C953
D932 R925
R924
C935
C941
C928
C923
D910
C910
D911
C909
C911
D909
D912
C942
T904
C936
U903
C929
C924 C915
D915 D914
D916
C912 D913
C913 C914
L901
K903
C937
D926
R908
R909
T902
R904
T901
R901
U902
C933
M001
R905
AC17
AC12
AC10
AC13
AC14
AC15
ACC
016X-1301E03
AC16
AC11
100V
AC4
230V
AC5
120V
AC3
K912
M002
C963
C965
M007
M011
J903
K911
K909
R926
R923 R922
R930
R929
R928
C940 C927
C922
D908
C907
C905
D907
C904
D905
C906
D906
U904
J902
J901
C925
C916
C917
C918
C919
D920
D919
D917
D918
U901
T919 T917
L401
C408 C409
R430
U412
S101
K103
ATTENTION
UTILISER UN FUSIBLE DE RECANGE DE MEME TYPE DE 250V
C908 C934
F901
C964
T914
T913
K406
M008
C414
C415
R931
C962
T912
D931
T905
D930
R916
R918
R919
D929
T906
R917
T903
T907
R915
K908
C948
C947
D928 D927
R902
C931
R903
C930
C926
R906
R927
R907
R910
R912
R911
D925
D924
R933
D923
R934
R932
D922
C939
C938
R431
L402
U405 C826
K407
T805
C822
M2
R835
R840
C945
C821
C950
R920
T916
T911
R914
R913
T910
C944
C943
C951
T801
R824
C814
D801
C801
C809
C808
U801
C803 R818
R817
R815
R814
R813
R806
R805
R802
R801
R844
R843
K804
L801
L802
C946
L403
C412C411 S401
M1
T909
T915
T908
C949
K408
C955
C954
T922
T920
T921
T918
K405
C967
U402
M010
R432
C105
L405
L404
C413
T401
K801
R733
R732
R731
K402
R426
C410
R424
U404
C403
C402
R405 D403
R407 R406 R409
R423
C406 C407
R408
C404
R410
K401
R427
R429
R422
D404
R421
R420
R419
R425
R418
R428
R417
R404
C405
X401
D401
R416
D402
R415
U401
R414
C401
U403
R413
R403
R412
R402
R411
K403
O101
K102
K104
C107 C106
U102
K101
C740
C741
C728
D702
D701
M005
R751
R760
T703
K907
C738
R761
U704
T704
C735
C732
R741 R740 R736 R739
C743
R737
L701
R745
R746
R754
D703
R753
R755
R756
R758
C726
C731
R742
R744
L702
R738
C727C729
C730
R747
R748
U703
R729
R730
C725
C737
C742
C736
R752
R743
R750
L703
R735
R749
R734
C103
U101
R109
R106
R107 R108
R807
D805
R841
R842
C824
C825
R836
R837
R838
R839
C823
T809
T810
T808
L804
D804
R834
C820
C819
R831
R830
T806
R829
R828
C818
R833
R827
R823
R832
C817
R826R825 C816 D803
C811 C813
C812
C810
C807
C806 U804U803U802
C804 R822
T807
T802
T804
T803
R821
R819
R811
R809
K802
C805
R820
R812
R810
L803
C713
C709
C707
R757
R721
R719
R717
R808
K803
016X-1301E02
R116
C108
C966
M009
C705
C703
C706
C701
C704
C702
T705
C718
C716
C717
C715
K701
R759
S702
C714
C720
C710
C712
C723
C724
C708
C719
R727
R725
U702
R728
R726
U701
R724
R723
C722
C721
R722
S701
R710
R709
R701
R703
R702
R704
R707
R705
R708
R706
D704
D705
R715
R716
R712R711
R714
R713
R720
R718
C101
C102
C104
S108 S109S102
R113
K105
R114 R115
R112 R111
S107
R104
S106
R110
S105
R101
S104S103
R102 R103
R105
C711
016X-1301E01
R816
D802
C815
PCB Assembly 016X-1301 Top View

PCB Assembly
016X-1301 Pattern of Top and Bottom

Schematic Diagram - Display

Schematic Diagram - Control

Schematic Diagram - DAC and Buffer

Schematic Diagram - Video Output
