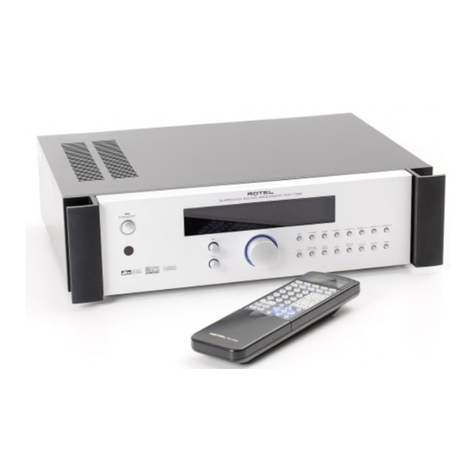

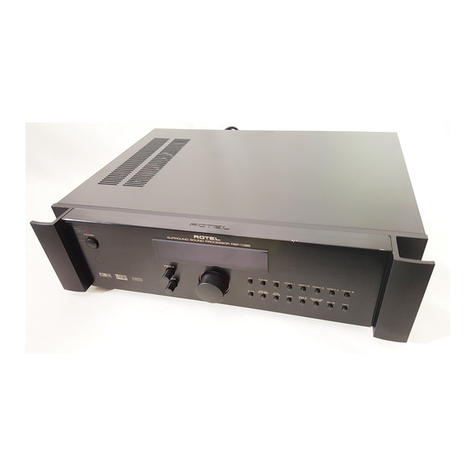

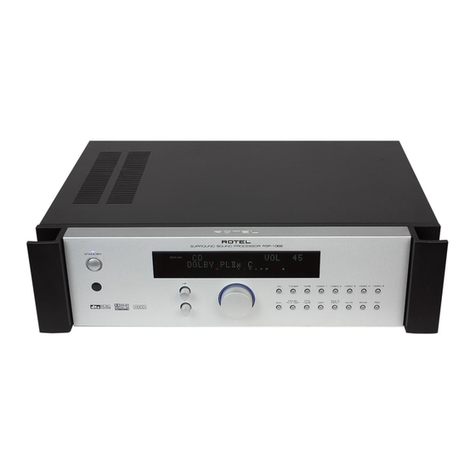

Rotel RSP-1068 Installation manual

RSP 1068
RS232 Controller Command List
Table: RSP 1068 Waveform format expected:
Baud Rate Parity Valid Data Bits Stop Bit Value Handshaking Data Type
19200 N 8 1 None String
Table: RSP 1068 expected format of a request by RS 232 controller:
Start Count Device ID Type Key Checksum
0xFE 0x03 0xa1 0x10 0xXX 0xXX
Table 1: Type 10 Primary Command List
NOTE: The values in the table below show the exact byte sequence of all requests. The device
will expect the bytes only - no spaces, no delimiter, etc. The controlling device may implement its
own method to download each command sequence. The numerical values in the first column are
Hexadecimal.
RSP 1068 HEX Command Command Description
FE 03 A1 10 00 B4 RMC Vol+ Remote Volume Up
FE 03 A1 10 01 B5 RMC Vol- Remote Volume Down
FE 03 A1 10 02 B6 CD Source CD
FE 03 A1 10 03 B7 Tuner Source Tuner
FE 03 A1 10 04 B8 Tape Source Tape
FE 03 A1 10 05 B9 Video 1 Source Video 1
FE 03 A1 10 06 BA Video 2 Source Video 2
FE 03 A1 10 07 BB Video 3 Source Video 3
FE 03 A1 10 08 BC Video 4 Source Video 4
FE 03 A1 10 09 BD Video 5 Source Video 5
FE 03 A1 10 0A BE Power Power Toggle
FE 03 A1 10 0B BF Vol+ Volume Up
FE 03 A1 10 0C C0 Vol- Volume Down
FE 03 A1 10 0D C1 Treble+ Treble Up
FE 03 A1 10 0E C2 Treble- Treble Down
FE 03 A1 10 0F C3 Bass+ Bass Up
FE 03 A1 10 10 C4 Bass- Bass Down
FE 03 A1 10 11 C5 Stereo Stereo
FE 03 A1 10 12 C6 3 Stereo Dolby 3 Stereo
FE 03 A1 10 13 C7 Pro Logic Dolby Pro Logic
FE 03 A1 10 14 C8 DSP DSP Music
FE 03 A1 10 15 C9 Multi Multi Input
FE 03 A1 10 16 CA Dynamic Dynamic Range
FE 03 A1 10 17 CB Rec Record
FE 03 A1 10 18 CC OSD Menu OSD Menu
FE 03 A1 10 19 CD OSD Enter OSD Enter
FE 03 A1 10 1A CE OSD Right (+) OSD Right
FE 03 A1 10 1B CF OSD Left (-) OSD Left
FE 03 A1 10 1C D0 OSD Up OSD Up

RSP 1068 HEX Command Command Description
FE 03 A1 10 1D D1 OSD Down / Dynamic OSD Down / Dynamic
FE 03 A1 10 1E D2 Mute Mute
FE 03 A1 10 1F D3 Digital In Select Digital Input Select
FE 03 A1 10 22 D6 Surround+ Next Surround Mode
FE 03 A1 10 23 D7 Zone 2 / Main Zone
FE 03 A1 10 4A FE Power Off Power Off
FE 03 A1 10 4B FF Power On Power On
FE 03 A1 10 4C 00 C Center
FE 03 A1 10 4D 01 S Subwoofer
FE 03 A1 10 4E 02 R Surround
FE 03 A1 10 4F 03 Filter (EQ) Cinema EQ
FE 03 A1 10 52 06 FL On / Off FL Display Toggle
FE 03 A1 10 53 07 Pro Logic / 3 Stereo Dolby 3 Stereo
FE 03 A1 10 54 08 dts Neo:6 dts Neo:6
FE 03 A1 10 57 0B Music 1 Music 1
FE 03 A1 10 58 0C Music 2 Music 2
FE 03 A1 10 59 0D Music 3 Music 3
FE 03 A1 10 5A 0E Music 4 Music 4
FE 03 A1 10 5B 0F 5Ch Stereo 5Ch Stereo
FE 03 A1 10 5C 10 7Ch Stereo 7Ch Stereo
FE 03 A1 10 5D 11 PLII Cinema Dolby PLII Cinema
FE 03 A1 10 5E 12 PLII Music Dolby PLII Music
FE 03 A1 10 5F 13 Pro Logic Dolby Pro Logic
FE 03 A1 10 60 14 dts Neo:6 Music dts Neo:6 Music
FE 03 A1 10 61 15 dts Neo:6 Cinema dts Neo:6 Cinema
FE 03 A1 10 62 16 PLII Panorama PLII Panorama
FE 03 A1 10 63 17 PLII Dimension Up PLII Dimension Up
FE 03 A1 10 64 18 PLII Dimension Down PLII Dimension Down
FE 03 A1 10 65 19 PLII Center Width Up PLII Center Width Up
FE 03 A1 10 66 1A PLII Center Width Down PLII Center Width Down
FE 03 A1 10 67 1B Shift (Treble Bass) Tone Controls
FE 03 A1 10 68 1C DD EX On/Off DD EX On/Off
FE 03 A1 10 74 28 PLII Game Dolby PLII Game
FE 03 A1 10 FF B3 Display Refresh Display Refresh
Table 2: Commands Sent with exceptions or modifications required
RSP 1068 HEX Command Expected Command
FE 03 A1 10 4A FE FE 03 A1 10 4A FD 01 Power Off
The table above list commands with exceptions. To keep the RSP 1068 from encountering the
start byte FE in any position other than as the start byte, any occurrence of the bytes FE or FD in
the command string must be converted to either FD 00 (for FD) or FD 01 (for FE). This will allow
the string to pass while masking any occurrence of the byte FE except as the start byte.

Table 3: Type 14 Main Zone Command List
NOTE: These commands are duplicate functions of the primary commands in the table above
bearing the same name, but are discrete for the main zone only. For multi-zone installation
applications, it is recommended that the below commands be used rather than the type 10
commands to avoid zone conflicts.
RSP 1068 HEX Command Command Description
FE 03 A1 14 00 B8 RMC Vol+ Remote Volume Up
FE 03 A1 14 01 B9 RMC Vol- Remote Volume Down
FE 03 A1 14 02 BA Main CD Main Zone Source CD
FE 03 A1 14 03 BB Main Tuner Main Zone Source Tuner
FE 03 A1 14 04 BC Main Tape Main Zone Source Tape
FE 03 A1 14 05 BD Main Video 1 Main Zone Source Video 1
FE 03 A1 14 06 BE Main Video 2 Main Zone Source Video 2
FE 03 A1 14 07 BF Main Video 3 Main Zone Source Video 3
FE 03 A1 14 08 C0 Main Video 4 Main Zone Source Video 4
FE 03 A1 14 09 C1 Main Video 5 Main Zone Source Video 5
FE 03 A1 14 0A C2 Main Power Main Zone Power Toggle
FE 03 A1 14 1E D6 Main Mute Main Zone Mute
FE 03 A1 14 6C 24 Main Mute On Main Zone Mute On
FE 03 A1 14 6D 25 Main Mute Off Main Zone Mute Off
Table 4: Type 15 Record Source Command List
RSP 1068 HEX Command Command Description
FE 03 A1 15 02 BB Record CD Record Source CD
FE 03 A1 15 03 BC Record Tuner Record Source Tuner
FE 03 A1 15 04 BD Record Tape Record Source Tape
FE 03 A1 15 05 BE Record Video 1 Record Source Video 1
FE 03 A1 15 06 BF Record Video 2 Record Source Video 2
FE 03 A1 15 07 C0 Record Video 3 Record Source Video 3
FE 03 A1 15 08 C1 Record Video 4 Record Source Video 4
FE 03 A1 15 09 C2 Record Video 5 Record Source Video 5
FE 03 A1 15 6B 24 Record Source Record Source
Table 5: Type 16 Zone 2 Command List
RSP 1068 HEX Command Command Description
FE 03 A1 16 00 BA Vol+ Zone 2 Volume Up
FE 03 A1 16 01 BB Vol- Zone 2 Volume Down
FE 03 A1 16 02 BC Zone 2 CD Zone 2 Source CD
FE 03 A1 16 03 BD Zone 2 Tuner Zone 2 Source Tuner
FE 03 A1 16 04 BE Zone 2 Tape Zone 2 Source Tape
FE 03 A1 16 05 BF Zone 2 Video 1 Zone 2 Source Video 1
FE 03 A1 16 06 C0 Zone 2 Video 2 Zone 2 Source Video 2
FE 03 A1 16 07 C1 Zone 2 Video 3 Zone 2 Source Video 3
FE 03 A1 16 08 C2 Zone 2 Video 4 Zone 2 Source Video 4
FE 03 A1 16 09 C3 Zone 2 Video 5 Zone 2 Source Video 5

RSP 1068 HEX Command Command Description
FE 03 A1 16 0A C4 Zone 2 Power Zone 2 Power Toggle
FE 03 A1 16 1E D8 Zone 2 Mute Zone 2 Mute
FE 03 A1 16 4A 04 Zone 2 Power Off Zone 2 Power Off
FE 03 A1 16 4B 05 Zone 2 Power On Zone 2 Power On
FE 03 A1 16 6B 25 Zone 2 Source Zone 2 Follow Main Source
FE 03 A1 16 6C 26 Zone 2 Mute On Zone 2 Mute On
FE 03 A1 16 6D 27 Zone 2 Mute Off Zone 2 Mute Off
Table 6: Type 30 Volume Direct Command List
RSP 1068 HEX Command Command Description
FE 03 A1 30 00 D4 Volume Min Volume Min
FE 03 A1 30 01 D5 Volume 1 Volume 1
FE 03 A1 30 02 D6 Volume 2 Volume 2
FE 03 A1 30 03 D7 Volume 3 Volume 3
FE 03 A1 30 04 D8 Volume 4 Volume 4
FE 03 A1 30 05 D9 Volume 5 Volume 5
FE 03 A1 30 06 DA Volume 6 Volume 6
FE 03 A1 30 07 DB Volume 7 Volume 7
FE 03 A1 30 08 DC Volume 8 Volume 8
FE 03 A1 30 09 DD Volume 9 Volume 9
FE 03 A1 30 0A DE Volume 10 Volume 10
FE 03 A1 30 0B DF Volume 11 Volume 11
FE 03 A1 30 0C E0 Volume 12 Volume 12
FE 03 A1 30 0D E1 Volume 13 Volume 13
FE 03 A1 30 0E E2 Volume 14 Volume 14
FE 03 A1 30 0F E3 Volume 15 Volume 15
FE 03 A1 30 10 E4 Volume 16 Volume 16
FE 03 A1 30 20 F4 Volume 32 Volume 32
FE 03 A1 30 30 04 Volume 48 Volume 48
FE 03 A1 30 40 14 Volume 64 Volume 64
FE 03 A1 30 50 24 Volume 80 Volume 80
FE 03 A1 30 5F 33 Volume 95 Volume 95
FE 03 A1 30 60 34 Volume Max Volume Max
Table 7: Commands Sent with exceptions or modifications required
RSP 1068 HEX Command Expected Command
FE 03 A1 30 29 FD FE 03 A1 30 29 FD 00 Volume 41
FE 03 A1 30 2A FE FE 03 A1 30 2A FD 01 Volume 42
Table 8: Type 32 Zone 2 Volume Direct Command List
RSP 1068 HEX Command Command Description
FE 03 A1 32 00 D6 Zone 2 Volume Min Zone 2 Volume Min
FE 03 A1 32 01 D7 Zone 2 Volume 1 Zone 2 Volume 1
FE 03 A1 32 02 D8 Zone 2 Volume 2 Zone 2 Volume 2
FE 03 A1 32 03 D9 Zone 2 Volume 3 Zone 2 Volume 3

RSP 1068 HEX Command Expected Command
FE 03 A1 32 04 DA Zone 2 Volume 4 Zone 2 Volume 4
FE 03 A1 32 05 DB Zone 2 Volume 5 Zone 2 Volume 5
FE 03 A1 32 06 DC Zone 2 Volume 6 Zone 2 Volume 6
FE 03 A1 32 07 DD Zone 2 Volume 7 Zone 2 Volume 7
FE 03 A1 32 08 DE Zone 2 Volume 8 Zone 2 Volume 8
FE 03 A1 32 09 DF Zone 2 Volume 9 Zone 2 Volume 9
FE 03 A1 32 0A E0 Zone 2 Volume 10 Zone 2 Volume 10
FE 03 A1 32 0B E1 Zone 2 Volume 11 Zone 2 Volume 11
FE 03 A1 32 0C E2 Zone 2 Volume 12 Zone 2 Volume 12
FE 03 A1 32 0D E3 Zone 2 Volume 13 Zone 2 Volume 13
FE 03 A1 32 0E E4 Zone 2 Volume 14 Zone 2 Volume 14
FE 03 A1 32 0F E5 Zone 2 Volume 15 Zone 2 Volume 15
FE 03 A1 32 10 E6 Zone 2 Volume 16 Zone 2 Volume 16
FE 03 A1 32 20 F6 Zone 2 Volume 32 Zone 2 Volume 32
FE 03 A1 32 30 06 Zone 2 Volume 48 Zone 2 Volume 48
FE 03 A1 32 40 16 Zone 2 Volume 64 Zone 2 Volume 64
FE 03 A1 32 50 26 Zone 2 Volume 80 Zone 2 Volume 80
FE 03 A1 32 5F 35 Zone 2 Volume 89 Zone 2 Volume 89
FE 03 A1 32 60 36 Zone 2 Volume Max Zone 2 Volume Max
Table 9: Commands Sent with exceptions or modifications required
RSP 1068 HEX Command Expected Command
FE 03 A1 32 27 FD FE 03 A1 32 27 FD 00 Zone 2 Volume 39
FE 03 A1 32 28 FE FE 03 A1 32 28 FD 01 Zone 2 Volume 40
