SAFETY PRECAUTIONS

Read the following if you use the device in European countries:

The device can not be operated by children over 7 years old, disabled people and oraz people without experience

and knowledge. Instructions should include a description of the correct and safe handling of the device and oraz

information about possible dangers. Children should not play with the device. Cleaning and servicing should be

carried out by authorized persons.

UTILIZATION:

Do not dispose of this product together with unsorted municipal waste.

It’s necessary to transfer this type of waste for special processing.

It’s illegal to throw the device together with other household waste.

There are several ways to get rid of this type of equipment:

A. The city organizes electronic waste collection, you can pass the device without the cost.

B. When you buy a new device the seller will accept the old device without any fees.

C. Manufacturer will take the product from buyer produkt without charging it with costs.

D. Products of this type, contains valuable elements, it can be sold sprzedane on purchase of metals.

Throwing the device ,,on wild” exposes you to the risk of losing your health. Dangerous substances from the device

can penetrate to groundwater screating a danger of getting through to people’s food chain.

WARNING

Only qualied personnel should install and service the equipment. The installation, starting up, and servicing

of heating, ventilating, and air-conditioning equipment can be hazardous and requires specic knowledge and

training. Improperly installed, adjusted or altered equipment by an unqualied person could result in death

or serious injury. When working on the equipment, observe all precautions in the literature and on the tags,

stickers, and labels that are attached to the equipment.

CLEO W - Air Purier

4User manual

PART 1. PRODUCT FEATURE

1. PURIFICATION PROCESS

Composite lter mesh can rstly lter out large contamination particles such as hairs and pet hairs, and then can

eectively remove minor contamination particles such as PM 2.5 and smog through high ecient EPA lter mesh.

Next, it can lter out mites and allergen through anti-mite and anti-allergic lter mesh among which activated carbon

can eectively lter out harmful gas such as formaldehyde and benzene and strongly remove peculiar smell and foul

smell , while negative oxygen ion generator can release much negative oxygen ion to refresh room air.

Kurz

Alergeny

Formaldehyd

Bakterie

Jony

ujemne

Świeże

powietrze

1 2 3 4

Composite lter mesh Purication process of lter mesh

2. AUXILIARY FUNCTION

Buzzer: When the machine is powered on and under operation, the buzzer makes a prompt tone with buttons being

pressed.

Composite lter mesh:

1. Pre-lter

2. True EPA lter

3. Activated carbon lter

4. Cold catalyst lter

CAUTION

• Please Carefully read this operation instruction before use. Please keep it properly with your invoice after

reading.

• The company reserves the nal interpretation right of this operation instruction.

• Product appearance shall be subject to material object.

• Products shall be subject to technology or software upgrades without additional notices.

CLEO W - Air Purier

5User manual

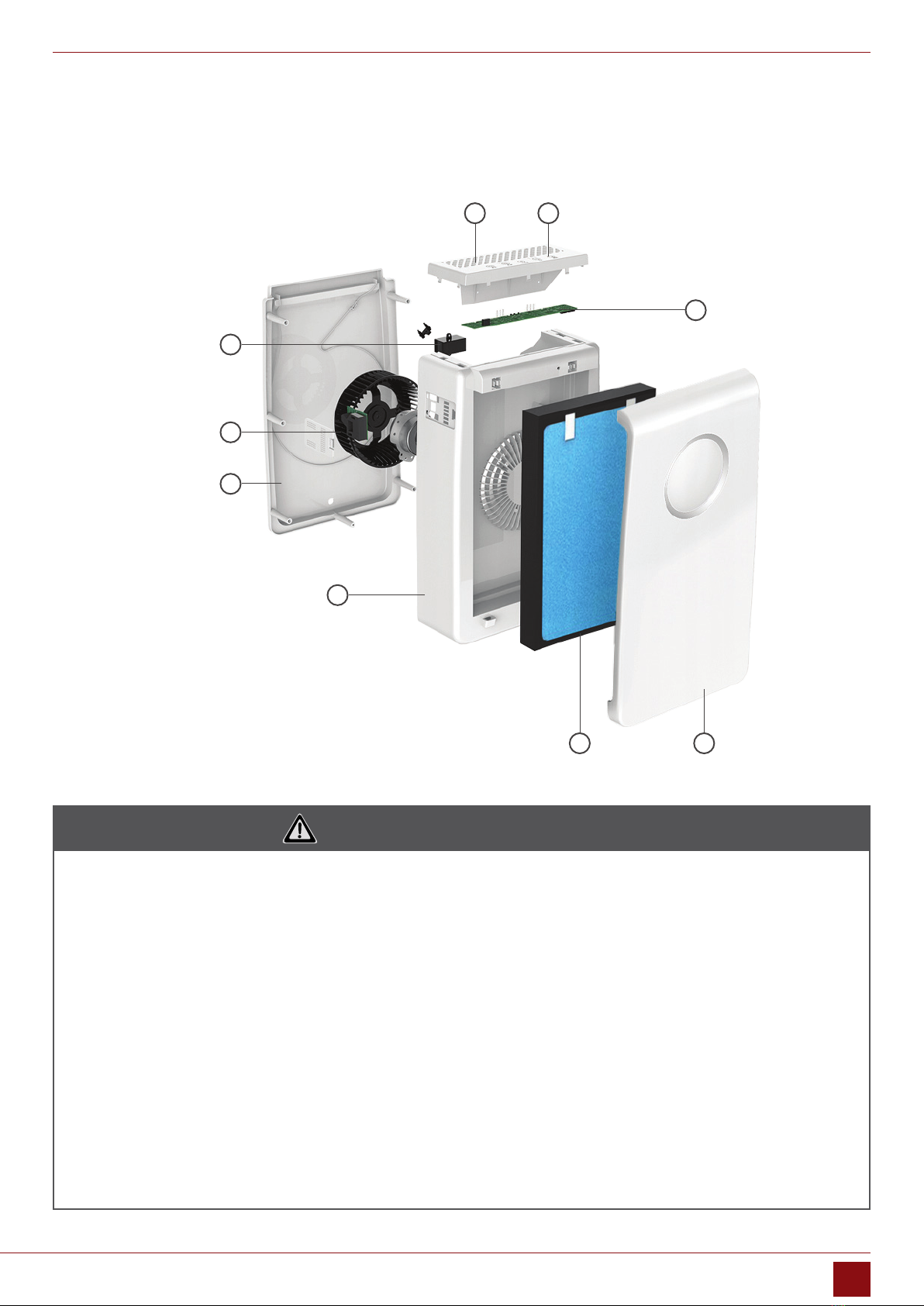

Elements:

1. Air ioniser

2. Fan

3. Rear panel

4. Device case

5. Composite lter

6. Front panel

7. Air outlet

8. Touch control panel

9. Control board

1

7 8

2

3

4

9

5 6

PART 2. PRODUCT COMPONENTS

1. CONSTRUCTION OF THE DEVICE

WARNING. READ BEFORE FIRST USE

Packaging bag must be torn o before use. Then lter mesh shall be installed in the machine correctly.

• Before operating the device, please put it 2 meters away from equipment with electric wave (such as

television, radio or clock) to avoid interference of electric wave.

• Please do not install it at the place where object such as curtain may block air inlet or outlet, otherwise the

component may be polluted or the device may get out of order.

• Please do not install it at the place where the device is exposed to condensation environ ment directly

because of severe temperature change.

Please use it when the room temperature is suitable and varies from 0 to 35 degree centigrade.

• The device must be stably installed and well-ventilated.

When the device is put on the ground covered with sick carpet, it may shake slightly.

• Please do not install it at the place where black smoke is produced (such as kitchen and so forth).

• Certain space shall be guaranteed around the air purier.

Putting the device at the place with natural ow of wind can lead to better purifying eect. Furthermore, it

can make sure that negative oxygen ion can arrive at every corner of the room smoothly.

CLEO W - Air Purier

6User manual

1. TOUCH CONTROL PANEL AND FUNCTIONS

PART 3. FUNCTIONS

123 124

1 2 3 4 5

1. ON/OFF

Touch ON/OFF button to switch on/o.

2. SPEED

Circularly touch SPEED button, air speed circularly switch from:

level two level three level one circularly

3. ION

Touch ION button, open or close the function of Negative Oxygen Ion.

4. TIMER

Circularly press the button with the machine on or o, one can choose the timing time circularly

and switch the timing time from 1:00 2:00 4:00 non-timing 1:00. After 2 seconds of

displaying, the countdown comes.

After timing:

• Timed power o: with the machine on, it automatically turns o.

• Timed power on: with the machine o, it automatically turns on.

5. SLEEP

Touch SLEEP button to enter sleep mode.

CLEO W - Air Purier

7User manual

PART 4. MAINTENANCE , CLEANING AND FILTERS REPLACEMENT

1. DISMANTLING THE FILTER MESH

Step 1. Dismantling the front cover.

Grasp both sides of the upper part of front cover

with both hands, then lift it up before drag it

towards your own direction. The front cover then

drops o the device body (Do not overexert in case

of damage to the front cover).

Step 2. Dismantling the composite lter mesh.

Hold the composite lter mesh and drag it towards

your own direction. The composite lter mesh then

can be took down.

Step 3. Installment of composite lter mesh.

Grasp both sides of the upper part of front cover

with both hands, then lift it up before drag it

towards your own direction. The front cover then

drops o the device body (Do not overexert in case

of damage to the front cover).

Step 4. Installment of font cover.

Link the bottom side of front cover rmly with the

device body, then align the front cover with two

slots. Equipment of the main body will be linked

with the front cover.

CLEO W - Air Purier

8User manual

PART 4. MAINTENANCE , CLEANING AND FILTERS REPLACEMENT

2. RE-INSTALLMENT OF FILTER MESH

1. Indication. When the life span of the lter mesh accumulates to a maximum, set up 1H, 2H, 4H, 3 LED lights icker

simultaneously.

2. Re-installment: After replacing the lter mesh, keeping pressing the “TIMER + SPEED” bottom for 3 seconds to

reset when the device is on. Buzzer rings for once and meanwhile the state of indication ashing light relieved,

the device counts time once again

3. CLEANING AND MAINTENANCE

Unplug the device each time before cleaning.

1. Cleaning the device body

• Clean the stains using only soft cloth.

• To clean stubborn stains that are not easily to be wiped out, use soft clot with Proper amount of neutral

detergent to clean.

CAUTION

Do not scratch device casing under maintenance with hard objects. When removing surface cover, please

operate in accordance with the instruction manual and do not damage device components.

2. Cleaning and Change of Filter Mesh

• The change of lter mesh is reminded by built-in program. But because of dierent pollution extent of actual

environment, the life span of lter mesh diers. One can promptly change lter mesh according to the voice

volume or the smell produced by the device.

Suggestion: Clean once every two months. If the air is heavily polluted, one should improve cleaning frequency.

• When dust accumulates on composite lter surface, one may use vacuum cleaner to remove dust from the

surface to lengthen the life span of lter mesh. (Suggest cleaning once every two month)

• The replacement intervals of lter mesh may shorten according to dierent places and methods of usage

(eg. family with more smokers). In a word, please promptly change the lter mesh when it performs poorly.

• Please dispose of the used lter mesh as Non combustible waste.

CLEO W - Air Purier

9User manual

PART 5. WARNING

CAUTION

All the content in this part is concerned with safety and shall be strictly followed by the user. Matters need

attention in this part is for the right usage of this product. Matters need attention explain dangers, extent of

injury and possible accidents.

Matters need attention in this part is for the right usage of this product.

1. Do not use other accessories without permits of the manufacturer. If it causes malfunction of the device, the

warranty shall automatically terminate.

2. After unpacking, please check whether the product is damaged and accessories are complete.

3. Children and people without capacity for civil product should be supervised by their guardians to use this product.

4. In the case of malfunctions ,disconnect the device from the mains socket immediately. Do not maintain the

defected product in working state.

5. Thisproduct can onlyberepairedby Haier’sauthorizedmaintenancecenter.Repair in non-authorizedmaintenance

center may cause other insecurities.

CAUTION

If power cord damages, it shall be replaced by the specialist personnel of the manufacturer, its maintenance

department or similar departments to avoid dangers.

Action with this sign is strictly prohibited. Otherwise it may cause damage to the product or

endanger the personal security of the user.

Prohibitory sign

Action with this sign should be strictly operated according to the instruction. Otherwise it

may cause damage to the product or endanger the personal security of the user.

Warning Sign

Action with this sign should be paid attention by the user. Otherwise operation error can

cause damage to the product or other losses.

Notice Sign

Do not insert your nger or foreign matters

in air inlet or air outlet Do not disconnect or connect mains socket

Please do not use air purier in the

environment full of inammable gas such as

hydrogen, natural gas and propane.

Please do not use air purier when the power

cord or plug is damaged or the power outlet

on the wall gets loose.

Please do not use this product where the

moisture is very heavy. Please do not block air inlet or air outlet.

CLEO W - Air Purier

10 User manual

PART 5. WARNING

please do not operate this device without

installing lter.

Please do not clean or reuse composite lter

mesh.

Only standard power outlet with 220V

voltage can be used

When disconnecting plug, please hold the

plug rmly and do not drag power cord,

otherwise it may cause electric shock or re

disaster led by short circuit.

When cleaning or stop using this product,

please disconnect plug from power outlet,

otherwise it may cause electric shock led by

defective insulation or re disaster led by

short circuit.

Regularly clean dust on plug

One shall be careful when cleaning air

purier because strong corrosive detergent

may damage the product’s surface.

Use only soft cloth to clean the product’s

surface, otherwise the product may get

damaged or cracked down.

When using this product, please do not

use it near or on heat sources (such as

replace, stove or place easy to get access to

inammable gas).

Please do not wipe this product with ethyl

alcohol, organic solvent, otherwise it may

cause damage to the product or electric

shock that may lead to injury or re disaster.

When moving this device please hold handle on both sides of the device rmly.

• When moving this device, holding the front cover may lead to the falling-o of the cover. Falling

down of device body can cause personal injury.

If this air purier causes any interference to radio or television, please try the following one or multiple

measures to correct interference:

• Readjust or rotate receiving antenna.

• Please lengthen the distance between air purier and radio/television.

• Please connect power of the device and acceptor separately with dierent mains socket.

• If you need any assistance, please contact dealers or professional technical personnel.

This device is not suitable for the disabled, the perceptual handicapped, the mental handicapped or

children to operate alone. On-site supervision or guidance provided by safety directors to operate this

device makes an exception.

CLEO W - Air Purier

11User manual

PART 6. FAQ

Failure Phenomenom Possible Reasons and Solutions

Failure to start the device Failure to start the device

Little volume of air from air outlet

1. Packaging bag of lter mesh is unpacked. Remove the packaging bag

and install lter mesh again.

2. Air inlet or outlet is blocked by foreign matters. Remove them.

3. Filter mesh is dirty. Clean or replace it.

Not apparent dust removal and

purifying eect Not obvious

improvement of air quality

1. Filter mesh is not installed on the device. Install the lter mesh.

2. Window or door is frequently opened. In the roomwith slow air ow,

because the outside dirty air comes in, it takes a longer time to purify

the indoor air.

3. The device is put in a crowded place or near obstacles, and thus aects

purifying eect.

4. The lter is lthy, and thus aects purifying eect. Clean or replace it.

Peculiar Smell from the air outlet

1. Lots of smokers in the room or barbecue can lead to plenty of odor.

Suggest you ventilate the room.

2. Filter mesh is quite lthy. Change a brand new lter mesh.

NOTICE: If one is unable to remove faults through the above exams, please contact the mainte nance networks or

technical service center provided by our company customer service center. Please do not dismantle and repair it on

one’s own to avoid dangers and possible damage to the device.

CLEO W - Air Purier

12 User manual

PART 7. TECHNICAL SPECIFICATIONS

Product name Air purier Model C15W

Power source 220-240~50, 1f

Rated Input Power 45W Noise ≤61dB(A)

Particulate Matter Clean Air Delivery Rate(CADR pm) 218 m³/h

Particulate Matter Purication Energy Eciency 4.18 (Qualied level)

Applying Area 22 m²

Product Size 537,5x×40×166mm

Net Weight 5,0 kg Gross Weight 6,3 kg

1. MAIN TECHNICAL PARAMETER

2. ELECTRICAL SCHEMATIC DIAGRAM

Anion

generator

Touch-sensitive

switch

LED

screen

Alternating

current dynamo

Control panel

NOTES

......................................................................................................................................................................................................................................

.......................................................................................................................................................................................................................................
