PRECAUTIONS

Read the following if you use the device in European countries:

The device can not be operated by children over 7 years old, disabled people and oraz people without

experience and knowledge. Instructions should include a description of the correct and safe handling of the

device and oraz information about possible dangers. Children should not play with the device. Cleaning and

servicing should be carried out by authorized persons.

UTILIZATION:

Do not dispose of this product together with unsorted municipal waste.

It’s necessary to transfer this type of waste for special processing.

It’s illegal to throw the device together with other household waste.

There are several ways to get rid of this type of equipment:w

A. The city organizes electronic waste collection, you can pass the device without the cost.

B. When you buy a new device the seller will accept the old device without any fees.

C. Manufacturer will take the product from buyer produkt without charging it with costs.

D. Products of this type, contains valuable elements, it can be sold sprzedane on purchase of metals.

Throwing the device ,,on wild” exposes you to the risk of losing your health. Dangerous substances from the

device can penetrate to groundwater screating a danger of getting through to people’s food chain.

WARNING

Only qualied personnel should install and service the equipment. The installation, starting up, and

servicing of heating, ventilating, and air-conditioning equipment can be hazardous and requires specic

knowledge and training. Improperly installed, adjusted or altered equipment by an unqualied person

could result in death or serious injury. When working on the equipment, observe all precautions in the

literature and on the tags, stickers, and labels that are attached to the equipment.

WINT W - Air purier

4User manual

PART 1. SAFETY INFORMATION

1. BEFORE USE

• Use only standard socket that meet the standard voltage written on the nameplate.

• Please do not use the deviceif the power cord/plug/socket has been damaged, and ask the manufacturer

or professional to replace it.

• To avoid any electrics shocks or fair disasters caused by circuit, when unplugging the power plug, please

clench the plug. Do no pull the power cord.

2. RESTRICTIONS ON USE

• There is oil residue in the room,please do not use the device.

• There is smoke in the room when burning incense, please do not use the device.

• The ame in the room when it is a little smoke, please do not use the device.

• When there is a chemical smell in the air, please do nit use the device.

• To avoid any electric shock, re disaster or any other damages, please do not use the device in any place

which with nitrogen, neutral gas, or any other re gases.

• Please do not use the device when you use aerosol bomb.

• To avoid any electric shock, re disaster or any other damages, please do not use the device in any dump,

unstable places or high temperature, wet places, such as shower room, etc.

3. INSTALLATION

• Please do not install the air outlet directly on the sensor.

• Please do not install that may come into contact with near objects the air inlet or outlet.

• Please use the device at room with temperature of 0 to 40 degrees Celsius.

• To avoid surface cracking or sensor failure,please do not install in places where black smoke will occur.

(Such as kitchen, etc.)

4. IN USE

• Please do not use the device without lters.

• Please do not insert your ngers or objects into the air inlet/outlet.

• Please do not close to heart object(like stoves or any place have re gases.)

• Please pull the plug immediately if any malfunction happen like smoking, band smell, etc.

5. TRANSPORT

• Be sure to stop running and unplug the power cord when moving.

• Hold the handle on the side of the device when moving. To avoid the host fell and wounded, please do

not handle the front board.

6. NOTICE OF CLEANING

• Please do not clean and reuse the composite lter.

• To avoid any damage or malfunction of sensor, please clean the device with soft cloth.

WINT W - Air purier

5

User manual

PART 1. SAFETY INFORMATION

7. WARM REMINDER

• There should be a certain space around the air purier to allow the wind and ions to ow naturally, thus

improving the purication eect.

• This device is not suitable for disabled people, people with mental impairment, people with intellectual

disabilities or children.

• To avoid any damage, electric shock or re disasters, please do not clean the device with ethyl alcohol or

organic solvent.

• To avoid any electric shock or fair disaster, please power o and clean foreign matters of plug when clean

the device or not use the device.

WINT W - Air purier

6User manual

PART 2. PRODUCT STRUCTURE & DISPLAY PANEL

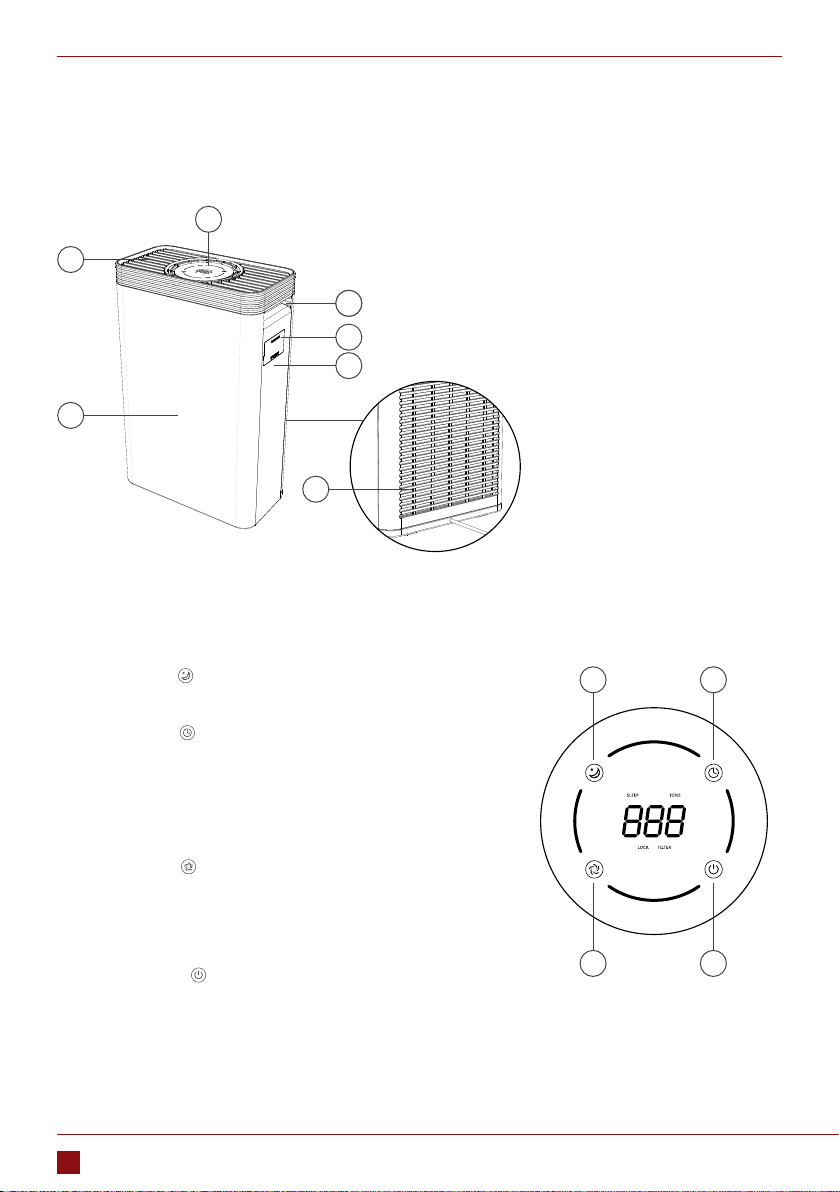

1. DEVICE CONSTRUCTION

1

2

3

14

5

6

7

1. Air outlet

2. Front Panel

3. Control Panel/Display Area

4. Buckle/ Handle

5. Sensor

6. Middle frame

7. Air inlet

2. TOUCH AND DISPLAY PANEL DISPLAY

T（℃）

1 2

3 4

1. SLEEP button

When touch “SLEEP”button, only this icon light on, others not.

2. TIMER button

Timer” button to show time setting.

• Time setting can switch from 1h~12h.

• Power on state, touch TIMER button to turn o the unit.

• Stand-by state, touch TIMER button to turn on the unit.

3. SPEED button

SPEED button, showing the fan speed levels.

• Fan speed switches from 2-3-1-A.

• “A” means auto mode, fan speed changes via air quality.

4. ON/OFF button

ON/OFF, to turn on/turn o the unit.

• After turn on the unit, 30s preheat will show and the icons

light turn green.

Pic. 1

Pic. 2

WINT W - Air purier

7

User manual

PART 3. OPERATION INSTRUCTIONS

1. AIR QUALITY INDICATION

After plug on, the unit enters in stand-by mode.

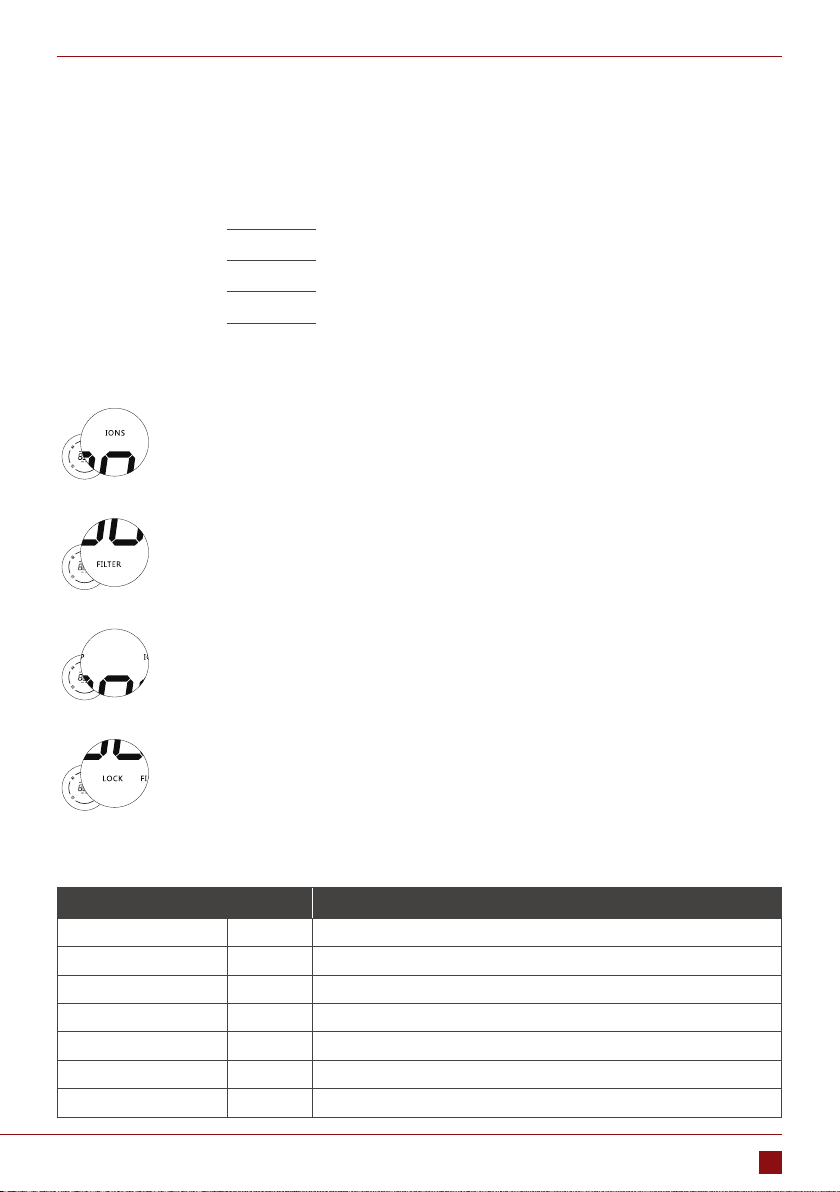

2. PANEL INDICATORS

GREEN

YELLOW

BLUE

RED

Perfect

Normal

Good

Poor

T（℃）

IONS (OPTIONAL)

• Ions are designed to turn on while plug on, and the icon light turns white.

T（℃）

FILTER

Touch and hold “TIMER+SWITCH”buttons for 3 seconds to reset the lter.

• When the lter indicator light turns red, it needs to replace the lter.

T（℃）

TEMP (°C)

Touch the “SLEEP+SPEED”button to display the temperature.

• The temperature indicator lights on in white showing the temperature.

T（℃）

LOCK

Touch and hold the “SLEEP + TIMER” button to turn on/o the Lock mode.

• When in Lock mode, no other buttons work.

3. TECHNICAL PARAMETERS

Model W24W

CADR m3/h 240

Dimension (S×G×W) mm 330×170×510

Weight kg 5,5

Rated Power W 45

Rated Voltage V-Hz 220-240~50

Coverage Area m210-50

Noise dB(A) 61

Pic. 3

Pic. 4

Pic. 5

Pic. 6

WINT W - Air purier

8User manual

PART 4. FILTER REPLACEMENT

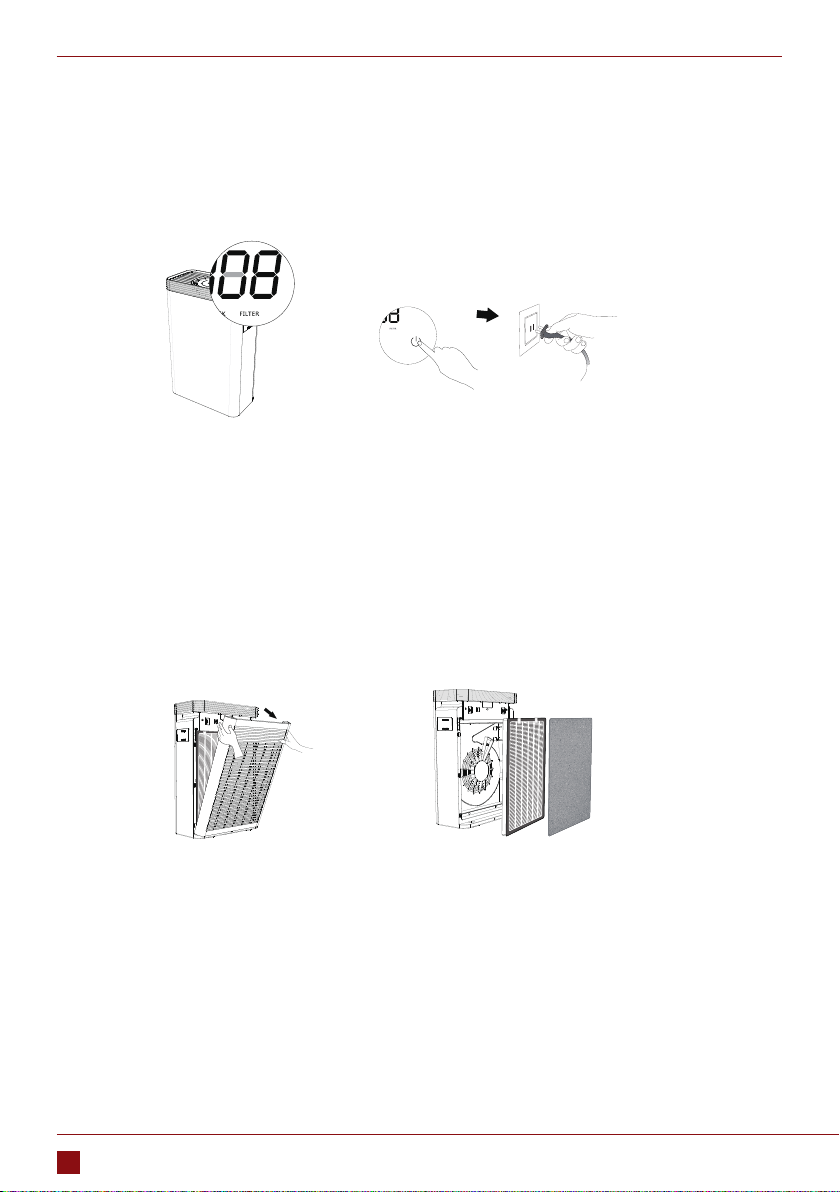

STEP 1.

When the lter indicator light turns red, it needs to replace the lter (Pic. 7).

Turn down the unit plug o the power cord (Pic. 8).

Pic. 7 Pic. 8

STEP 2.

Open the lter cover. After the unit is powered o, catch the buckle position of the lter cover and pull it

out. (Pic. 9)

STEP 3.

Please take out the combination lter, and pack the used lter into bag to avoid any second pollution (Pic. 10).

• The preliminary lter can be cleaned and reused.

• The combination lter that reaching its service life cannot be reused even if it is clean. Please treat it as

non-burnable waste.

Pic. 9 Pic. 10

STEP 4.

Adjust the direction of the new lter to correspond to the lter slot of the purier and install the lter in, and

then close the cover.

STEP 5.

Turn on the power, touch the“ON/OFF”button to turn on the unit. And long press the TIMER + ON/OFF button

for 3s to reset the lter time.

WINT W - Air purier

9

User manual

NOTE

After all the checks above, troubleshooting still existed, please contact our service centre or contact

technical service centre. Do not attempt to disassemble and maintain the maintenance by yourself, to

avoid any danger and damages to the machine.

PART 5. TROUBLESHOOTING

If your air purier does not run smoothly, please check the following before maintenance.

Phenomenon Possible reason Solution

Machine can not start 1. Unplug power plug.

2. Machine rear cover not in position.

1. Reconnect power plug.

2. Re-install the rear cover position.

Odour in the outlet

1. More pollutants indoor such as more

smoking.

2. Filter is polluted severely.

1. It is recommended that room air be

changed.

2. Replace with the all new lter.

None obvious dust

removal eect, none air

quality improvement

1. Filter is not installed into the

machine.

2. Machine is placed in narrow space or

space with obstacles nearby which

may have negative impact on the

purication eect.

3. Filter is too dirty.

1. Install the lter correctly.

2. Place the unit at least a foot away

from the obstacles.

3. Replace for new combination lter.

Running noise loud 1. Whether the installation is not tight

2. Other matter stored in the machine.

1. Contact after-sales centre.

2. Clean other matters.

Main buttons not work LOCK mode is worked. Press 3 second to turn o the LOCK

mode

Filter cannot be

installed Filter is installed opposite. Adjust the lter to right direction and

install the lter to the bottom slot.
