Rotronic RMS Wall mount Data Logger User manual

© 2018 ROTRONIC AG Bassersdorf Switzerland
RMS Wall mount Data Logger

RMS-LOG Wireless / LAN Data Loggers
E-M-RMS-LOG-V1.4.docx
Instruction Manual
© 2018 ROTRONIC AG Bassersdorf Switzerland Page 2 of 35
Table of Contents
1Overview.................................................................................................................................................3
1.1 RMS System Overview........................................................................................................................3
1.2 Device Overview..................................................................................................................................4
1.3 RMS Data Logger ................................................................................................................................5
1.4 RMS Display ........................................................................................................................................5
1.5 Power Supply.......................................................................................................................................6
1.6 Measured Parameters..........................................................................................................................6
1.7 RTCC (Real Time Clock Calendar)......................................................................................................8
1.8 Data Logging and Measurement Interval.............................................................................................8
1.9 Indicator and Button.............................................................................................................................8
1.10 Interface...............................................................................................................................................9
1.11 MODBUS communication protocol.......................................................................................................9
2Dimensions ..........................................................................................................................................12
3Installation............................................................................................................................................13
3.1 Drilling Template Wall Bracket...........................................................................................................19
4Electrical Connections........................................................................................................................20
4.1 Battery................................................................................................................................................20
5Operation..............................................................................................................................................21
5.1 Default Configuration .........................................................................................................................21
5.2 Configuration of the LAN Devices with RMS-CONFIG.......................................................................21
5.3 General Manipulations.......................................................................................................................22
5.4 Integration in the RMS-WEB Software...............................................................................................23
5.5 Function Overview .............................................................................................................................26
6Maintenance.........................................................................................................................................28
6.1 Battery Replacement..........................................................................................................................28
7Firmware Update..................................................................................................................................29
8Technical Specifications.....................................................................................................................30
9Accessories .........................................................................................................................................33
9.1 RMS Accessories...............................................................................................................................33
10 Additional Documents.........................................................................................................................34
11 Document Version...............................................................................................................................35

RMS-LOG Wireless / LAN Data Loggers
E-M-RMS-LOG-V1.4.docx
Instruction Manual
© 2018 ROTRONIC AG Bassersdorf Switzerland Page 3 of 35
Scope:
This manual is valid for the RMS data logger from firmware version V1.x. The low-order digit of the manual is
updated with each new release.
1 Overview
1.1 RMS System Overview
The Rotronic Monitoring System (RMS) is a network comprising various devices and the RMS server software.
The software is the heart of the system. It collects all measured data of the devices and saves it in the database.
The individual devices work as input modules (data loggers) and as output modules (displays, analog outputs,
switched outputs). The user can view the system data at any time on a PC, laptop or smart phone.
Figure 1: Schematic diagram of the RMS with the server software and database at the heart

RMS-LOG Wireless / LAN Data Loggers
E-M-RMS-LOG-V1.4.docx
Instruction Manual
© 2018 ROTRONIC AG Bassersdorf Switzerland Page 4 of 35
1.2 Device Overview
All devices can be configured as wanted as modules of the system. The following table shows all basic types of
the RMS devices. Almost all modules
1
have the following options:
Interface: Ethernet / Wireless
Housing: Wall housing / DIN top hat rail housing
Display Module
The display module can show any values from the
RMS network. Humidity, temperature and switch
states can be configured per software.
Standard Logger
Records the measured data of the digital HygroClip
HCD or other RMS probes. Stored in the ring
memory, the data are then sent to the server
software.
Output Module
Provides two analog voltage or current outputs or is
also available as variant with two solid-state relays in
order, for example, to switch alarm lamps.
Input Module
Records voltage or current signals from analog
devices such as particle counters, flow transmitters
or CO2 probes. For example:
HF5 transmitter (humidity & temperature)
AF1 transmitter (air flow)
CO2 transmitter (CO2)
PF4 transmitter (differential pressure)
Temperature Logger
The loggers can be equipped with various
temperature sensors (NTC, Pt100, Pt1000 or K-
element). This offers highest flexibility in use.

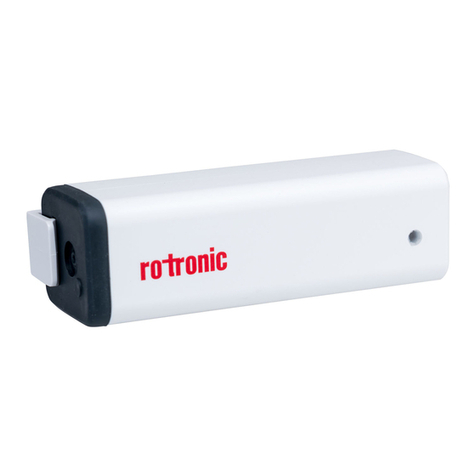

Mini Logger
A temperature logger with integrated or remote NTC
sensor. Instead of a temperature sensor, it is also
available with a switch input in order, for example, to
monitor door contacts.
Gateway
The gateway is the connecting element between
Ethernet and wireless network and forwards the data
flow from the loggers to the data centre.
1
Except for the Mini Logger

RMS-LOG Wireless / LAN Data Loggers
E-M-RMS-LOG-V1.4.docx
Instruction Manual
© 2018 ROTRONIC AG Bassersdorf Switzerland Page 5 of 35

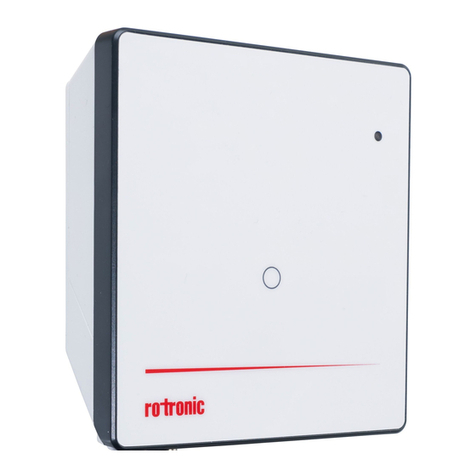

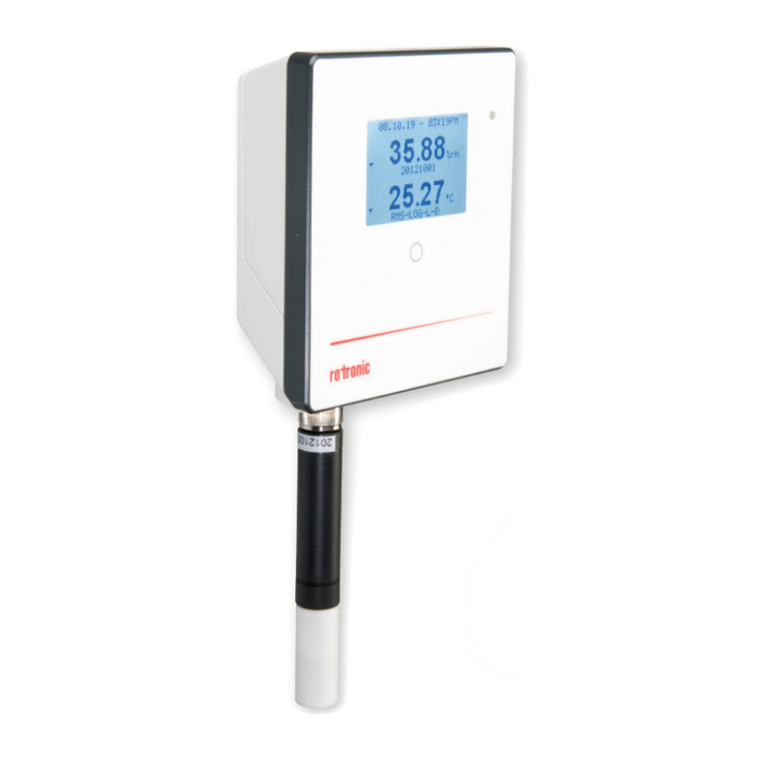

1.3 RMS Data Logger
Order code: RMS-LOG-L or RMS-LOG-868 or RMS-LOG-915
The data logger carries out measurements in a fixed interval, saves all measured data and sends it to the
database by radio or Ethernet link. Should the connection be lost, the logger stores the data intermediately to
protect data integrity and fills up the data gaps when the connection has been restored. The measurement
parameters depend on the connected probe; two different parameters can be measured at the same time. The
device has a battery so that logging of measured data is also ensured in the event of a failure in the external
power supply.
The data logger provides the following basic functions:
oLogging of the measured values of the connected probe
oData logging of up to 44,000 pairs of measured values
oTransfer of the recorded data to the RMS software
oCalibration and adjustment of the probe
oFirmware update
1.4 RMS Display
Order code: RMS-D-L
The RMS Display is a freely configurable device. The unit can be placed anywhere, not necessarily next to the
measurement point. The display allows the visualisation of measurement values, conditions and alarms of
devices within the RMS software.
The RMS Display provides the following basic functions:
oDisplay of up to 4 measuring values and their trends
oActualisation every 10s
oDisplay of errors, alarms, warnings and notifications
oDisplay of the time
The RMS display will show 2 measurement values at a time. Should more than 2 measurement values be
selected, then the display will automatically switch every 5 seconds between the measurement values.
Under each measurement value, the name of the measuring point will be indicated. The parameter will be
shown on the right, next to the measurement value
Various notifications can also be displayed:
oError: E
oAlarm: A
oWarning: W
oReminder: R

RMS-LOG Wireless / LAN Data Loggers
E-M-RMS-LOG-V1.4.docx
Instruction Manual
© 2018 ROTRONIC AG Bassersdorf Switzerland Page 6 of 35
When an alarm is shown, the display will also turn red and the name of the measuring point will be inverted.
Additionally, the date and time are also shown on the RMS Display, all data is collected from the Web service.
1.5 Power Supply
All input modules (data loggers) have the following three power supply variants:
Two 3.6 V lithium thionyl chloride AA batteries
The power supply of the batteries suffices to carry out measurement and data storage and to operate
the wireless interface. Devices with an Ethernet interface must also have one of the following power
supplies. IMPORTANT: The RMS Display is not battery powered!
24 VDC ±10 % / <100 mA
2
via terminals (V+ / V-)
Power over Ethernet (PoE), per standard IEEE 802.3af, Class 1
Note on the batteries:
The AA batteries are lithium thionyl chloride batteries available in the industrial trade. All RMS input modules
are designed for this type of battery. Only batteries of the same type or with identical characteristic values may
be used as replacement batteries.
1.5.1 Type of Battery
Battery Specifications
Article
RMS-BAT( ER14505M, multiple manufacturer, please see for Details www.rotronic.com)
Type
Li-SOCl2
Capacitance
~2200 mAh
Voltage
3.6 V
Dimensions
AA (H: 50.3 mm, D: 14.55 mm)
1.6 Measured Parameters
Depending on the version, the RMS data loggers have different inputs. Devices with interchangeable probes
(E2 connector) detect the measurement parameter of the probe automatically. The following table lists the main
types:
2
Power supply requirements: 24 VDC ±10 % / >4 W nominal / <15W limited power source

RMS-LOG Wireless / LAN Data Loggers
E-M-RMS-LOG-V1.4.docx
Instruction Manual
© 2018 ROTRONIC AG Bassersdorf Switzerland Page 7 of 35
Data Loggers for Interchangeable Probes
RMS-LOG-L
Data logger, external probe, LAN
RMS-LOG-868
Data logger, external probe, 868 MHz
RMS-LOG-915
Data logger, external probe, 915 MHz
Gateway
RMS-GW-868
Gateway, LAN to 868 MHz
RMS-GW-915
Gateway, LAN to 915 MHz
Temperature Data Loggers
RMS-LOG-T30-L
Data logger, external probe, LAN, 2 x Pt100
RMS-LOG-T30-868
Data logger, external probe, 868 MHz, 2 x Pt100
Mini data logger Modules
RMS-MADC-xxx-A
Data logger, 1 x analog input, 868 / 915 MHz, 0(4)…20 mA
RMS-MADC-868-V
Data logger, 1 x analog input, 868, 0…10V
RMS-MLOG-B-xxx
Mini data logger, integrated temperature & humidity probe,%rh, °C, 868 / 915 MHz
RMS-MLOG-T-xxx
Mini data logger, integrated temperature probe, °C, 868 / 915 MHz
RMS-MLOG-T10-xxx
Mini data logger, external NTC probe, °C, 868 / 915 MHz, NTC needs to be ordered
separately
RMS-MLOG-LGT-868
Mini data logger, integrated light sensor, 868 MHz
RMS-MDI-868
Mini data logger, 1 x digital input, 868 MHz
Analog Input Modules
RMS-4RTD-L-R
Input Module, 4 x PT100 input, LAN
RMS-8ADC-L-R-V
Input Module, 8 x analog input, 0…10 V, LAN
RMS-8ADC-L-R-A
Input Module, 8 x analog input, 0…20mA, LAN
Digital Input Modules
RMS-DI-L-R
Data logger, 2 x digital input, LAN, DIN Rail
Digital Output Modules
RMS-DO-L-R
Data logger, 2 x digital output, LAN, DIN Rail
Display Modules
RMS-D-L
Display, 4 x Measurement points, LAN

RMS-LOG Wireless / LAN Data Loggers
E-M-RMS-LOG-V1.4.docx
Instruction Manual
© 2018 ROTRONIC AG Bassersdorf Switzerland Page 8 of 35
1.7 RTCC (Real Time Clock Calendar)
The device has a real time clock calendar. The time is synchronized continuously when connected to the server.
1.8 Data Logging and Measurement Interval
The values of every measurement are saved in the memory with the time stamp. At a measurement interval of
one minute, it is possible to save data of one month, which corresponds to 44,000 pairs of measured values.
When the ring memory is full, the oldest values are overwritten.
1.9 Indicator and Button
The device has a button and multicolour LED for use and indication of the operating state. The button is used
to start the device or switch it off in battery mode. The LED indicates the device status and whether it was
possible in the current measurement interval to carry out a valid measurement and send the data to the
monitoring system.
LED Status Indicator for LAN Devices
Pairing
Trigger
Action
LED
1s press
Confirms pairing
n x orange, the LED flashes
orange when the pairing
demand is open
Remove pairing
Trigger
Action
LED
8s press
Removes pairing, stops logging
and turns off device
3 x red, the pairing information
stored in the logger is deleted
Device status update
Trigger
Action
LED
1s press
Shows the current status
1 x green, the connection to the
server is good
1 x red, battery low
2 x red, there is no connection
to the server
Automatic (every 5 seconds)
Shows the current status
1 x green, the connection to the
server is good
2 x red, there is no connection
to the server
LED Status Indicator for Wireless Devices

RMS-LOG Wireless / LAN Data Loggers
E-M-RMS-LOG-V1.4.docx
Instruction Manual
© 2018 ROTRONIC AG Bassersdorf Switzerland Page 9 of 35
Pairing
Trigger
Action
LED
1s press
Confirms pairing
1 x orange, the LED blinks
orange for each channel
searched
Gateway found
n x orange, the LED flashes
orange when the pairing
demand is open
Confirmed pairing
3 x green
Issue pairing (time out, no data
received)
3 x red
Remove pairing
Trigger
Action
LED
8s press
Removes pairing, stops
logging and turns off device
3 x red, the pairing information
stored in the logger is deleted
Device status update
Trigger
Action
LED
1s press
Shows the current status
Green shows the ISM
connection (see below)
1 x red, battery low
2 x red, there is no connection
to the server
Automatic (every 5 seconds)
Shows the current status
1 x green, the connection to the
server is good
2 x red, there is no connection
to the server
Wireless range
Trigger
Action
LED
1s press
Shows the current wireless
status
4 x green, RSSI >-30dBm
3 x green, RSSI >-60dBm
2 x green, RSSI >-80dBm
1 x green, RSSI <=-80dBm
1.10 Interface
The logger is operated completely via the LAN or wireless interface.
1.11 MODBUS communication protocol
For direct connection to other systems, the device provides a MODBUS TCP server. To following data is
available via MODBUS communication:

RMS-LOG Wireless / LAN Data Loggers
E-M-RMS-LOG-V1.4.docx
Instruction Manual
© 2018 ROTRONIC AG Bassersdorf Switzerland Page 10 of 35
Description
Details
Protocol
MODBUS TCP
TCP Port
502
Connection timeout:
When TCP connection is open and for more than 30 seconds no communication is performed, the device
automatically closes the TCP connection. In case of a communication interruption, this prohibits that the socket
is could be blocked.
1.11.1 Function 04- Read Input Register
Device Data
Register
Parameter
Data type
30001
Serial number
Unsigned 32 Bit
30002
30003
Serial number oft he
sensors
Unsigned 32 Bit
30004
Float Values
Register
Parameter
Data type
31001
Value 1
Measurement value
sensor 1
Float 32 Bit
31002
31003
Value 2
Measurement value
sensor 2
Float 32 Bit
31004
Integer Values
The measurement values are only available in floating format.
1.11.2 Swap mode
The swap mode defines how a float32 value is represented in MODUBS data structure. The settings must be
done with the RMS-CONFIG software.
Factory settings: WORD-Swap
Example:
