Rowe NiteHAWK User manual

NiteHAWK®
Internet Jukebox
22022602
Volume 1 of 1
Rev. I

NiteHAWK Internet Jukebox Safety
22022602 i
Safety
IMPORTANT SAFETY INFORMATION
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this jukebox near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other jukebox
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched, particularly at plugs, convenience
receptacles, and the point where they exit from
the jukebox.
11. Only use the attachments/accessories specified by the
manufacturer. 12. Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer or sold with
the jukebox. When a cart is used,
use caution when moving the
cart/jukebox combination to avoid
injury from tip-over.
13. Unplug this jukebox during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the jukebox has been
damaged in any way, such as when the power-supply
cord or plug is damaged, liquid has been spilled or
objects have fallen into the jukebox, the jukebox has
been exposed to rain or moisture, does not operate
normally, or has been dropped. When replacing a
battery – “CAUTION: Danger of explosion if battery
is incorrectly replaced. Replace only with the same or
equivalent type.”
CAUTION
Be extremely careful when working with this jukebox if it is not securely attached to a wall or
similar structure. Because this jukebox is very top heavy, opening the door may cause it to
tip over.

Safety NiteHAWK Internet Jukebox
ii 22022602
CAUTION!
The lightning flash with arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of non-
insulated “dangerous voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of electric shock
to persons.
CAUTION!
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance or servicing instructions.
! WARNING!
Do not expose this jukebox to rain or moisture.
No objects filled with liquid, such as vases, shall be placed
on the jukebox.
DO NOT REMOVE ANY COVERS, GUARDS, OR SHIELDS.
NO USER SERVICEABLE PARTS ARE INSIDE THIS JUKEBOX.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
CAUTION!
RISK OF ELECTRIC SHOCK
DO NOT OPEN

NiteHAWK Internet Jukebox Contents
22022602 iii
Table of Contents
SECTION: 1 UNPACKING & SYSTEM DESCRIPTION................................................................................. 1-1
INTRODUCTION...................................................................................................................................... 1-1
NiteHAWK JUKEBOX FEATURES .......................................................................................................... 1-2
General Features: .............................................................................................................................. 1-2
Service Features: ................................................................................................................................ 1-2
UNPACKING INSTRUCTIONS................................................................................................................ 1-3
Exterior................................................................................................................................................ 1-3
Door..................................................................................................................................................... 1-3
VISUAL INSPECTION.............................................................................................................................. 1-3
HANDY CASE .......................................................................................................................................... 1-3
WARRANTY REGISTRATION CARD ..................................................................................................... 1-3
INSTALLATION INSTRUCTIONS............................................................................................................ 1-4
INSTALLING THE HANGER BRACKET.................................................................................................. 1-4
HANGING THE NiteHAWK ON A BRACKET .......................................................................................... 1-6
MAJOR COMPONENTS OF THE NiteHAWK ......................................................................................... 1-7
Core Computer.................................................................................................................................... 1-7
Touch-screen 19” LCD Monitor........................................................................................................... 1-7
System Power Supply......................................................................................................................... 1-7
Transformer Assembly........................................................................................................................ 1-7
Rowelink Controller ............................................................................................................................. 1-7
LED Controller..................................................................................................................................... 1-7
Router.................................................................................................................................................. 1-7
Volume Control Unit............................................................................................................................ 1-8
4 Channel Preamplifier........................................................................................................................ 1-8
1000-Watt Audio Digital Power Amplifier ............................................................................................ 1-8
Audio Output Transformers................................................................................................................. 1-8
Bill Acceptor ........................................................................................................................................ 1-8
NiteHAWK Specifications....................................................................................................................... 1-11
Sound System................................................................................................................................... 1-11
Fuses And Circuit Breakers .............................................................................................................. 1-12
Lighting.............................................................................................................................................. 1-12
SECTION: 2 INSTALLING HARD DRIVE & TESTING .................................................................................. 2-1
INSTALLING THE HARD DRIVE............................................................................................................. 2-1
TESTING THE UNIT ................................................................................................................................ 2-4
Touchscreen ....................................................................................................................................... 2-4
Credit Test........................................................................................................................................... 2-4
Audio Test ........................................................................................................................................... 2-5
Music Selection And Pricing ............................................................................................................... 2-5
Connection Rules................................................................................................................................ 2-6

Contents NiteHAWK Internet Jukebox
iv 22022602
SECTION: 3 SOUND SYSTEM SETUP...........................................................................................................3-1
INTRODUCTION ......................................................................................................................................3-1
Extension Speaker Operation..............................................................................................................3-1
70-Volt Speakers .................................................................................................................................3-1
Low Impedance Speakers ...................................................................................................................3-2
SELECTING SPEAKER POWER.............................................................................................................3-3
General Instructions ............................................................................................................................3-3
Selection Procedures ..........................................................................................................................3-3
Extension Speakers Connected E1 to E7 ...........................................................................................3-3
4-Ohm Speakers Connected To Transformer Taps E1 through E6....................................................3-4
4-Ohm Speakers connected to channel 1 transformer taps................................................................3-4
4-Ohm Speakers connected to channel 2 transformer taps................................................................3-4
8-OHM Speakers Connected To Transformer Taps E1 through E6 ...................................................3-5
8-Ohm Speakers connected to channel 1 transformer taps................................................................3-5
8-Ohm Speakers connected to channel 2 transformer taps...............................................................3-5
Amplifier Overload Check....................................................................................................................3-6
SPEAKER SYNOPSIS ...........................................................................................................................3-11
1000 Watts of RMS Power per Amplifier or 500 Watts per Channel.................................................3-11
SECTION: 4 ADDING MICROPHONES..........................................................................................................4-1
SECTION: 5 LED LIGHTING AND BILL ACCEPTOR....................................................................................5-1
INTRODUCTION ......................................................................................................................................5-1
LED Control Assembly (#61182001)...................................................................................................5-1
Features of the LED Control Assembly (#61182001) (Figure 5-1)......................................................5-1
Flash Rate (Speed) of the Perimeter LEDs.........................................................................................5-1
Brightness of the Perimeter and Face Graphic (Panel) LEDs.............................................................5-1
Music Beat Sensitivity for Perimeter LEDs..........................................................................................5-2
LED Flash Mode Setting for Perimeter LEDs (Figure 5-2)..................................................................5-2
Setting Pattern for Perimeter LEDs .....................................................................................................5-2
BILL ACCEPTOR SETTINGS ..................................................................................................................5-4
Coinco Vantage Setup.........................................................................................................................5-4
MEI AE2611 Setup ..............................................................................................................................5-6
SECTION: 6 ROUTINE SERVICE ...................................................................................................................6-1
INTRODUCTION ......................................................................................................................................6-1
PREVENTIVE MAINTENANCE................................................................................................................6-2
Exterior ................................................................................................................................................6-2
Touch-screen Calibration ....................................................................................................................6-2
Air Filter ...............................................................................................................................................6-3
SECTION: 7 TROUBLESHOOTING................................................................................................................7-1
INTRODUCTION ......................................................................................................................................7-1
POWER SUPPLY BOARD .....................................................................................................................7-2
+9 V LED .............................................................................................................................................7-2
+12 V LED ...........................................................................................................................................7-2
+24 V LED ...........................................................................................................................................7-2
ROWELINK CONTROLLER .....................................................................................................................7-2

NiteHAWK Internet Jukebox Contents
22022602 v
5 VDC, 12 VDC, 24 VDC LEDs .......................................................................................................... 7-2
IR RCV LED ........................................................................................................................................ 7-2
KID RL TX LED ................................................................................................................................... 7-2
Core Computer RL RX LED................................................................................................................ 7-2
Core Computer RL TX LED ................................................................................................................ 7-2
CRDT RL TX LED ............................................................................................................................... 7-2
CRDT STATUS LED ........................................................................................................................... 7-2
4 Channel Preamplifier............................................................................................................................. 7-3
Power LED .......................................................................................................................................... 7-3
Status LED .......................................................................................................................................... 7-3
Rowelink LED...................................................................................................................................... 7-3
VOLUME CONTROL UNIT ...................................................................................................................... 7-3
Period LED (on the 10’s digit) ............................................................................................................. 7-3
Period LED (on the 1’s digit) ............................................................................................................... 7-3
POWER AMPLIFIER................................................................................................................................ 7-3
Yellow Clip LED .................................................................................................................................. 7-3
Red Overload LED............................................................................................................................ 7-3
COMPUTER CORE ASSEMBLY............................................................................................................. 7-3
Hard Drive Green LED........................................................................................................................ 7-3
Hard Drive Red LED ........................................................................................................................... 7-3
SEQUENCE OF OPERATION................................................................................................................. 7-4
TROUBLESHOOTING CHARTS ........................................................................................................... 7-10
SECTION: 8 PARTS CATALOG..................................................................................................................... 8-1
INTRODUCTION...................................................................................................................................... 8-2
Catalog Description............................................................................................................................. 8-2
Parts List Description .......................................................................................................................... 8-2
Ordering Replacement Parts .............................................................................................................. 8-2
DOOR ASSEMBLY (External View)......................................................................................................... 8-4
DOOR ASSEMBLY (Internal View).......................................................................................................... 8-6
SHELL ASSEMBLY (Internal View) ......................................................................................................... 8-8
SHELL ASSEMBLY (Internal View, Left Hand Side) ............................................................................. 8-10
SHELL ASSEMBLY (Internal View, Right Hand Side)........................................................................... 8-12
CORE COMPUTER ASSEMBLY – Exploded View............................................................................... 8-14
POWER SUPPLY ASSEMBLY .............................................................................................................. 8-16
4 CHANNEL PREAMPLIFIER................................................................................................................ 8-17
OUTPUT TRANSFORMER ASSEMBLY ............................................................................................... 8-18
ROWELINK CONTROLLER ASSEMBLY .............................................................................................. 8-19
HANGER BRACKET ASSEMBLY ......................................................................................................... 8-20
ACCESSORY EQUIPMENT .................................................................................................................. 8-21

Tables NiteHAWK Internet Jukebox
vi 22022602
List of Tables
TABLE 3-1 - EXTENSION SPEAKER WORKSHEET SHEET 1 ....................................................................3-3
TABLE 3-2 - EXTENSION SPEAKER WORKSHEET SHEET 2 ....................................................................3-4
TABLE 3-3 - EXTENSION SPEAKER WORKSHEET SHEET 3 ....................................................................3-5
TABLE 3-4 - EXTENSION SPEAKER WORKSHEET SHEET 4 ....................................................................3-6

NiteHAWK Internet Jukebox Figures
22022602 vii
Table of Figures
FIGURE 1-1 - INSTALLING THE HANGER BRACKET .................................................................................. 1-5
FIGURE 1-2 - REINSTALLING THE RETAINER BRACKETS ........................................................................ 1-6
FIGURE 1-3 - MAJOR COMPONENTS........................................................................................................... 1-9

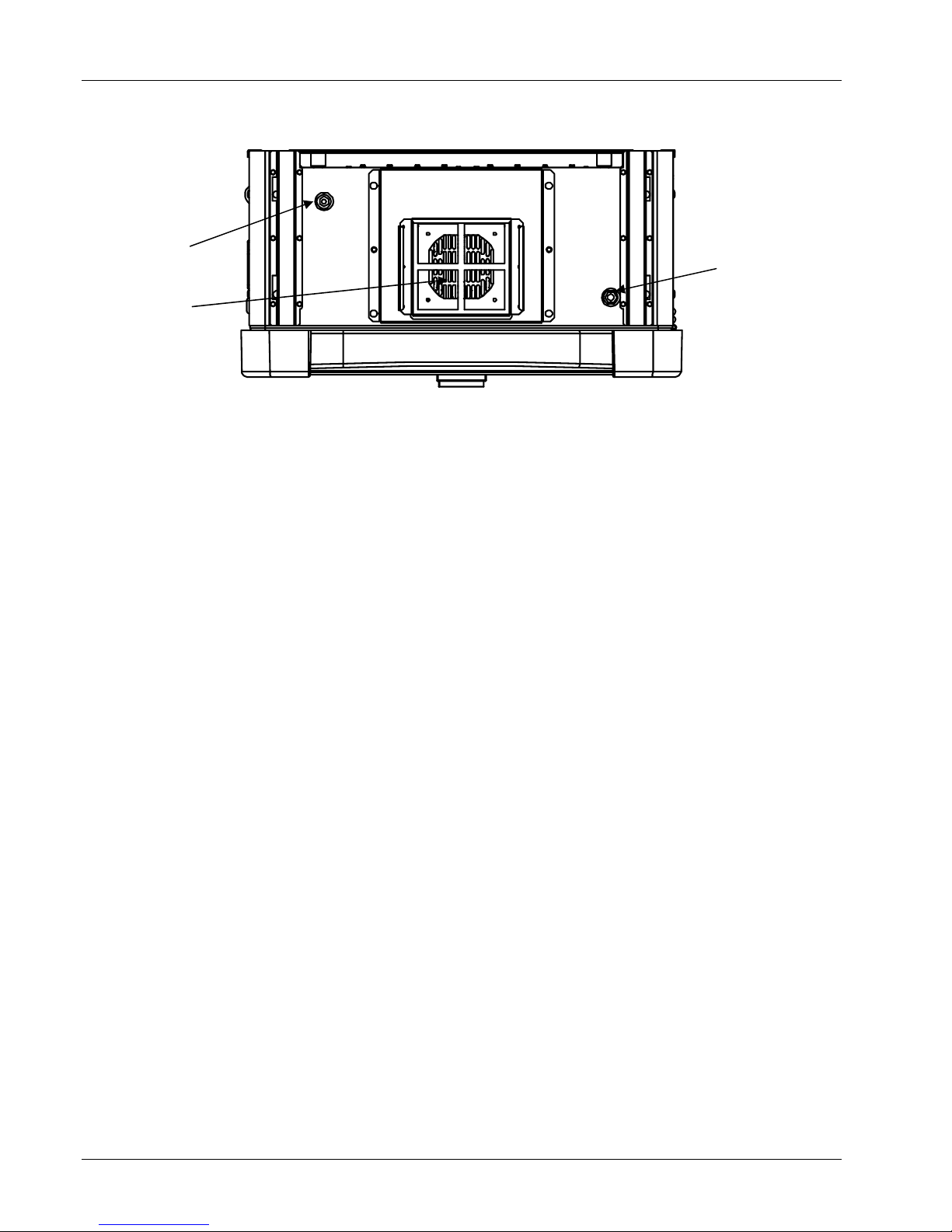

FIGURE 1-4 - BOTTOM PANEL FILTER AND SWITCHES.......................................................................... 1-10
FIGURE 2-1 - HARD DRIVE HOUSING .......................................................................................................... 2-1
FIGURE 2-2 - HARD DRIVE INSTALLED IN HOUSING................................................................................. 2-2
FIGURE 2-3 - IDE & POWER CABLES........................................................................................................... 2-2
FIGURE 2-4 - HARD DRIVE INSTALLED ....................................................................................................... 2-3
FIGURE 2-5 - ROWELINK CONTROLLER ..................................................................................................... 2-4
FIGURE 2-6 - CALIBRATION SCREEN .......................................................................................................... 2-4
FIGURE 2-7 - JUKEBOX USER INTERFACE................................................................................................. 2-5
FIGURE 3-1 - SPEAKER CONNECTIONS ..................................................................................................... 3-8
FIGURE 3-2 - AUDIO OUTPUT TRANSFORMER WIRING DIAGRAM (#40832115).................................. 3-10
FIGURE 3-3 - DIAGRAMS 1 AND 2 .............................................................................................................. 3-12
FIGURE 3-4 - DIAGRAM 3 ............................................................................................................................ 3-13
FIGURE 3-5 - DIAGRAM 4 ............................................................................................................................ 3-14
FIGURE 3-6 - DIAGRAM 5 ............................................................................................................................ 3-15
FIGURE 3-7 – VOLUME CONTROL WITH 3-WIRE OR 4-WIRE CABLE .................................................... 3-16
FIGURE 4-1 - MICROPHONE CONNECTIONS.............................................................................................. 4-1
FIGURE 4-2 - PAGING MICROPHONE SETUP SCREEN ............................................................................. 4-2
FIGURE 4-3 - VCU SETUP SCREEN ............................................................................................................. 4-3
FIGURE 5-1 - LED CONTROL ASSEMBLY .................................................................................................... 5-3
FIGURE 5-2 - PROGRAM DIP SWITCHES .................................................................................................... 5-3
FIGURE 5-3 - COINCO VANTAGE DIP SWITCHES ...................................................................................... 5-4
FIGURE 5-4 - SERVICE MODE BUTTON AND DIAGNOSTICS INDICATOR LED ....................................... 5-4
FIGURE 5-5 - REMOVING THE LOWER HOUSING ...................................................................................... 5-5
FIGURE 5-6 - CONFIGURATION SETTINGS................................................................................................. 5-5
FIGURE 5-7 - MEI BILL ACCEPTOR .............................................................................................................. 5-6
FIGURE 6-1 - CALIBRATE BUTTON .............................................................................................................. 6-2
FIGURE 6-2 - CALIBRATION SCREEN .......................................................................................................... 6-2
FIGURE 6-3 - FILTER REMOVAL ................................................................................................................... 6-3
FIGURE 7-1 - NITEHAWK WIRING DIAGRAM (SHEET 1) ............................................................................ 7-5
FIGURE 7-1 - NITEHAWK WIRING DIAGRAM (SHEET 2) ............................................................................ 7-6
FIGURE 7-1 - NITEHAWK WIRING DIAGRAM (SHEET 3) ............................................................................ 7-7
FIGURE 7-1 - NITEHAWK WIRING DIAGRAM (SHEET 4) ............................................................................ 7-8
FIGURE 7-1 - NITEHAWK WIRING DIAGRAM (SHEET 5) ............................................................................ 7-9
FIGURE 8-1 - DOOR ASSEMBLY (EXTERNAL VIEW) .................................................................................. 8-4
FIGURE 8-2 - DOOR ASSEMBLY - INTERNAL VIEW ................................................................................... 8-6
FIGURE 8-3 - SHELL ASSEMBLY (INTERNAL VIEW)................................................................................... 8-8
FIGURE 8-4 - SHELL ASSEMBLY (INTERNAL VIEW, LEFT HAND SIDE) ................................................. 8-10

Figures NiteHAWK Internet Jukebox
viii 22022602
FIGURE 8-5 - SHELL ASSEMBLY (INTERNAL VIEW, RIGHT HAND SIDE)............................................... 8-12
FIGURE 8-6 - CORE COMPUTER ASSEMBLY – EXPLODED VIEW ......................................................... 8-14
FIGURE 8-7 - POWER SUPPLY ASSEMBLY............................................................................................... 8-16
FIGURE 8-8 - 4 CHANNEL PREAMPLIFIER ................................................................................................ 8-17
FIGURE 8-9 - OUTPUT TRANSFORMER ASSEMBLY................................................................................ 8-18
FIGURE 8-10 - ROWELINK CONTROLLER ASSEMBLY............................................................................. 8-19
FIGURE 8-11 - HANGER BRACKET ASSEMBLY ........................................................................................ 8-20

NiteHAWK Internet Jukebox Unpacking & System Description
22022602 1-1
Section: 1 Unpacking & System Description
INTRODUCTION
The NiteHAWK jukebox is part of a much larger system - the AMI Entertainment®network.
This network is a digital platform that delivers music across the Internet to Rowe®Jukeboxes
anywhere.
The NiteHAWK jukebox is an Internet-enabled jukebox that allows all the traditional
functions of a jukebox backed by the power of the Internet. This Internet connectivity gives
patrons more features, such as the ability to download “Music On Demand” songs when
their song choice is not already on the jukebox.

Unpacking & System Description NiteHAWK Internet Jukebox
1-2 22022602
NiteHAWK JUKEBOX FEATURES
The major NiteHAWK features are:
General Features:
•Sturdy construction and reliable design
•Conveniently located customer, operator, and service controls
•All major components are modular and easy to replace, if needed
•Computer-controlled digital music
•A 1000-watt amplifier with dual 5-band graphic equalizer
•Song reject
•300 album and cover art capacity
•Unwanted music categories can be blocked
•Quarter Coin Acceptance
•Bill acceptance of $1, $5, $10, and $20
•Bill Box Capacity of 1000 bills
•Web-based management
•Dynamic Attract mode
•“Music On Demand” song download
•Dynamic search capabilities
•No pause between plays
•Easy to change pricing
•Background music tie-in
•Expandable to 2,4,6,8 or more zones
Service Features:
•All servicing can be done from the front of the jukebox
•Modular component construction for easy replacement
•No CD’s to bother with or cumbersome cover art mechanisms
•Complete cash and play audit information
•Password protected Operator web site
•Access anytime and from anywhere
•Track revenue and usage
•Download new music and other content
•Check system status

NiteHAWK Internet Jukebox Unpacking & System Description
22022602 1-3
UNPACKING INSTRUCTIONS
This section contains information for unpacking the jukebox and installing it at a location.
The jukebox is shipped with all major components except the Volume Control Unit in place.
Save all tie-down hardware in case the NiteHAWK must be moved to another location.
Exterior
1. Remove the shipping carton with care: Do not use shipping hooks or sharp tools that
could damage the jukebox cabinet.
2. Remove the plastic bag that covers the jukebox.
3. Carefully inspect the interior and exterior of the jukebox to ensure that no damage
occurred during transit.
If damage is detected, the carrier who delivered the jukebox should be contacted
immediately to examine it. Regardless of the exterior condition of the shipping cartons, the
carrier should be called and notified of damage. Do not destroy packing material or boxes
until the carrier’s agent has examined them.
Damage claims are your responsibility. Do not return damaged merchandise until after your
claim has been established. Once your claim has been established, merchandise may be
returned to your Rowe distributor for repair. The invoice amount for repair charges can then
be collected from the carrier.
Door
Locate the white bag in the coin return on the side of the cabinet. Remove the door key
from the bag and unlock the door. Turn the key clockwise and press in on the door as you
turn the key.
VISUAL INSPECTION
Check to be sure that all electrical plugs inside the jukebox are completely seated into their
receptacles.
HANDY CASE
Locate the Handy Case in a blue plastic envelope. The Handy Case contains a variety of
items, including this jukebox service manual and parts catalog, Volume Control Unit, spare
parts, and fuses. Keep the Handy Case with the jukebox at all times for ready reference.
WARRANTY REGISTRATION CARD
A postage-paid Warranty Registration Card is included in this manual. This card should be
filled out and returned to Rowe.

Unpacking & System Description NiteHAWK Internet Jukebox
1-4 22022602
INSTALLATION INSTRUCTIONS
CAUTION!
NiteHAWK must be solidly fastened to structural members within the supporting wall.
NiteHAWK weighs 180 pounds (82 kg); if it falls, it could cause damage or injury.
CAUTION!
Supplied fasteners (1-1/2” lag screws) are for wood wall stud construction. The
installer must use supplied fasteners, or longer length lag screws.
INSTALLING THE HANGER BRACKET
Hanger Bracket is shipped installed to back of the NiteHAWK. Refer to Figure 1-1.
1. Loosen the 2 screws in the slots of both Retainer Brackets. Refer to Figure 1-2.
Slide the Retainer Bracket to the side and remove. Then lower and remove the
Hanger Bracket.
IMPORTANT: Save the Retainer Brackets for later use after the NiteHAWK is
installed.
2. PREFERRED METHOD*: At the installation location, use a level to mark a line that
is exactly level and 66.5" (169 cm) above the floor. This will place the bottom of the
NiteHAWK at 30.80" (78.2 cm) above the floor.
IMPORTANT: This line must be level so that the mounted NiteHAWK will be level.
IMPORTANT: If replacing a WP-100 series CD Box or an NDW-1 Duet Box, use the
level to mark a line that is exactly 4 1/2" directly below the existing holes. This will
allow the use of existing lower holes in the wall and place the NiteHAWK at the same
recommended height.
3. Locate the wall stud locations on the horizontal line. If using the supplied lag screws,
drill 5/32" holes at the mark.
4. Place the Hanger Bracket against the wall. Align the Hanger Bracket holes with the
wall marks and attach with all fasteners.
* In order to comply with the height requirements of the ADA (Americans with
Disabilities Act), this line must be no more than 56.450 inches from the floor.

NiteHAWK Internet Jukebox Unpacking & System Description
22022602 1-5
16.000 5.665
5.162
5.615
5.112 8.132 7.868
35.703
FLOOR
30.80
2.700
17.750
66.500*
Figure 1-1 - Installing the Hanger Bracket
Hanger
Bracket

Unpacking & System Description NiteHAWK Internet Jukebox
1-6 22022602
HANGING THE NiteHAWK ON A BRACKET
CAUTION!
The NiteHAWK weighs 180 pounds (82 kg) and requires at least two people for
lifting. To see the Hanger Bracket alignment to the holes in the back panel, open the
Main Door.
1. As you lift the NiteHAWK to the Hanger Bracket, look through opened Door to be
sure the keyhole slots of the NiteHAWK Back Panel are aligned with the spools
of the Hanger Bracket.
2. Push the NiteHAWK against wall and lower it onto the spools.
3. While the Door is still opened, visually check that the NiteHAWK Back Panel is
properly seated on the spool slots.
4. Reinstall the Retainer Brackets and tighten the screws to lock the NiteHAWK on
the Hanger Bracket. Refer to Figure 1-2.
Loosen Screws
Hanger Bracket Spool
Loosen Screws Retainer Brackets
Figure 1-2 - Reinstalling the Retainer Brackets

NiteHAWK Internet Jukebox Unpacking & System Description
22022602 1-7
MAJOR COMPONENTS OF THE NiteHAWK
Figures 1-3 and 1-4 show the major components of the NiteHAWK Jukebox. Take a minute
to familiarize yourself with these components.
Core Computer
The core computer is the heart of the system and has a removable hard drive and a single
board computer. The hard drive is the only storage in the system and contains Windows XP
Embedded Operating System software, all Application software, all music, and all setup and
audit data. The single board computer converts music selections stored on the hard drive
into a stereo signal for the system’s audio components. It also connects to the Internet, the
SVGA touch-screen monitor, and the Rowelink modules.
Touch-screen 19” LCD Monitor
All machine operations are done through the touch-screen monitor. These include viewing
and making selections, displaying the selection being played, displaying pricing and credits,
viewing and changing setup and audit data, and downloading “Music On Demand”
selections.
System Power Supply
The system power supply produces +9 VDC, +12 VDC, +24 VDC, and contains a relay to
switch the jukebox lights, touch-screen monitor, and Bill Acceptor ON or OFF. It has an IEC
320 power inlet, two 6A circuit breakers and two 4A fuses.
Transformer Assembly
The transformer assembly supplies power for the Audio/Video Controller, 1000-Watt Audio
Digital Amplifier, and the system power supply described above.
Rowelink Controller
The Rowelink controller connects the core computer’s serial RS-232 COM2 port to the serial
RS-485 Rowelink modules. It also includes the coin switch, router reset, fan circuits, bill
acceptor, song reject, infrared detector and amplifier mute.
LED Controller
This module controls the LEDs that illuminate the perimeter lighting on the door and the
door graphics of the jukebox. It provides adjustments for the Brightness, Flash Rate, and
Music Sensitivity along with controls for the patterns used during standby and, separately,
the times when music is playing.
Router
This device provides the interface between the core computer and the broadband modem or
satellite receiver. There is a one-time configuration process to set this device for your
particular Internet Service Provider (ISP). In addition to the port required for the core
computer, there are three other ports provided for other devices.

Unpacking & System Description NiteHAWK Internet Jukebox
1-8 22022602
Volume Control Unit
The Volume Control Unit (VCU), a Rowelink module, should be mounted remotely (behind
bar, etc.). The 100-foot modular cable (included) can be connected between the unit and
P5, 6, 7, 8, or 9 on the Rowelink Controller. It displays and controls the volume of the
amplifier channels and microphones. If an existing 100 foot cable is already in place, you
can use the 3-wire or 4-wire (see Figure 3-7) alternate wiring.
•The POWER button turns the NiteHAWK Jukebox lights, touch-screen monitor and Bill
Acceptor ON or OFF.
•The REJECT button rejects the selection playing.
•The FUTURE button adds credits toward selections (See “Credit Management” in the
Operator Setup Screens Manual).
•The MODE key toggles between channels and microphones.
•The VCU also raises or lowers the volume of the channel(s) or microphone using the UP
DOWN keys. The volume range is 0 to 63. Channel Volume is displayed when the
mode LED is off, and microphone volume is displayed when the mode LED is on.
The CH, MIC, and SINGER LEDs indicate what volume is being displayed. When
adjusting channel volume, if more than one LED is on, it means those channels have the
same volume. All four channels have the same volume when shipped from the factory
(see Section 3 of the included “Network Setup, Jukebox Operation, Operator Setup
Screens” manual for other possible configurations).
4 Channel Preamplifier
This Rowelink module transforms audio signals from the core computer, microphones, and
other sound processors/equipment/systems into signals for the Power Amplifier. It also
contains Automatic Volume Control (AVC) to adjust for varying recording levels and tone
controls, via 5-band equalizers. All adjustments and options are programmable via the
touch-screen and are retained on the Core Computer hard drive (see Section 3 of the
included “Network Setup, Jukebox Operation, Operator Setup Screens” manual for setup
information).
1000-Watt Audio Digital Power Amplifier
The 2-channel digital audio power amplifier is rated 1000 watts RMS (500 per channel) into
a 2-ohm load. The full volume output voltage is 32 volts.
The amplifier is protected against overloads and short circuits. Continuous severe
overloads or shorts may shut down the amplifier (or a channel) but will not damage it. If the
overload is removed a signal will reset the amplifier when the next selection plays.
Audio Output Transformers
The output transformers “step up” the power amplifiers output voltage for 70-volt extension
speakers. They also provide screw connections for selecting different power levels for
extension speakers.
Bill Acceptor
The Coinco ® Vantage ™, with an 1100-bill stacker or optional MEI ®Series 2000 bill
acceptor, with a 1000-bill stacker, operates on 120 VAC input power and sends its pulsed
credit signals to the Rowelink Controller.

NiteHAWK Internet Jukebox Unpacking & System Description
22022602 1-9
Figure 1-3 - Major Components
Power Transformer
Core Compute
r
Rowelink Controlle
r
Route
r
Surge Suppresso
r
& ON/OFF Switch
Coin Acceptor
Coin Inle
t
Bill Accepto
r
Touch-Screen
19” LCD Monito
r
LED Controller
LCD Power
Adapter
System Power Supply
Audio Output
Transformer
Cabinet Fan
Volume
Control
Unit
A
ir Filte
r
4 Channel Preamplifier
1000 Watt Digital Audio
Output Transformer

Unpacking & System Description NiteHAWK Internet Jukebox
1-10 22022602
Figure 1-4 - Bottom Panel Filter and Switches
Router
Reset Core
Computer
Reset
Filter
