Royal Enfield BULLET ELECTRA User manual

1
RELOADED
Get ready for the adventure of a lifetime. Reengineered. Redesigned. Revitalized.
The all-new Bullet Electra 350 UCE features a modern Unit Construction engine with 5 gears on
the left. Easier to ride, more torque and no maintenance trouble. It’s the Bullet Reloaded.
This manual is designed to give you complete control over your motorcycle. It contains important
information on efficient operation and maintenance. We’ve also included tips on riding safely, as
well as suggestions to enhance your motorcycling experience.
Your safety is of prime concern to us and we urge you to be a responsible rider. Please select
your riding gear carefully in accordance with your terrain, style and weather conditions. And ensure
the same for your pillion rider as well. Respect the law of the land and ride safe.
Finally, we welcome you to the Royal Enfield community. You can locate your nearest club or sign
up for the next big ride at www.royalenfield.com
The legend rides on.

2
All information in this manual is based on the latest product information available at the time of
publication. Due to continues improvements or other changes, there may be discrepancies between
information in this manual and your vehicle. Royal Enfield reserves the right to make production
changes at any time without prior notice and without incurring any obligation to make same or
similar changes to vehicles previously built or sold.
All images shown are for reference to explain and need not to be exactly the same on the model you
own. Technical specification are subject to change without prior notice.
“© Copyright 2006 Royal Enfield. All Rights Reserved. No part of this manual shall be copied,
distributed or otherwise dealt without the express permission in writing of Royal Enfield.
N O T I C E
Part No. 592579/a / Qty. 1000 / Oct. ‘10

3
Personal and vehicle information .................. 4
Free service record ........................................... 5
Specifications .................................................... 6
Safety Definitions ............................................ 9
Safe and happy riding ................................... 10
Vehicle identification numbers ..................... 11
Location of key parts .................................... 12
Operation of controls .................................... 15
Pre-Operational Checks ................................. 21
Running in ...................................................... 22
Starting ........................................................... 23
Gear Shifting, Riding & Stopping ................ 25
Parking ........................................................... 26
Tools & First Aid kit ...................................... 27
Periodical maintenance chart ....................... 28
Recommended lubricants ............................... 31
Do it yourself .................................................. 32
Washing procedure ........................................ 45
Storage precautions ....................................... 46
Long trip precautions .................................... 48
Caring for Mileage ......................................... 49
Complete Wiring diagram-Kick Start .......... 52
Complete Wiring diagram-Electric Start ..... 53
Trouble shooting ............................................ 54
Warranty terms & conditions ....................... 61
Emission Warranty ........................................ 63
All India Road Signs ...................................... 67
Regional & Area Offices ................................ 68
Log Book ......................................................... 69
Free Service coupons ...................................... 70
Paid Service & Maintenance Record ............. 79
Notes........................................................
Annexures
Vehicle Installation Form
Pre-Delivery Inspection Report
Bike Installation Confirmation By Customer
Form 22
C O N T E N T S

4
P E R S O N A L & V E H I C L E
I N F O R M A T I O N
Vehicle Installation Form (VIF) No.
Name
Door No./Street
Locality
City State Pin
Contact Nos. Res: Off: Mobile : Email :
Engine No. Battery No.
Frame No. Battery make
Reg. No. Licence No.
Date of Sale Valid till dt.
Model Key No. :
Tyre make Colour
Sold by Dealer Code

5
F R E E S E R V I C E
R E C O R D
It is our endeavour to provide excellent service to your Bullet Electra 350 UCE at all times. Towards
this we provide four free services at specific intervals.
Please avail these services at the specified time, in any of the Royal Enfield Dealerships / Authorised
service centres nearest to you and as a token of satisfactory services, kindly return the free service
coupon duly filled in and signed, to the service outlet.
Availing the free services in the specified time is a prerequisite for warranty consideration.
The cost of fuel, oil, oil filter element, grease etc. used for all free services are chargeable to the
customer.
Note : Please ensure that the free service details are recorded in this sheet immediately after the
service is carried out.
Date of Service
Kms Covered
Servicing
Dealer’s Name
Addres s
1st Service 4th Service2nd Service 3rd Service

6
S P E C I F I C A T I O N S
ENGINE AND ENGINE SYSTEMS
Engine Type ................... Single Cylinder
........................................ 4 Stroke, OHV,
........................................ SI Engine,
........................................ air cooled, Twinspark
Bore ................................ 70mm
Stroke ............................. 90mm
Swept volume ................. 346cc
Compression ratio ......... 8.5:1
Max Power BHP @ RPM 19.8@5250
Max Torque in NM@ RPM 28@4000
IDLE RPM ...................... 1050+200
Starting .......................... Kick Start/E-Start
Air filter element ........... Paper element
Lubrication .................... Wet sump, Forced
........................................ lubrication
Engine oil capacity ....... 2.75 Litres
Carburator ..................... UCAL, BS29
Engine oil grade ............ Motul 3000 4T Plus
........................................ 15W50API, SL Grade
........................................ JASO MA
Cooling ........................... Natural air flow
TRANSMISSION
Clutch ............................. Wet multiplate
Primary drive ................ Duplex chain drive
Primary ratio ................. 2.15 : 1
Gear box ......................... Constant Mesh
........................................ 5 Speed
Gear Ratio ...................... 1st 3.06:1
........................................ 2nd 2.01:1
........................................ 3rd 1.52:1
........................................ 4th 1.21:1
........................................ 5th 1:1

7
Final drive ...................... 15 Teeth (Sprocket)
Final Ratio ..................... 2.533:1
CHASSIS
Frame .............................. Tubular
Suspension :Front ......... Telescopic, hydraulic
........................................ damping,
........................................ Stroke 130 mm
Rear ........... Swi ng arm wi t h
........................................ gas shock absorbers
........................................ stroke 80mm
Fr. Fork oil capacity ..... 195 ml per leg
Front fork oil ................ 1F (Endurance fork oil)
Front Brake : Disc Brake Hy d raulic 28 0 m m
........................................ ventilated disc.
Rear ........... Foot operated 153 mm
........................................ single lead, internal
........................................ expanding
Brake oil Capacity ......... 60 ml
Brake oil grade ............. DOT 3 or DOT 4
Tyre size : Front ...... 3.25×19 4/6 PR
Rear ........ 3.25×19 4/6 PR
TYRE PRESSURE
Solo Front ....... 20 psi/1.41 kg/cm2
Rear ......... 30 psi/2.11 kg/cm2
With Pillion Front ....... 22 psi/1.55 kg/cm2
Rear ......... 32 psi/2.20 kg/cm2
Steering lock .................. In built
Fuel tank capacity ........ 13.5 litres (Min.)
Reserve ........................... 2 Litres approx.
ELECTRICALS
Generation ..................... Alternator
System : E-Start .......... 12V - DC
Kick Start ..... 12V - AC / DC
S P E C I F I C A T I O N S

8
Values given above are for your guidance only.
In view of continuous improvements being done on our products, the specifications are
likely to change without prior notice.
Ignition .......................... Digital TCI
Battery : E-Start ......... 12V - 14 AH MF
Kick Start .... 12V - 5 AH
Head lamp MFR ............ 12V, 35/35 W
Tail lamp ........................ 12V, 5W
Brake lamp ..................... 12V, 21W
Parking lamp ................. 12V,2W - 2 Nos
Speedometer lamp .......... 12V, 3.4W
Hi beam indicator .......... 12V, 2W
Turn Signal Tell Tale .... 12V, 2W
Turn signal .................... 12V, 10W
Horn ............................... 12V,2.5 Amp(Max.)
Starter Motor (for E-Start) 12V, 0.7KW
S P E C I F I C A T I O N S
WEIGHTS
Kerb weight (90% fuel & Oil) .
E-Start ......... 183 Kgs
Kick Start .... 180 Kgs
Max pay load .................. 350 Kgs.
DIMENSIONS
Length ............................ 2140 mm
Width .............................. 810 mm
Height ............................ 1120 mm
Wheel base ..................... 1370 mm
Ground clearance .......... 140 mm
Saddle height ................. 800mm

9
The information given under the titles : Warning, Caution and Note are for your safety and for
the care and safety to your motorcycle and others. Please read these carefully and if disregarded
may result in injury to yourself or others and damages to the motorcycle.
WARNING
Indicates a potentially hazardous situation.Disregarding this message may result in injury to
rider or other persons.
CAUTION :
This message if disregarded may result in damage to the vehicle.
NOTE :
Indicates important and useful messages for clearer understanding.
All Images shown are for reference to explain and need not to be exactly the same on the model
you own. Technical specification are subject to change without prior notice.
S A F E T Y
D E F I N I T I O N S

10
RIDING DRESS
A proper riding apparel
NOTE :
A li gh t colo ur e d s hirt e na b l es gre a ter
visibility to other road users specially during
nights.
CAUTION :
Loose clothing may get caught on moving
parts of your motor-cycle.
A pair of riding boots or shoes.
Soft leather gloves.
Goggles or spectacles to safe guard eyes.
An ISI certified helmet. Affix light reflecting
strips of stickers at the front and rear.
SITTING POSTURE
Correct sitting posture is a pre-requisite for
stable and safe riding :
Sit Straight with your shoulders completely
relaxed.
Keep your elbows close to your body.
Keep your toes in straight ahead direction.
Slightly press the petrol tank with the knees.
Hold the handle grip close to its inner end.
Look extensively, including rear view mirror,
without turning the head.
BRAKING
Use both, front and rear brakes together for
maximum braking efficiency.
WARNING
Applying any one of the brakes suddenly may
cause the vehicle to skid.
While riding on wet or bad road conditions
use brakes cautiously.
S A F E A N D
H A P P Y R I D I N G

11
FRAME NUMBER
Punched on steering head tube RH side.
V E H I C L E I D E N T I F I -
C A T I O N N U M B E R S
ENGINE NUMBER
Punched on top of the engine LH side.

12

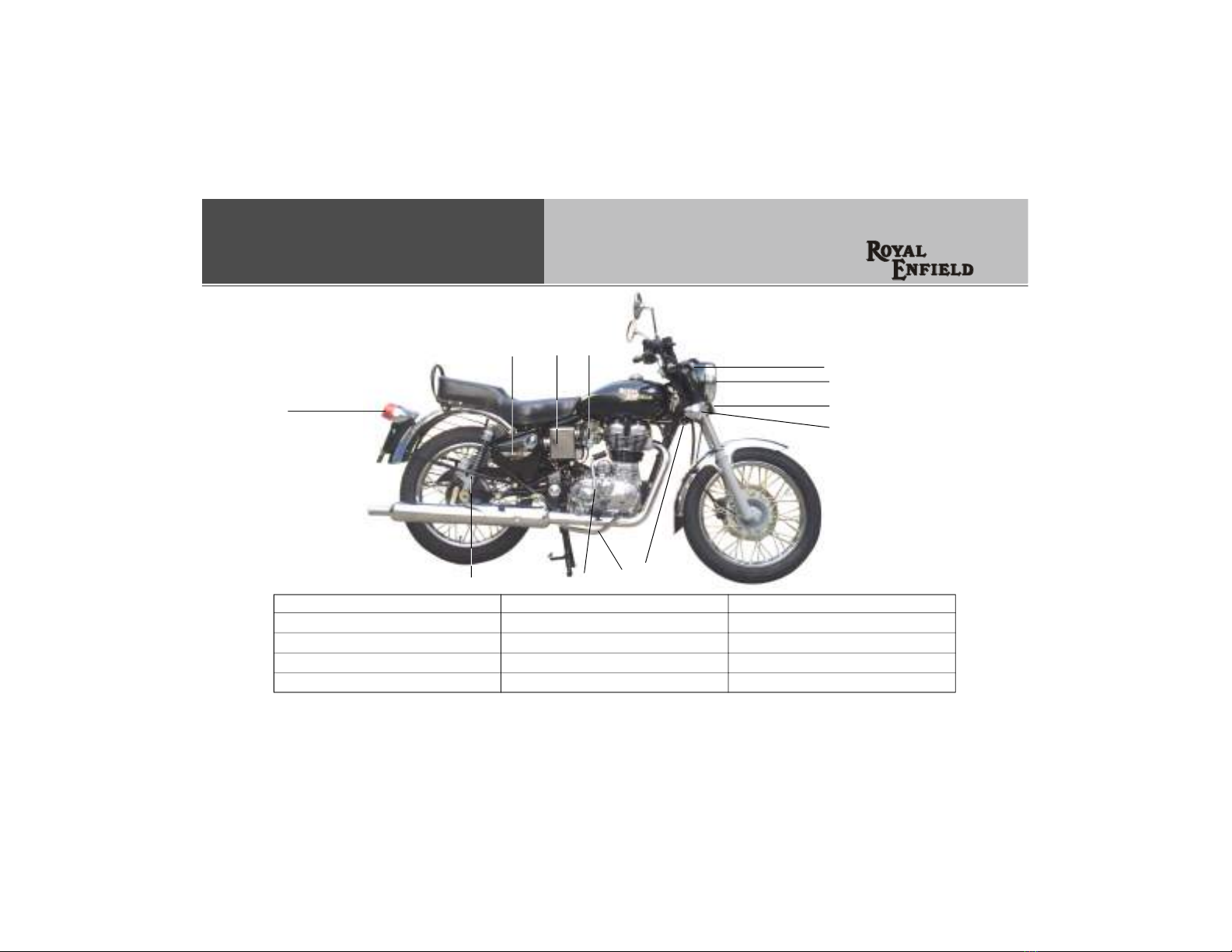

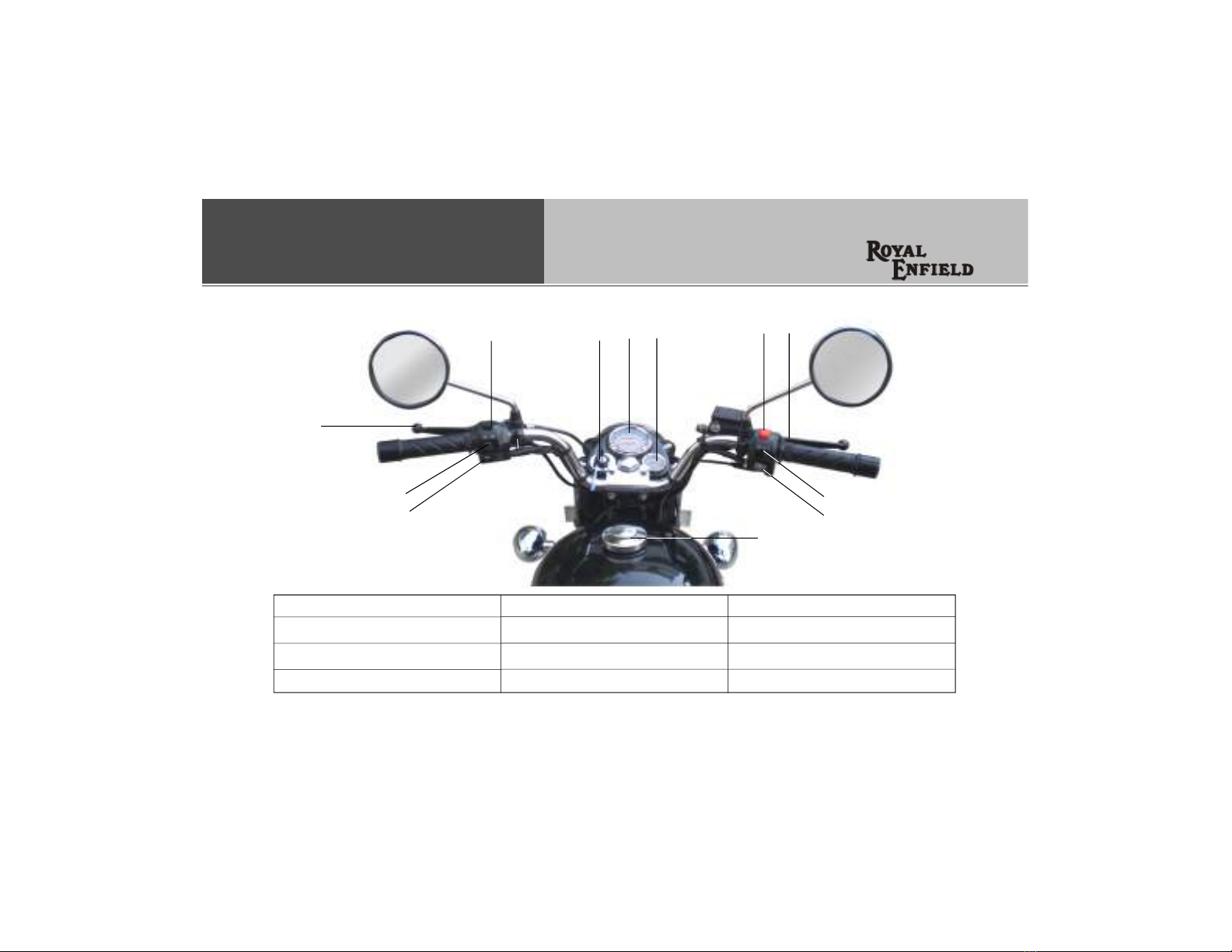

TOP VIEW

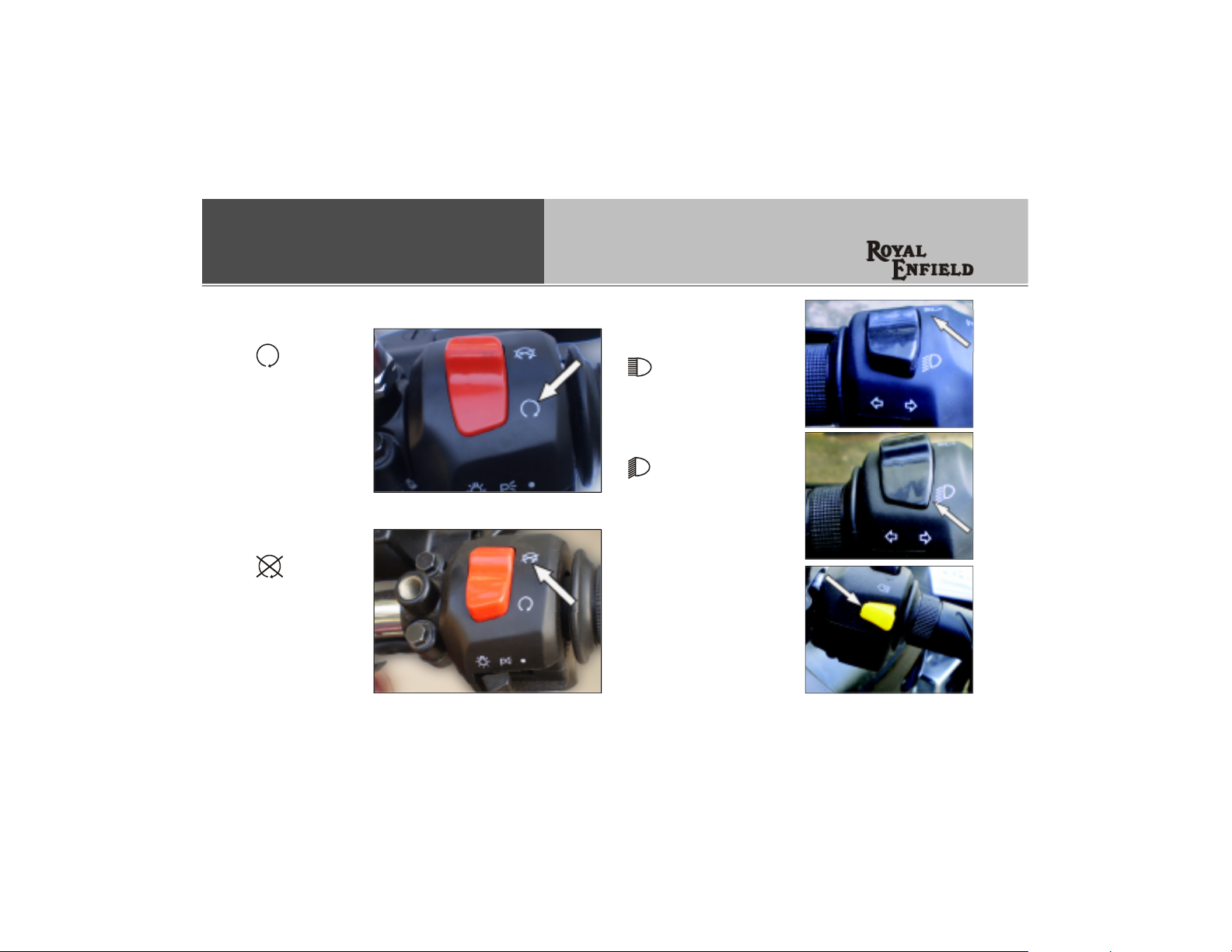

1. Horn Button
2. Turn Signal Switch
3. Cluth Lever LH
4. Head Lamp Dip Switch
5. Ignition Switch
6. Speedo Meter
7. Ammeter
8. Engine Kill Switch
9. Brake Lever RH
10. Pilot & Head Lamp Switch
11. E-Start Switch
12. Petrol Tank Cap
L O C A T I O N O F
K E Y P A R T S
2
5
4
3
1
6 7 8 9
10
12
11

13
L O C A T I O N O F
K E Y P A R T S
1
3456
8
9
11 10
13
2
12
7
LEFT SIDE VIEW
1. Front Trafficator LH
2. Pilot Lamp LH
3. Fuel Tank
4. Fuel Tap
5. Battery Box Cover
11. Centre Stand
12. Gear Shift Lever
13. Horn
6. Seat
7. Tail Lamp
8. Rear Trafficator LH
9. Number Plate Rear
10. Side Stand

14
L O C A T I O N O F
K E Y P A R T S
11. Kick Start Lever
12. Shock Absorber (Gas filled)
1. Rear Trafficator RH
2. Tool box
3. Air filter box
4. Carburetor
5. Pilot Lamp RH
6. Head Light
7. Front Number Plate
8. Front Trafficator RH
9. Steering lock
10. Brake Pedal
1
6
8
7
9
10
11
12
5
243
RIGHT SIDE VIEW

15

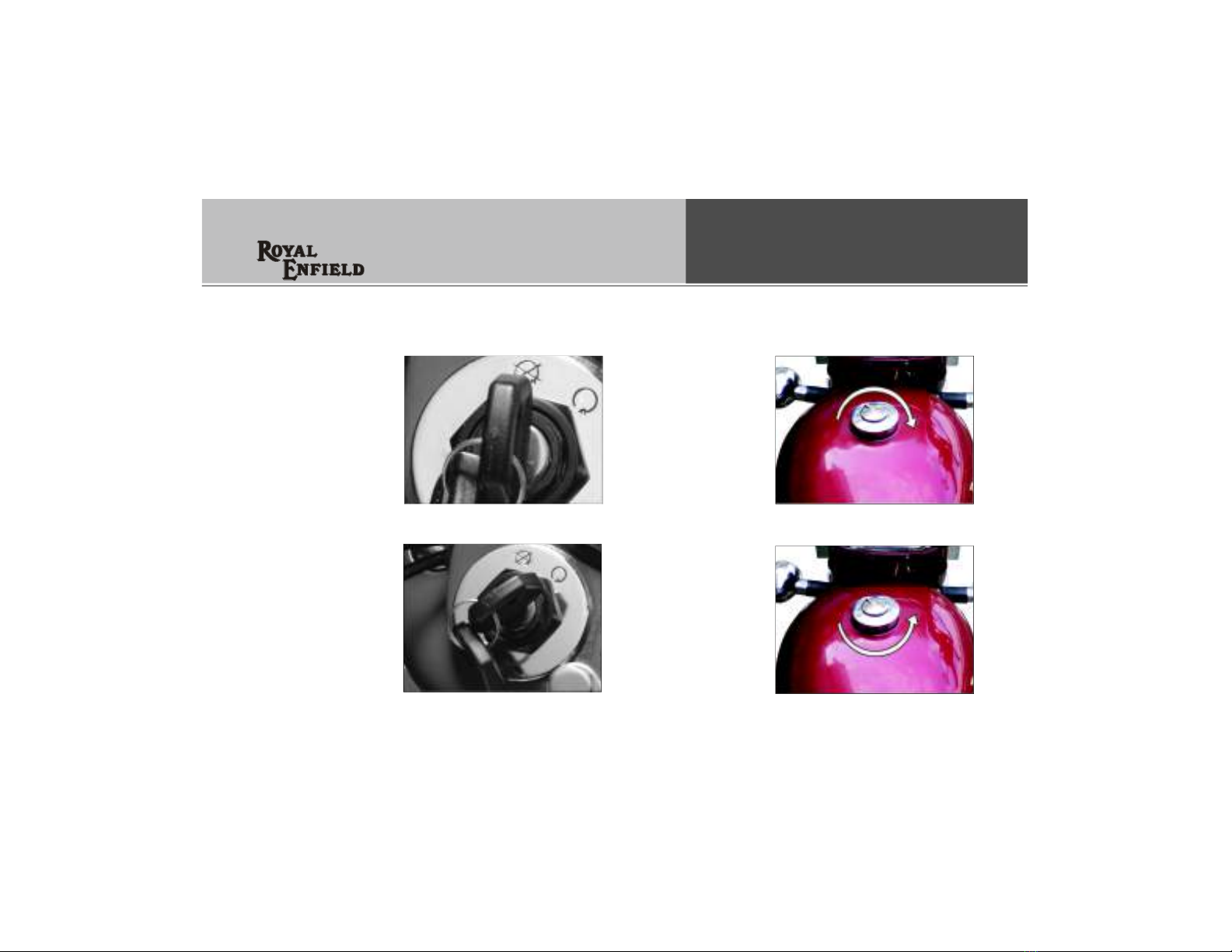

IGNITION SWITCH
OFF
ON

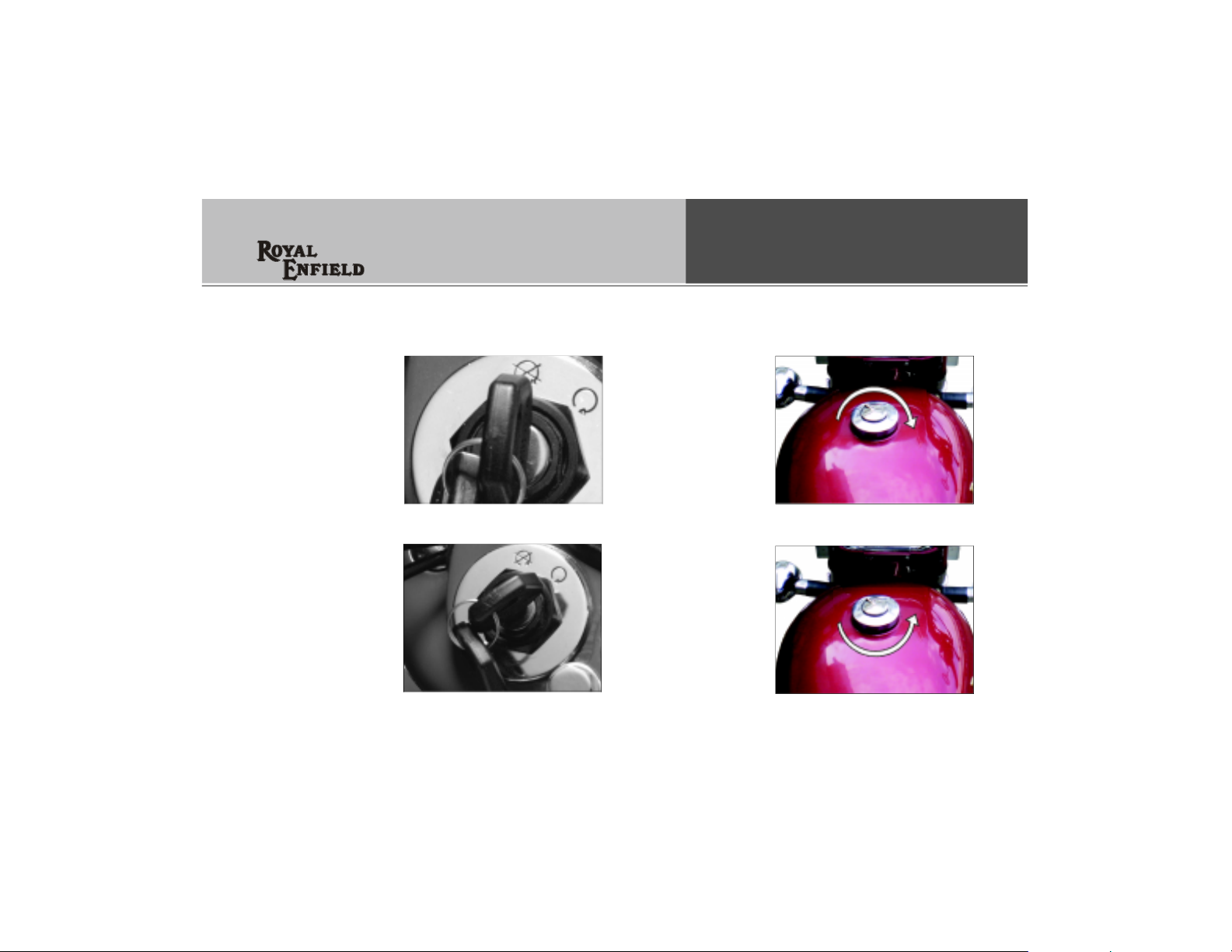

FUEL TANK CAP
lTurn Key
Clockwise to
open
lTurn Key Anti
Clock wise to
close.
O P E R A T I O N O F
C O N T R O L S

16
O P E R A T I O N O F
C O N T R O L S

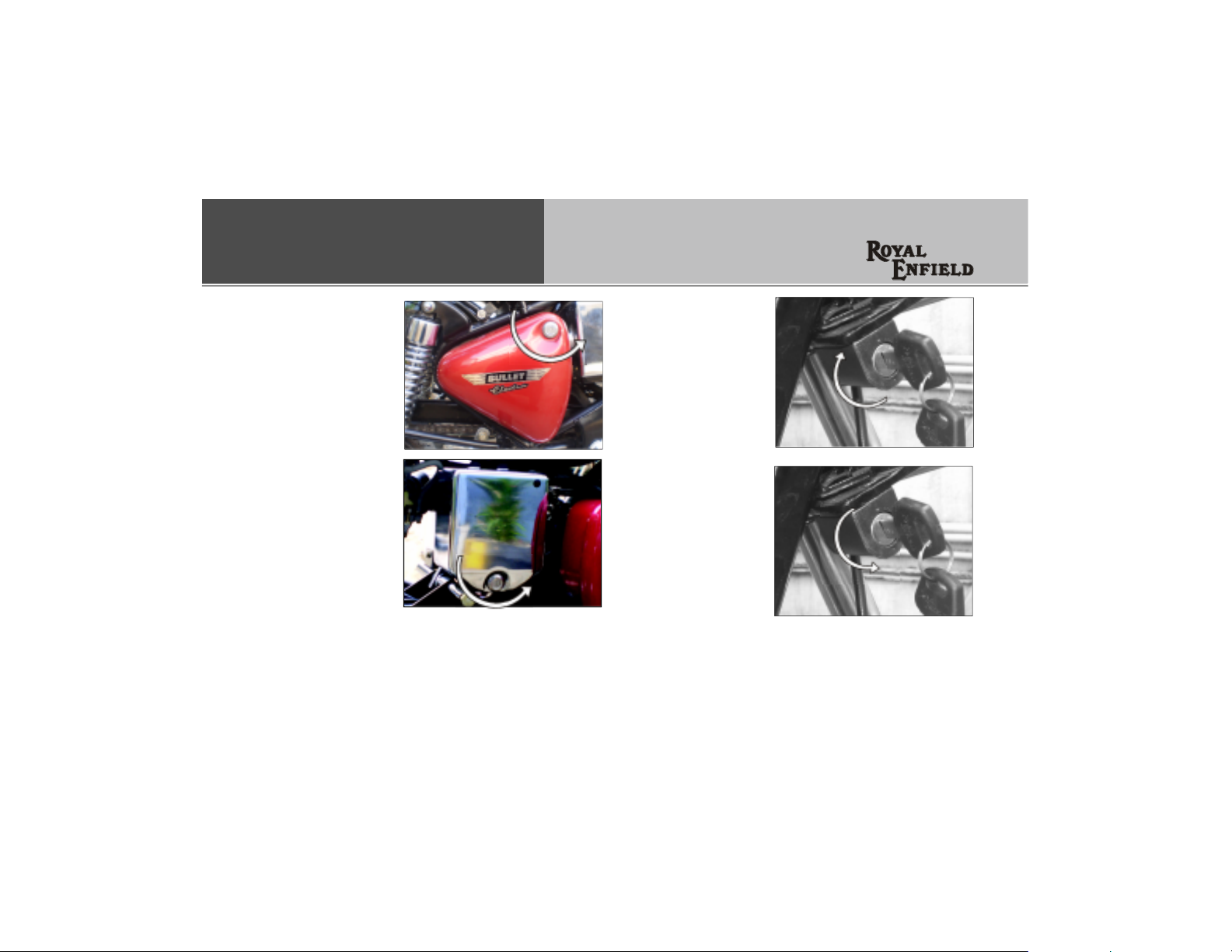

SIDE BOX
Turn anti clockwise
to open
BATTERY BOX
Turn anti clockwise
to open
NOTE :
Key is common for ignition, petrol tank cap,
steering lock, and tool boxes.
Key for fuel tank and tool boxes can be
remov e d fr o m th e lock on ly in l ocke d
position.
STEERING LOCK
Turn Clockwise to
lock
Turn Anticlockwise
to Unlock
NOTE :
Turn handle bar to extreme left, before
attempting to lock steering.

17
O P E R A T I O N O F
C O N T R O L S
HORN
Press
HEAD LIGHT
SWITCH
OFF
Pilot ON
Head lamp ON
ELECTRIC START SWITCH
E-START BUTTON
Presss fully to start
NOTE :
Press E-Start
Button fully till
engine develops
cranking speed.
Not to make half
hearted attempt.

18
DIMMER SWITCH
High beam
Low beam
Day flash
O P E R A T I O N O F
C O N T R O L S
ENGINE STOP SWITCH
ON
OFF
