Royal garden MLOBCH108 User manual

Assembly Instructions
Padded Wicker Bench
Questions, problems, or missing parts?
Before returning to the store, call Customer Service.
1-866-988-3300
8 a.m. - 5 p.m., PST Monday - Friday
Item No. MLOBCH108, MLOBCH208, MLOBCH308
Retain this manual for future use.

MLOBCH108, MLOBCH208, MLOBCH308
Contents
Safety Instructions
Parts List
Assembly
Cleaning & Maintenance
Warranty
3
4
5
7
8
IMPORTANT: RETAIN FOR FUTURE REFERENCE, AND READ CAREFULLY.

WARNING
Please keep children out of the assembly
area before assembly.
WARNING
Never use this product as support. Do not shake,
lean, or climb on the product at any time.
WARNING
Do not place heavy objects on the chair.
WARNING
When not in use, secure the product in a cool
and covered location.
WARNING
Do not locate the product near any heat source.
WARNING
Warning: Weight limit for the chairs is 250lbs
(113.39Kg) for each set.
Safety Instructions
MLOBCH108, MLOBCH208, MLOBCH308

Parts List
A
Seat frame - 2
C
Side leg - 2
AA
M8x45 Bolt & Washer - 8
B
Middle leg - 2
BB
M6x20 Bolt & Washer - 6
CC
Wrench - 1
MLOBCH108, MLOBCH208, MLOBCH308

Assembly
STEP 1

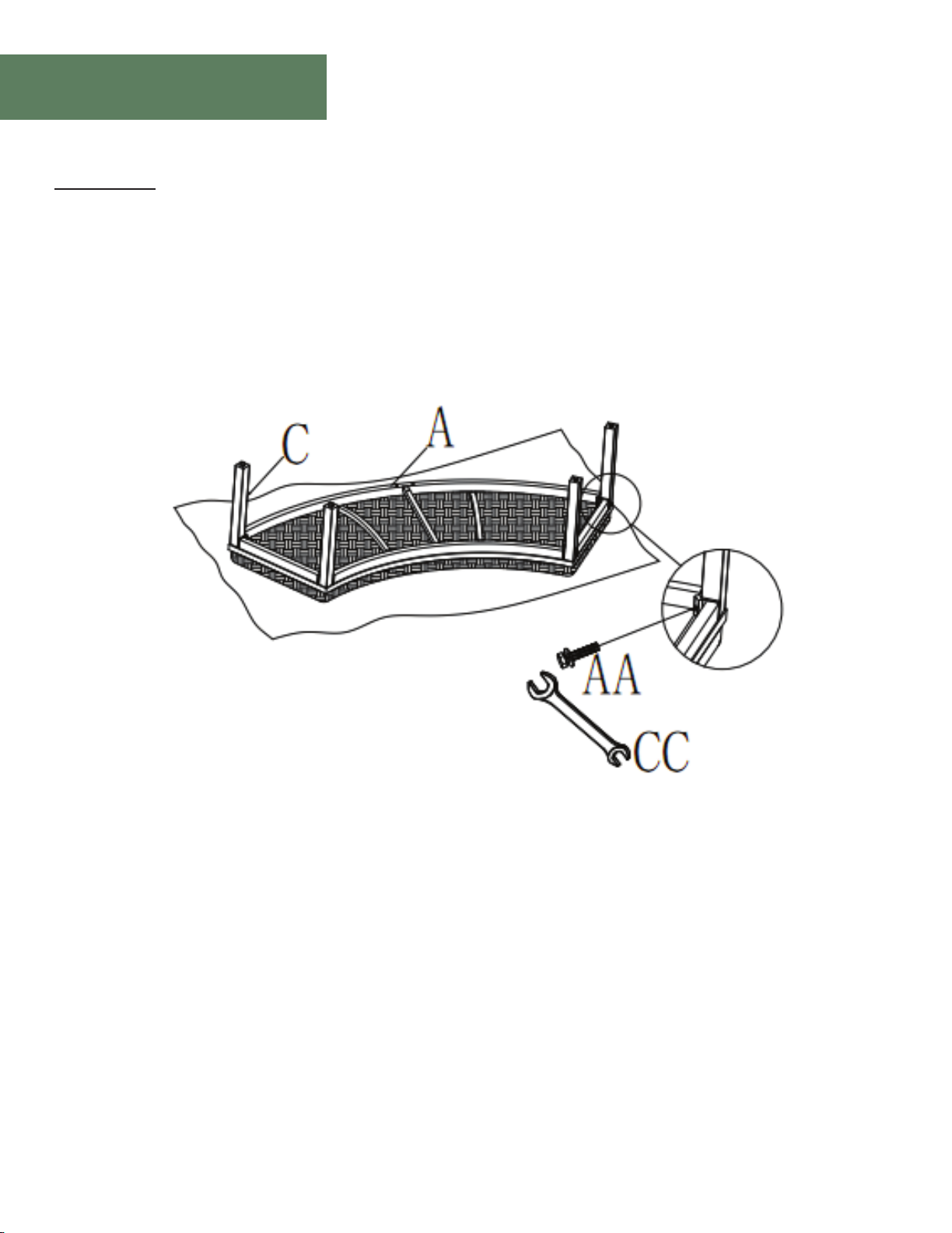

Requires: AA, CC, A, C
MLOBCH108, MLOBCH208, MLOBCH308
Attaching the Side Legs to the Seat Frame
Place the seat frame (A) on a soft surface.
Attach the side legs (C) to the seat frame (A) using M8x45 bolt and washer (AA).
Do not tighten all bolts at this step.
NOTE: Loosely tighten all bolts using the hex wrench (CC).

Assembly
STEP 2

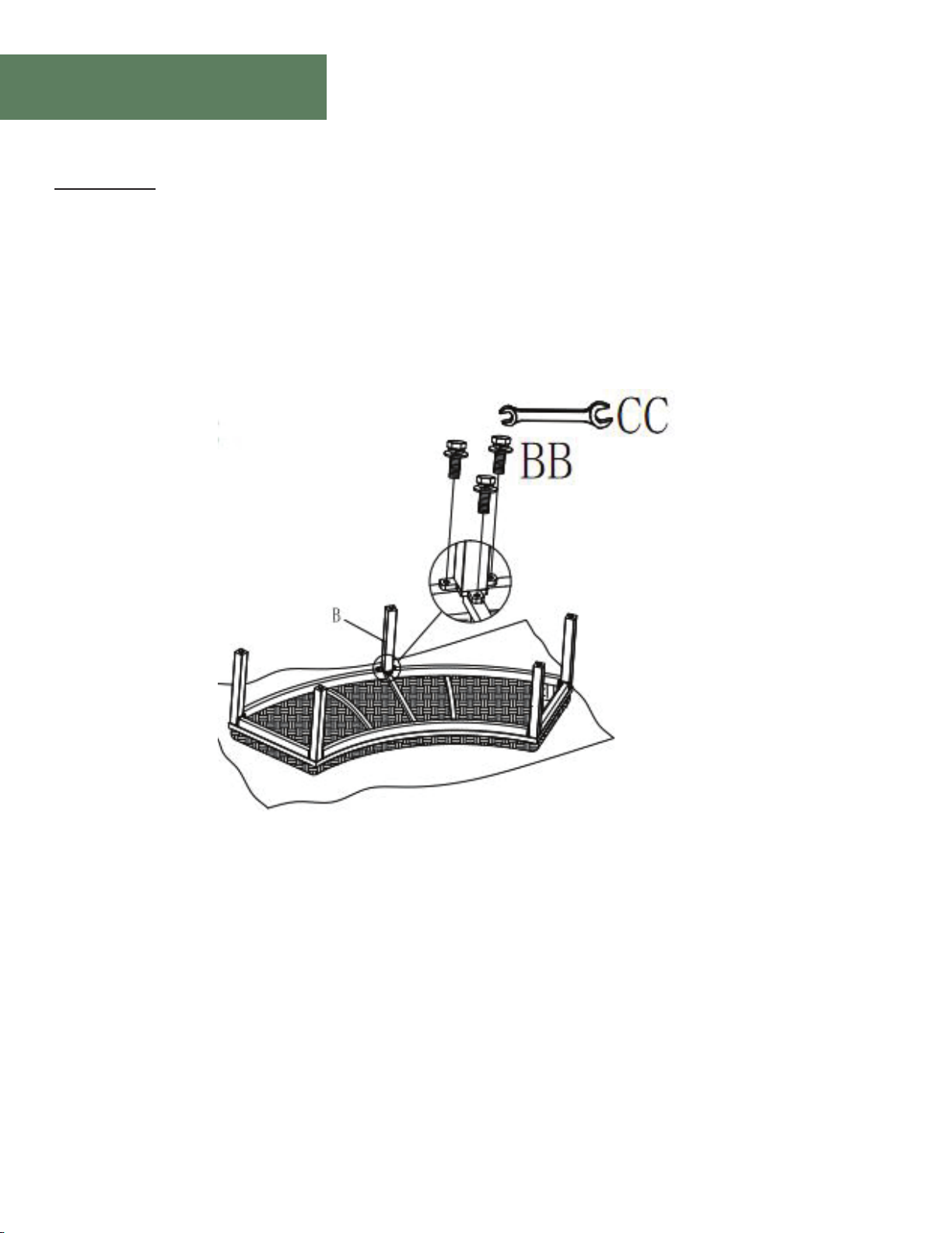

Requires: BB, CC, B
MLOBCH108, MLOBCH208, MLOBCH308
Attaching the Middle Leg to the Seat Frame
Attach the middle leg (B) to the seat frame (A) using M6x20 bolt and washer (BB).
Do not tighten all bolts at this step.
NOTE: Loosely tighten all bolts using the hex wrench (CC).

Assembly
STEP 3
MLOBCH108, MLOBCH208, MLOBCH308
Tightening all Bolts
Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (CC).
Turn the bench right side up.
Ensure all connections are secure before use.
Requires: E, F

Assembly
STEP 4
MLOBCH108, MLOBCH208, MLOBCH308
Turn adjustable feet as needed for level seating.

Cleaning & Maintenance
MLOBCH108, MLOBCH208, MLOBCH308
• For best results, clean the frame with a damp cloth and dry thoroughly. This will help
prevent mildew by removing dirt particles that may accumulate.
• Do not clean with abrasive materials, bleach, or solvents.
• Store the benches in a dry, sheltered place when not in use.
• Keep the benches away from fire, extreme heat, freezing conditions, and inclement
weather such as rain, hail, sleet, snow, or wind.

Warranty
Outdoor Furniture
IMPORTANT
If you have any problems with this product (missing or damaged parts, assembly issues, etc.),
PLEASE DO NOT RETURN TO THE RETAILER/STORE
from where you purchased the product.
Please call our Toll-Free Customer Service Hotline at:
1-866-988-3300
To expedite any future warranty claims, please retain the instruction sheet, warranty card and
receipt for future use.
Care and Maintenance
Store furniture in an upright position. Be careful to never allow water to build up in frames as this
will cause corrosion and freeze damage in cold climates. Wash all frames with a solution of mild
soap and water. Rinse with clean water and dry with a soft absorbent cloth towel. Frames can be
treated with a liquid wax for maximum protection against UV rays and/or salty, damp air. If your
set includes cushions, slings, and/or an umbrella they may be cleaned by hand with a solution of
soap and water with a clean water rinse. (Never machine wash cushions, slings or umbrella covers
as this will result in shrinkage or damage). After cleaning cushions tip on end and allow to drip
dry. (Never use a commercial or home dryer to tumble dry fabric goods). Do not use bleach or
solvents to clean any product! This will void the warranty.
MLOBCH108, MLOBCH208, MLOBCH308

Warranty
Outdoor Furniture
1-YEAR LIMITED WARRANTY PROGRAM
For a period of one (1) year after date of purchase, the Manufacturer will either repair or replace defective
components in accordance with this Limited Warranty. This warranty is between the Manufacturer and the
original purchaser and is valid only when accompanied by the original purchaser’s sales receipt showing
original date of purchase and location of purchase. Replacements under this warranty revert back to the
date of original purchase for future warranty.
warranty applies in normal residential use only and is not intended for commercial use. The Manufacturer
can make substitutions as required of materials, components, and sub-components of comparable value
and utility. This warranty is limited to product repair or replacement (to be determined solely by the
Manufacturer). Warranty return is limited to only the single affected component.
This limited warranty covers only manufacturing defects and does not cover normal wear and tear, damage
due to acts of nature (such as, but not limited to freezing or high winds), abuse or misuse, including
chemical damage from suntan oil or other chemicals, exposure to extreme heat or cold, abrasion or
excessive weight. This product is intended to be used in standard installations only. This warranty is void
if the product is not used for its intended purpose. The Manufacturer disclaims liability for any aspect of
installation and any inconvenience caused by a defective part of a component.
Certain items are not covered by this warranty. These include, but are not limited to the following:
1. Components subjected to abuse, including abuse intended to simulate failure.
2. Damages caused by retailer, shipper or installation crew (such as scratches, dents, tears, chips, etc.).
3. Any part which merely exhibits normal wear yet functions essentially as new, including chips, scratches or
stretching of materials and stitching.
4. Tears, punctures, scratches or any damage caused by improper installation or use.
5. Damage to frames/welds resulting from improper assembly or exposure to water and/or sub-freezing
temperatures is not covered. General frame rusting is not covered.
6. Fading and/or discoloration of fabrics/cushions/straps/wicker resulting from exposure to the elements,
7. Umbrella bases are not covered under any circumstances.
To make a claim, call the toll-free number below. Please have available a copy of the original sales receipt
along with a brief description of the problem. Please also provide your email address and daytime telephone
or cell phone number. All items may be charged actual freight costs plus $15 for handling. Repairs or
replacement will be made at the Manufacturer’s option. Sales and use taxes, plus shipping and handling
charges are the responsibility of the consumer.
THIS IS THE ENTIRE EXCLUSIVE EXPRESS LIMITED LIABILITY. THE MANUFACTURER NEITHER MAKES
THOSE OF RETAILING DEALERS. THIS EXCLUSIVE REMEDY IS LIMITED TO RECEIPT OF A CREDIT IN
CONNECTION WITH THE REPAIR OR REPLACEMENT OF ANY PRODUCT OR COMPONENT DEEMED
TO BE DEFECTIVE UNDER THE TERMS AND CONDITIONS AS STATED IN THIS WARRANTY. NEITHER
ARISING OUT OF ANY BREACH OF THIS WARRANTY OR NEGLIGENCE EVEN IF IT HAS BEEN ADVISED
ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OTHER THAN THE WARRANTY DESCRIBED
OR FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED.
MLOBCH108, MLOBCH208, MLOBCH308

Assembly Instructions
42” Tile Top Firepit
Questions, problems, or missing parts?
Before returning to the store, call Customer Service.
1-866-988-3300
8 a.m. - 5 p.m., PST Monday - Friday
Product No. MLOFPT108
Model No. FWA19930
Retain this manual for future use.

Contents
Safety Instructions
Parts List
Assembly
Cleaning & Maintenance
Warranty
3
4
5
7
8
IMPORTANT: RETAIN FOR FUTURE REFERENCE, AND READ CAREFULLY.
MLOFPT108

WARNING
Please read all instructions carefully before
assembling this furniture.
WARNING
For your safety, assembly by two or more adults
is strongly recommended.
WARNING
Use only vendor-supplied hardware to
assemble this item. Using unauthorized
hardware could jeopardize the structural
integrity of the item.
WARNING
Hardware may loosen overtime. Periodically
check that all connections are tight.
Safety Instructions
BEFORE ASSEMBLY
• Remove all parts and hardware from the box. Place all items on a carpeted or scratch-free work
surface, as this will prevent damaging parts during assembly.
• The shipping box provides an ideal work surface.
• To prevent accidentally discarding small parts or hardware, do not dispose of any packaging or
contents of the shipping carton until assembly is complete.
• Use the parts and hardware list to identify and separate each of the pieces included.
• The use of power tools for assembly is not recommended. Power tools can damage the hardware.
• Note: Do not fully tighten bolts until all parts are in place. Failure to follow these instructions may
cause the bolts and frame to misalign during assembly.
WARNING
If the information in this manual is not followed
personal injury, or loss of life may occur.
MLOFPT108

Safety Instructions
WARNING
HOT! DO NOT TOUCH SEVERE BURNS MAY
RESULT. CLOTHING IGNITION MAY RESULT.
Glass and other surfaces are hot during
operation and cool-down
• Young children should be carefully supervised
when they are in the area of the appliance
• Children and adults should be alerted to the
hazards of high surface temperatures and
should stay away to avoid burns or clothing
ignition
• Clothing or other flammable materials should
not be hung from the appliance or placed on or
near the appliance.
Model# FWA10155 Fire Pit
Installer: Leave this manual with appliance.
Consumer: Retain this manual for future reference.
WARNING
Do not store or use gasoline, or other flammable
vapors and liquids, in the vicinity of this or any
other appliance. An LP-cylinder not connected
for use shall not be stored in the vicinity of this
or any other appliance.
WARNING
Improper installation, adjustment, alteration,
service, or maintenance can cause injury or
property damage. Read the installation and
maintenance instructions thoroughly before
installing or servicing this equipment.
CAUTION
DO NOT DISCARD THIS MANUAL
Important operating and maintenance
instructions. Read, understand, and follow
these instructions for safe installation and
operation.
WARNING (CALIFORNIA PROPOSITION 65)
This product can expose you to carbon monoxide, which is a
combustion byproduct known to the State of California to
cause cancer birth defects or
other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
Handling the brass material on this product can expose you
to Lead, which is known to the State of California to cause
cancer and birth defects or other reproductive harm. Wash
hands after handling. For more information go to
www.P65Warnings.ca.gov.
DANGER
If you smell gas:
Shut off gas to the appliance. Extinguish any
open flame. If odor continues, leave the area
immediately. After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions could result in
fire or explosion,which could cause property
damage, personal injury,or death.
WARNING
FOR OUTDOOR USE ONLY.
Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
CAUTION
CAUTION: Hot while in operation. Do not touch.
Keep burner area clean.
US
MLOFPT108

Safety Instructions
Installer: Leave these instructions with consumer
Consumer: Keep these instructions for future
reference.
This appliance is a Decorative Gas Appliance for
OUTDOOR USE ONLY and MUST NOT be used
for cooking.
A. Design and Installation Considerations
Place the Fire Pit on a flat and stable surface in
an outdoor location adjacent to the gas supply
line or LP gas supply cylinder. DO NOT locate
the appliance where it will get excessively wet
or submerged in water.
B. Tools and Supplies Required
Before beginning the installation, be sure that
the following tools and supplies are at hand.
• Gloves
• Safety Glasses
• Wrench
C. Inspect the Appliance and Components
WARNING
Inspect appliance and components for damage
Damaged parts may impair safe operation.
DO NOT install damaged, incomplete,
or substitute components.
Report damaged parts to your dealer.
• Carefully remove all burner components from
packaging.
• Read all instructions before beginning
installation.
Follow these instructions carefully during
WARNING
1. Glass media may have sharp edges. Wear safety glasses and gloves when handling.
2. Pour the glass media evenly into the burner area (with the exception of the screen-if applicable).
The glass should be 1/2-1” above the burner.
3. Keep away from the unit for the first 20 minutes after igniting your unit for the first time, as glass
beads could pop out and cause injury. Should any rocks pop out, discard them.
WARNING
Do NOT use this appliance if any part of it has
been under water. Have a qualified service
technician inspect the appliance and replace
any part of the control system and any gas
control which has been under water.
Do not burn solid fuels in this gas appliance.
WARNING
The warranty will be voided by, the following
actions:
• Installation and use of any damaged
components.
• Modification of the burner assembly.
• Installation other than as instructed by the
factory.
Any such action may cause a fire hazard.
WARNING
Never leave Fire Pit unattended for any
amount of time.
Never sit on the Fire Pit.
Never use Fire Pit as a storage unit.
WARNING
Asphyxiation Risk
• This gas appliance is for outdoor use in a
well-ventilated space.
• This unit must not be installed inside an
enclosed structure or unvented appliance.
MLOFPT108

Gas Hookup & Information
A. Fuel
Before making gas connections, ensure the
appliance being installed is compatible with the
available gas type.
B. Gas Pressure
Proper input pressures are required for optimum
performance. Gas line sizing requirements need to
be made following.
NFPA54
C. Gas Connection
Before making gas connections, ensure the
appliance being installed is compatible with the
available gas type.
B. Gas Pressure
Note: Have the gas supply installed in accordance with
local building codes, if any. If not, follow ANSI 223.1.
Installation should be done by a qualified installer
approved and/or licensed as required by locality. (in the
Common weath of Massachusetts installation must be
performed by a licensed plumber or gas fitter).
Note: A listed (and Common wealth of Massachusetts
approved) 3/8 in. T-handle manual shut-off valve and
flexible gas connector are connected to the 3/8 in.
Control valve inlet. If substituting for these components,
please consult local codes for compliance.
• Incoming gas line should be piped to the 3/8 inch
connection on the manual shutoff valve.
WARNING
Fire Risk
Explosion Risk
Verify inlet pressures.
• High pressure may cause over fire condition.
• Low pressures may cause explosion
• Verify minimum pressures when other
household gas appliances are operating.
Install regulator upstream of valve if line
pressure is greater than ½psi.
Pressure requirements for appliance are shown in table
below.
Minimum pressures must be met when other household
gas appliances are operating.
WARNING
Fire Risk
Explosion Risk.
• Gas build-up during line purge may ignite.
• Purge should be performed by qualified
technician.
• Ensure adequate ventilation.
• Ensure there are no ignition sources such as
sparks or open flames.
A small amount of air will be in the gas supply
line. When first lighting appliance it will take a
short time for air to purge from lines.
Subsequent lighting of the unit will not require
such purging. Never allow the ON / OFF valve
to remain in the open position without pressing
and continuing to hold igniter button FIRST.
WARNING
CHECK FOR GAS LEAKS
Fire Risk
Explosion Risk
Asphyxiation Risk.
• Check all fittings and connections.
• Do not use open flame,
• After the gas line installation is complete, all
connections must be tightened and checked
for leaks with a commercially available
leak-check solution. Be sure to rinse off all leak
check solution. Be sure to rinse off all leak
check solution following testing.
Fittings and connections may have loosened
during shipping and handling..
Pressure Natural gas Propane
Minimum Inlet Pressure 3.5 in w.c. 25 psi
Maximum Inlet Pressure 10.5 in w.c. 250 psi
MLOFPT108

Safety Instructions
*Do not use this fire pit for cooking.
*Do not burn any other materials than are supplied with and intended for use in this fire pit.
*Do not pour water into fire pit.
*The installation of this product must conform with local codes.
*Do not use this fire pit if any part has been under water.
*Do not store a spare or disconnected liquid propane cylinder under or near this fire pit.
*After a period of storage, and/or non use, the propane fire pit should be checked for gas leaks and burner
obstructions before use.
*Do not operate the propane fire pit if there is gas leak present.
*Never use a flame to check for gas leaks.
*Combustible materials should never be within 10 feet of the top, back or sides of your propane fire pit.
*Do not put any other fire pit cover or anything flammable on, or beneath the fire pit.
*The propane fire pit should never be used by children. Children must be supervised when they are anywhere near
the appliance.
*Users should be alerted to the hazards of high surface temperatures and keep a safe distance to avoid burning or
clothing igniton.
*Pay attention when operating the firepit. It is hot in use and should never be left unattended. Do not transit fire pit
while in operation.
*Should fire go out while burning, turn the gas valve off. Follow the instruction and wait five minutes before
attempting to relight.
*Never use charcoal or any other solid fuel in the fire pit. Never parch clothing or other flammable materials on or
near the fire pit.
*Never lean over the open fire pit or place hands or fingers on the upper portion of an operational unit.
*Keep ventilation openings in cylinder enclosure ( FIRE PIT BODY ) free and clear of debris.
*Do not rest feet on the fire pit.
*Please take out the battery when not using the fire pit for an extended length of time.
*Do not enlarge valve orifices or burner ports when cleaning the valve or burner. Cylinder supply system must be
arranged for vapor withdrawal.
*LP Tank used must include a collar to protect the cylinder valve.
*Never fill the cylinder beyond 80% full.
*Do not use this fire pit on vehicles or boats. Always operate the appliance on the flat ground outdoors.
*Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.
*Do not use this fire pit unless all parts are in place.
*Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and
liquids
*Inspect the hose before each use of the appliance.
*If there is evidence of excessive abrasion or wear or if the hose is damaged, the hose assembly must be replaced
prior to the appliance being put into operation.
*Locating the hose into pathways where people may trip over it or in areas where the hose may be subject to
accidental damaged.
*The burner must be replaced prior to the appliance being put into operation if it is evident that the burner is
damaged.
The LP-gas supply cylinder to be used must be:
1) constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)
Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for Transportation of
Dangerous Goods and Commission, CAN/CSA-B339, as applicable;
2) provided with a listed overfilling prevention device;
3) provide with a cylinder connection device compatible with the connection for the appliance.
Installation and repair should be done by a qualified service person. The appliance should d be inspected before use
and at least annually by a qualified service person. More frequent cleaning may be required as necessary. It is
imperative that the control compartment, burners and circulating air passageways of the appliance are kept clean.
WARNING
MLOFPT108

Parts List
A
A
Table top - 1
C
C
Cover - 1
D
D
Glass beads - 1
AA
M6x20φ24 Bolt & Washer - 3
B
B
Table base - 1
BB
Wrench - 1
CC
AAA Battery - 1
MLOFPT108

Assembly
STEP 1
Requires: A, B, AA, BB
Attach the Table Top (A) onto Table Base (B) by lining up the bolt holes. Insert M6x20 Bolts
(AA) through the bolt holes on table base and into table top, loosely tighten the Bolts (AA) by hand.
Fully tighten all bolts once they are in place.
A
B
AA
BB
MLOFPT108
