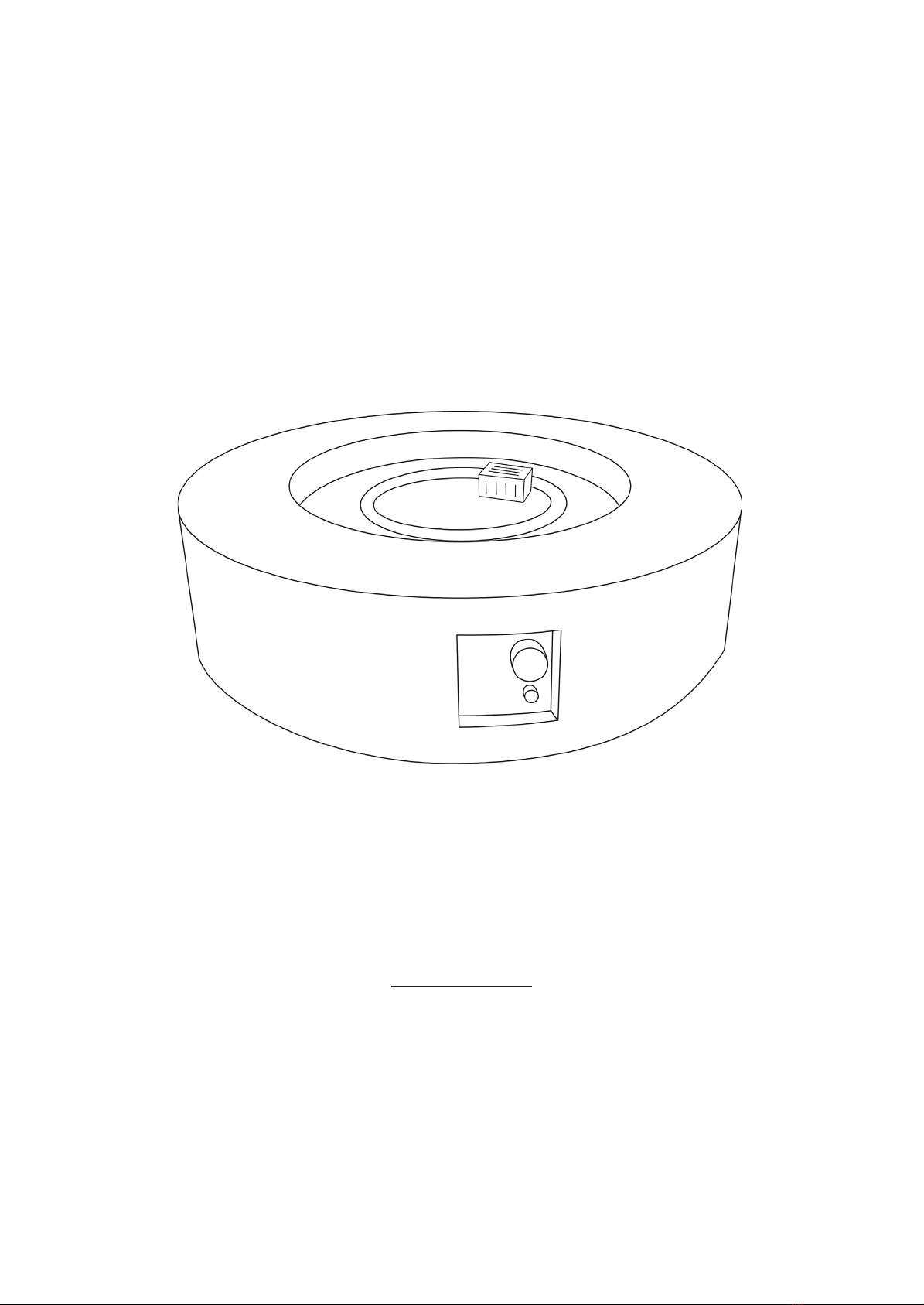

Royal garden TM21RD41FPT1 User manual

Assembly Instructions
Fire Table
Questions, problems, or missing parts?
Before returning to the store please visit sunvilla.com,
or contact our Customer Service Department
at [email protected] or call
1-888-690-9800
8am - 5pm PST Monday - Friday
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
THE ITEM IS INTENDED FOR OUTDOOR DOMESTIC USE ONLY,
NOT FOR COMMERCIAL USE.
ITM. / ART. # TM21RD41FPT1

CONTENTS
•
Warnings ................................................................ 1-4
• Assembly ................................................................ 7-8
•
Operation ................................................................9-10
•
Maintenance & Storage ................................... ...... 11
•
Trouble Shooting .................................................... 12-13
•
Warranty Information ............................................... 14
•
Diagram ................................................................... 5-6

Page 1 of 14
Warnings
● Ifthe propane gas tank is leaking gas,
you may hear, see, or smell a hiss. Do
the following:
1. Disconnect the propane gas tank.
2. Do not attempt to fix the problem by
yourself.
3. Contact your gas supplier or fire
department for help.
●
Do not use a flame to check for
gas leaks.
● Keep gas tank at least 5 ft away from
unit when lit. (if external tank)
●
The maximum gas supply pressure is
250psi.
WARNING
● Improper installation,
adjustment, alteration, service or
maintenance can cause injury or
property damage.
● Read the owners manual
thoroughly before installing or
servicing this equipment. If the
information in this manual is not
followed exactly, a fire or
explosion may result causing
property damage, personal
injury, or loss of life.
WARNING
CARBON MONOXIDE HAZARD
● This appliance can produce carbon
monoxide which has no odor. Using it in
an enclosed space can kill you.
● For outdoor use only.
● Never use in the unventilated or
enclosed areas.
DANGER
IF YOU SMELL GAS:
● Shut off gas to the appliance.
● Extinguish any open flame.
● If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department
for help.
● WARNING indicates an
imminently hazardous situation
which, if not avoided, will result
in death or serious injury.
● Do not store or use gasoline
or other flammable vapors and
liquids in the vicinity of this or
any other appliance. An LP-
cylinder not connected for use
shall not be stored in the
vicinity of this or any other
appliance.
WARNING

Page 2 of 14
WARNING
● Applying too much propane may result in gas pooling and will not burn.
Allow fresh air into the unit so that the remaining gas may escape.
● Use LP propane tanks with the following dimensions: diameter 12inch,
height 18inch, capacity 20lbs.
● You must use a propane tank that has a collar to protect the gas valve.
● DO NOT fill tank over 80 Percent full.
● The LP gas tank must have a listed overfilling prevention device and a
QCCI or Type I, (CGA810) LP gas tank connection.
● The gas supply tank should be constructed and marked with the
specifications for the LP gas tanks of the U.S. Department of Transportation
or the National Standard of Canada CAN/CSA-B339, LP gas tanks, spheres
and tubes for Transportation of Dangerous Goods and Commission.
● Discontinue use if any part of the propane tank is damaged. Rust and
dents may be hazardous and should be inspected by a gas supplier.
● The installation of this unit must adhere to local codes or either the
National Fuel Gas Code, ANSI Z223. 1/NFPA54, OR CAN/CGA- B149.1,
National Gas and Propane Installation Code.
● This unit istobeused with propane gas only! (sold separately), is
not intended for natural gas.
● Do not use any solid fuel or charcoal for this unit.
● Do not use any more than 1/4in depth lava rocks/ pumice stones/
Lava Glass above the burner holes. Doing so will suffocate the flame.
WARNING
Warnings

Page 3 of 14
WARNING
● All installation and repair should be done by a Qualified Service
Technician. This unit should be inspected annually and cleaned regularly.
●
Inspect all elements of this Fire Table / Column before each use.
If there is damage, the Burner must be replaced.
●
The LP Gas tank must have a listed overfilling prevention device and a
QCCI or Type I, LP Gas tank connection.
●
●
Keep the appliance aera clear and free from combustible material,
gasoline and other flammable vapors and liquids.
● Be aware of the hazards of high temperatures and stay away from the
unit to avoid any burns or injury.
● This heating appliance should NOT be used on plastic, artificial wood
desks or any desk.
●
DO NOT add water into the unit.
DO NOT disconnect any part while the unit is in use.
●
DO NOT operate on a boat or vehicle.
DO NOT set the Protective Cover over the unit until the Fire Table /
●
●
Check for leaks after not using the unit for long periods of time.
WARNING
Warnings
Column is turned off and completely cooled down (where applicable).
●

Page 4 of 14
WARNING
● Do not operate unit until all parts are fully assembled.
● Do not attempt to move it while in use.
● This unit is not intended for cooking.
● Young children should be carefully supervised when they are in the
area of the appliance.
●
Keep away from the unit for the first 20 minutes after igniting for the
first time, as lava rock /pumice stones could pop out and cause injury.
● Do not set the protective cover over the unit until it is turned
off and completely cooled down.
● Combustible material should not be within 72 inches of the top of
the unit, or within 48 inches around the entire unit.
● If the flame goes out while burning, turn the gas valve off. Wait 5
minutes before repeating the initial lighting procedure. Once you
have a flame started, hold down the control knob for 1 minute.
● Inspect all elements of this heating unit before each use. If there is
damage, the burner must be replaced.
● Keep the hose out from any pathways to eliminate any accidental
damage. (if external tank)
● Installation and repair should be done by a qualified service person.
The appliance should be inspected before use and at least annually by a
qualified service person. More frequent cleaning may be required as
necessary.
● You must follow all steps to properly assemble this heating item. Make
sure the gas valve is turned “OFF” before assembling. Do NOT attempt
to assemble without proper tools.
WARNING
Warnings

Page 5 of 14

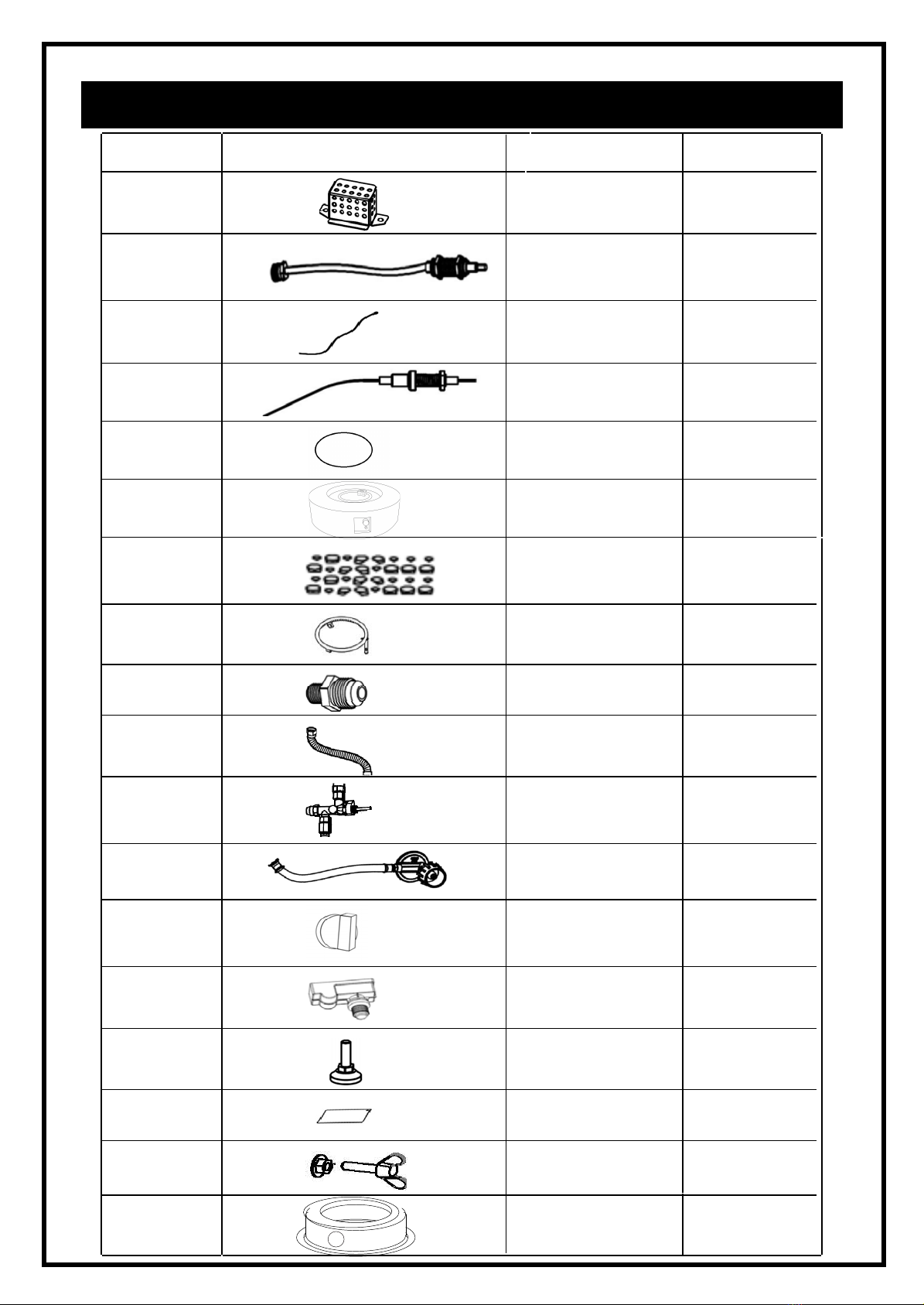

Parts Diagram
Item Picture Description Qty
Guard 1
02 Themocouple 1
GroundWire 1
04 Ignition Pin 1
Burner Plate 1
06 Main Frame of
Fire Table 1
Lava Rock 4
Burner 1
09 Nozzle 1
10
Corrugated Pipe 1
11 Swithing Valve 1
12 Regulator Valve
with Gas Hose 1
Control Knob 1
14 Igniter 1
15 Foot 4
Warning Label 1
Wing Screw with
Nut 1
Metal Stand 1
01
03
05
07
08
13
16
17
18

Page 6 of 14

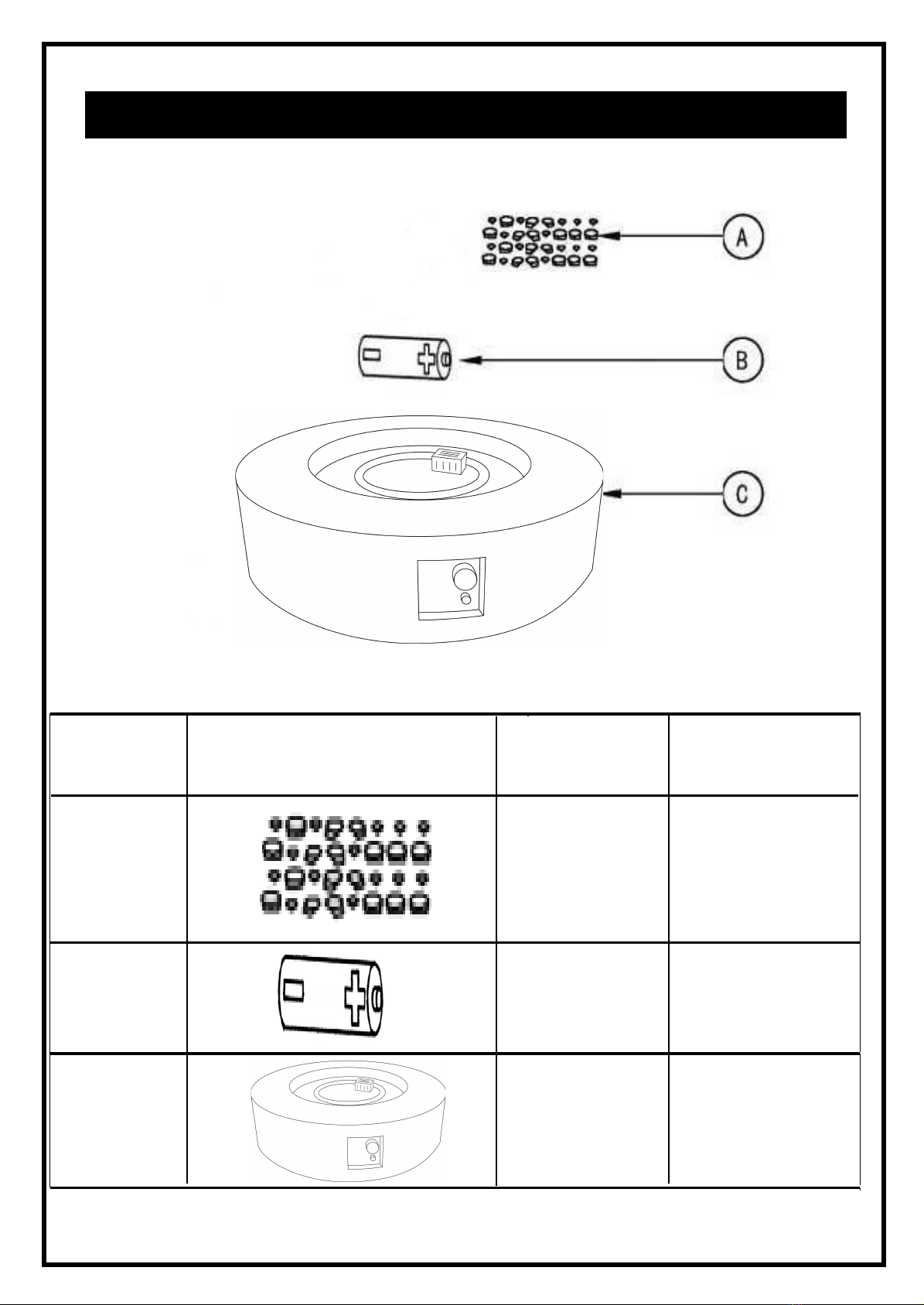

Parts List
Item Picture Description
ALava Rocks 4 box
BAAA Battery 1 pc
CMain Frame
of Fire Table 1 pc
Qty

Page 7 of 14

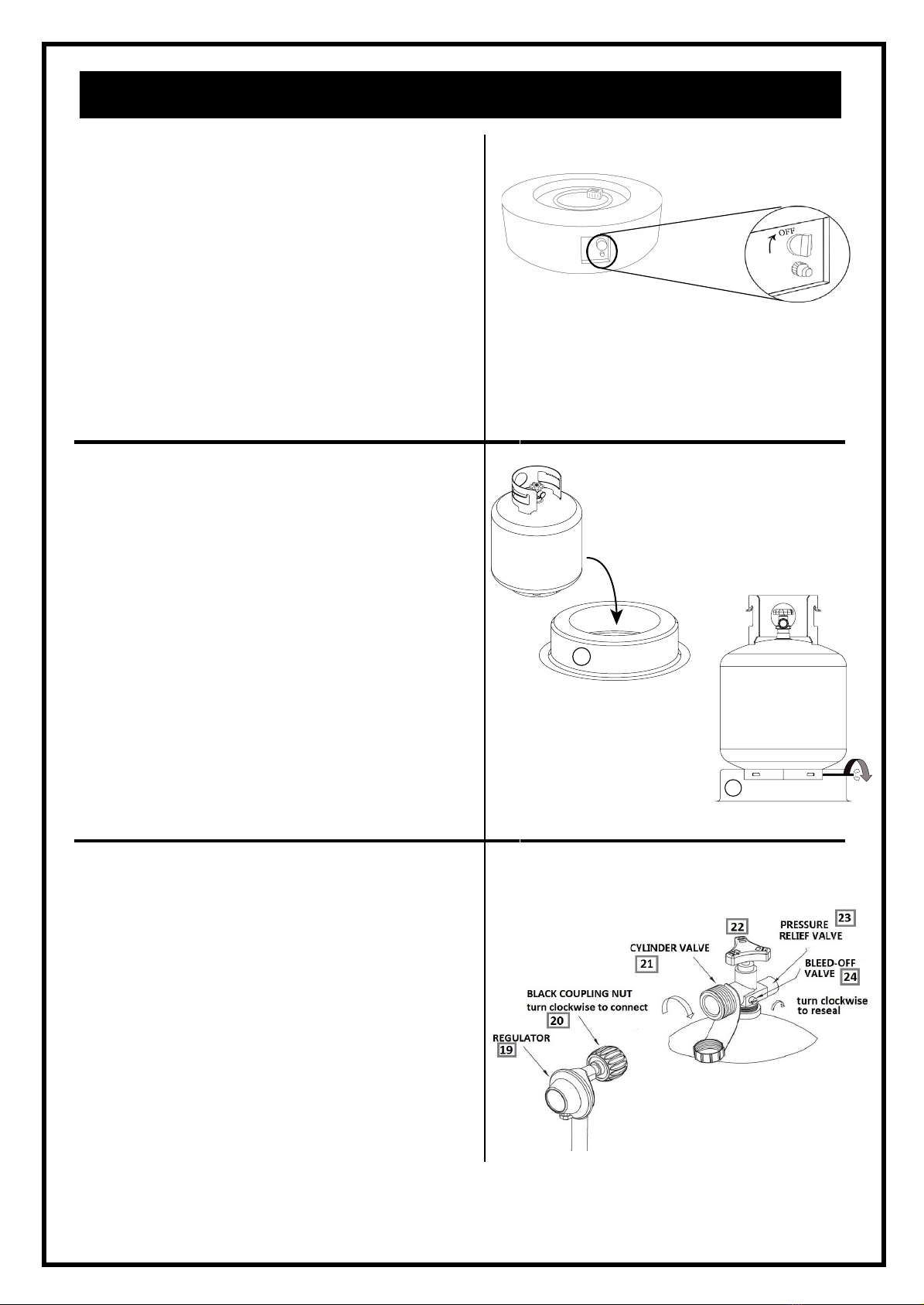

Step 1:
Check that the control knob (13) for the gas
supply system is turned to the “OFF”
position before starting any assembly.
Step 2:
Place a 20 lbs Propane Gas Tank (not included)
into the Metal Stand (18).
Make sure the Propane Gas Tank is placed
completely into the Metal Stand.
Turn the preassembled Wing Screw (17) in a
clockwise direction in to the Nut to secure the
Propane Gas Tank tightly.
Step 3:
Turn the Cylinder Valve (21) on the tank
clockwise direction to TURN OFF SUPPLY of
the LP Gas supply.
Attach the pressembled Regulator (12/19)
from the Fire Table to the Cylinder Value
(21) by turning the Black Regulator Coupling
Nut (20) clockwise.
Make sure it is fastened securely and tighten
connections-by HAND only.
Assembly Instructions

5
2


1
13

Page 8 of 14

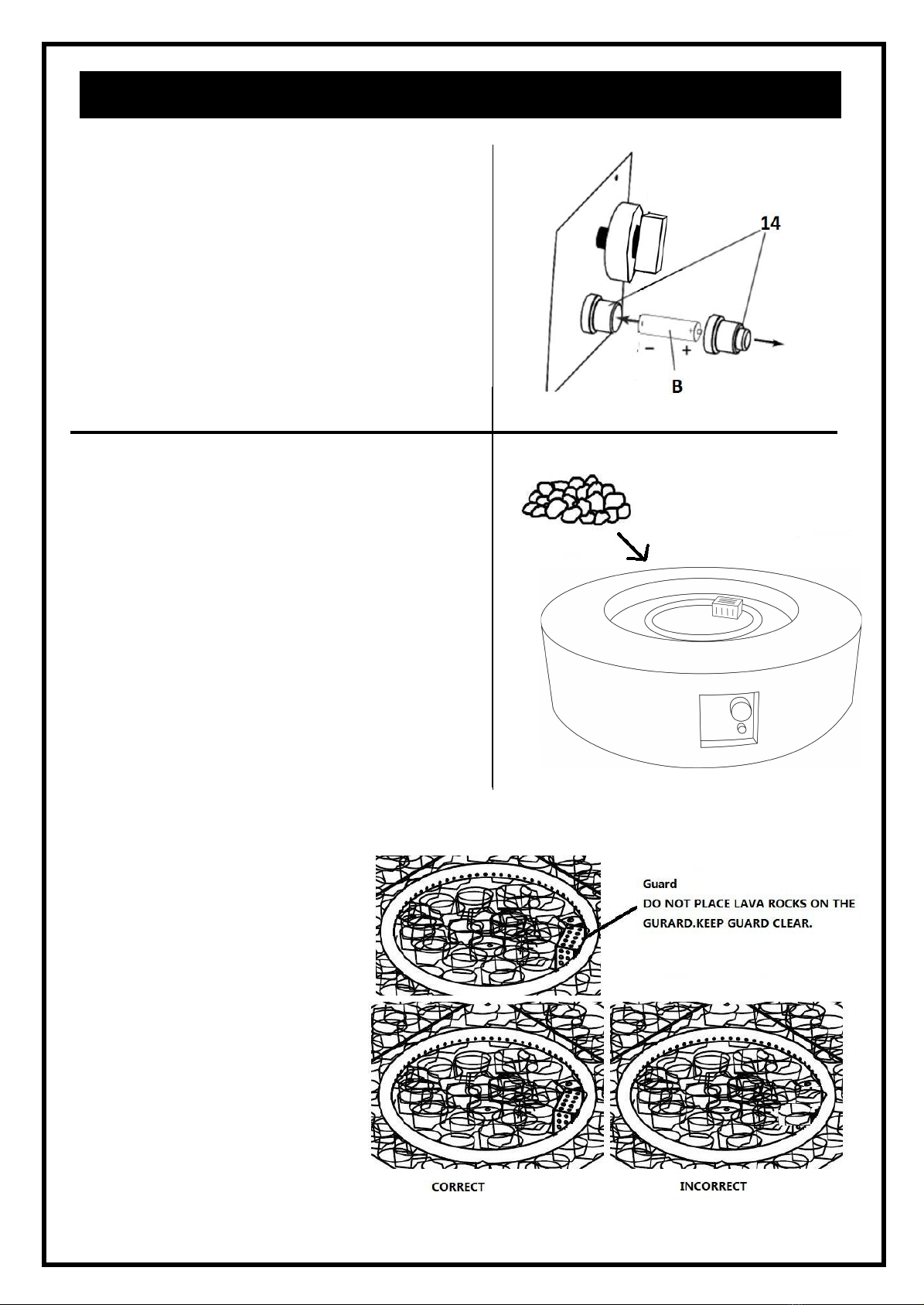

Step 4:
Remove the Electronic igniter Cap on the
Electronic igniter (14) by unscrewing and slide
the Battery (B) into the battery slot.
Make sure the positive side of the Battery (B)
faces outwards. Screw the Electronic Igniter
Cap (14) over the battery,tightly.
Step 5:
pour Lava Rocks over the Burner Ring.
The Guard MUST NOT BE BLOCKED.
Do not place more than 1/4 inch depth of lava
rocks above the burner holes.
Do not place more than 26.4lb of lava rocks
above the burner holes.
WARNING: Fire Table and LP-Cylinder must
be at a minimum of 60 inches apart.
Assembly Instructions
WARNING: To ensure proper
function, the Guard (01) on the
Burner (08) should never have lava
rocks (A) covered over it.

Page 9 of 14
FOR YOUR SAFETY, READ BEFORE LIGHTING
•Before performing a leak test, make sure that no sparks can occur and you
are in a spacious outdoor area.
•Connect the propane gas tank to the regulator and turn the valve on the
unit to the “off” position.
•Brush a soap and water mixture on all connections.
•Make sure the igniter batteryhasbeen installed properly. The igniter will
not operate otherwise.
•Before operating, smell around the appliance and next to the ground for
gas odors. If you smell gas or a leak is discovered turn the gas valve off,
disconnect propane gas tank and do not use the appliance until the leak is
repaired.
•The Fire Table has a Door. Open the door and inspect the Gas Hose
before use the Fire Table.
•If there are signs of wear or abrasion on the hose, you must replace the
Gas Hose. And the Gas Hose must be supplied directly by manufacturer.
•Stand away from the Fire Table / Column for the initial 20 minutes after
igniting.
•Lava rocks / pumice stones could pop up and strike somebody’s face
during the process of lighting this unit.
•Pumice stones/lava rocks/Lava Glass could pop up and strike somebody’s
face during the process of lighting this unit; Wait 10 minutes after
extinguishing flame prior to replacing a lid (if applicable) or protective
cover onto the Fire Table.
Operation

Page 10 of 14
Using Your Fire Table
1. Make sure the Control Knob (13) is in the “OFF” position.
2. Open the Door and slowly open the Valve (22) on the Propane Gas
Tank by turning the Control Knob (13) counterclockwise.
3. Close the Door on the Main Frame (06) of the Fire Table.
4. Push and hold in the Electronic Ignition to create sparks within the
electrode continue to hold.
5. Push in the Control Knob (13) and turn to the “LOW” position.
Keep holding down the Control Knob (13) to allow gas to flow for 15
seconds.
6. If ignition doesn’t occur within a few seconds release the Control Knob
(13) and rotate to the “OFF” position.
Wait for 5 minutes for gas to clear and then repeat the above lighting
instructions.
7. Once the Fire Table / Column is lit, the flame intensity may be
controlled by turning the Control Knob (13) between the “LOW” and
“HIGH” positions
Operation
NOTE: Whenever gas connections are loosened or removed, you must
perform a complete leak test. Complete installation.
8.Observe flame height when lit:
1) Flame color should be yellow / blue.
2) Flame height burns at 2 - 10 inches high.
2 inches to 10 inches

Page 11 of 14
To enjoy years of outstanding performance from your heater, make
sure you perform the following maintenance activities on a regular
basis:
•Before performing any maintenance always disconnect propane gas
tank.
•Use warm soapy water for cleaning. Never use flammable or corrosive
cleaning agents.
•DO NOT use petroleum-based or abrasive cleaning products.
•DO NOT use any harsh brushes/rough sponges when cleaning the Fire
Table/Column surface.
•DO NOT place any food on the surface of the Fire Table/Column.
•DO NOT eat from the surface of the Fire Table/Column surface.
•Blotany liquid spills with a clean, dry cloth to avoid spreading of the
spill to the rest of the table. Immediate cleaning of stains/blotting of
spills also prevent absorption of such stains/spills into the surfaces,
compared to if such stains are left for extended periods on these
surfaces.
•Cover your product with an outdoor Protective Cover when not in use
to protect it from the elements.
•Avoiding extreme cold temperatures, as extreme cold temperatures
may cause cracking of the table top.
•Always place lid ( if applicable) or protective cover on heating item
when not in use. Turn control knob OFF.
NOTE: In a salt-air environment (such as near to ocean),
corrosion occurs more quickly than normal. Frequently check for
corroded areas and repair them promptly.
Maintenance & Storage

Page 12 of 14
Trouble Shooting
PROBLEM SOLUTION
Electrode and burners are wet
Igniter battery is dead or
backwards
Igniter Pin cracked or broken
-sparks a crack
Wipe dry with cloth.
Check that the battery is inserted correctly in the
igniter or replace the battery. Make sure the
plastic wrap on the battery has been removed.
Please contact Living source to request the parts.
Residue on Igniter Pin
No Gas Flow
Check for residue on the igniter pin or
Thermocouple. If dirty,thoroughly clean the area.
Check that the electronic Ignitor Cap is tightly
fitted to the spring.If loose,please adjust the
spring accordingly.
Check if the LP gas tank is empty. If empty,
replace and refill. If the propane tank is not empty,
refer to Problem: Sudden drop in gas flow on the
following page.
Coupling nut and regulator not
fully connected
Turn the coupling nut about one half to three
fourths a turn, until you feel a solid stop. Do not
use tools, tighten by hand only.
Obstruction of gas flow Check for bent or kinked hose.
Spider webs or insect nest in
the venturi Clean the venturi.
Burner ports clogged or
blocked
Reference Problem: Irregular flame pattern on the
following page. Clean the burner ports as
described there.
Hose from gas fire table
is pinched
Make sure the hose is not pinched between the
fire table and the source of the gas.
Flame is being obstructed at
burner ports or mixing chamber
of the burn tube is blocked or
obstructed
Make sure that the gas ports on the burner are
free of any lava rocks/fire glass so that the
flame can flow naturally.Clear out the mixing
chamber located before the Venturi.
Out of Gas Check for gas in the LP gas tank.
Excess flow safety device may
have been activated
Turn control knob to OFF, wait 30 seconds and
light outdoor fire table.if flames are still too low,
reset the excessive flow safety device by turning
off the control knob and LP gas tank valve.
Disconnect regulator. Turn burner control knob to
HIGH. Wait at least 5 minutes. Turn burner control
knob off. Reconnect regulator and perform a leak
check at tank connection. Turn LP gas tank valve
on slowly, wait 30 seconds and then light outdoor
fire table.
Irregular flame pattern, flame does
not run the full length of the burner
Burner ports are clogged or
blocked
Clean burner ports.Do this by inserting a
paperclip into each of the burner ports to
ensure they are not clogged.
WARNING: Make sure burner is not on, and
has had sufficient time to cool before touching it.
High or gusting winds Increase flame to HIGH setting.
Low on LP gas Replace or refill LP gas tank.
Excess flow valve tripped Refer to Problem: Sudden drop in gas flow.
Flame seems to lose heat when
burning in cold weather -
temperature below 50°F
Ice has built up on the outside
of the LP gas tank because
the vaporization process is too
low
Turn the control knob and the LP gas tank to OFF.
Replace with a spare LP gas tank and resume
burning. Store the spare LP gas tank in a well
ventilated area, away from children.
Burner will not light using igniter
Burner will not light with match
The fire table emits a lot of
black smoke when in use
Sudden drop in gas flow, or a
reduced flame height
Flame blow out
CAUSE

Page 13 of 14
Trouble Shooting

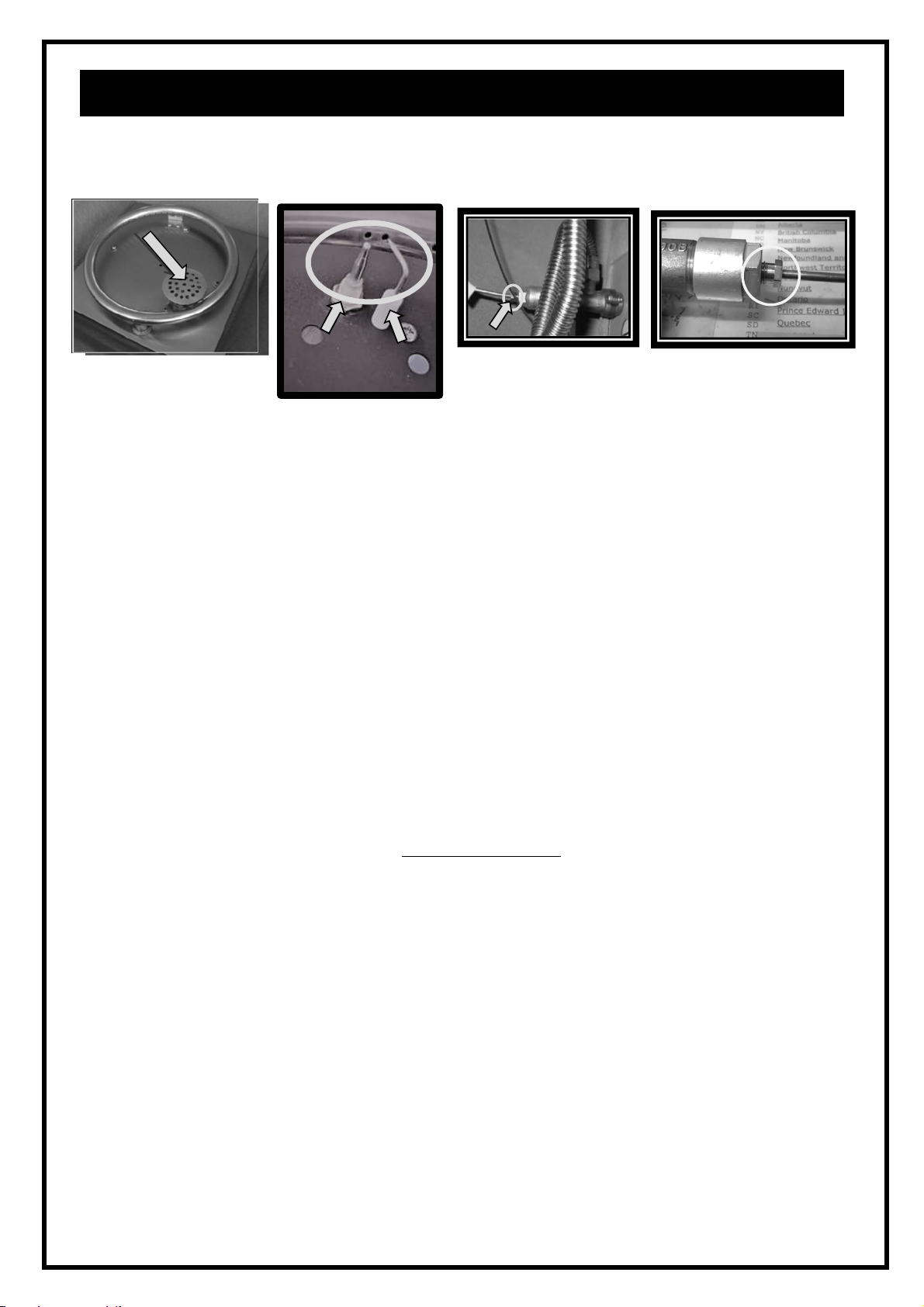

Problem: Burner JUST LIGHT UP FOR SECOND AND WILL AUTOMATICALLY TURN OFF
PILOT
GUARD
1
3
.
4
.
THERMOCOUPLE
IGNITION
PIN
THERMOCOUPLE IGNITION
PIN
2.
1. The thermocouple will be under the Pilot Guard on the top of the unit.
Please remove the Pilot guard by unscrewing it from the metal bowl with a screw driver.
2. Once the Pilot Guard has been removed, you will have two components exposed; the copper one is your
thermocouple. Please unscrew the nut holding the thermocouple in place.
3. Inside the unit, you will notice that the end of the thermocouple line is directly screwed to the gas valve. Please unscrew
the thermocouple from the back end of the gas valve. Do not take off the valve’s silver backing, only unscrew the small
nut as shown above.
4.Screw the end of the thermocouple to the back end of the gas valve with the silver backing.
Once this has been done, please test the unit. You may have to reset the gas valve once again as the safety mechanism may
have been set off by the new components introduced:
Resetting Your Gas Valve
Completely detach the propane tank from the table. Do not forget to turn the propane tank valve down. Turn the
heat knob to high and leave it on that setting for about two to three minutes.
propane tank and turn the propane tank’s valve a Once you have done this, please turn the knob back to off. Hook up the
quarter of a turn at a time.
NOTE: When reattaching the propane tank, please turn the valve to release the gas back in to the unit VERY SLOWLY. We
want the unit to register gas coming through but not too much at once, this will flood the unit and you will have to start all
over!
This is so that the gas valve can register the gas coming through a little at a time. Once you have turned the gas on all the
way please go ahead and try to light the table again. This should reset your fire table’s safety mechanism

Page 14 of 14
This product has been manufactured under the highest standards of
quality and workmanship.
We warrant to the original consumer that all aspects of this product will
be free of defects in material and workmanship for one year from the
date of purchase. A replacement for any defective part will be supplied
free of charge for installation by the consumer. Defects or damage
caused by the use of other than genuine parts are not covered under
this warranty.
This warranty shall be effective from the date of purchase as shown in
the purchase receipt.
The manufacturer warranty will be voided by,
and manufacturer disclaims any responsibility
for, the following actions but not limited:
•Modification of the unit and/or components including the gas
valve assembly.
•Use of any component part not manufactured or approved by
Bond Manufacturing.
•Use and installation other than what is listed in this manual.
Warranty Information
