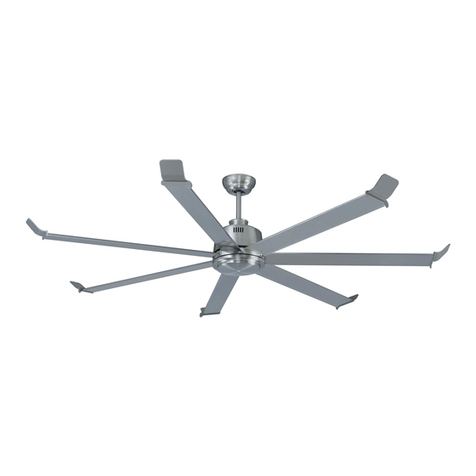

RP LIGHTING 1070W User manual

1070W,1080W
For Models:
Installation Guide
Net Weight Of 1070WFan: 30.5lbs (13.85kgs)
Net Weight Of 1080WFan: 35.3lbs (16.05kgs)

TOOLS AND MATERIALS REQUIRED
PACKAGE CONTENTS
2
1
2.3
SAFETY RULES
4
5
5.6
MAKING ELECTRICAL CONNECTIONS
6
8
7
10
11.12
13
13
9
9
TROUBLESHOOTING
CARE OF YOUR FAN
MOUNTING OPTIONS
CANOPY ASSEMBLY
ATTACHING THE FAN BLADES
INSTALLING THE BOTTOM CAP
HANGING THE FAN MOTOR ASSEMBLY
Table of Contents
HANGER BRACKET INSTALLATION
FAN ASSEMBLY
INSTALLING WALL CONTROL & OPERATION
INSTALLING THE LIGHT KIT (optional)

1
Do not use water or detergents when cleaning
the fan or fan blades. A dry soft cloth or lightly
dampened cloth will be suitable for most
cleaning.
lbs(32kgs)
ft.(3M)
Safety Rules
OUTDOOR USE- Suitable for use in wet locations
when installed in a GFCI protected branch circuit.

2
Ladder
Wire Strippers
Phillips Screwdriver
Adjustable wrench
Pliers
Tools & Materials Required
For Mounting Hanger bracket:
l. Hardware packs included
Wood Screws & Washers
x5
Qty
Hanger Bracket Screws,
Spring Washers, Flat Washers x2 each
x2
Spare motor screw &
Washer
x1
x1 set
x8
Wire Nuts
Balance Kit
For Blade Installation:
Blade Screws
& Fiber W ashers
x22
(one spare screw,fiber washer included)
These mounting screws are intended for use solely in wooden
structure ceilings. For concrete ceilings and suspended
ceilings, appropriate screws are required (not included).
Package Contents
a. Blade
b. Blade Holder
c. Hanger Bracket
d. Waterproof Cover
e. Canopy
f. 8” Downrod with Ball
g. 24“ Downrod
h. Motor Coupling Cover
i. Fan Motor Assembly
j. Bottom Cap
k. DC ceiling fan wall control(wall controller & driver)
Parts Qty
x7 pieces
x7
x1
x1
x1
x1
x1
x1
x1
x1

j
i
k
f g
h
l
1 2 3 4 5
IOII
SPEED
REVERSAL
OFF
FANON FAN &
LIGHT ON
3
Unpacking Fan
*Fan blade bracket screws

to the fan blade bracket.
Parts Guide- Model Number 1070W, 1080W

4
35 lbs (15.9kgs).
At the end of the blade must be a minimum of
2 meters away from the wall. There must be a
distance of 3 meters between two ceiling fans.
6M (20ft.)
6M ( 20ft.)
blade edge
Outlet box
Outlet box
Outlet box
Fig.1
Fig.2
Fig.3
Fig.4
Ceiling joists
Ceiling
Secure the outlet box directly tothe building structure.
Use appropriate fasteners and building materials.
To reduce the risk of fire, electric shock, or personal
Injury, mount to outlet box marked "acceptable for
fan support of 70 lbs (32 kgs) " and use mounting
screws provided with the outlet box.
Most outlet boxes commonly used for the support
of luminaries are not acceptable for fan support and
may need to be replaced.
Mounting Options
10 ft
(3M)
6.6ft
(2M)

5
Hanger Bracket Installation
Remember to turn off the power. Follow the steps
below to hang your fan properly. NOTE: This ceiling
fan is supplied with the hanging assemblies; the
standard ceiling installation using the downrod with
ball and hanger bracket mounting installation.
Fig.5
Ground wire
spring wishers
Hanger bracket
Hanger bracket
screws
Flat washers
Supply wires
120VAC 60Hz Outlet box
Waterproof
Cover
Your ceiling fan will require a grounded electrical
supply line of 120VAC 60HZ, 15Amp Circuit.
Step 1.
Pass the 120V supply wires through the
waterproof cover and hanger bracket.(Fig.5)
Step 2.
Secure the waterproof cover and hanger
bracket to the ceiling outlet box with
screws and washers included with
mounting hardware.
Fan Assembly
Motor
Loosen setscrew on hanging ball
to free the lock pin, remove the ground screw and
ground wire, and save all parts.
Feed fan wires & safety cable up through the
downrod.
NOTE: Make sure the wires are on one side and
the safety cable on the other side. (Fig. 6b)
Be careful that wires are pulled through, make
sure the wires do not get twisted.
Insert the downrod into the coupler, and align
holes with holes in the coupler on the top of the
motor housing.
IInsert the hitch pin through the coupler and
downrod, secure with nut and lock pin.
NOTE: Proceed with this step in order
**Fan Assembly continued on next page.**
Fig.6a
Fig.6b
Downrod
Motor Wires &
Light Wires
Safety Cable
Security Screw(x2)
Coupling cover
lock clip
Pin #2
lock clip
Pin #1
1
2
IMPORTANT: Securely fasten the downrod using
two security screws onto the coupler to prevent
shaking during fan operation.
1 2

6
With the hanger bracket secured to
the outlet box and able to support the fan,
you are ready to hang the fan. Hold the fan
firmly with two hands. Lift the fan assembly
onto the hanger bracket.
Ensure the registration slot of the ball joint is
positioned on the stopper of the hanger bracket
to prevent the fan from rotating when in operation.
WARNING: Failure to align slot in hanging ball
with stopper(tab) in hanger bracket may result in
serious injury or death.
Tip: Seek the help of another person to hold
the stepladder in place and help lift the fan up
to you once you are set on the ladder.
Waterproof
Cover
Hanger Bracket Stopper
Safety cable
screw with
washer
WOOD MEMBER
(2” X 4” APPROX.) CEILING JOIST
CEILING
OUTLET BOX
HANGER BRACKET
Hanging the Fan Motor Assemply
Install the safety cable to ceiling
using the screw (ST5x38mm) &
wasers.

Place the coupling cover over the downrod
assembly.
Place canopy over downrod.
Replace the hanging ball on downrod,
insert the lock pin through downrod, and
tighten the set screw in the hanging ball
against downrod.
WARNING: Failure to tighten set screw on
the hanging ball completely could result in
the fan possibly falling.
set screw
Safety Cable
Cross Pin
Canopy
Downrod

DONOT USE THIS DC MOTOR FAN IN
CONJUNCTION WITH ANY VARIABLE
(RHEOSTAT) WALL CONTROL OR
REMOTE CONTROL.
7
WARNING: This fan must use the matching DC fan wall
control designed for use on this fan.
Can NOT indicate other speed control or the like.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating general-use
wall control / switch.
Lock protection - The DC motor has a build-in safety
feature against blade or motor obstruction during operation.
If something obstructs the fan blades or motor, the motor
will keep trying to run and then stop operation after about
20-30 seconds of interruption. Remove obstacles and
use wall control included with this fan.
The DC fan receiver provides protective functions.
Over load protection (current limit) - The device limit
the maximum current output from the receiver/drive
when the fan load was increased abnormally.
Refer to wiring diagram making correct wire connections.
NOTE: This fan must be installed by a licensed electrician.
After wire connections have been made, turn leads upward
and carefully push the white wire and black wire connections
into the outlet box. The other connections should be spread
apart neatly and place on both side of the hanger bracket.
WARNING: Check to see that all connections are tight,
including ground connection. DO NOT operate fan until
the blades are secured in place.
Making Electrical Connections
WARNING:





electrician and obtain service.
NOTE: 
can be cut to the desired length and stripped.
When fan is secured in place on the hanger

DRIVER
TO MOTOR(PINK)
TO MOTOR(GREY)
TO MOTOR(RED)
FOR LIGHT NEUTRAL(WHITE)
FOR LIGHT
LIVE(BLUE)
BLACK
WHITE
YELLOW/GREEN
YELLOW/GREEN
GREEN GROUND
OUTLET BOX
IN CEILING
GROUND TO
HANGER BRACKET
& DOWNROD
FAN
LIGHT
WH
WH
BLUE
BLACK
BLACK (TO MOTOR L)
WHITE (TO MOTOR N)
BLACK(TO AC L)
INPUT VOLT. 120V
WHITE (TO AC N)
DC Fan
Wall Control

View after installation
Waterproof Cover
8
Canopy Assembly
Outlet Box
Canopy
Screws
Coupling Cover
Hanger Bracket
After connecting the wires,
place the DC fan driver in hanger bracket
as shown, turn the leads upward and
separate wire connections and put
neatly inside of the outlet box.
Locate the two screws on the underside
of the hanger bracket.
Attach the canopy to the hanger bracket
by placing the screws into the slot in the
canopy, then twist clockwise to lock it
into place, and tighten the screws firmly.

Blade Holder
Blade Screws
with Washers
Blade
Rubber Washer
Flat Washer
Screw
Repeat
x6
9
Remove rubber motor stoppers from moter
and waterproof stopper from the fitter plate
before attaching the fan blade assembly.
Insert the fan blade into blade holder and
secure it with 3 blade screws and washers.
Repeat this process for the remaining
blades.
Fasten each fan blade assembly to the
motor using three(3) blade holder screws.
NOTE: After completing each fan bade
installation, re-plug the waterproof stopper
back in the installation hole on the flitter
plate.
Remove four(4) screws(rubber washer+
flat washer + screw) on the fitter plate and
secure the bottom cap using these
screws and washers.
Bottom Cap
Fitter Plate
Installing the Bottom Cap
Bottom Cap

Installing the Light Kit (optional)
Rubber Washer
Flat Washer
Switch Housing Screw
10
CAUTION: Only use with a light kit marked "Suitable for Use in Wet Locations.
.
NOTE: Make sure power is off at the electrical panel box before attempting installation of the light kit.
Remove the fan bottom cap by unscrewing 3 attachment screws (rubber washer + flat washer + screw)
then remove a small plug from the center hole of the cap.
Attach the light kit to the bottom cap with a hex nut and spring washer provided with the light kit.
Be sure it is tight enough to prevent the light kit from vibrating loose.
Connecting the wires.
Connect the BLACK wire from the light kit to the BLUE wire from the fan using the wire nut provided.
Connect the WHITE wire from the light kit to the WHITE wire from the fan using the wire nut provided.
Attach the cap with the light kit assembly to the fitter plate with previously removed 3 screws
(rubber washer + flat washer + screw).
Black Wire(L) from Light kit
White Wire(N) from Light kit
Blue Wire from Fan
White Wire from Fan
Butoom Cap
Fitter Plate
Light kit

Outlet box
1 2 3 4 5
IOII
SPEED
REVERSAL
OFF
FAN ON FAN &
LIGHT ON
front cover
Black from Driver
White (N)
from Light & Driver
Blue from Fan
AC IN (N) White
AC IN (L) Black
Black (L) to fan Motor
White (N) to fan Motor
Blue for Light
AC IN (N) White
AC IN (L) Black
NOTE: Make sure power is off at the electrical panel box and be sure the switch is turned
OFF position before attempting installation of wall control.
Remove the existing wall switch, making wires connection with provided wire nuts as
shown in the diagram.
Wrap each wire connector separately with electrical tape as an extra safety measure.
Carefully push wires into the outlet box.
11
.
The buttons on the wall controller control the fan speed and light as follows.
Reversal Switch (Forward/ Reverse)
1 2 3 4 5
IOII
SPEED
REVERSAL
OFF
FAN ON FAN &
LIGHT ON
Fan Speed Indicator Light
Fan Speed Switch
1 ~ 5 = Fan speed from Highest to Lowest
Power Switch
FAN ON = trun the fan power on
FAN & LIGHT ON = turn the fan & light power on
Press this button to get desi
It will take a few seconds for fan to slow down and change rotation direction.
Installing Wall Control
Wall Control Operation

12
Fig.a
Fig.b
Warm Weather (Forward) -
Cool Weather (Reverse) -
Reverse Switch (Forward / Reverse)
This button controls fan forward or reverse direction.
NOTE:To operate the reverse function on this fan,
press the “Reversal” button while the fan is
running.
A downward airflow creates a cooling
effect, as shown in Fig. A.
This allows you to set your air
conditioner at a higher temperature
without compromising your comfort.
An upward airflow in Fig. b moves warm air
away from the ceiling area, as shown. This
allows you to set your heating unit at a
lower temperature without compromising
your comfort.

13
Problem Solutions
Fan will not start.
Fan sounds noisy.
Fan wobbles
Here are some suggestions to help you maintain your fan.
1. Because of the fan's natural movement, some connections may become loose. Check the support
connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not
necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new appearance over the years. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to minimize discoloration
or tarnishing. Do not use water when cleaning. This could damage the motor, or the wood, or possibly
cause an electrical shock.
3. You can apply a light coat of furniture polish tothe wood blades for additional protection and enhanced
beauty. Cover small scratches with a light application of shoe polish.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.
WARNING: Failure to disconnect power supply prior totroubleshooting any wiring issues may result in serious injury.
- Check circuit fuses or breakers.
- Check line wire connections to the fan and switch wire connections in the switch housing.
- Make sure all motor housing screws are snug.
- Make sure the screws that attach the fan blade bracket to the motor hub is tight.
- Make sure wire nut connections are not rubbing against each other or the interior
wall of the switch housing.
- Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
- If using an optional light kit, make sure the screws securing the glassware are tight.
Check that light bulb is also secure.
- Some fan motors are sensitive to signals from solid-state variable speed controls.
If you have installed this type of control, choose and install another type of control.
- Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
- Check that all blade and blade arm screws are secure.
- Most fan wobbling problems are caused when blade levels are unequal. Check this
level by selecting a point on the ceiling above the tip of one of the blades. Measure
this distance. Rotate the fan until the next blade is positioned for measurement.
Repeat for each blade. The distance deviation should be equal within 1/8".
- Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
- If the blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
Care of Your Fan
Troubleshooting

RP.08152023
