RP LIGHTING 1073LED-PC User manual

1073-PC
For Models:
Installation Guide
1073LED-PC

SAFETY INFORMATION
CANOPY ASSEMBLY
BLADES INSTALLATION
ATTACHING SWITCH HOUSING MOUNTING PLATE
TOOLS REQUIRED 2
1
2.3
UNPACKING FAN
INSTALLING MOUNTING BRACKET 4
DOWNROD / BALL ASSEMBLY 5
HANGING THE FAN MOTOR ASSEMBLY 5
MAKING ELECTRICAL CONNECTIONS 6
9
8
7
8
8
10
11.12
9
13
13
TROUBLESHOOTING
CARE OF YOUR FAN
OPTIONAL LIGHT KIT INSTALLATION
OPERATING YOUR FAN
ATTACHING SWITCH HOUSING
LIGHT KIT INSTALLATION
ELECTRICAL CONNECTIONS (FOR OPTIONAL WALL CONTROL)

1
SAFETY INFORMATION
1. To reduce the risk of electric shock, turn the electricity off at main fuse box or circuit breaker
before beginning fan installation or servicing the fan.
2. Read all instructions and safety information carefully before installing your fan and save this
manual.
3. All electric connections must be complied with local electrical code and the National Electrical
Code. If you are unfamiliar with electrical wiring, please have a qualified licensed electrician
perform the installation.
4. The fan must be mounted with a minimum of 7 Ft (2.1M) clearance from the trailing edge of the
bales to the floor.
5. The metal outlet box and ceiling support joist must be securely mounted, and capable of reliably
supporting a minimum of 50 lbs ( 23 kgs).
Use only UL - listed outlet boxes marked “Acceptable For Fan Support.”
6. To reduce the risk of personal injury, use only approved hanging brackets and screws supplied
with the fan for mounting to the outlet box.
7. After completing installation, check all setscrews and make sure they are firmly secured.
WARNING: To reducethe risk of fire or electric shock, do NOT usethis fan with any solid-state speed control
device.
WARNING: To reduce the risk of personal injury, do NOT insert foreign objects in between rotating fan
blades.
CAUTION: To reduce the risk of personal injury, use only set screws provided with the fan for mounting to
the outlet box.
Most outlet boxes commonly used for supporting of the lighting fixture are not acceptable for fan
support and may need to be replaced. Consult a qualified electrician if in doubt.
8. Wooden blades are not intended for storage or installation in spaces that are not
temperature controlled. To avoid issues with blade warping do not store or install ceiling
fans in areas without air conditioning.
9. Do not operate reversing switch while fan blades are in motion. Fan must be turned off
and blades stopped before reversing blade direction.
WARNING: To reduce the risk of personal injury, use only parts provided with fan.
The use of parts other than those provided with fan will void the warranty.

2
#
Parts Quantity
1
Mounting bracket
1
2 Downrod & ball assembly 1
3
Ceiling canopy 1
4
Coupling cover 1
5
Fan motor assembly 1
6
Switch housing mounting plate
Switch housing
1
7 3
8
Fan blades
1
9. Hardware bag included:
#
Quantity
a.
Wood screws
2
b.
Mounting bracket screws
2
c.
Wire nuts
2
d.
Blade holder screws
2
e.
Flat washers
7
f.
Spring washers
3
g.
Blade kit
3
h.
Pull chain (wood tassel) 1
i.
Balance kit
1set
Model:1073-PC

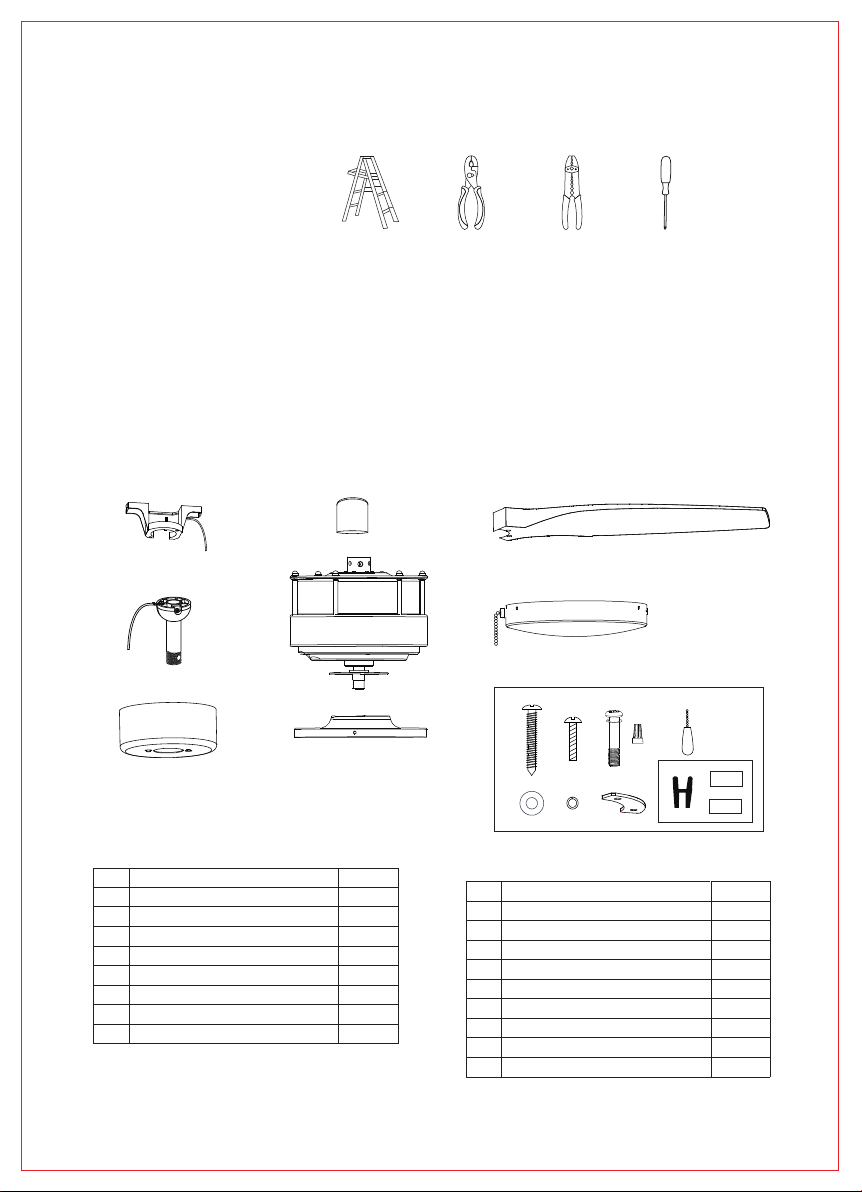

TOOLS REQUIRED
．Ladder
·Wire Strippers
·Phillips Screwdriver
·Pliers
UNPACKING FAN
Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing
and place on clean floor or Styrofoam to avoid damage to finish.
Do not discard fan carton or Styrofoam inserts should this fan will need to be returned for repairs.
Check against parts list that all parts have been included.
1
5
6
7
8
9
2
3
4
f.
a.
b.
c.
d.
e. g. h.
i.

3
#
Parts
Quantity
1
Mounting bracket
1
2 Downrod & ball assembly 1
3
Ceiling canopy 1
4
Coupling cover
1
5
Fan motor assembly
1
6
Mounting plate
1
7
LED Light kit 3 8
Fan blades
1
Model:1073LED-PC
1 4
5
6
7
8
9
2
3
f.
a.
b.
c.
d.
e. g. h.
i.
9. Hardware bag included:
#
Quantity
a.
Wood screws
2
b.
Mounting bracket screws
2
c.
Wire nuts
2
d.
2
e.
Flat washers
7
f.
Spring washers
3
g.
Blade kit
4
h.
Pull chains (wood tassels) 2
i.
Balance kit
1set
Blade holder screws

4
INSTALLING MOUNTING BRACKET
Shut the power off at the circuit breaker box before beginning.
Warning: Failure to disconnect power supply prior to installation may result in serious injury.
For safety and best operating results, installation must be undertaken by qualified electrician.
Before installing the fan make sure the outlet box is properly installed to house structure.
Ensure the metal outlet box is securely fastened by at least two points to a structural ceiling
member, a loose box will cause the fan wobble.
Secure mounting bracket to outlet box by tightening mounting bracket screws & spring washers.
If not mount to ceiling outlet box, use wood screws and flat washers and mount securely to
ceiling beam. Note: Do not mount directly to sheet rock or ceiling tiles.
The ceiling fan must be installed in a location with a minimum of 18” spacing from the tip
of the blade to the nearest objects or walls.
Secure the mounting bracket to the ceiling joist or structure that is capable of carrying
a load of at least 40kgs, use two wood screws provided.
BEAM must be able to support up to 40kg.
120V Wires
Mounting bracket screws
UL Listed
Outlet box
Ground wire
Washers
Note: Picture is for representation only and
do not represent the actual bracket.
WARNING: TO REDUCE THE RISK OF FIRE,
INJURY. MOUNT FAN ONLY ON AN OUTLET
BOX OR SUPPORTING SYSTEM MARKED
“ACCEPTABLE FOR FAN SUPPORT”.

5
DOWNROD / BALL ASSEMBLY
Slide the canopy and yoke cover on the downrod. Thread the power wires from the fan through
the canopy, and downrod (take extra care not to pull power wires damage).
Set downrod into yoke. Rotate until the holes match.
Insert connector bolt through the holes. Be careful not to damage wiring.
Tighten the two downrod set screws to make sure the fan run stable.
HANGING THE FAN MOTOR ASSEMBLY
Lift the fan assembly onto the mounting bracket.
Ensure the notch of the ball joint is positioned on the stopper of the mounting bracket to
prevent the fan from rotating when in operation.
Mounting bracket
Stopper of bracket
Notch of ball joint
Canopy
Coupling cover
Lock pin
Cross bolt
Downrod
Security screw

6

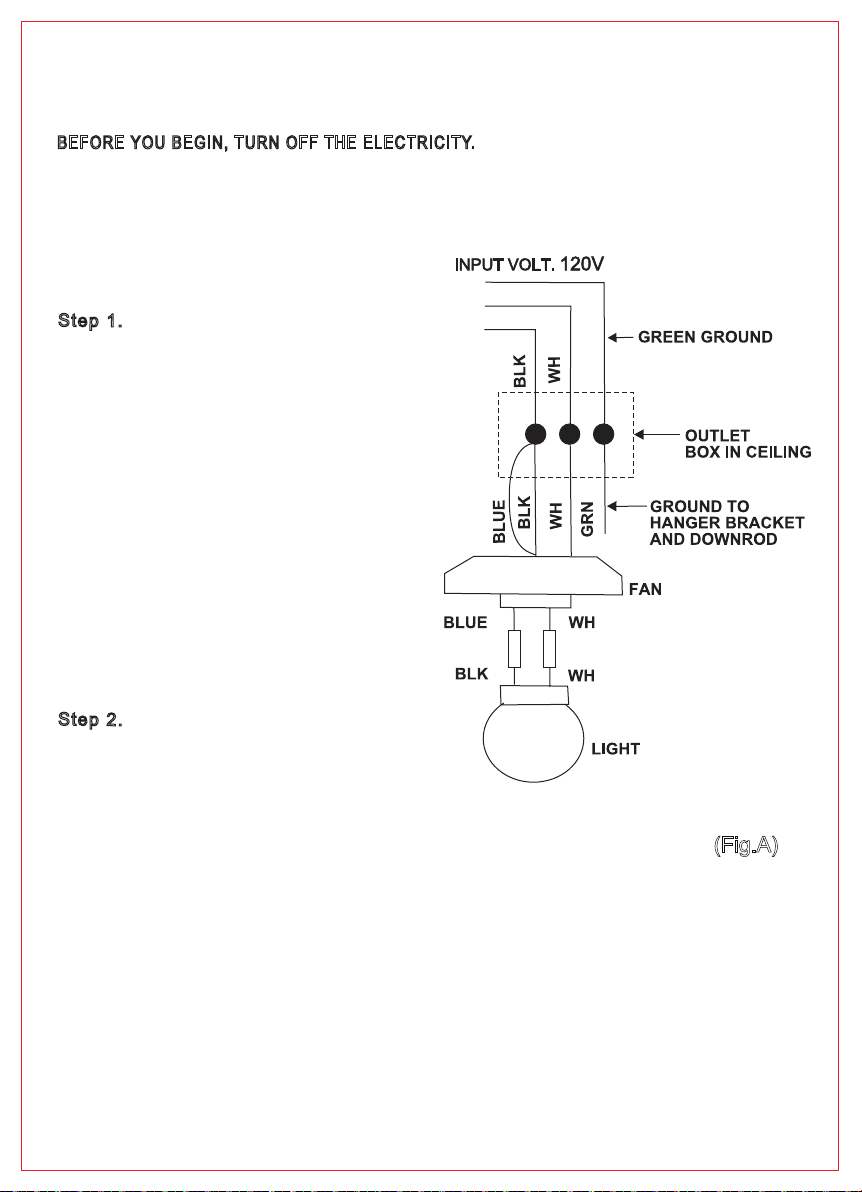

MAKING ELECTRICAL CONNECTIONS
(Fig.A)
Connect Black(Hot) fan wire to Black outlet wire,
white (Neutral) fan wire to white outlet wire.
Connect green or bare copper wire from outlet
box to the hanger bracket and downroll ball
green ground wires together. (Fig.A)
If an additional blue lite kit wire is present,
then also connect the blue wire to black wire.
Secure all connections with electrical tape.
Make sure there are no loose strands or
connections.
Follow the steps below to connect the fan
to your household wiring. Use the wire
connecting nuts supplied with your fan.
BEFORE YOU BEGIN, TURN OFF THE ELECTRICITY.
Step 1.
Step 2.
After completing wiring connections, turn all
splices upward and carefully push into outlet
box.
Separate blue and black wires on one side of
the outlet box, the white and green wires on
the other side.

7
ELECTRICAL CONNECTIONS (FOR OPTIONAL WALL CONTROL)
Fig. B & C illustrate the wiring connections for
optional wall control (The wire color out of wall
control may vary, see wall control’s installation
manual for correct wire connections.)
NOTE: Only use an optional wall switch
designed for use with ceiling fans.
If you select to control the motor from a wall
switch, remember the wall switch will only turn
your fan ON or OFF. The speed can be adjusted
by pull chain.
If you select to control the light of ceiling fan
from a wall switch, you must pull the light chain
to the “ON” position.
If you select to control the speeds of ceiling fan
from a wall switch, you must set the speed switch
on ceiling fan to HIGH speed and leave it in that
setting.
(Fig.B)
(Fig.C)
Follow this wiring diagram. Fan & Wall control sold separately, choose wall dimming control
compatible with LED light only.

8
BLADES INSTALLATION
ATTACHING SWITCH HOUSING
MOUNTING PLATE
ATTACHING SWITCH HOUSING
Remove 3 screws on underside of the
motor, attach the switch housing mounting
plate by using these 3 screws.
After completing fan blades installation,
processed with this process.
Plug 9-pin connector together carefully.
Locate 3 screws on switch housing mounting
plate, attach switch housing to mounting plate
by using these 3 screws and tighten securely.
Model:1073-PC
Insert the blade screws through blade kit
and blade then secure by tightening two
blade screws.
Repeat this process to install the other
blades to the motor.
Blade holder screws
Blade
Switch Housing
mounting plate
Switch Housing
mounting plate

9
LIGHT KIT INSTALLATION
Note: The use of light kits other than models approved by RP Lighting will avoid the warranty.
Plug 9-pin connector together carefully.
Locate 3 screws on switch housing mounting plate, attach light kit to mounting plate by using
these 3 screws and tighten securely.
Molex 9-pin connector
Switch housing screw
LED Light kit
Mounting plate
Screws
CANOPY ASSEMBLY
After completing electrical connection, cover the MOUNTING BRACKET with the CANOPY.
Ensure that all electrical wiring is carefully tucked inside the canopy.
Locate 2 screws on underside of mounting bracket.
Attach canopy to the mounting bracket by placing screws into slotted holes in canopy.
Twist clockwise to lock into place. Tighten screws firmly.

10
OPTIONAL LIGHT KIT INSTALLATION
Plug 9-pin connector together.
Remove switch housing by unscrew 3 side screws, take off a small center plug from switch housing.
Attach optional light kit to switch housing with hex and spring washer provided with light kit as
shown in illustration.
Note: Ensure the hex and spring washer are secured tightly.
Make wire connections; the Blue Wire (labeled FOR LIGHT) to Black Wire from light kit, the
White Wire (labeled FOR LIGHT) to White Wire from light kit.
For Light Live Wire
(BLUE) For Light Neutral Wire (WHITE)
Light Kit Neutral Wire
(WHITE)
Light Kit
Nut and Washer
Light kit Live Wire
(BLACK)

11
Connect the WOOD TASSEL to the pull chain located in switch housing
( Model #1073-PC).
Turn on the power and check the operation of your fan.
3-SPEED PULL CHAIN
1 pull = High Speed
2 pulls = Medium Speed
3 pulls = Low Speed
4 pulls = Fan Off
Even if the fan is mounted with a minimum of 7 feet clearance from the trailing edge
of the blades to the floor, be careful to avoid raising your arms or nay object in the path
of the blades.
Connect the two WOOD TASSELS to the pull chains located in light kit ( Model #1073LED-PC ).
One is for the fan, and the other is for the light.
The pull chain switch for the light kit is two positions ON / OFF.
To turn the LIGHT KIT “ON” or “OFF”, pull the chain attached to the light kit.
Note:
OPERATING YOUR FAN

12
OPERATING YOUR FAN
A slid reverse switch located on the switch housing control the direction of blades rotation.
The right position sets the blades in REVERSE rotation.
The left position sets the blades in FORWARD rotation.
SUMMER Mode:The reverse switch shall be in the “left” (SUMMER) position to make the fan rotate in
an anticlockwise direction. The airflow will be directed downwards, for cooling in summer.
WINTER Mode: The reverse switch shall be in the “right” (WINTER) position to make the fan rotate in a
clockwise direction. The airflow will be directed upwards assisting in the circulation of
warm air, for energy conservation in winter.
Warning: Turn fan completely off before moving the reverse switch (located on top of the motor housing).
Important: Reverse switch must be set either completely to the LEFT or completely to the RIGHT
for fan to function. If the reverse switch is set in the middle position, fan will not operate.
Summer Winter
Summer Winter
Switch housing
Reverse switch Reverse switch
Light kit

13
TROUBLESHOOTING
Problem Solutions
Fan will not start.
Fan sounds noisy.
Fan wobbles
CARE OF YOUR FAN
Here are some suggestions to help you maintain your fan.
1. Because of the fan's natural movement, some connections may become loose. Check the support
connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not
necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new appearance over the years. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to minimize discoloration
or tarnishing. Do not use water when cleaning. This could damage the motor, or the wood, or possibly
cause an electrical shock.
3. You can apply a light coat of furniture polish to the wood blades for additional protection and enhanced
beauty. Cover small scratches with a light application of shoe polish.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.
WARNING: Failure to disconnect power supply prior to troubleshooting any wiring issues may result in serious injury.
- Check circuit fuses or breakers.
- Check line wire connections to the fan and switch wire connections in the switch housing.
- Make sure all motor housing screws are snug.
- Make sure the screws that attach the fan blade bracket to the motor hub is tight.
- Make sure wire nut connections are not rubbing against each other or the interior
wall of the switch housing.
- Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
- If using an optional light kit, make sure the screws securing the glassware are tight.
Check that light bulb is also secure.
- Some fan motors are sensitive to signals from solid-state variable speed controls.
If you have installed this type of control, choose and install another type of control.
- Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
- Check that all blade and blade arm screws are secure.
- Most fan wobbling problems are caused when blade levels are unequal. Check this
level by selecting a point on the ceiling above the tip of one of the blades. Measure
this distance. Rotate the fan until the next blade is positioned for measurement.
Repeat for each blade. The distance deviation should be equal within 1/8".
- Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
- If the blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.

RP-082119
