INTRODUCTION

The Nova 2000®Talk is an advanced in helmet communication system for use with the Nova

2000®Respirator. This is a wireless communication system with push to talk function, a noise

cancelling microphone, and comfort foam padding that connects to your industrial radios. There is

two versions of the Nova 2000®Talk. The 09-900 is the standard communication system. The

09‑800 with the 09‑813 PTT is the intrinsically safe communication system for ammable or

explosive atmospheres.

See PROTECTION PROVIDED AND LIMITATIONS (page 4) for details.

4

PRODUCT NAME®

Improper selection, t, use, or maintenance of this product can result in

injury; life threatening delayed lung, skin or eye disease; or death.

This product is intended for occupational use in accordance with applicable standards or regulations

for your location, industry, and activity (see Employer Responsibilities, page 5). Familiarity with

standards and regulations related to the use of this protective equipment is recommended, even

if they do not directly apply to you. If self-employed or if used in a non-occupational setting,

refer to Employer Responsibilities and Product User Safety Instructions. Go to rpbsafety.com/

importantsafetyinformation/ for helpful links to OSHA and other content.

Employers: Read this manual and carry out the Employer Responsibilities (page 5).

Product users: Read this manual and follow the Product User Safety Instructions (page 6).

IMPORTANT SAFETY INFORMATION

WARNING

HAZARD LIMITATIONS

The RPB®Nova 2000®Talk™communication system is NOT FOR USE if:

 In a ammable or explosive atmosphere is present when using the 09‑900 standard

communication system.

HEARING:

 Hearing protection must be worn and properly tted when exposed to noise levels that exceed

the OSHA permissible exposure levels.

LIMITATIONS

5

EMPLOYER RESPONSIBILITIES

Your specic responsibilities may vary by location and industry, but in general RPB®expects that

employers will:

Follow all applicable standards and regulations for your location, industry, and activity.

Depending on your location and industry, a number of standards and regulations may apply to

your selection and use of communication systems. These may include such things as federal

(e.g., OSHA, MSHA, Canadian Occupational Health and Safety), local (e.g., state, provincial), or

military standards and regulations and consensus standards such as ANSI and CSA. Know which

requirements apply to your location and industry.

Have appropriate safety programs in place.

Have and follow a workplace safety program.

In accordance with the above,

Perform a hazard analysis and select appropriate equipment for each activity. A hazard

analysis should be performed by a qualied person. Controls should be in place as

appropriate and a qualied person should determine what kind of communication system

and hearing protection is appropriate for the intended activities and environments of use.

(For example, intrinsically safe systems, that meets or exceeds the required level for

employee protection, etc.)

As applicable, check your workplace safety program and standards and regulations for your

activity or industry for related protection requirements, and see this manual (Limitations,

page 4) and the Nova 2000® Instruction Manual for product specications.

Train employees in the Nova 2000®Talk™’s use, maintenance, and limitations.

Appoint a qualied individual who is knowledgable about the Nova 2000®Talk™ and Nova

2000®per ANSI/ASSE Z88.2 guidelines to provide training:

Section 8.1 Qualications of the Respirator Trainer. Anyone providing respirator training shall:

a) be knowledgable in the application and use of the respirator(s);

b) have practical knowledge in the selection and use of respirator(s) and work practices at

the site;

c) have an understanding of the site’s respirator program; and

d) be knowledgable of applicable regulations.

Train each Nova 2000®Talk™user in the product’s use, application, inspection, maintenance,

storage, tting, and limitations in accordance with the content of this Instruction Manual

and standard or regulatory requirements. Ensure that each intended user reads both these

documents.

Ensure that equipment is properly set up, used, and maintained.

Make sure that equipment is properly set up, inspected, tted, used, and maintained,

including selection of the appropriate type of radio for the application.

If you have any questions, contact RPB®.

Call Customer Service Department at: Tel: 1-866-494-4599, Email:

customerservice@rpbsafety.com, Web: rpbsafety.com

6

PRODUCT NAME®

PRODUCT USER SAFETY INSTRUCTIONS

BEFORE INITIAL USE - BE TRAINED

Do not use this product until you have read this manual and the Nova 2000®Instruction Manual

(additional copies available at www.rpbsafety.com) and been trained in the respirator’s use,

maintenance, and limitations by a qualied individual (appointed by your employer) who is

knowledgable about the RPB®Nova 2000®Talk™.

MAKE SURE THE SYSTEM IS READY FOR USE

Make sure you have a complete system. Verify that you have all required components for the Nova

2000®Talk™to serve as a complete system.

Use only authentic RPB®brand parts and components. Using incomplete or inappropriate

equipment, including the use of counterfeit or non-RPB®parts, can result in inadequate function. Do

not modify or alter any part of this product.

Inspect all components daily for signs of damage or wear and tear that may reduce the function

originally provided. Remove any damaged component or product from service until repaired or

replaced.

Make sure that the Talk™system is correctly assembled in the conguration that suits your

application. An incomplete or improperly installed system could provide inadequate function. See

Setup and Care (page 16).

VERIFY THAT YOU HAVE THE APPROPRIATE EQUIPMENT FOR YOUR ACTIVITY

Verify that the Talk™system being used is appropriate for your activity. As applicable, check your

workplace safety program, and standards and regulations for your activity or industry. Determine if

an intrinsically safe system is needed. (See LIMITATIONS, page 4.)

DO NOT ENTER THE WORK AREA if any of the following conditions exist:

A ammable or explosive atmosphere is present when using the 09‑900 standard

communication system.

LEAVE THE WORK AREA IMMEDIATELY IF:

Any product component becomes damaged.

Communication stops working and could be a danger to your safety.

PRODUCT CARE

Never place the Talk™system on hot surfaces. Do not apply paints, solvents, adhesives or self-

adhesive labels except as instructed by RPB®. This product may be adversely affected by certain

chemicals.

Clean with mild detergent and a soft cloth or a cleaning wipe.

INSTRUCTIONS FOR SPECIFIC USES OR ENVIRONMENTS

Flammable or Explosive Environments

Use the 09-800 with the 09-813 PTT Intrinsically Safe model.

7

SET UP AND USE

Connect the PTT Cable to the Hand Set.

Attach the PTT to your belt so your elbow

can activate the Button.

Use a Flat head screwdriver to tighten the

connection screw.

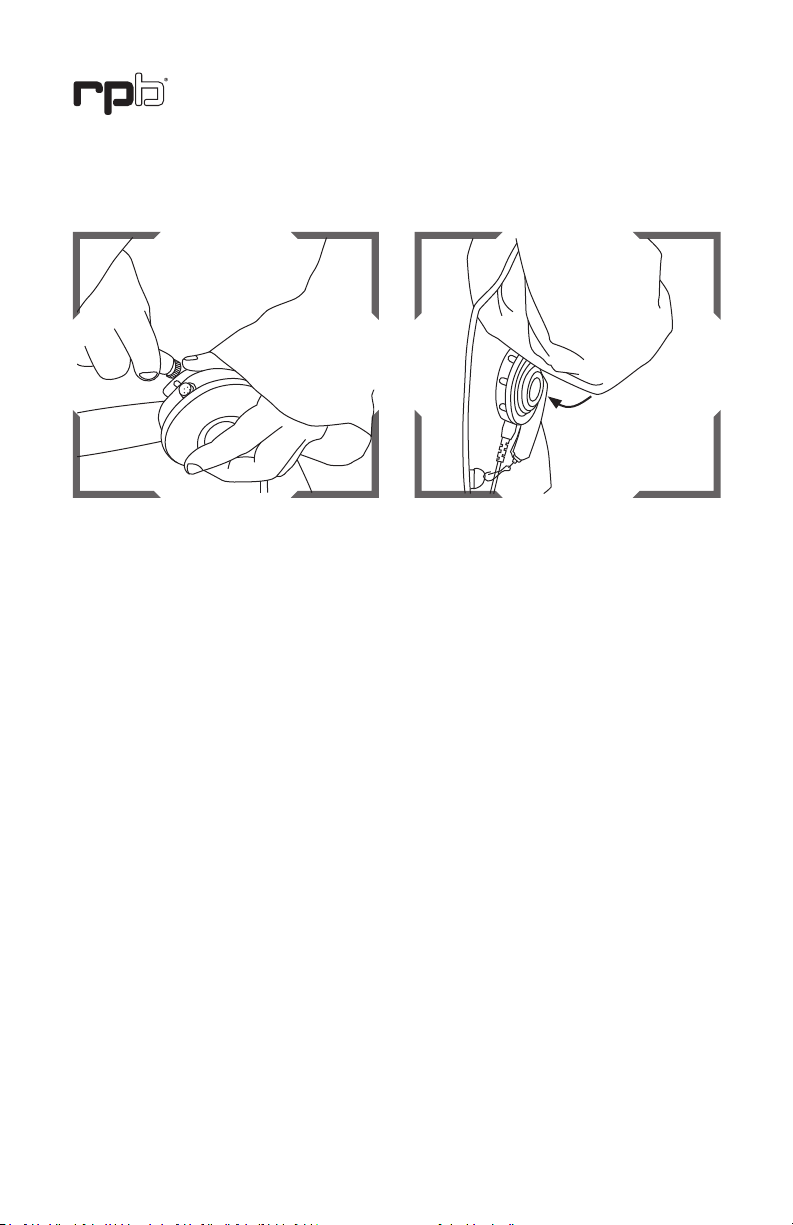

FIGURE 1.1 FIGURE 1.2

FIGURE 1.3

Place the helmet on and connect the clips

and D Rings on the Cape together.

FIGURE 1.4

8

PRODUCT NAME®

SETUP AND USE CONTINUED

Connect the PTT cable to the head set cable

and place the cable underneath the cape.

FIGURE 1.5

To operate the device, press your elbow onto

the PTT Button, and then speak.

FIGURE 1.6

Push to Talk

9

Remove the Cape & Sidewings from your old

Nova Helmet.

Open the zip in the inner bib so that the Cable

from the Head Set can pass though.

Place the Nova Talk Sidewings into the

helmets, ensuring that they are securely

attached to the Velcro Studs.

FIGURE 3.1 FIGURE 3.2

FIGURE 3.3

Close the zip so that there are no gaps. Then

refer to the Set up Section to complete the

Set Up of the Nova Talk Helmet.

FIGURE 3.4

UPGRADE

10

PRODUCT NAME®

After removing the cape from the helmet,

take the side wing out of the helmet.

Carefully remove the headset from the

sidewing. Note: this device is fragile, please

use extreme care.

Open the side wing cover.

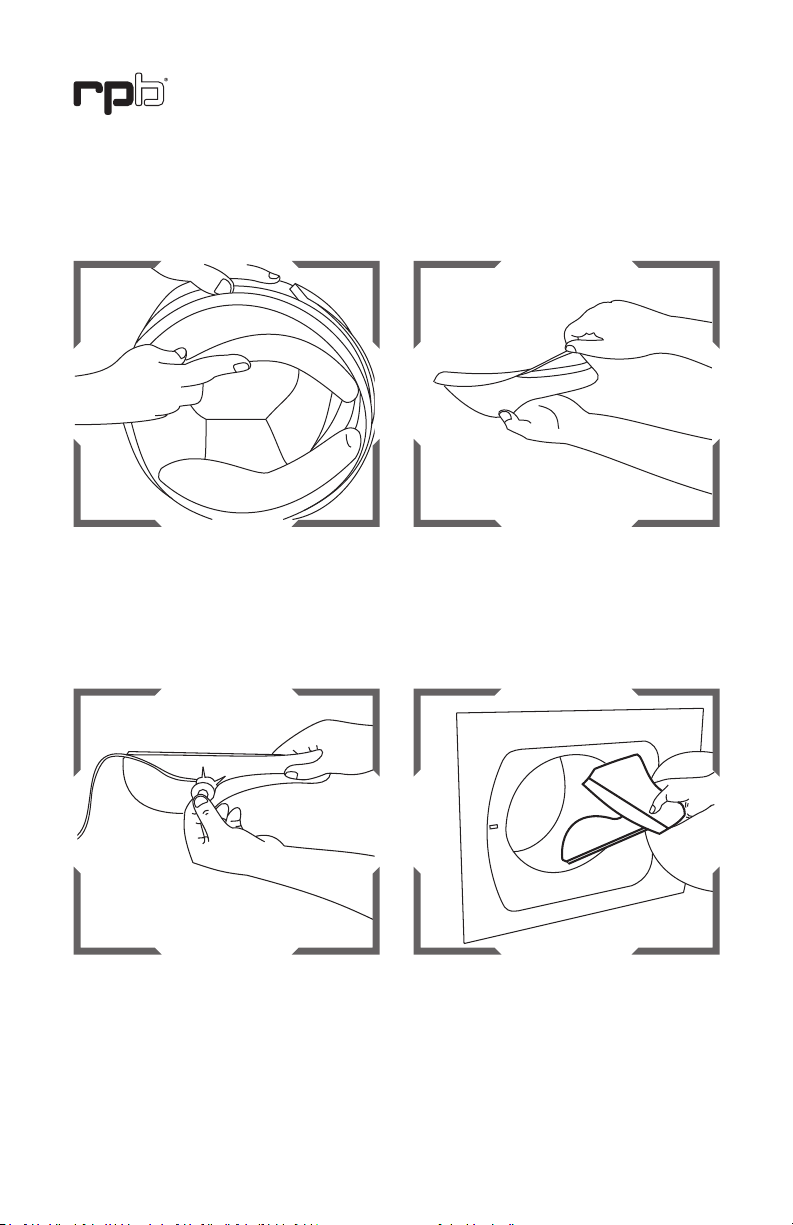

FIGURE 5.1 FIGURE 5.2

FIGURE 5.3

The Side wing and cover can be wiped

clean or washed in a conventional washing

machine.

FIGURE 5.4

MAINTENANCE

SETUP AND USE CONTINUED

11

NOTES

...................................................................................................................................

12

PRODUCT NAME®

09-932

09-931

HYT

TC-980

MOTOROLA

CBPRO, GP1280, GP140, GP320, GP328, GP329, GP338,

GP339, GP340, GP360, GP380, GP640, GP650, GP680,

GP960, HT1250, HT1250LS, HT1550, HT1550XLS, HT750,

JT1000, MTX8250, MTX8250LS, MTX850, MTX850LS,

MTX9250, MTX950, PR860, PRO5150, PRO5350, PRO5450,

PRO5550, PRO5750, PRO7150, PRO7350, PRO7450,

PRO7550, PRO7750, PRO9150, PTX700, PTX760, PTX780

09-930

MOTOROLA

AXU4100, AXV5100, BPR40, CLS1110, CLS1410, CLS1413,

CLS1450C, CLS1453C, CP100, CP150, CP185, CP200, CP88,

CT125, CT150, CT250, CT450, CT450LS, DTR, DTR410,

DTR550, DTR650, GP200, GP2000, GP300, GP308, GP68,

GP88, GTI, GTX, LTS2000, P040, P080, P110, P1225,

P1225LS, P200, P2000, PR400, RDK, RDU, RDU2020,

RDU2080D, RDU4100, RDU4160D, RDV, RDV2020,

RDV2080D, RDV5100, SP10, SP21, SP50, VL50, XTN,

XTN446, XTN500, XTN600, XU1100, XU2100, XU2600,

XV1100, XV2100, XV2600

RELM

RPU6500, RPV6500

MOTOROLA

Turbo

APX 7000, XPR6300, XPR6500, XPR6550,

APX 7500, XPR6100, XPR6350, XPR6580

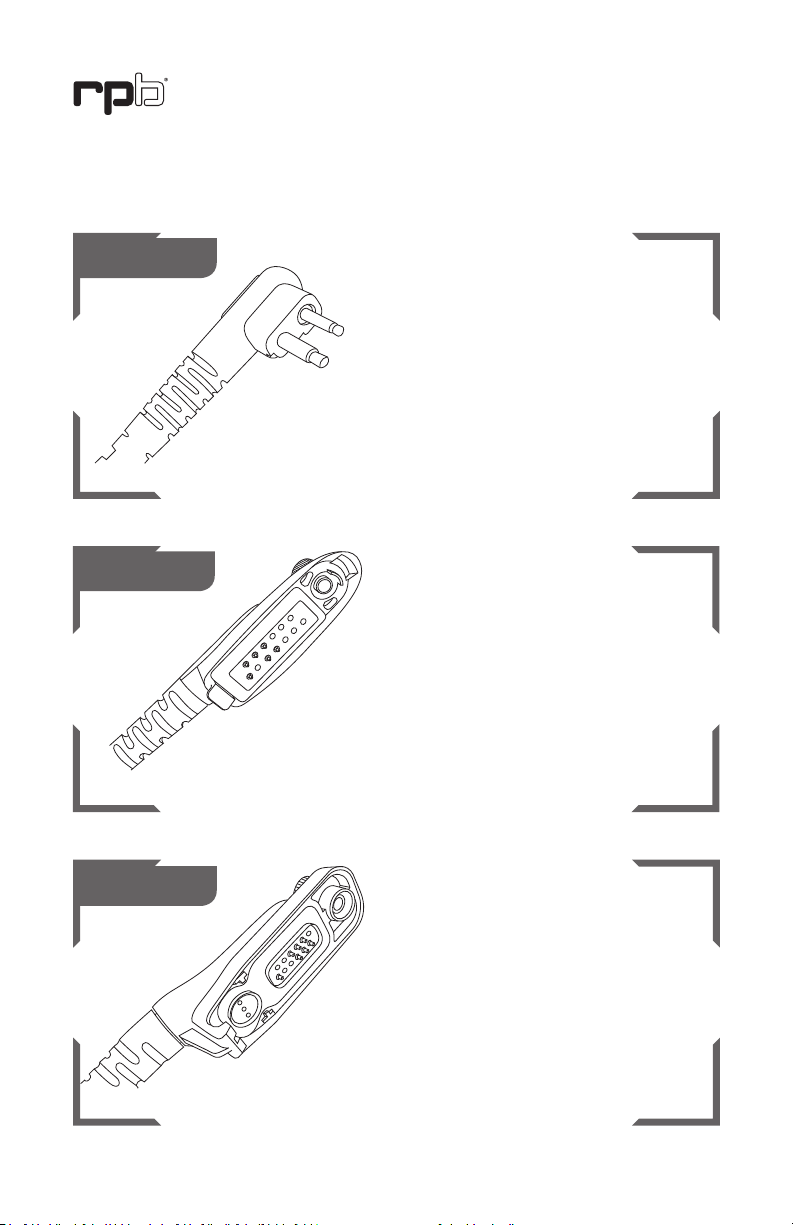

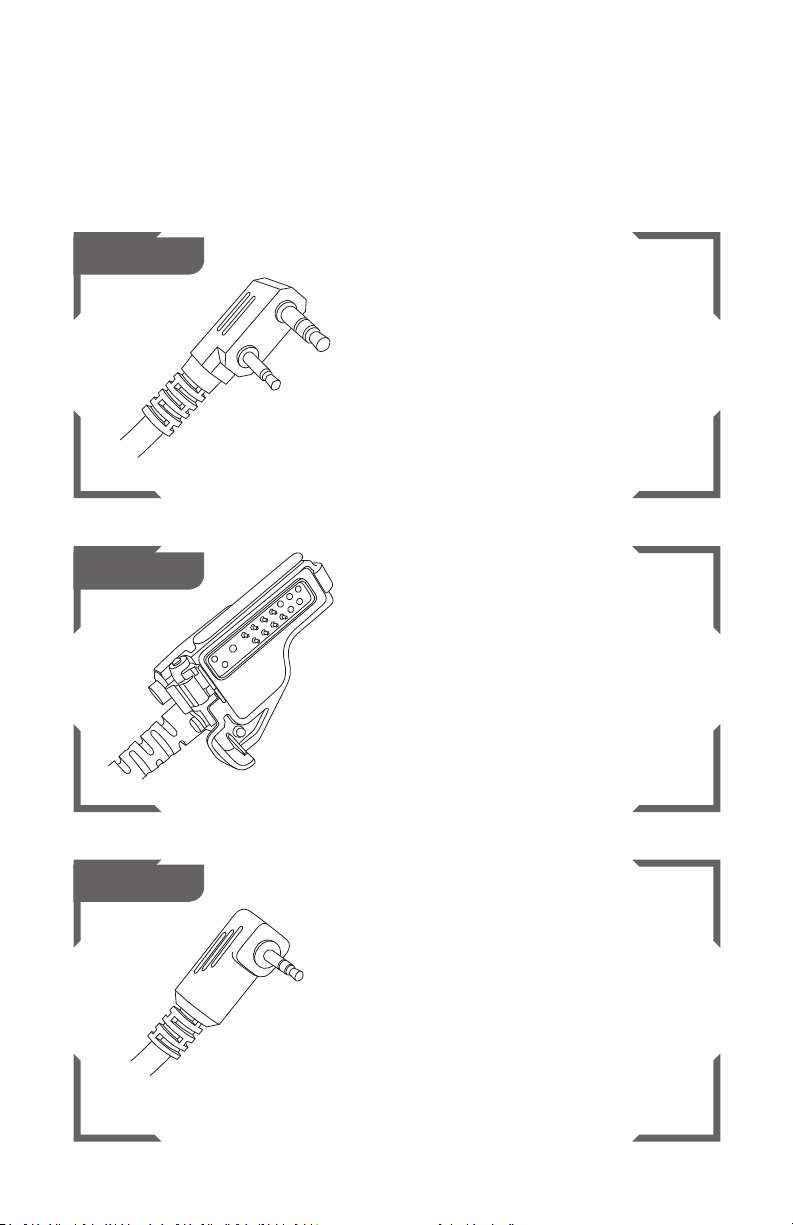

RADIO CONNECTORS COMPATIBILITY

FIGURE 22.1

FIGURE 22.2

FIGURE 22.3

13

09-935

COBRA

CXR700, CXR800, CXR900, CXR920, CXT400, LI Series, LI3900,

LI5600, LI6000, LI6500, LI6700, LI7000, LI7020, MRHH100,

MRHH200, PR Series, PR190, PR240, PR245, PR3000, PR3100,

PR3175, PR350, PR4000, PR4100, PR4250, PR4300, PR5000,

PR560

HYT

TC-320

MOTOROLA

EM1000, FR50, FR60, FV300, FV300R, FV700R, FV750R,

MH230R, MJ270R, MR350R, MR355R, SPIRITGT, SPIRITGT Plus,

SX600R, SX900R, T270, T280, T289, T5100, T5200, T5300,

T5320, T5400, T5410, T5420, T5500, T5600, T5620, T5700,

T5710, T5720, T5800, T5820, T5920, T5950, T6200, T6210,

T6220, T6250, T6300, T6320, T6400, T6500, T7200, T7400,

T8500, T8550, T9500XLR, T9550XLR, T9580R, T9680R,

T9750R, TalkAbout

EF JOHNSON

51 SLES Series, 5100 Series, 511X, 512X, 514X, 518X, Ascend ES

Series

MOTOROLA

GP900, GP9000, HT1000, MT1500, MT2000, MTS2000,

MTX8000, MTX838, MTX900, MTX9000, MTX960, MTXLS,

PRI500, X1500, XTS1500, XTS2000, XTS2500, XTS3000,

XTS3500, XTS5000, GP1200

09-934

HYT

TC-268, TC-268S, TC-270, TC-368, TC-368S, TC-370

KENWOOD

TH-22AT, TH-235A, TH-28A, TH-42AT, TH-48A, TH-77A, TH-78A,

TH-D7A(G), TH-F6, TH-F6A, TH-G71A, TH-K2AT, TK-208, TK-

2100, TK-2102, TK-2130, TK-2160, TK-2170, TK-220, TK-2200,

TK-2200LP, TK-2212L, TK-2302VK, TK-240, TK-240D, TK-248,

TK-250, TK-260, TK-260D, TK-260G, TK-270, TK-270G, TK-272G,

TK-308, TK-3100, TK-3101, TK-3102, TK-3130, TK-3131, TK-3160,

TK-3170, TK-3173, TK-320, TK, 3200, TK-3200LP, TK-3212L,

TK-3230, TK-3230XLS, TK-3302UK, TK-340, TK-340D, TK-348,

TK-350, TK-353, TK-360, TK-360G, TK-370, TK-370G, TK-372G,

TK-373, TK-430, TK-431, TK-2312, TK-3312

RELM

RPU416, RPU4200, RPU499, RPV4200, RPV516, RPV599X

09-933

FIGURE 22.4

FIGURE 22.5

FIGURE 22.6

14

PRODUCT NAME®

123

5 6 8

9

7

10 12

11

14

15

13

PARTS AND ACCESSORIES FIGURE 6.1

4

16 17

Use only exact, authentic RPB®replacement parts (marked with the

RPB® logo and part number), and only in the specied conguration. Using incomplete

or inappropriate equipment, including the use of counterfeit or non-RPB®parts, can

result in inadequate protection and will void the NIOSH approval of the entire respirator

assembly.

WARNING

15

PARTS FIGURE 6.2

Item No. Description Part No.

1 Head Set for Nova Talk w/ Side Wing Pair 09-911

Intrinsically Safe Head Set for Nova Talk w/ Side Wing Pair 09-811

2 Sidewing Pair without Head Set 09-912

Intrinsically Safe Sidewing Pair without Head Set 09-812

3 Standard PTT 09-913

4 Intinsically Safe PTT with Radio Connector Cable 09-813

5 Nova Talk Motorola Connection Cable (2 Pin) 09-930

6 Nova Talk Motorola Connection Cable (Multi Pin) 09-931

7 Nova Talk Motorola Connection Cable (Multi Pin) 09-932

8 Nova Talk Kenwood Connection Cable (2 Pin) 09-933

9 Nova Talk Kenwood Connection Cable (Multi Pin) 09-934

10 Nova Talk Kenwood Connection Cable (Single Pin) 09-935

11 Nova Talk Kenwood Connection Cable (Multi Pin) 09-936

12 Nova Talk Motorola Connection Cable (X10 Connector) 09-937

13 Chest Harness 09-814

14 R-Tex High Noise Headset 09-915

15 R-Tex High Noise Headset w/PTT 09-916

16 Raider High Noise Intrinsically Safe Headset (Headset only) 09-815

17 Raider High Noise Intrinsically Safe including PTT 09-816

16

PRODUCT NAME®

LIMITED WARRANTY

RPB®warrants that its Products will be free from defects in materials and workmanship for one (1)

year, subject to the terms of this limited warranty. The Products are sold only for commercial use,

and no consumer warranties apply to the Products. This limited warranty is for the benet of the

original Product purchaser, and cannot be transferred or assigned. This is the sole and exclusive

warranty provided by RPB®, and ALL CONDITIONS AND IMPLIED WARRANTIES (INCLUDING

ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) ARE

EXCLUDED AND DISCLAIMED FROM WARRANTY COVERAGE. RPB’s®limited warranty coverage

does not apply to damage resulting from accident, improper use or misuse of the Products, wear and

tear resulting from the normal use of the Products, or the failure to properly maintain the Products.

RPB’s®limited warranty coverage runs from the original date of purchase of the Products, and

applies only to warranted defects which rst manifest themselves and are reported to RPB®within

the warranty period. RPB®retains the right to determine to its reasonable satisfaction whether any

claimed defect is covered by this limited warranty.

If a warranted defect occurs, RPB®will repair or replace the defective Product (or a component of the

Product), in its sole discretion. This “repair or replacement” remedy is the sole and exclusive remedy

under this limited warranty, and under no circumstances shall RPB’s®liability under this limited

warranty exceed the original purchase price for the Products (or the applicable component). RPB®

has no responsibility for incidental or consequential damages, including loss of use, maintenance

and other costs, and ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE EXCLUDED

AND DISCLAIMED from this limited warranty. Contact RPB®to obtain warranty service. Proof of

purchase must be provided to obtain warranty service. All costs of returning the Products to RPB®

for warranty service must be paid by the purchaser.

RPB®reserves the right to improve its Products through changes in design or materials without

being obligated to purchasers of previously manufactured Products.

LIABILITY

RPB®Safety cannot accept any liability of whatsoever nature arising directly or indirectly from

the use or misuse of RPB®Safety products, including purposes that the products are not designed

for. RPB®Safety is not liable for damage, loss or expense resulting from the failure to give advice

or information or the giving of incorrect advice or information, whether or not due to RPB®Safety’s

negligence or that of its employees, agents or subcontractors.

PROPOSITION 65 - CALIFORNIA RESIDENTS

WARNING: This product contains a chemical known to the State of California to cause cancer.

WARNING: This product contains a chemical known to the State of California to cause birth defects

or other reproductive harm.

17

NOTES

...................................................................................................................................

18

PRODUCT NAME®

NOTES

...................................................................................................................................

19

NOTES

...................................................................................................................................

1-866-494-4599

RPBSAFETY.COM

OTHER PRODUCTS

POWERED AIR RESPIRATOR

Polluted air can be the cause of major health

issues. How can you improve the quality of

the air your employees are breathing? The

RPB®PX4 AIR® is a powered air purier that

is ergonomic and lightweight, designed to

withstand harsh conditions. Powered with

a lithium-polymer battery, making the unit

incredibly efcient, operating for up to 8

hours on a single charge.

RPB®QUIET-LINK™EAR

DEFENDERS

The RPB®Quiet-Link™ear defender system

ts directly to the Z‑Link®and T-Link®

with no modications. Combine with

RPB®Earplugs for the ultimate in hearing

protection. Protect your hearing for Life’s

Best Moments.

COMMS-LINK™

The world’s most advance in-helmet

communication system for Z-Link®and

T-Link®. The RPB®Comms-Link™system

allows you to communicate without

interrupting your work. The in-helmet

headset and microphone connect to most

professional radios.

RPB Nova 2000 Talk User manual

Popular Conference System manuals by other brands
