RS IQ718 User manual

IQ718, IQ719
wireless
digital thermometer
instruction manual
Thank you for purchasing this digital thermometer.
Designed for everyday use, the weather station will
prove to be an asset of great value for your person-
al use in the home or office. Please read this
instruction manual thoroughly to fully understand
the correct operation of your weather station and
benefit from its unique feature. This Operation
Manual is part of this product and should be kept
in a safe place for future reference. It contains
important notes on setup and operation.
02718-Manual:02718-Manual 26.02.2011 16:47 Page 1

RST02718, RST02719 2
1 outdoor indicator
2 RF receive
3 outdoor temperature
4 outdoor high temperature
5 outdoor low temperature
6 indoor low battery
7 indoor high temperature
8 indoor low temperature
9 alarm time
10 time
11 summer timer
12 time zone
13 RCC receive
14 month
15 date
16 indoor temperature trend
17 indoor temperature
18 indoor indicator
19 outdoor temperature trend
20 outdoor low battery
21 Freeze
A w-alarm
B s-alarm
Cup
Ddown
E clock set
F search
G memory
H snooze/light
description
02718-Manual:02718-Manual 26.02.2011 16:47 Page 2

• Eight Buttons: CLOCK SET, Single ALARM, Mon-fri ALARM, SEARCH, +,-,
• SNOOZE/LIGHT, MEMORY.
• RCC Reception: DCF+2
• Display for Hour, Minute,Second.
• Perpetual calendar to 2099.
• Time display in 24 HR format.
• Temperature display in C
• Indoor/outdoor temperature display.
• Highest/Lowest Indoor/Outdoor temperature display.
• Automatical deleting for temperature history.
• Keyboard tone.
• S-alarm setting.
• Dual Snooze function.
• DST indication.
• Freezing Alert.
• Low battery indiction.
• Orange LED Backlight.
Item Temperature Humidity
Operating -10 ~ 50 oC 20 ~ 90%
Storage -20 ~ 70 oC 15 ~ 95%
RST02718, RST02719 3
Main Features
Environmental Characteristic
02718-Manual:02718-Manual 26.02.2011 16:47 Page 3

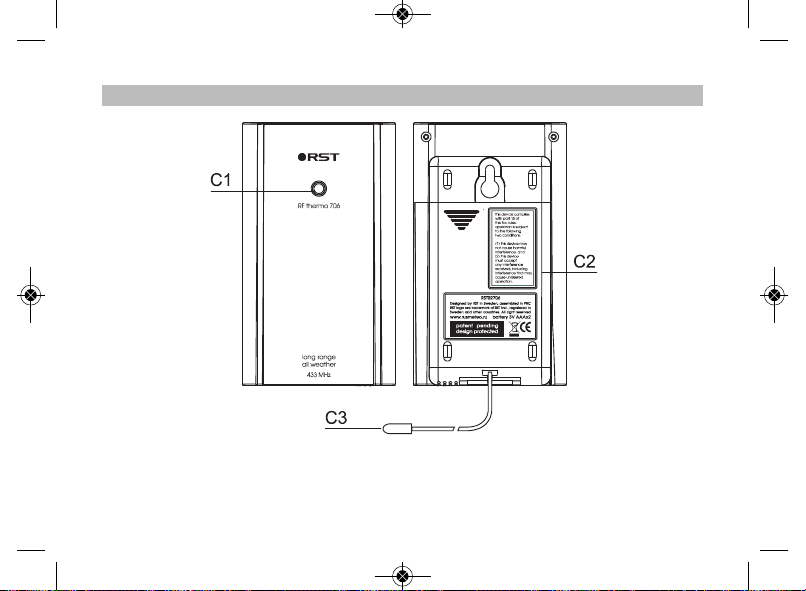

С1 Transmission Indication LED
С2 Battery door (АААх2)
C3 Thermo sensor wire (1 meter long)
RST02718, RST02719 4
RF sensor
02718-Manual:02718-Manual 26.02.2011 16:47 Page 4

In normal mode, Holding “CLOCK SET” for 3 seconds to enter time setting.
Year display is flashing, Press “+”, “-“ to set the value. Press “CLOCK SET” to confirm.
Month display is flashing, Press “+”, “-“ to set the value. Press “CLOCK SET” to confirm.
Date display is flashing, Press “+”, “-“ to set the value. Press “CLOCK SET” to confirm.
Hour display is flashing, Press “+”, “-“ to set the value. Press “CLOCK SET” to confirm.
Minutes display is flashing, Press “+”, “-“ to set the value. Press “CLOCK SET” to confirm..
RCC ON/OFF display is flashing, Press “+”, “-“ to set. Press “CLOCK SET” to confirm..
Time Zone display is flashing, Press “+”, “-“ to set. Press “CLOCK SET” to confirm.
DST ON/OFF display is flashing, Press “+”, “-“ to set. Press “CLOCK SET” to confirm.
Information:
Year seeting Area: 2005-2099.
Without any press in 20 seconds, it will exit setting mode automatically.
When RCC setting is OFF, no automatical reception for RCC.
When DST setting is ON, no matter receive the RCC or not, it will adjust the DST automati-
cally.
When Zone setting is ON, it will adjust the time automatically after RCC reception with Z
symbol display.
RST02718, RST02719 5
Operation procedures
Time Setting
02718-Manual:02718-Manual 26.02.2011 16:47 Page 5

In normal mode, Press “Single Alarm” to turn ON/OFF Single Alarm. Default time is AM 8:00.
In normal mode, Press “Mon-fri Alarm” to turn ON/OFF Mon-fri Alarm. Default time is AM 7:00.
Hold “Single Alarm” or “Mon-fri Alarm” for more than 3 seconds to enter Alarm setting mode.
Hour display is flashing, Press “+”,”-“ to set the value, press “ Single Alarm/ Mon-fri Alarm”
to confirm.
Minute display is flashing, Press “ Single Alarm/Mon-fri Alarm” to confirm.
Second display is flashing,,Press “ Single Alarm/Mon-fri Alarm” to confirm.
Information:
When both S-Alarm and Mon-fri Alarm are in off, no display at alarm position.
When alarm is ringing, Press “SNOOZE” to active snooze function for 8 minutes.
This item has dual snooze function, when you press “SNOOZE” button for third times, alarm
mode will be turned off.
Without any press in 20 seconds, it will exit alarm setting mode automatically.
Detection cycle: 30 seconds. Accuracy: 0.1 oC
Detection area: -10 - 50 oC
Information:
When temperature is beyond the Dectction area, temperature display will be in HH or LL.
Highest and lowest temperature value will be deleted at every 0:00.When alarm is ringing, automatical
pause for temperature detection.
RST02718, RST02719 6
Alarm Seeting
Temperature Detection
02718-Manual:02718-Manual 26.02.2011 16:47 Page 6

When the battery of main unit and sensor are low, symbol will display.
Press “SNOOZE/LIGHT” to light on the backlight for 5 seconds.
In normal mode, Press “MEMORY” to view Hight/Lowest temperature value.
View in order of : Highest indoor temperature Lowest indoor temperature Highest outdoor
temperature Lowest outdoor temperature Exit.
When View the Hi/LO temperature, the corresponding time will be flashing.
Information:
If hold the “MEMORY” button for more than 3 seconds in Hi/Lo temperature viewing mode. It will automat-
ically delete the temperature history.
Without any press in 7 seconds, automatically back to time display mode.
It will automatically receive the RF once inset the battery to the sensor or press the
“SEARCH” button on the main unit and automatically exit RF 3 minutes after succesful
reception.
If RF reception is in synchronization. Cancel RF reception, and start it in next reception
time. ( 1 minute later).
RST02718, RST02719 7
Backlight
Highest/Lowest Temperature View
Low Battery
RF Reception
02718-Manual:02718-Manual 26.02.2011 16:47 Page 7

Information:
When temperature is between -3 and +1 . Freezing Alert ( symbol) will be displayed on LCD.
Date, Year: Jan. 1st 2010.
Alarm: OFF
Temperature: C
RCC Timezone: +2HR
1. Automatically enter RCC after reception of RF once inset the battery.
2. Enter RCC by pressing “-“ button.
3. Automatical reception of RCC in everyday.
4. Exit RCC: A: by pressing “-“ for more than 2 seconds. B: Automatically exit after suc
cessful RCC reception. C: If RCC reception failed. Exit RCC 10 minutes later.
Information:
1. When enter RCC reception, symbol flashing. When receive the RCC signal,
symbol flashing. When reception of RCC signal, symbol flashing.
2. If no RCC signal received, symbol will be flashing all the time.
3. After successful reception of RCC,if adjust the YEAR, DATE etc. the RCC symbol will be
disappeared automatically.
4. DST symbol will be displayed once receive the DST signal.
5. Automatical RCC Reception Time: 01:00 02:00 03:00 04:00. If RCC reception is failed at
04:00, the next reception time is next 01:00.
RST02718, RST02719 8
Default Value
RCC
02718-Manual:02718-Manual 26.02.2011 16:47 Page 8

6. During RCC reception, you can enter time setting mode. After the setting, it will enter
RCC reception automatically again.
7. RCC reception time: During 10 minutes.
When RCC ON, automatical or manual reception for RCC.
When RCC OFF, no automatical or manual reception for RCC.
When change the time zone, the time will only be adjusted after successful reception of
RCC.
RST02718, RST02719 9
