RSi Smartcanopy EVO User manual

FITMENT INSTRUCTIONS
TOYOTA HILUX DC
LIKE SHARE FOLLOW
PLEASE ENSURE TO READ FITMENT INSTRUCTIONS CAREFULLY
BEFORE ATTEMPTING TO INSTALL.
DOCUMENT REVISION 1.

1
FITMENT KIT CONTENTS
BOLTS
Set Screw M8 x 30
DESCRIPTION QTY EXAMPLE
16
NUTS
M8 Nyloc Nut 8
M8 Square Weld Nut 8
WASHERS
M8 X 20 Flat Washers 8
M8 X 16 Flat Washers 8
M8 X 25 Flat Washers
M8 Spring Washer
8
8
FITMENT KIT CONTENT (HARDWARE)
DESCRIPTION QTY EXAMPLE
BRACKETS
Front Mount Bracket 2
Rear Mount Bracket 2
FITMENT KIT CONTENT (COMPONENTS)
CATEGORY TOOLS EXAMPLE
TOOLS
Socket Wrench & Accessories
Flat Spanners
REQUIRED TOOLS
Allen Keys
Torx Keys
NO. 10 Socket
NO. 13 Socket
Socket Wrench
NO. 10 FLAT
NO. 13 FLAT
FULL SET
FULL SET
Torque Wrench FULL SET
DOCUMENT REVISION 1.

2
FITMENT KIT CONTENTS & REQUIRED TOOLS
Loadspreaders 2
PLEASE ADHERE TO BELOW TO PREVENT DAMAGE TO VEHICLE AND RSI SMARTCANOPY DURING FITMENT
WARNING
!
1. ONLY USE THE RECOMMENDED TOOLS AS INDICATED IN THE FITMENT INSTRUCTION ABOVE.
2. ONLY USE THE HARDW ARE PROVIDED IN THE FITMENT KIT OUTLINED ON THE PAGE BEFORE.
3. HANDLE ALL RSI SMARTCANOPY FITMENT COMPONENTS WITH CARE UPON UNPACKING.
4. IT IS RECOMMENDED THAT THE MINIMUM OF FOUR PEOPLE ARE USED TO LIFT THE RSI SMARTCANOPY.
5. NEVER USE ACETONE ON PAINTWORK.
STEP
ONE
STEP
TWO
1. UNPACK ALL COMPONENTS & THE HARDWARE KIT FROM PACKAGING; ENSURE THAT EVERYTHING IS
ACCOUNTED FOR AS INDICATED ON PAGE BEFORE.
2. WHEN UNPACKING COMPONENTS, PLEASE PLACE THEM ON A PROTECTED SURFACE (E.G. FOAM) TO
ENSURE THAT THE PAINT IS NOT DAMAGED OR SCRATCHED.
1. REMOVE ANY CAB GUARD, ROLL BAR, TONNEAU COVER ETC FROM THE VEHICLE.

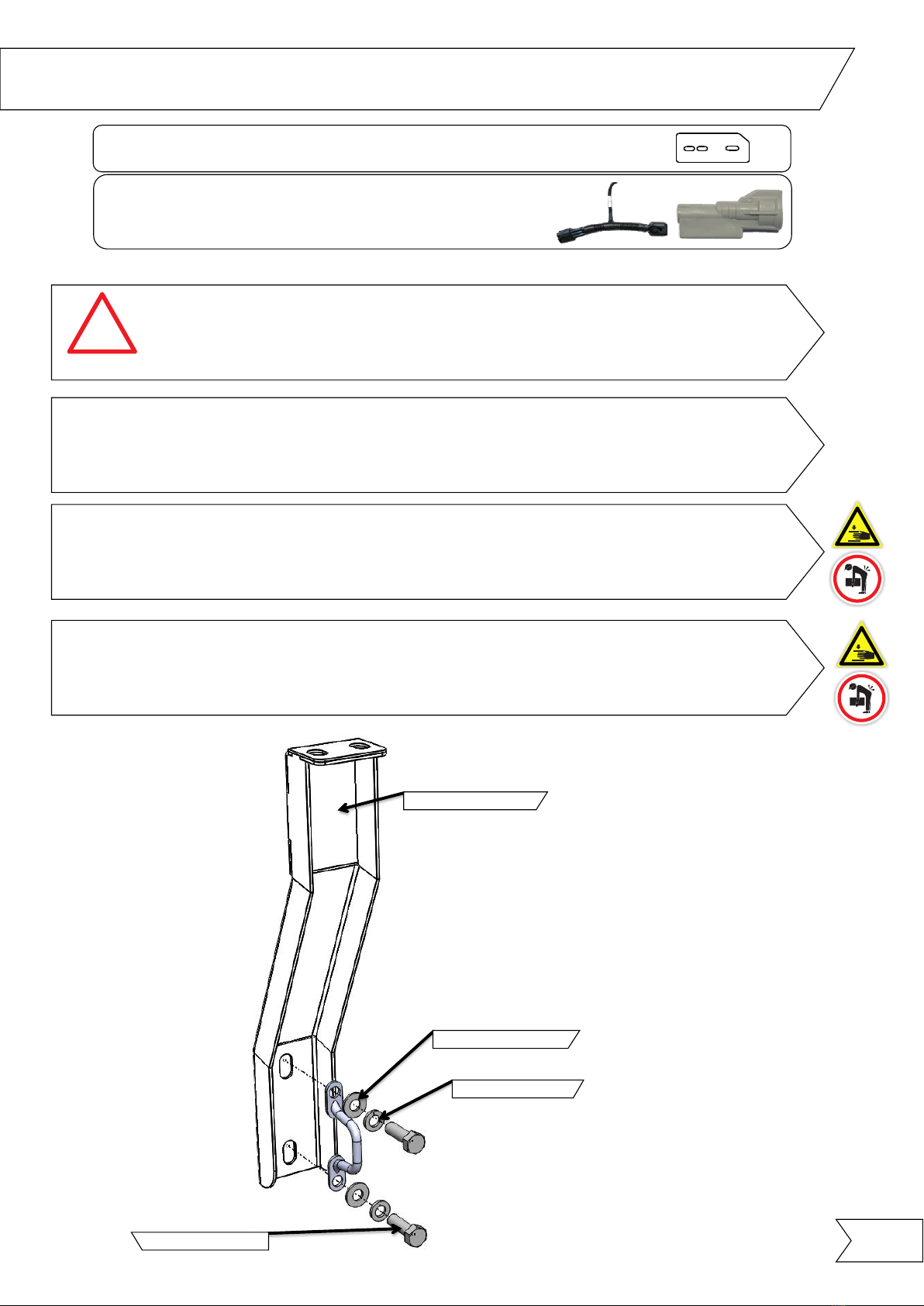

STEP
THREE
1. USING THE HARDWARE BELOW, POSITION THE LEFT HAND SIDE REAR BRACKET AND HAND FASTEN ALL
HARDWARE IN PLACE.
2. PLEASE WORK WITH CAUTION TO PREVENT UNNECESSARY DAMAGE.
3. REPEAT THE PROCESS ON THE OPPOSITE SIDE.
“ “
M8 Spring Washer
M8 x 20 Flat Washer
M8 x 30 Set Screw
Rear Mount Bracket
TIP: DO NOT TIGHTEN TO ALLOW FOR MOVEMENT
UNTIL ALL COMPONENTS, INCLUDING THE
CANOPY ARE INSTALLED. TIGHTEN AT THE END.
1 / 1
1
Wire Harness Connectors / Plug
Plug

4
FITMENT OF THE RSI SMARTCANOPY TO VEHICLE
STEP
FOUR
1. POSITION THE FRONT LEFT HAND SIDE BRACKET IN PLACE AND USE THE HARDWARE DEPICTED
BELOW TO HAND FASTEN THE FRONT LEFT HAND SIDE MOUNTING BRACKET.
2. WORK WITH CAUTION TO PREVENT UNNECESSARY DAMAGE.
3. REPEAT THE PROCESS ON THE OPPOSITE SIDE.
TIP: DO NOT TIGHTEN TO ALLOW FOR MOVEMENT
UNTIL ALL COMPONENTS, INCLUDING THE
CANOPY ARE INSTALLED. TIGHTEN AT THE END.
M8 Spring Washer
M8 x 20 Flat Washer
Front Mount Bracket
M8 x 30 Set Screw

5
FITMENT OF THE RSI SMARTCANOPY TO VEHICLE
STEP
FIVE
1. PLACE THE RSI SMARTCANOPY ONTO THE LOAD BIN.
2. MAKE SURE THE RSI SMARTCANOPY IS IN ITS CORRECT POSITION BY LINING UP THE SLOTS
ON THE RSI SMARTCANOPY WITH THE SLOTS ON THE MOUNTING BRACKET.
3. PLEASE LIFT WITH CAUTION TO PREVENT POSSIBLE INJURY. IT IS RECOMMENDED A
MINIMUM OF FOUR PEOPLE ARE USED TO LIFT THE RSI SMARTCANOPY
M8 X 30 Set Screw
M8 X 25 Flat Washer
M8 X 25 Flat Washer
M8 X 25 Flat Washer
M8 X 16 Flat Washer
M8 Nyloc Nut
TIP: DO NOT TIGHTEN TO ALLOW FOR MOVEMENT
UNTIL ALL COMPONENTS, INCLUDING THE
CANOPY ARE INSTALLED. TIGHTEN AT THE END.
TIP: USE THE SAME HARDWARE TO FASTEN THE REAR OF THE CANOPY.

FITMENT OF THE RSI SMARTCANOPY TO VEHICLE
5
M8 WELDNUTS SLIDE INTO ROOF RAILS WHEN BOLTING DOWN ROOF MOUNTED ACCESSORIES.
STEP
SIX
1. SLIDE M8 WELDNUTS INTO ROOF RAILS.
2. BOLT ROOF MOUNTED ACCESSORIES TO THE WELDNUT CLAMPING THE ACCESSORIES DOWN.
ONLY REQUIRED WHEN FITTING ROOF MOUNTED ACCESSORIES

6
STEP
SEVEN1. NEATLY RUN BRAKE LIGHT HARNESS ON THE LEFT HAND SIDE INTERIOR OF THE CANOPY.
USE PICTURE IN FITMENT KIT.
STEP
EIGHT 2. BEFORE FITTING PLUGS ONTO LIGHT HARNESS,THREAD THE HARNESS THROUGH
THE ACCESS HOLE ON THE LEFT HAND SIDE THE VEHICLES BIN.
Light Harness
FITMENT OF THE RSI SMARTCANOPY TO VEHICLE

7
STEP
NINE
3. FIT CONNECTING PLUG ONTO THE END OF THE HARNESS OF THE REAR DOOR
HIGH LEVEL BRAKE LIGHT.
PLEASE ENSURE PLUG IS CONNECTED IN CORRECT ORIENTATION.(POSITIVE TO
POSITIVE AND NEGATIVE TO NEGATIVE)
Light Harness
Wiring Plug
STEP
TEN 1. UNDER THE VEHICLE ON THE LEFT HAND SIDE, UNPLUG THE WIRING PLUG FOR
THE TAIL LIGHT
FITMENT OF THE RSI SMARTCANOPY TO VEHICLE

STEP
ELEVEN 1. USE WIRE HARNESS FROM KIT SUPPLIED, RECONNECT TAIL LIGHT
PLUG TO HARNESS
Wiring Harness Supplied
1
8
STEP
THIRTEEN 1. DO A TEST TO ENSURE ALL WIRES ARE CONNECTED CORRECTLY.
2. IN THE TAIL LIGHT AREA THE PLUGS TO BE PUSHED BACK INTO ORIGINAL
PLACE (NEATLY)
STEP
TWELVE 1. PLUG REAR BRAKE LIGHT INTO THE HARNESS.
Ensure Positive Is Connected To Positive (RED) Ensure Positive Is Connected To Positive (RED)
RSISMARTCANOPY SMARTCANOPY
DBN 031 700 5925 CPT 021 981 2301
JHB 011 974 0370
THANK YOU FOR PURCHASING A RSI SMARTCANOPY
SHOULD YOU HAVE ANY ENQUIRIES ABOUT THE FITMENT, FEEL FREE TO CONTACT US
FITMENT OF THE RSI SMARTCANOPY TO VEHICLE
