Ruck Podolog L User manual

Instruction Manual |Revision 11/2010 | Print | REF 8010002
E
FÜR FUSS UND PFLEGE
FURNITURE

FÜR FUSS UND PFLEGE
2
HELLMUT RUCK GmbH
Daimlerstraße 23
D-75305 Neuenbürg
phone [phone]
fax [phone]
e-Mail [email protected]
web www.hellmut-ruck.de
FÜR FUSS UND PFLEGE
There are three versions available. Additionally, you will
nd a variety of surface decorations in our main catalogue.
10223 standard
10233 with UV-drawer
10224 standard
10234 with UV-drawer
10225 standard
10235 with UV-drawer
FURNITURE

3
Dear Customer:
You have chosen a M I ML I XL, and with this a highqua-
lity cupboard of our FURNITURE series. It consequently
integrates practice experiences of numerous podiatrists and corre-
sponds to the increased demands in functionality and hygiene. Per-
fect movability, smooth-running drawers and functionality became
true with our FURNITURE cupboard series.
Proven and tested in daily practice, all cupboards dispose of the
unique 2-column principle, which oers essential advantages re-
garding stability and movability. German production quality in eve-
ry detail; from outer coating to central cabling. All cupboards are
MPG certied and are subject to permanent quality control. Should
you, however, still have problems or questions, please do not hesi-
tate and contact our service department.
Thank you for placing your trust in us! Enjoy your new product in
daily work!
Please read this instruction manual carefully before initial start-up,
and keep it for further reference.
Your HELLMUT RUCK GmbH

FÜR FUSS UND PFLEGE
4TABLE OF CONTENTS
DEVICE DESCRIPTION
SAFETY INSTRUCTIONS
GENERAL INFORMATION
SCOPE OF DELIVERY
INITIAL START-UP
OPERATION AND MAINTENANCE OF UV-DRAWER
EQUIPMENT
EQUIPMENT (Push to open)
SPARE PARTS
DISPOSAL
CARE
TECHNICAL DATA
WARRANTY
NOTES
5
6
9
10
12
14
16
18
19
19
20
21
22
23

5

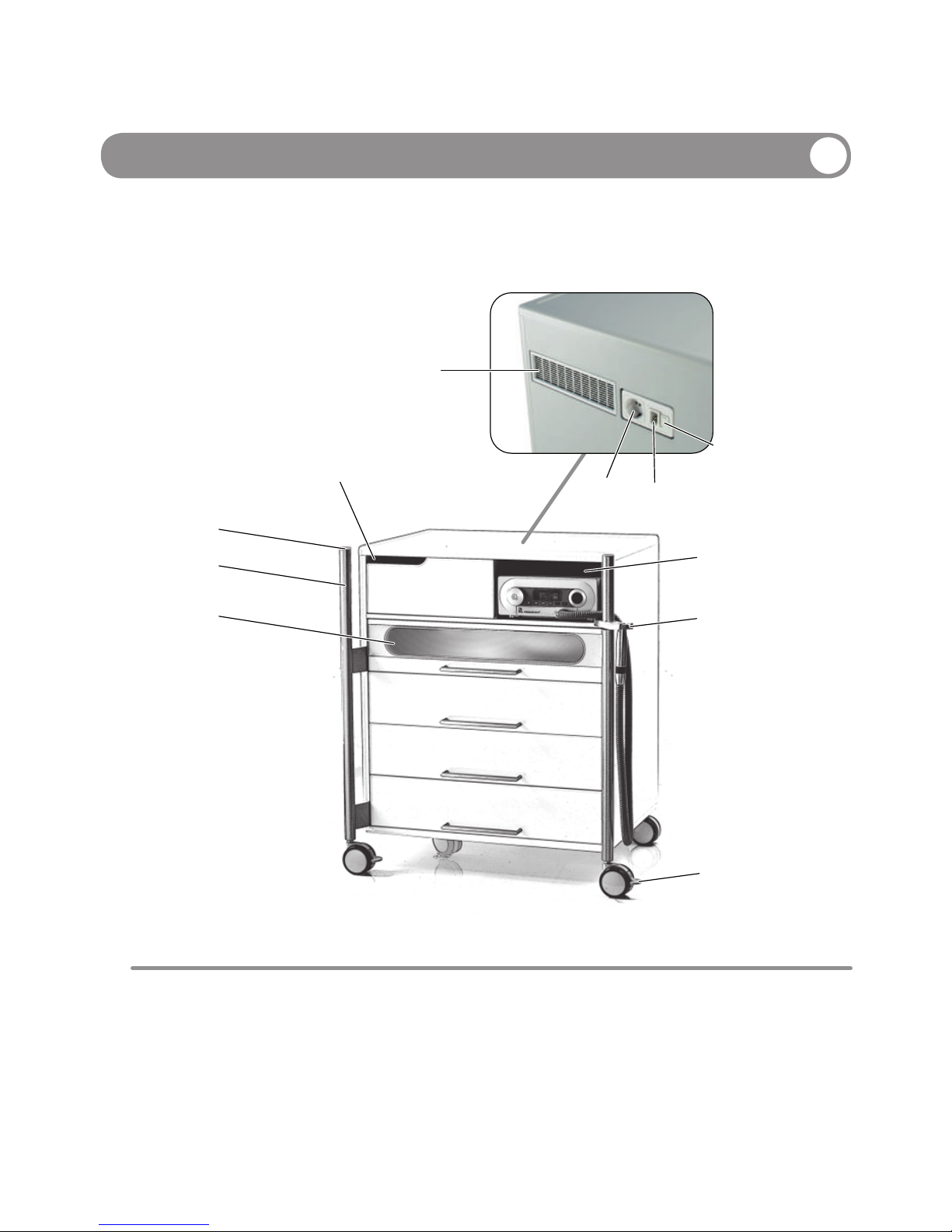

DEVICE DESCRIPTION
1.6
1.8
1.5
1.4
1.3
1.2
1.7
1.1 UV-DRAWER
1.2 COLUMNS
1.3 LAMP HOLDER
1.4 CABLE GUIDE
1.5 MOTOR-DRAWER
1.6 HANDPIECE HOLDER
1.7 LOCKING DEVICE
1.8 VENTILATION GRID
1.9 SCHUKO SOCKET
2.0 COLD DEVICE CONNECTION
2.1 ON/OFF SWITCH
FIG. 1
1.1
1.9 2.0
2.1

FÜR FUSS UND PFLEGE
6SAFETY INSTRUCTIONS
DANGER!
This symbol labels important points which, when not being
paid attention to or wrongly handled may lead to heavy inju-
ries or even dead.
WARNING!
This symbol labels important points which, when not being
paid attention to or wrongly handled may lead to heavy inju-
ries or even dead.
ATTENTION!
This symbol labels important points which, when not being
paid attention to or wrongly handled may lead to injuries or
damages.
NOTE!
This symbol labels points which are important for operation
and handling of this device.
The manufacturer cannot be hold liable for damages
which result from wrong handling or non-observance of
safety instructions and warnings.

7
SAFETY INSTRUCTIONS
DANGER!
Explosion risk!
Operation of FURNITURE in explosive rooms may
lead to triggering of an explosion.
WARNING!
Danger by disease transmission!
Insucient disinfection may lead to disease transmission
>>> Disinfect regularly with RUCK-maxi towels (29410 maxi
towels, 29411 dispenser box, 29402 RUCK-zonal disin-
fectant) or similar product.
>>> Please implicitly pay attention to the standards of the
responsible public committee for hygiene and disin-
fection.
>>> Attention: do not spray cleaning agents and disinfec-
tants into sockets of lamp holders.
Correct usage of UV-drawer [1.1]
Please switch UV-C lamp on only when the irradiation drawer is
inserted correctly and can be closed completely, and the win-
dow is undamaged.
Please pay attention to the capacity of the sockets mentioned
on the label.
Correct condition of the power cable
Should there be damages in the power cable or other cables,
please draw the main plug and have the defect cable be replaced
by an expert.

FÜR FUSS UND PFLEGE
8SAFETY INSTRUCTIONS
WARNING!
Usage of motor drawer [1.5]
Only devices which do not develop excessive heat emis-
sion may be inserted into the motor drawer. The dimensi-
ons necessary in order to guarantee for sucient air sup-
ply given by the manufacturer have to be observed.

9
GENERAL INFORMATION
INTENDED USAGE
Purpose of usage:
The FURNITURE is suitable for usage in podi-
atric-, footcare- or cosmetic practices, as well as for
usage within the clinical area.
Place of usage:
The cupboards may only be used in dry and non-explo-
sive rooms.
Form of usage:
The cupboards are construed for permanent usage.
ABBREVIATIONS AND SYMBOLS
Safety instruction!
Important information
Device protection class II
(isolated for protection)
Please pay attention to
disposal notication!
Fire hazard!
VDE-certied
ENEC-certied
CE-conformity label

FÜR FUSS UND PFLEGE
10 SCOPE OF DELIVERY
Please check completeness of your delivery.
• Dimensions cupboard WxHxD 45 x 82 x 48 cm incl. columns
• Motor drawer WxH 28x14,5 cm
• 4 wheels, 2 of them with brakes
• Drawer insert (1 piece) for one drawer
• Standard equipment, please nd on page 16-18
• With L | UV - 1x UV-tube
• Dimensions cupboard WxHxD 65 x 82 x 48 cm incl. columns
• Motor drawer WxH 28x14,5 cm
• 4 wheels, 2 of them with brakes
• Drawer insert (1 piece) for one drawer
• Standard equipment, please nd on page 16-18
• With ML | UV - 1x UV-tube
• Dimensions cupboard WxHxD 83 x 82 x 48 cm incl. columns
• Motor drawer WxH 28x14,5 cm
• 4 wheels, 2 of them with brakes
• Drawer insert (1 piece) for one drawer
• Standard equipment, please nd on page 16-18
• With XL | UV - 1x UV-tube

11
SCOPE OF DELIVERY
The standard equipment for all FURNITURE consists of:
• (1) 3 x black O-Rings (48215)
• (2) 1 x handpiece holder for NOVA2 (48234) or
ECO (48239)
• (3) 1 x column cover (48213)
• (4) 1 x column lamp holder for WALDMANN lamps (48212) 1 x tube
for Luxo lamp when ordering a Luxo lamp (not illustrated).
• (5) 1 x power cable 3m, grey (48227)
(1)
(2) (3)
(4) (5)
FIG. 2

FÜR FUSS UND PFLEGE
12

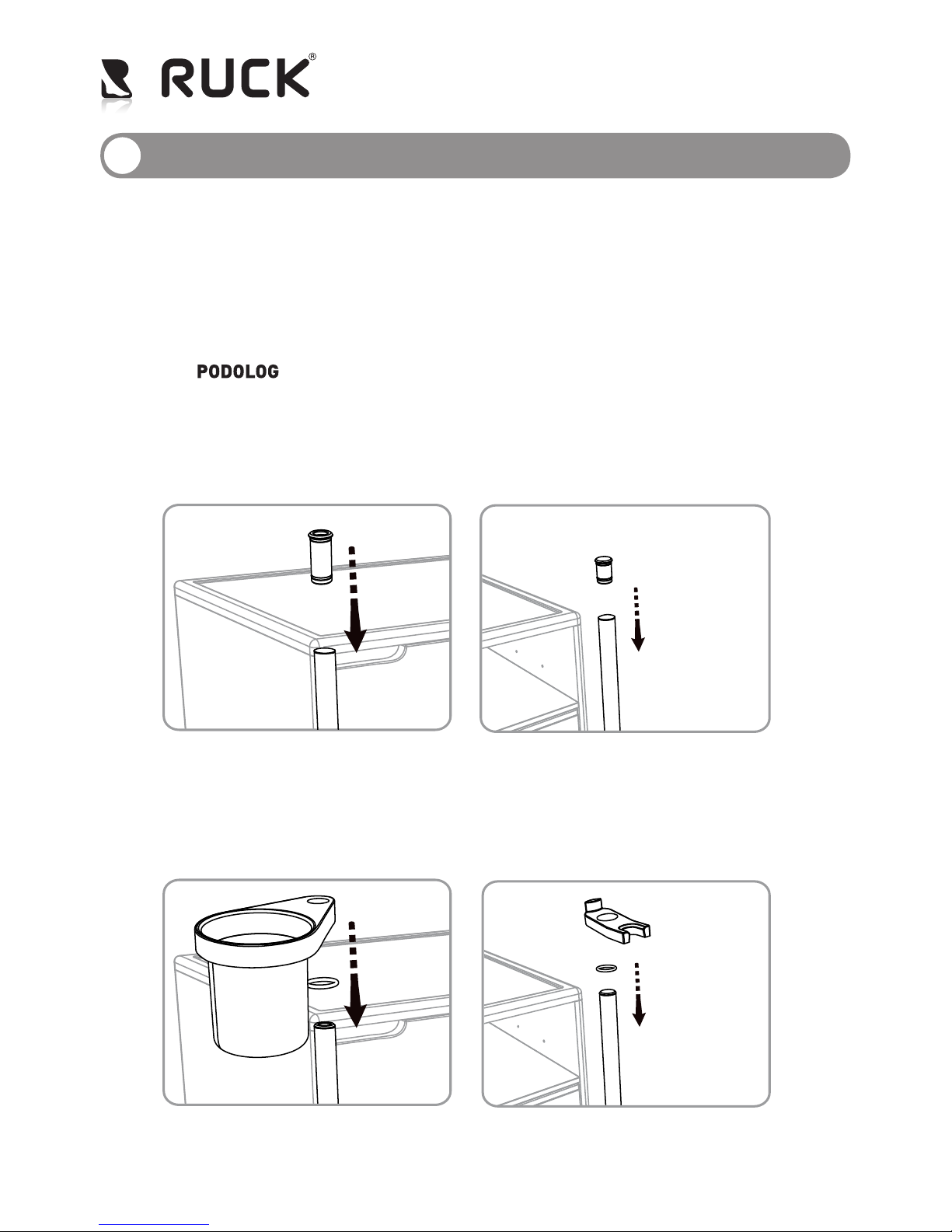

Assembly of handpiece holder onto right column – at rst, put
O-ring over column and then adjust handpiece holder. The O-ring
serves as height adjustment of handpiece holder. For easy hand-
ling, just put suction tube onto the rear part of the handpiece
holder.
The optional holder available for the waste bin is being assembled
INITIAL START-UP
Please check if power supply voltage given corresponds to the nomi-
nal voltage and frequency mentioned of the specication plate within
the motor drawer.
The FURNITURE can be connected with the included power
cable to any Schuko- or Euro socket. [2.0]
For assembly of lamp holder and tube cover please slightly grease
rubber rings and press them into tube.
INITIAL START-UP
FIG. 3 FIG. 4
FIG. 6FIG. 5

13
INITIAL START-UP

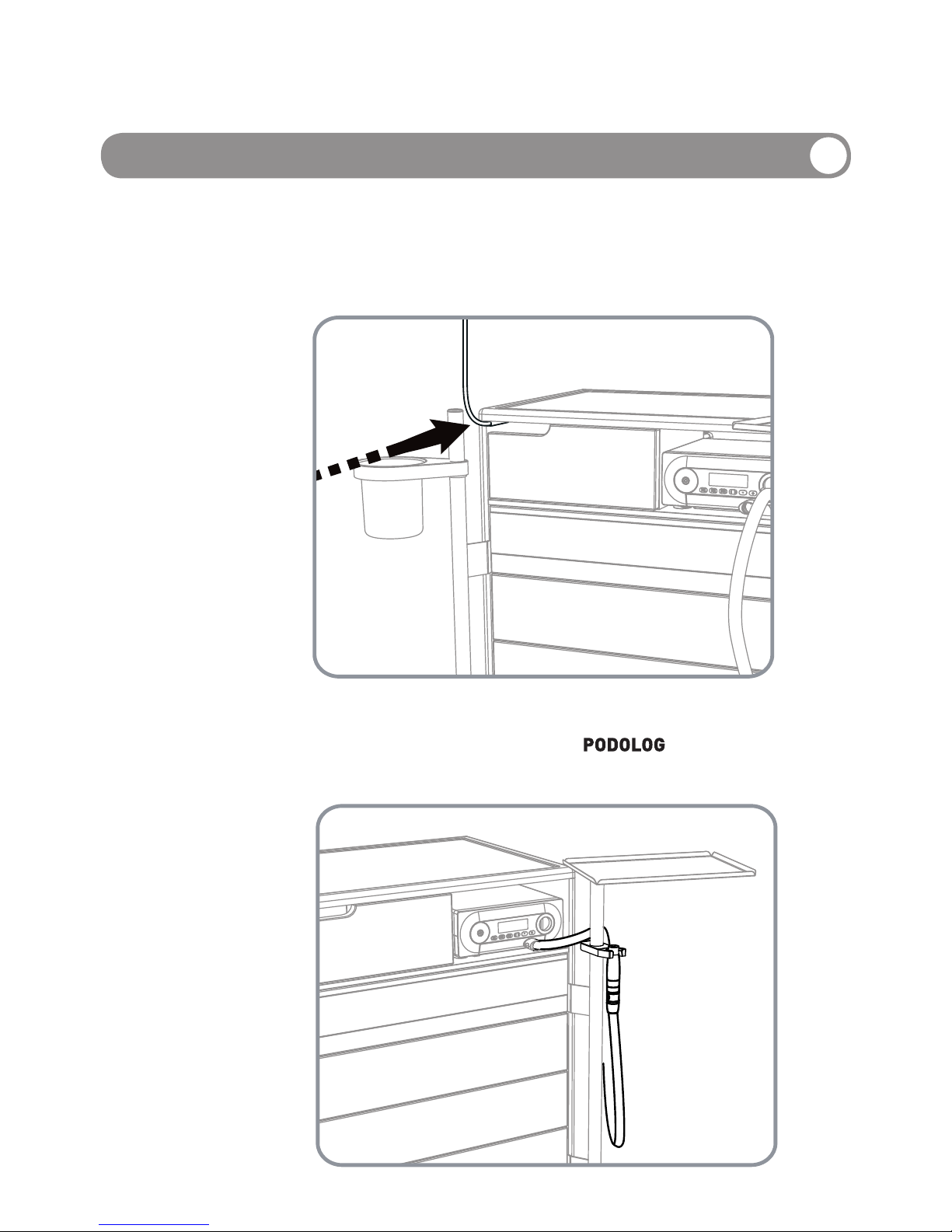

Lead power cable on the left upper side into the cupboard and x
with cabel clamp. The socket destined for this purpose you will
nd integrated into the inner back wall of the cupboard.
For easy handling, just put suction tube of the NOVA2 onto
the rear part of the handpiece holder.
FIG. 8
FIG. 7

FÜR FUSS UND PFLEGE
14
ON/OFF SWITCH
The ON/OFF switch of the UV-drawer you will nd on the back side of the
cupboard. The UV-illumination switches o automatically when pulling
out the drawer.

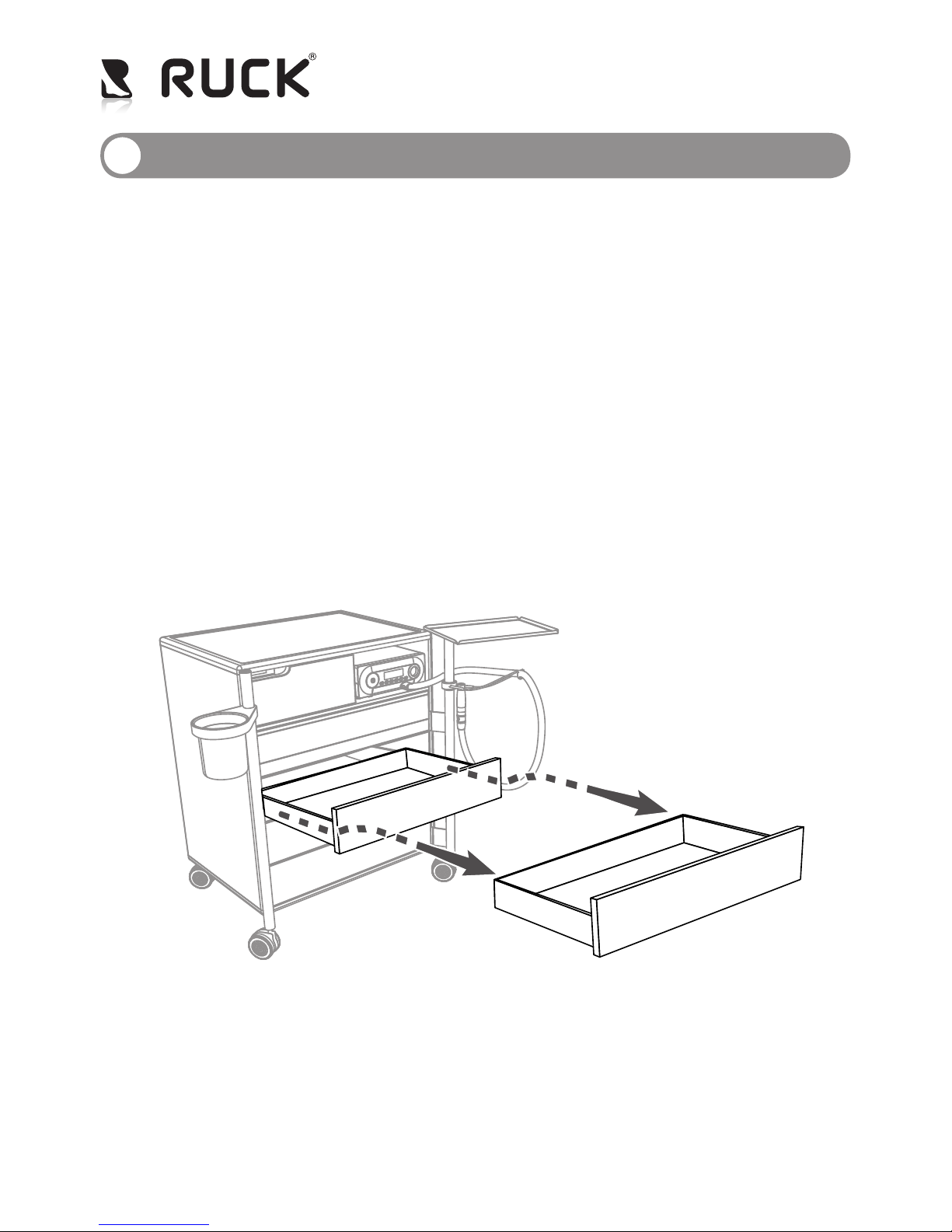

REMOVAL OF DRAWERS
For replacement of the UV-tube, the drawer is being removed complete-
ly. Just pull drawer out and slightly lift it approx. 10 cm before end stop.
Then pull out completely until it unlocks audibly. For putting it back af-
terwards, adjust drawer on extended guide rails and close completely.
FIG. 9
OPERATION AND MAINTENANCE OF UV-DRAWER

15
1
2
3

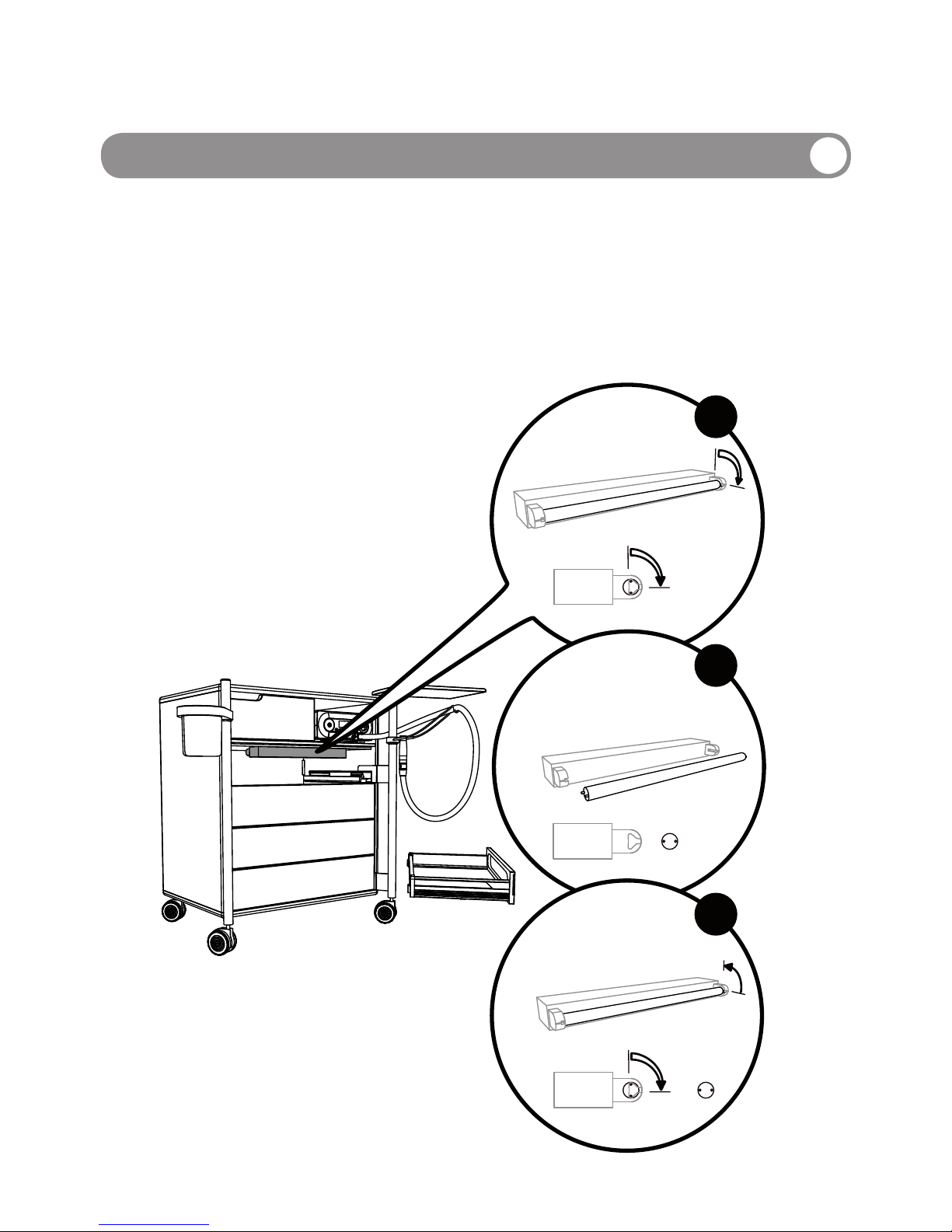

CHANGE OF UV-TUBE
For changing the UV-tube please disconnect cupboard from power
supply system. Unlatch tube with a ¼-turn (1) and remove it (2). Put
new tube in (3) and click into place again with a ¼-turn.
OPERATION AND MAINTENANCE OF UV-DRAWER
FIG. 10

FÜR FUSS UND PFLEGE
16 EQUIPMENT
1024501
1024502
1024503
Drawer insert with division
for
Drawer insert with division
for
Drawer insert with division
for
10210 Stainless-steel waste bin
with special hold
1020952 Suction tube relief for
FURNITURE
FIG. 11
FIG. 12
FIG. 13

17

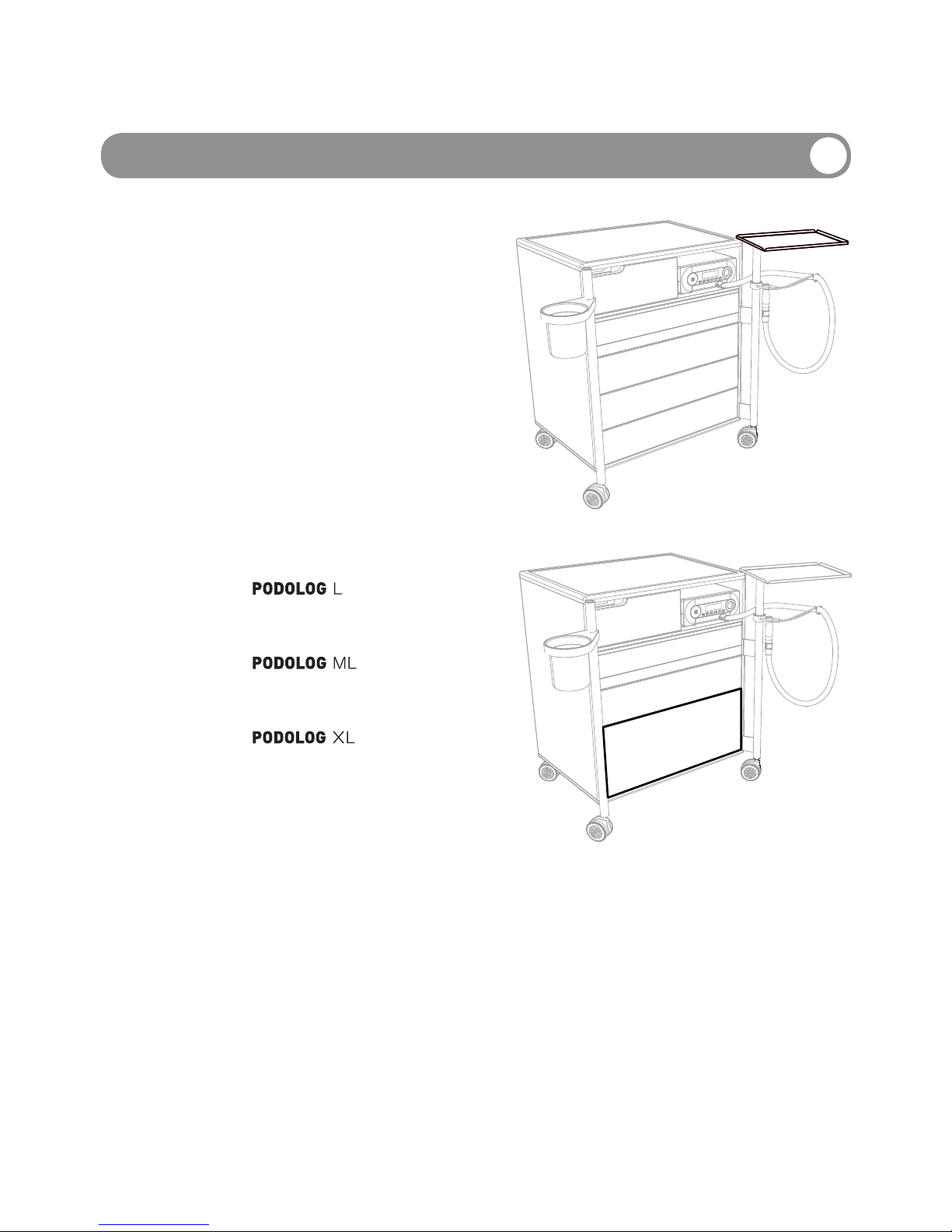

EQUIPMENT
10215 Stainless-steel instruments
tablet with special hold
1021901
1021902
1021903
High drawer for
High drawer for
High drawer for
12001
12000
12004
You can also x lens lamps from WALDMANN or, with help
of a distance bush, lens lamps from Luxo to the column.
Further brands possible on demand.
WALDMANN „Ring Lens Lamp LRE 122“
WALDMANN „Ring Lens Lamp RLL 120“
Luxo „Lens Lamp Circus“
FIG. 15
FIG. 14

FÜR FUSS UND PFLEGE
18 EQUIPMENT (Push to open)
10240 PUSH TO OPEN system for |
PUSH TO OPEN stands for electronic opening of drawing
elements without knobs.
Function:
A slight tip onto the plane front surface and the drawer
opens as if by magic. The electronic opening support
PUSH TO OPEN is integrated into the inner back wall of
the cupboard, and its function standby can be checked
via the LED operation display of the power supply unit.
The PUSH TO OPEN system reacts only on short-term
pressure. Should you, for example, lean against the dra-
wer, nothing will happen.
FIG. 16

19
REPLACEMENT PARTS
NOTE!
ENVIRONMENTAL HAZARD!
Wrong disposal endangers the environment.
>>> Please use available return- and collection systems
for disposing of the FURNITURE at
the end of its lifecycle!
DISPOSAL
48215
48239
48213
48212
12015
48227
48221
48222
O-Ring
Handpiece holder for |
Column cover
Lamp holder for WALDMANN
Distance bush for Luxo lens lamps
Power cable
UV-C tube
Special hold for waste bin

FÜR FUSS UND PFLEGE
20
48 cm
28 cm
65 cm
82 cm
70 cm
14,5 cm
56 cm
48 cm
28 cm
45 cm
82 cm
50 cm
14,5 cm
56 cm
48 cm
28 cm
83 cm
82 cm
88,5 cm
14,5 cm
56 cm
CARE
NOTE!
Danger of damage through wrong maintenance!
Wrong maintenance may lead to damage of the
FURNITURE.
>>> Please pay attention to compatibility of used materials
with varnishes and other synthetic materials! Do not
use concentrated disinfectants or solvents, or liquids
which contain alcohol.
>>> Do not use spray disinfectants.
WARNING!
Danger of disease transmission
Insucient disinfection may lead to disease transmission.
>>> Please disinfect FURNITURE regularly!
The correct disinfectant please nd on page 7
>>> Please pay attention to the requirements given by
the responsible public committee for hygiene and
disinfection.
