Ruhle SR 2 Turbo User manual

Lebensmitteltechnik
Translation of the original instructions
- Cutting Centre
Type: SR 2 Turbo
Rühle GmbH, Beim Signauer Schachen 10, D-79865 Grafenhausen
Tel.: [phone], Fax: [phone]
www.original-ruehle.de

Cutting Centre SR 2 Turbo
2
Table of Contents
1 Safety Instructions............................................................................. 3
1.1 Safety instructions ................................................................... 3
1.2 Remaining risk of accidents .................................................. 6
1.3 Intended Use............................................................................... 7
2 Installation instructions.................................................................... 7
2.1 Machine transport and setup ............................................... 8
2.2 Workplace description............................................................. 8
2.3 Connecting the machine ......................................................... 9
3 Operating instructions ...................................................................... 9
4 Cleaning instructions.......................................................................11
4.1 Safety instructions .................................................................11
4.2 Cleaning agents and disinfectants....................................12
4.3 Cleaning procedure.................................................................12
5 Service: Care, maintenance, repair.............................................13
5.1 Regular care ..............................................................................14
5.2 Regular maintenance.............................................................15
5.3 Repair and spare parts..........................................................16
6 Disposal................................................................................................16
7 Technical documentation ..............................................................16
7.1 Technical data ..........................................................................16
7.2 Electrical circuit diagram ......................................................17
8 EC Declaration of Conformity according to Directive
2006/42/EC ........................................................................................18
Status: 14/09/2016
Changes reserved

Cutting Centre SR 2 Turbo
3
1Safety Instructions
!!! Observe the safety instructions during the installation, operation,
cleaning and maintenance of the Rühle Cutting Centre!
Hazard potentially causing irreversible injuries if disre-
garded.
Warning, potentially causing serious injuries if disre-
garded.
Note
Work on electrical equipment of the machine may only
be carried out by qualified technicians!
Always disconnect machine from the mains during this
process!
Warning of suspended load.
1.1 Safety instructions
!!! A supervisor (responsible person) must be appointed for the ma-
chine!
This person must:
a) Completely read and understand these operating instructions
before transport, commissioning, setup, operation, cleaning,
decommissioning, care / maintenance as well as dismantling /
disposal!
b) Prepare work instructions for the intended and safe
transport, commissioning, setup, operation, cleaning, decom-
missioning, care / maintenance as well as dismantling / dis-
posal!
c) Make sure that the qualified workers have completely read
and understood the respective work instructions according to
section 1.1b!

Cutting Centre SR 2 Turbo
4
d) Proper functioning of the protective devices must be checked
at least once a year by a Rühle service technician!
e) Provide personal protective equipment!
All life cycles phases:
Wear foot protection!
Wear hand protection!
Wear protective clothing!
Cleaning; care / maintenance; dismantling:
Wear eye protection!
Use light breathing mask!
!!! The operator must operate the machine according to the intended
use and strictly observe all points listed in the “Operation” work in-
structions prepared by the supervisor.
!!! Before putting the machine into operation for the first time and on
each working day, the operator must check the functionality of the
following safety devices:
a) Visual check for changes or damages on all machine sides
and accessible machine parts, e.g. the cut-off knife. The ma-
chine must be shut down in the event of any damages or
changes!
b) Check the safety switches as follows:
Install upper belt section and transport belt, insert protective
guard, close the knife protection box, insert the slider and
close the funnel with it.
Start the machine. –Press the emergency-stop switch. –If
the machine has not switched off, it must be shut down
immediately!

Cutting Centre SR 2 Turbo
5
Start the machine. –Open knife protection box 20 mm
wide. –If the machine does not switched off, it must be
shut down immediately!
Start the machine. –Open the slider of the funnel 20 mm
wide. –If the machine does not switched off, it must be
shut down immediately!
Open the knife protection box. –Dismantle the transport
belt and upper belt section. –Close the knife protection
box. –Start the machine. –If it should start, it must be shut
down immediately!
!!! To shut down the machine, the emergency-stop switch must be
pushed to “Emergency-Stop”, the main switch turned to “0 – OFF” and
the power plug pulled from the outlet! The machine must be secured
against further use!
!!! The supervisor must arrange for the repair of the non-functional
safety device by a Rühle service technician. Until the corresponding
parts have been repaired, the supervisor must ensure that the ma-
chine or parts of the machine are under no circumstances put into op-
eration!
!!! The cleaning personnel must observe the work procedures from the
“Cleaning” work instructions prepared by the supervisor.
!!! The maintenance personnel may only carry out work specified as
“Regular care”, unless any other authorisation has been issued in
writing by the manufacturer of the machine. The maintenance per-
sonnel must observe the work procedures from the “Maintenance”
work instructions prepared by the supervisor.
The power plug must be disconnected for maintenance work!
!!! The machine may not be modified.
!!! Only Rühle spare parts and accessories may be used.

Cutting Centre SR 2 Turbo
6
!!! The operating instructions as well as all other technical documents
included must be supplied completely when reselling the machine.

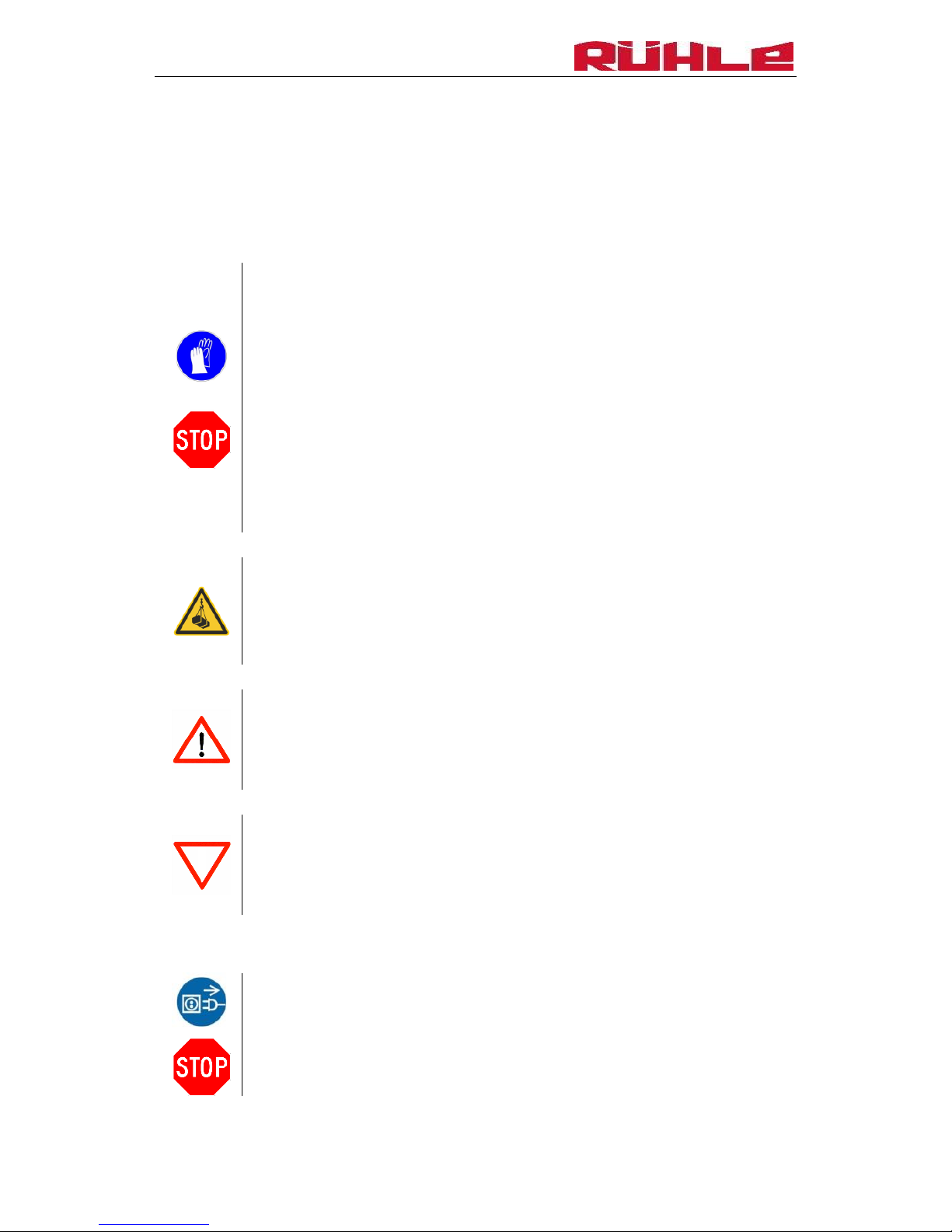

1.2 Remaining risk of accidents
!!! All life cycles phases
Damaged knife elements must be replaced!
Cut protection gloves must be worn when working:
on the open knife protection box,
on the cut-off knife,
on the grate knives of the knife levels,
in the funnel, e.g. to remove product.
Reaching into the machine or the funnel during operation is
strictly prohibited!
Any manipulation and bypassing of the safety devices is
strictly prohibited!
Staying under the lifting aid is strictly prohibited!
When moving the lifting aid for unloading it must be re-
membered that the upper box may not be lifted above the
worktable height!
If the machine is unattended, the knife protection box must
be closed before leaving the workplace, the lifting aid
moved to its top position and the fork folded onto the work-
table!
When processing very watery products, spraying form the
funnel may occur in spite of installed slider! With such prod-
uct it is recommended to stand to the side of the funnel
when the machine starts.
!!! Maintenance
The machine must be disconnected from the mains when
performing maintenance work!
The protective covers may be removed only while per-
forming maintenance (control cabinet, side cover, etc.)!

Cutting Centre SR 2 Turbo
7
1.3 Intended Use
The cutting centre may only be used to cut non-frozen foodstuff into
cubes, strips and slices. Special accessories are required for chop
slices! The max. room temperature may be 12 °C for reasons of food
hygiene!
This machine may not be operated by persons under the age of 18!
Claims of any type because of damages due to non-in-
tended use are ruled out!
Misuse:
Any use other than the one listed above is strictly prohibited
and is considered misuse!
Operating the machine in explosion hazard areas is prohib-
ited!
Handling / processing products and materials not belonging
to food products is prohibited!
Handling / processing of products containing bones, with the
exception of chop slices, is prohibited!
The lifting aid may only be used for the Euro standard boxes
provided and which are stacked on a suitable undercarriage;
it must not be overloaded! Lifting of persons is strictly prohib-
ited!
2Installation instructions
Installation and commissioning of the machine may only be carried
out in the presence of a Rühle service technician or by persons au-
thorised by Rühle.
Rühle GmbH Lebensmitteltechnik shall not be liable for any damage
resulting from non-compliance with these operating instructions.

Cutting Centre SR 2 Turbo
8
2.1 Machine transport and setup
Please refer to the short instructions supplied with the machine re-
garding transport and setup of the cutting centre.
The machine and machine parts must be transported by 2
persons (1× operator of floor conveyor / 1x transport su-
pervision).
The power supply line must not be damaged by driving
over or pinching it!
The machine must be decommissioned until a damaged
power supply line has been repaired!
Make sure the machine is stable!
2.2 Workplace description
The work area around the machine is at least 0.5 m on all sides; for
maintenance work it is at least 1 m; if used as passage way, it is at
least 1.2 m.
Swivel range of knife protection box
Swivel range of knife protection box

Cutting Centre SR 2 Turbo
9
2.3 Connecting the machine
The machine is connected to a three-phase current outlet; its data
(voltage, amperage) must agree with the specifications on the type
plate of the machine.
The machine must be decommissioned until a damaged
power supply line has been repaired!
The power supply line must be regularly checked!
Check the correct rotational direction of the machine by
starting it. A message appears on the display in case of in-
correct rotating field!
In such a case, an electrician must change the direc-
tion of rotation inside the mains plug.
The power supply to the machine must be fuse-pro-
tected with 16A secured with an AC/DC sensitive
ground-fault circuit interrupter (type B).
3Operating instructions
Please refer to the short instructions supplied with your machine for
the operation of your cutting centre.
Follow also the safety instructions in Chapter 1.1!
In its respective life cycle phases (transport, commission-
ing, setup, operation, cleaning, decommissioning, care /
maintenance, dismantling / disposal) this machine is de-
signed for 1-person operation!
When using this machine, no other person may be present
near the machine. The exception (2-man operation):
Transport of machine and machine parts
Commissioning
Maintenance activities

Cutting Centre SR 2 Turbo
10
The machine may not be commissioned without transport
belt!
The following is strictly prohibited and anyone disregard-
ing this prohibition acts gross negligently when:
Lifting the lamellae of the protective guard on the
knife protection box during operation and reaching
into the cutting chamber!
Operating the machine without rear wall or tool
magazine!
Manipulating the protective devices of the machine
or deactivating them!
Working on the machine without the rear wall installed or
without the tool magazine installed is permitted only for a
Rühle service technician during maintenance!
The operator must make sure that
No persons, who do not know the hazards of the ma-
chine or cannot anticipate them, are about in the
area of the machine!
When loading the lifting aid, the Euro boxes must be
stacked on an undercarriage suitable for this pur-
pose and moved with it onto the lifting aid to ensure
the Euro boxes are held securely!
The upper box on the lifting aid is not lifted higher
than the worktable!
The feather key is placed in the guide groove when
installing the transport belt!
The control panel may only be operated by touching it
with the fingers. Using any objects (e.g. blade) is prohib-
ited!
The self-lubrication control function must be activated by
a Rühle service technician or person authorised by Rühle
prior to initial commissioning!
After each change of the cut-off knife or grate the cut-off
knife must be turned clockwise 2 times by means of the
handle nut to ensure that it does not collide with the
grate frame or the knife levels!
Observe the display information!

Cutting Centre SR 2 Turbo
11
4Cleaning instructions
The cutting centre has been designed to allow for complete cleaning
of all parts that come into contact with the food product.
4.1 Safety instructions
Follow also the safety instructions in Chapter 1.1!
The cleaning staff must notify the supervisor immediately of any
defects on the machine!
The cleaning staff must use the specified cleaning agents and
disinfectants!
Germ reduction is achieved only by correct cleaning and subse-
quent disinfection!
Appropriate material (e.g. brushes, rags, ...) is required and must
be provided for the proper procedures of the above!
Cleaning products and disinfectants approved for the food prod-
uct area and suitable against contamination (e.g. protein, lime-
scale, ...) must be used!
The cleaning agents and disinfectants must be prepared to a so-
lution as described in the product data sheet of the manufac-
turer!
Personal protective equipment must be worn!
Cleaning with high-pressure cleaners
is permitted only for:
all outside surfaces,
inside of the knife protection box,
tool magazine,
(working) funnel,
cutting chamber and
transport belt
The control panel must be cleaned manually and may not
be exposed to a water jet!

Cutting Centre SR 2 Turbo
12
All other parts and surfaces may be cleaned only with
normal water pressure!
4.2 Cleaning agents and disinfectants
The following cleaning agents and disinfectants must be used:
Cleaning agents:
Alkaline cleaning:
Acidic cleaning:
P3 –topax 12, P3 –topax 19,
P3 –topax 66
P3 –topax 56
Disinfectants:
P3 –topax 91, P3 –topax 99
Supplier:
Henkel Hygiene GmbH
Bonner Str. 117
D-40589 Düsseldorf
Tel.: [phone]
Or:
Cleaning agents:
Alkaline cleaning:
Acidic cleaning:
Somplex F fat solvent
Somplex foam, acidic
Disinfectants:
Tego 2000, Tego IMC
Supplier:
Th. Goldschmidt AG
Goldschmidtstr. 100
D-45116 Essen
Tel. [phone]
4.3 Cleaning procedure
Please refer to the short instructions supplied with your machine for
carrying out the cleaning procedure.
The transport belt may only be dismantled after the cut-off
knife was removed from the machine!
Cleaning preparations:
To ensure optimum cleaning, some components of the machine
must be removed.
On the control panel first start the “Cleaning position” program
under Service programs to move the die plate to the cleaning po-
sition.

Cutting Centre SR 2 Turbo
13
Remove any objects lying on the machine.
Remove the undercarriage with the Euro boxes from the lifting
aid and from beneath the cut meat discharge.
Remove the slider (funnel closure).
Remove the die plate.
Open the knife protection box.
Unscrew the handle nut.
Remove the cut-off knife and the grate frame with the knife lev-
els.
Remove the transport belt. Proceed as follows:
oOpen the quick-action tape clamp by jerking it upward and
then fold it onto the belt frame.
oReach with one hand under the belt to the feather key. Lift
it from the guide groove and remove the transport belt.
oRemove the upper belt section.
Open the tool magazine and remove the objects it contains
(grate, knife levels, stabilisers and possibly the knife sharpener).
5Service: Care, maintenance, repair
Any work related in any way with service may be carried out only by
Rühle service technicians and by persons authorised by Rühle in writ-
ing. In this regard, a distinction is made between regular care and
maintenance and repair. The respective qualification certificate must
be issued explicitly for the corresponding work.
Follow also the safety instructions in Chapter 1.1!
Notify and obtain permission from Rühle customer service
if welding or cutting work is required on the machine!
Wear cut protection gloves when working on the blades!
Reaching into the inside of the machine by opening the
side covers is strictly prohibited when performing work
activities of “Regular Care”!

Cutting Centre SR 2 Turbo
14
Make sure when working on the electrical equipment of
the machine that
this is only done by qualified personnel!
the machine is always disconnected from power!
5.1 Regular care
Regular care of the machine must be carried out at least once per
week. This prevents malfunctions and signs of wear.
Any abnormalities detected during regular care must be reported to
the supervisor! He must immediately initiate correction or mainte-
nance or notify Rühle Service!
Care schedule:
a) Disassemble the machine according to the cleaning instruc-
tions. Check for any parts moving with difficulty, material
abrasion or other signs of wear and tear.
b) Remove the cut-off knives with the knife sharpener and
check them for any damage or broken blades.
c) Sharpen the grate knives in the knife levels with the knife
sharpener and check them for any damage or broken blades.
Grate knives must be resharpened at least every 50 work-
ing hours on a slip-resistant underlay using only little
pressure and a Rühle knife sharpener!
d) Check the slider (funnel closure) and its guide pins for dam-
ages and abrasion; remove sharp edges!
e) Check the guide rails of the slider (funnel closure) in the ma-
chine and the grate frame; remove sharp edges!
f) Check the rollers of the eccentric shafts (drive shaft for the
knife level) and of all grate frames:
a. For easy running and axial play!
b. For abrasion (plane surfaces)!
Replace defective rollers!

Cutting Centre SR 2 Turbo
15
In case of abrasion, check the corresponding sliding sur-
face on all knife levels for damages!
Replace defective knife levels!
g) Visually check for changes or damages on all machine sides
and accessible machine parts, e.g. the knife levels. The ma-
chine must be shut down in the event of any damages or
changes!
5.2 Regular maintenance
Regular maintenance of the machine must be carried out every 2000
hours of operation but at least once per year.
Maintenance schedule:
a) Inspect the safety devices as outlined in Chapter 1.1 Safety
Instructions!
b) Test run with open machine (caution: moving parts)!
c) All inspection activities and resharpening tasks specified un-
der “Regular Care”!
d) Check the filling level of the lubricant dispenser and replace,
if necessary!
e) Check the synchronism of the eccentric shafts; adjust if nec-
essary!
f) Check the distance between cut-off knife and grate frame;
adjust if necessary!
g) Inspection of the main coupling and freewheeling bearings!
h) Inspection of pre-pressing mechanism!
i) Inspection of the linear drive for feed setting!
j) Check radial shaft seals for leak tightness; replace otherwise!
k) Grease all lubricating nipples and moving parts in the ma-
chine compartment!
l) Read operating hours and error log on the control panel and
examine any faults that have occurred!
m) Read the error memory (frequency converter)!

Cutting Centre SR 2 Turbo
16
5.3 Repair and spare parts
As a damaged part on a machine is usually damaged due to causes
unrelated to the part, always carry out a fault diagnosis.
For this reason, contact our Service Hotline at [phone] for
spare parts or technical faults. Please keep the machine type and
number ready.
6Disposal
1. The following components contain oil:
Main drive for cutting
Dispose of the oil properly!
2. The following components contain lubricating grease:
DC drive for the pre-pressing function
Free-wheeling rollers
Dispose of the lubricating grease properly!
3. The following components contain lubricating oil:
All chains and their gear
Dispose of the lubricating grease properly!
4. All other materials must be sorted and disposed of at a recy-
cling facility!
7Technical documentation
7.1 Technical data
Connection voltage: 400 V 50 Hz 3-phase AC / N / PE
Power consumption: 5.1 kW
Full-load current: 10.6 A
Back-up fuse max.: 16 A
Protection class: IP54
Ambient temperature: +2 °C to + 40 °C

Cutting Centre SR 2 Turbo
17
Cut product temperature: -5°C to + 80°C
Dimensions, W × H × D: 1541 × 1756 × 2176 mm
Funnel size: 120 × 120 × 500 mm
Cut-off length: 0.5 –32 mm
Cutting speed: 160/320 sections/min
Cutting output max.: 3000 kg/h
Size of knife level to
grate frame 5x: 5, 10, 15, 20, 30, 40, 60 mm
grate frame 6x: 6, 12, 24, 30, 60 mm
grate frame 8x: 8, 24, 40 mm
Approved Euro boxes: E1, E2, E3
Machine weight: 850 kg
Transport weight: 950 kg
Lifting aid, load capacity: 120 kg
Emission sound pressure level: 62.5 dB(A) averaged, when idling
accuracy class 2, as per EN ISO 3744:
2010
Measuring instrument: Brüel & Kjær Type 2240
The data on the type plate principally applies; it is located on the back
of the machine. In case of deviations contact the manufacturer for a
written confirmation of the data!
If your country requires a ground fault circuit interrupting device as
protective measure, a ground fault circuit interrupting device (type B),
AC/DC sensitive, must be used.
7.2 Electrical circuit diagram
The electrical circuit diagram of your machine is located in the electri-
cal control cabinet and must be supplied when reselling the machine!

Cutting Centre SR 2 Turbo
18
8EC Declaration of Conformity according to
Directive 2006/42/EC
The manufacturer herewith declares
that the following product
Name:
Legal form:
Rühle GmbH
Lebensmitteltechnik
Type:
Designation:
SR 2 Turbo
Cutting Centre
Address:
Beim Signauer Schachen 10
D –79865 Grafenhausen
From series no.:
0456
complies with all relevant provisions of the directive indicated above, including any changes to
it that are valid at the time of the declaration.
The product complies with all relevant provisions of the following additional EU Directives and
standards, including any changes to these that are valid at the time of the declaration:
DIN EN 1672-2: 2009-07
Food processing machinery –Basic concepts –Part 2:
Hygiene requirements
DIN EN 60204-1: 2007-06 + A1:
2009-10
Safety of machinery –Electrical equipment of ma-
chines –Part 1: General requirements
DIN EN 13871: 2011-02
Food processing machinery –Cubes cutting machin-
ery –Safety and hygiene requirements
EC 1935/2004
Regulation on materials and articles intended to
come into contact with food.
Appointed department:
Reason for the involvement of the ap-
pointed department:
Name, legal form:
DGUV Test Prüf- u.
Zertifizierungsstelle
Type testing
Address:
Fachbereich
Nahrungsmittel
Dynamostraße 7-11
D-68165 Mannheim
Identification number:
0556
Signed by:
Person authorised for the documentation:
Place of issue:
D-79865 Graf-
enhausen
Name: Jürgen Stegerer
Date of issue:
01/07/2011
Address: Rühle GmbH
Function of the sign-
ing person in the
company:
Management
Beim Signauer Schachen 10
D-79865 Grafenhausen
Name of the signing
person:
Mr. Claus Rühle
Signature:
