RUKO Q111 User manual

8+
for age
User Manual
v1.0

5
Copyright ©2021 Ruko All Rights Reserved.
Contents
1
1 Using This Manual
2 Product List
3 Transmitter
1.1 Legend
1.2 Read Before the First Use
1.3 Video Tutorials
3.1 Transmitter Profile
3.2 Using the Transmitter
3.3 Installation of Transmitter Batteries
4.1 Remote Control Tank Diagram
4.2 “Smoke”
4.3 Battery
2
2
2
2
4
4
4
4
3
4 Remote Control Tank
5
6
7
5.1 Pair the Transmitter
5.2 Moving
5.3 Braking
5.4 Speed Changing
9
5 Operation
9
10
11
12
6 Appendix
6.1 Specification and Accessories
6.2 Common Problems and Solutions
13
13
14

The following terms are used throughout the product literature to indicate various levels
of potential harm when operating this product :
It is recommended to watch all tutorial videos first and read the Disclaimer and Safety
Guidelines before using for the first time. Prepare for the first use before reviewing the
Quick Start Guide and refer to this User Manual for more information.
Read the following documents before using the Ruko Q111:
User Manual
Quick Start Guide
Disclaimer and Safety Guidelines
1.1 Legend
1.2 Read Before the First Use
Recommend Warning Hints & Tips Reference
1 Using This Manual
Visit the following link to watch the tutorial videos to ensure
correct and safe use of the product.
https://www.ruko.net/pages/video
1.3 Video Tutorials
①
②
③
Q111 User Manual
Copyright ©2021 Ruko All Rights Reserved.
2

Disclaimer & Safety Guidelines
Q111 User Manual
Copyright ©2021 Ruko All Rights Reserved. 3
2 Product List
RC Tank Transmitter Battery
USB Cable Mini Water Bottle User Manual
Quick Start Guide

Q111 User Manual
3.1 Transmitter Profile
Copyright ©2021 Ruko All Rights Reserved.4
The remote control uses the 2.4 GHz frequency, and the remote control distance is up to 80
meters in an unobstructed and non-interference environment.
The remote control is not a full-scale gun-type remote control, which adopts stepless speed
changing, it can freely adjust the speed and steering extent.
The remote control uses 3pcs AA batteries, you need to prepare by yourself.
3.2 Using the Transmitter
3.3 Installation of Transmitter Batteries
3 Transmitter
LED Indicator
Forward
Turn left Turn right
Backward Power Switch
Battery cover
③
① ②

Q111 User Manual
Copyright ©2021 Ruko All Rights Reserved. 5
Please correctly installed transmitter batteries, avoid damage.
Move away the battery cover.
Install 3pcs 1.5V “AA” alkaline batteries((prepare by yourself), pay attention to whether
the anode and cathode of the battery are correctly installed.
Close up battery cover.

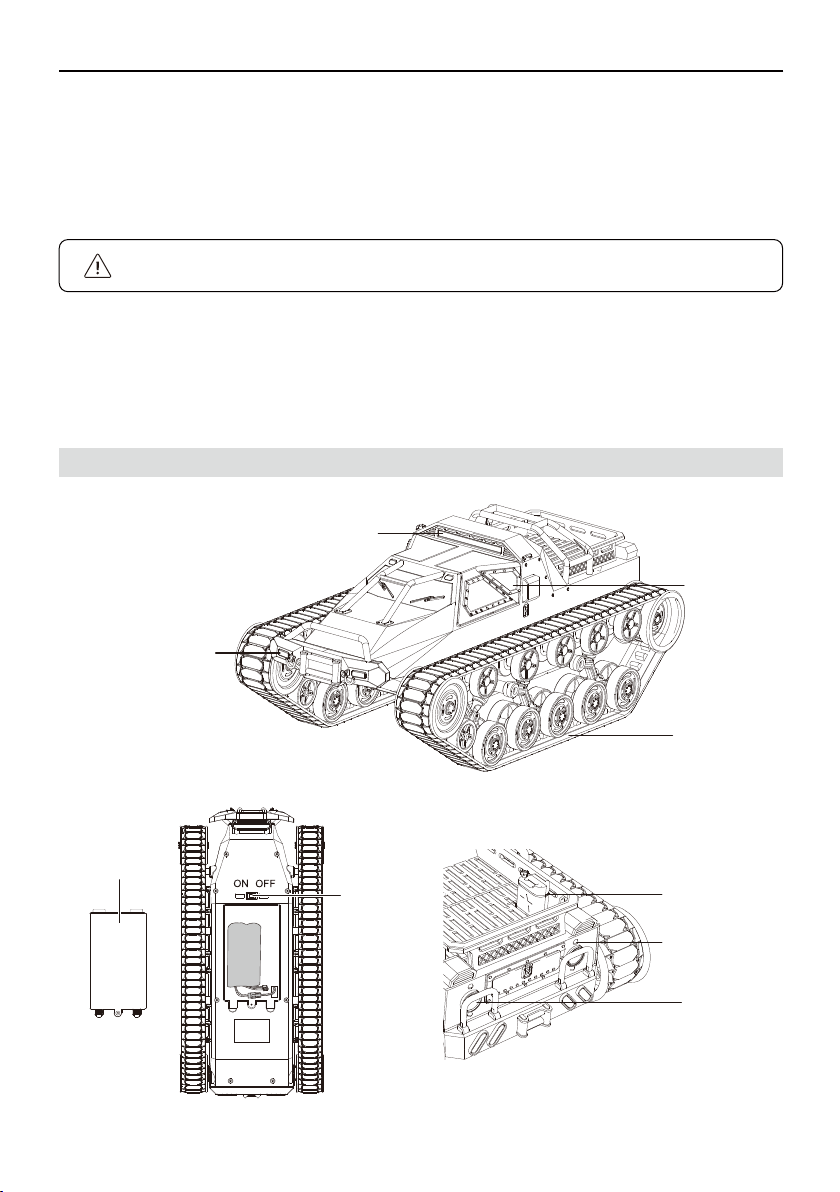

4.1 Remote Control Tank Diagram
4 Remote Control Tank
Blue car light(front)
Tank’s door
Rubber Track
Battery cover
ON/OFF
White car light(up)
Fill-water hole
Smoke button
Smoke hole
③
①
②

Q111 User Manual
Copyright ©2021 Ruko All Rights Reserved.
6
Add Water
Smoke
4.2 “Smoke”
Short press the remote control smoke button to enter smoke mode.
The light at the smoke hole of the remote control car lights up, and the smoke is automatically
sprayed. The smoke volume will increase according to the increase in the running speed
of the tank.
After fill up with water, smoke continually about 8-10 minutes, and the cumulative spray
time is 10 minutes, then shut down automatically.
③
①
②
Open the water plug, fill about 50ml of water by using water bottle.
Please close the water plug tightly after adding water.
①
②

Q111 User Manual
Copyright ©2021 Ruko All Rights Reserved. 7

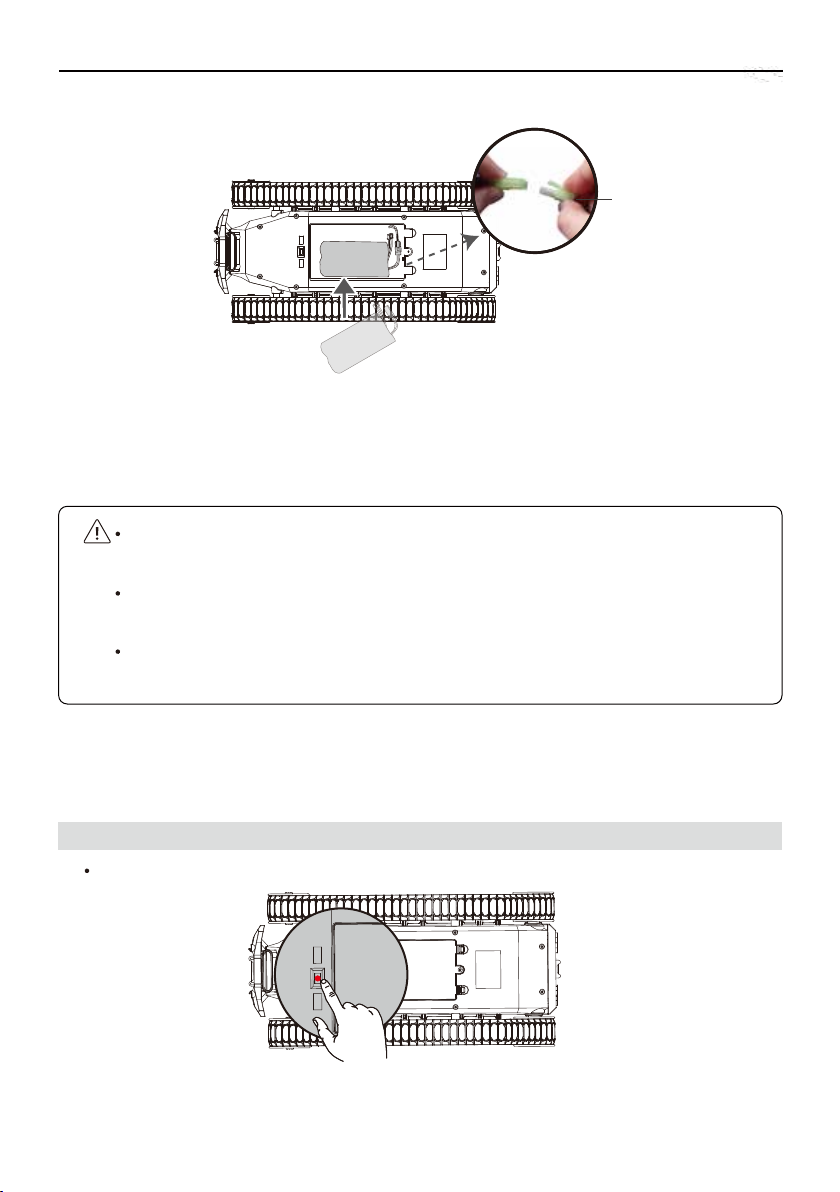

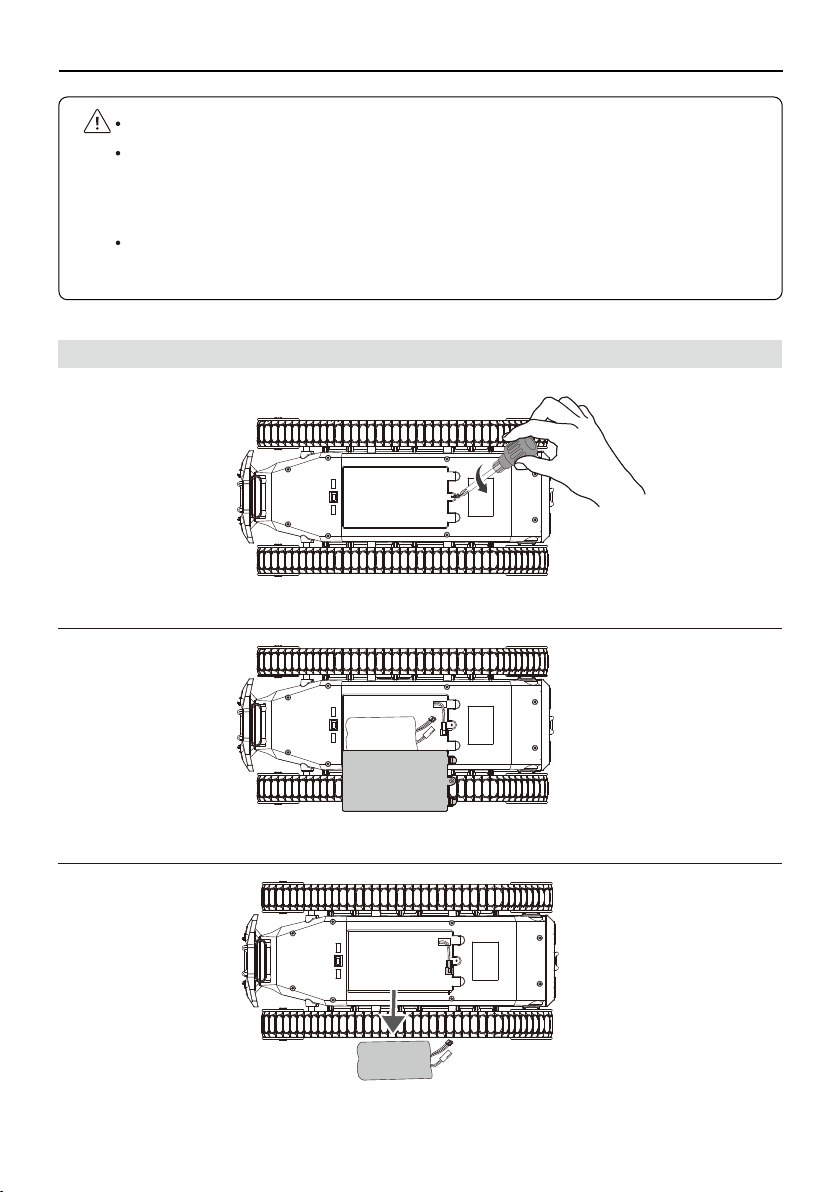

Battery of remote control car disassemble and recharge
4.3 Battery
③
Loosen the battery cover screw.
①
②Remove the battery cover.
Take out the batteries.
Please fill in clean water correctly, and do not add other unknown liquids or particles.
When there is no smoke, please check whether there is water in the tank, and if there
is no water, please fill it in time. Check whether the smoke hole is blocked or there is
water droplets, please clean it up in time.
When adding water, be careful not to wet other parts of the car body, avoid to damage
the electronic components.

Q111 User Manual
Copyright ©2021 Ruko All Rights Reserved.
8
Battery charging and maintenance
The battery capacity of the remote control car is 1500mAh, the rated voltage is 7.4 V, and the
normal use time is about 45 minutes.
When the remote control tank slows down or stops running, the blue light on the front of the tank
will flash when it is in a low battery state. Please continue playing after charging.
save the daily advice
It is recommended to charge and discharge it once a month, do not store with a full charge, keep
50%-60% of the electricity, the storage temperature is 10-40°C, and the best storage temperature
is 19-21°C.
If water enters the battery and the battery protection board fails, the battery cannot be used
normally. Do not use the battery in the rain or in a humid environment, as this may cause the
battery to ignite or even explode.
If the battery is squeezed and deformed, or dropped from a high altitude, it is forbidden to use it
again.
Prolonged exposure to high temperature is forbidden. The high temperature of the battery will
cause the internal pressure of the battery to be too high and cause an explosion.
If the anode and cathode poles are short-circuited for a long time (for example, there is water at
the battery contacts, caused by foreign objects like hair, etc.),the protection board IC will fail and
disconnect, and the battery will not work normally.
It is forbidden to use fast chargers that exceed the rated power of the battery. Use 5V/2A USB
charger.
If the remote control car is not used for a long time, the battery must be removed to prevent the
battery from being in a long-term low-power discharge state.
Please use 5V 2A USB charging plug.
In the charging state, the green indicator light of the charger will flash, if the charging is completed,
the green indicator light will be steady on.
The charging time is about 3 hours, please remove the charger in time after charging.
USB Adapter
(not included)
(5V/2A)

Q111 User Manual
Copyright ©2021 Ruko All Rights Reserved. 9
When you install or remove the battery cover of the car, you can use a tool to remove it,
please be careful to avoid scratches.
Ensure that the battery cover screws are tightened correctly to prevent the battery
from falling.
Please correctly connect the battery and the RC truck cable interface to ensure that it is
installed in place.
5 Operation
5.1 Pair the Transmitter
Install the Battery
The RC truck cable connects the battery.
Close the battery cover.
Tighten the screws.
Long press to turn on the remote control tank.
Press here
RC Truck Cable
③
①
②

Q111 User Manual
Copyright ©2021 Ruko All Rights Reserved.
10
5.2 Moving
Swipe right to NO to turn on the remote control.
Enter automatic pair, beep, beep, beep and beep three times, the blue light on the front of the car
and the indicator of the remote control are always on, means that the pair is successful.
① ②
Pull the throttle trigger
Push the throttle trigger
Forward
Backward
Turn the steering wheel
anticlockwise to turn left

Q111 User Manual
Copyright ©2021 Ruko All Rights Reserved. 11
When the remote control car is moving forward, it will brake when the throttle stick is
moved to the backward direction. Toggle the back button for the second time or hold
it for 3 seconds before the remote control car can go back.
5.3 Braking
Turn the steering wheel
anticlockwise 360°
Turn the steering wheel
clockwise 360°
Turn the steering wheel
clockwise to turn right

Q111 User Manual
Speed Changing: The remote control car adopts infinitely speed changing.
Speed control: The walking speed can be controlled by pressing the forward and backward
trigger range of the remote control to adjust the control speed. The greater the amplitude,
the faster the speed.
Steering speed control: the remote control car is equipped with a differential, which can
complete a smooth turn. The steering speed can be adjusted and controlled by turning the
steering button. The greater the amplitude, the faster the steering speed.
5.4 Speed Changing
Copyright ©2021 Ruko All Rights Reserved.
12
When the remote control car slows down or stops working, please check whether the
battery is low, and replace the battery when it is low.
Excessive friction when rotating 360 degrees on rough ground may cause the track to
fall. Please select a suitable ground to use this function.
After use, please pay attention to cleaning the body dust or foreign objects to avoid
blocking the spray holes or causing damage to the components.
The track of the remote control car is equipped with a self-adjusting function. It will
become longer if the track expands and shrinks when running on a hot ground for a long
time. When the length changes beyond the adjustment range, the track will fall off when
turning at high speed or rotating on the spot.

Q111 User Manual
Copyright ©2021 Ruko All Rights Reserved. 13
Remote control type: 2.4G full-scale gun-type remote control.
Remote control battery: 3pcs AA batteries (self-provided).
Remote control distance: 80 meters.
Body battery; 18650 7.4V 1500mAh.
Speed governor: stepless electronic speed governor.
Differential: double planetary differential.
Charging time: about 3.5 hours.
Use time: about 23 minutes /each battery.
Charging status: charging red light flashes green light, full of charge always bright red and
green light.
Drive type: track drive.
Speed: about 12 km/h.
Power gearbox: 380 motor.
Shock-absorbing suspension: self-adjusting.
Water tank capacity: about 50 ml.
Smoke time: continuous about 8 minutes.
6.1 Specification and Accessories
6.2 configuration parameter
6 Appendix
USB Cable Battery Crawler
CONTACT US FOR MORE TECH SUPPORT
[email protected]
+1 ( 949 ) 394 - 4635 ( Available from 6pm to 3am PDT)
Printed in China.

Q111 User Manual
Copyright ©2021 Ruko All Rights Reserved.
14
6.3 Common Problems and Solutions
Question Reason Solutions
The “smoke” becomes smaller
or stops
The rubber track falls off
1. The water in the tank is not
enough
2. The "smoke" nozzle is
clogged with dust or water
drops enter when adding water
3. The "smoke" function will
automatically stop one time
every 10 minutes
1. Violent turning or rotation on
rough ground, too much friction
will cause it to fall off
2. Playing for a long time on
high-temperature roads, the
temperature of the track will
rise and become soft, then the
rubber track falls off
3. Severe crawler wear
When the car is moving forward,
it will not go back directly even
putting backward button
When the remote control car
is moving forward, pressing
backward button at the first
time means brake function
Press the second time for the back
function, or holding it for 3 seconds will
also execute the back function
Short endurance time or no
charging
1. The battery is not fully
charged
2. The correct charger is not
used
1. The charging time of the remote control
tank is about 3 hours.
2. Use a 5V=2A charging head, and a
original charging cable
1. Fill water in time when there is no water
2. Clean up dust, water drops and other on
the metal sheet of the "smoke" hole
3. Press the "smoke" button again to turn
on the "smoke" function
1. Choose a suitable ground to play, and
operate slowly when turning on the ground
with high friction
2. Choose a suitable place to play. When
the temperature of the track is high, please
operate slowly
3. Replace the track
Please restart to pair, and do not touch the
forward and backward buttons when
turning on the remote control
Holded the forward or
backward button when the
remote control pairing
Holded the steering wheel
when the remote control
pairing
The forward and backward
buttons of the remote control
did not return to the right
position
Please restart to pair, and do not touch the
steering wheel when turning on the remote
control
Return the button of the remote control to
the original point, it is normal that there is
a slight sound of electric current
Change direction automatically
after turning on and pair
There is the sound of electric
current after turning on
Go forward or backward
automatically after turning on
and pair
The remote control car slows
down or stops running
1. Low battery
2. Play for a long time in hot
weather, automatical high
temperature protection
1. Use it after replacing a charged battery
or recharging the battery
2. Waiting for the temperature of the
remote control car to decrease

rukotoy.com
