rungu®kilimanjaro owners
manual
Congratulations on purchasing the Kilimanjaro
1
! Before you ride and make new tracks, please read the
following instructions carefully.
IMPORTANT- Standard Bearer Machines will not be liable for any damage or injury that may occur due
to operation of our trikes. By using the Kilimanjaro, you are agreeing to Standard Bearer Machines
Terms and Conditions and the warnings and conditions of the Generic Bike Manual which are included
with other files in the USB key accompanying the Kilimanjaro.
1
As the owner, you agree and are bound by all sales and transfer conditions as defined in “SBM Rungu Sales Terms
and Conditions US 2017a” or “SBM Rungu Sales Terms and Conditions US 2017 –Demo Model.” Copies of these
documents are available on the USB drive that ships with the product or upon request by e-mailing
[email protected].

V2.1 RUNGU Kilimanjaro User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 2
Contents
Parts identification........................................................................................................................................ 3
Unpacking and Assembly Instructions..........................................................................................................5
Tools required...........................................................................................................................................5
Unpacking and Assembly Instructions...................................................................................................... 6
Cautions and Safety .................................................................................................................................... 13
General Cautions and Warnings .............................................................................................................13
Riding the Kilimanjaro................................................................................................................................. 14
Kilimanjaro Operation Cautions..............................................................................................................14
Using the Front Suspension ....................................................................................................................15
Using the parking brake switch............................................................................................................... 15
Riding Safety ...........................................................................................................................................16
Tire pressure ...........................................................................................................................................16
Getting more information...........................................................................................................................16

V2.1 RUNGU Kilimanjaro User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 3

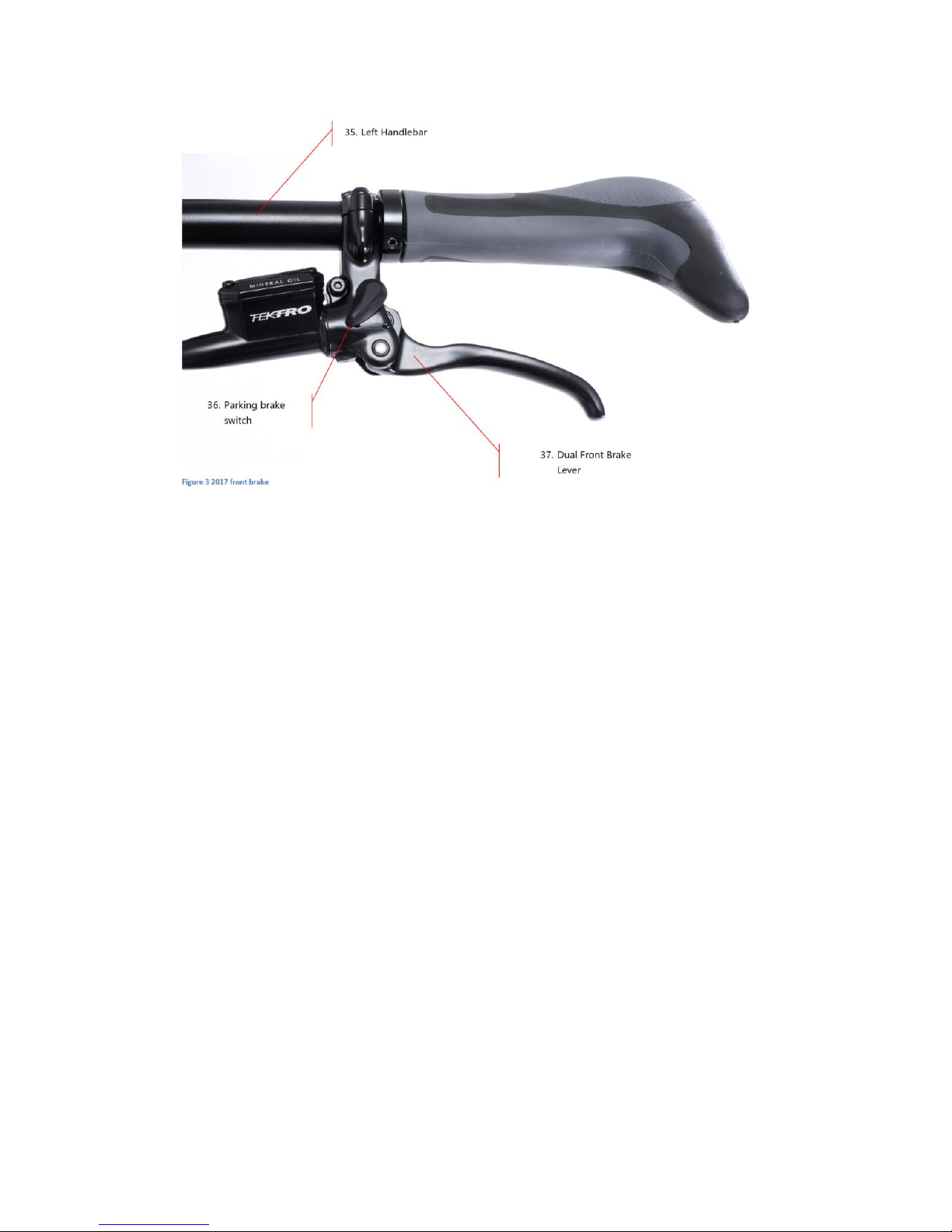

Parts identification
The following images show the names of various components on the Kilimanjaro

V2.1 RUNGU Kilimanjaro User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 4

V2.1 RUNGU Kilimanjaro User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 5
Unpacking and Assembly Instructions
Warning: Failure to follow instructions may lead to incomplete or faulty assembly that can result in
accidental rider injury or death.
Before you ride and make new tracks, please follow the assembly instructions carefully. The team at
Standard Bearer Machines recommends that you have the assembly performed by a qualified bike
mechanic.
Tools required
•5mm Hex wrench
•6mm Hex wrench
•Tire inflation pump (presta valve)
•Wire cutters or scissors to remove packing material

V2.1 RUNGU Kilimanjaro User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 6
Unpacking and Assembly Instructions
Warning: Failure to follow these instructions may lead to incomplete or faulty assembly that can
result in accidental rider injury or death.
1. The trike comes in a cardboard carton. After you have removed the binding straps and tape
from the top cover, remove the top cover on the front of the trike. If you intend to ship or
return the trike, please keep all packing materials.
2. Remove the accessory box containing Quick Release Skewers, USB document drive, and pedals.
3. Lift the frame and attached components from the carton.
CAUTION: THE KILIMANJARO WEIGHS 50 LBS (23 KG) USE TWO (2) PEOPLE TO REMOVE THE
TRIKE FROM THE PACKAGING TO AVOID INJURY
Accessory Box. May be
located elsewhere
inside the carton

V2.1 RUNGU Kilimanjaro User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 7
4. Disconnect the front wheels from the frame packaging and remove the protective packaging
from the forks.
5. Open the accessory box to remove the two quick release skewers from the packaging.

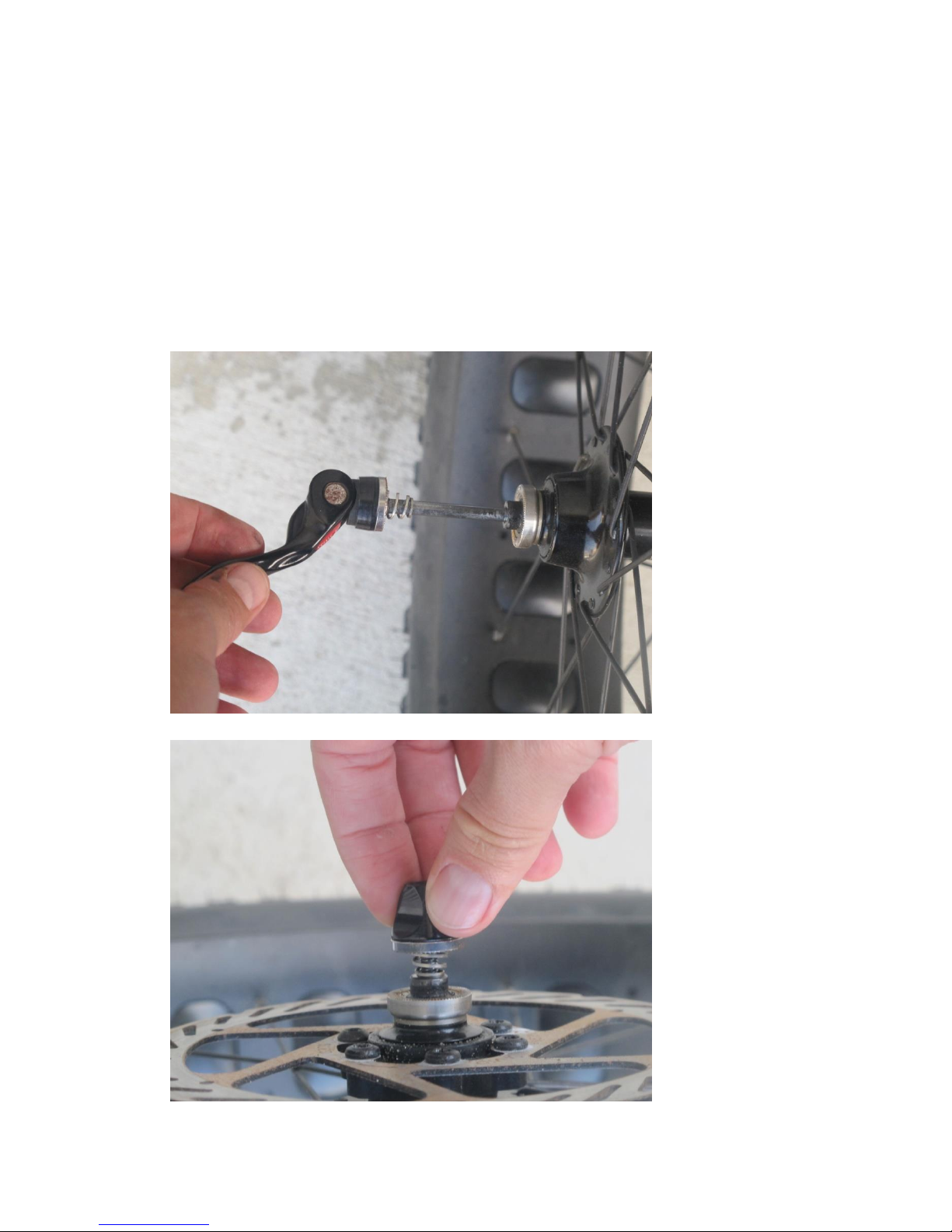

6. Select which wheel will be the right-side wheel and the left-side wheel. Unscrew the retention
nut from one of the quick-release skewers and insert the skewer into the left wheel from the
side of the brake disc as shown below.
7. Replace the retention nut as shown below.

V2.1 RUNGU Kilimanjaro User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 8
9. Mount the wheel to the left fork.
10. Tighten and close the quick-release once the wheel is mounted in the fork.
Warning: make sure to tighten the quick-release in the fork so that it cannot fall out of the
fork; failure to adequately tighten the quick-release can result in accidental rider injury or
death.
11. Place the trike aside while performing the next two assembly steps.
12. Unscrew the retention nut from one of the quick-release skewers and insert the skewer into the
right wheel from the side opposite to the brake disc, as shown below.
13. Replace the retention nut.

V2.1 RUNGU Kilimanjaro User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 9
14. Mount the wheel to the right fork.
15. Tighten and close the quick-release once the wheel is mounted in the fork.
Warning: make sure to tighten the quick-release in the fork so that it cannot fall out of the
fork; failure to adequately tighten the quick-release can result in accidental rider injury or
death.
16. On a level surface, stand the trike upright and remove the packaging from the front steering
assembly, then remove the handlebars from the frame and packaging.
17. Use the 5mm hex wrench to loosen the handlebar retention screws as shown below
18. Insert the right and left handlebars into the stems. Rotate the handlebars vertically to ensure
the best fit for you.
19. When you have found the best fit for each handlebar, ensure that the inside end of each
handlebar extends up to 30mm as depicted below and then tighten all four retention screws.
Use a pattern of tightening the upper screw and then bottom screw instead of tightening both
top screws and then the bottom screws.

V2.1 RUNGU Kilimanjaro User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 10
Warning: Be careful to set the handlebar length to 30mm or more. Setting the handlebar end
to less than 30 mm can cause the Kilimanjaro steering to lock making the trike difficult to
control.
Watch the video “Rungu Steering Quality Check” on your RUNGU USB drive for more
information.
20. Use the pattern shown below to tighten the handlebar clamp screws.
Warning: Tightening handlebar clamp bolts beyond 6Nm (53 in lbs.) or failing to align the bolts
with the threads in the stem may strip threads in stem leading to insufficient tightening of the
handlebar. Failure to tighten handlebar sufficiently may result in unexpected handlebar
rotation that can result in accidental rider injury or death.
21. Remove the remainder of the packing materials.
1
2
4
3
